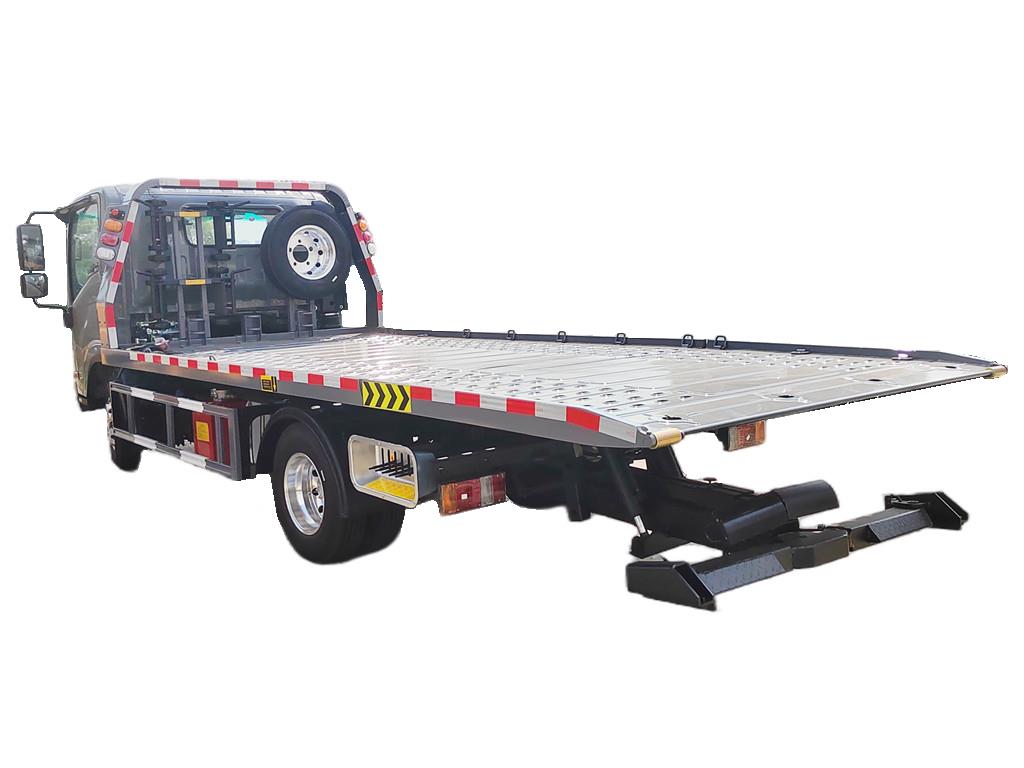

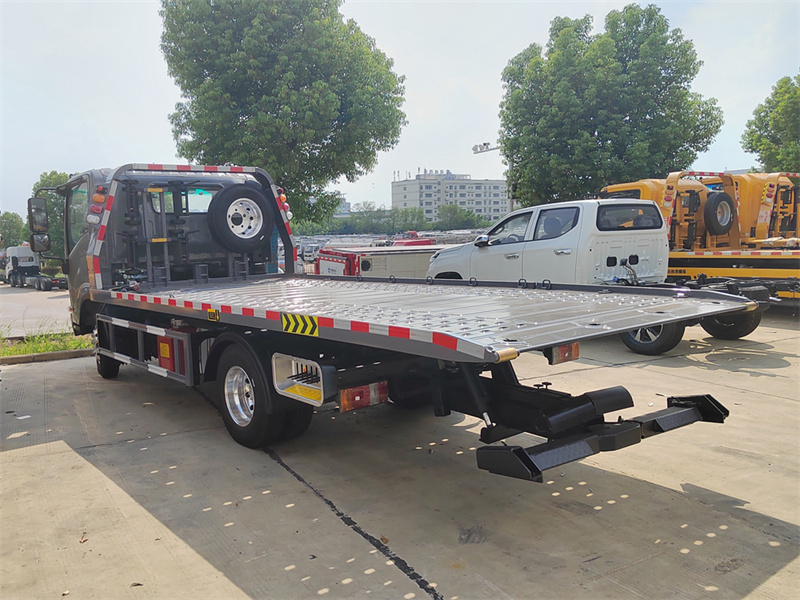

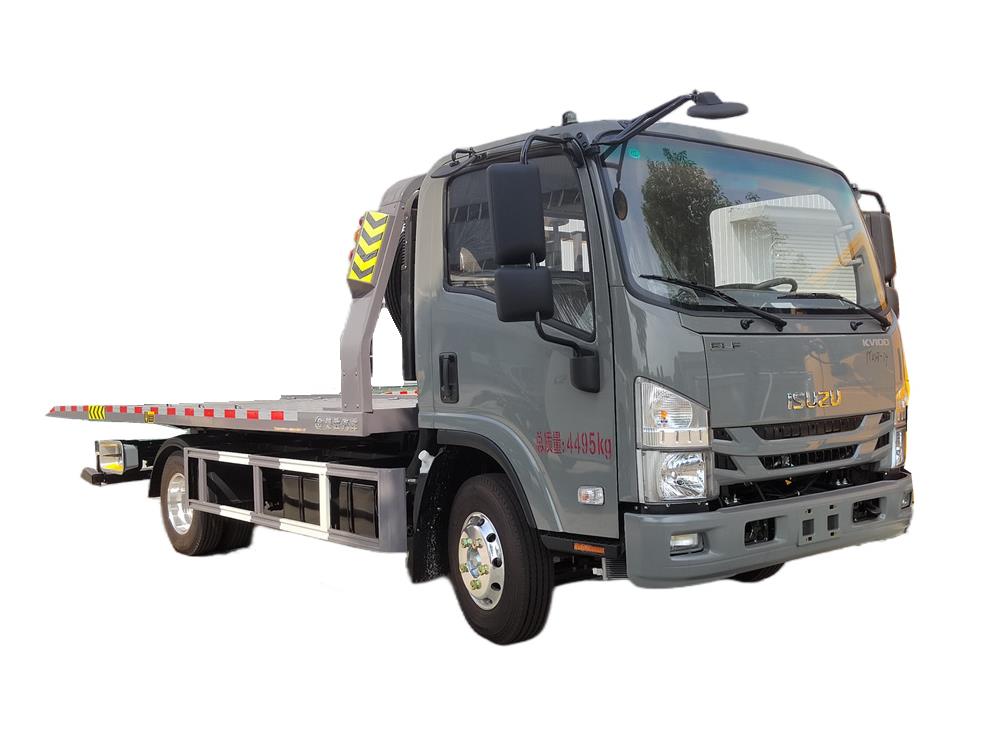

The Isuzu Flatbed Wrecker Tow truck is a powerful towing vehicle used for hauling damaged, non-moving vehicles or other cargo. which also can be called rollback tow truck, car carrier truck, road recovery truck. It has a flatbed cargo platform that can tilting up and falling down and extend horizontally; a towing winch with capacity 2tons to 30tons and towing system for safely fixing and towing the vehicle; and safety measures and equipment to ensure safety during transportation. This makes the Isuzu flatbed wrecker a versatile tool suitable for a variety of hauling and transportation needs.
Work capacity:
5 TonsTruck model:
PT5070TQZ05PEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed manualRemarks:

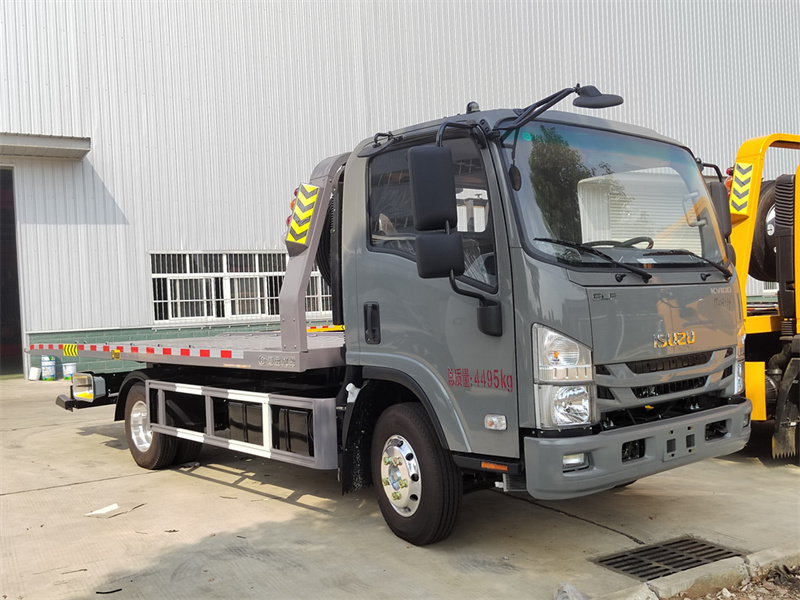

Japanese ISUZU NPR truck mounted flatbed wrecker, with 5.5m working platformIsuzu tow truck is also can be called Isuzu flatbed wrecker, Isuzu breakdown truck, Isuzu recovery truck, Isuzu recovery lorry, which is a truck used to transport disabled or illegally parked motor vehicles to another location (generally a repair garage or impound lot) or to recover vehicles which are no longer on a drivable surface. Less commonly, Isuzu flatbed wrecker truck or tow dollies may transport a car that is in driveable condition; this is distinct from motor carriers that regularly transport multiple cars simultaneously. Towing services by Isuzu flatbed wrecker are generally provided by an emergency road service operator. Isuzu recovery truck are often towed in the case of breakdowns or collisions, or may be impounded for legal reasons. Isuzu tow truck has multiple functions such as lifting, pulled and lift traction. It is mainly used for road vehicle breakdown, city peccancy vehicles and emergency rescue etc.

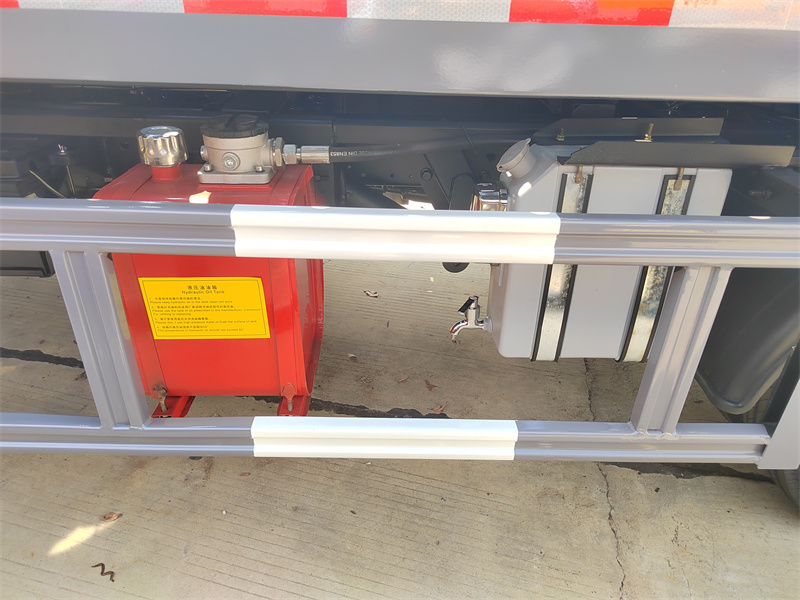

Isuzu NPR Flatbed Wrecker truck consists of the chassis, hoisting equipment,towing hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.The Isuzu road recovery truck can hoist and underlift heavy duty break down cars or trailers and also be with other special functions, mainly used in highway and city road obstacle cleaning.
1. Purpose of Isuzu Recovery Truck: Breakdown Vehicle / wrecker/recovery truck/towing truck is used for towing break-down trucks, cars, vehicles, bus or trailers on road. With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Capacity range of Recovery Truck: 2ton, 3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 35ton, 40ton, 50ton, 60ton.
3. Spare parts of Recovery Truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate.
Technical Specifications for ISUZU NPR flatbed wrecker truck:
| General Technical Parameters for ISUZU NPR 5tons road recovery truck |
|||
| Overall Dimension | 5995x2300x2550 (mm) | ||
| Gross Vehicle Weight | 7300kg | ||
| Curb Weight | 3800kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | ISUZU | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Power | 88 KW/120HP | ||
| Emission Standard | EURO 5/6 | ||
| Displacement | 2999 ML | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 2.5T/4.8T | ||
| Wheel Base | 3360(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||

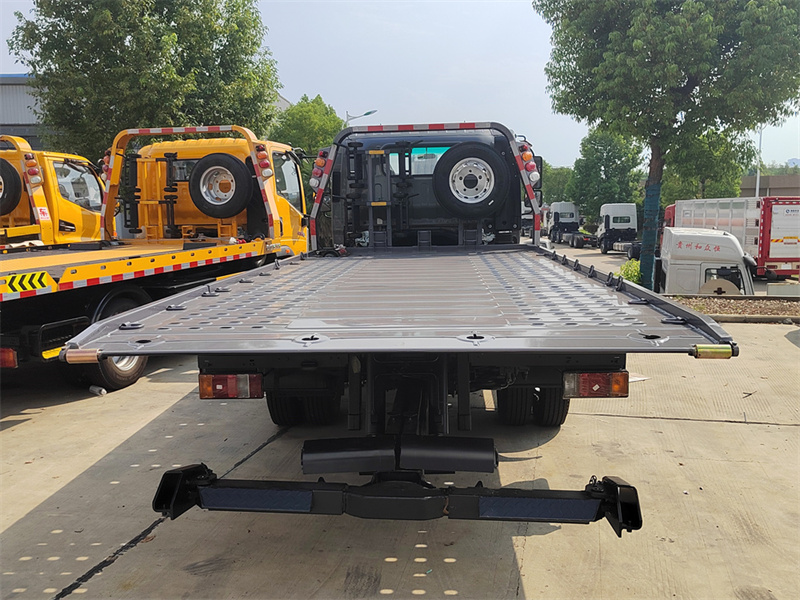

| Flatbed | Dimensions | 4200x2320 (mm)+Telescopic Platform 1300mm |
|
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||

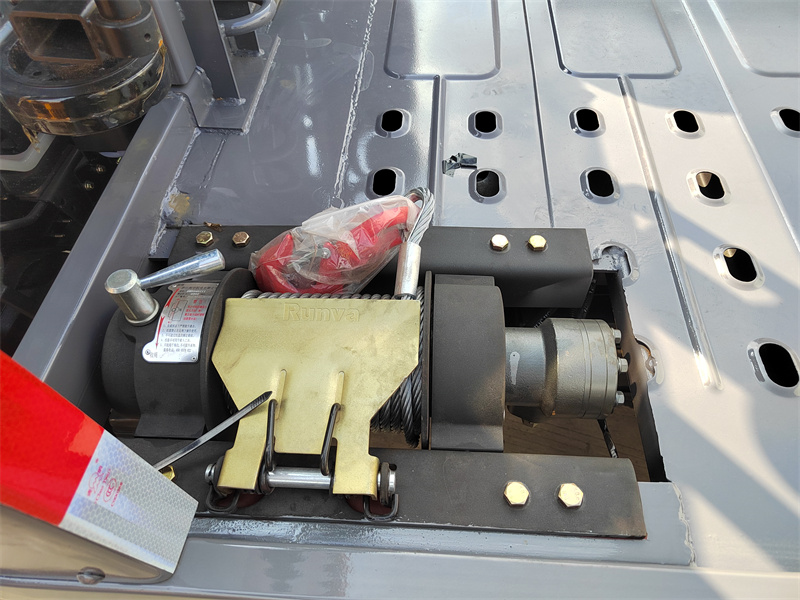

| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||

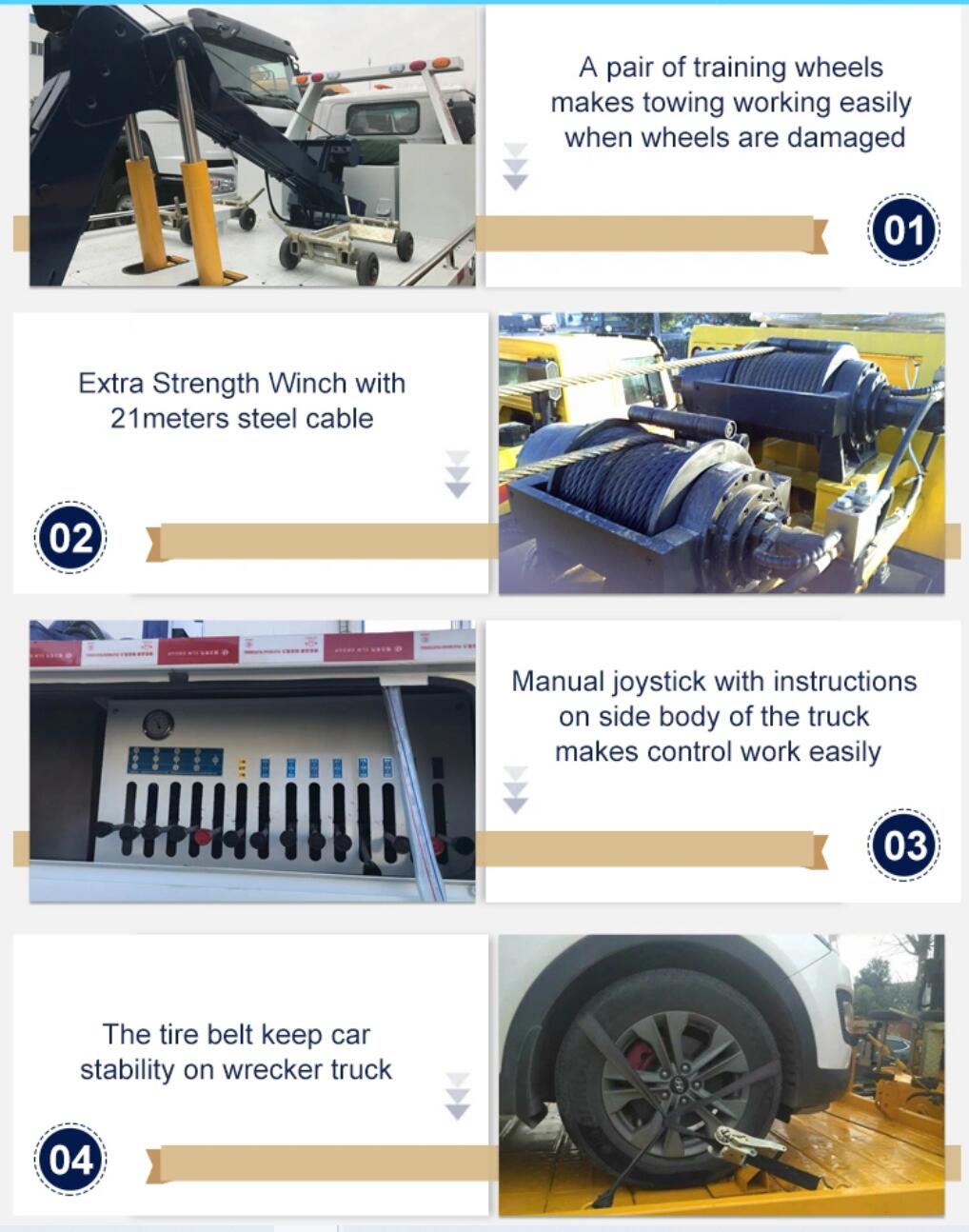

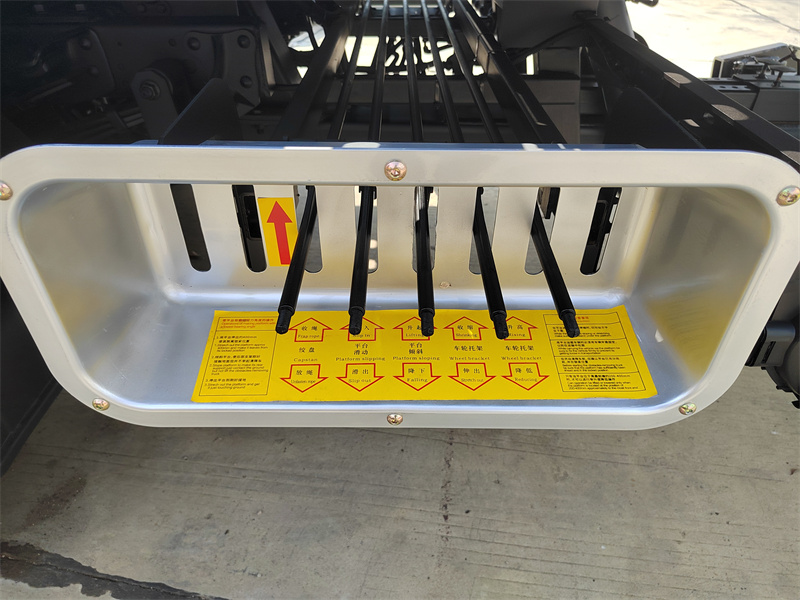

| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars |
||
What are the advanced features for ISUZU flatbed wrecker truck from POWERSTAR?
Isuzu Flatbed Wrecker Truck is a recovery truck produced by POWERSTAR Company. It based on Japanese ISUZU technology chassis and has the following characteristics. The Isuzu flatbed wrecker truck adopts a flat-bed body design, and its flat cargo platform can tilt and extend horizontally. It is typically used to haul damaged, non-moving vehicles or other cargo. The following is a detailed introduction to the Isuzu recovery truck:

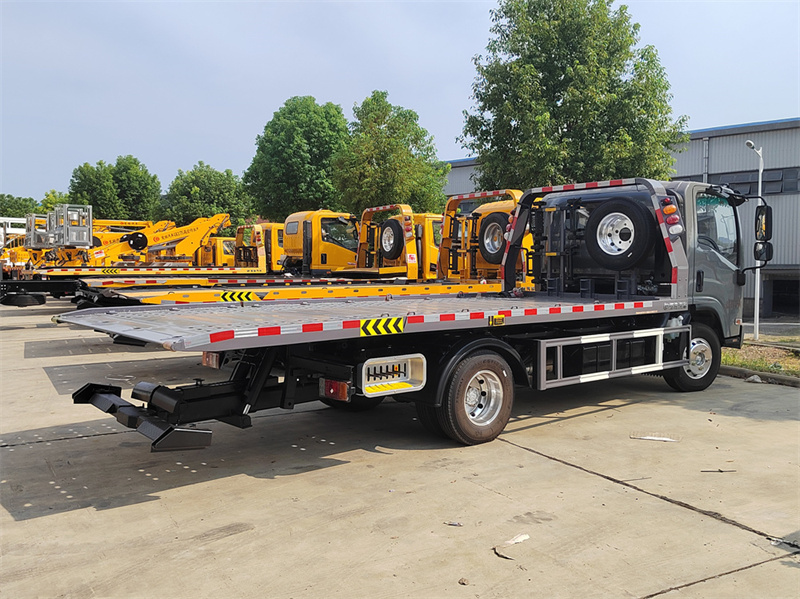

Flatbed Platform: The Isuzu flatbed wrecker tow truck has a very simple body design that contains a flat cargo platform. The platform is usually made of strong and durable metal materials and has enough load capacity to handle different types and sizes of vehicles or cargo.
Variable Cargo Platform: The cargo platform of an Isuzu recovery truck can tilt and extend horizontally. This design allows the platform on the trailer to be lowered to the ground, making it easy for the trailer to haul low-riding or heavily damaged vehicles. At the same time, the platform’s extension function makes it suitable for handling longer cargo, such as engineering equipment or long-dimension loans.
Towing Capacity: The Isuzu towing truck is equipped with a powerful towing and towing system. Tow trucks Isuzu often use devices such as cranes and cables to safely lift and secure the vehicle to be towed on a flat platform. This allows the trailer to tow the damaged vehicle securely.
Safety measures and equipment: To ensure safety, Isuzu flatbed road wrecker trucks are usually equipped with necessary safety measures and equipment. This may include non-slip floor surfaces, safety straps, safety hooks, etc. to ensure that the vehicle or cargo being hauled remains stable and does not slip during transportation.
Versatility of Usage: While widely used in the vehicle hauling industry, Isuzu recovery trucks can also be used in other areas. It can be used to handle and transport various goods, such as construction materials, agricultural equipment, construction machinery, etc.
