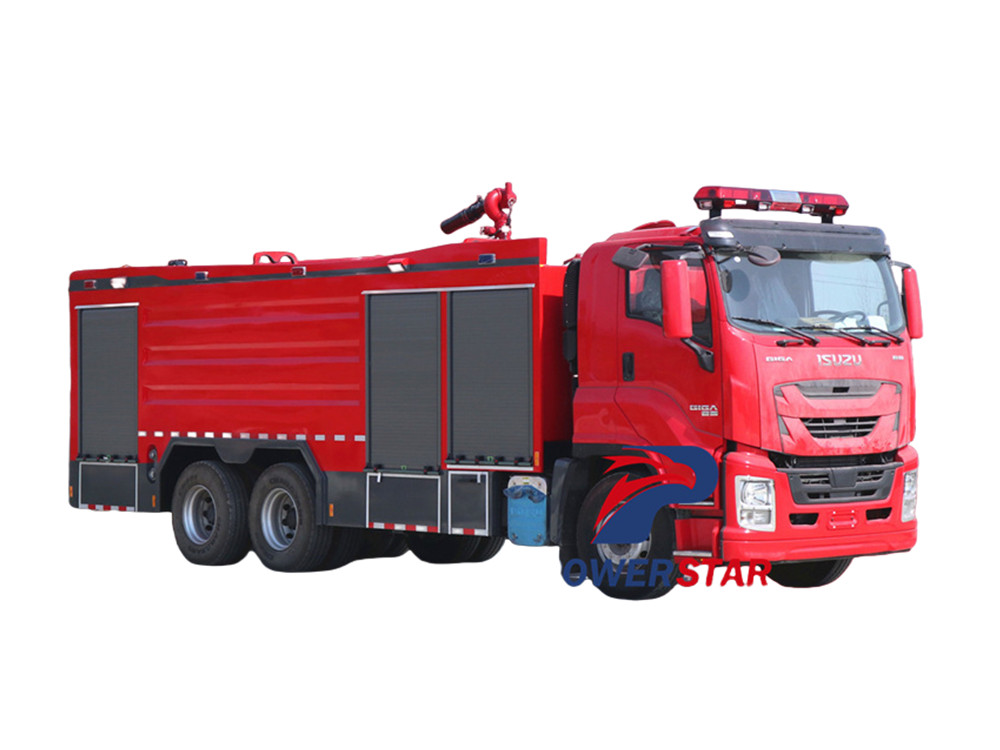

Isuzu GIGA airport rescue fire truck is a foam water fire truck, a special vehicle designed for airport emergency rescue. It is modified on the basis of Isuzu GIGA 6x4 heavy truck chassis and equipped with Isuzu 6UZ1-TCG61 380HP engine, which has strong power and is matched with FAST 12-speed transmission, making gear shifting smoother. The body has 8 cubic water tanks, 2 cubic foam boxes, as well as a pump room and tool box, providing strong support for fire fighting.
Work capacity:
12000LTruck model:
PT5250GZWEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
10000L water tank and 2000L foam tankIsuzu heavy duty airport rescue fire truck also called Isuzu Giga 6x4 foam water fire truck,Isuzu aircraft rescue and firefighting truck,Isuzu GIGA airport fire truck,Isuzu GIGA 12cbm rescue fire fighting truck,Isuzu GIGA foam fire pumper truck,Isuzu 6x4 foam water fire tender,Isuzu GIGA foam fire engine. The Isuzu heavy duty airport rescue fire truck is an example of firefighting excellence designed specifically for airport emergencies. This impressive vehicle combines power, flexibility and professional firefighting facilities to ensure the safety of airport personnel and passengers.

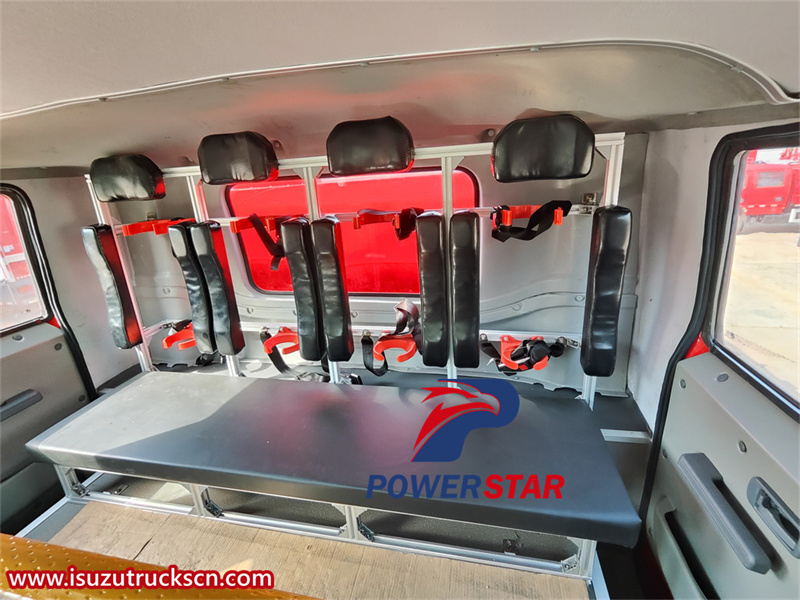

The vehicle is modified on the basis of the Isuzu GIGA 6x4 heavy truck chassis and is equipped with an Isuzu 6UZ1-TCG61 380HP engine, which is powerful and matched with a FAST 12-speed transmission, making gear shifting smoother. The cab is a double-row cab that can carry 2+4 firefighters, which enables the vehicle to transport more firefighters to the airport rescue site, greatly improving rescue efficiency. The body is equipped with a 10-cubic-meter water tank, a 2-cubic-meter foam box, as well as a pump room and a tool box, providing strong support for firefighting.
Key Features
★ ISUZU GIGA chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu GIGA 6x4 foam water fire truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
9550*2540*3570mm |
|
|
GVW |
25000kg |
|
|
Curb weight |
12950kg |
|
|
Chassis brand |
ISUZU |
|
|
Drive type |
6*4,LHD |
|
|
Chassis Description |
||
|
Chassis model |
ISUZU GIGA 6x4 |
|
|
Cab |

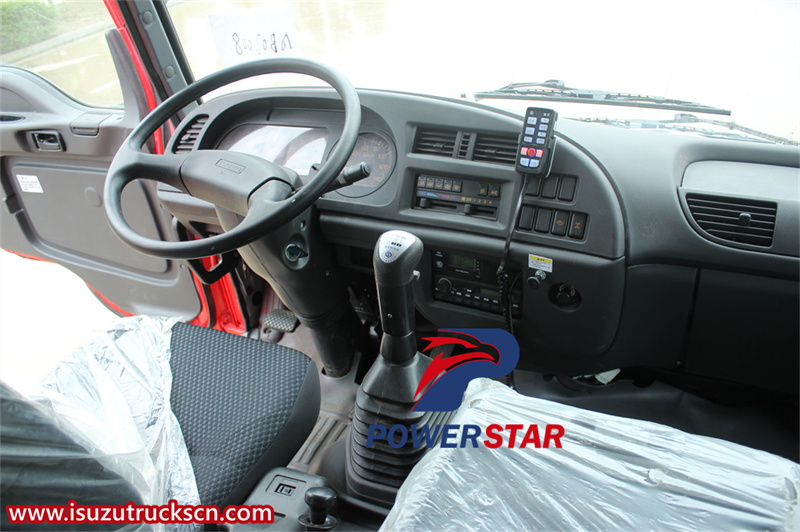

ISUZU double row cab, 6-standard seats, safety belt with double locking mechanism, exterior sunroof, air-conditioner. |
|
|
Wheelbase |
4600+1370mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
6UZ1-TCG61 |
|
Horse power |
380HP/279Kw |
|
|
Displacement |
9839ml |
|
|
Max Torque |
1800N▪m |
|
|
Emission |
EURO 6 |
|
|
Gear box |
Model |
FAST 12-speed,manual |
|
Axle |
Front |
7 tons |
|
Rear |
18tons |
|
|
Tanker Description |
||
|
Tanker capacity |
Water tanker |
10cbm, carbon steel |
|
Foam tanker |
2cbm, carbon steel |
|
|
Configuration |
1 set manhole with quick lock and open device; |
|
|
Fire pump |
Model |
CB10/60, normal pressure pump |
|
Flux |
60L/S |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
7m |
|
|
Fire monitor |
Model |
PL8/48 |
|
Pressure |
0.8Mpa |
|
|
Range |
Water≥70m |
|
|
Foam≥60m |
||
|
Rotation angle |
-45～70° |
|
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
|
The Isuzu Giga 6x4 Foam Water Fire Truck, as a heavy-duty fire truck designed for airport rescue, demonstrates excellent firefighting performance and high adaptability. This fire truck not only inherits the durability and reliability of the Isuzu brand, but also plays an important role in the field of airport rescue.

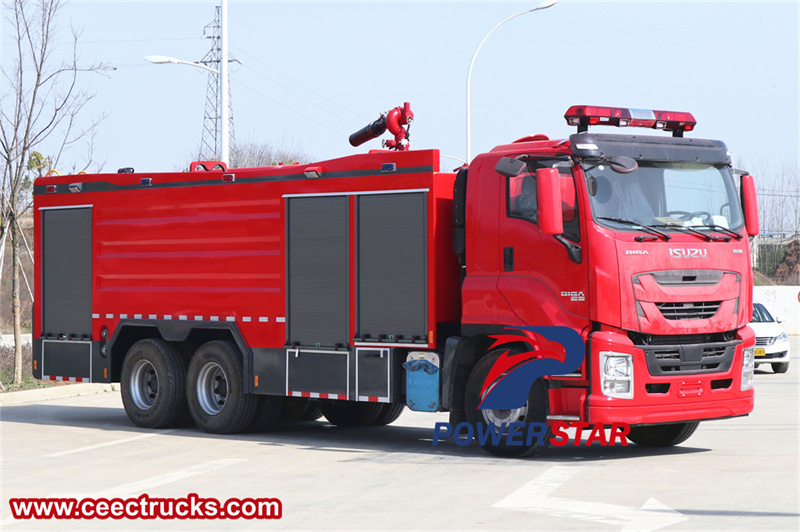

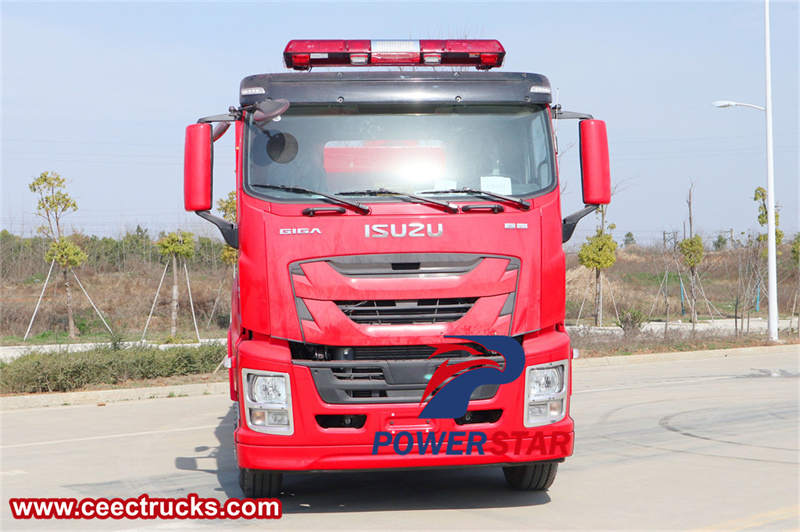

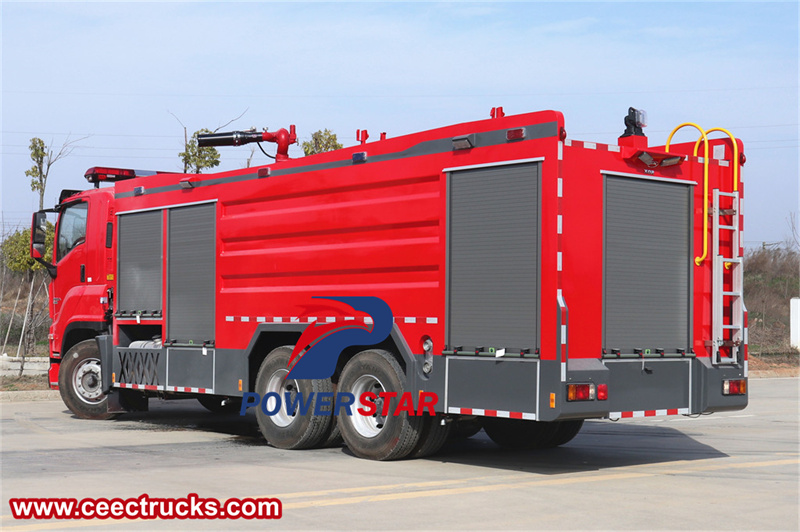

Isuzu heavy duty airport rescue fire truck

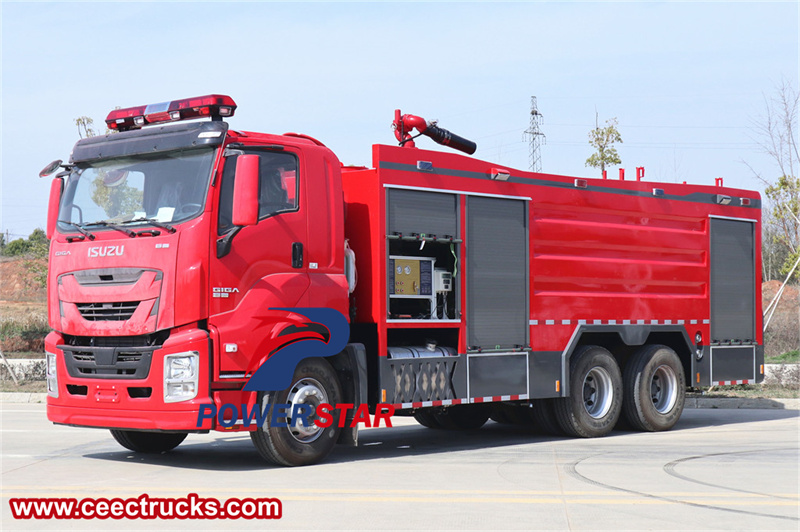

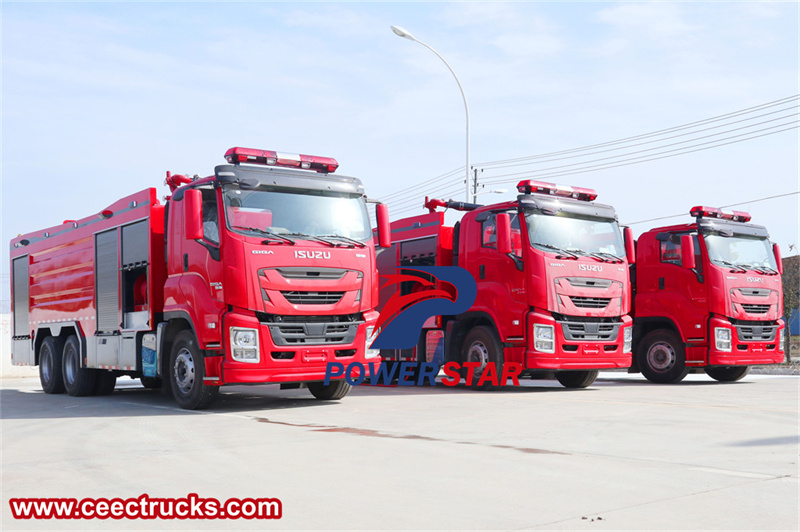

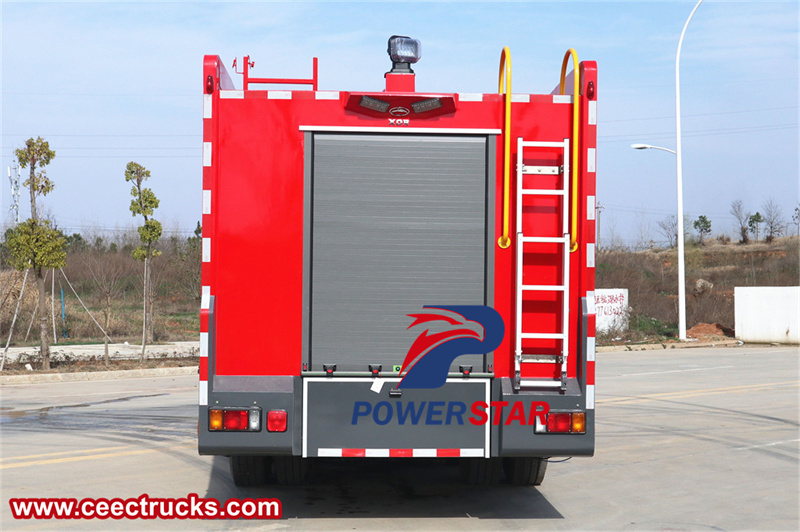

Isuzu GIGA airport fire truck

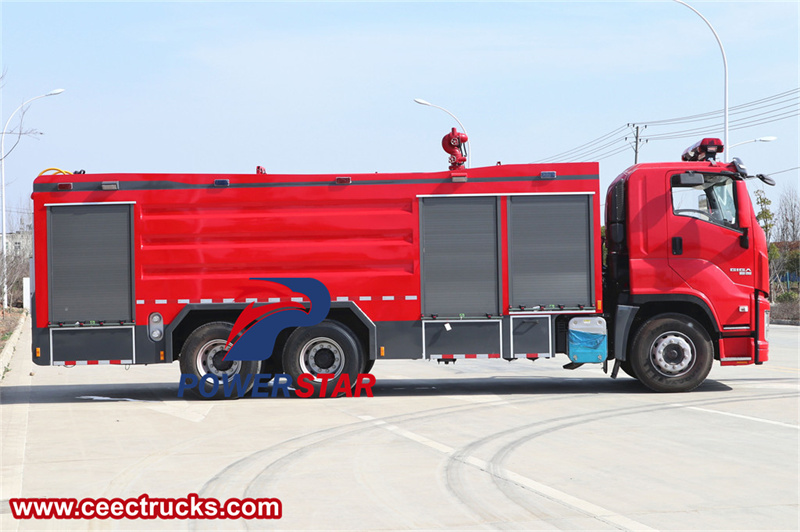

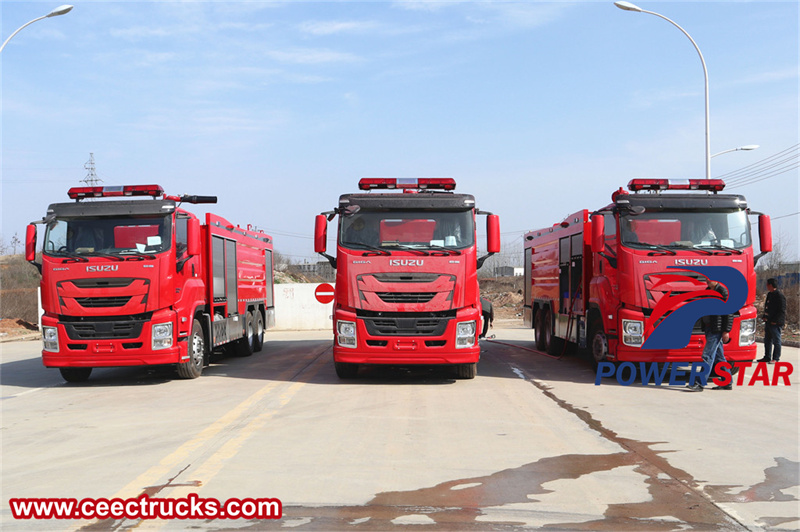

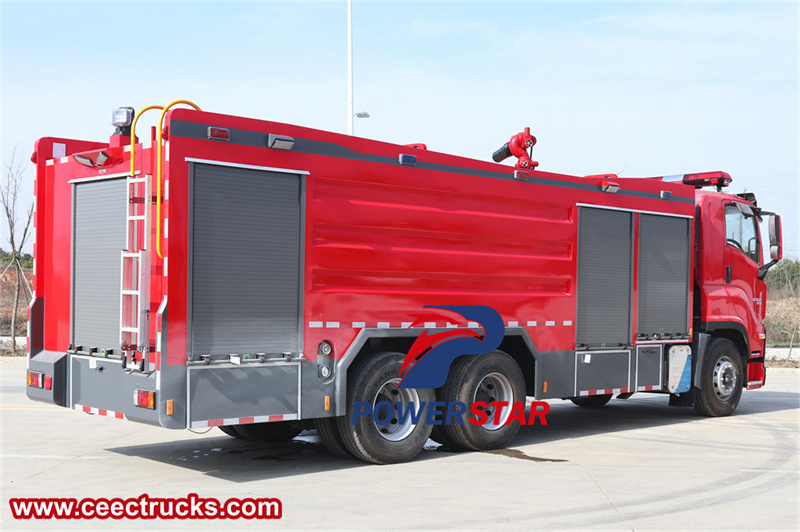

Isuzu aircraft rescue and firefighting truck
★ CB10/60 fire pump and PL8/48 fire monitor
The firefighting capabilities of the Isuzu Giga 6x4 foam water fire truck are further enhanced by its advanced CB10/60 fire pump and PL8/48 fire monitor, two key components that elevate its firefighting capabilities to unparalleled levels. These high-performance systems work together to provide powerful and precise firefighting capabilities, allowing firefighters to effectively extinguish fires in challenging airport rescue scenarios.
● CB10/60 fire pump
The CB10/60 fire pump is one of the core power sources of this fire truck and is designed for high-pressure, high-flow firefighting operations. This pump has excellent performance and reliability, and can quickly deliver large amounts of water or foam mixture to the fire scene.
·Flow and pressure: The CB10/60 fire pump can provide a maximum flow of 60 liters/second while maintaining stable operation under a certain pressure.
·Material and structure: The pump body is made of high-strength, corrosion-resistant alloy materials to ensure stable performance after long-term use in harsh environments. The internal structure has been optimized to reduce flow resistance and wear, and improve the efficiency and service life of the pump.

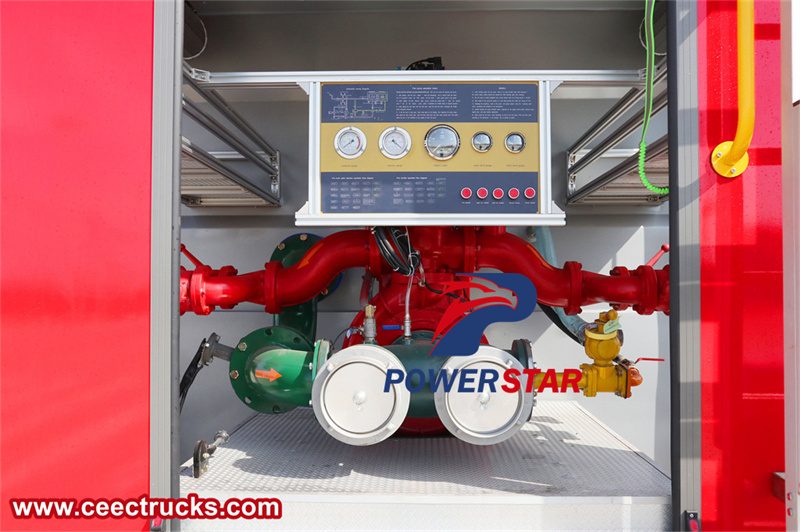

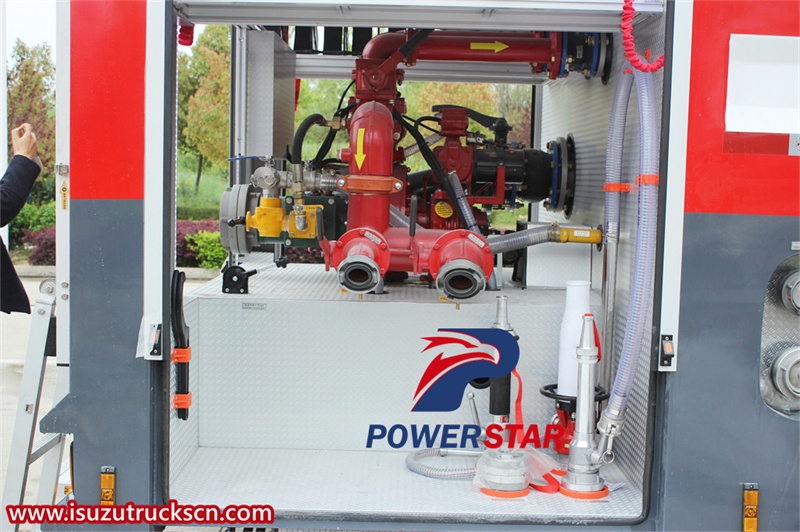

CB10/60 fire pump
·Control system: The pump is equipped with an advanced control system, including a pressure regulator, flow meter and automatic protection device. These devices can monitor the working status of the pump in real time, ensure that the pump operates at optimal performance, and automatically cut off the power supply or take other protective measures under abnormal conditions.
·Easy to operate: The design of the pump fully considers the ease of operation, the control panel is reasonably laid out, and the operation buttons and indicator lights are clearly visible. Firefighters can control the start, stop, flow and pressure of the pump through simple operations.

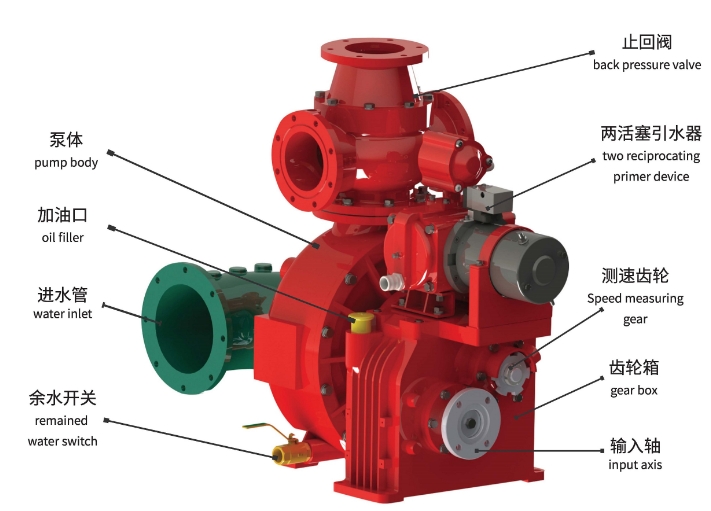

CB10/60 fire pump
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3520±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |
● PL8/48 Fire Cannon
The PL8/48 fire cannon is another important equipment on this fire truck. It can spray water or foam mixture to the fire scene at extremely high pressure and range, and directly strike the fire source.
·Range and flow rate: The maximum range of the PL8/48 fire cannon can reach tens of meters or even farther (the specific range depends on the pressure of the pump and the adjustment angle of the cannon), and the maximum flow rate can reach 48 liters/second. This enables the cannon to accurately strike the fire source at a long distance, effectively reducing the risk of firefighters approaching the fire source.
· Adjustment function: The cannon has horizontal and vertical adjustment functions, and firefighters can flexibly adjust the cannon's spray direction and angle according to the location and shape of the fire source. At the same time, the cannon's flow and pressure can also be fine-tuned through the knob on the control panel to adapt to different firefighting needs.

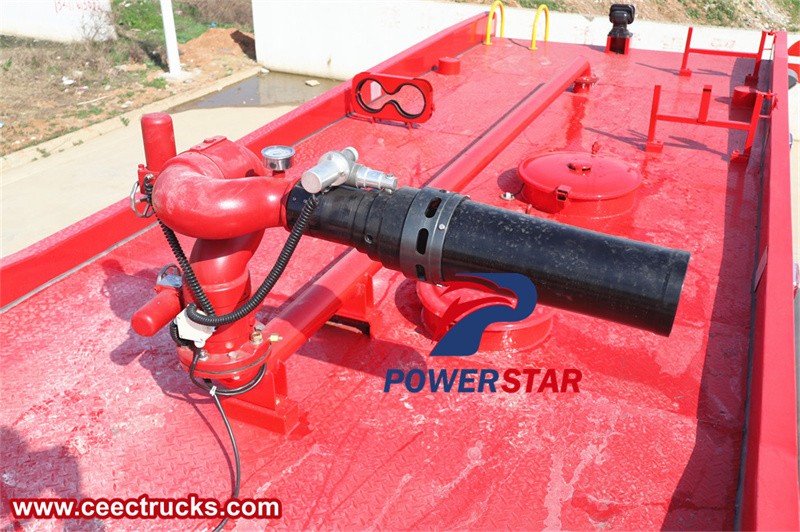

PL8/48 fire monitor
· Material and structure: The cannon body is made of high-strength, corrosion-resistant materials, which can withstand the impact of high-pressure water flow and the influence of harsh environments. The internal structure is precisely processed and assembled to ensure the smooth flow of water and the accuracy of the spray.
· Convenience of operation: The operating mechanism of the fire cannon is reasonably designed, and firefighters can easily control the adjustment and spray of the cannon manually or electrically.
The CB10/60 fire pump and PL8/48 fire cannon are seamlessly integrated with the firefighting system of the Isuzu Giga 6x4 foam water fire truck, allowing firefighters to respond quickly and decisively to airport fires, where accuracy and speed are critical. These advanced systems are designed to withstand the rigors of firefighting operations, ensuring reliability and performance in the harsh conditions common in airport rescue scenarios.

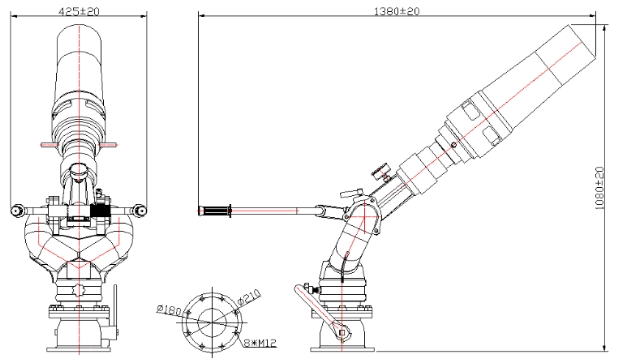

PL8/48 fire monitor
|
Model |
Flow （L/s） |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Length × Width × Height （mm） |
Weight （Kg） |
|
|
Water |
Foam |
|||||||
|
PL8/48 |
48 |
≥70 |
≥60 |
0.80 |
-45～+70 |
0～360 |
1440*425*600 |
27 |

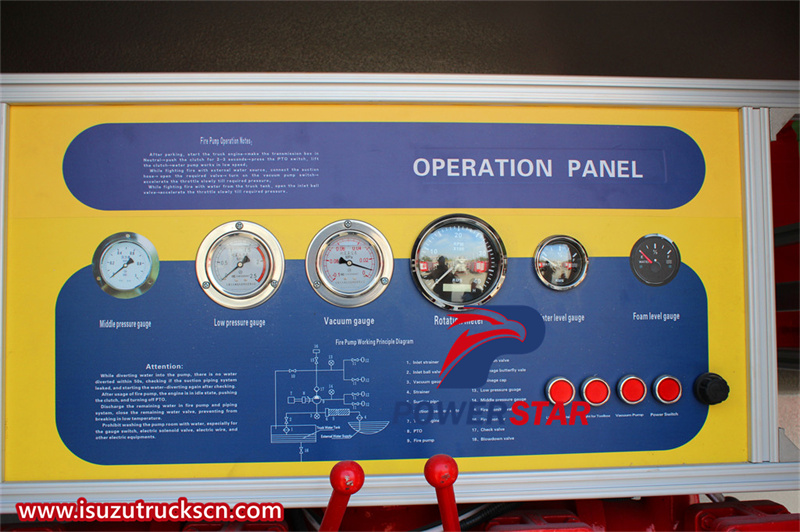

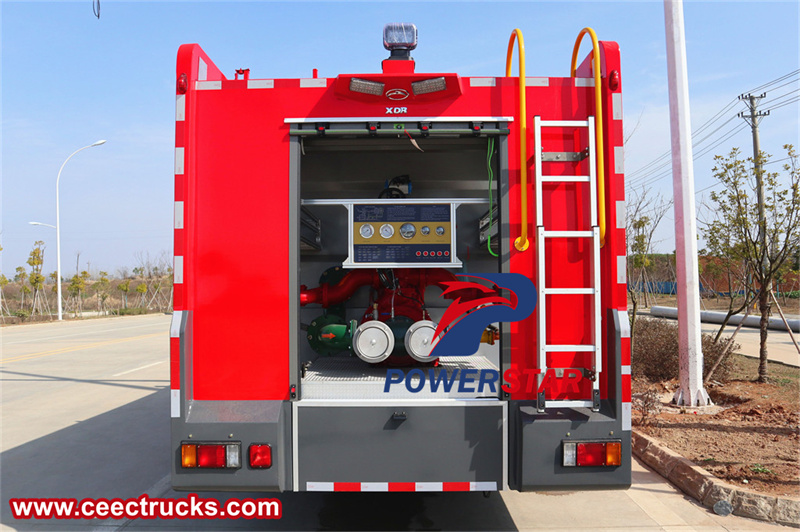

Control panel
★ Fire equipment

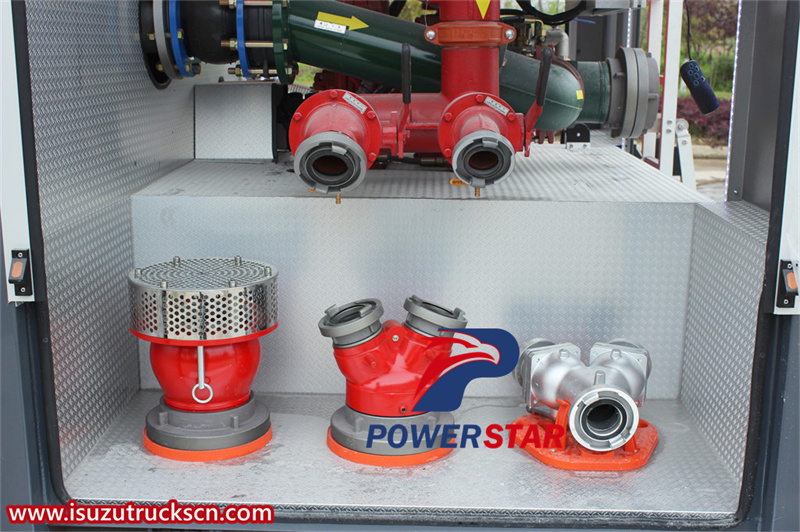

Water collector Water distributor Water filter
Water gun and foam gun

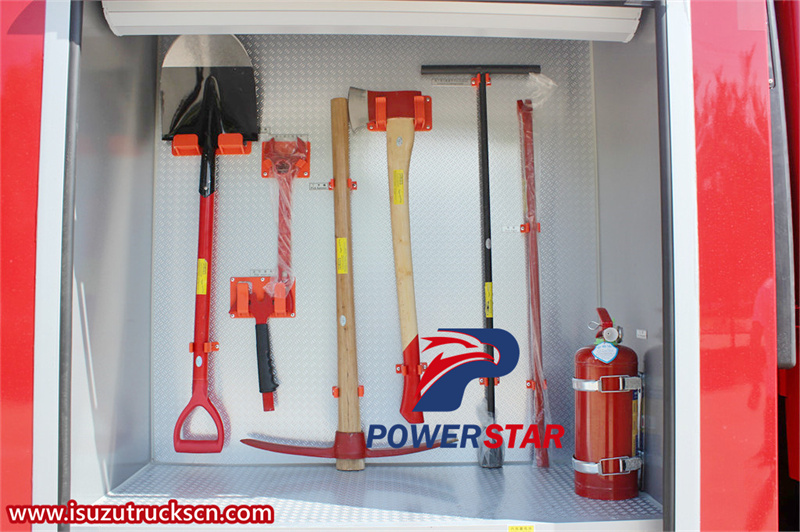

Fire wrench, fire axe, pickaxe, shovel，fire extinguisher

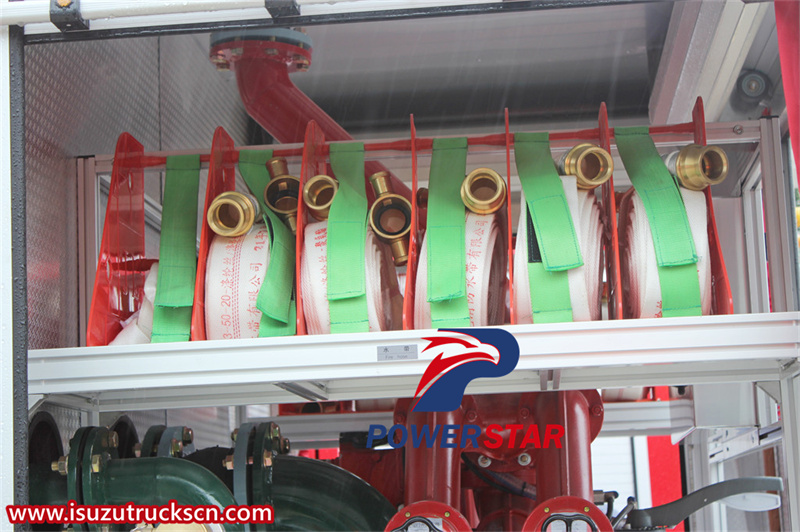

Fire horse
