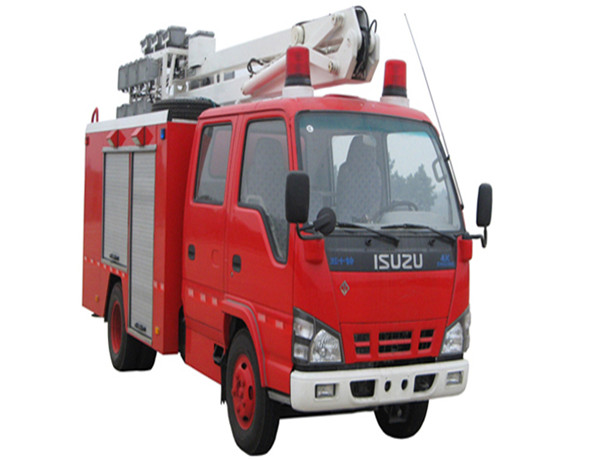

Double Cabin Isuzu Lighting Fire Truck with Light System
Order(MOQ):
1Double Cabin Isuzu Lighting Fire Truck with Light System
Tags: Best quality Double Cabin Isuzu Lighting Fire Truck with Light System manufacturer, Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Main specifications:
|
NKR77/600P Light-duty chassis for Fire-fighting application |
||
|
Model |
PT5070GXF |
|
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
3360 mm |
|
|
Overall Dimension |
5825×1890×2860 mm |
|
|
Light Mast System |
Ground height≥8m，Working Cycle time＜500s，Level rotation time＜180s，Level rotation angle:-175°to +175°，Elevation angle≥+15°，Depression angle≤-30°，elevation and depression time≤120s. |
|
|
Lamp |
Main lamp:4×1000W， Mobile lighting:2×400w |
|
|
Vehicle generator |
power:5kW，380/220V，Electric control box is provided with the dustproof, waterproof, short circuit and earth leakage protection device. |
|
|
Cab |
Double cab with Four doors, 5 seats with safe belts. |
|
|
Engine |
Model: |
4KH1-TCG40 |
|
Type: |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
|
Max. Power: |
88 KW (120HP) |
|
|
Gearbox |
MSB 5-shift, mechanical type, 5 forward and 1 reverse with |
|
|
Tire |
7.00-16 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
100 km/h |
|
Accessories List:
(With below equipment, you can put into fire-fighting immediately)
