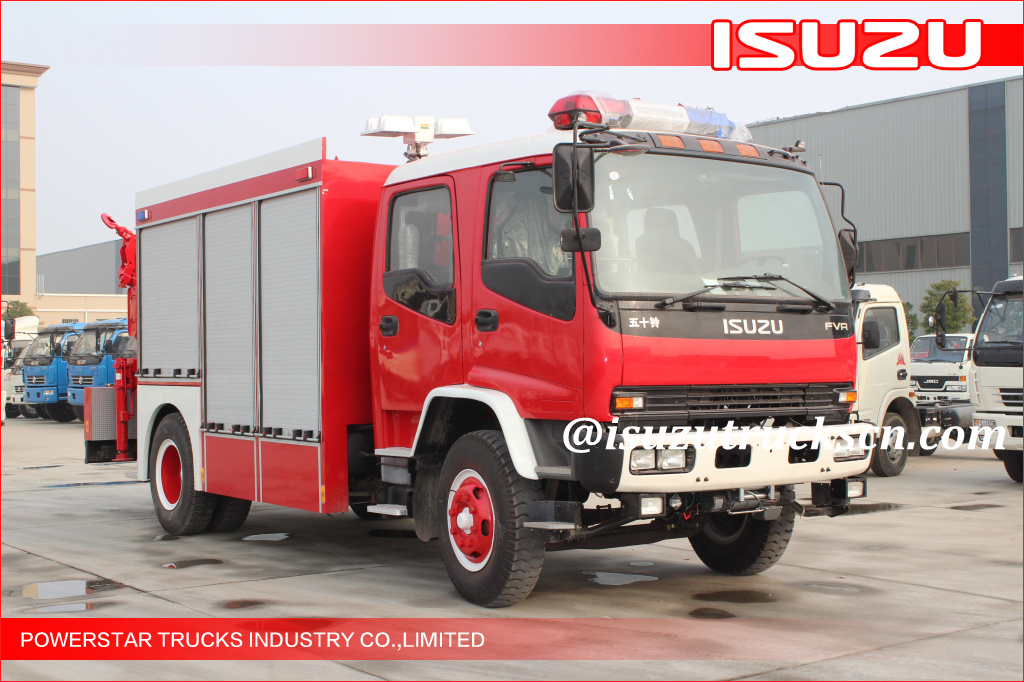

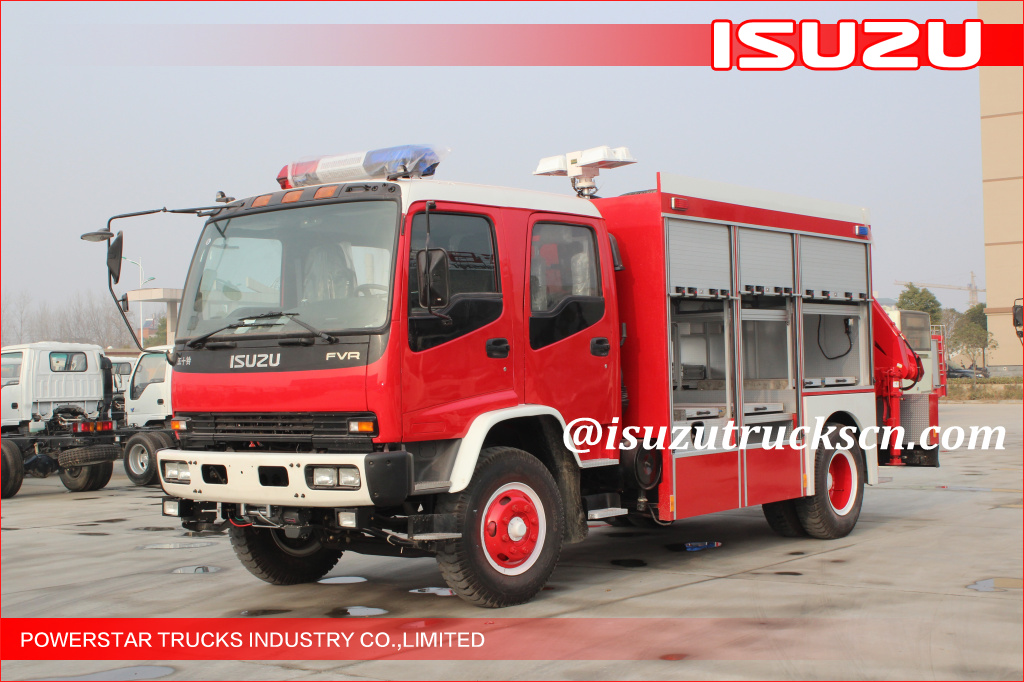

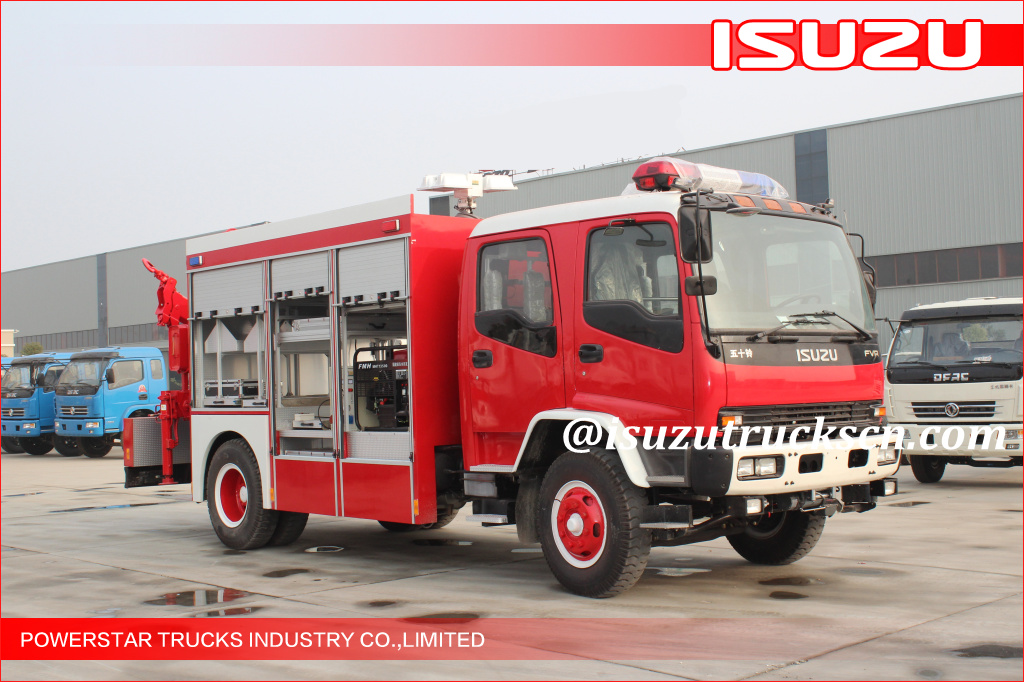

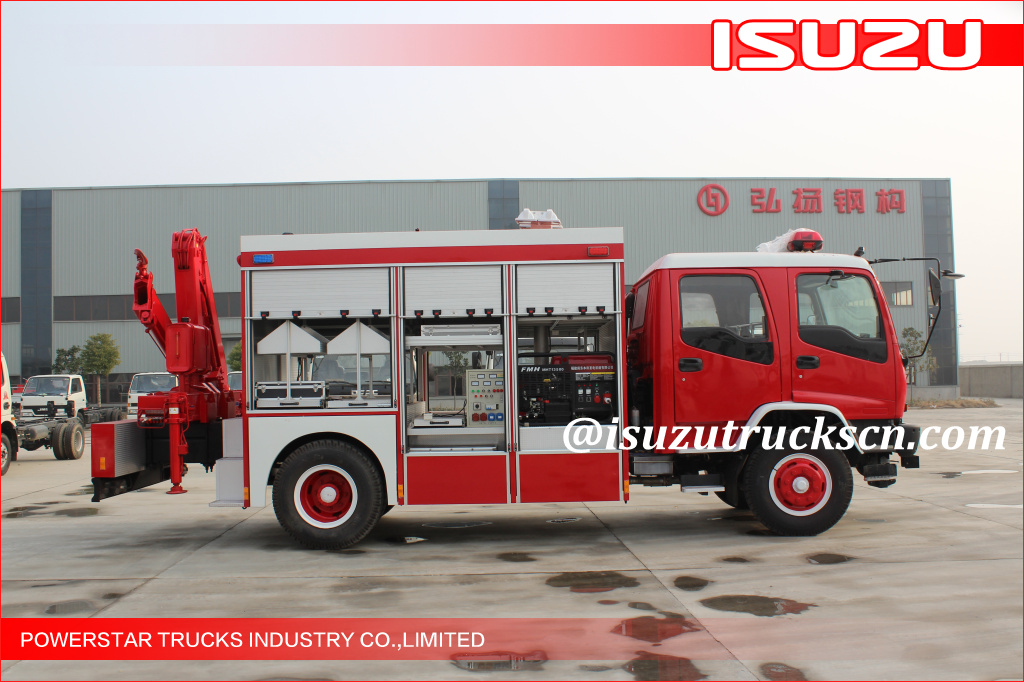

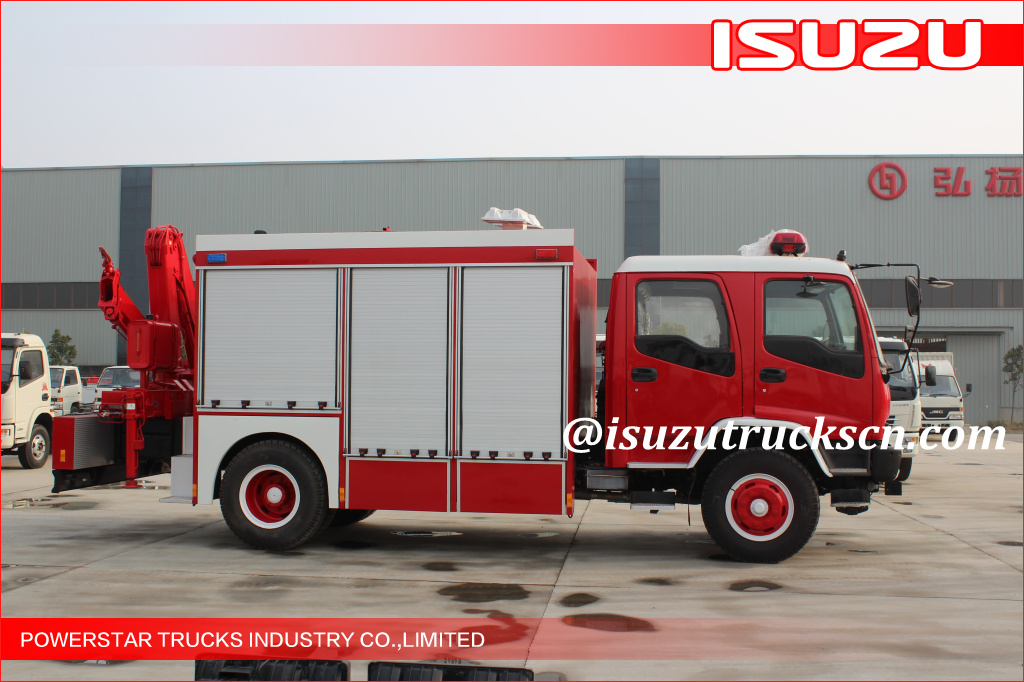

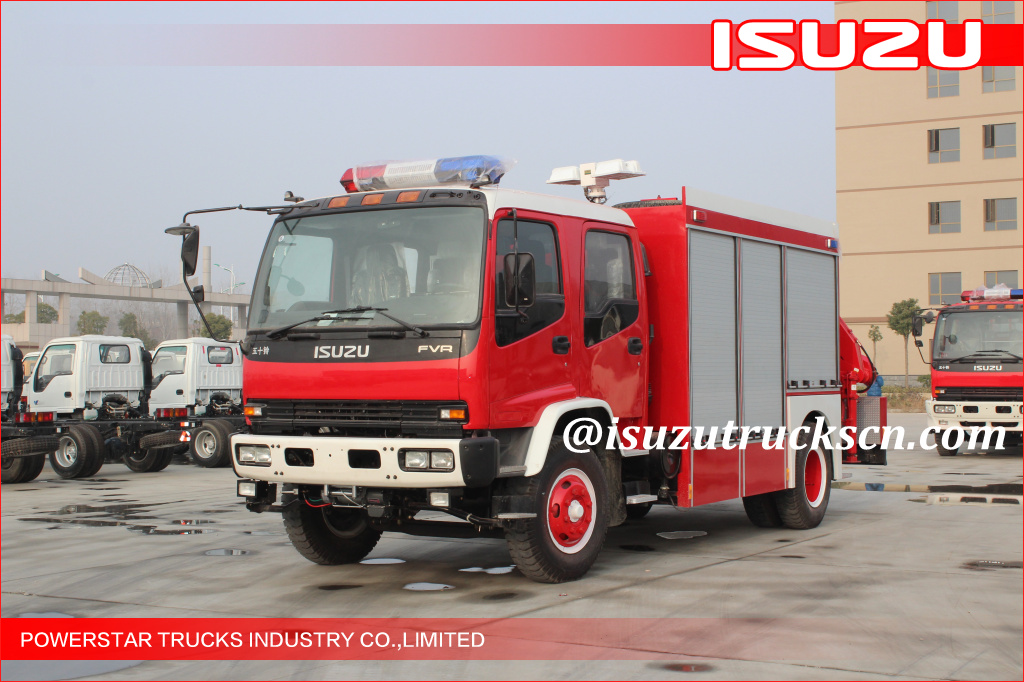

2015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane
Order(MOQ):
12015 Isuzu Lighting Emergency Rescue Vehicle Fire Truck with Truck Crane
Feature:
◆ With crane function.
◆ With electric winch.
◆ With Super Lighting system.
◆ With power supply.

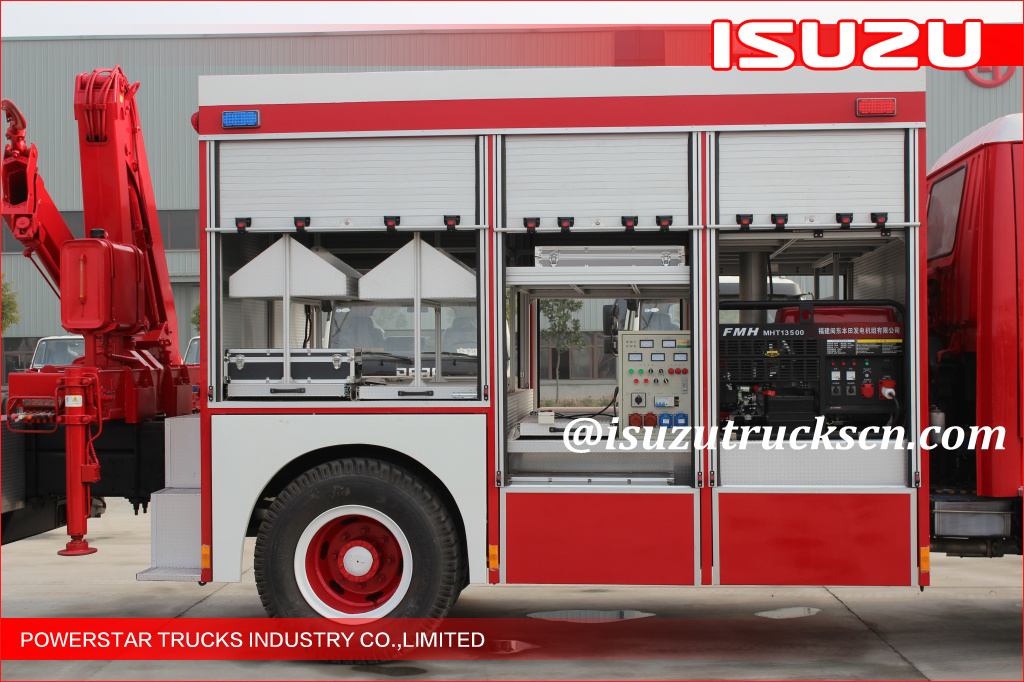

◆ With ample tools space
◆ Other tailored function.
ISUZU Emergency Rescue Vehicle

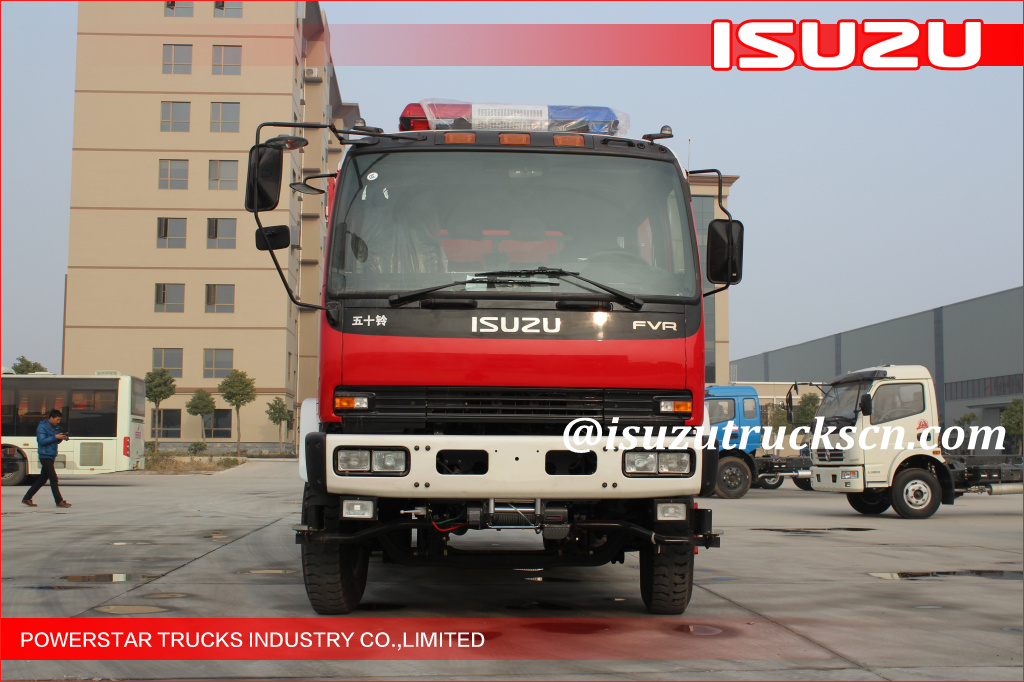

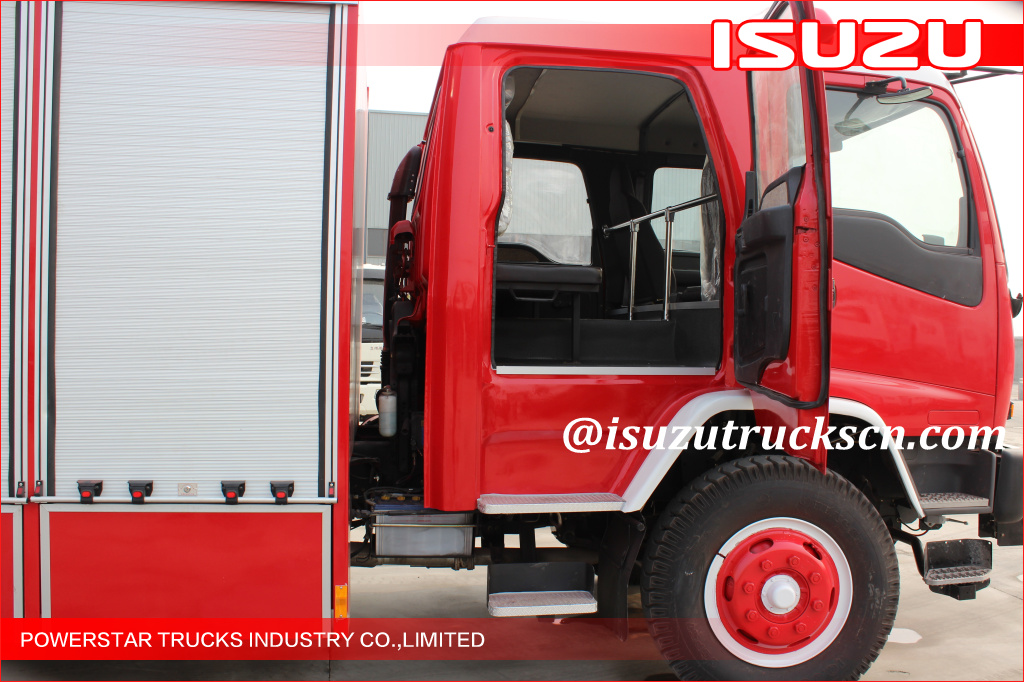

| ISUZU： | FVR chassis，Single Row or Double，191kW，Wheelbase：Two shaft 4500mm |

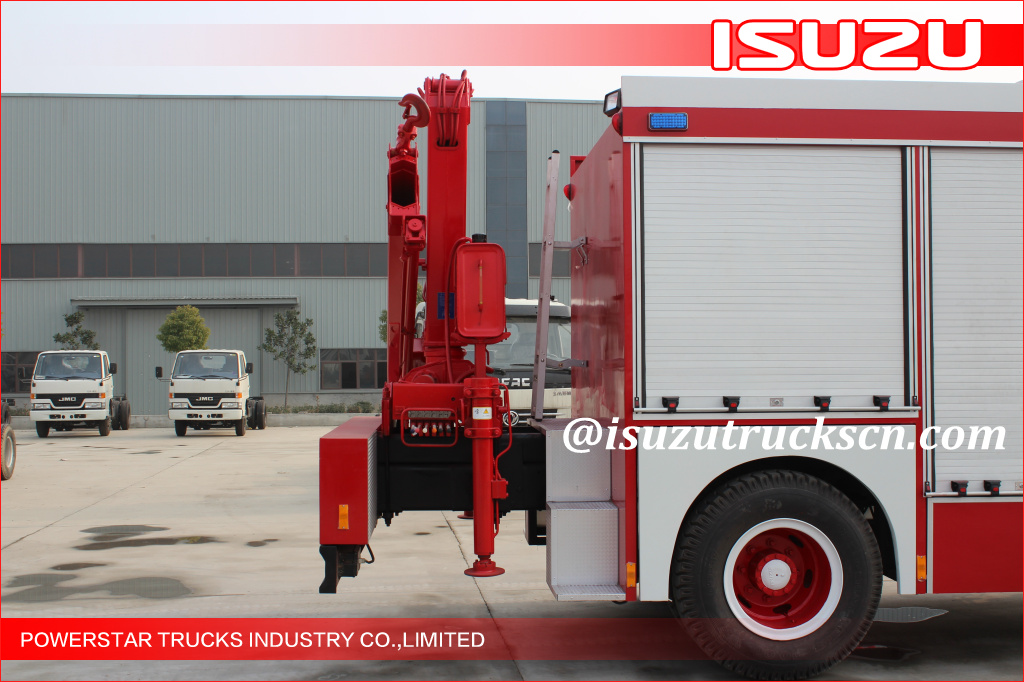

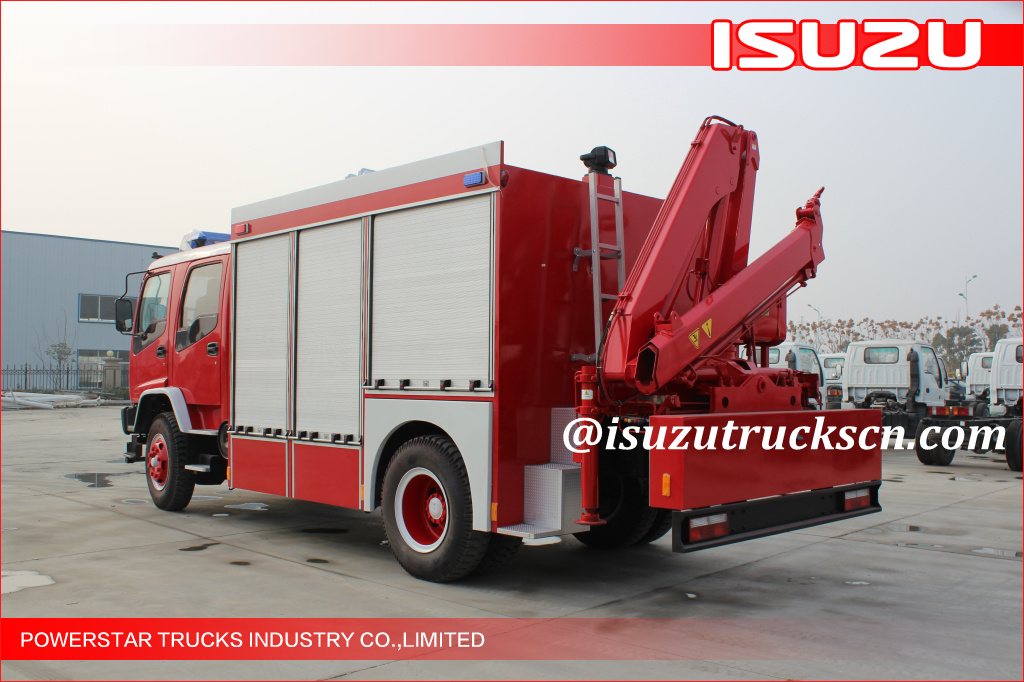

| Truck crane： | Max. lifting weight:3.2T，rear-mounted，Outrigger span:4.2m，Max. amplitude:7.56m，Max.working height:10m，Rotation angle:410° |

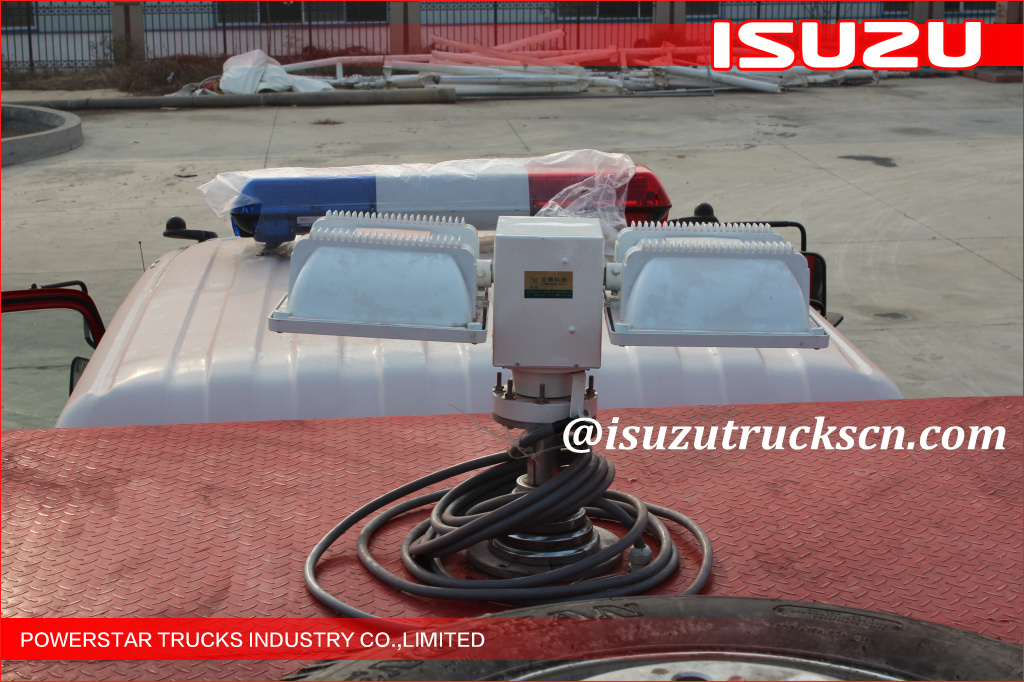

| Light Mast System： | Ground height≥8m，Work cycle time≤500S，Level rotary time≤180S，Level rotation angle:-150°TO +150°，Elevation Angle≥+30°，Depression Angle≤-15°，Elevation and Depression Time≤120S |
| Traction winch： | Max. tension：49kN，10800 kgf，Max. towing speed:3.57 m/min，Front-mounted. |

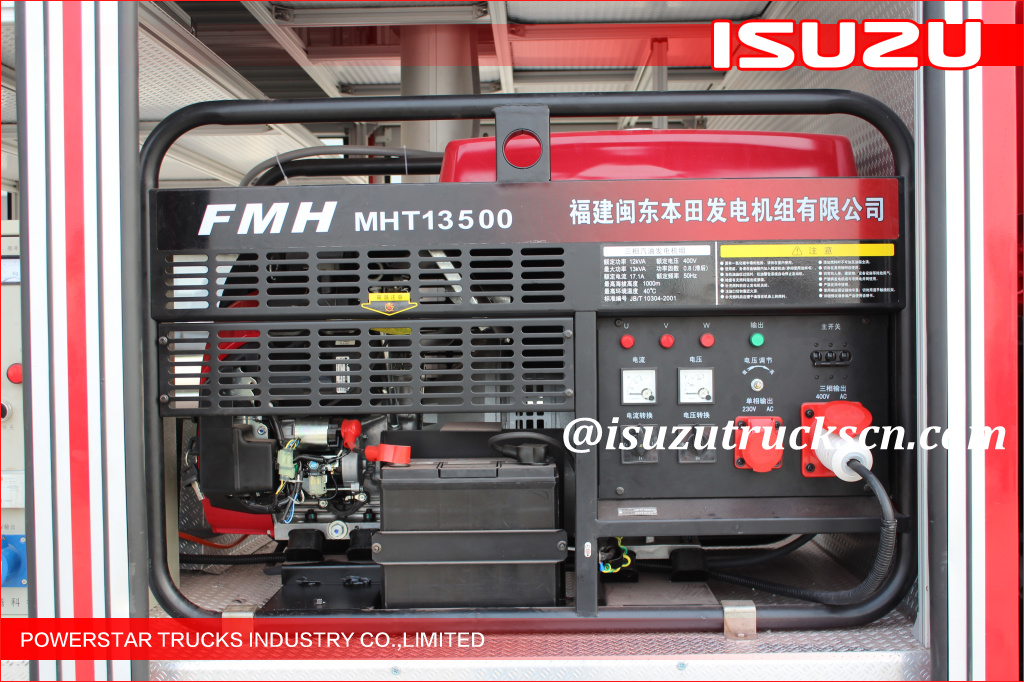

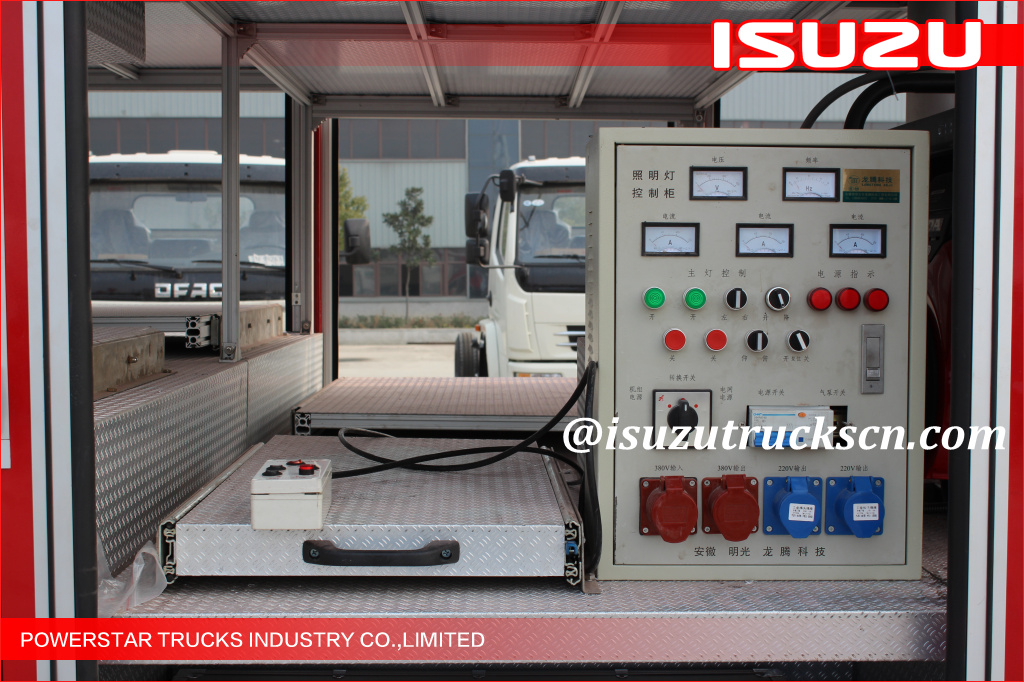

| Generator： | HONDA Generator Set，Power:5kW，Rated voltage:220V |
| Fume extractor： | Mechanic Operating，delivery capacity:9000 m3/h，Power:1.5 kW |
| Overall Dimension： | 8290×2500×3400mm |
