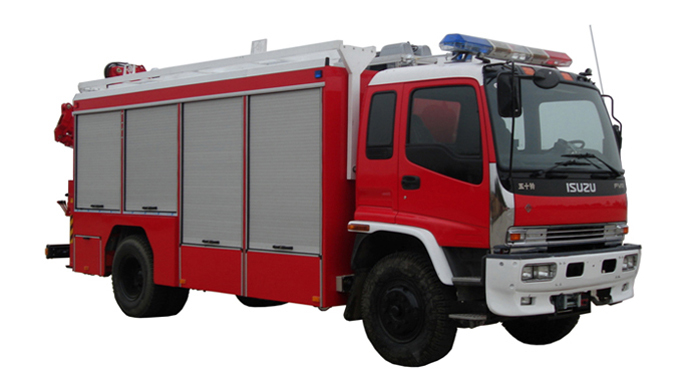

Manufacturer Japanese Isuzu Emergency Rescue Vehicle for sale
Order(MOQ):
1Manufacturer Japanese Isuzu Emergency Rescue Vehicle for sale
Tags: Best quality Manufacturer Japanese Isuzu Emergency Rescue Vehicle for sale manufacturer, Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Main specifications:
|
FVR Heavy-duty chassis for Fire-fighting application |
||
|
Model |
PT5160GXF |
|
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
4500 mm |
|
|
Overall Dimension |
8210×2500×3250 mm |
|
|
Truck crane |
Max. lifting weight:3.2T，rear-mounted，Outrigger span:4.2m，Max. amplitude:7.56m，Max. working height:10m，Rotation angle:410° |
|
|
Light Mast System |
Ground height≥8m，Work cycle time≤500S，Level rotary time≤180S，Level rotation angle:-150°to +150°，Elevation Angle≥+30°，Depression Angle≤-15°，Elevation and Depression Time≤120S |
|
|
Traction winch |
Max. tension：49kN，10800 kg，Max. towing speed:3.57 m/min，Front-mounted，Wire rope length:38m |
|
|
Generator |
HONDA Generator Set，Power:5kW，Rated voltage:220V |
|
|
Fume extractor |
Mechanic Operating，delivery capacity:9000 m3/h，Power:1.5 kW |
|
|
Cab |
Double cab with Four doors, 6 seats with safe belts. |
|
|
Engine |
Model: |
6HK1-TCNG40 |
|
Type: |
Diesel, turbo charged inter-cooled, 6 cylinder |
|
|
Max. Power: |
177 KW (240HP) |
|
|
Gearbox |
MLD 6-shift, mechanical type, 6 forward and 1 reverse with |
|
|
Tire |
10.00-20 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
90 km/h |
|
Accessories List:
(With below equipment, you can put into fire-fighting immediately)
