Isuzu Water Tank Rescue Fire Trucks are an essential tool for any community looking to protect its citizens and property from the devastation of fire and other emergencies. With their rugged construction, large-capacity water tanks, advanced safety features and fuel-efficient engines, these vehicles are ready to respond quickly and effectively, helping to minimize damage and save lives.
Work capacity:
5 tonsTruck model:
PT5160GZWEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4X2,LHDGear box:
Isuzu MLD,6 Forwards gear & 1 reverse gearRemarks:
Isuzu FTR double row chassisRescue Fire truck Water tankers Isuzu also called Isuzu FTR water fire truck,Isuzu FTR 5 tons fire rescue truck,Isuzu FTR double row water tank fire fighting truck,Isuzu FTR water tender fire truck,Isuzu FTR 4x2 water fire engine,Isuzu rescue fire water tankers.
Rescue Fire truck Water tankers Isuzu are like brave warriors, with a sturdy exterior and powerful technology inside. They respond to fires quickly and accurately to save people in distress. The sturdy body can easily handle all kinds of terrain, and the large water tank capacity ensures a continuous water supply for firefighting. The water pump system makes firefighting tasks handy. The integrated advanced technology and professional rescue tools provide firefighters with a comfortable and safe working environment. Isuzu rescue fire water tankers are not only the guardian of public safety, but also a powerful assistant in responding to emergencies.
Key Features
★ ISUZU FTR chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
ISUZU FTR 5 tons water tanker fire fighting truck |
||||||
|
Chassis |
||||||
|
Cabin |
Brand: ISUZU |
|||||
|
FTR, 4x2 left hand drive, |
||||||
|
with air conditioner, 2+4 seats, with USB,radio, loud speaker |
||||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm: |
7800*2500*3050 mm |
||||
|
Wheel base: |
4500 (mm) |
|||||
|
Overhang (front/rear): |
1335/1965(mm) |
|||||
|
Weight in KGS |
GVW |
18000kg |
||||
|
Curb Weight |
9755kg |
|||||
|
Payload |
5000kg |
|||||
|
Max. driving speed(km/h) |
90 |
|||||
|
Engine |
Brand |
ISUZU |
||||
|
Model |
4HK1-TC60, EURO VI |
|||||
|
Emission |
5193 ml |
|||||
|
Horse power |
205HP |
|||||
|
PowerType |
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||||
|
Gearbox |
ISUZU MLD, 6 Forwards gear & 1 reverse gear |
|||||
|
Tire |
295/80R22.5, 6 pcs+1 spare tire |
|||||
|
Brake |
Air brake |
|||||
|
Upper parameters |
||||||
|
Water tank volume |
5000 liters |
|||||
|
Manhole in the tank |
DN450 |
|||||
|
Thickness |
5mm |
|||||
|
Material |
Carbon steel and high tensile steel |
|||||
|
Standard configuration of the tank |
Equipped with front, side and Sprinkler (Sprinkling width>14m) Equipped with fire fighting pump pump (Suction lift >7m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. rubber padding between tanker and chassis Equipped with water pump Equipped with fire brigade system, fire gun on top, (Sprinkling width>60m) |
|||||
|
Fire fighting pump |
||||||
|
Type of pump |
CB10/40 Centrifugal pump |
|||||
|
Fire fighting pump flow |
40L/S |
|||||
|
Max working pressure |
1.251Mpa |
|||||
|
Flow (L/S) |
Outlet pressure(Mpa) |
Rated speed(r/min) |
Crank power (kw) |
Suction depth(m) |
||
|
40 |
1 |
3916±50 |
68.2 |
3 |
||
|
28 |
1.3 |
4163±50 |
69.4 |
3 |
||
|
20 |
1 |
3700±50 |
50 |
7 |
||
|

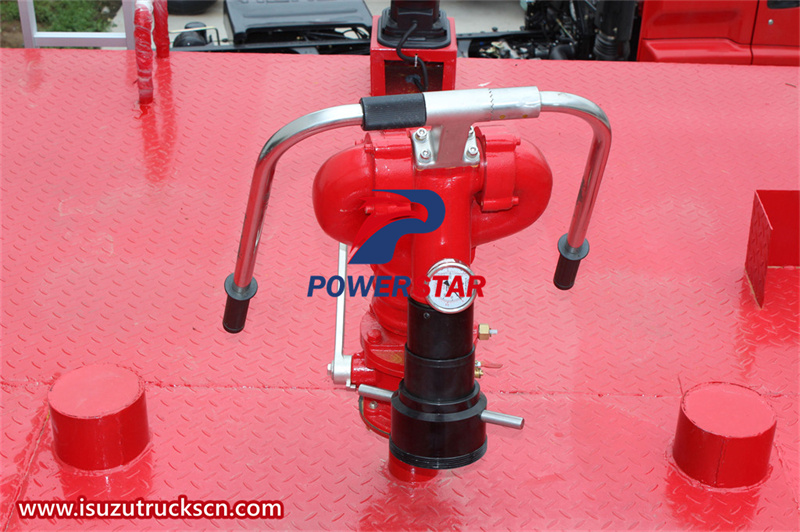

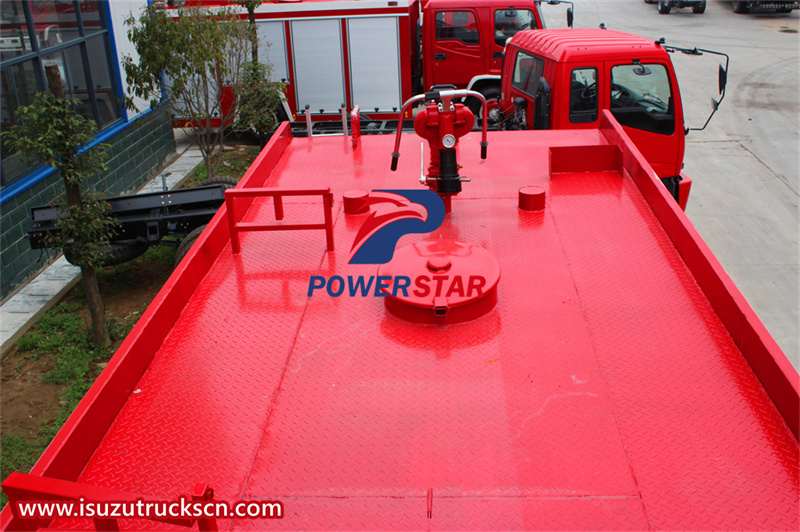

Fir fighting fixed water monitor in the top of truck |
||||||
|
Type of monitor |
PS40W |
|||||
|
Diameter (mm) |
φ100 |
|||||
|
Flow (L/S) |
40L/s |
|||||
|
Max range (m) |
≥ 65m |
|||||
|
Working pressure(Mpa) |
≤0.7 MPa |
|||||
|
Vertical rotation angle( degree) |
-30~70 |
|||||
|
Horizontal rotation angle (degree) |
360 |
|||||
|
Size(mm) |
1000*340*600 |
|||||
|
Weight (kg) |
≤ 50 |
|||||
|
Pipe system |
||||||
|
Pipe Line inlet |
2 inlet, φ125 inlet in the pump(our standard is 1 inlet) |
|||||
|
Pipe Line outlet |
2 outlet, φ65, in the back of pump |
|||||
Rescue fire trucks water tankers Isuzu, particularly those equipped with Isuzu engines, are invaluable assets to any community, serving as the first line of defense against fires, emergencies, and natural disasters. These specialized vehicles are designed and engineered to respond swiftly and efficiently, ensuring that vital resources reach the scene quickly to minimize damage and protect lives.
Rescue fire trucks, equipped with Isuzu engines, are designed for versatility and adaptability. They are often equipped with a variety of tools and equipment, such as water pumps, hoses, ladders, and even advanced firefighting technology like thermal imaging cameras, to enable firefighters to tackle a wide range of emergencies. The water tankers, on the other hand, are specifically designed to carry and dispense large volumes of water, making them crucial in fighting fires that require copious amounts of water to extinguish.
Technical drawing of Rescue Fire truck Water tankers Isuzu

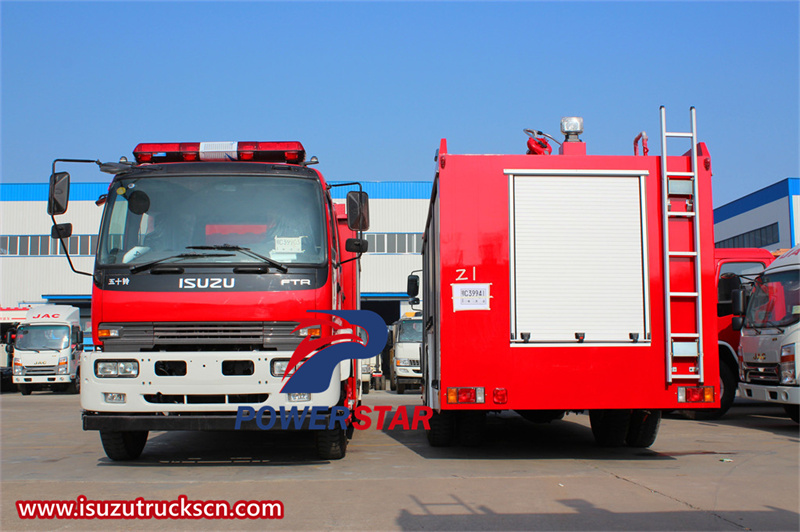

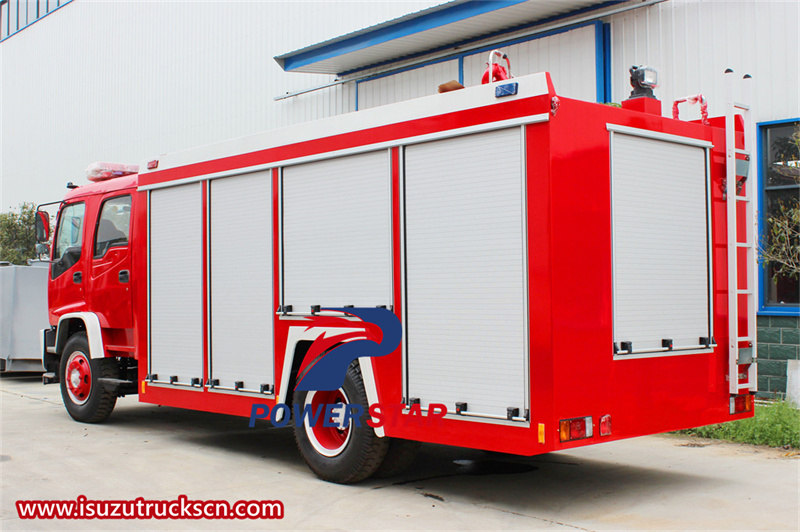

★ Body and Exterior

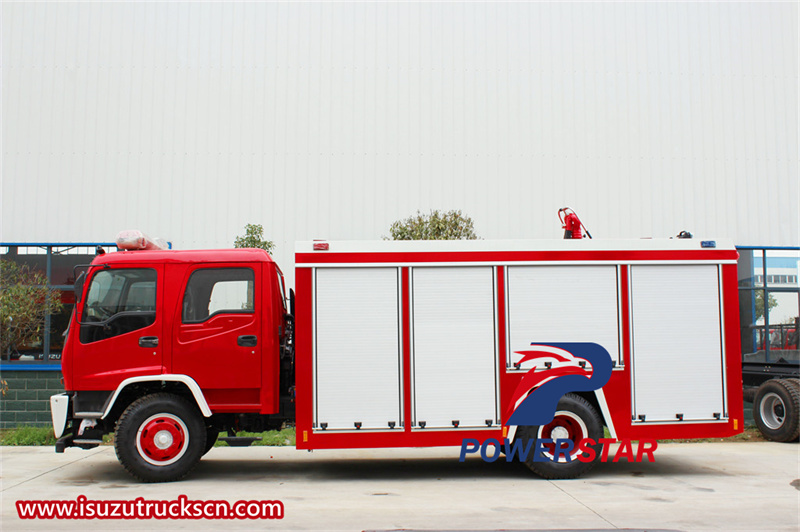

The FTR double cab rescue fire truck and water tanker has a 4500mm wheelbase and a stylish and imposing overall body and exterior. The exterior is a striking red that exudes power and urgency. The bright colour not only catches the eye but is also highly visible, allowing rescuers to easily navigate busy streets and emergency situations. The double cab design provides ample space for the crew, ensuring they are comfortable and well-equipped for long emergency response operations. The exterior features ruggedness, with reinforced panels and a sturdy frame to withstand the rigours of firefighting and other emergency situations.
Behind the cab, the huge water tank dominates the rear of the vehicle, fixed within a sturdy frame to ensure stability and durability. The capacity of the water tank allows for extended firefighting operations, and its cleverly designed refueling port makes refilling fast and efficient.
The tool room is conveniently located next to the water tank, housing a variety of firefighting equipment and tools that are essential to a successful emergency response. The tools are neatly organized and securely stored, ensuring that they can be quickly and efficiently accessed when needed.

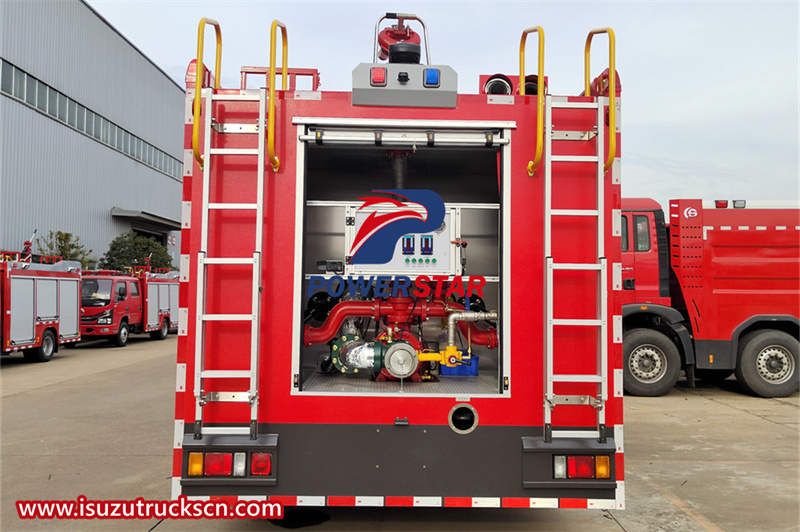

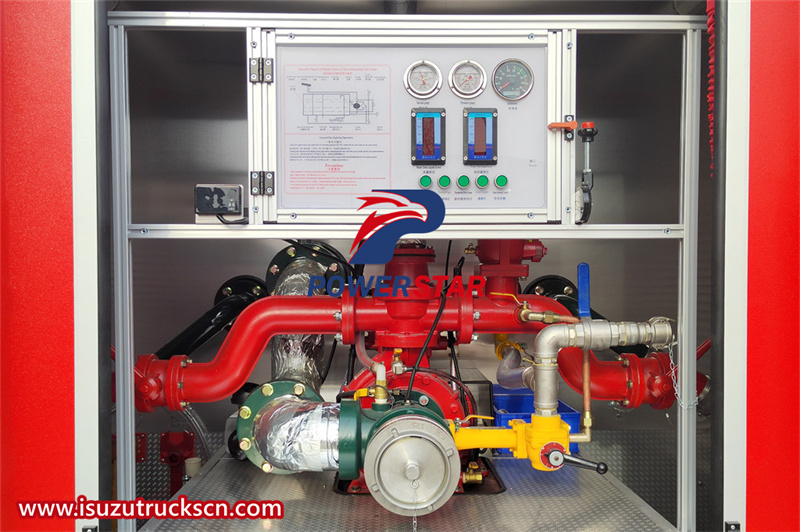

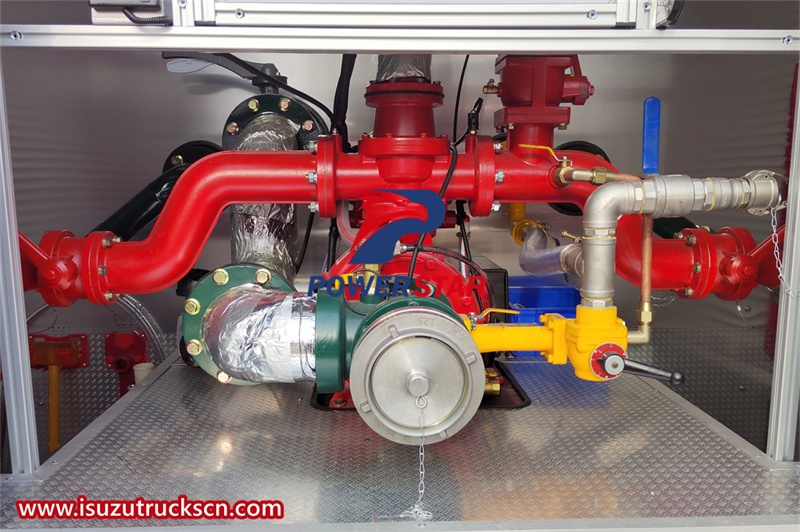

The pump room is located at the rear of the vehicle and is the core of the firefighting capabilities of the fire truck. Here, a powerful pump system is connected to the water tank, allowing crews to precisely and powerfully drain water through hoses and nozzles. The pump room is designed to withstand the rigors of intense firefighting operations, ensuring that the system remains functional and reliable when it matters most
★ Firefighting equipment
Isuzu rescue fire water tanker is fully equipped and well-equipped. All firefighting equipment is carefully arranged inside the vehicle and is guaranteed to be available at any time.By using these equipment properly, firefighters can extinguish fires quickly and effectively and protect people's lives and property.

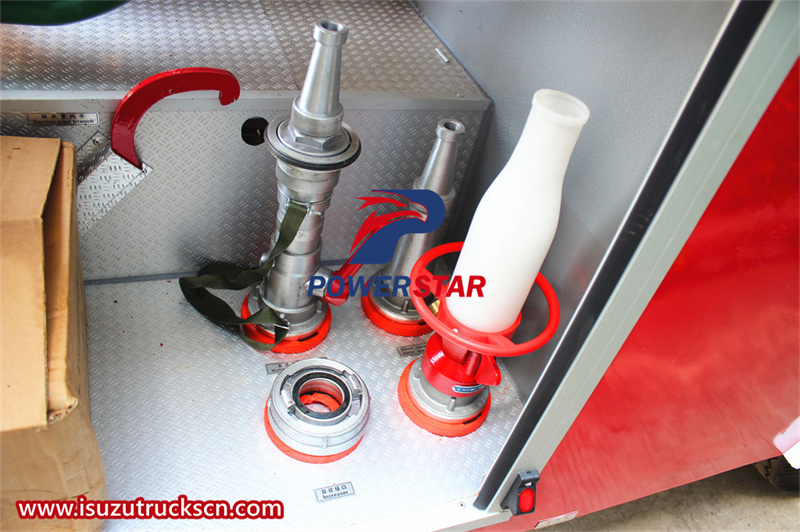

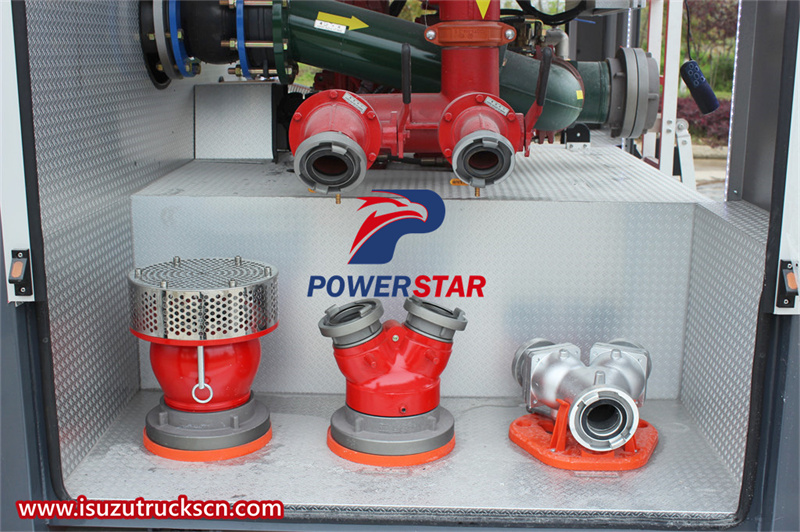

Water collector,water distributor,water filter
Water gun

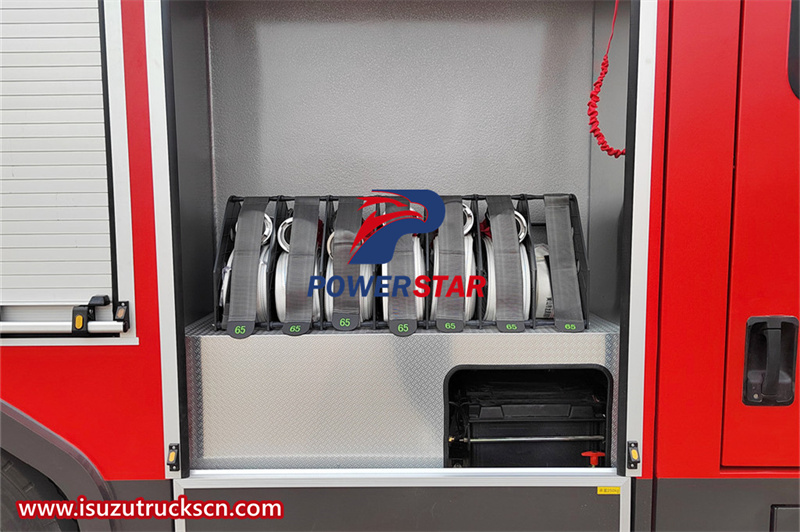

Fire hose
Fire axe, shovel, pickaxe, fire wrench
