Japan dump truck Telescopic Hydraulic Cylinder for sale
Order(MOQ):

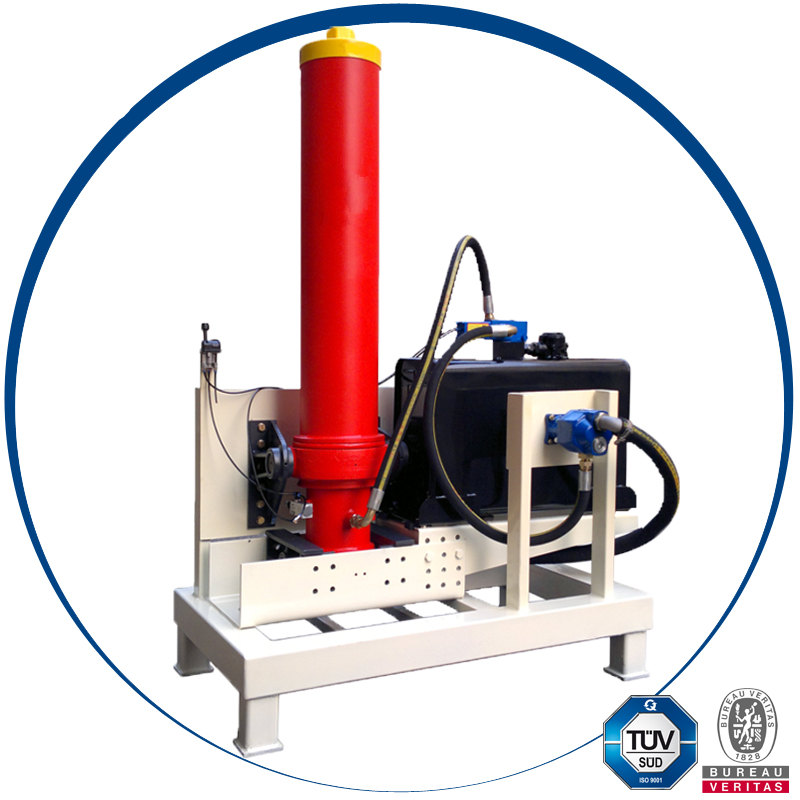

1Dump truck hydraulic hoist system for Japan Dumper Trucks
Characteristics:
| - Larger diameter, more lifting capacity. |
| - Max working pressure reaches 250 bar,better anti-pressure ability. |
| - Special material with high quality, high-precision, better anti-bending ability. |
| - New model guide ring combined with lubricating material,guarantee smooth lifting. |
| - Modified seal structure, guarantee no oil leak under high pressure and bad working environments. |
| - Maintenance-free support, longer working life. |
| - Integrated design, easy to maintain. |
| -100% tested, guarantee high quality. |
Specifications:
|
Model |
Extended Stages |
Working Pressure (MPa) |
Max. stage Diameter (mm) |
Max. stroke (mm) |
Lifting Capacity (ton) |
Suitable Length of Truck Body (m) |
|
129-3E-3880 |
3 |
16-19 |
129 |
3880 |
20-35 |
5.2 |
|
149-3E-3880 |
3 |
16-19 |
149 |
3880 |
25-45 |
5.2 |
|
149-3E-4280 |
3 |
16-19 |
149 |
4280 |
25-45 |
5.6 |
|
149-4E-3880 |
4 |
16-19 |
149 |
3880 |
25-40 |
5.2 |
|
149-4E-4280 |
4 |
16-19 |
149 |
4280 |
25-40 |
5.6 |
|
169-4E-4280 |
4 |
16-19 |
169 |
4280 |
30-50 |
5.2-5.6 |
|
169-4E-4640 |
4 |
16-19 |
169 |
4640 |
32-55 |
5.6-6.1 |
|
169-4E-5000 |
4 |
16-19 |
169 |
5000 |
32-60 |
6.2-6.8 |
|
169-4E-5180 |
4 |
16-19 |
169 |
5180 |
32-60 |
6.2-6.9 |
|
169-4E-5390 |
4 |
16-19 |
169 |
5390 |
32-60 |
6.2-6.9 |
|
169-4E-5460 |
4 |
16-19 |
169 |
5460 |
32-60 |
6.5-7.3 |
|
185-4E-4280 |
4 |
16-19 |
185 |
4280 |
25-45 |
5.6 |
|
185-4E-4640 |
4 |
16-19 |
185 |
4640 |
30-45 |
5.6-6.1 |
|
185-4E-5000 |
4 |
16-19 |
185 |
5000 |
32-50 |
6.2-6.5 |
|
185-4E-5390 |
4 |
16-19 |
185 |
5390 |
40-60 |
6.2-6.8 |
|
185-4E-5460 |
4 |
16-19 |
185 |
5460 |
40-65 |
6.5-7.3 |
|
185-4E-5780 |
4 |
16-19 |
185 |
5780 |
45-70 |
6.9-7.7 |
|
185-4E-6000 |
4 |
16-19 |
185 |
6000 |
50-80 |
7.3-8.2 |
|
191-5E-5780 |
5 |
16-19 |
191 |
5780 |
40-70 |
6.9-7.7 |
|
191-5E-6200 |
5 |
16-19 |
191 |
6200 |
45-80 |
7.3-8.2 |
|
191-5E-7130 |
5 |
16-19 |
191 |
7130 |
50-85 |
7.8-8.5 |
|
191-5E-9030 |
5 |
16-19 |
191 |
9030 |
55-90 |
10-11 |
|
220-5E-7130 |
5 |
16-19 |
220 |
7130 |
65-100 |
7.8-8.5 |
|
220-5E-9030 |
5 |
16-19 |
220 |
9030 |
65-100 |
10-11 |
|
Customization also available according to your requirement. |
||||||

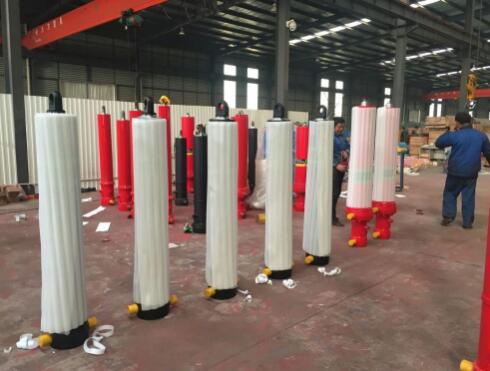

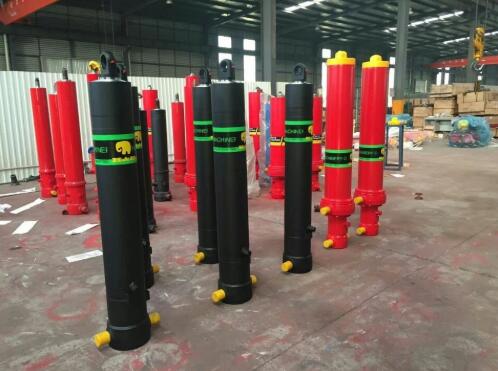

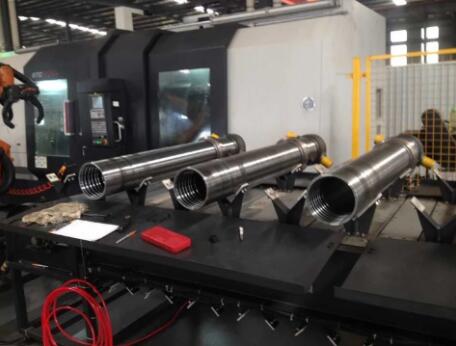

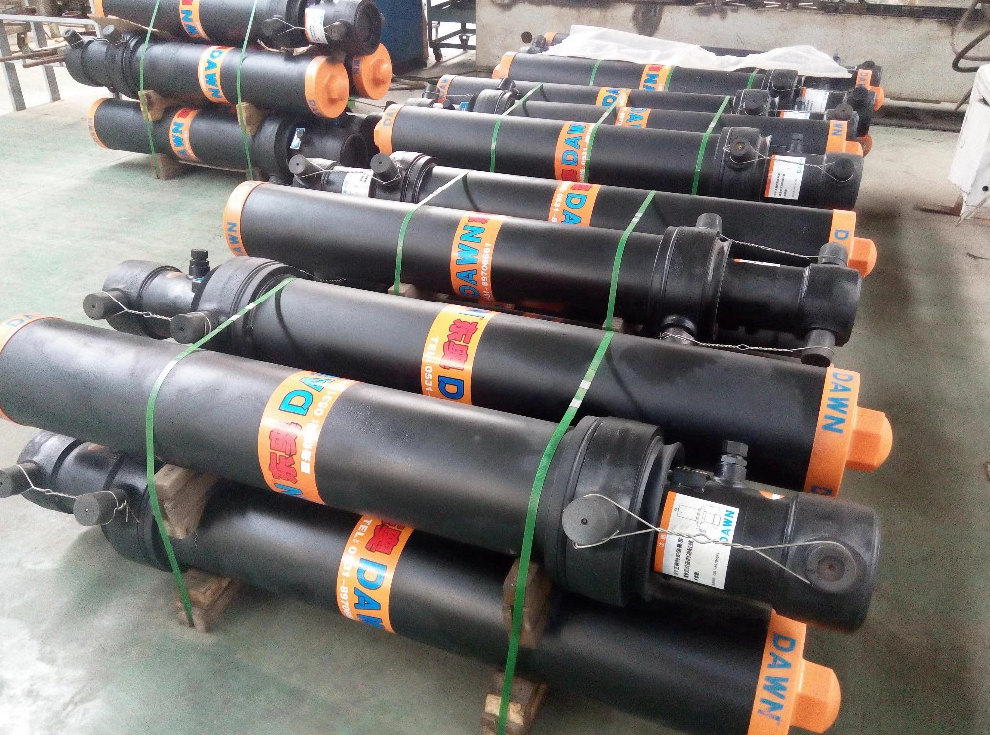

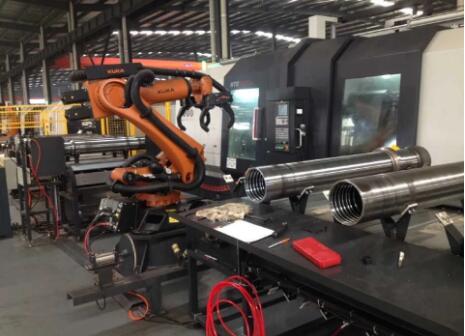

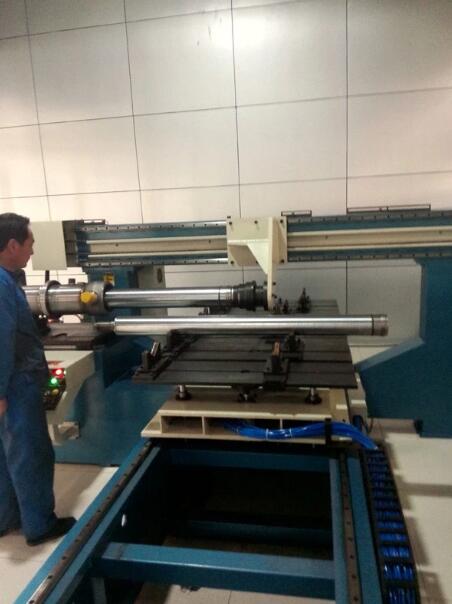

Prducing Equipment:
Dump truck hydraulic hoist system for Japan Dumper Trucks
Dump truck hydraulic hoist system for Japan Dumper Trucks
Dump truck hydraulic hoist system for Japan Dumper Trucks
Dump truck hydraulic hoist system for Japan Dumper Trucks
Dump truck hydraulic hoist system for Japan Dumper Trucks
Processing and inspection:

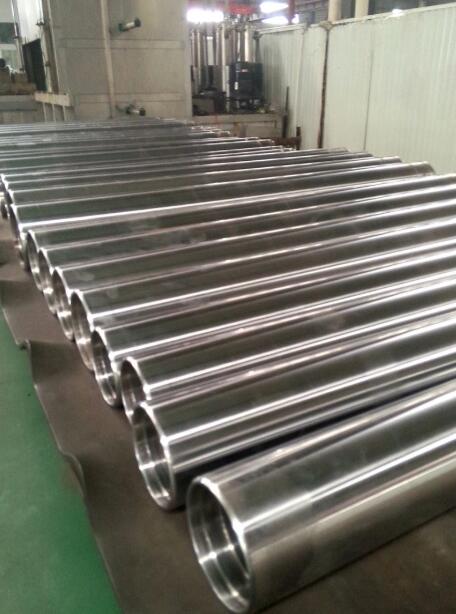

1.Cylinder Tube
According to the work pressure,work temperature,work situation and other special requirements,different cylinder tube will be choosed.
1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged tube.
1.2 Tube Material: 27SiMn,etc.
1.3 Surface Roughness:R0.16-0.32μm
1.4 Inside Chromating:If necessary,inside tube will be chromated.
2.Piston Rod
2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc.
2.1 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre.
3.Seal Kits
According to customers' requirements and work condition,we will choose suitable seal kits,including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple repairing.
4.Inspection and Testing
4.1 We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector.

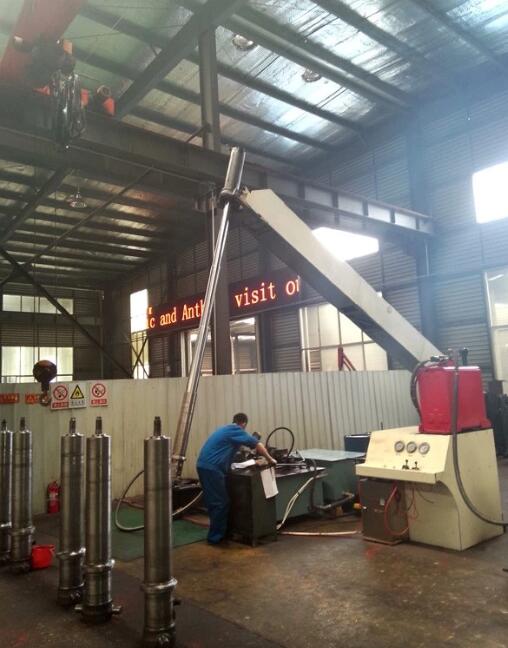

4.2 Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .After hydraulic cylinder is assemblied , pressure test would be carried out one by one.We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.
