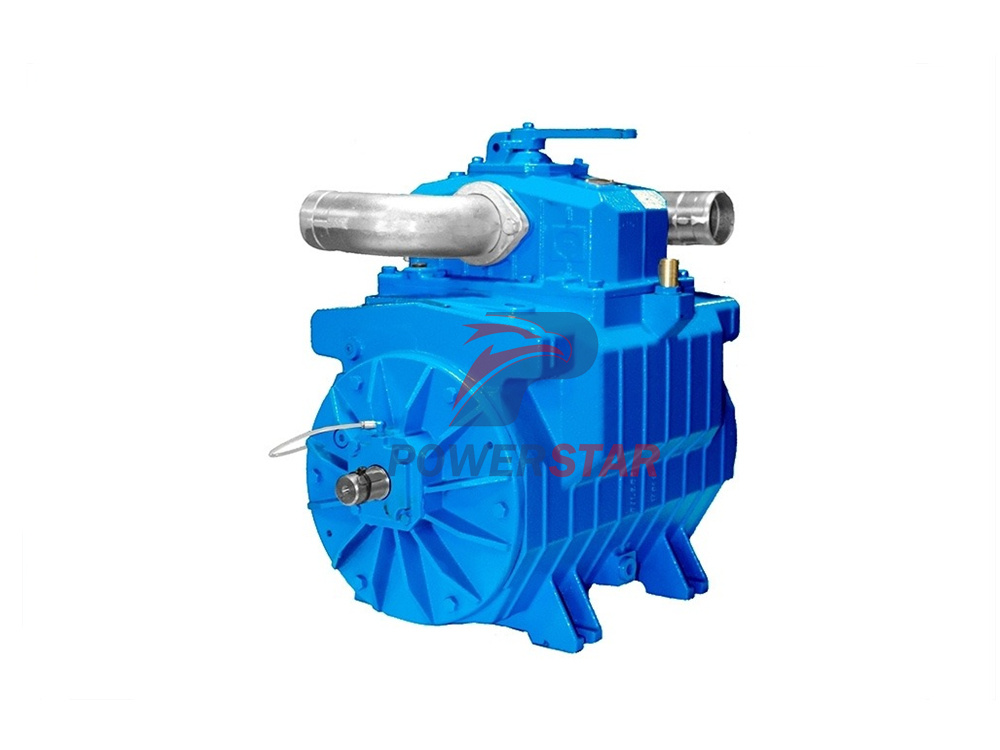

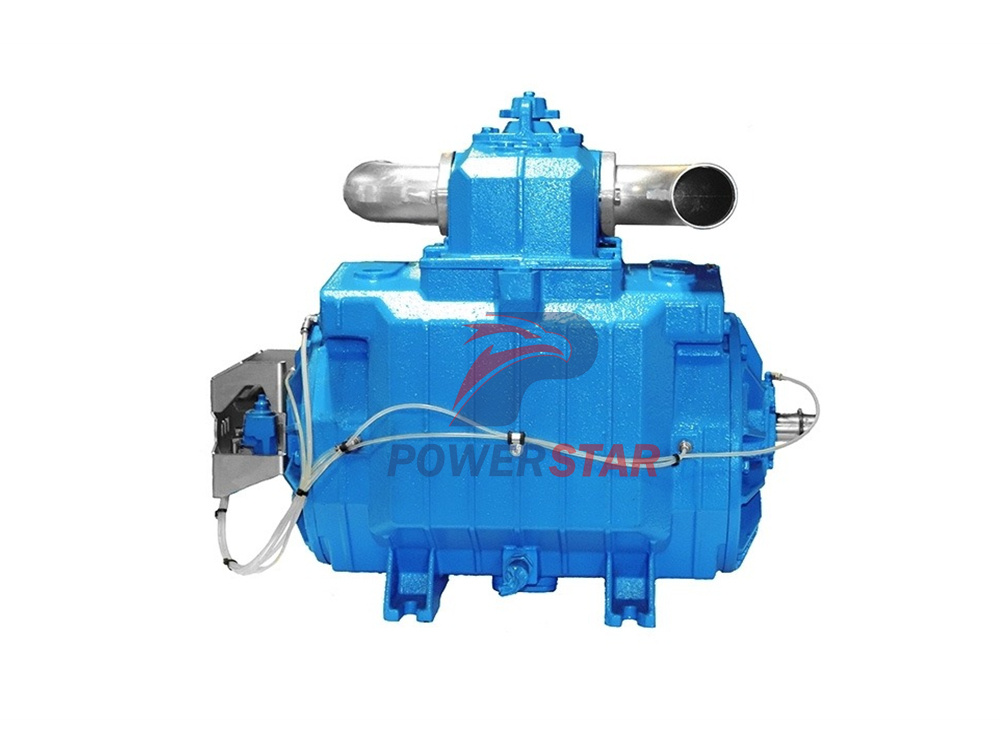

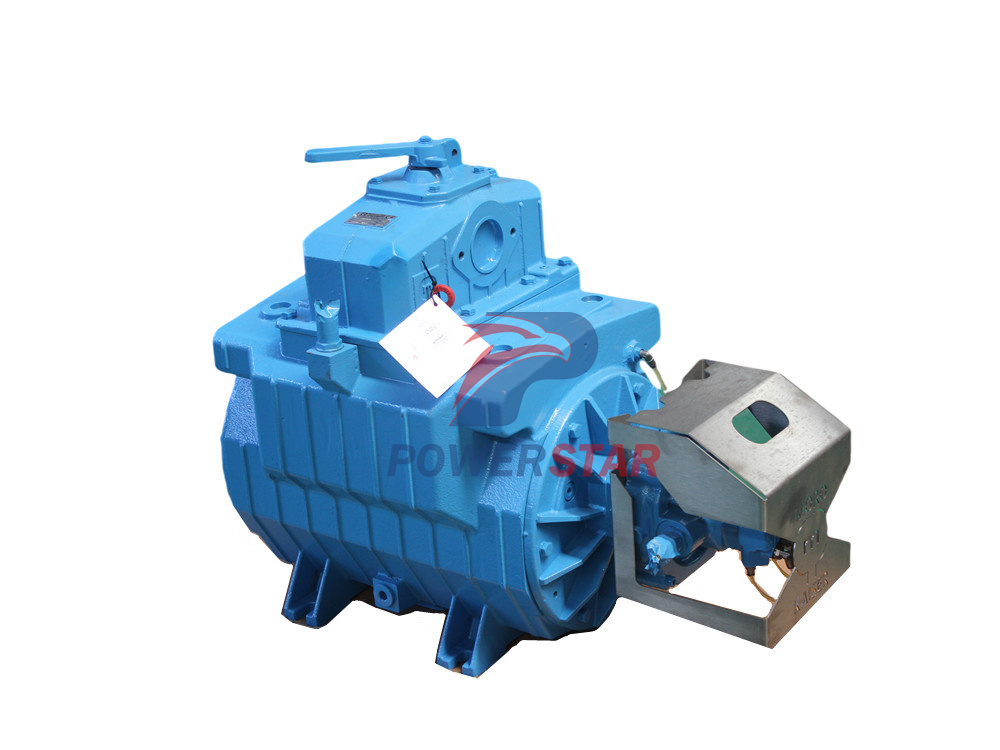

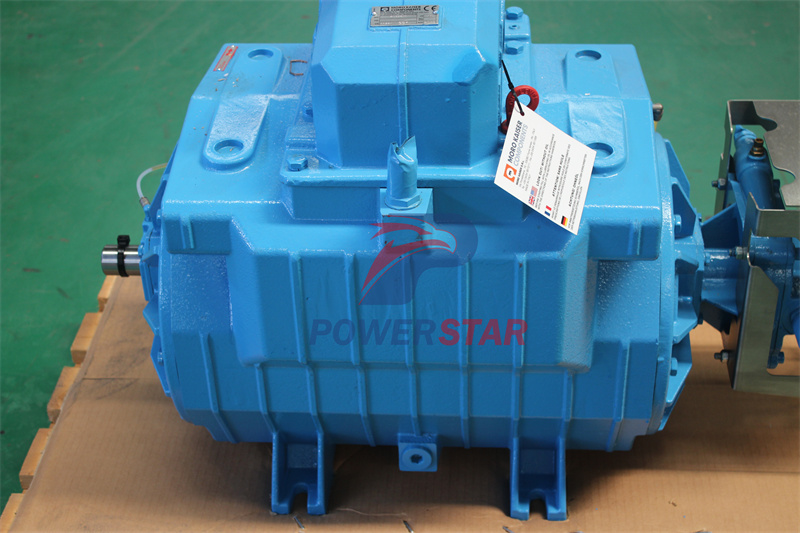

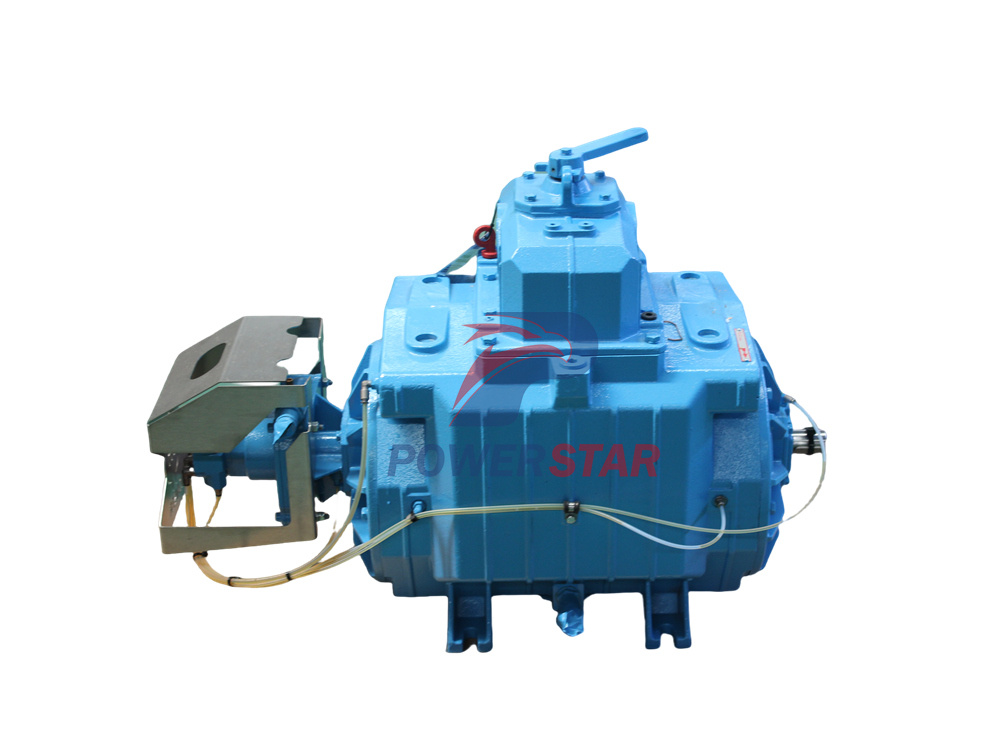

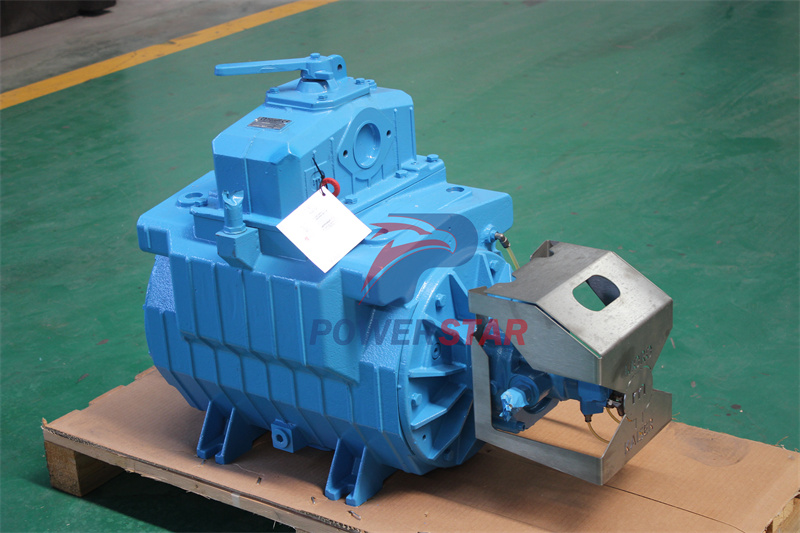

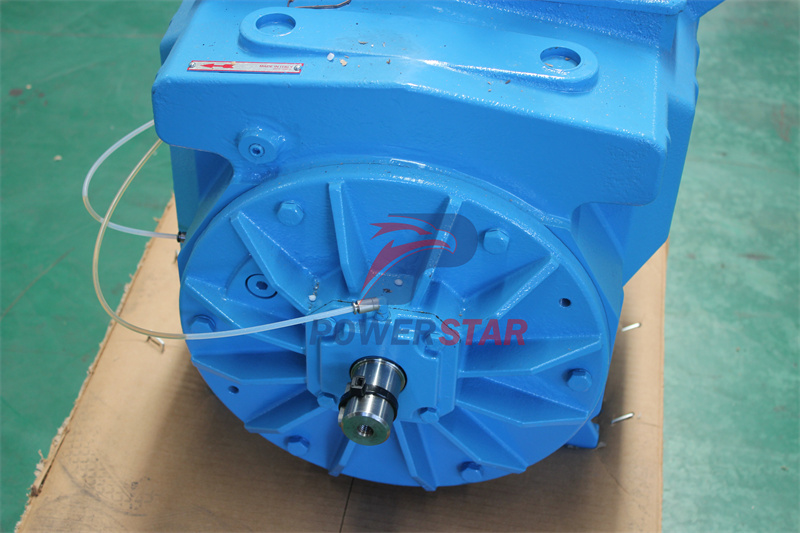

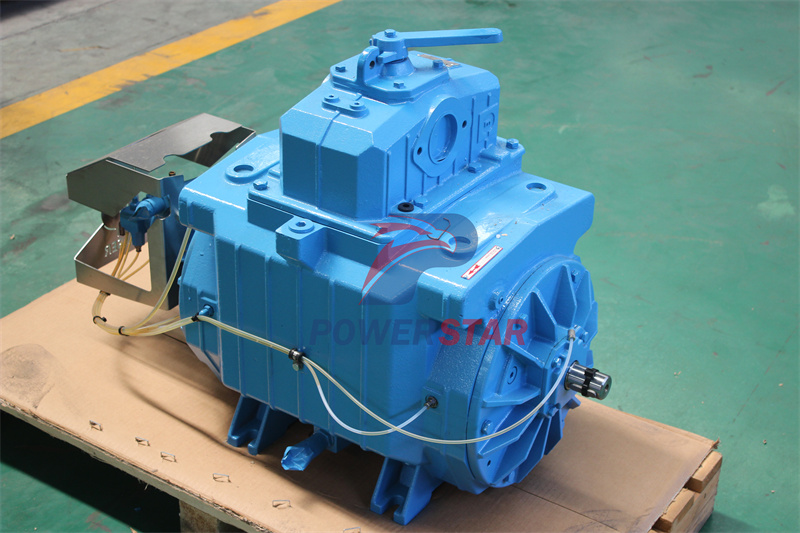

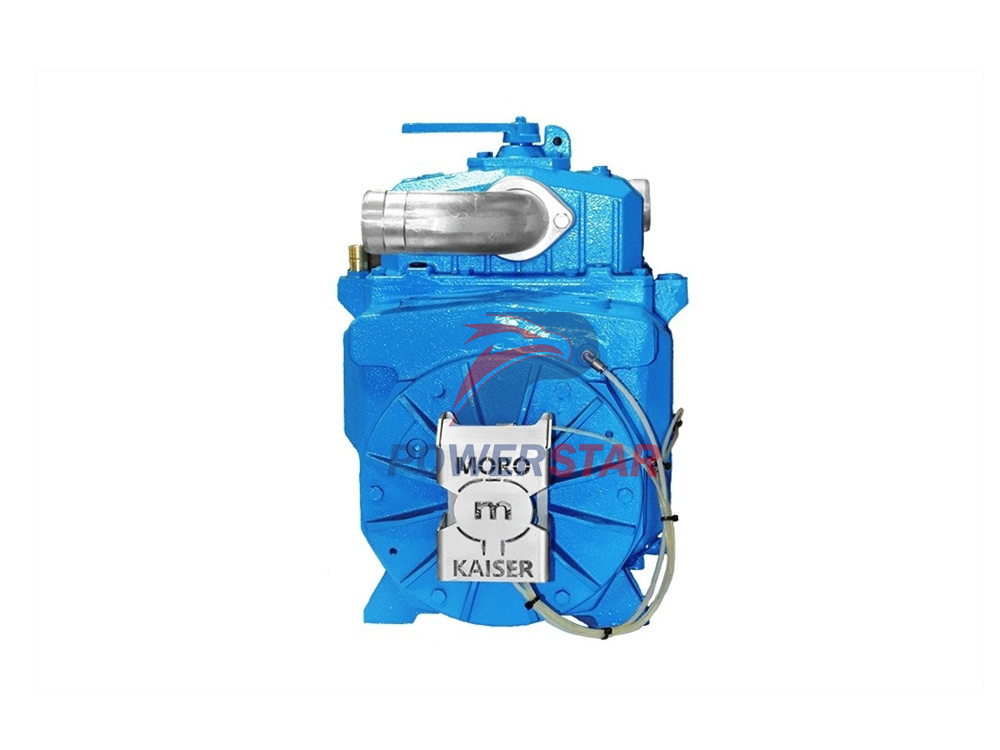

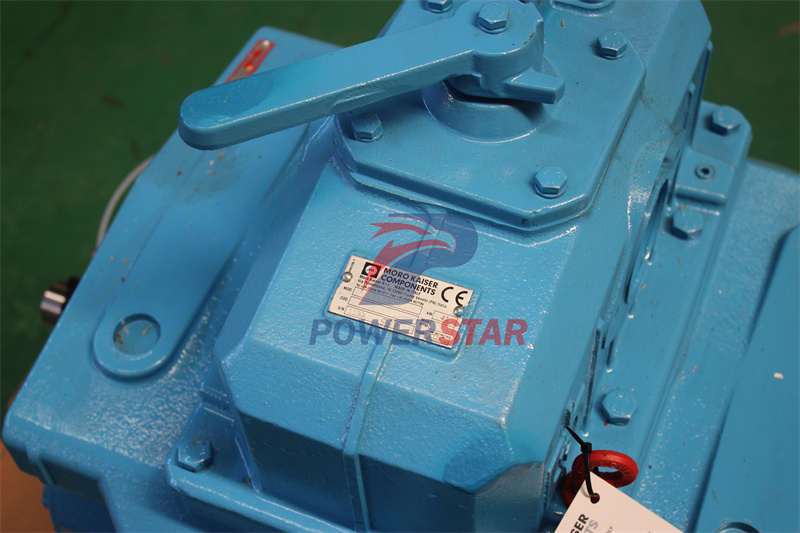

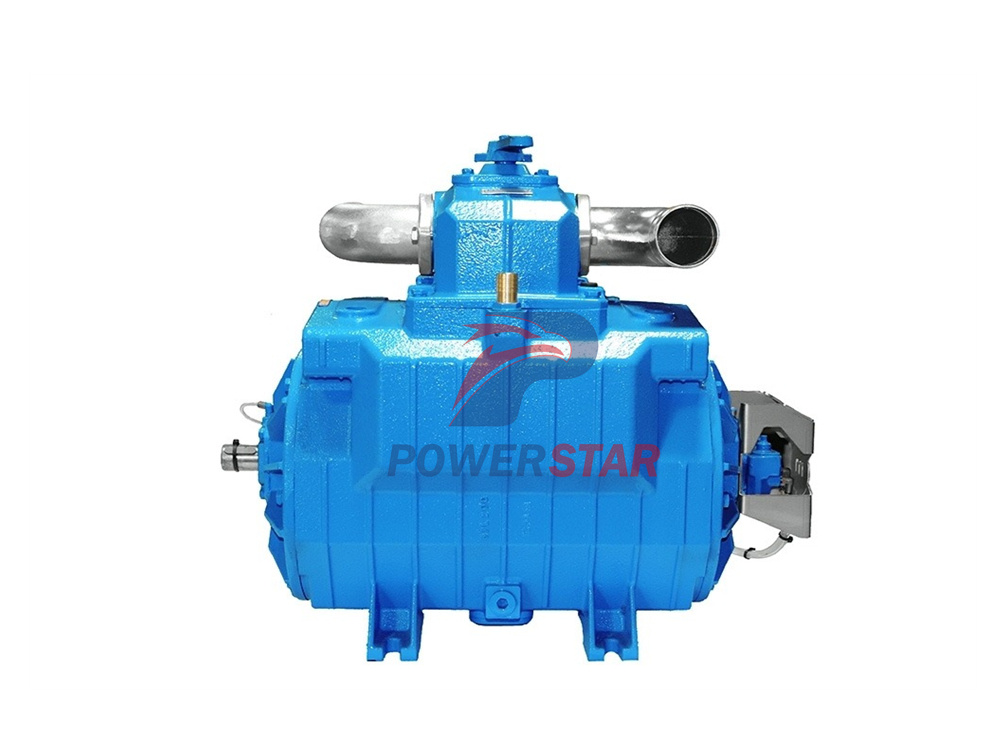

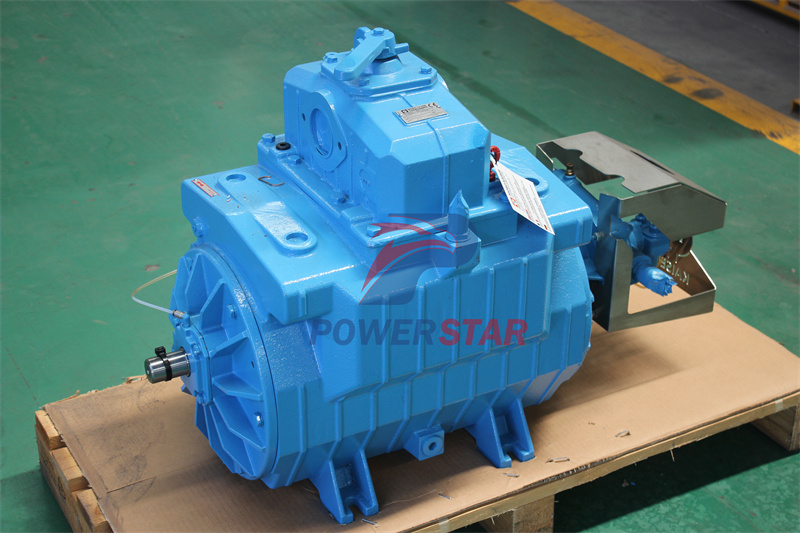

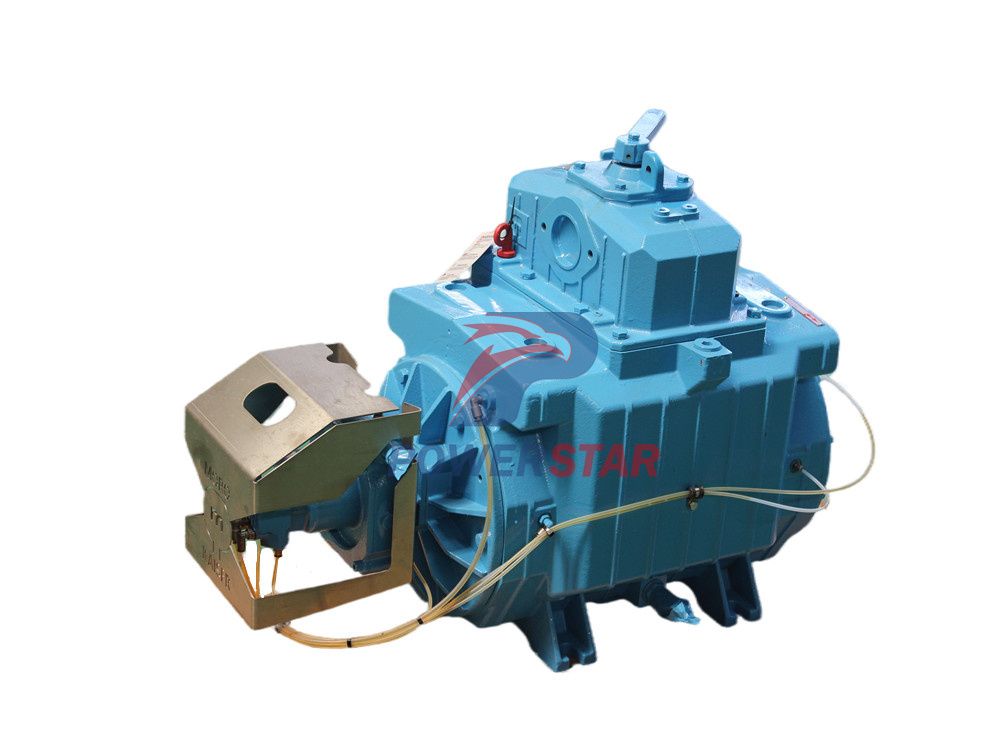

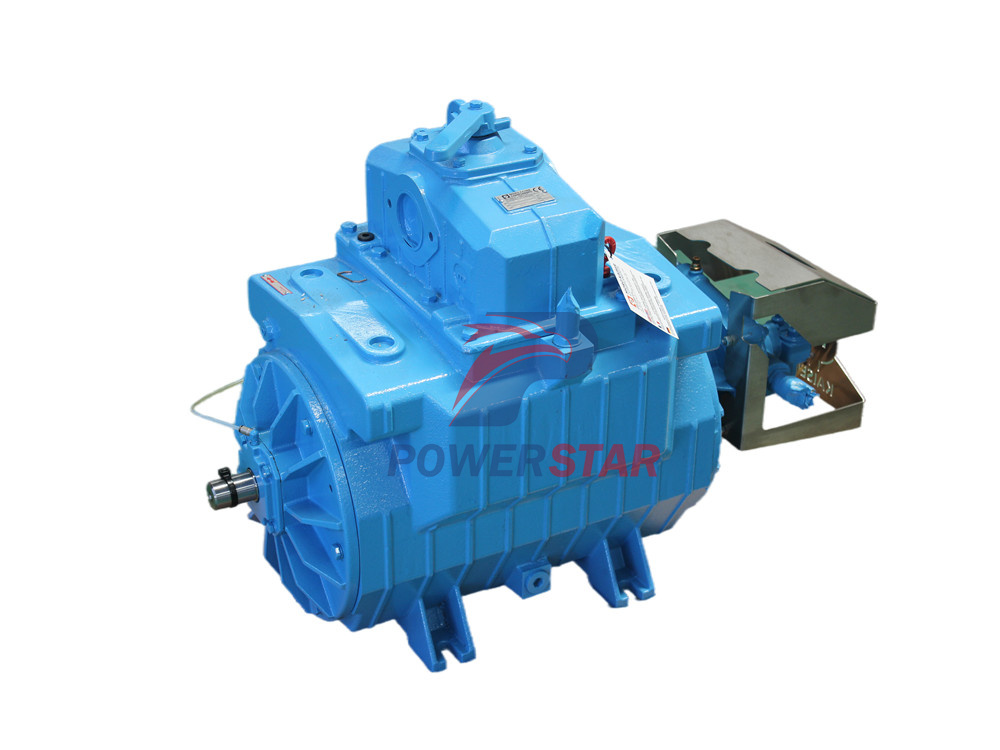

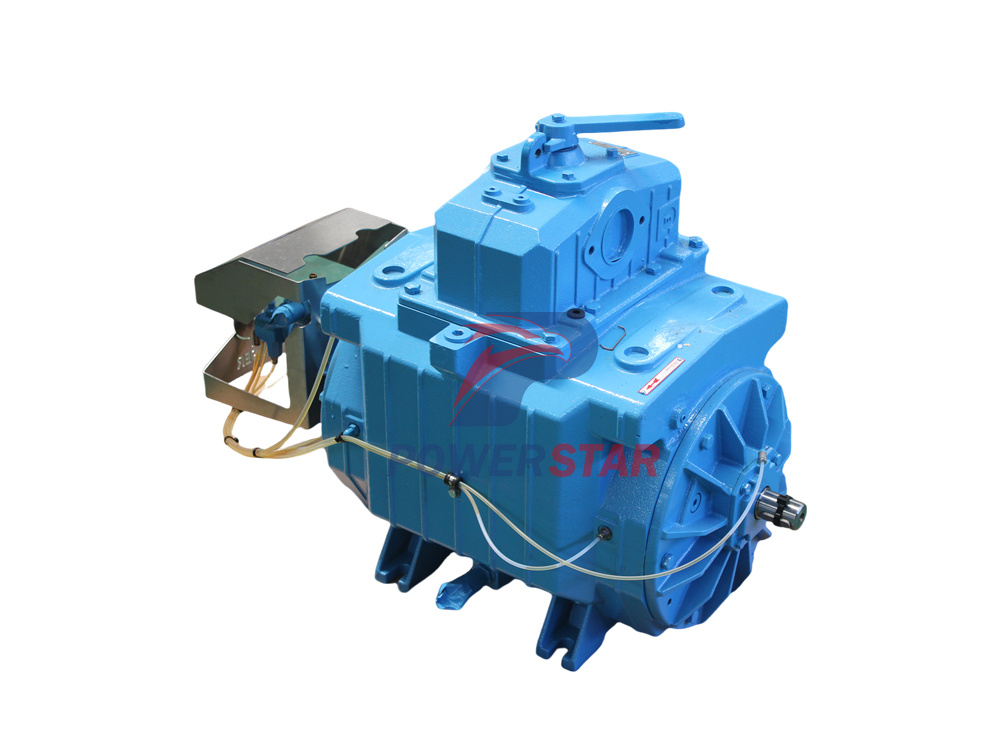

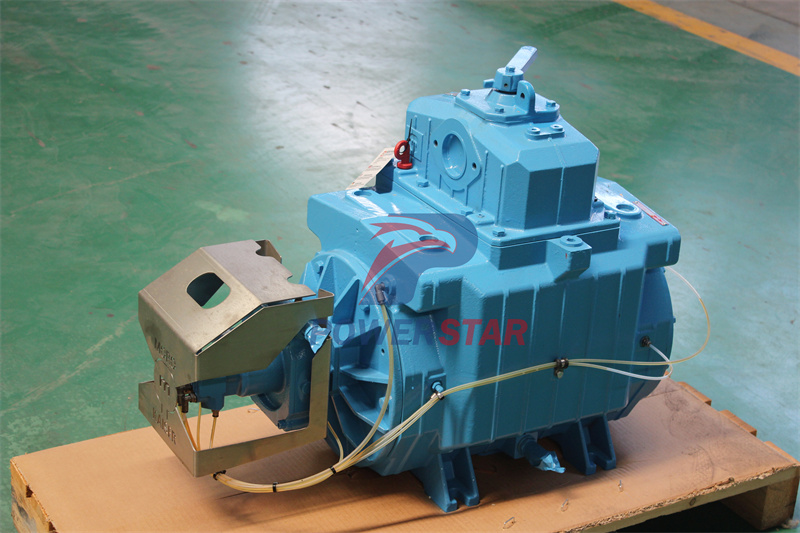

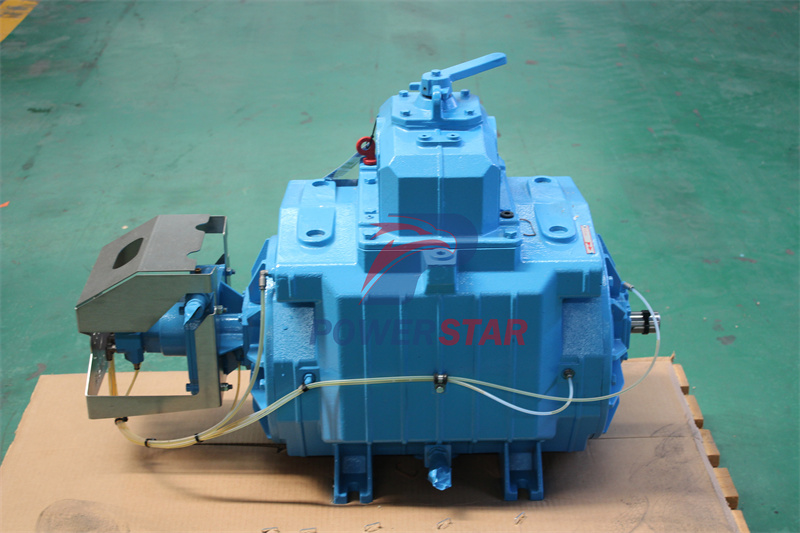

Moro water cooled PM110W vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.The application of MORO PM110W vacuum pump in vacuum sewage suction truck greatly improves the sewage suction efficiency.
Work capacity:
16400Lt/minTruck model:
MORO PM110WRemarks:
Moro water cooling vacuum pump PM110WThe Moro Water vacuum pump PM110W for Sewage Vacuum truck embody the most elevated standards in technology of liquid cooled suction pumps. They are designed to be used in industrial applications that have varying capability requirements. Moro offers two separate WATER Series pumps to meet these differing application needs. These pumps are crafted with a cast iron body to guarantee maximum reliability. These pumps also come with a cooling jacket to maximize heat dissipation.

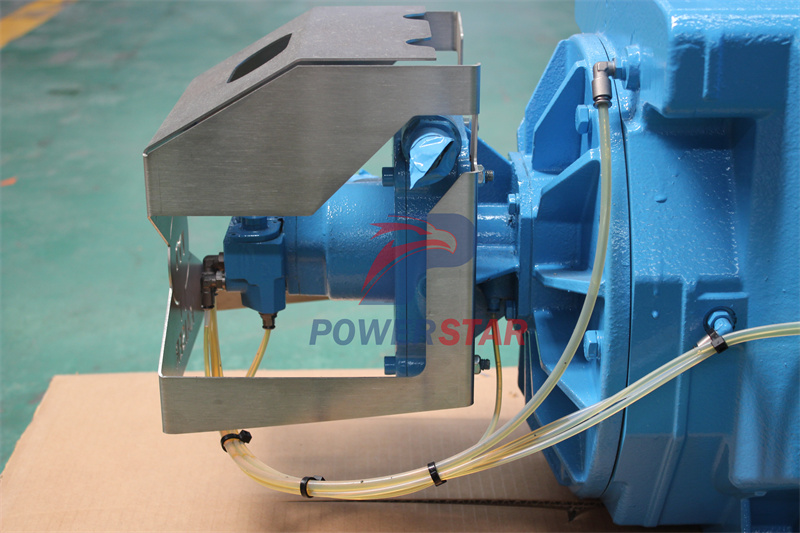

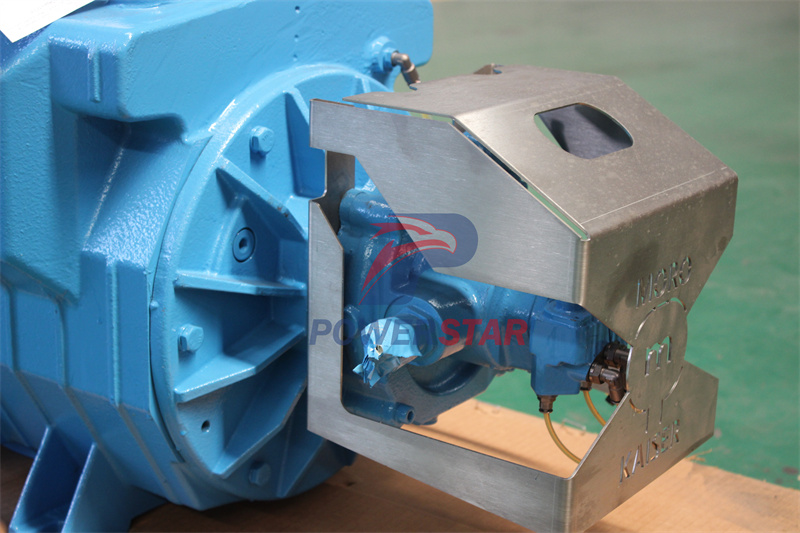

The WATER Series is designed with air intake and discharge ports which have been fine-tuned to reduce both noise and heat production. The cooling jacket greatly increases heat dissipation and improves the time of pump usage under deep vacuum. These Moro Water vacuum pump PM110W for Sewage Vacuum truck are available with an optional water -recirculating pump. These pumps are equipped with a special inspection port in the pump body allowing a visual check of the equipment’s wear.

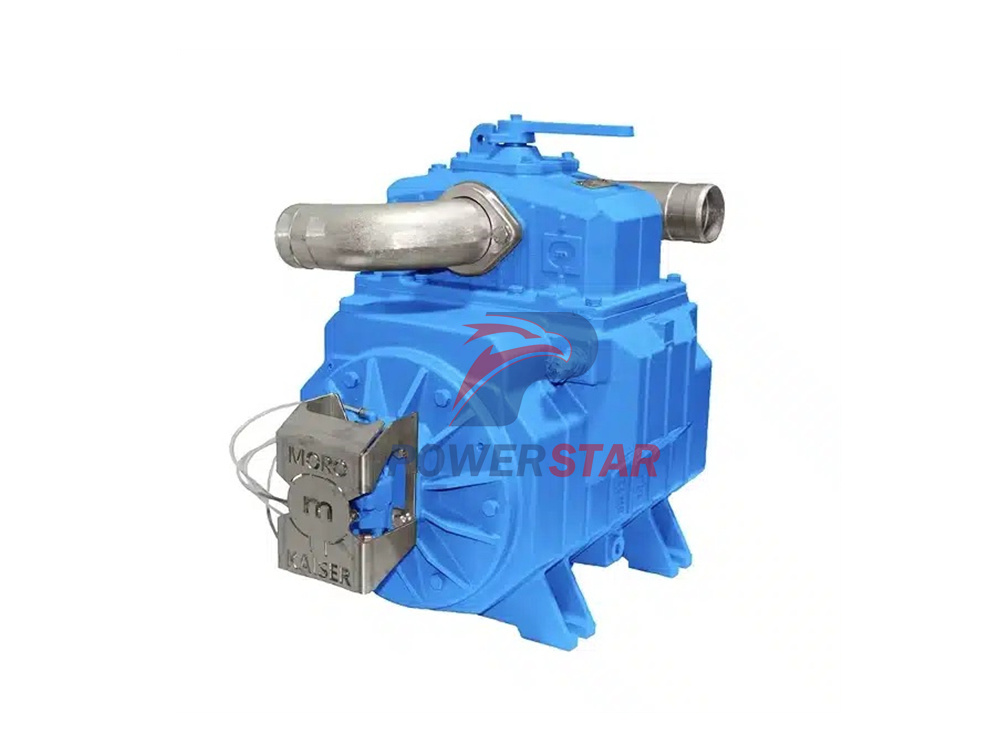

The vanes of this pump are made of a high-heat-resistant Kevlar material. The pump comes with the non-return and four-way valves integrated into the pump. The hose connection elbows are flanged and can be moved in any desired direction in accordance with the requirements of the vacuum pump usage.
Moro PM110W liquid cooled vacuum pump produces a flow of 630 CFM.
|
Specification |
Unit |
Value |
|
Free Air Flow |
lt/min |
16'400 |
|
Free air capacity |
cfm |
630 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
554 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Vacuum |
Hg(in.) |
24 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Max. Pressure |
psig |
29 |
|
Power required at max. pressure |
hp |
54 |
|
Rotation speed |
rpm |
1100 |
|
Oil tank capacity |
quart(us) |
4 |
|
Oil consumption |
gal (US)/Hr |
0.053 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Suggested Tank Size |
Gallons |
2000-6000 |
|
Hose |
in |
3/4 |
|
Weight |
lbs |
645 |
FEATURES
● High performance, Kevlar vanes with visual inspection ports in casing
● High quality Viton oil seals – longer life than traditional oil seals
● Low rotating speed leads to longer pump life
● Oiled bearings
● Direct feed, sealed oiling system
● Remote oil tank
● Quiet operation
Recommended R.P.M.
|
R.P.M. |
Free |
Performance |
Continuous |
Suggested |
|
1400 |
630 cfm |
554 cfm |
24" Hg |
2000-6000 Gallons |
|
1250 |
562 cfm |
486 cfm |
||
|
*1100 |
496 cfm |
388 cfm |
Key Benefits：
Water Cooling System:
The PM110W features a water cooling system that effectively dissipates the heat generated during operation.
This ensures that the pump can run continuously for long periods of time without overheating, maintaining optimal performance and extending the life of the pump.
High Vacuum:
The pump’s ability to achieve high vacuum levels allows for more precise control of industrial processes, resulting in improved product quality and yield, which is
critical for many industrial processes that require a low-pressure environment.
This high vacuum capability makes the PM110W suitable for applications such as vacuum distillation, drying, and degassing.
Durable Construction:
The pump is constructed from high-quality materials such as cast steel to ensure ruggedness and durability.
Its design incorporates features that minimize wear, such as precision-machined parts and high-quality bearings. This extends the life of the pump and reduces
maintenance requirements.
Electric Drive:
The PM110W is driven by an electric motor, which provides a reliable and stable power source that is less prone to failure than mechanical drives.
The electric drive system is designed to facilitate maintenance and troubleshooting, reducing downtime and operating costs.
Compact Design:
The pump’s compact design makes it easy to install and integrate into existing systems.
Its small footprint and lightweight construction also make it easy to transport and operate in confined spaces.
Versatile:
The PM110W can be used in a variety of applications, including vacuum suction vehicles and equipment, chemical processing, pharmaceutical manufacturing, food processing, and semiconductor production.
Power Supply Truck for generating electricity/repairing equipment/field operation, Telescopic Hydraulic Cylinder Lifting System, Dump Truck Lifting system for sale
Learn More
Genuine ISUZU spare parts, original universal joint for ISUZU 700P trucks, ISUZU universal joint #8980207890 for sale.
Learn More
Moro air cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service. Air cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.Air cooled MORO PM80A vacuum pump produces free air flow of 424 CFM.
Learn More
The Moro PM60A air rotary vacuum pump is a powerful and durable industrial pump that stands out for its efficient performance, compact design and versatility. It is suitable for a variety of applications such as sewage treatment, chemical cleaning and hazardous waste disposal. Its innovative air rotary technology, corrosion-resistant construction, high suction capacity and stability make it the industry's first choice, providing users with efficient and reliable pumping solutions.
Learn More

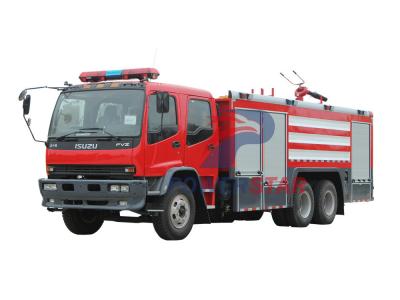

Foam fire trucks, as professional firefighting tools, can help firefighters quickly subdue fires. Its secret lies in the sprayed foam, which can effectively reduce the heat of the fire source and inhibit the oxygen supply, thereby quickly extinguishing the fire source. Isuzu FVZ heavy-duty foam fire truck, with its unique working principle, provides strong support to firefighters and protects the safety of people's lives and property.
Learn More
8 tons telescopic boom truck mounted crane,8 ton truck mounted crane,truck mounted crane jib crane,Brand new high-quality original Japan Tadano truck mounted crane 8t,Japan Electricity ISUZU Truck Mounted Crane Telescopic Boom
Learn More
isuzu brand Garbage Collection Equipment Disposal Treatment Vehicle 3ton 4mt ISUZU Refuse Compactor Truck
Learn More

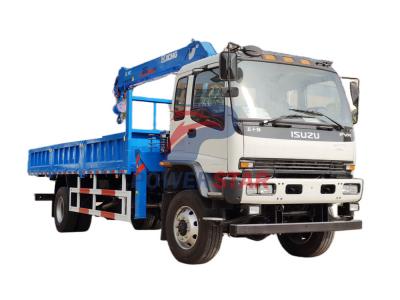

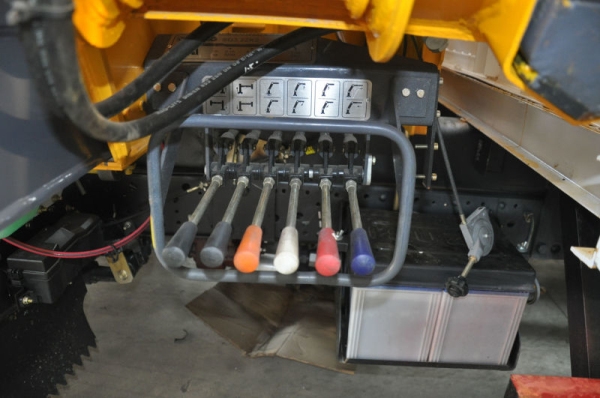

ISUZU FVR truck-mounted crane is a lifting equipment with excellent performance, safety and reliability. The vehicle is based on the Isuzu FVR heavy-duty chassis and is equipped with an XCMG crane. It adopts an advanced hydraulic system and has the characteristics of high precision and efficiency, and can easily complete various complex lifting operations. At the same time, the hydraulic system also has good stability, which can ensure that the equipment can still maintain efficient working status during long-term use.
