Moro air cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service. Air cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.Air cooled MORO PM80A vacuum pump produces free air flow of 424 CFM.
Truck model:
MORO PM80ARemarks:

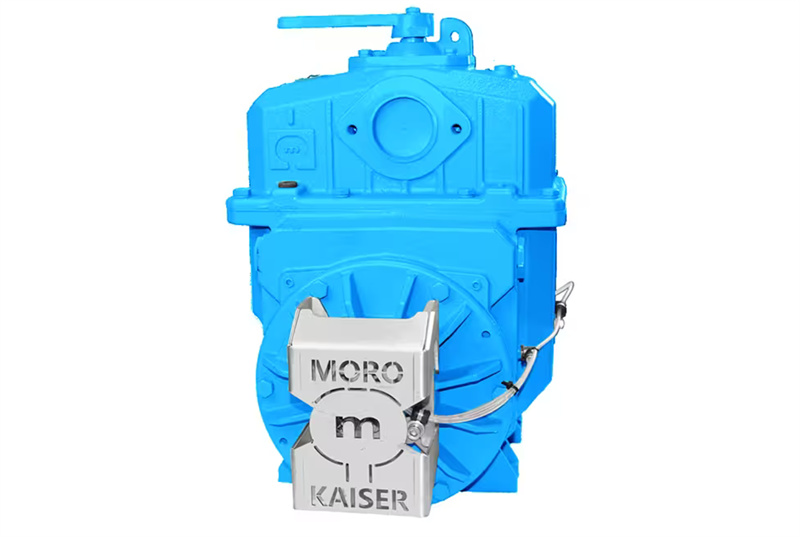

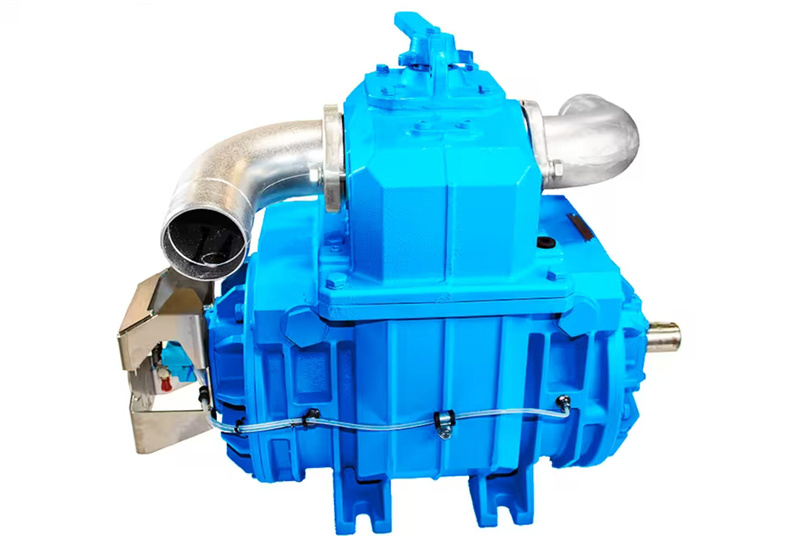

Moro PM80A 424 CFM Air Cooled Pump
Moro PM80A rotary vacuum pump also called Moro pump PM80A is a high-quality vacuum pump produced by MORO, Italy. The pump is made of cast iron and is durable. As a well-known brand in the field of vacuum pumps, MORO's products enjoy a good reputation in the market and are widely used in vacuum suction vehicles and various equipment. As a member of the MORO pump series, PM80A meets the needs of many industries with its excellent performance and relia
FEATURES
· Large open ported manifold design reduces noise and air friction
· High performance Kevlar vanes with visual inspection ports in casing
· High quality Viton oil seals - longer life than traditional oil seals
· Low rotating speed leads to longer pump life
· Remote oil tank
· Sealed bearings - low oil consumption
· Quiet operation
· 3" Ports
|
Moro PM80A rotary vacuum pump |
||
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
424 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
312 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Duty Vacuum |
Hg (in.) |
18 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
15.5 |
|
Power required at max. pressure |
hp |
41 |
|
Rotation speed |
rpm |
1100 |
|
Oil tank capacity |
quart(us) |
4 |
|
Suggested Tank Size |
Gallons |
1000-4000 |
|
Oil consumption |
gal (US)/Hr |
0.05 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
79 |
|
Hose |
in |
3 |
|
Flange |
in |
- |
|
Weight |
lbs |
357 |

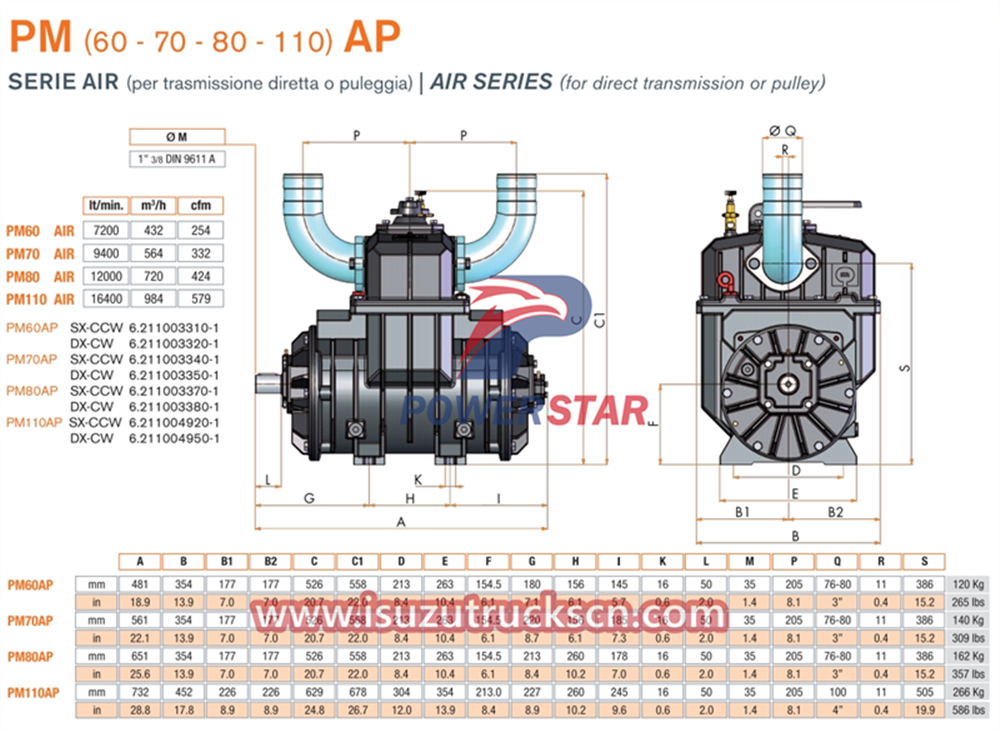

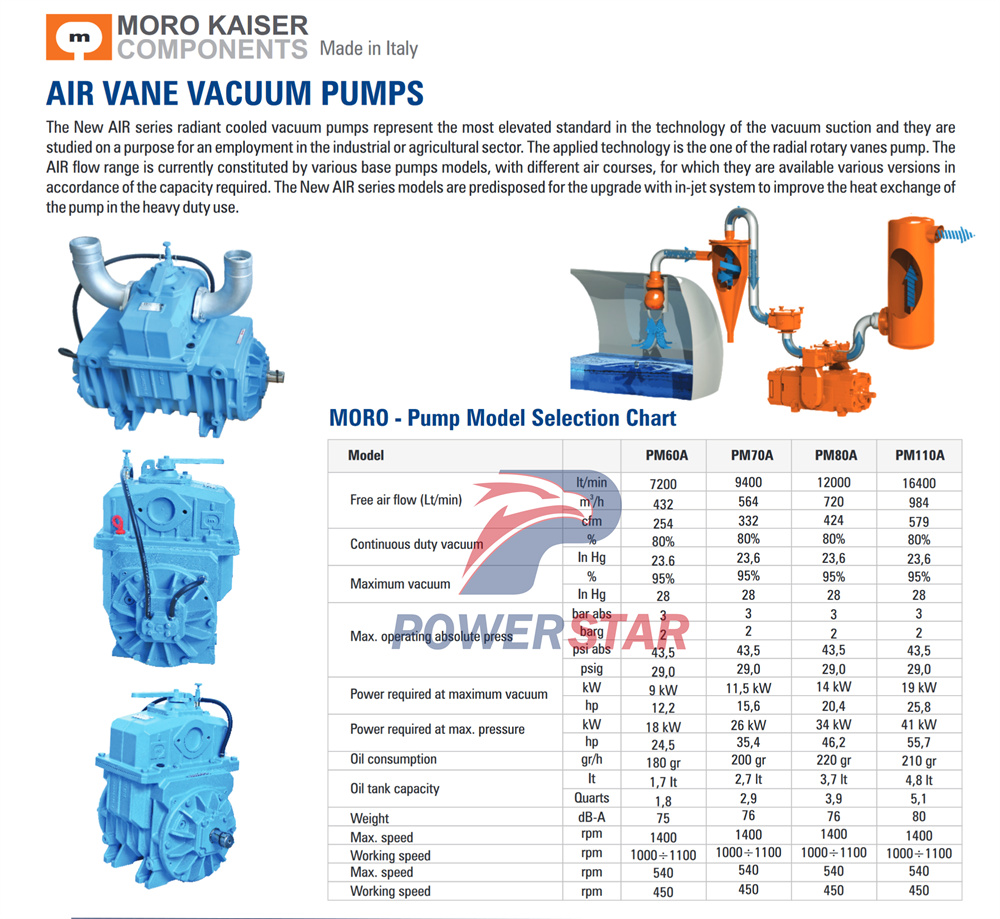

The Moro AIR Series radiant cooled vacuum pumps embody the most elevated standards in the field of vacuum suction pumps. These pumps are designed to be used in industrial applications that have varying capability requirements. The AIR Series was designed to improve the heat exchange of the pump in heavy-duty usage. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties.
The AIR Series vacuum pumps are crafted with a cast iron body to guarantee maximum reliability. Cast Iron is the most efficient material for releasing heat from the pump. The air intake and discharge are designed to reduce noise and heat production. This series is equipped with a special inspection port in the pump body allowing the operator to visually check the pump’s operation. The non-return and the four-way valves are integrated into the pump. The hose connection elbows consist of flange couplings and can be moved in a desired direction in accordance with the requirements of the vacuum pump usage.
This series was designed to improve the heat exchange of the pump in heavy-duty usage. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties.
Air Cooled MORO PM80A Vacuum Pump produces free air flow of 424 CFM.
The Moro PM80A Vacuum Pump stands out in the realm of industrial vacuum pumps, embodying top-notch performance, reliability, and efficiency. Engineered by Moro, a renowned manufacturer in the field, this rotary vane pump represents a stalwart solution for a diverse array of applications, from waste management to industrial cleaning tasks.
At its core, the Moro PM80A boasts a robust construction that ensures longevity and operational stability. Its design emphasizes durability, enabling it to withstand the rigors of demanding industrial environments. This resilience contributes to its reputation for consistent performance over extended periods, making it a trusted choice for professionals seeking a dependable vacuum pumping solution.
The pump's rotary vane mechanism lies at the heart of its vacuum generation capabilities. This technology enables the pump to efficiently create and maintain vacuum levels required for various applications. The Moro PM80A excels in providing ample suction power, facilitating swift and thorough vacuuming processes, whether used for suctioning liquids or solids.
Furthermore, precision engineering ensures that the pump operates with optimal efficiency, minimizing energy consumption without compromising suction performance. This balance between power and economy makes the Moro PM80A a cost-effective solution for businesses aiming to maximize productivity while controlling operational costs.
The pump's compact design enhances its versatility, allowing it to be easily integrated into existing systems or mounted onto specialized vehicles for mobile applications. This flexibility in installation options extends the pump's utility across a wide range of industrial settings, enhancing its practicality and adaptability to different operational requirements.

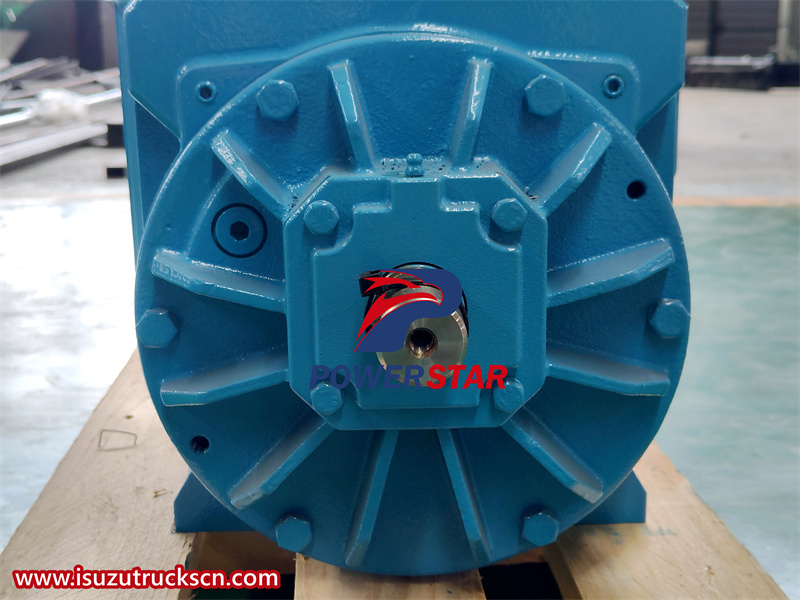

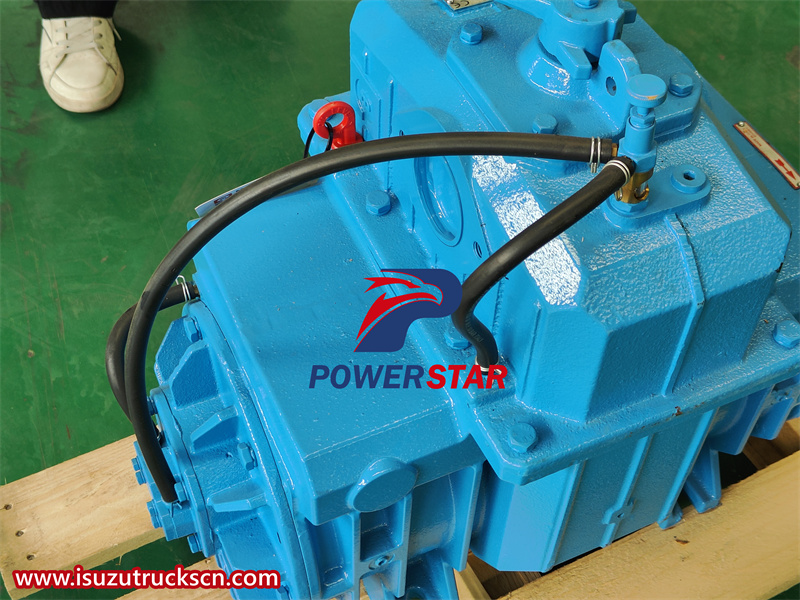

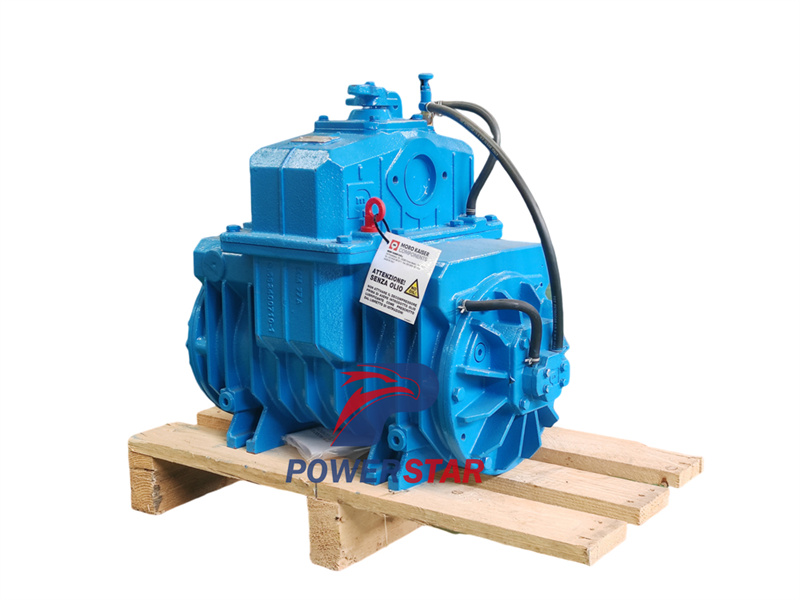

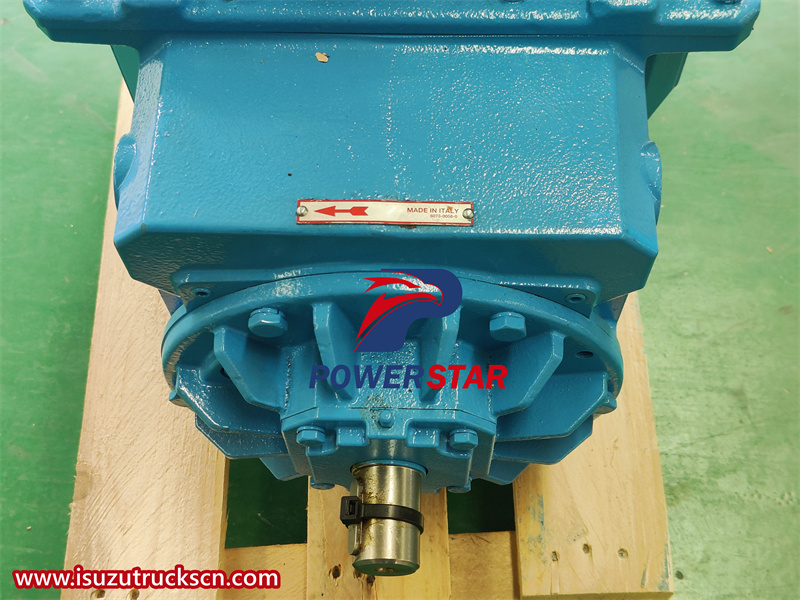

MORO pump PM80A

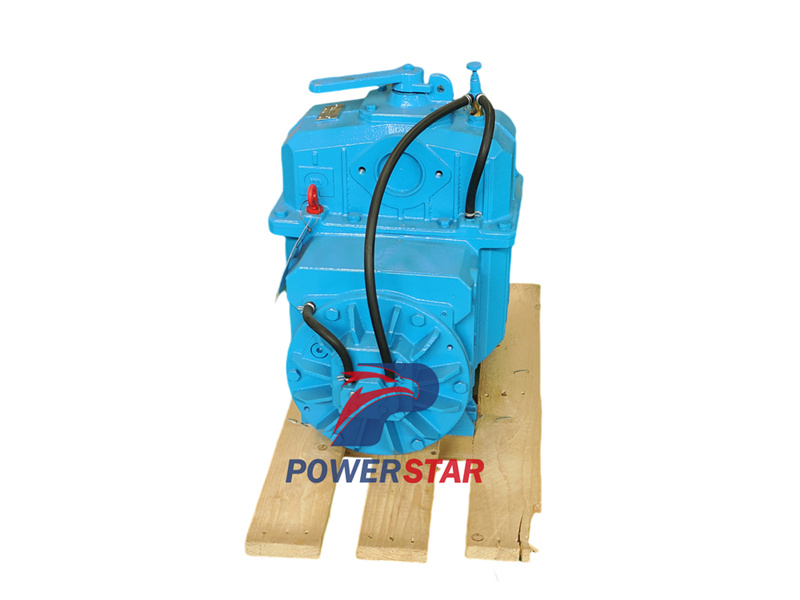

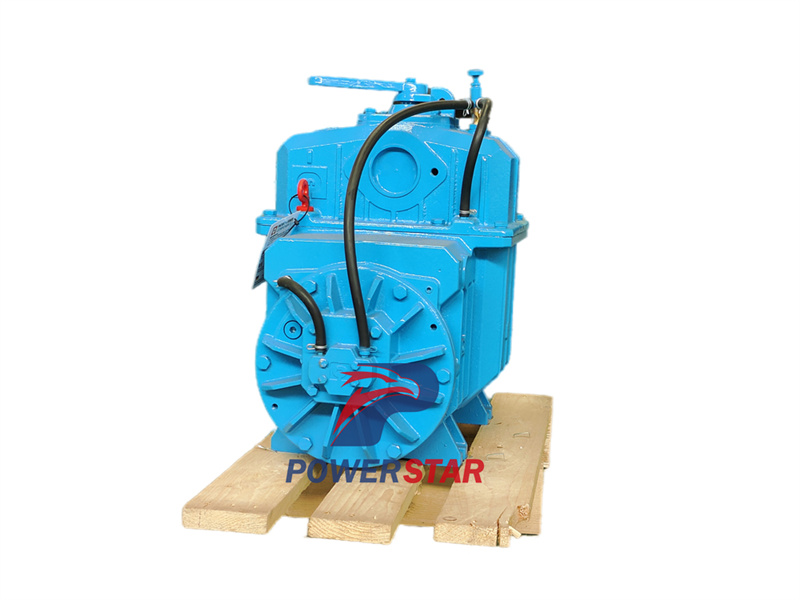

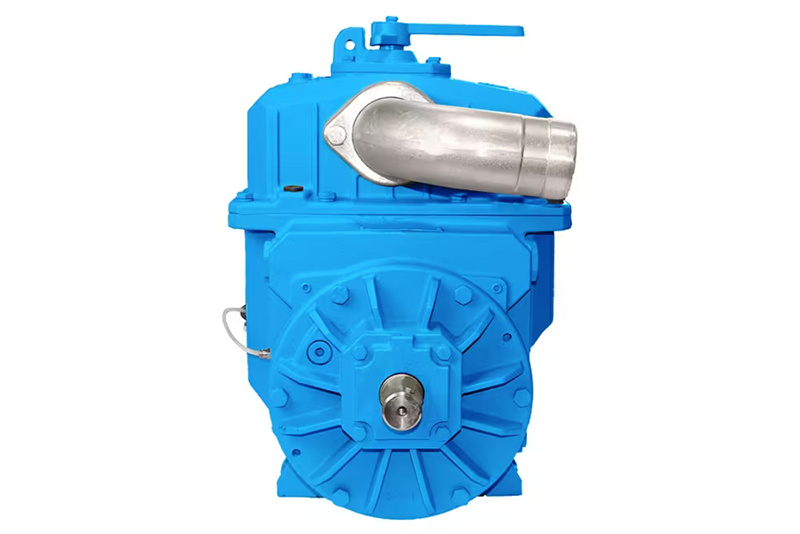

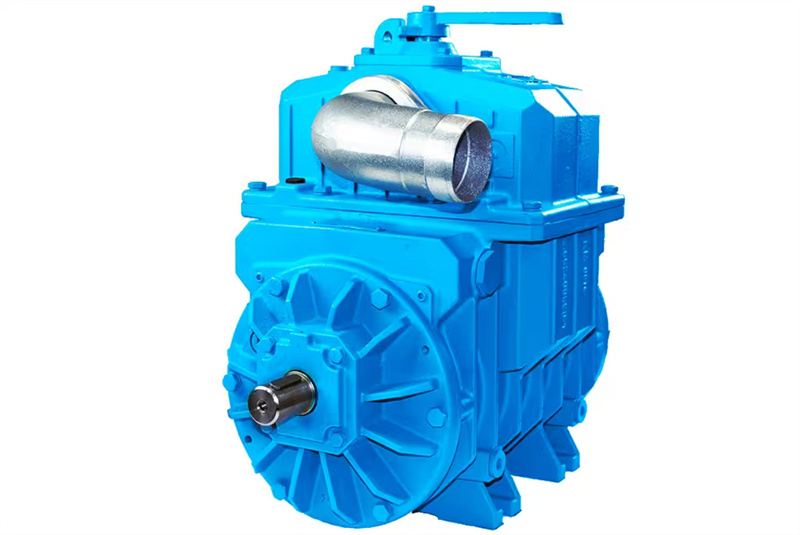

Moro PM80A rotary vacuum pump

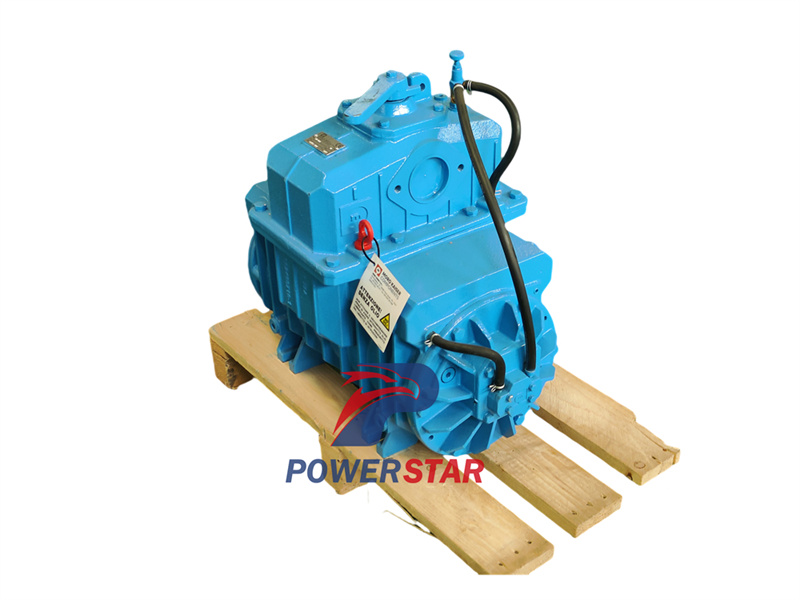

Moro PM80A 424 CFM Air Cooled Pump

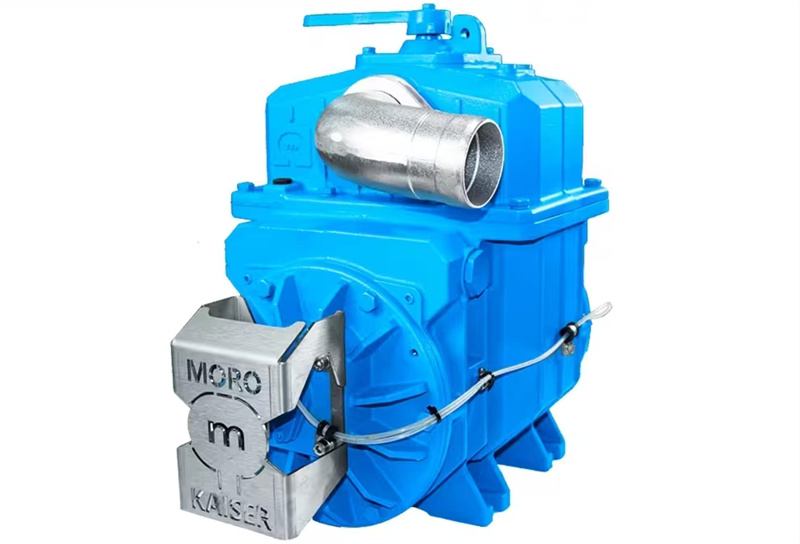

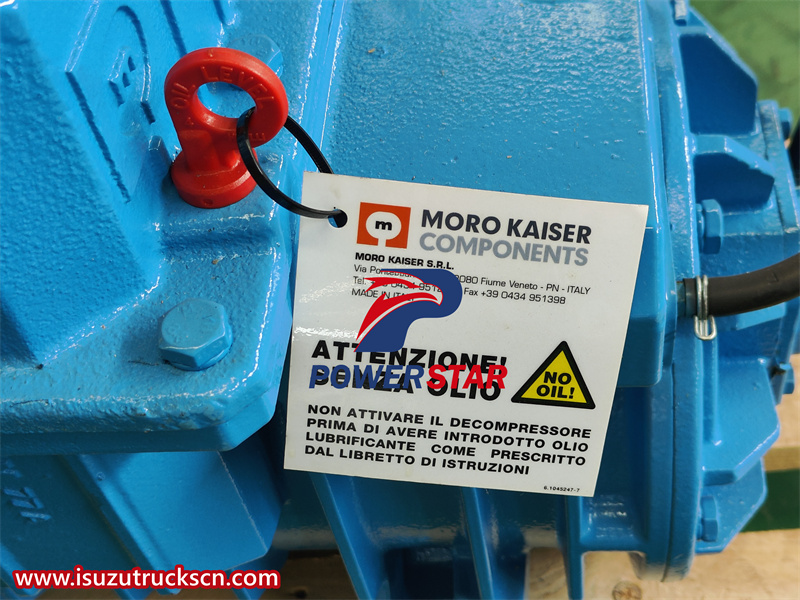

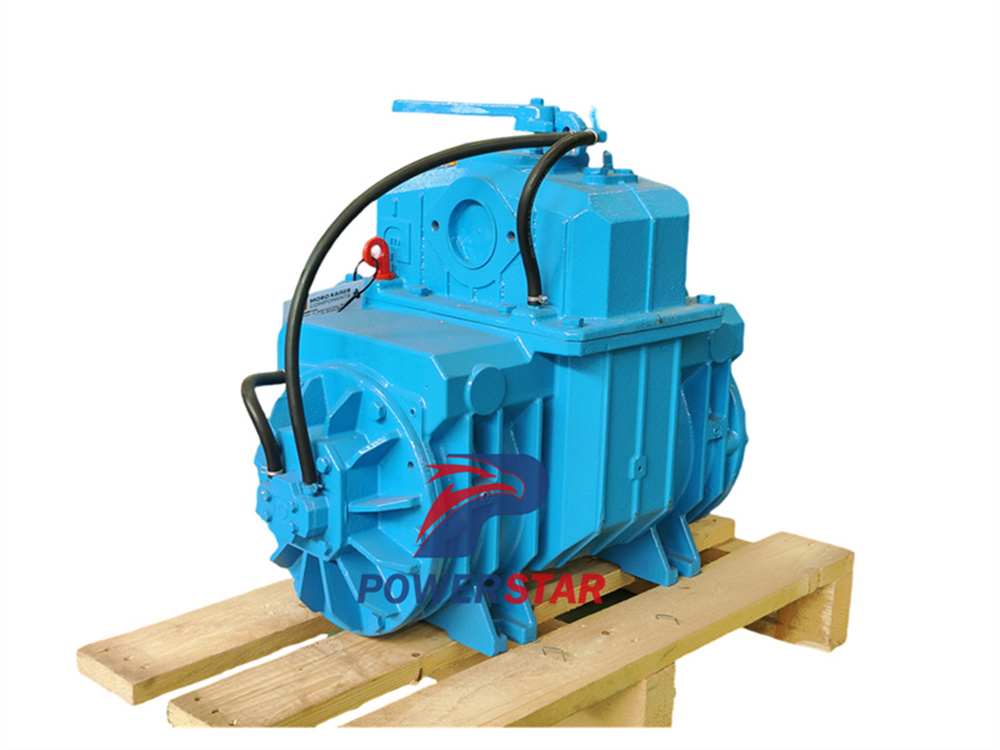

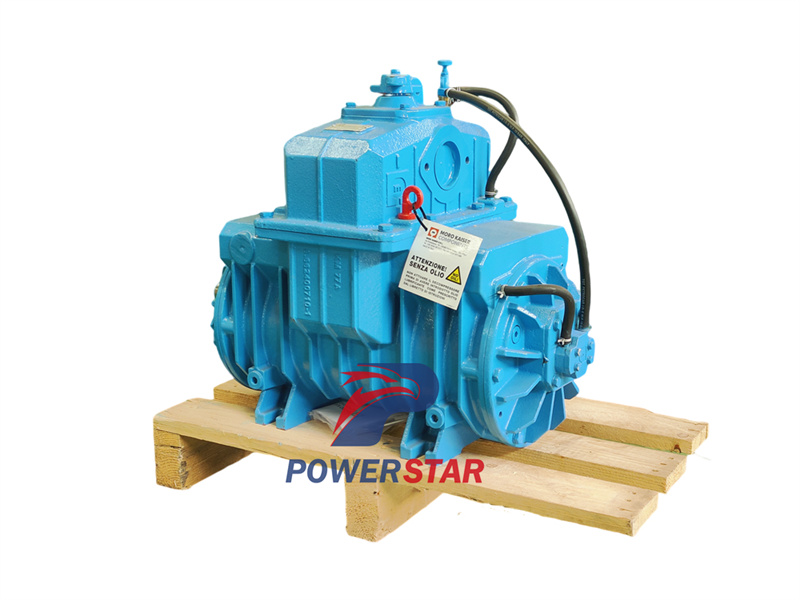

Italy Moro PM80A pump

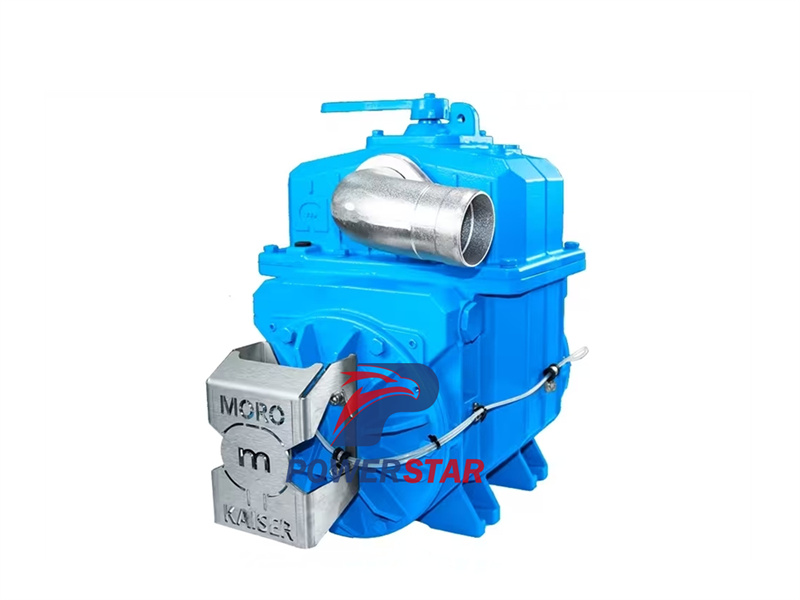

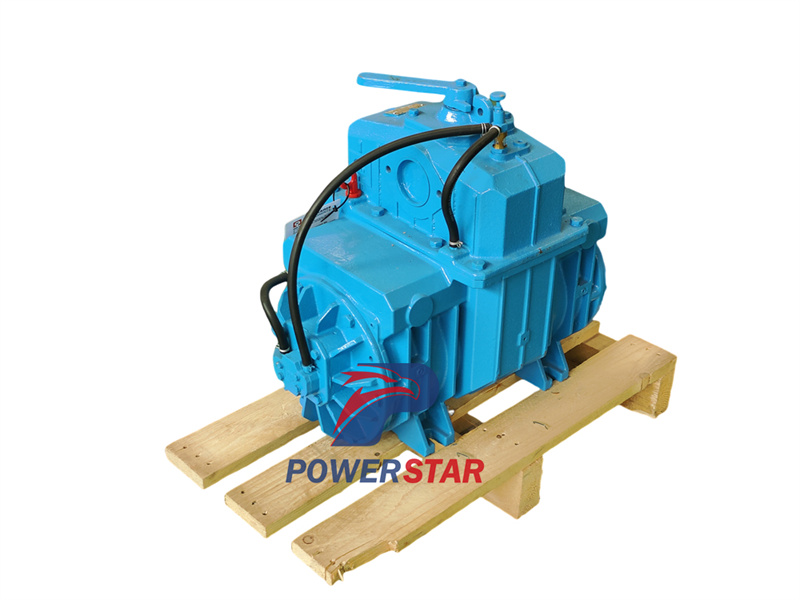

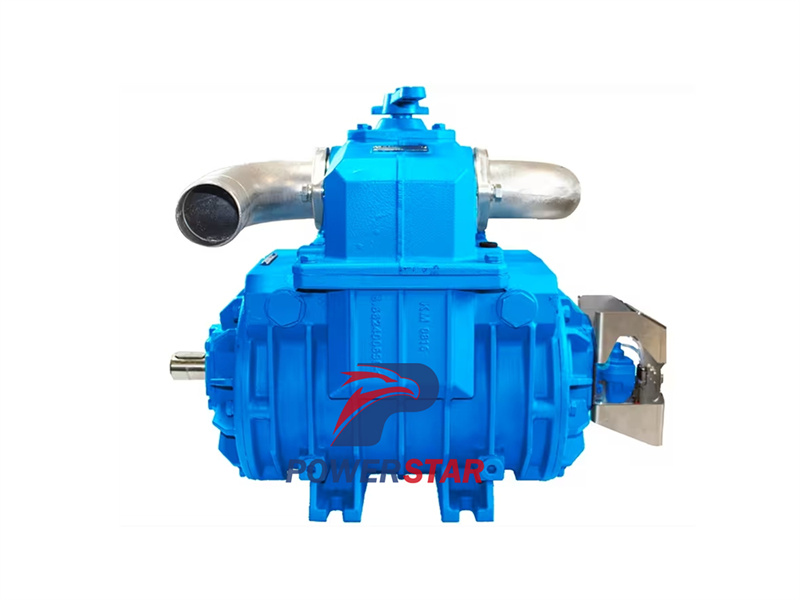

Moro air cooled vacuum pump

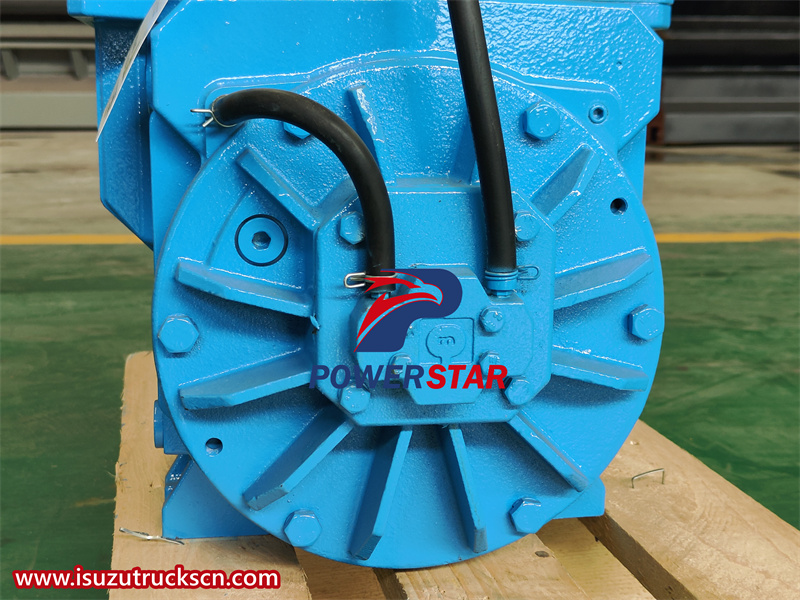

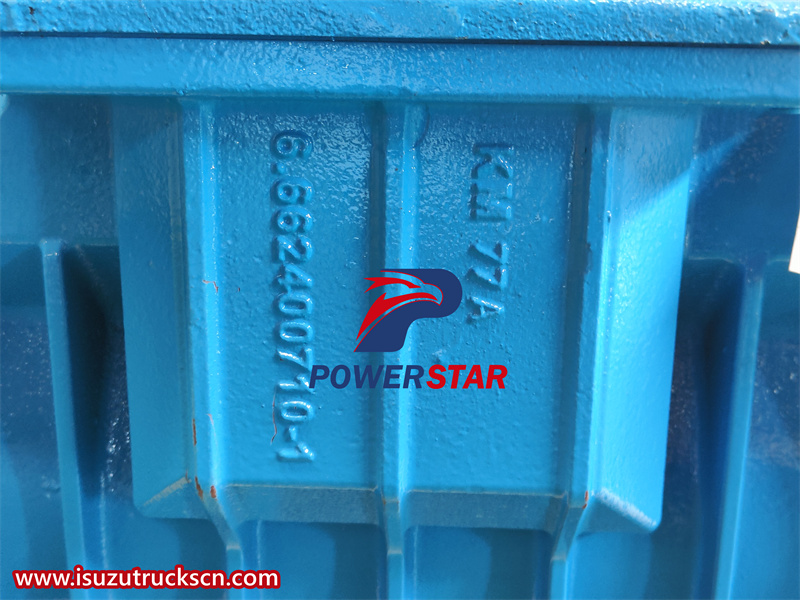

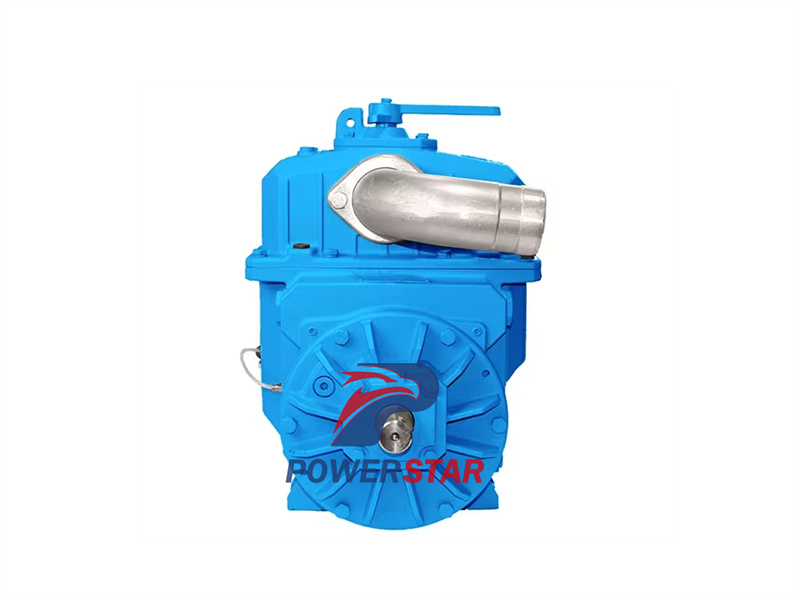

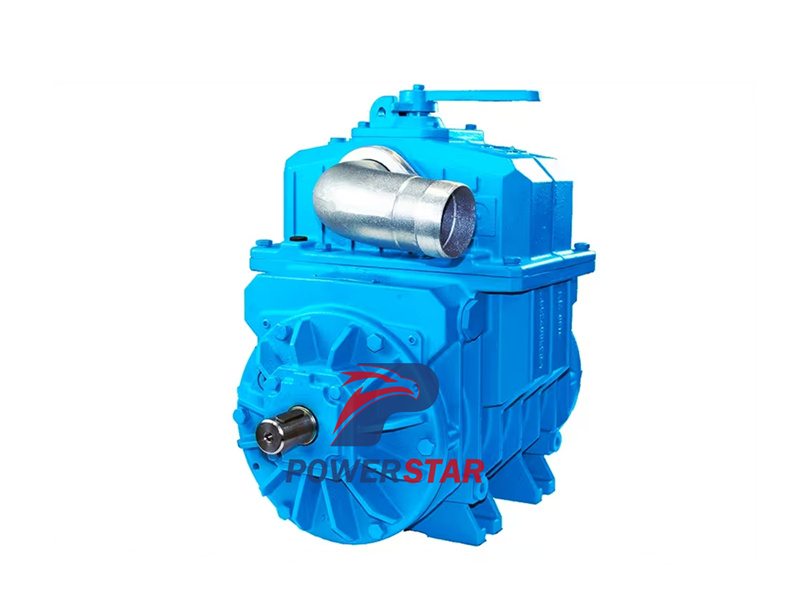

Moro PM80A vacuum pump
Power Supply Truck for generating electricity/repairing equipment/field operation, Telescopic Hydraulic Cylinder Lifting System, Dump Truck Lifting system for sale
Learn More
Genuine ISUZU spare parts, original universal joint for ISUZU 700P trucks, ISUZU universal joint #8980207890 for sale.
Learn More
The Moro PM60A air rotary vacuum pump is a powerful and durable industrial pump that stands out for its efficient performance, compact design and versatility. It is suitable for a variety of applications such as sewage treatment, chemical cleaning and hazardous waste disposal. Its innovative air rotary technology, corrosion-resistant construction, high suction capacity and stability make it the industry's first choice, providing users with efficient and reliable pumping solutions.
Learn More
Moro water cooled PM110W vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.The application of MORO PM110W vacuum pump in vacuum sewage suction truck greatly improves the sewage suction efficiency.
Learn More
UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane by the Dubai government ushers in a new era of efficiency at Jebel Ali Port. With its advanced features and versatile capabilities, this exclusive initiative will significantly enhance cargo handling processes, reducing turnaround times, and contributing to Dubai's position as a global trade and logistics hub.
Learn More

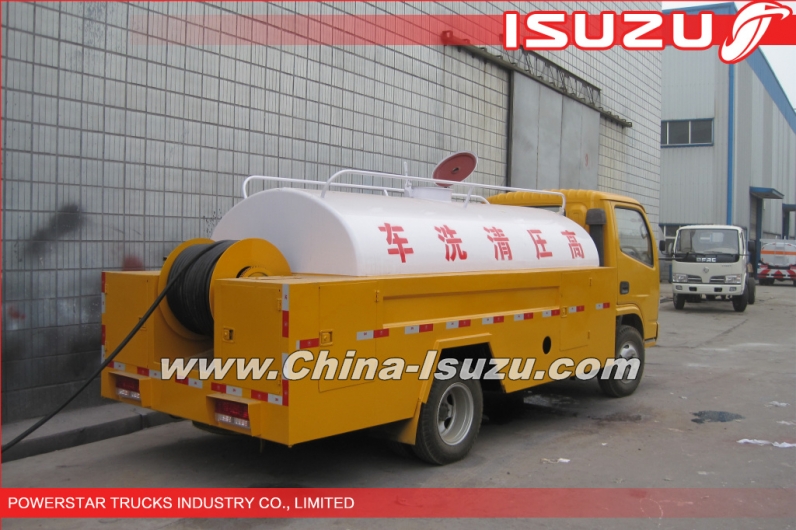

Tanker truck supplier ISUZU jet water truck,airport water truck jetting truck,Best quality new coming hot in market jetting water truck,new jetting vehicle water truck 10cubic,4X2 sewage jetting truck 6cbm ISUZU waste water suction truck 7ton 8ton 4X2 Donfeng sewage jetting truck,8cbm High Pressure Jetting Trucks ISUZU 190HP Vacuum Suction Fecal Tank Truck,7000L High Pressure Jetting Truck,high pressure washer truck,2014 Guaranteed 100% ISUZU high pressure jetting truck,high pressure sewer jetting truck,sewer cleaning truck,Top Quality ISUZU 4x2 High Pressure Jetting Tanker Truck Or Jetting Tanker Vehicle With 5000L Water Tank,6000l ISUZU 6 wheel high pressure water jet sewage suction tanker truck,8Tons Medium Volume High Pressure Jetting Trucks ISUZU Vacuum Sewage Sucting Truck For Sales,High quality low price ISUZU high pressure jet wash truck
Learn More
Best price ISUZU GIGA6X4 Tractor Head/Prime Mover, Isuzu GIGA Port Terminal Tractor Head Truck， Trailer Head Truck,
Learn More

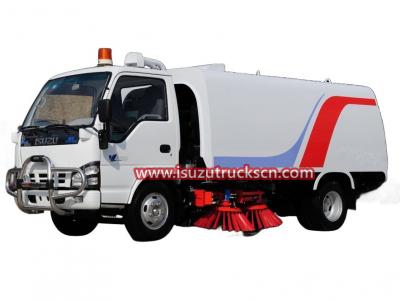

Street garbage collection sweeper Isuzu, New road sweeping vehicle, Street cleaner sweeper,Sanitation vacuum road sweeper truck, brand new road sweeper truck, sweeper vacuum road cleaner,Our Isuzu cement sweeper truck also equiped with auxiliary engine and The cleaning system provides power from the auxiliary engine and does not interfere with the whole vehicle power.
