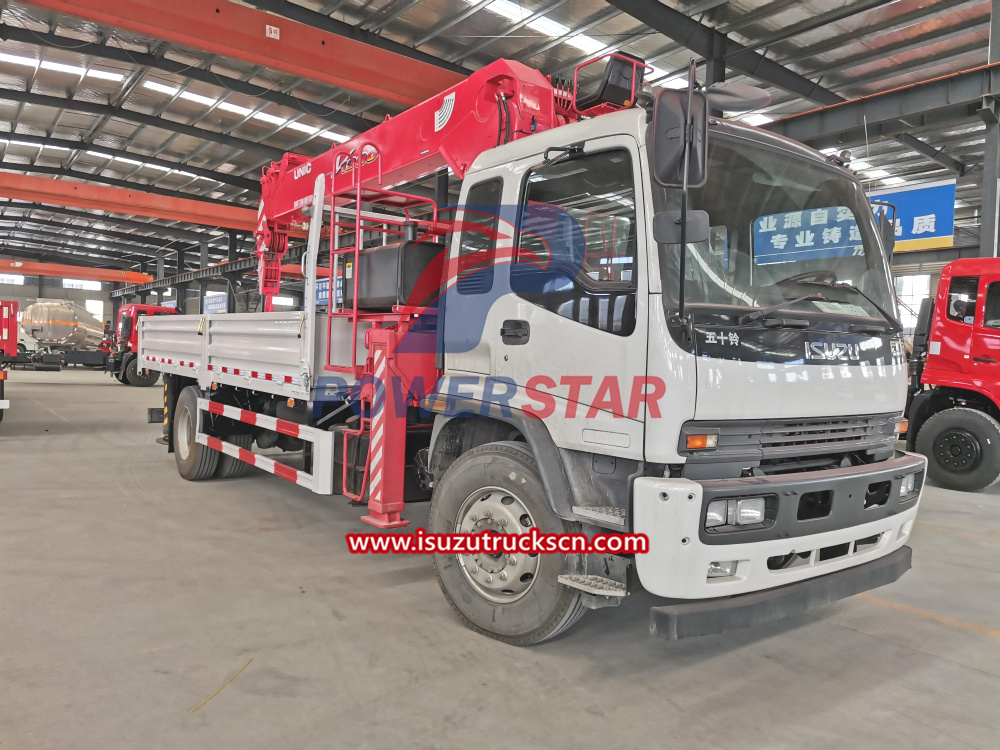

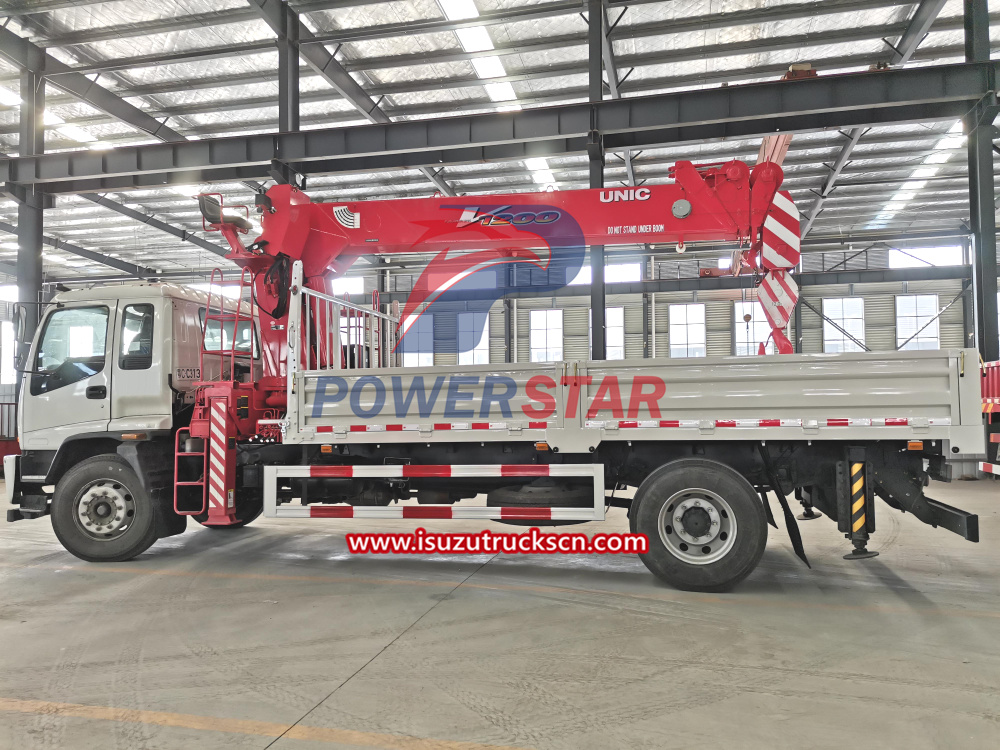

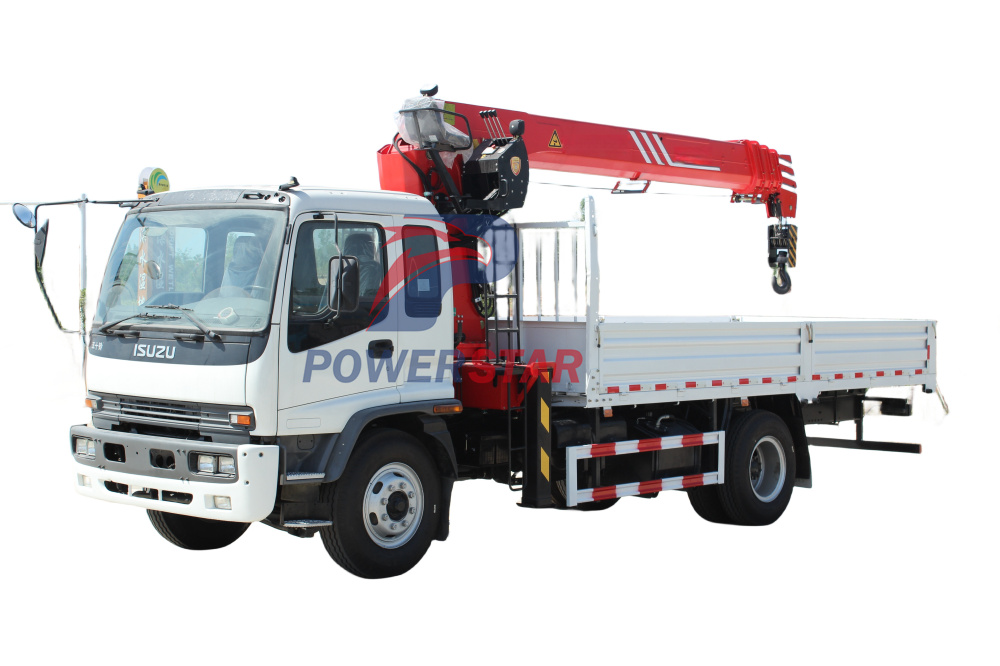

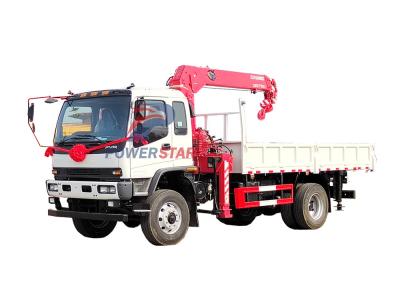

UNIC URV1200 ISUZU FTR Lorry Truck mounted Crane
Work capacity:
12 TonsTruck model:
PT5160TSCEngine power:
205 HPEngine type:
4HK1-TCAxle drive:
4x2Gear box:
ISUZU MLD 6SRemarks:

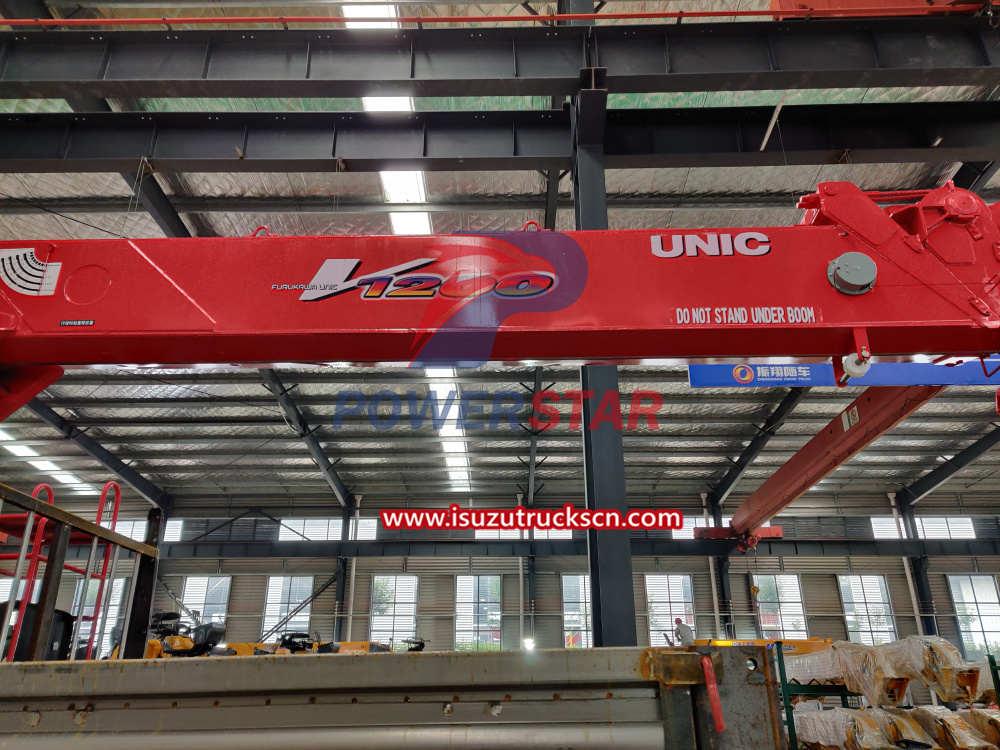

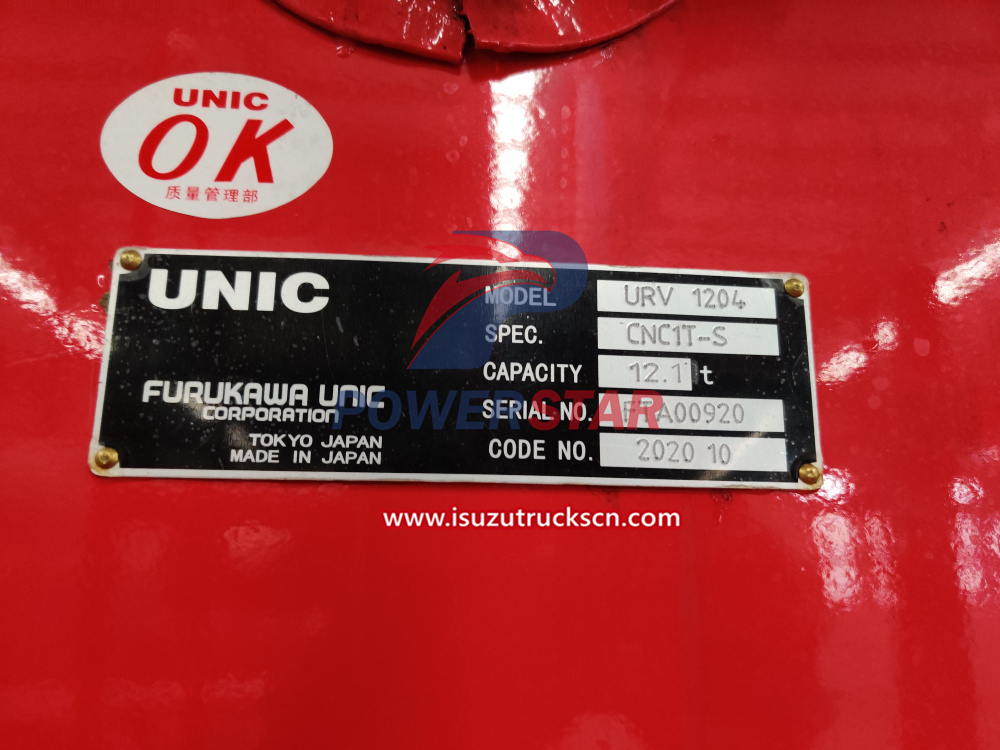

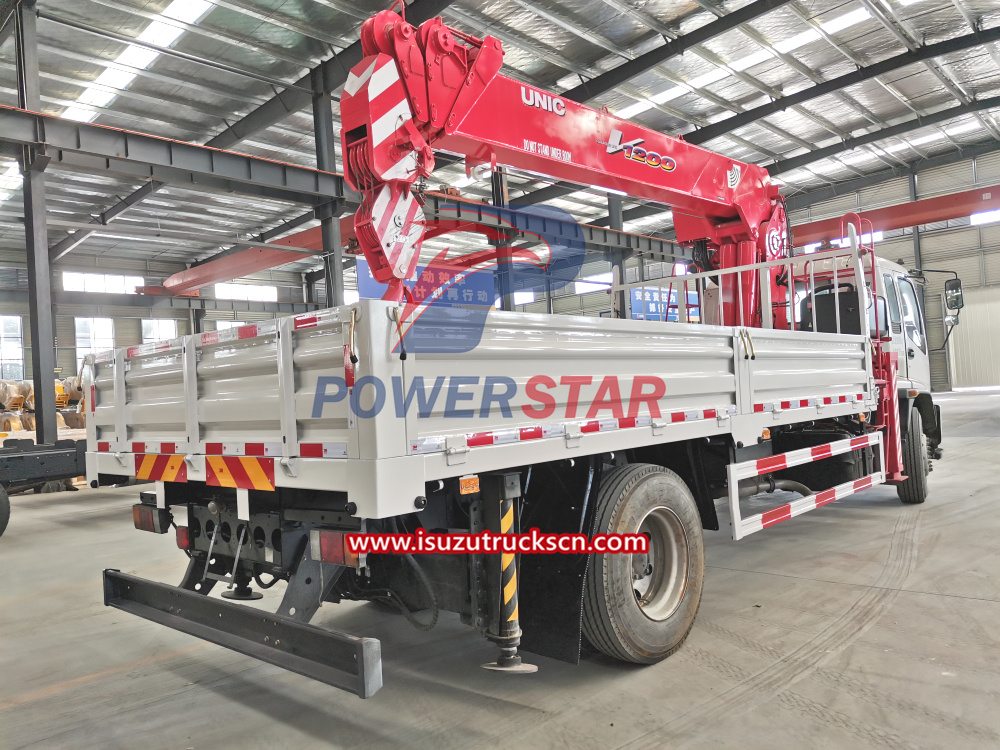

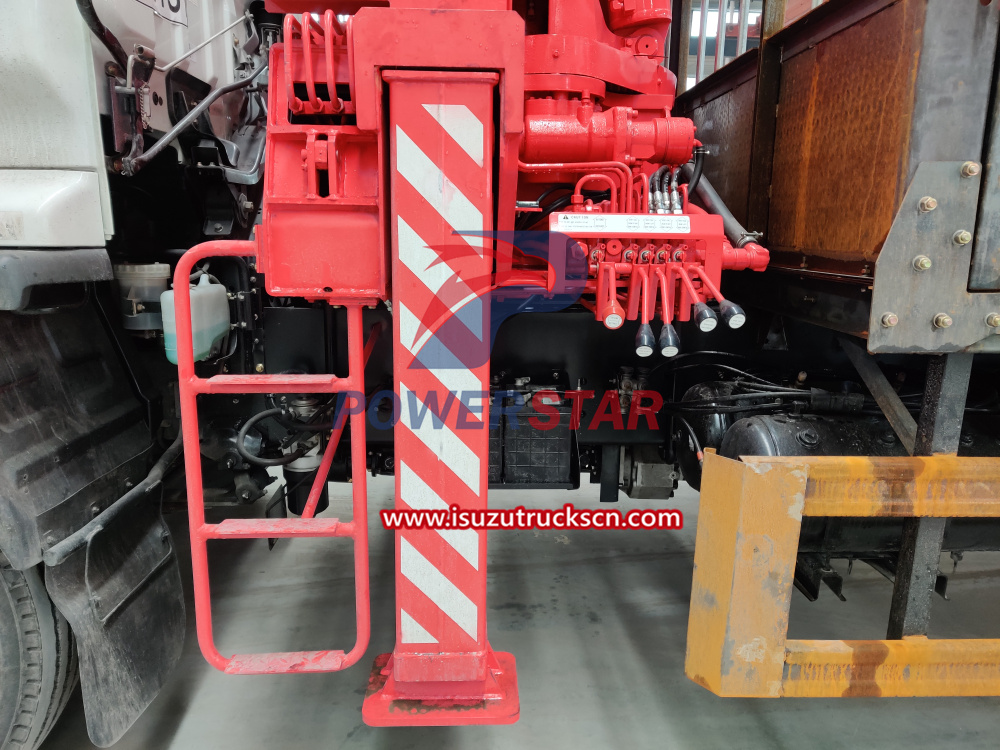

Extra rear support leg, Made in Japan V1200 boom crane
Dubai Government Introduces UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane to Enhance Efficiency at Jebel Ali Port.
In an unprecedented move to boost efficiency at Jebel Ali Port, the Dubai government has introduced the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane. This exclusive development aims to revolutionize cargo handling capabilities, streamline operations, and reinforce Dubai's position as a global trade hub.
Recognizing the need for advanced technology to optimize port operations and expedite cargo handling processes, the Dubai government conducted extensive research to identify the most suitable manufacturer for their requirements. After careful evaluation, UNIC and ISUZU, global leaders in their respective fields, were selected for their proven expertise and reliability in producing truck-mounted cranes.

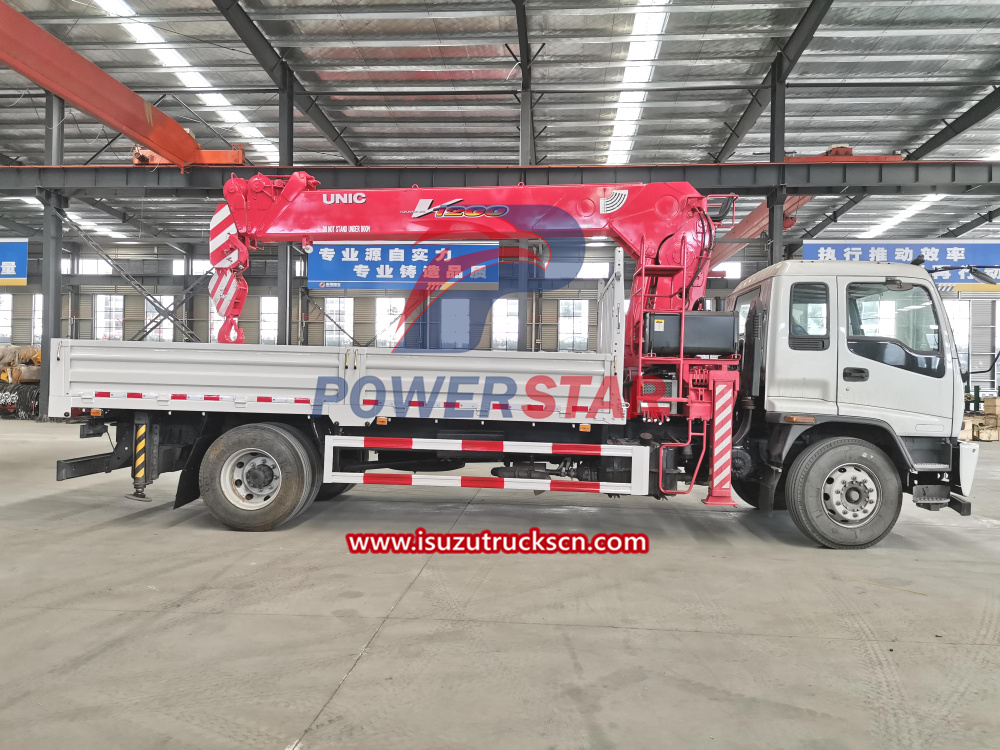

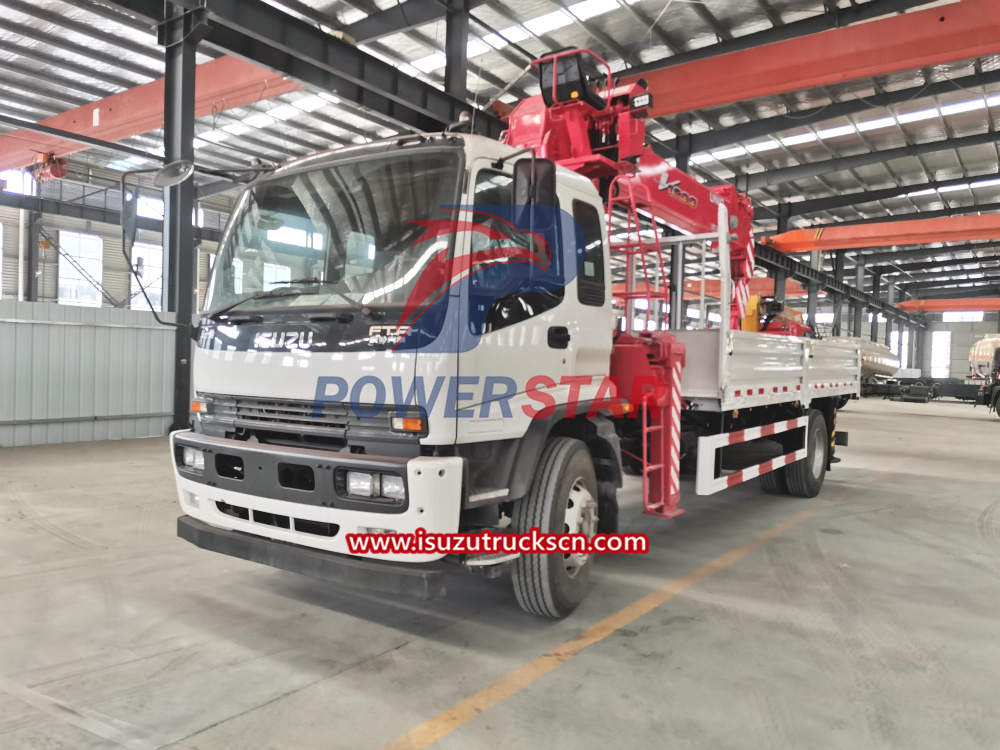

The UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane has been meticulously designed to meet the specific demands of Jebel Ali Port. This versatile equipment combines the strength and stability of the ISUZU FTR lorry body with the exceptional lifting capacity and flexibility of the UNIC URV1200 crane. With a reach of up to [X meters] and a lifting capacity of [X tons], this truck-mounted crane can efficiently handle various types of cargo, including heavy machinery and oversized containers.
| Vehicle Description | |
| Overall dimension | 9590*2500*3830mm |
| GVW | 18000kg |
| Curb weight | 9230kg |
| Chassis brand | Japan ISUZU FTR |
| Traction type | 4*2 |
| Up-parts description | |||

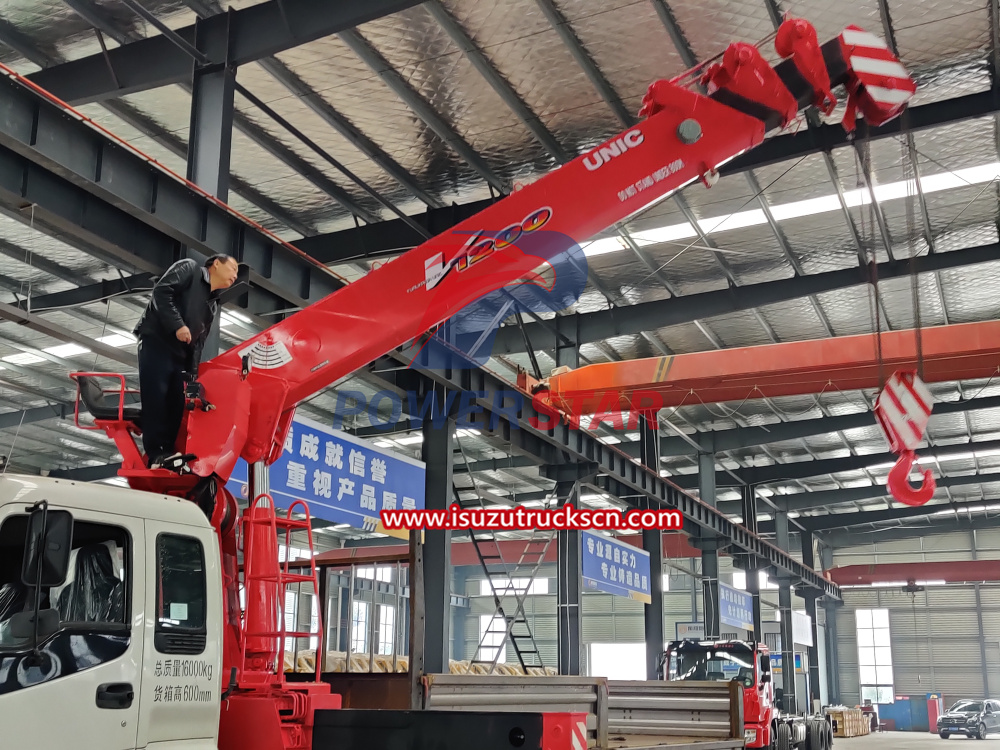

| Crane | Type | Straight Arm Crane | |
| Stage | 4 arm | ||
| Lifting capacity | 12T | ||
| Rotating angle | 360º all rotation | ||
| Cargo box | Dimension | 8200*2400*800mm | |
| Material | Carbon steel | ||
| Thickness | Side | 1mm | |
| Floor | 3mm | ||
| Chassis Description | ||
| Chassis model | ISUZU FTR heavy duty | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Wheelbase | 5500mm | |
| Tire specification | 10.00-20 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | ISUZU 4HK1 |
| Emission level | Euro 4 | |
| Displacement/output | 7790ml/150kw | |
| Horse power | 205hp | |
| Gear box | Model | ISUZU MLD 6-shift |
| Number of gears | 6 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake | |
| Axle | Front | 7T- Elliot type, I beam section |
| Rear | 10T-Single reduction, ratio 5.143 | |
| Suspension | Front | 8- Leaf spring with shock absorber |
| Rear | 9-Leaf spring | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 350L | |
The introduction of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane is accompanied by comprehensive training programs for the port's operators. These programs emphasize the proper operation and usage of the crane, adherence to safety protocols, and the implementation of efficient cargo handling techniques. By investing in personnel training, the Dubai government ensures that the port's operators are skilled and knowledgeable, promoting smooth operations and minimizing the risk of accidents or delays.
Looking towards the future, the implementation of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane represents a significant step in Dubai's commitment to continuously enhance efficiency at Jebel Ali Port. The government envisions further modernization and integration of advanced technologies to optimize cargo handling processes, including the use of automated systems, artificial intelligence, and Internet of Things (IoT) solutions. This forward-thinking approach aims to meet the growing demand for fast and efficient port services and solidify Dubai's reputation as a leading global trade and logistics hub.
To ensure the authenticity of this exclusive news, the Dubai government has implemented stringent measures to prevent plagiarism. All contractual agreements, invoices, and associated documentation related to the procurement of the UNIC URV1200 ISUZU FTR Lorry Body Truck-mounted Crane have been meticulously reviewed, ensuring compliance with legal and ethical standards, and maintaining transparency and accountability.
Isuzu FVR 4x4 off-road truck mounted UNIC crane by Yemen serves as a testament to the government's commitment to enhancing the national emergency firefighting brigade's rescue capabilities. With its specialized features and adaptability in rugged terrains, this exclusive initiative will significantly contribute to the efficiency and effectiveness of rescue operations, ultimately safeguarding the lives of citizens and minimizing property damage.
Learn More
The ISUZU FVR 4×4 truck-mounted crane is a special vehicle with strong off-road capabilities and load-carrying capacity. It is suitable for cargo lifting in various complex environments and places. The vehicle is equipped with ISUZU 240HP diesel engine, front and rear axle independent suspension systems, spacious cab, a customized cargo box, and a UNIC telescopic boom crane. The truck has stable braking performance, good steering performance, and good safety and handling.
Learn More
16m 18m 20m Isuzu NPR insulated aerial work platform bucket truck has four types of max working height: 18m, 21m ,23m and 27m. The vehicle adopts lightweight design, uses high strength steel plate to manufacture the main structure. The working platform and carriage are all made of high strength aluminum alloy material.
Learn More

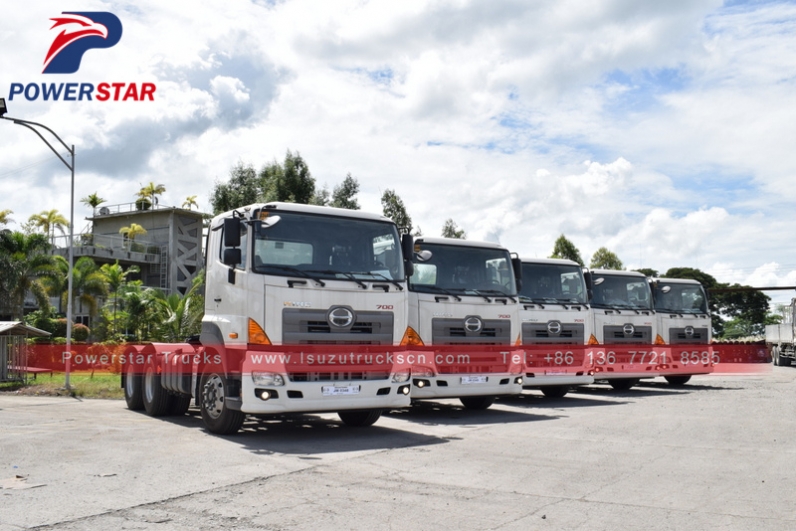

Japan hino truck tractor (also called Towing tractor Hino, Hino prime mover, Tractor unit) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
Learn More
Isuzu Maintenance working vehicle,Isuzu heavy machinery maintain vehicle,4x2 diesel engine workshop truck
Learn More
20-22m Telescopic Boom Isuzu Aerial Working Platform Truck,ISUZU 600P 4X2 Aerial Platform Truck,Aerial Working Platform Truck,High Quality 12m Aerial Working Platform Truck,ISUZU 4*2 Aerial Platform Truck 4*2 ElectricPlatform Truck,ISUZU 18m Aerial Platform TrucK,25-50m Aerial Ladder Platform Fire Truck,High Altitude Operation Truck, Aerial High LiftingTruck, 10m 12m 14m 16m High Platform 42 Meter Aerial Platform Fire Truck
Learn More

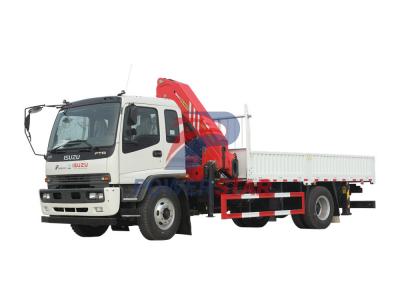

The ISUZU FTR knuckle crane truck is an engineering vehicle produced by POWERSTAR. This vehicle is modified based on the ISUZU FTR chassis, uses ISUZU diesel engine as the power source, and is equipped with the internationally renowned brand Plafinger SPK23500 knuckle boom crane, which has strong lifting capacity and high flexibility.
