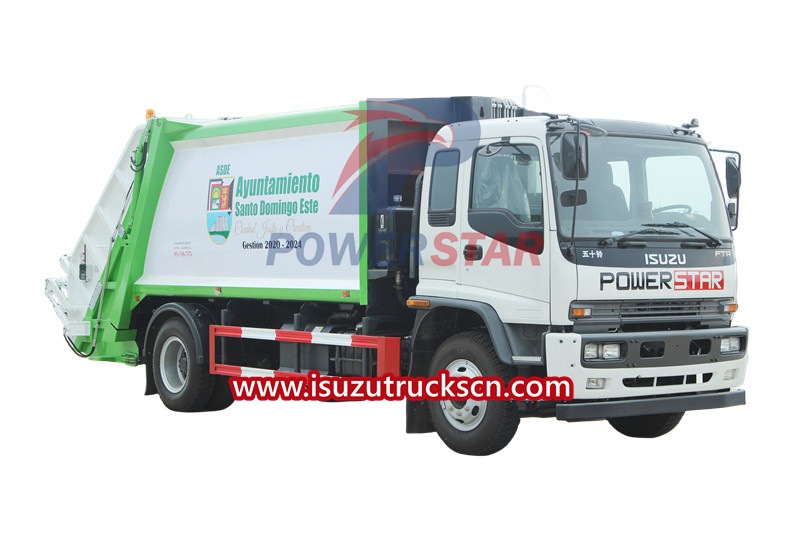

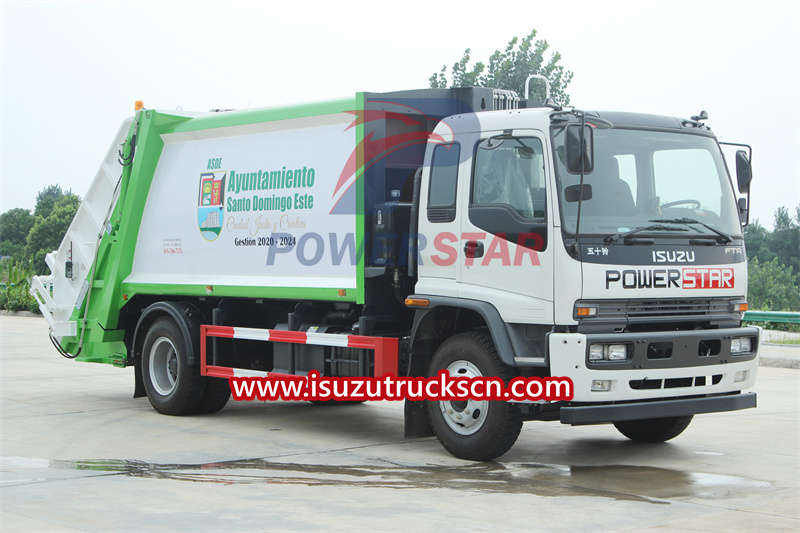

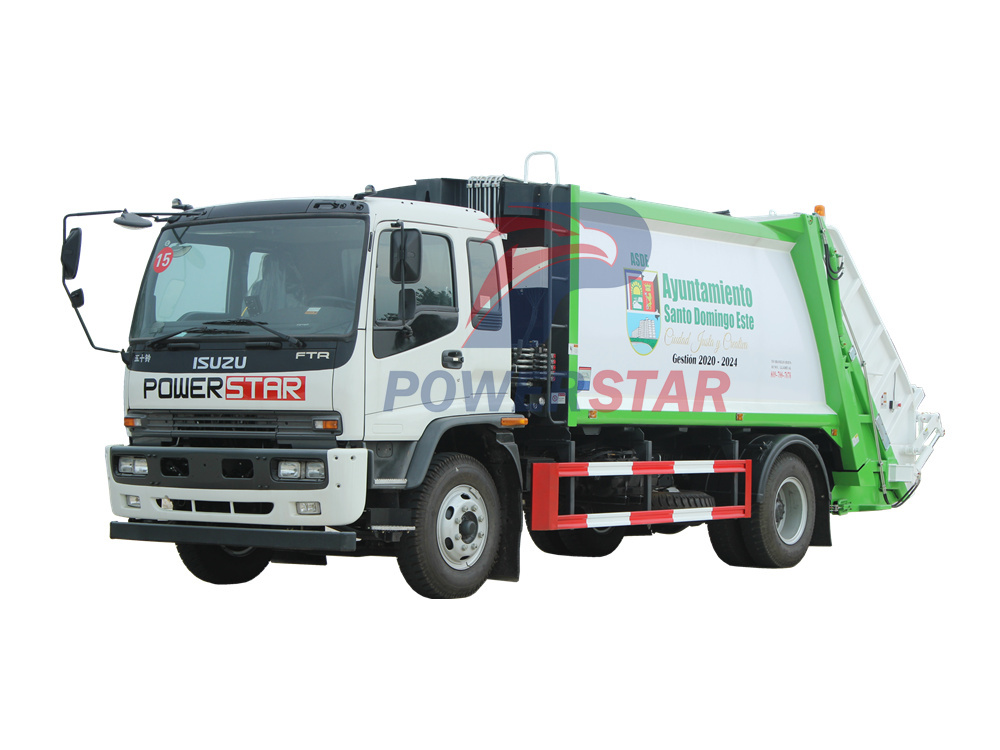

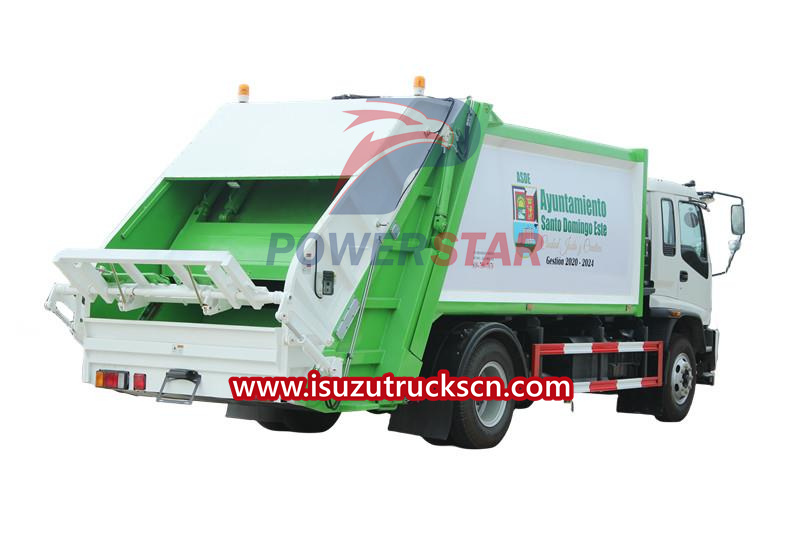

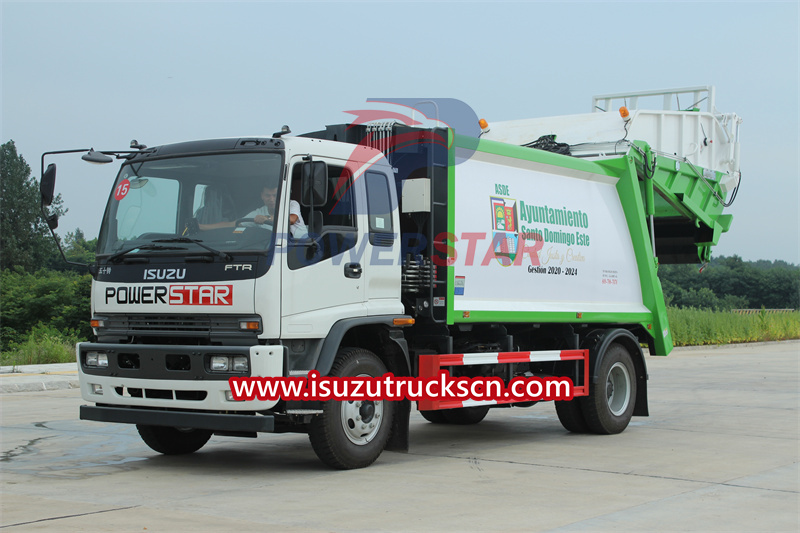

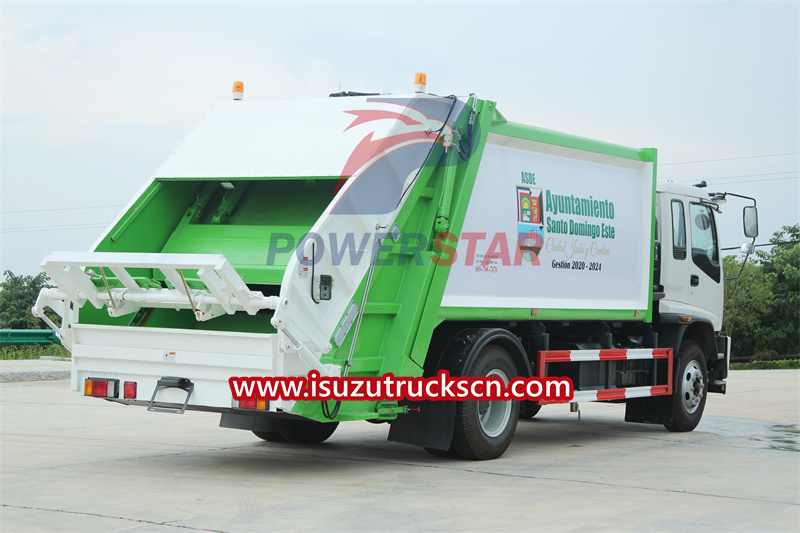

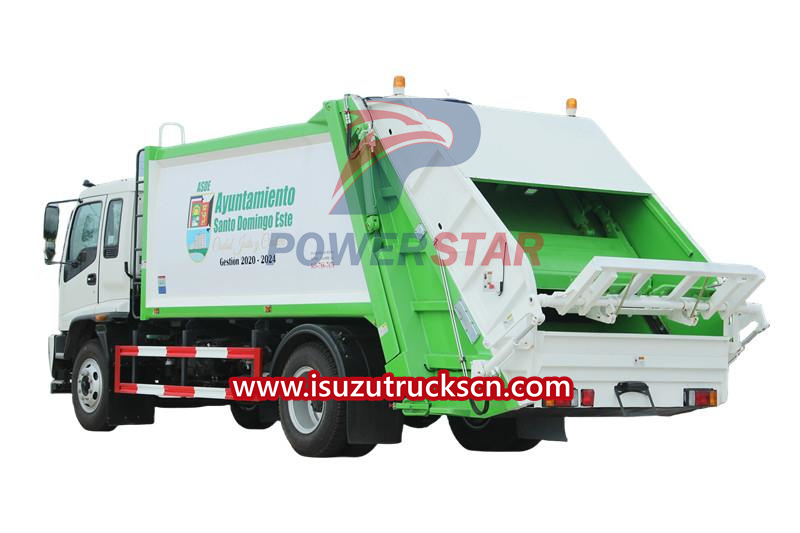

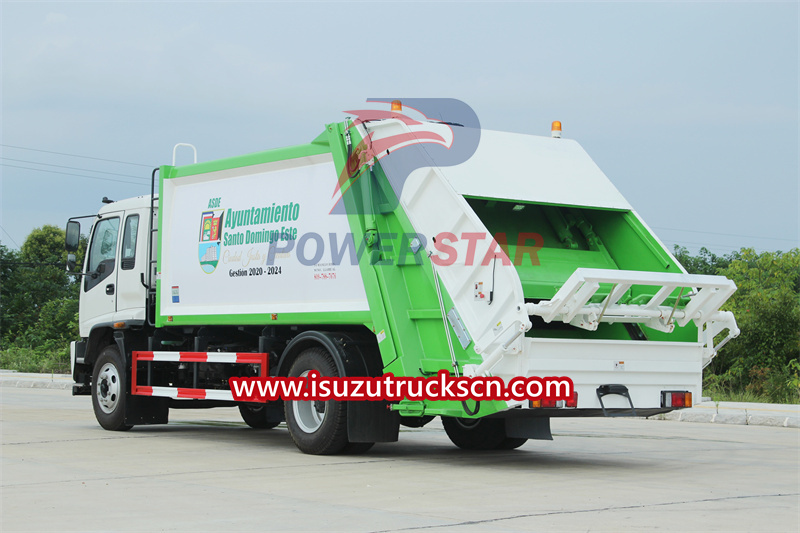

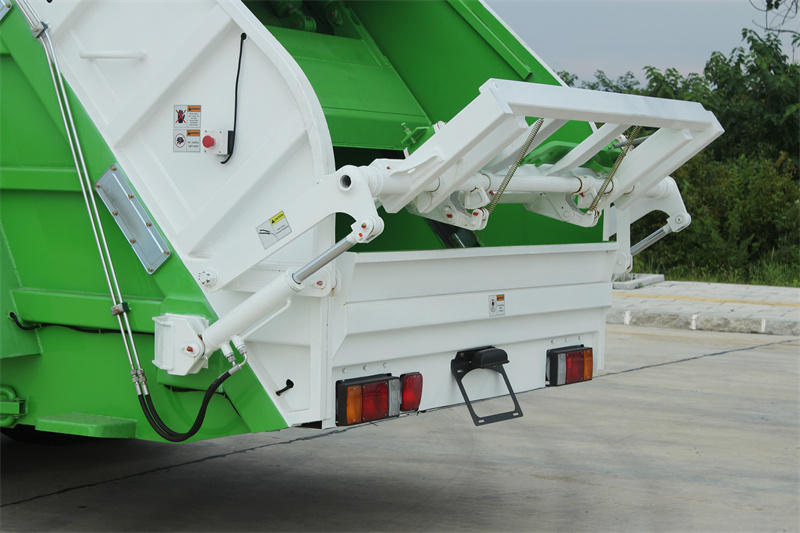

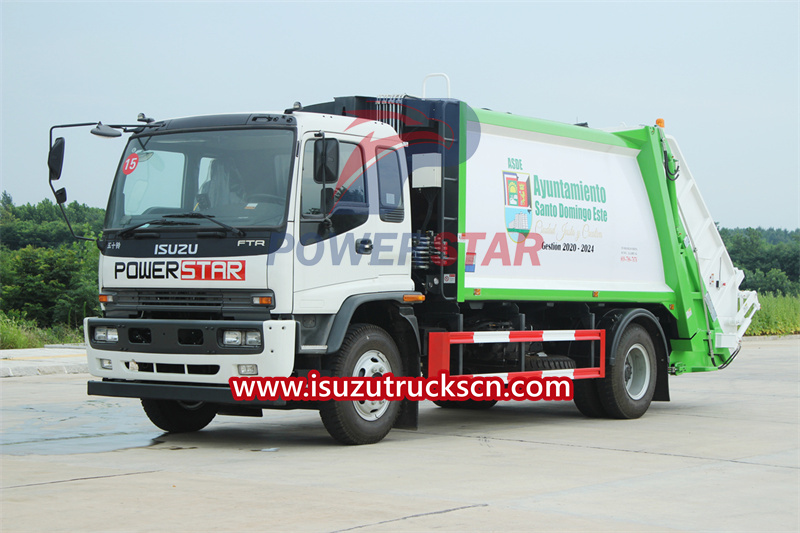

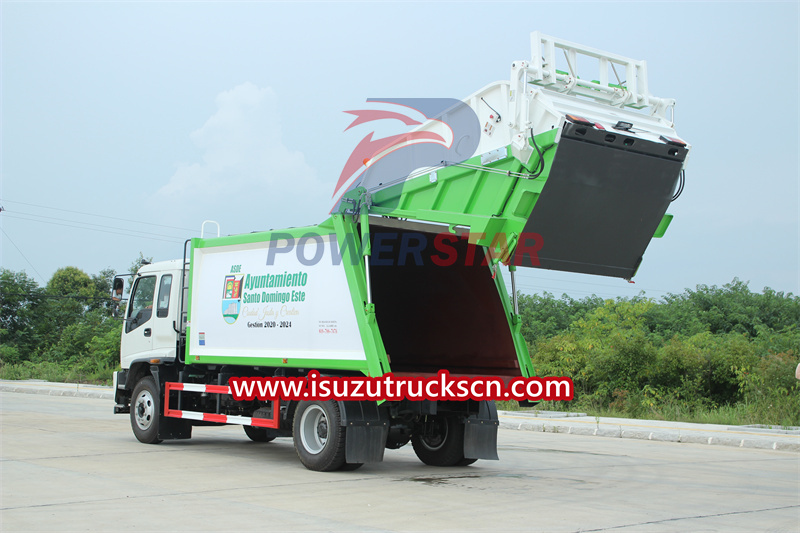

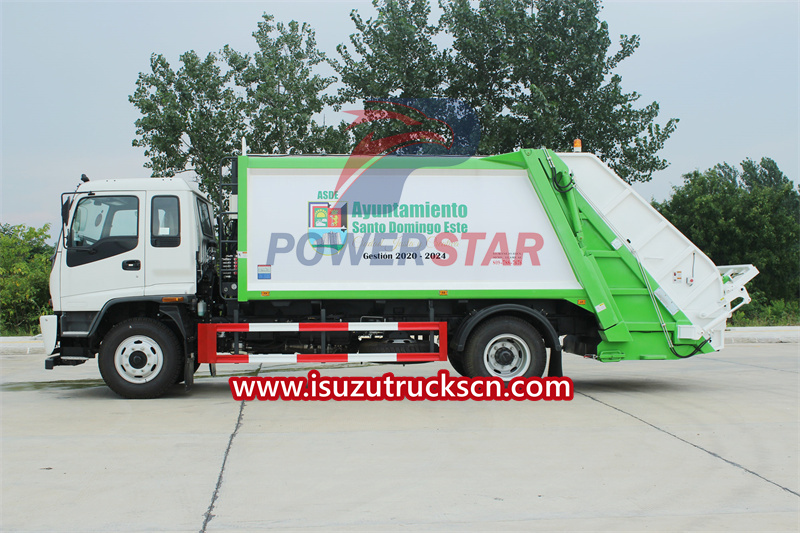

Isuzu FTR FRR FSR FVR model 16cbm garbage compactor rear loader truck to be mounted with Japanese ISUZU diesel engine 4HK1-TC model with 205HP, Isuzu MLD model 6-shift manual gearbox with 6 forward and 1 reverse, CAN-BUS electric control system, both can be optional inside cabinet or at rear hopper, foot stand and handle can help workers collecting garbage on the street in Africa. rear tilting device, which designed to loading 240L, 360L, 660L, 770L. 1100L international standard bins. Time of discharging ≤ 30s; Time of loading ≤ 25s. For all 16cbm trash compactor body, which use electrophoretic painting, thus can extend the service life for all Isuzu rear loader trucks. And the logos can 100% customized to showing what the customers need.
Work capacity:
16 CBMTruck model:
PT5160ZYS16FEngine power:
205 hpEngine type:
4HK1-TCAxle drive:
4x2Gear box:
ISUZU MLD 6-shift ManualRemarks:
Electrophoretic painting and customized logos
Isuzu vehicle mounted garbage compactor is an essential piece of equipment for efficiently managing waste collection. This type of garbage compactor is mounted on isuzu truck chassis, allowing waste to be collected and compacted while on the move.
vehicle mounted garbage compactor is its ability to reduce the volume of waste, allowing for more efficient transportation and disposal. By compacting the waste, the compactor can significantly increase the amount of garbage that can be transported in a single trip. This can lead to cost savings and a reduction in the number of trips required for waste collection.
Products Parameters:
|
ISUZU Garbage Rear Loader 10cbm refuse compactor truck Product Overview |
|||
|
Product name |
10CBM ISUZU compacting garbage truck |
Model |
PT5160ZYS16F |
|
Cab |
FTR |
Engine horsepower (HP) |
205 |
|
Dimensions (mm) |
8500×2500×3400 |
Driving type |
Left Hand Drive |
|
Gross weight (kg) |
16000 |
Loading weight(kg) |
10000 |
|
Product parameters |
|||
|
Item |
Specification Standard Specification |
||
|
Cab |
Isuzu FTR cab, two seats and one sleeper, with air conditioner |
||
|
Front axle |
6.3 tons |
||
|
Rear axle |
13 tons |
||
|
Gearbox |
Isuzu MLD 6-speed transmission, manual |
||
|
Chassis frame |
Straight through reinforced girder |
||
|
Tire |
295/80R22.5 type tubeless tire 6 pieces |
||
|
Power take-off interface |
Have |
||
|
PTO |
China famous brand |
||
|

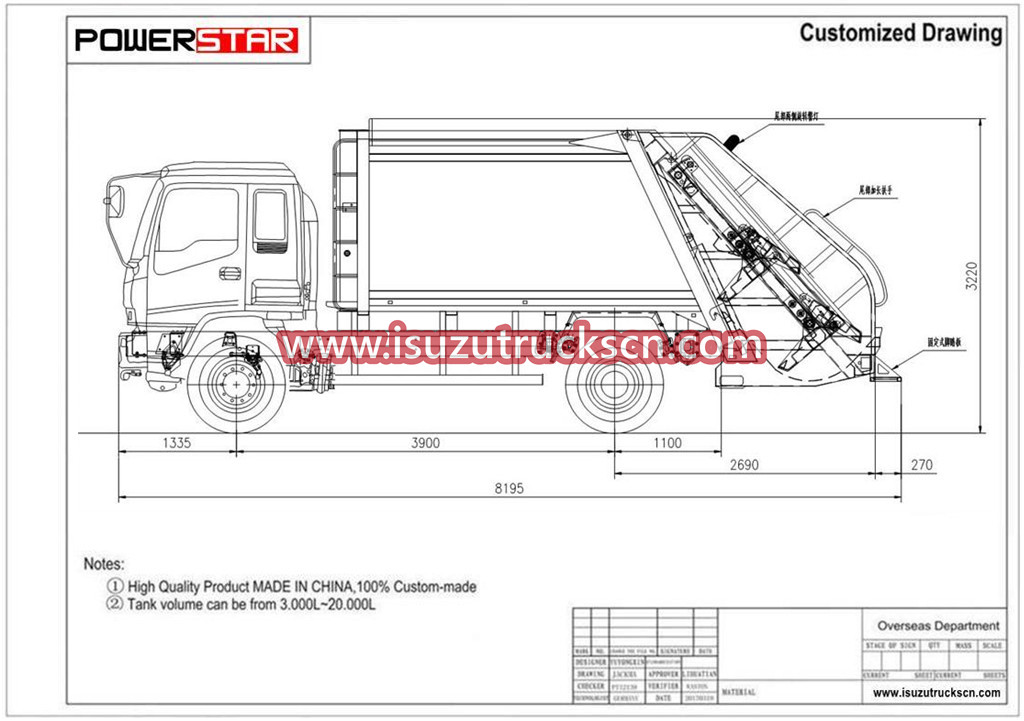

Front/rear overhang (mm) |
Front: 1335, Rear: 2665 |
||
|
departure angle |
Front: 20, Rear: 17 |
||
|
suspension |
Leaf spring 9/7+7 |
||
|
Leaf spring |
Front 9, back 7+7 |
||
|
Number of axles |
2 |
||
|
Wheelbase (mm) |
4500 |
||
|
Number of tires |
6 |
||
|
Wheel base (mm) |
1960/1860 |
||
|
Drive type |
4*2 |
||
|
Engine |
4HK1-TC Isuzu 205 horsepower |
||
|
Emission standard |
Euro 5/6 |
||
|
Suspension |
leaf spring |
||
|
Driving type |
steering wheel, left-hand drive |
||
|
brake |
drum |
||
|
Braking System |
air brake |
||
|
Spare tire rack |
Standard |
||
|
Light |
Standard |
||
|
Voltage |
24V |
||
|
Toolbox |
Standard |
||
|
Color |
White cabin and blue compactor body |
||
|
Superstructure |
|||
|
Item |
Specifications |
||
|
Compactor body material and thickness |
T420 low alloy anti-corrosion and wear-resistant plate (manganese steel), side plate 5mm, bottom 5mm |
||
|
Body shape |
Curved box |
||
|
Emergency stop button |
Factory standard |
||
|
Safety control system |
Factory standard |
||
|
Sewage tank |
Two |
||
|
Tail electronic control device |
Factory standard |
||
|

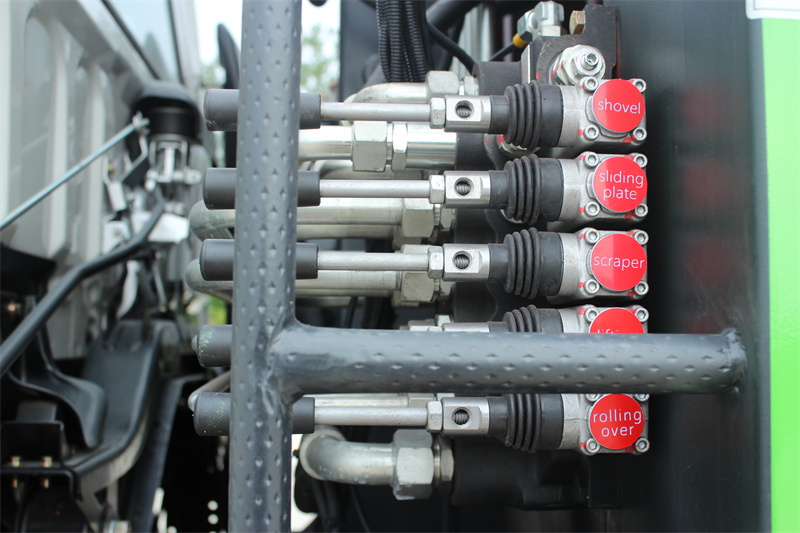

Remarks: China famous brand hydraulic cylinder, high-density and high-pressure oil pipes, multi-way valves and gear pumps, three types of rear tilt devices for option. |
|||
Why choose ISUZU Garbage Rear Loader Trucks from POWERSTAR TRUCKS INDUSTRY CO., LIMITED?
Powerful and efficient engine: Isuzu FTR 4×2 Rear Loader Garbage Truck is equipped with a powerful and efficient diesel engine that provides exceptional performance and fuel efficiency, thereby reducing operational costs.
Large Capacity: With a large garbage box capacity of up to 12-16 cubic meters, this garbage truck can transport large volumes of waste, reducing the need for frequent trips to landfill sites.
Hydraulic System:The Isuzu garbage truck is equipped with a hydraulic system and balance valves, that facilitates easy lifting and dumping of waste into the garbage box.
Compression System: The truck also features a compression system that compresses the waste, thereby increasing the garbage box’s capacity and reducing the frequency of unloading.
Automatic Loading and Unloading System: Isuzu 4×2 Trash Compactor Truck features an automatic loading and unloading system, which improves efficiency and reduces the risk of injury to the workers.
Solid and Durable Construction: The truck is built with high-strength materials and designed for heavy-duty and rugged applications, ensuring longevity and durability.
Easy Maneuverability: The garbage truck’s big size and maneuverability make it easy to navigate through narrow streets and alleys, enabling garbage collection from areas where larger vehicles cannot reach.
Eco-friendly:The compression system improves garbage collection and transportation efficiency, reducing the number of trips required to transport waste to landfill sites. This feature results in lower fuel emissions and a smaller carbon footprint.
Operator Safety: ISUZU 4×2, 4x4, 6x4, 6x6 model Rear Loader Garbage Compactor Trucks equipped with CAN-BUS electric system, features a safety system that ensures that workers are safe during operation, reducing the risk of injury and accidents.
What is the advantage features for ISUZU FTR rear end loader garbage compactor truck?
1. The appearance of the compactor box is arc-shaped and linear, and the four-axis plate rolling machine forms the arc in one go, eliminating the risk of leakage. The box is simple and beautiful, has strong anti-deformation performance and good structural reliability. At the same time, it effectively increases the actual area, surpassing similar products. The material is high-strength manganese steel plate, which is not easy to deform, resistant to wear and corrosion.
2. The electrical system of the vehicle can achieve fully automatic control, ensuring that acceleration or idling can be selected during work or other conditions, reducing power loss and failure rates, reducing fuel consumption, and making it more stable and more stable.

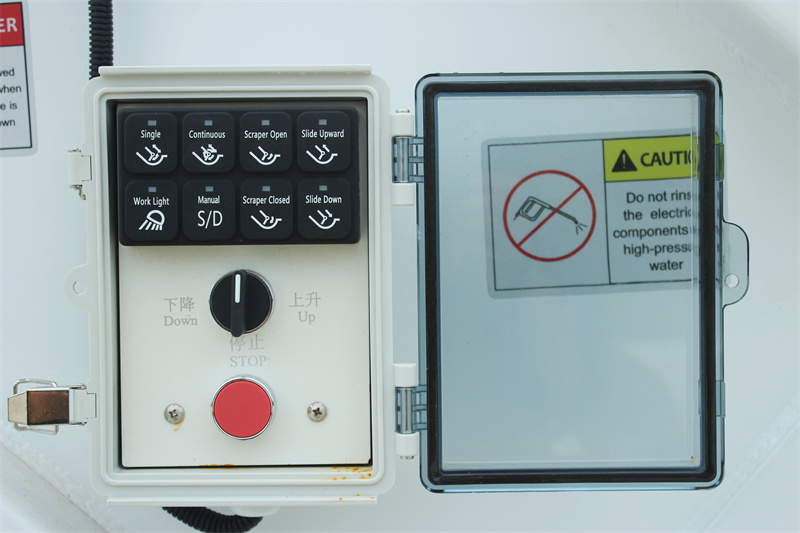

3. The intelligent control system adopts imported CAN bus design and modular structure. Through the combination of proximity switch and oil pressure induction, an efficient, stable, and easy-to-maintain compression solution is achieved. It has three operating modes: manual, automatic, and semi-automatic. It can be operated inside the cab, at the front of the compactor box, and at the rear of the box. And remote control can be optionally installed according to customer needs.

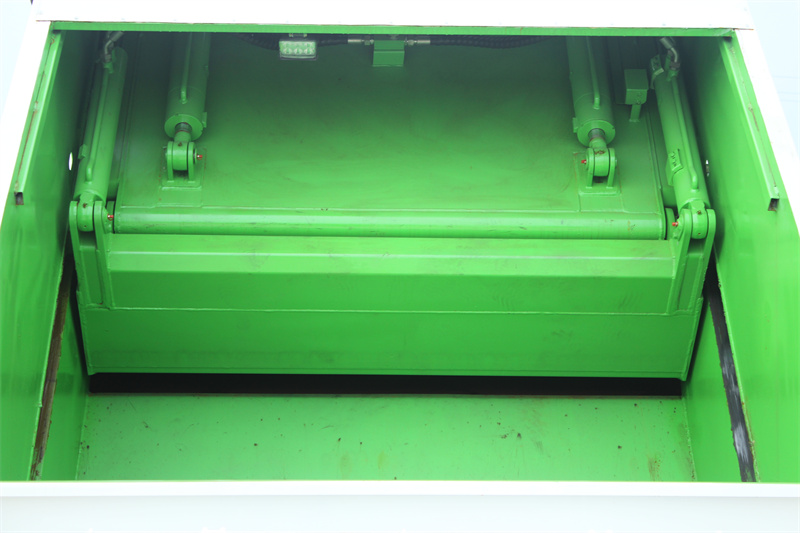

4. It adopts the latest external cylinder structure and two-way compression technology, and uses China's first-class brand accessories to achieve a compression ratio of more than 1:2.5 and a single cycle of <20 seconds, doubling the garbage collection efficiency. Taking the customer's use environment into consideration to the greatest extent, the humanized design has many highlights, with night lights, double sewage tanks, drainage pipes, remote control, operation and maintenance manuals and videos.
Powerstar trucks can also provide many special vehicles such as Garbage compactor truck, Road sweeper truck, Hooklift truck
Learn More
Customized ISUZU FTR 4×2 12CBM rubbish compactor truck, brand new ISUZU FTR rear loader trucks, ISUZU refuse trucks manufacturer.
Learn More
Brand New Isuzu FTR 10 Tons rear loader Compactor Garbage Truck in Philippines. Original isuzu FTR truck chassis, with updated japan isuzu engine 4HK1-TC model with 205HP. Famous Japanese ISUZU brand F series LHD 4X2 FTR truck chassis, front axle capacity 6.3 tons and rear axle capacity 13tons, ISUZU MLD 6-shift manual gearbox with 6 forward and 1 reverse, steel tanker 200L fuel tanker. ISUZU FTR 12m3 Rear Loader Compactor Garbage Truck for Waste Collection, with customized 12cbm compactor body, compression ratio 1:4 as standard, rear tilting device for international bins 240L, 660L and 1100L plastic and steel material optional.
Learn More
Isuzu refuse collection truck adopts the original Isuzu FTR chassis, Isuzu FTR row half cab, 205HP National VI Isuzu 4HK1-TC60 engine, Isuzu MLD six-speed transmission, 4500mm wheelbase, 295/80R22.5 steel wire tires, front axle 6.3 tons, rear axle 13 tons, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock-absorbing seats, air brakes, vacuum booster pump, and USB interface radio;with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.
Learn More

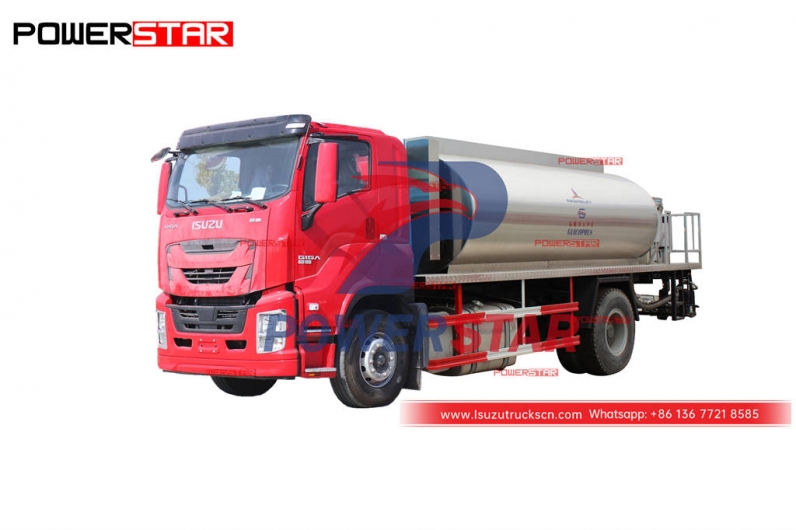

ISUZU GIGA Hot asphalt distributor truck, ISUZU bitumen sprayer manufacturer, factory outlet truck mounted bitumen sprayer,ISUZU automatic asphalt bitumen sprayer truck. ISUZU GIGA asphalt sprayer, 14cbm ISUZU GIGA hot-selling Bitumen Distributor, best-seller ISUZU Intelligent Bitumen Spray Truck.
Learn More

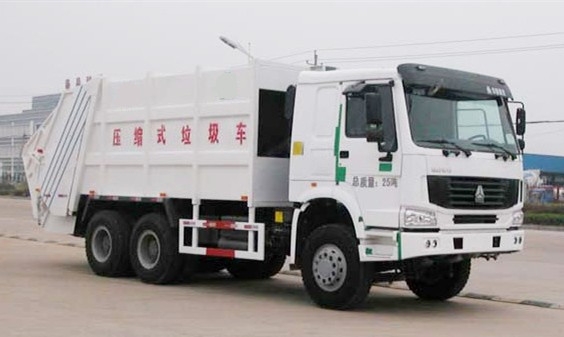

Garbage transport compactor truck, refuse compactor with truck chassis, rubbish transport vehicle, Garbage refuse compactor truck,compressed garbage truck, compression refuse collector truck Garbage Compactor Truck for Best Selling in Middle East,Heavy Duty 6X4 JAPANESE ISUZU CompactorGarbage Truck,ISUZU Carbage Truck /Garbage Compactor Truckfor Sale,6cbm ISUZU 4X2 Compactor Garbage Truck,3 Cubic 4cubic 5cubic Isuzu 600p 4X2 Compactor Garbage Truck 6cbm ISUZU 4X2 Compactor Garbage Truck,Isuzu Rear-Loading Garbage Compressor Truck 10cbm
Learn More

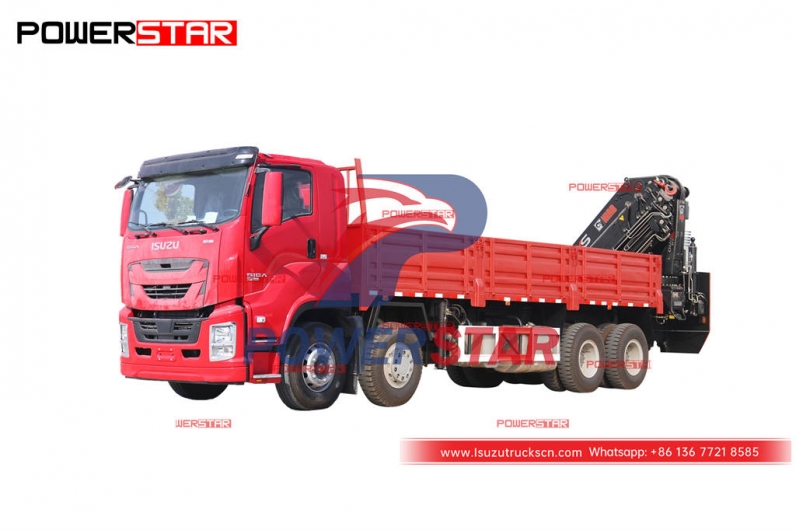

Brand new ISUZU GIGA Truck Mounted Crane, customized ISUZU GIGA 8×4 Knuckle Boom Crane Truck at discount price.
Learn More

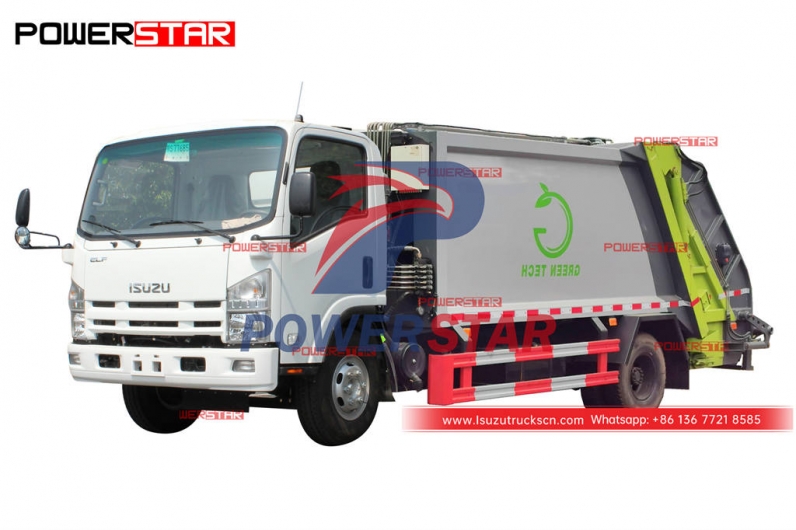

Brand new ISUZU ELF 700P 8CBM back loading garbage collection truck, high performance ISUZU 4×2 8CBM compressed garbage trucks, ISUZU waste compactor manufacturer.
