Isuzu refuse collection truck adopts the original Isuzu FTR chassis, Isuzu FTR row half cab, 205HP National VI Isuzu 4HK1-TC60 engine, Isuzu MLD six-speed transmission, 4500mm wheelbase, 295/80R22.5 steel wire tires, front axle 6.3 tons, rear axle 13 tons, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock-absorbing seats, air brakes, vacuum booster pump, and USB interface radio;with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.
Work capacity:
10cbmTruck model:
PT5180GYSQEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4x2, left hand driveGear box:
ISUZU MLD 6-speed, 6 forward gears& 1 reverseRemarks:
Best price Isuzu FTR rear loader compactor, can be customized| Products Description |
Isuzu refuse collection truck also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu compactor garbage truck, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu split body rear loader truck,Isuzu waste collection vehicle. The Isuzu refuse collection truck is a special purpose vehicle used to collect and transport all kinds of garbage in municipal sanitation department.
I.Description of Isuzu Refuse Collection Truck
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU FTR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
| Technical Parameter |
II. Specification of Isuzu FTR Refuse Collection Truck
|
Isuzu 4x2 FTR 10cbm refuse collection truck |
|
|
Vehicle Description |
|
|
Vehicle model |
PT5180GYSQ |
|
Overall dimensions |
8260x2495x2970mm |
|
GVW |
14000kg |
|
Curb weight |
8330kg |
|
Loading weight |
5500kg |
|
Chassis brand |
ISUZU |
|
Traction type |
4*2; Left hand drive |
|
Up-parts Specification |
||
|
Dustbin volume |
10cbm |
|
|
Material & thickness |
Side |
4mm Q345 |
|
Bottom |
5mm Q235A |
|
|
Type of Rear garbage filler |
1.Hanging trash bin |
|
|
2.Swing arm |
||
|
3.Dustpan |
||
|
Control system |
Electrically Controlled Hydraulic + Manual Hydraulic |
|
|
Type of compactor |
Fill, push and compression |
|
|
Garbage compact density |
0.9±0.05 T/m³ |
|
|
Sewage water tank |
200 liters |
|
|
Max compact |
≥141 KN |
|
|
Max push |
≥189 KN |
|
|
Tailgate ascending Angle |
~95° |
|
|
Cycle of loading |
≤40s |
|
|
Cycle of discharge |
≤45s |
|
|
Hydraulic pressure system working pressure |
16 Mpa |
|
|
PLC |
Importation PLC (Programmable controller) |
|
|
Gear pump |
Made in China |
|
|
Multi-way valve |
Air controlled, Made in China |
|
|
Hydraulic oil cylinder |
Made in China |
|
|
Hydraulic rubber hose |
Made in China |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu FTR |
|
|
Cab |
One and half row, with A/C |
|
|
Wheelbase |
4500mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4HK1-TC60 |
|
Emission level |
Euro 5/6 |
|
|
Displacement/output |
5193ml/150kw |
|
|
Horse power |
205HP |
|
|
|
Max speed |
95km/h |
|
Gear box |
Model |
ISUZU MLD |
|
Number of gears |
6 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
6.3T |
|
Rear |
13T |
|
|
Fuel tanker |
Type |
Stainless steel tanker, with lockable cap |
|
Capacity |
300L |
|
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to the your requirement .
5. we can offer you the high quality & reasionalble price
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of Isuzu Refuse Collection Truck

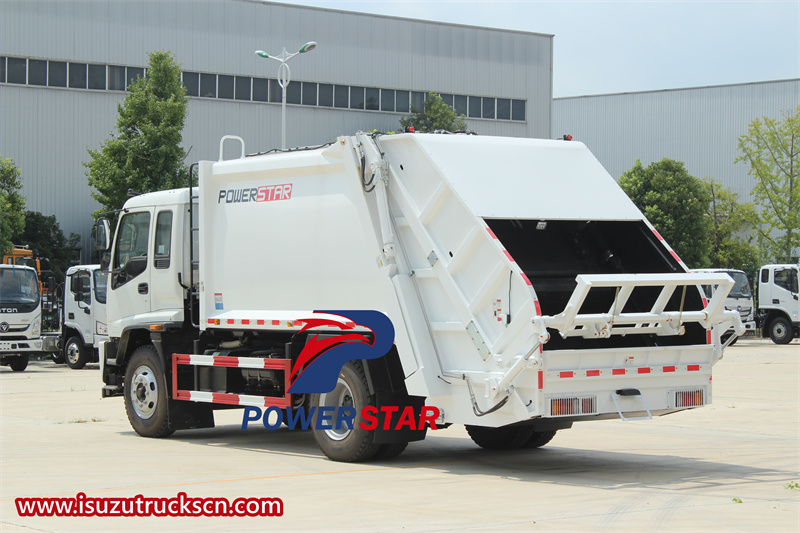

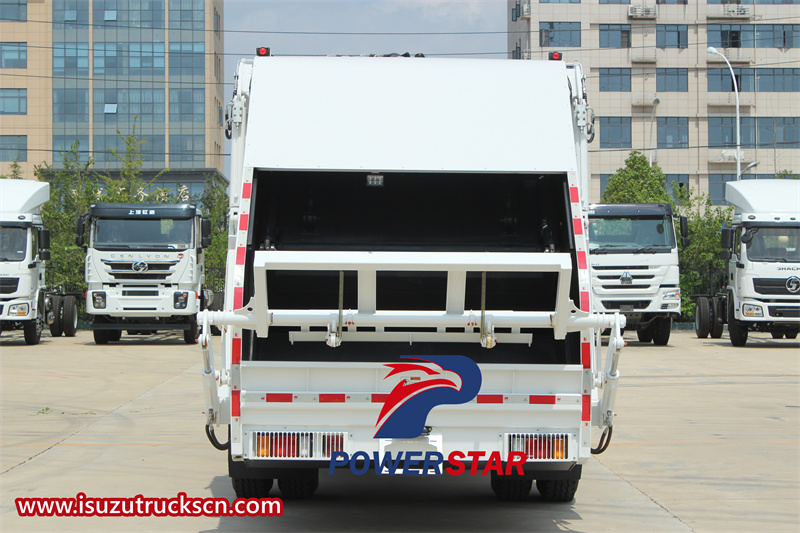

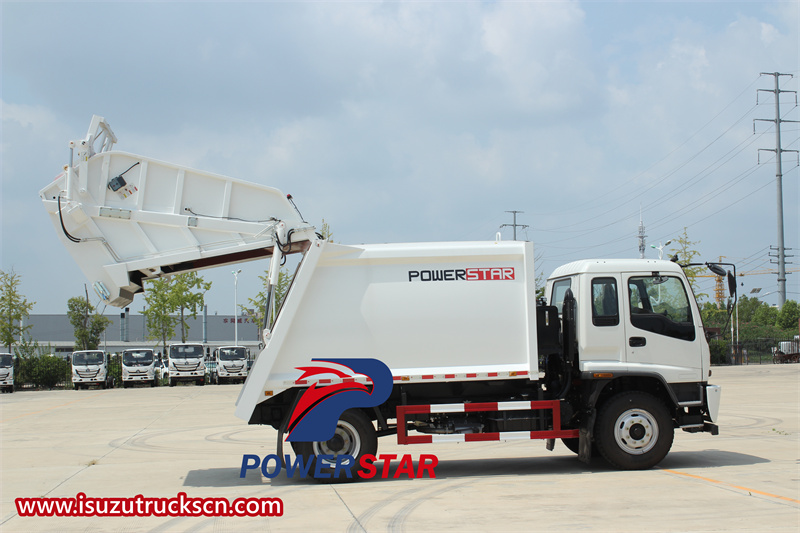

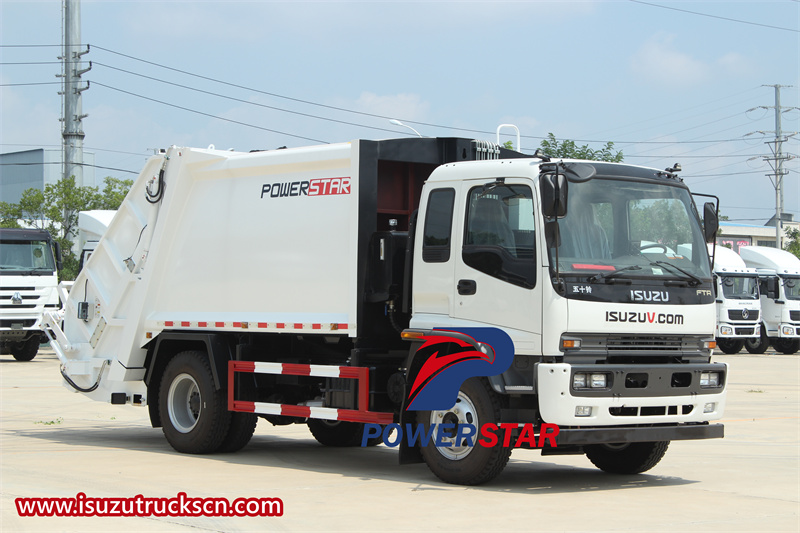

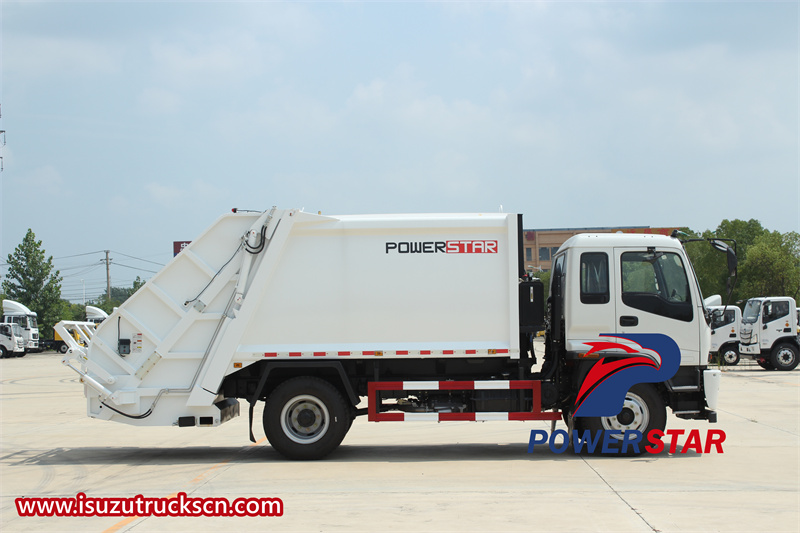

● Isuzu refuse collection truck photos for reference
The Isuzu FTR 10 cbm compactor garbage truck is an efficient and practical garbage disposal vehicle. It combines the durability of the Isuzu FTR chassis with the efficiency of compressed garbage technology to provide an efficient solution for urban garbage disposal.

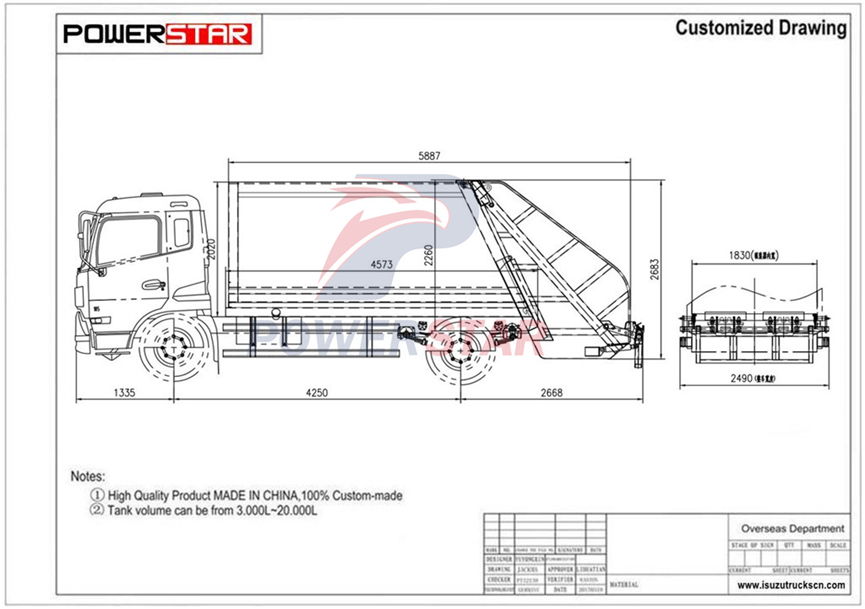

Technical drawing of Isuzu FTR 4x2 10cbm refuse collection truck
♦ First of all, the Isuzu FTR refuse collection truck has strong power and stable handling performance. Its power system is powerful and can adapt to the needs of various roads and garbage disposal scenarios, ensuring that the vehicle can operate stably in various working environments. At the same time, the chassis design is sturdy and has good load-bearing capacity and stability, ensuring the smooth operation of the vehicle during garbage disposal.
♦ Secondly, the compression performance of this model is one of its highlights. An efficient compression system can effectively compress garbage, reduce its volume, and improve its carrying capacity. This not only reduces the number of transportation times and costs, but also improves the efficiency of waste disposal. At the same time, the compression process is stable and reliable, ensuring that garbage is compressed evenly and avoiding excessive pressure or damage to garbage disposal equipment.
♦ In addition, the Isuzu FTR refuse collection truck also has high environmental performance. It uses advanced emission control technology to reduce environmental pollution. At the same time, the closed garbage storage and transportation system also effectively prevents garbage from scattering and flying during transportation, further reducing the negative impact on the environment.
♦ Finally, this model also focuses on ease of operation and comfort. Equipped with an intelligent control system, the operation is simple and intuitive, reducing the difficulty of operation. At the same time, the vehicle's interior design is reasonable, providing a comfortable driving and working environment, allowing operators to carry out garbage disposal work more easily.

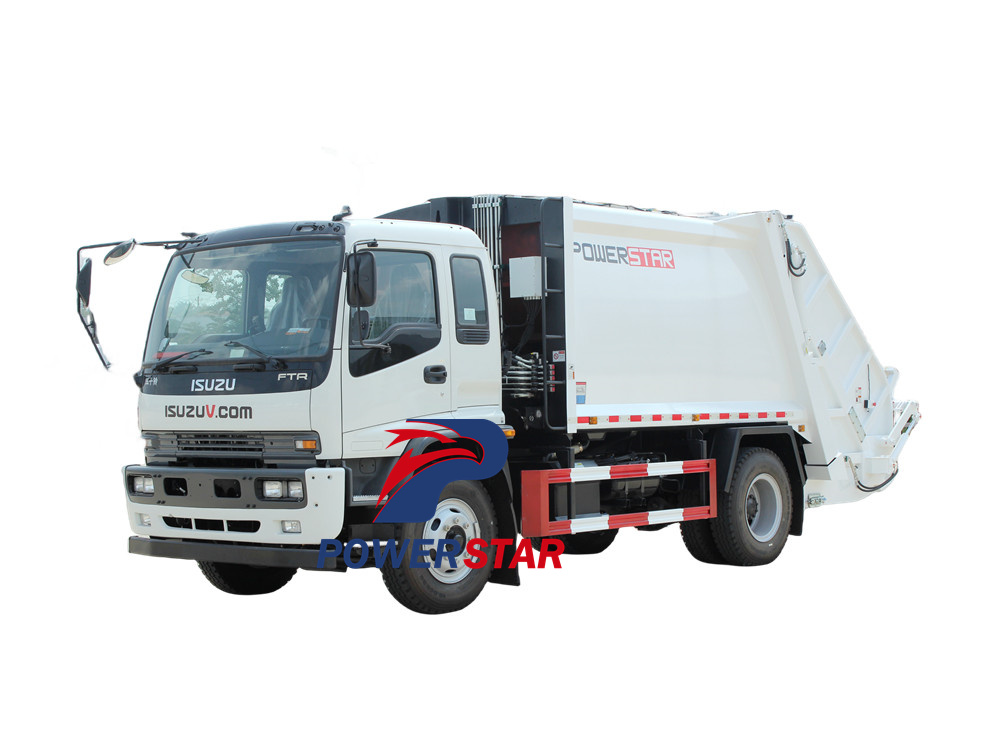

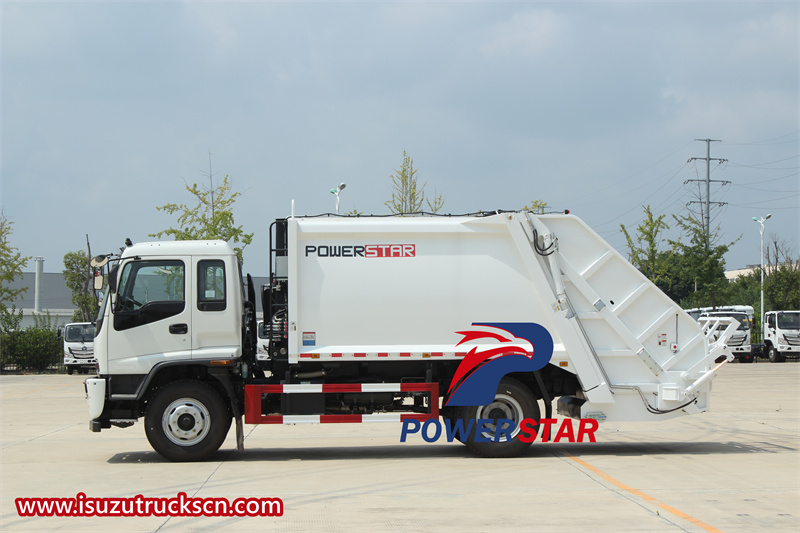

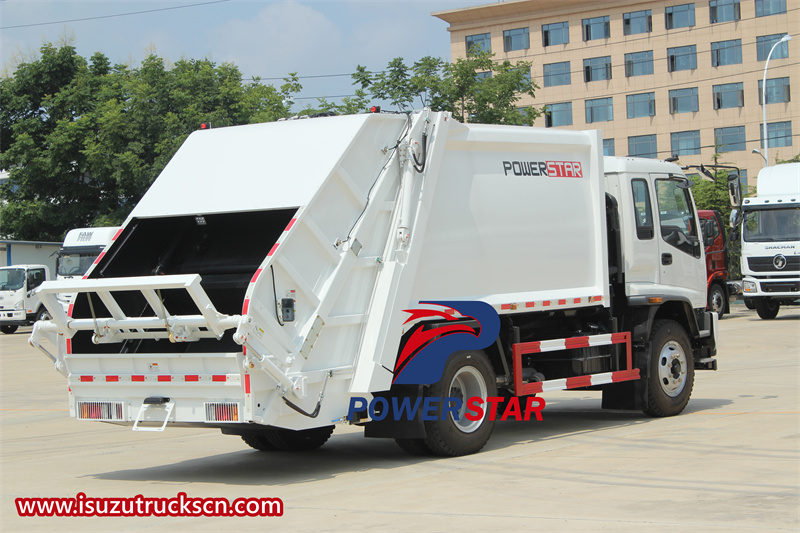

Isuzu 4x2 FTR rear loader compactor truck for sale

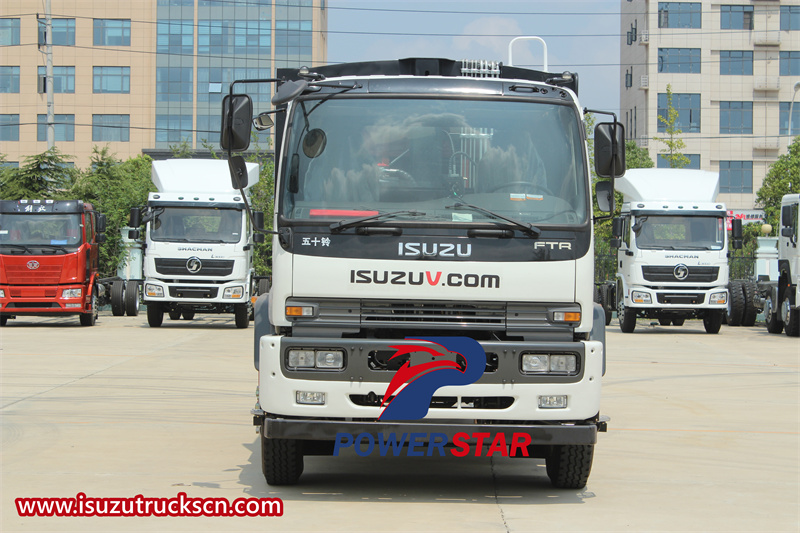

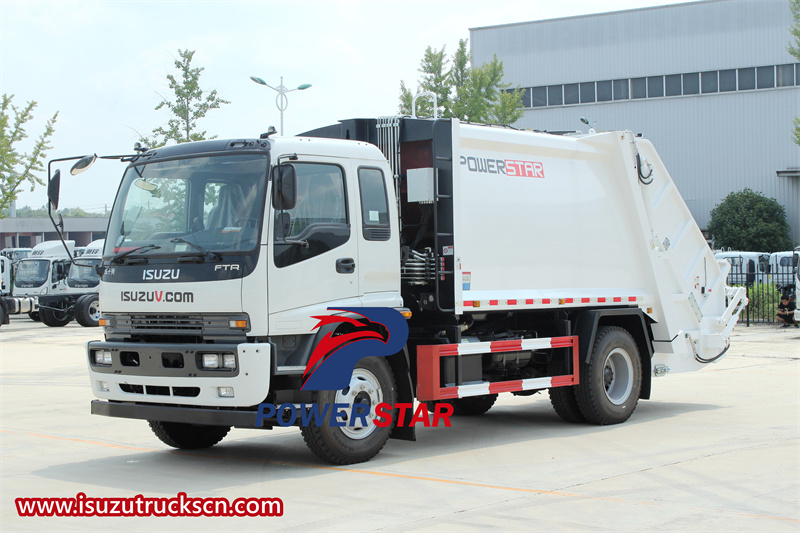

Isuzu FTR 10cbm waste compactor truck for export
The Isuzu FTR refuse collection truck produced by Powerstar Company has become an ideal choice for urban garbage disposal work due to its powerful power, stable control performance, efficient compression performance, environmental protection performance, as well as ease of operation and comfort. Whether in terms of performance or practicality, it can meet users' high requirements for garbage disposal vehicles.

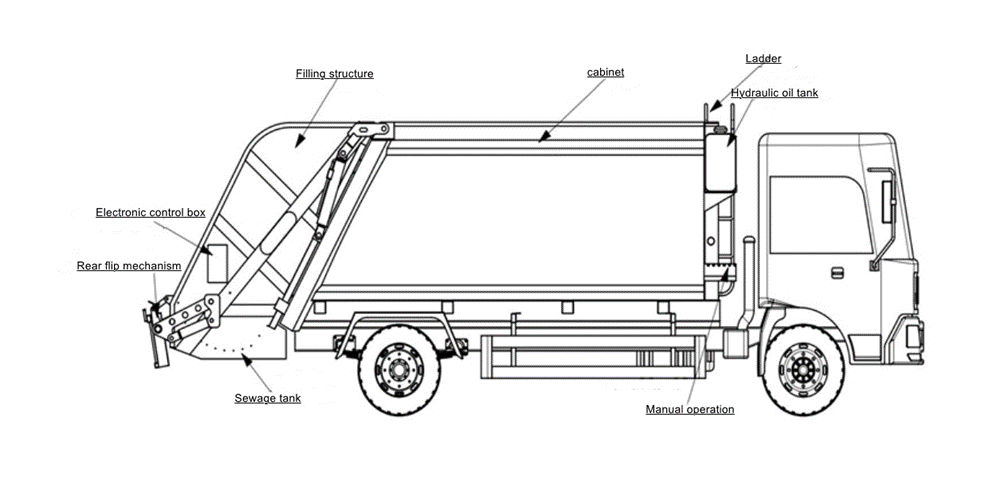

Isuzu FTR refuse collection truck structure diagram
| Our Advantage |

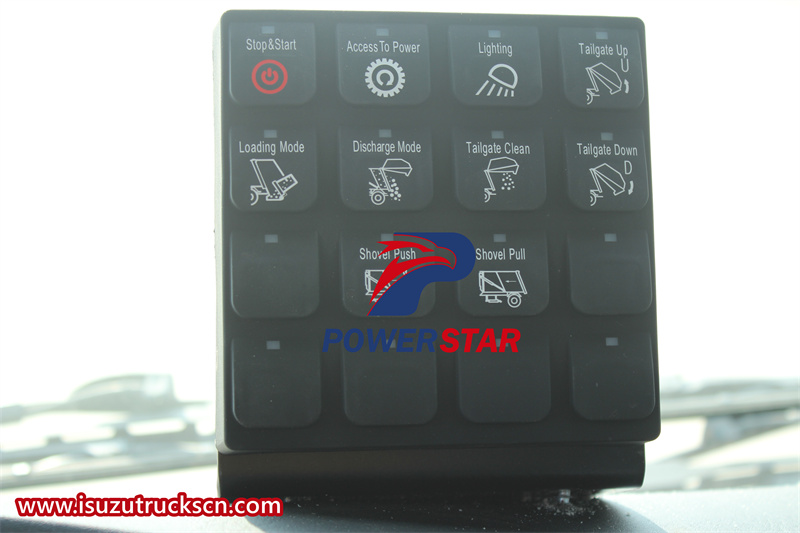

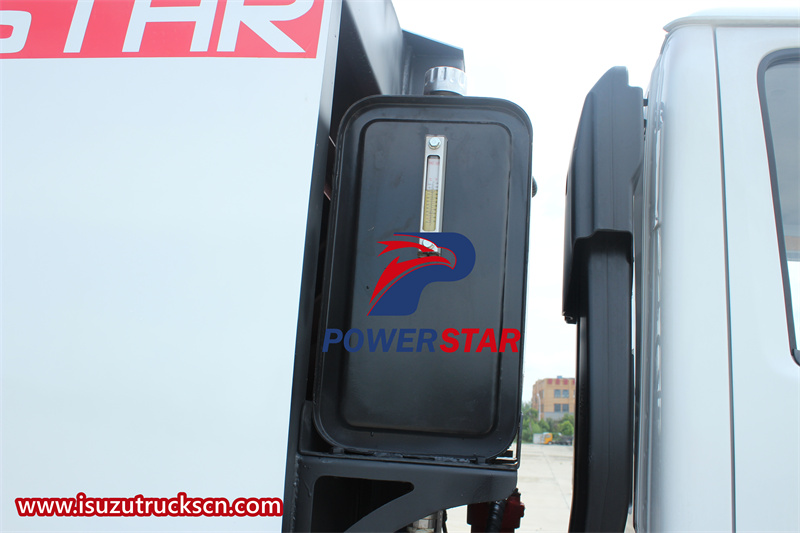

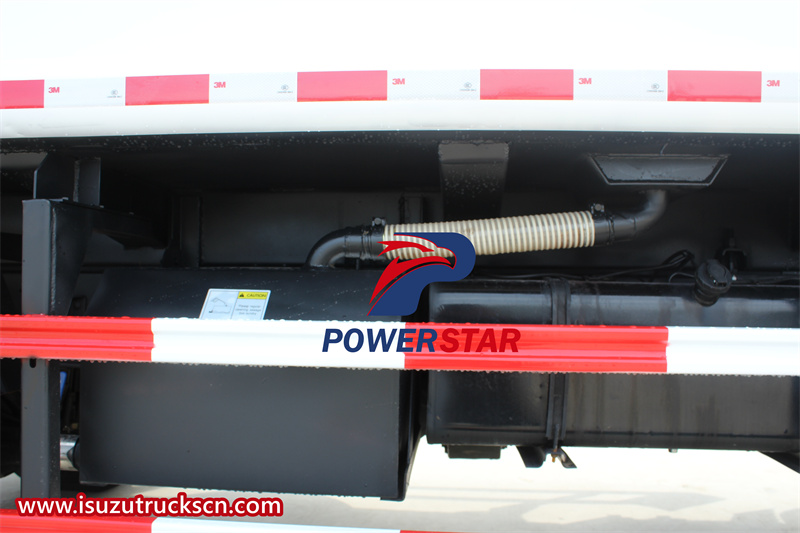

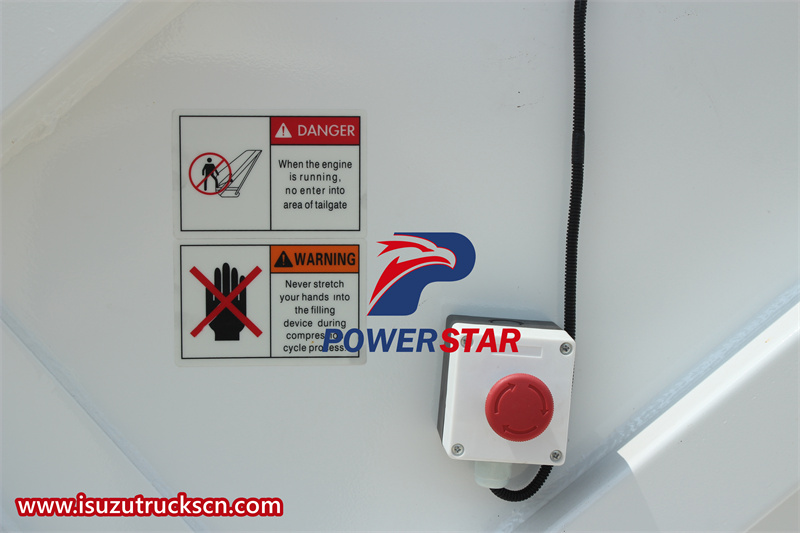

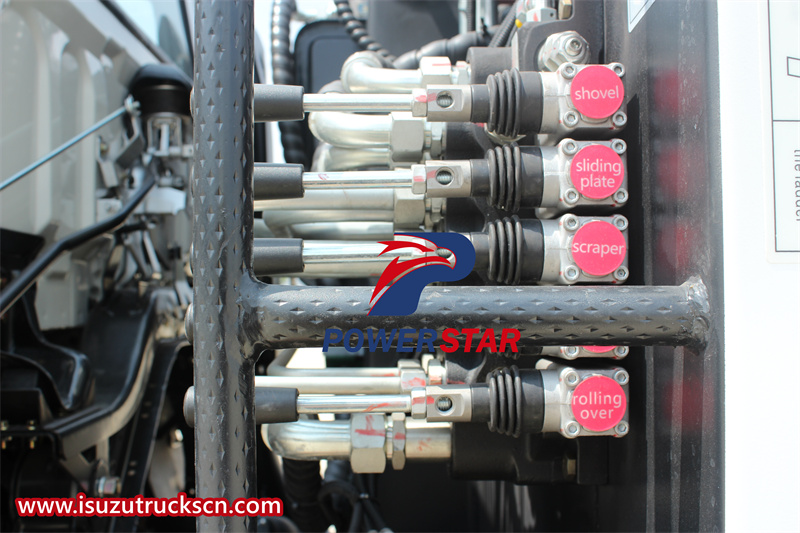

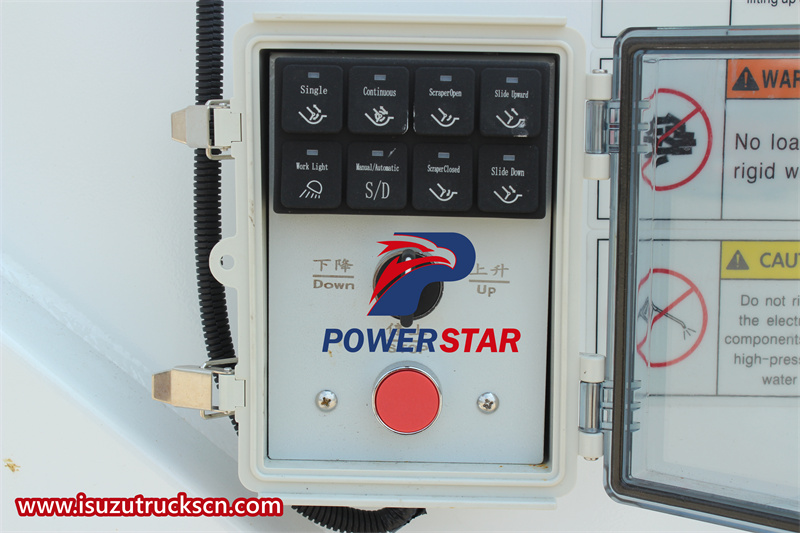

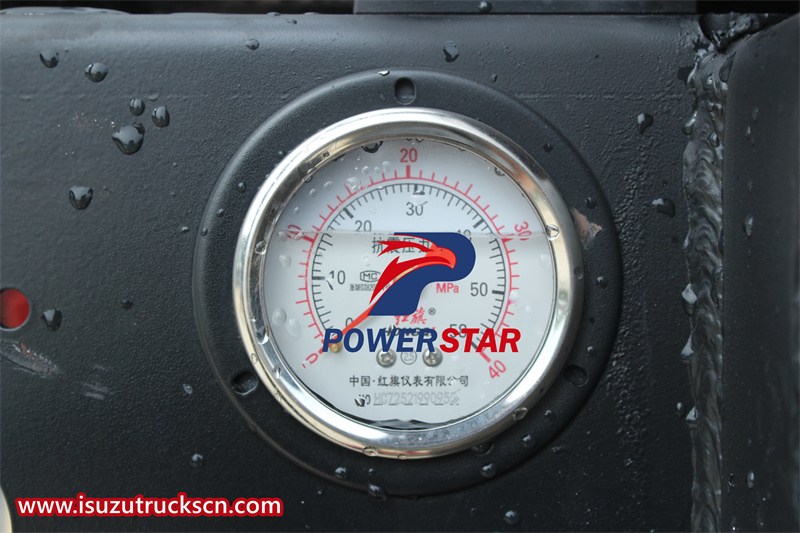

● Isuzu refuse collection truck details

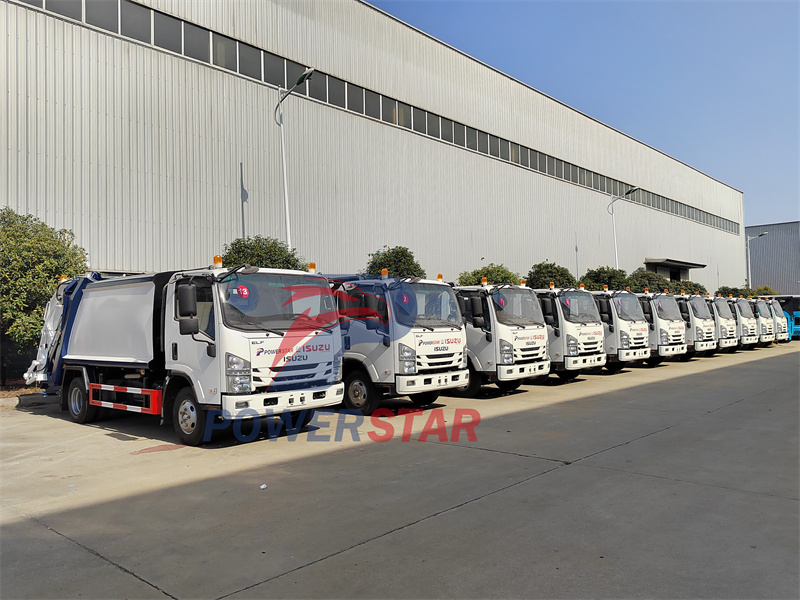

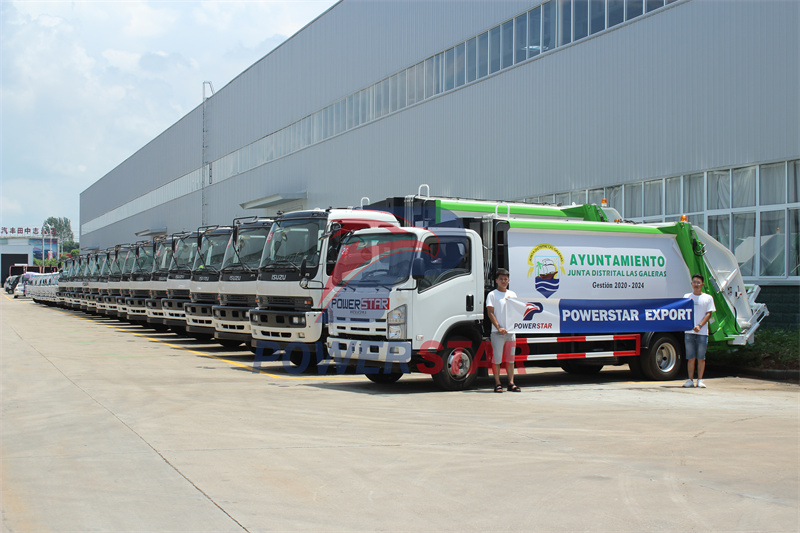

● Isuzu refuse collection truck departure in batches
