The Isuzu Giga VC66 15 ton cargo truck is a rugged, versatile, heavy-duty vehicle with a powerful diesel engine and a large-capacity body. It has advanced safety features, a comfortable cab and a variety of body options to meet different transport needs. The VC66 is a reliable workhorse for fleet operators, delivering superior performance and efficiency both on long-haul hauls and on construction sites.
Work capacity:
15 tonsTruck model:
PT5220GQWEngine power:
380HPEngine type:
ISUZU 6UZ1-TCG61Axle drive:
4x2,LHDGear box:
Fast 12-speed,manualRemarks:
Isuzu GIGA VC66 chassis
The Isuzu Giga VC66 15 Ton Drive Lorry Cargo Truck also called Isuzu GIGA 10 ton city logistic cargo truck,Isuzu flatbed cargo truck,Isuzu VC66 heavy-duty cargo truck,Isuzu GIGA platform cargo truck,is a formidable workhorse designed to tackle heavy-duty hauling tasks with precision and efficiency. This Isuzu Giga VC66 15 ton drive lorry cargo truck combines power, endurance, and versatility to meet the demands of commercial transport, construction, logistics, and other industries that rely on reliable transportation solutions. This heavy-duty truck is able to easily and efficiently handle a variety of transport tasks from long-distance freight to construction site logistics.
|
Isuzu Giga VC66 15 Ton drive lorry cargo truck |
||
|
Vehicle Model |
PT5220GQW |
|
|
GVW |
22000kg |
|
|
Curb weight |
7400kg |
|
|
Dimension(LxWxH)mm |
8350×2550×3250 |
|
|
Cargo body size(mm) |
6300X2400X700 |
|
|
Overhang (mm) |
1500/2707 |
|
|
Wheel base(mm) |
5200 |
|
|
Max. Driving speed (km/h) |
105 |
|
|
Chassis Specification |
||
|
Chassis Brand |
Isuzu GIGA VC66 |
|
|
Cabin |
Single-row cabin, with a sleeper, air-conditioner, Power assisted steering, |
|
|
Engine |
Model |
ISUZU 6UZ1-TCG61 |
|
Horse Power |
380HP |
|
|
Displacement |
9839ml |
|
|
Emission Standard |
Euro 6, diesel |
|
|
Transmission |
Fast 12-speed,manual |
|
|
Drive Form |
4x2,LHD |
|
|
Tire |
295/80R22.5, 6+1pcs |
|
|
Brake |
Oil brake |
|
|
Front axle loading capacity (kg) |
7500 |
|
|
Rear axle loading capacity(kg) |
15000 |
|
|
Cargo Body |
||
|
Cargo Body |
Dimension (L×W×H ) |
6300X2400X700mm |
|
Payload |
15tons |
|
|
Thickness |
Sidewall |
3mm in high tensile strength steel Q345B |
|
Floor |
4mm in high tensile strength steel Q345B |
|
|
Hydraulic Cylinder |
Tipping Type |
Middle lifting |
The Isuzu Giga VC66 15-ton transport truck is a powerful, versatile and reliable commercial vehicle that is ideal for a wide range of haulage tasks. With its powerful engine, rugged chassis and strong cargo capacity, the VC66 is a valuable asset for any fleet operator looking to maximize productivity and profitability. Whether you are using it for commercial, logistics, construction, heavy industry, mining and more, the Isuzu Giga VC66 is the perfect truck for the job.
Engine and Powertrain
At the heart of the Isuzu Giga 15-ton cargo lorry truck is a powerful diesel engine. The truck is equipped with the 6UZ1, a 9.8-liter six-cylinder diesel engine that delivers 380 horsepower. These engines provide ample torque and power to haul heavy loads with ease, ensuring smooth acceleration and efficient cruising even in demanding conditions.
Thanks to Isuzu's advanced engine technology and drivetrain, the VC66 is designed for optimal fuel efficiency. The transmission is a 12-speed manual, allowing for precise control of shifting, further enhancing the truck's overall performance.

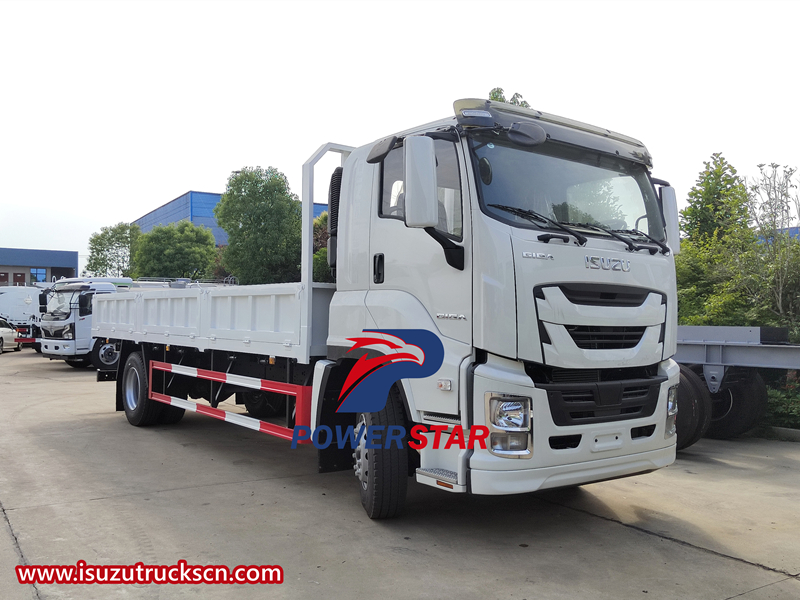

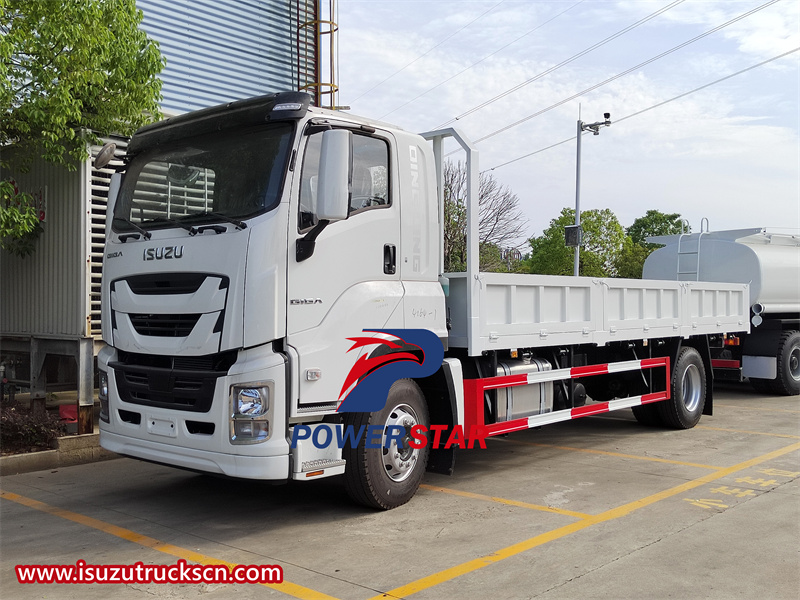

Isuzu VC66 heavy-duty cargo lorry truck
Chassis and Suspension
The Isuzu Giga VC66 has a rugged chassis capable of supporting the heavy loads it is designed to carry. The truck's suspension system is carefully tuned to provide a smooth ride even on rough roads, reducing driver fatigue and protecting cargo from damage. The 4x2 drive configuration ensures excellent traction and maneuverability, making the VC66 suitable for a variety of terrains and driving conditions.
Cargo Capacity and Body Options
With a cargo capacity of 15 tonnes, the Isuzu Giga VC66 is well suited for a variety of transport tasks. The truck can be configured with a variety of body types to suit specific needs, including box bodies, flatbeds and refrigerated containers. This versatility enables fleet operators to tailor the truck to their specific business needs, maximizing their return on investment.

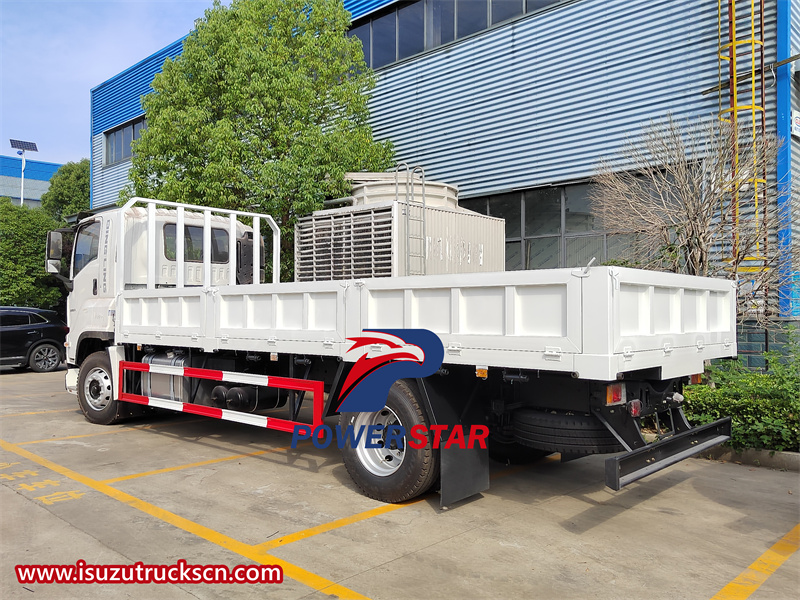

Isuzu GIGA 15 ton transport cargo truck
Features and performance:
1. Power-Packed Performance:
The Isuzu Giga VC66 is powered by a robust engine designed to deliver impressive performance and efficiency. With optimized horsepower and torque specifications, this truck offers superior acceleration and towing capabilities, making it well-suited for heavy-duty transportation tasks.
2. Enhanced Fuel Efficiency:
Equipped with advanced fuel-saving technologies, the Isuzu Giga VC66 ensures optimal fuel efficiency without compromising power output. This feature helps operators minimize operational costs and reduce environmental impact, making it a cost-effective and eco-friendly choice for businesses.
3. Durable and Reliable Construction:
Built on a sturdy chassis and reinforced frame, the Isuzu Giga VC66 guarantees exceptional durability and reliability. Its robust construction enables the truck to withstand heavy loads, rough terrains, and challenging operating conditions, ensuring long-lasting performance and operational efficiency.

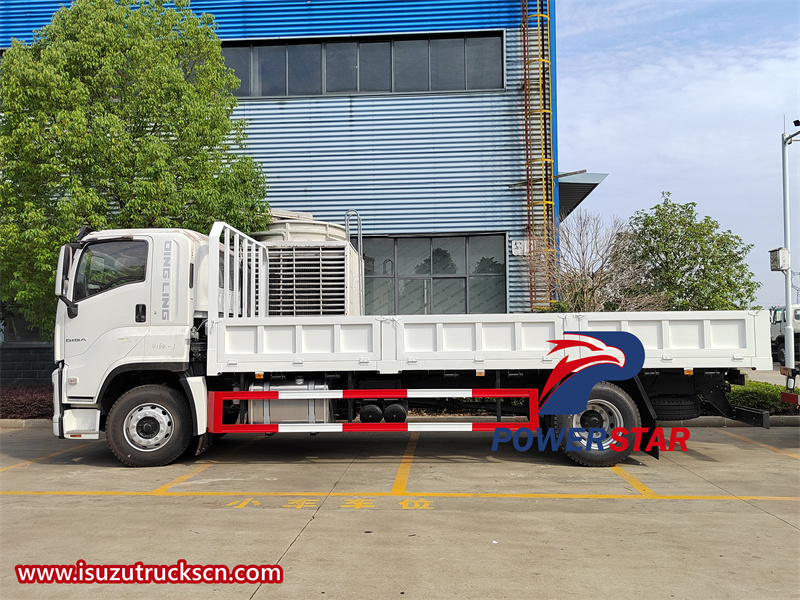

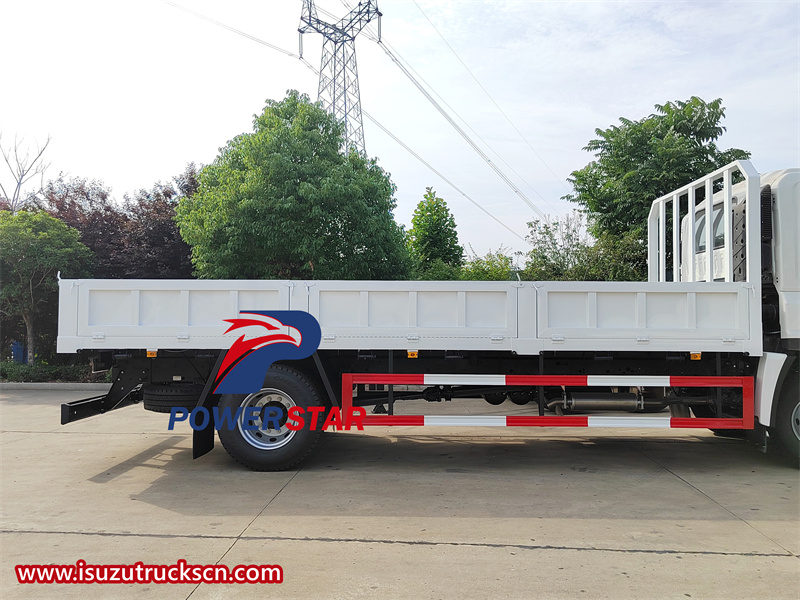

Isuzu GIGA flatbed cargo truck
4. Spacious Cargo Capacity:
The cargo bed of the Isuzu Giga VC66 is designed to accommodate a payload capacity of 15 tons, making it perfect for carrying bulky goods, construction materials, or equipment. The spacious cargo area provides ample room for various types of freight, enabling efficient and effective transportation solutions.
5. Comprehensive Safety Features:
Safety is a top priority in the Isuzu Giga VC66, with a wide range of advanced safety features to ensure driver and cargo protection. From anti-lock braking systems (ABS) and traction control to stability control and collision mitigation technologies, this truck prioritizes safety in all operational scenarios, reducing the risk of accidents and ensuring peace of mind for drivers and operators.
6. Innovative Technology Integration:
The Isuzu Giga VC66 incorporates cutting-edge technology and connectivity features to enhance operational efficiency and driver convenience. With intuitive controls, real-time data access, and remote diagnostics capabilities, drivers can monitor vehicle performance, optimize maintenance schedules, and improve overall productivity, all while staying connected with fleet managers and dispatchers for streamlined operations.
7. Versatile Applications:
With its spacious cargo capacity and powerful performance, the Isuzu Giga VC66 can adapt to a wide range of applications, including commercial transport, construction, logistics, and more, making it a versatile and adaptable solution for various industries.

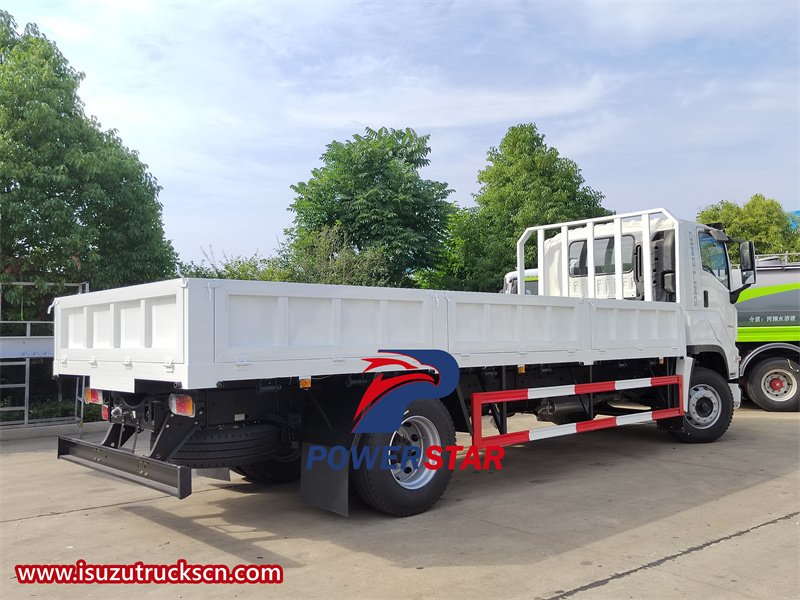

Isuzu GIGA platform cargo truck

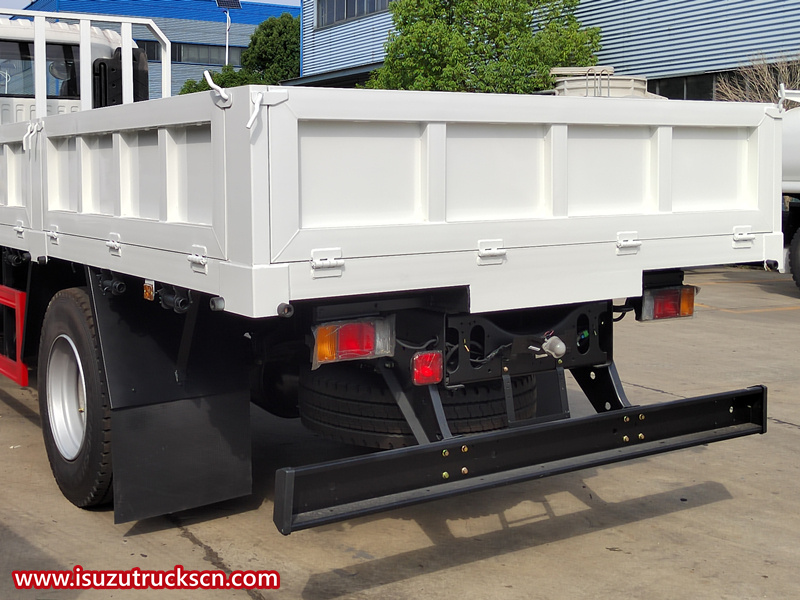

Spare tire

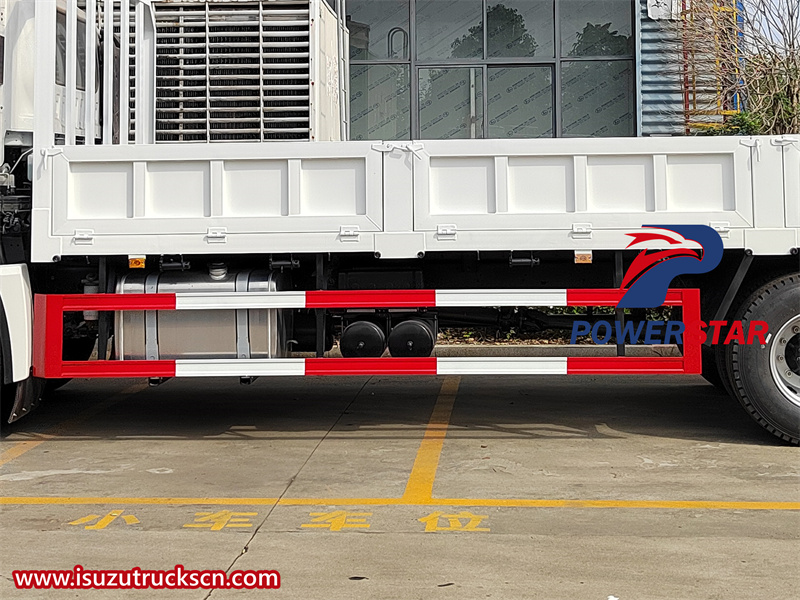

Oil tank and side panel
