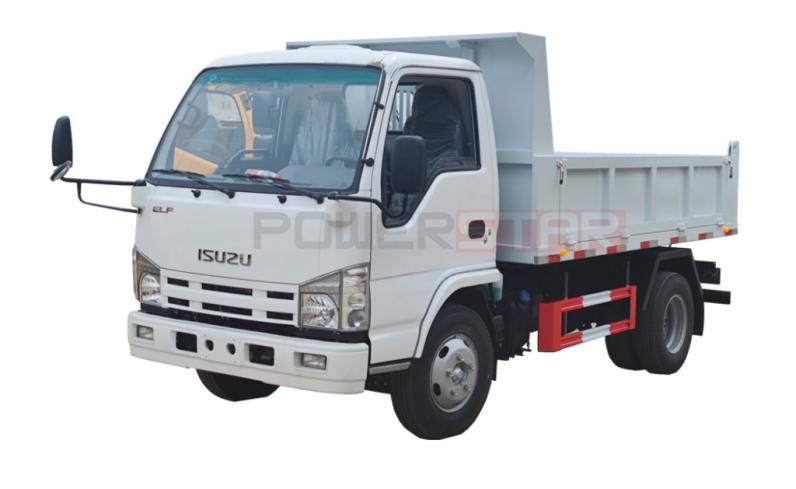

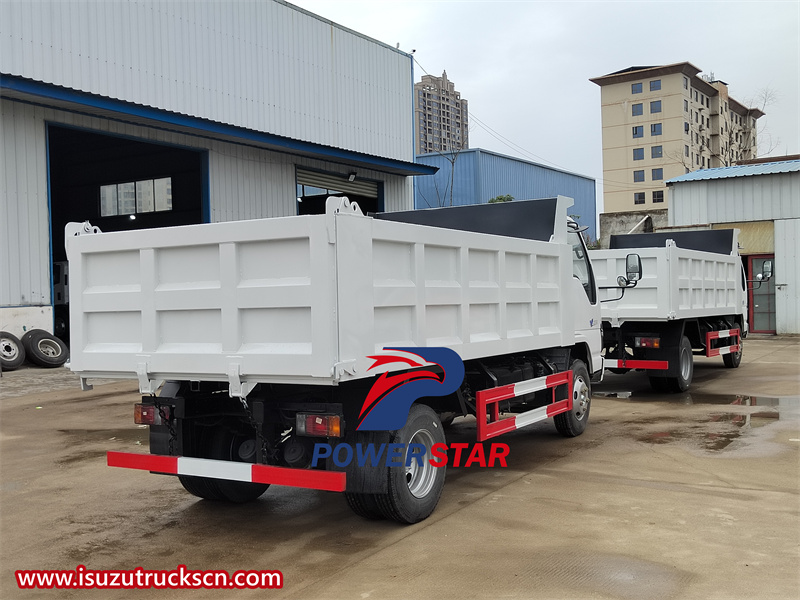

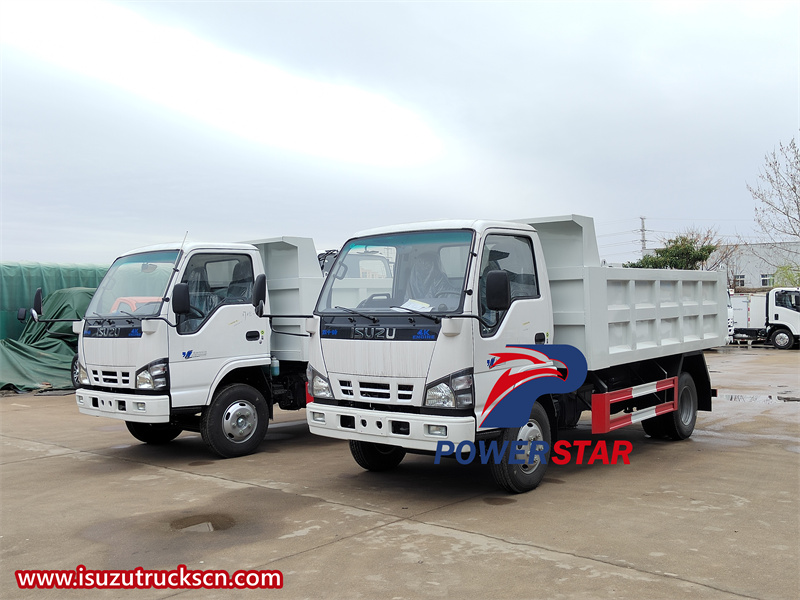

The Isuzu NKR 4x2 dump truck with a capacity of 4 cubic meters is a versatile and reliable vehicle designed for a variety of applications, especially in the construction, mining and transportation industries. This truck combines durability, efficiency and functionality in a compact and easy-to-operate package.
Work capacity:
4cbmTruck model:
PT5070GYZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2, LHDGear box:
MSB 5-speed,manualRemarks:
Isuzu 600P NKR dumper with 4cbm capacityIsuzu 600P NKR 4x2 6.5cbm dump truck It adopts 4x2 drive form to ensure that the vehicle can travel stably under various road conditions. The cargo box volume reaches 6.5 cubic meters, which is suitable for loading and transporting bulk materials such as sand, stone, and soil. Isuzu 600P dump truck is widely used in construction sites, mining, agricultural transportation and other fields.
Key Features:
★ ISUZU NKR chassis, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Easy operation and easy maintenance
★ Various capacity of dump box are available
|
NKR 4x2 Dump Truck 4 cbm by Isuzu |
||
|
Truck Specification |
||
|
Truck model |
PT5070GYZ |
|
|
Cab |
Isuzu 600P single row cab, with power steering. Electronic flameout |
|
|
Driving Type |
4*2 Left hand driving |
|
|
Max Speed (km/h) |
105 |
|
|
Overall dimension(mm) |
5980×2000×2440(mm) |
|
|
GVW(kg) |
7300 |
|
|
Curb weight |
3300 |
|
|
Mass in working order (kg) |
4000 |
|
|
Wheelbase(mm) |
3360 |
|
|
F/R track base (mm) |
1690/1655 |
|
|
F/R overhang (mm) |
1110/1510 |
|
|
Axle load(kg) |
2500/4800 |
|
|
Tire |
7.00R16 |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MSB 5-speed,manual |
|
|
Enging |
Model |
4KH1CN6LB |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
2999 |
|
|
Max output power/Torque (hp /N.m ) |
88/290 |
|
|
Horse power |
120HP |
|
|
|
Emission standard |
EURO 6 |
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|
Dump box dimension (L*W*H)(mm) |
3400*2100*550 |
|
|
Dump box material |
Carbon steel |
|
|
Dump box thickness (mm) |
Side 3 bottom 4 |
|
|
Hydraulic cylinder |
Middle lift with double hydraulic cylinder |
|
|
Dump box color |
According to customer's requirement |
|
|
Lifting Angel |
45 degree |
|
|
Lowering Time |
20s |
|
|
Tailgate |
15s |
|
|
Drop Side |
Auto release |
|
|
Painting |
Detachable |
|
Equipped with a robust Isuzu engine, this dump truck delivers a potent combination of power, torque, and efficiency. The advanced powertrain ensures seamless performance even in the most challenging terrains and operating conditions. The engine's reliability and longevity make it a preferred choice for operators seeking durable and high-performing vehicles.

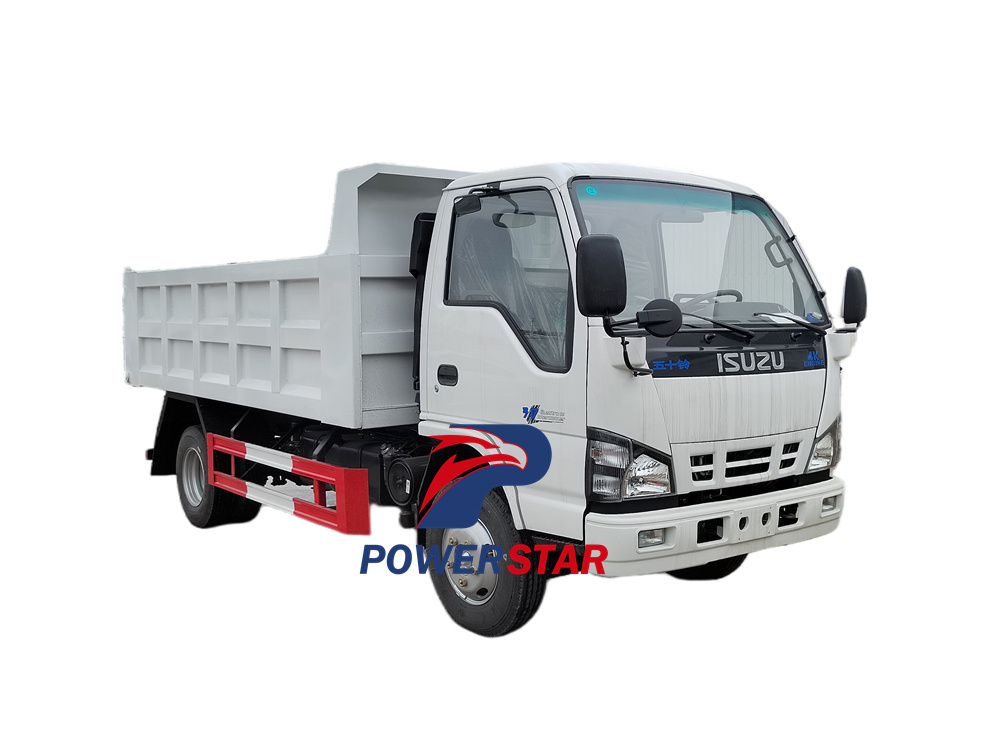

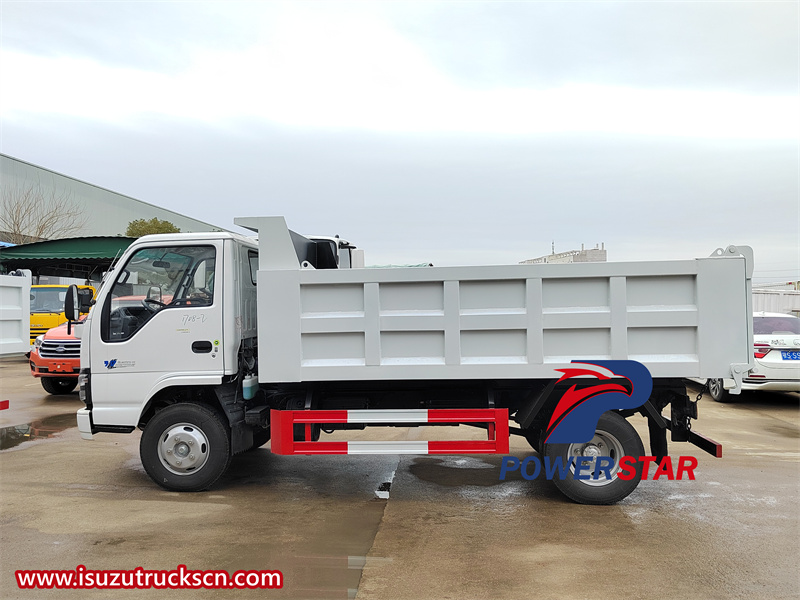

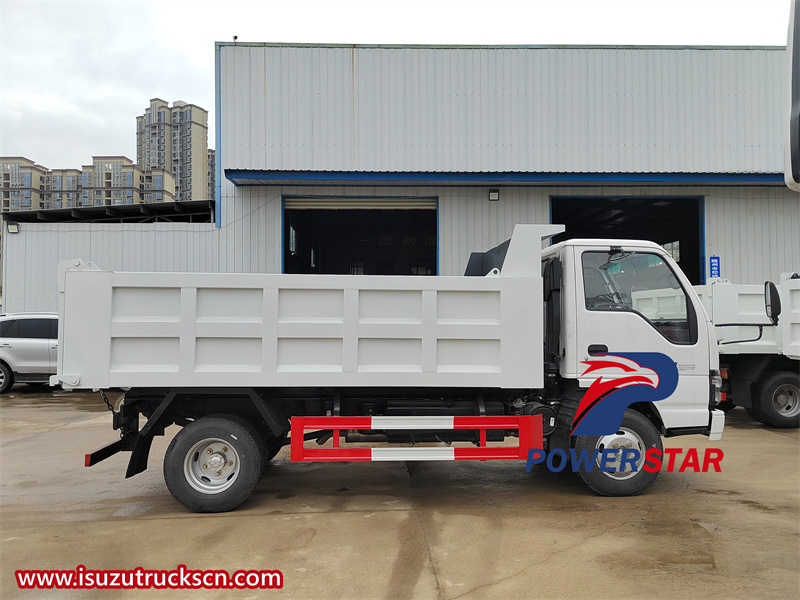

Isuzu NKR 4m3 light duty dumper
With an ample load capacity of 4m3, the NKR dump truck has plenty of space to easily transport and unload large amounts of material. Its hydraulically driven tipping mechanism allows for fast, efficient and precise unloading, increasing productivity on the job site. The durable cabin and hydraulic system ensure smooth and reliable dumping operations, making it a reliable partner for heavy-duty tasks.

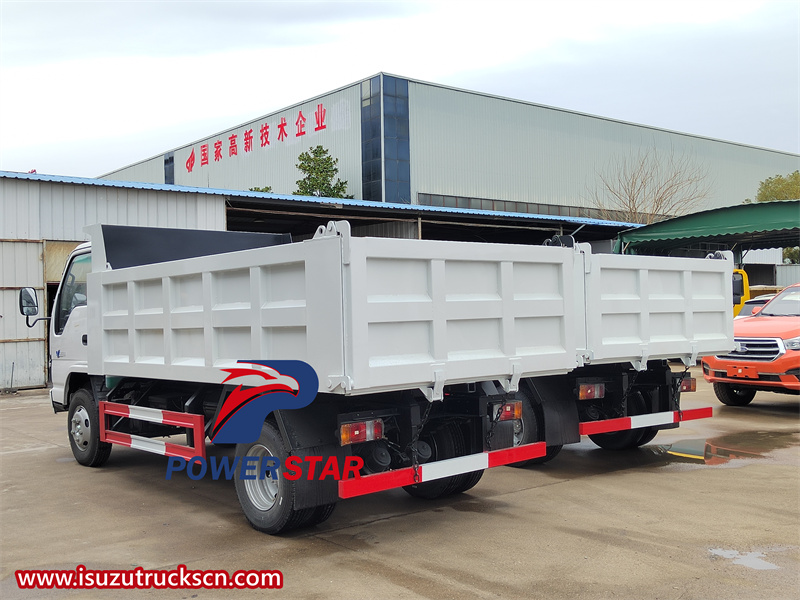

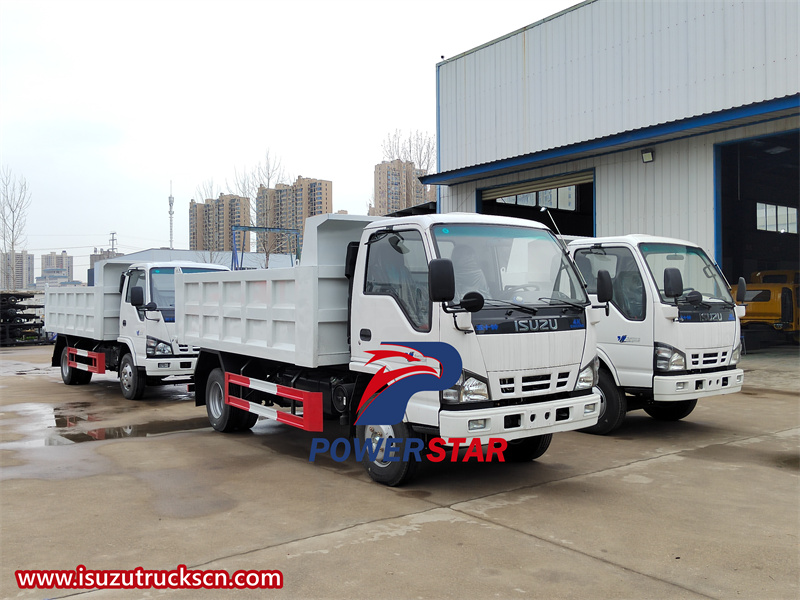

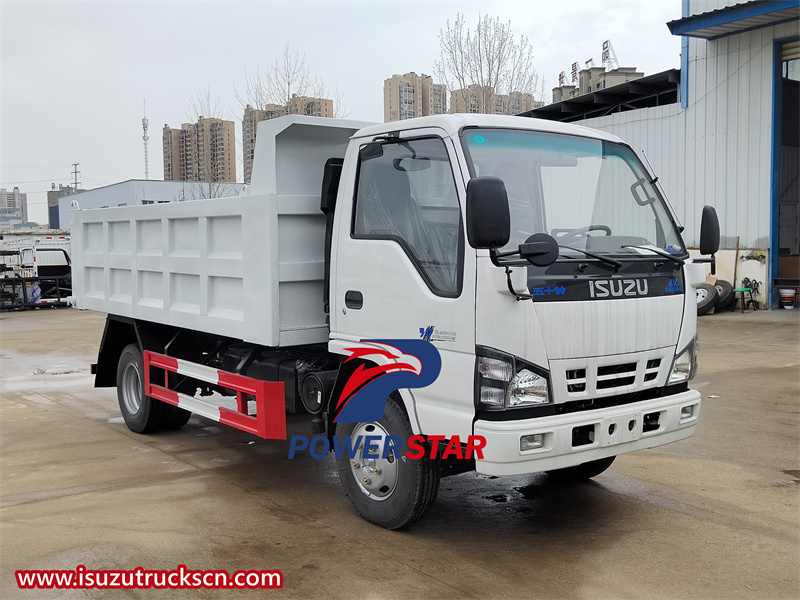

Isuzu 600P dumper truck
The Isuzu 600P NKR 4x2 dump truck has a wide range of applications, mainly in industries that require fast and efficient transportation and unloading of bulk materials. Here are a few of the main applications:
Construction Industry:
Construction Waste Removal: On construction sites, a large amount of construction waste, such as rubble, concrete blocks, abandoned bricks, etc., is often generated. The Isuzu NKR 4x2 dumper truck can easily load these wastes and quickly transport them to designated disposal sites.
Material Transportation: During the construction process, various construction materials such as sand, gravel, cement, etc. also need to be transported. The load capacity and stability of this model make it competent for these tasks.
Mining:
Ore Transportation: During the mining process, large amounts of ore need to be transported to processing plants or storage facilities. The sturdy design and load capacity of the Isuzu 600P dump truck make it an ideal choice for ore transportation.
Waste Disposal: Waste generated during mining, such as tailings, waste rock, etc., can also be transported and processed by this model.
Agriculture:
Crop residue treatment: After the crops are harvested, a large amount of residues such as straw and husks are often produced. These residues can be used as feed, fertilizer or biomass energy. Isuzu NKR 4x2 tipper lorry truck can help farmers quickly collect and transport these residues to the corresponding treatment sites.
Soil improvement material transportation: In the process of agricultural land improvement, soil improvement materials such as organic fertilizer and mineral fertilizer need to be transported. This model can meet these transportation needs.
Public infrastructure:
Road construction: In the process of road construction and maintenance, a large amount of sand, gravel, asphalt and other materials are required. Isuzu NKR 4m3 light duty dumper can efficiently transport these materials to the construction site.
Urban garbage cleaning: In urban management, garbage cleaning is an important link. This model can be used to transport urban garbage to the treatment center, contributing to the cleanliness and environmental protection of the city.
20 Years experience Isuzu Dump Truck /Tipper Trucks manufacturer, Factory direct sales, high quality &low price, truck customized. Isuzu dump truck models start from 3000kgs and go up to 25,000kgs.The delivery time for a Isuzu 3-ton dump truck in Cambodia can vary depending on the supplier and the specific circumstances of the order. However, based on the available information, the delivery time for such trucks can range from 7 days for trucks in stock to 10-18 working days to the delivery port for other options.
Learn More
Micronesia ISUZU mini Dumper Truck new and used ISUZU 3 tons tipper truck, ISUZU dump truck
Learn More
Brand new ISUZU 4×2 700P Dumper Truck, hot-selling ISUZU 6 wheeler 190HP tipper truck, ISUZU dump truck manufacturer.
Learn More
Japan ISUZU New 3ton 4x2 3ton 5tons Mini Tipper Cargo Truck Dump Light Truck On Promotion
Learn More
Japan ISUZU New 3ton 4x2 3ton 5tons Mini Tipper Cargo Truck Dump Light Truck On Promotion
Learn More

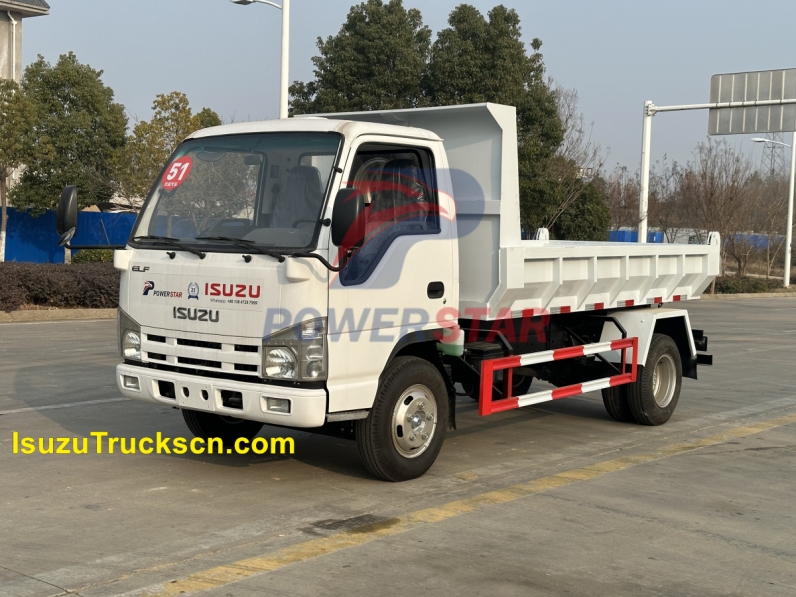

Isuzu ELF 3tons dump truck is an important means of transport with automatic dumping and flexible operation. It has a wide range of applications in short-distance cargo transportation and construction site construction, and is commonly found in construction sites, mines, ports and urban logistics. It can transport a variety of materials such as earth, sand, stone, and construction waste, among others. Due to its small and flexible characteristics, the small dump truck can also operate freely in a narrow construction environment, which improves the construction efficiency.
