The Isuzu 700P all-wheel drive dump truck is a light truck with excellent performance. It is equipped with an Isuzu diesel engine with high power and torque output, which can meet various operational needs. The vehicle adopts an all-wheel drive design, which enhances the passability and stability under complex road conditions. The cargo box adopts a self-unloading design, which is convenient for quick loading and unloading of goods and improves work efficiency.
Work capacity:
5cbmTruck model:
PT5100GYXEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x4，LHDGear box:
MLD 6-speed,manualRemarks:
4x4 all wheel drive off-road dump truck
The Isuzu Diesel Engine 4x4 Dump Truck also called Isuzu 4x4 dumper truck,Isuzu 700P 5 cbm 4x4 tipper truck,Isuzu 700P 4x4 off-road dump truck,Isuzu 4x4 light dumper vehicle, is a versatile, powerful workhorse designed to tackle a variety of demanding tasks, especially in the construction, mining and agriculture sectors. Known for its reliability, durability and efficient performance, this Isuzu diesel engine 4x4 dump truck offers an excellent combination of features that make it a popular choice among professionals.
This truck is the first choice for demanding applications in construction, mining and other heavy-duty industries. Designed to excel in challenging terrain and adverse conditions, Isuzu dump trucks are reliable partners that deliver unmatched performance and productivity on the job site. Whether traversing rough terrain or hauling heavy loads, this truck demonstrates Isuzu's commitment to quality, innovation and customer satisfaction.
|
Isuzu diesel engine 4x4 dump truck |
||
|
Truck Specification |
||
|
Truck model |
PT5100GYX |
|
|
Cab |
Single row cab, 2 seats,with power steering,USB,AC |
|
|
Driving Type |
4x4, left hand driving |
|
|
Max Speed (km/h) |
95 |
|
|
Overall dimension(mm) |
6180*2260*2580(mm) |
|
|
Dimensions of dump body(mm) |
4000*2000*800 |
|
|
GVW( kg) |
10550 |
|
|
Curb weight |
5000 |
|
|
Wheelbase(mm) |
3360 |
|
|
Passengers in cab |
3 |
|
|
F/R track base (mm) |
1680/1650 |
|
|
F/R overhang (mm) |
1110/1710 |
|
|
Approach/Departure Angel |
15/20 |
|
|
Tire |
235/75R17.5,6+1 tire |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MLD 6-speed,manual |
|
|
Multi-way valve |
Yangzhou Zhongmei Hydraulic |
|
|
Bridge |
Front axle |
4T |
|
Rear axle |
7T |
|
|
Engine |
Model |
4HK1-TCG61 |
|
Power |
190HP/150KW |
|
|
Max Torque |
507N·m/2600rpm |
|
|
Fuel Type |
Diesel fuel |
|
|
Fuel Capacity |
100L |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
5193 |
|
|
Emission |
Euro 6 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|

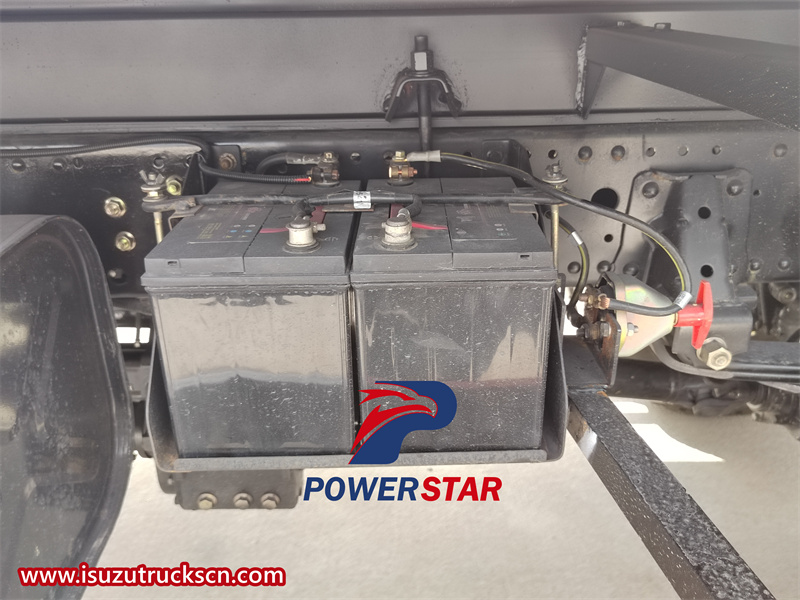

Eletric system |
24v |
|
|
Dump Performance |
Loading Capacity |
5 cbm |
|
Dump body |
4000*2000*800mm |
|
|
Body Material |
High performance carbon |
|
|
Thickness |
Side 3 bottom 5 |
|
|
Lifting Style |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Angel |
45 degree |
|
|
Lowering Time |
20s |
|
|
Tailgate |
15s |
|
|
Drop Side |
Auto release |
|
|
Painting |
Detachable |
|
|
Optional Equipment |
1.Dust bin lifting system (with any option) |
|
|
2.Rear vision camera |
||
|
3.Italy import multi-way valve |
||
|
4.Optional stainless steel waste water tank |
||
The Isuzu 700P 4x4 off-road dump truck is an excellent product that combines high performance, high load, high safety and economy. It is widely used in material transportation and unloading work under various complex road conditions.
The Isuzu Diesel Engine 4x4 Dump Truck represents the pinnacle of industrial engineering, combining power, efficiency and ruggedness. This powerful truck perfectly combines cutting-edge technology and proven reliability, making it the first choice for medium-to-heavy applications in challenging terrain.

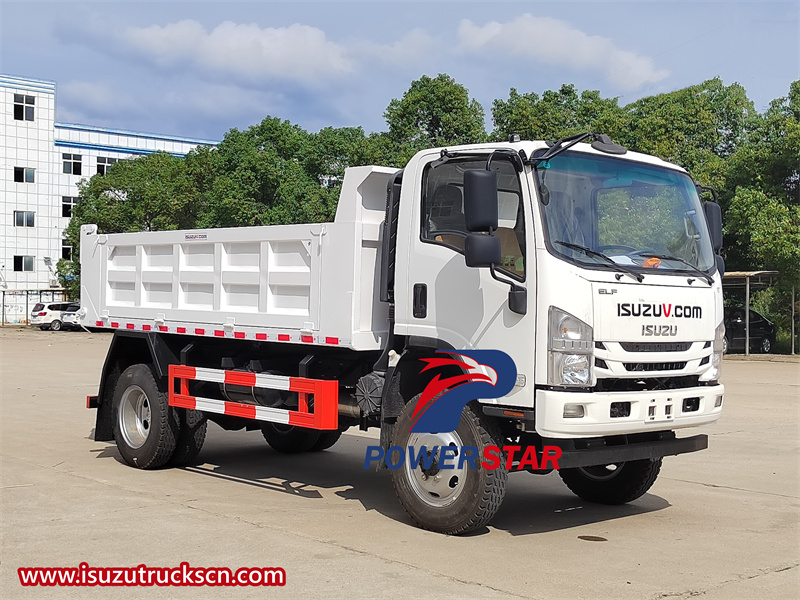

Isuzu diesel engine 4x4 dump truck
Engine Power and Performance
At the heart of the Isuzu Diesel Engine 4x4 Dump Truck is a powerful engine, a rugged diesel engine that embodies efficiency and reliability. Designed for excellent power output and torque, this diesel engine ensures that the truck can easily handle the most demanding loads and terrains. The advanced fuel injection system optimizes combustion, providing high efficiency while minimizing emissions. With its excellent horsepower and torque ratings, the Isuzu Diesel Engine 4x4 Dump Truck provides unparalleled performance in its class.
The diesel engine uses advanced technologies such as turbocharging and intercooling to improve its power output and responsiveness. The high-pressure common rail fuel injection system ensures precise fuel delivery, optimizes combustion and minimizes emissions. As a result, the Isuzu 4x4 dump truck meets or exceeds current emission standards and is very environmentally friendly.
Isuzu 4x4 dumper truck
4x4 Capability and Off-Road Performance
The Isuzu diesel engine dump truck equipped with an advanced 4x4 drivetrain is a master of all terrains. Whether traversing a muddy construction site or climbing a steep slope in a mining operation, this truck provides excellent traction and stability. The intelligent four-wheel drive system ensures that power is effectively distributed to all wheels, allowing the truck to easily conquer challenging off-road conditions. With its high ground clearance and sturdy suspension system, the Isuzu dump truck performs well when driving on rough terrain while maintaining ride comfort and stability.
The system automatically adjusts the power distribution between the front and rear axles, ensuring optimal traction in all driving situations. In addition, the truck's differential lock can be engaged to further enhance traction, allowing it to overcome the toughest obstacles.
Rugged Chassis and Suspension
The Isuzu 4x4 dump truck has a rugged chassis that can withstand the rigors of heavy-duty use. The chassis is made of high-strength steel to ensure structural integrity and durability. The suspension system typically uses a combination of parabolic leaf springs and shock absorbers to provide a smooth ride while supporting heavy loads.
The front suspension is typically independent for better handling and ride quality, while the rear suspension relies on a solid axle with leaf springs for maximum load capacity. This combination ensures that the truck can carry a large payload while maintaining stability and control.

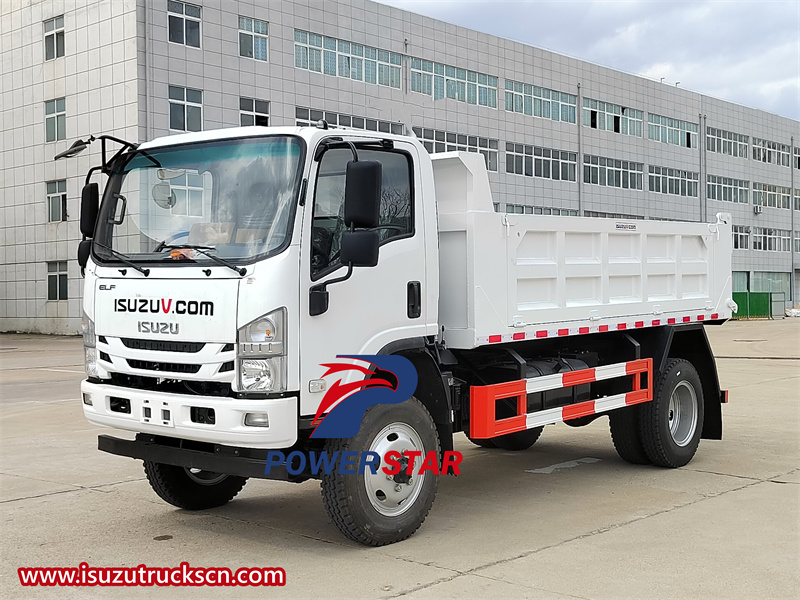

Isuzu 700P 5 cbm 4x4 tipper truck

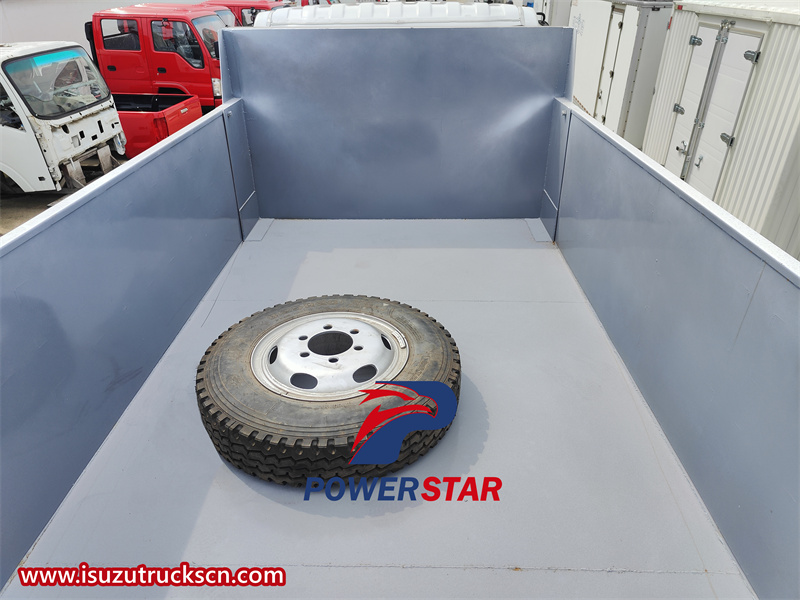

Dump Body Design and Payload Capacity
The dump body of the Isuzu Diesel 4x4 dump truck is carefully designed to maximize efficiency and productivity on the job site. The dump truck body is made of high-strength materials to withstand heavy loads and rough handling. The hydraulic lift system allows for smooth and precise control of the dumping process, allowing materials to be unloaded quickly and efficiently. With ample payload capacity, this dump truck is a versatile workhorse that can handle a variety of materials from aggregates and soil to rocks and debris.
Comfortable Cab
Despite its rugged exterior and powerful features, the Isuzu 4x4 dump truck offers drivers a surprisingly comfortable cabin. The cab is designed to provide ample space, good visibility, and ergonomic controls. The seats are usually padded and adjustable, ensuring the driver can maintain a comfortable position during long hours behind the wheel.
The cab is also equipped with a variety of features to enhance the driver's experience, such as air conditioning systems, power windows, and radio/CD players. Some models may also offer advanced features such as multimedia systems, cruise control, and GPS navigation.

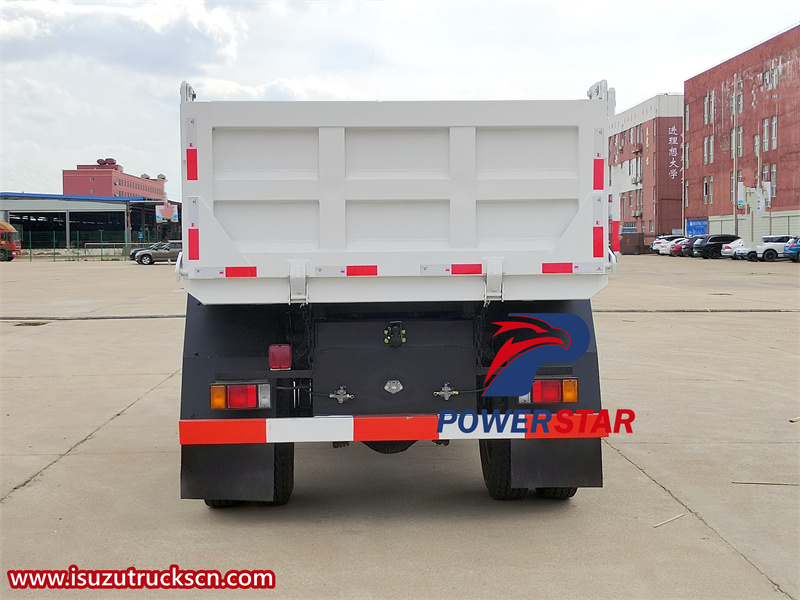

Isuzu 700P 4x4 off-road dump truck
Advanced Safety Features
Safety is a top priority with the Isuzu 4x4 dump truck. The trucks are equipped with a host of advanced safety features to protect the driver, passengers, and those around them. Standard features include Anti-lock Braking System (ABS) and Electronic Stability Control (ESC), which help maintain traction and stability during braking and cornering.
Other safety features may include dual airbags, seat belts with pretensioners, and a rear view camera. These features work together to provide a comprehensive safety net, reducing the risk of accidents and injuries.
Isuzu 4x4 light dumper vehicle
Working principle of dump system
1. Lifting mechanism:
● The core of dump system is lifting mechanism, which is usually composed of hydraulic cylinder, lifting arm and car floor.
● When materials need to be unloaded, the driver opens the hydraulic system by operating the control valve, and the hydraulic cylinder pushes the lifting arm to tilt or flip the car floor, so as to pour out the materials.
2. Hydraulic system:
● The hydraulic system provides power source for the lifting mechanism, and the hydraulic oil is sent to the hydraulic cylinder and other actuators through the hydraulic pump.
● The pressure and flow of the hydraulic system can be adjusted by the control valve to meet the needs of different working conditions.

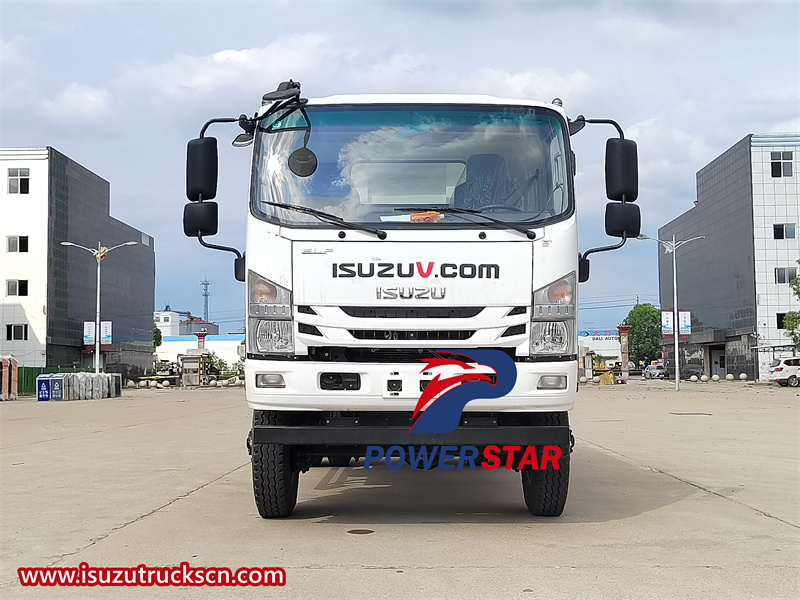

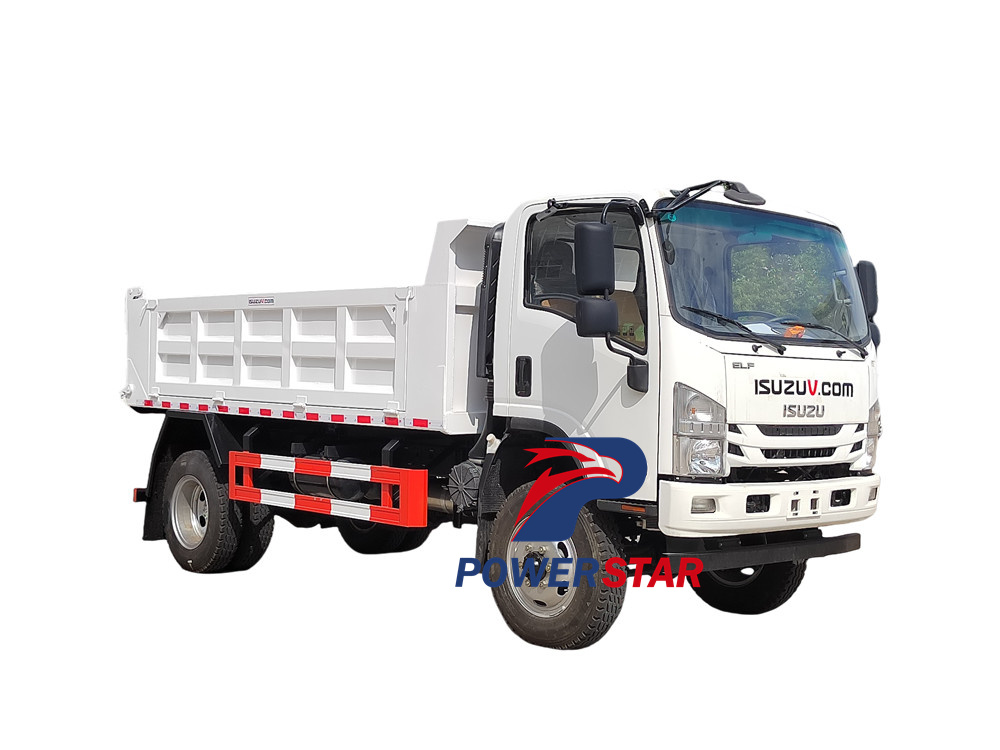

Isuzu 4x4 dumper truck front view

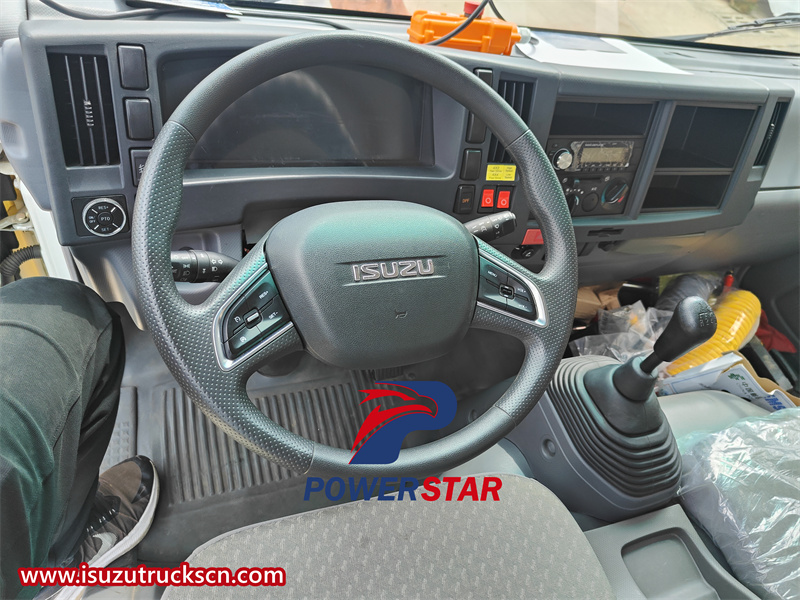

Steering wheel

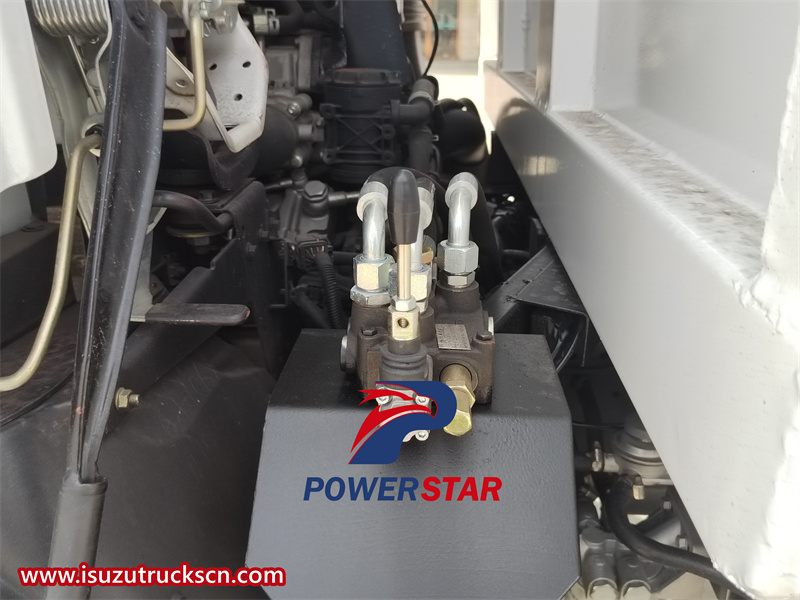

Yangzhou Zhongmei multi-way valve

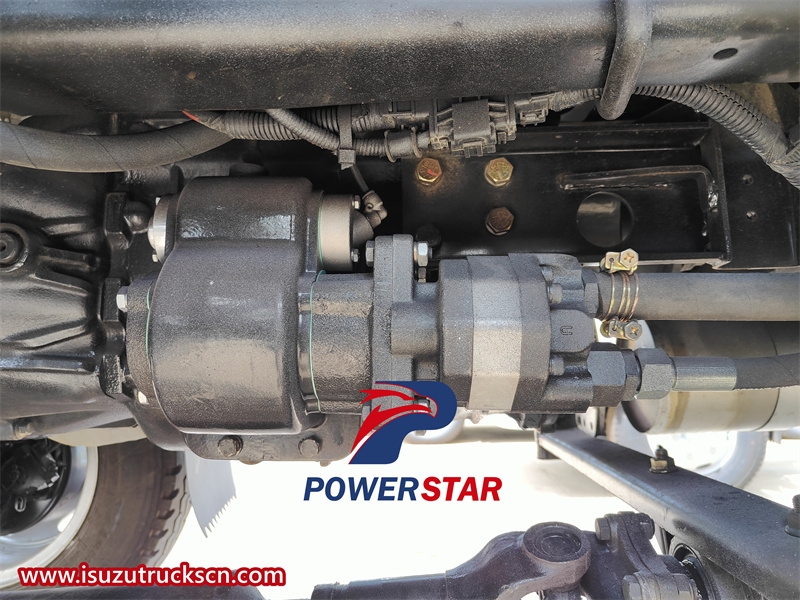

PTO

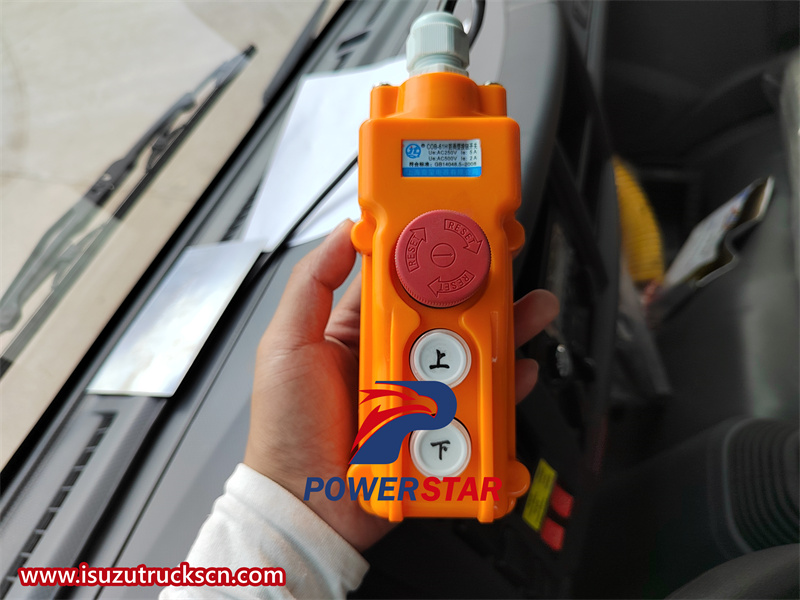

Remote operation
Qi Xing jack
