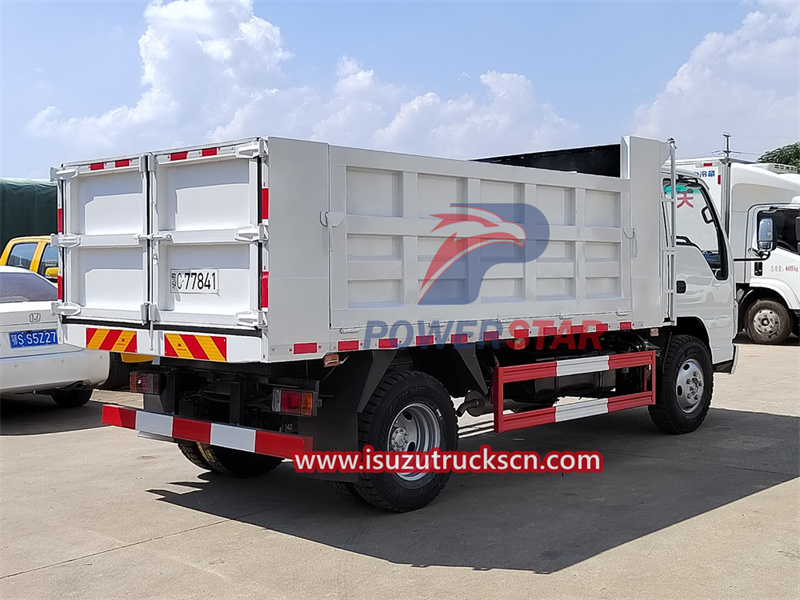

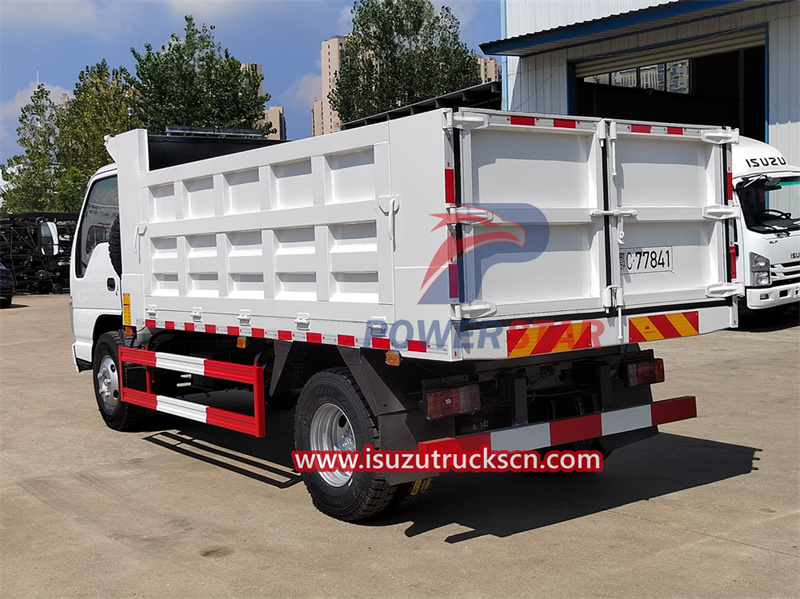

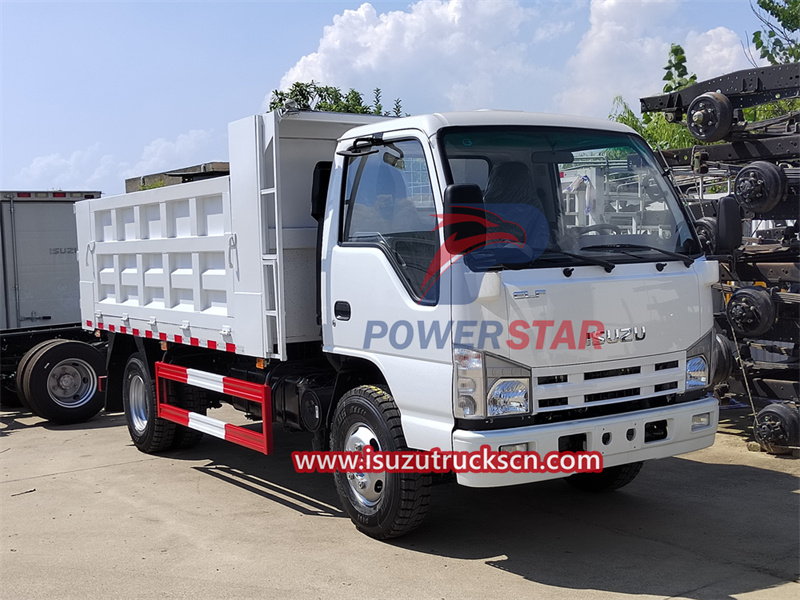

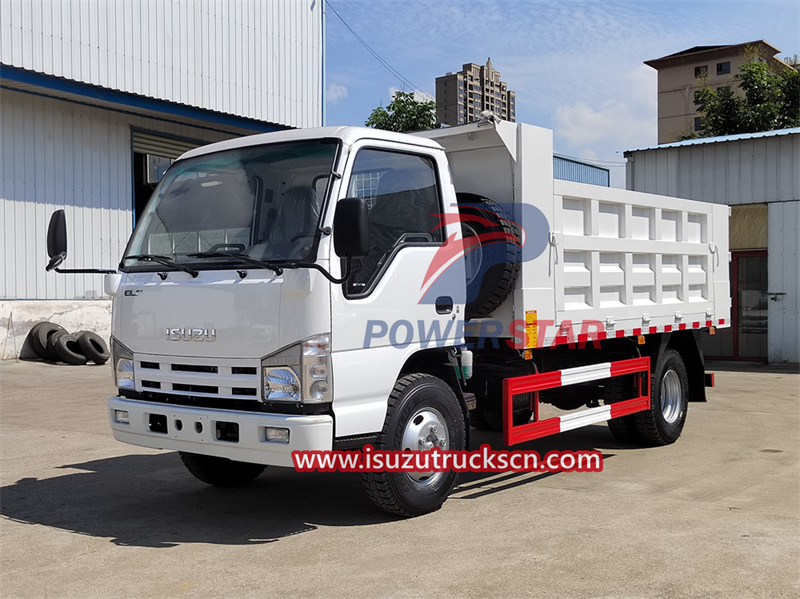

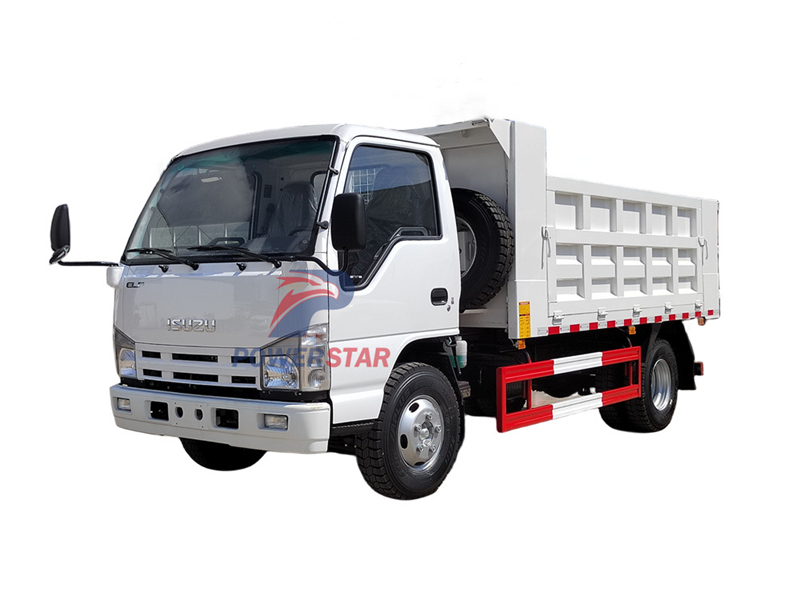

ISUZU Mini Cab Dump Truck with Heightened Body is designed to achieve efficient transportation and unloading and can provide a loading capacity of 3-4 tons. It features a compact Isuzu single cab design with seating for up to three people, providing ample space for loading and transporting cargo. The truck is equipped with a 4KH1CN5LS engine, which complies with European Stage 5 emission standards to ensure that environmental impact is minimized. The vehicle has strong performance, with a maximum speed of 90 kilometers per hour and a maximum gradeability of 25%. The power steering system ensures good handling, and the stable braking system ensures efficient braking capabilities.
Work capacity:
3-4tonsTruck model:
PST5080ZXQEngine power:
98hpEngine type:
4KH1CN5LSAxle drive:
4x2Gear box:
ISUZU MSB 5-shift ManualRemarks:

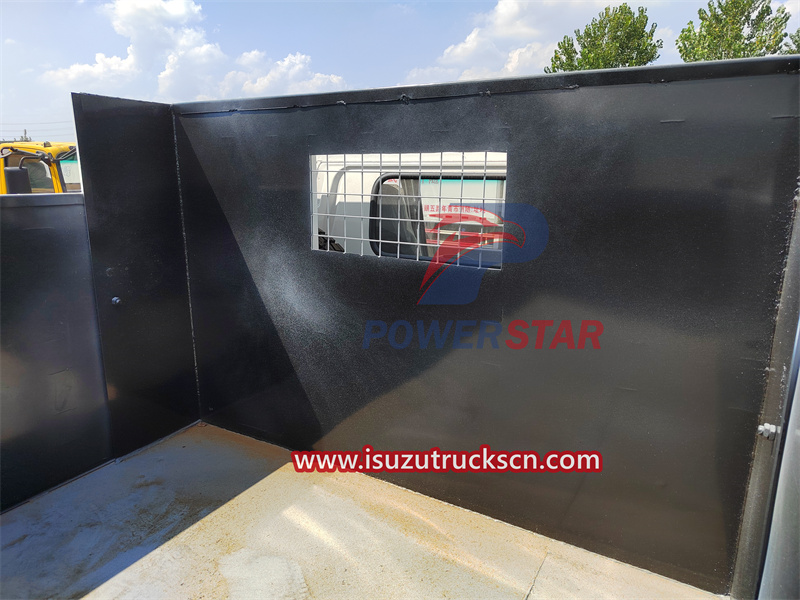

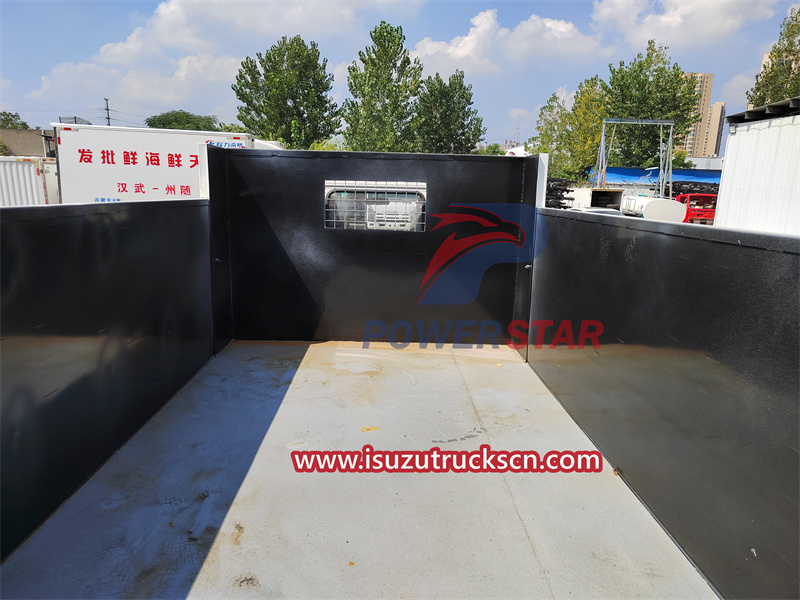

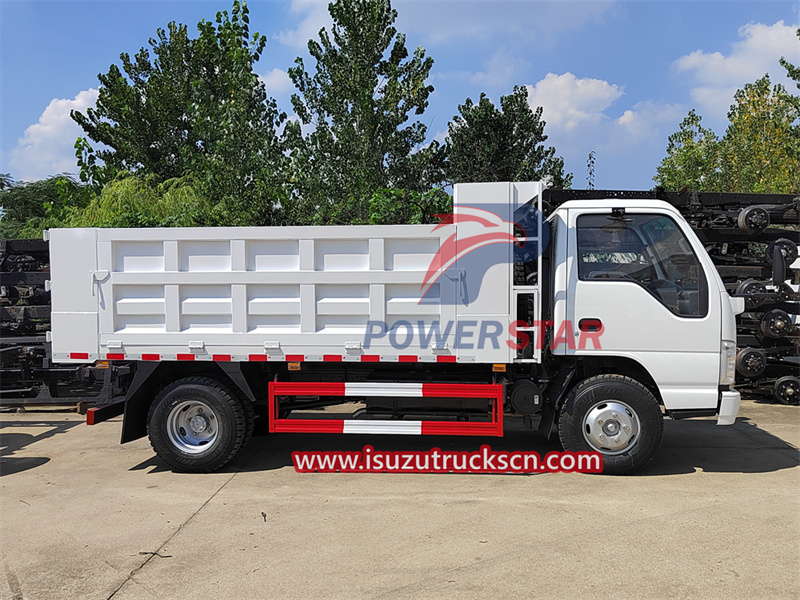

Heightened Dump BodyIsuzu 100P dump truck with an elevated dump body is a vehicle specially used for transportation and unloading. Its characteristic is that it has been improved on the basis of the original Isuzu dump truck, mainly in the height of the dump body. Compared with ordinary Isuzu dump trucks,Isuzu dump trucks with elevated dump body can load more goods while maintaining the flexibility and convenience of Isuzu light duty dump trucks.Isuzu dump trucks with heightened cabinets have obvious advantages in increasing cargo capacity, improving unloading efficiency and enhancing driving safety. In the field of logistics and transportation, the wide application of such vehicles will bring higher benefits and better user experience.
|
Description |
ISUZU Mini Cabin Dump Truck |
|
|
Item |
Powerstar dump truck |
|
|
Model |
PST5080ZXQ |
|
|
Cabin |
Isuzu single cabin |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
5800*2350*2380 mm |
|
Dimensions of dump body (L*W*H)mm |
3100*2250*1800 mm |
|
|
Driving type |
Left/Right hand drive 4×2 |
|
|
Wheel base |
3360 |
|
|
Weight data |
Curb weight (kg) |
2800 |
|
Rated payload(kg) |
4000 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
90 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
4KH1CN5LS |
|
Engine type |
Vertical, water-cooled, four-stroke, |
|
|
Emission standard |
Euro5 |
|
|
Displacement (L) |
2.99L |
|
|
Rated power (KW) |
64 |
|
|
Max torque (N.m/rpm) |
220N.M/ 1900-2100 r/min |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
700R16 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
3-4 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 3mm |
|
|
Control System |
Rear/Side are 4mm |
|
|
Hydraulic Lifting |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
20 s |
|
|

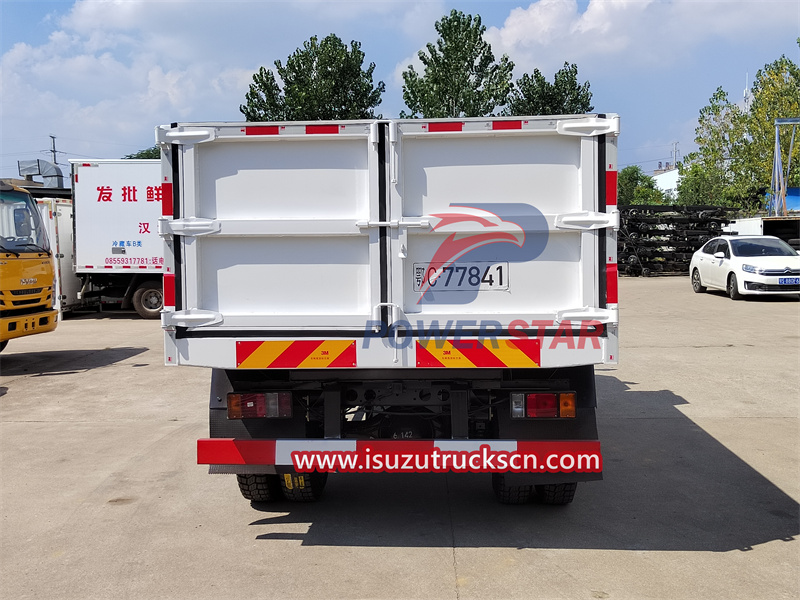

Tailgate |
15 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
What are the advantages of Isuzu dump truck with Heightened Body?
First of all, the design of Isuzu dump trucks with elevated boxes focuses on increasing cargo capacity. By increasing the height of the box, the vehicle's loading space can be increased, allowing the truck to transport more cargo. This is particularly important for the logistics industry because it can reduce the number of transportation times and costs and improve transportation efficiency. In addition, the increased cargo capacity also means that more needs can be met and more convenient services can be provided to users.
Secondly, Isuzu dump truck with an elevated box has greater flexibility and convenience when unloading. Traditional dump trucks need to tilt the box when unloading so that the goods can be dumped smoothly from the compartment. However, in some cases, due to the special cargo, a larger tilt angle may be required to achieve unloading. Dump trucks with elevated boxes perform well in this aspect, because the increased height provides a larger tilt space, making unloading more convenient and faster, and improving work efficiency.
In addition to the above two points, Isuzu dump trucks with elevated boxes also have other advantages. For example, the increased compartment space can cope with the transportation needs of special cargo, such as over-height or over-sized cargo. In addition, due to the increased height of the truck, the driver's field of vision is also improved, and the blind spots are reduced, which enhances driving safety.
To sum up, Isuzu dump trucks with elevated boxes have obvious advantages in increasing cargo capacity, improving unloading efficiency and enhancing driving safety. In the field of logistics and transportation, the wide application of such vehicles will bring higher benefits and better user experience.
20 Years experience Isuzu Dump Truck /Tipper Trucks manufacturer, Factory direct sales, high quality &low price, truck customized. Isuzu dump truck models start from 3000kgs and go up to 25,000kgs.The delivery time for a Isuzu 3-ton dump truck in Cambodia can vary depending on the supplier and the specific circumstances of the order. However, based on the available information, the delivery time for such trucks can range from 7 days for trucks in stock to 10-18 working days to the delivery port for other options.
