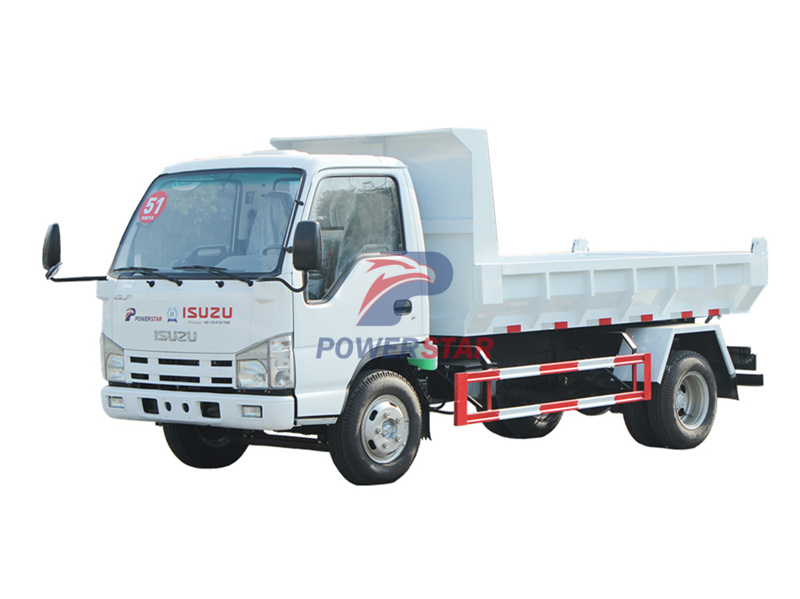

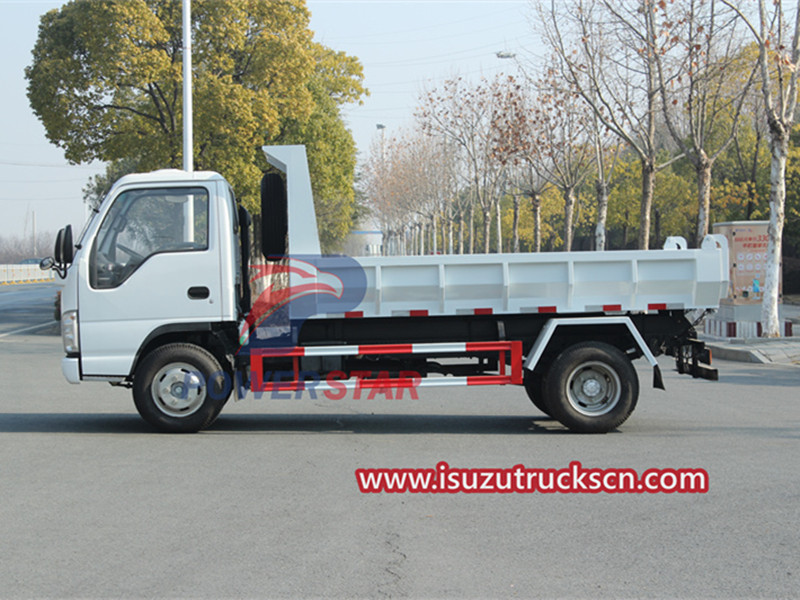

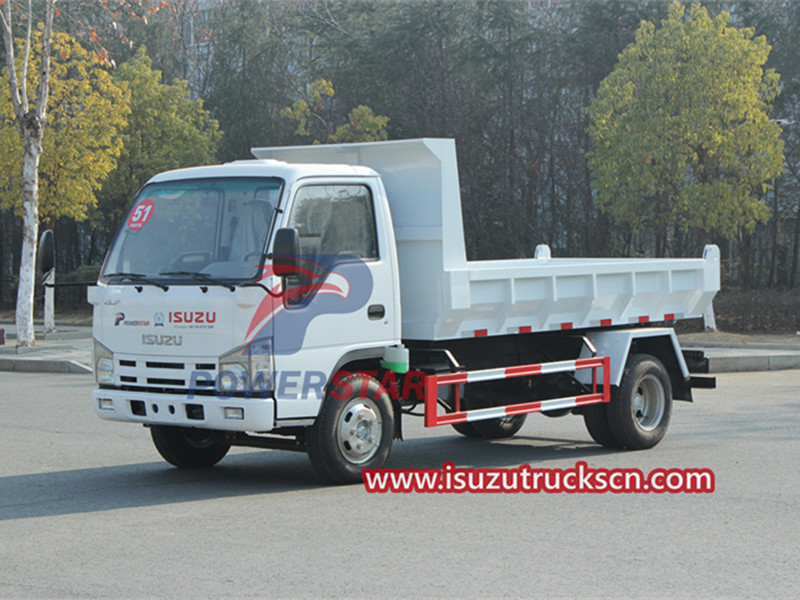

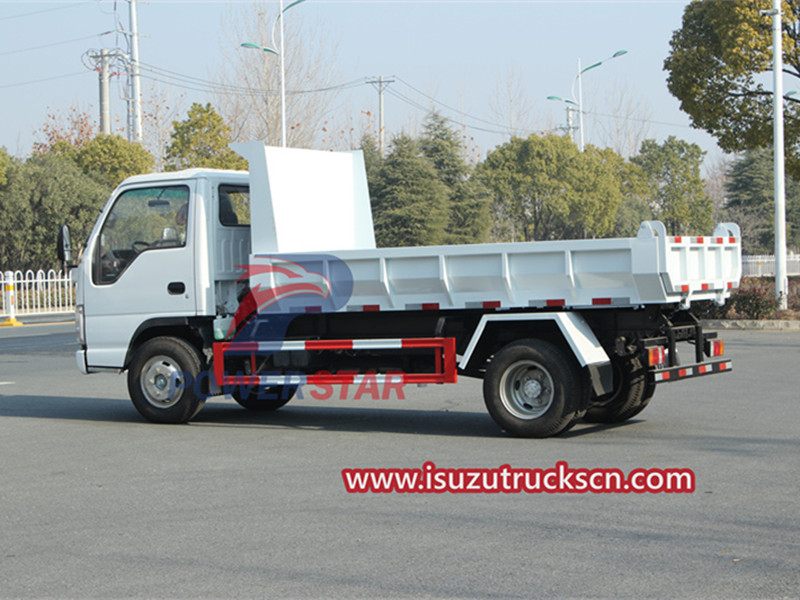

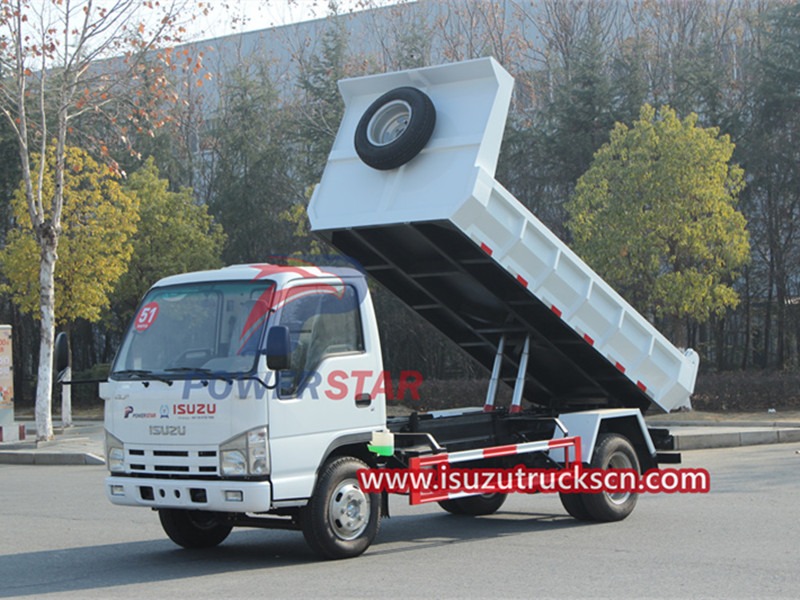

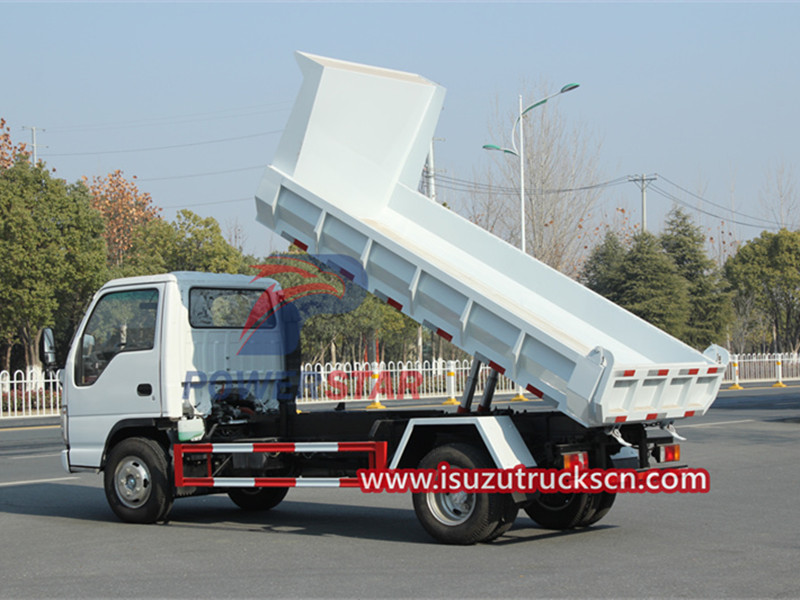

Isuzu elf 100P tipper truck adopts a U-shaped box design. It adopts the Isuzu single-row vehicle design and has a compact appearance and structure. It has a left/right-hand drive 4x2 drive mode and a wheelbase of 3360 mm. The maximum speed reaches 90 kilometers per hour, the maximum gradeability is 25%, and the minimum turning radius is 7.5 meters. In terms of self-unloading performance, the loading capacity is 2-3 tons. The body is made of high-performance carbon steel material, with a thickness of 3 mm on the front/side and 4 mm on the rear/side. The unloading system adopts a central lifting device with a dumping time of 45 seconds and a lowering time of 20 seconds. The tailgate is equipped with an automatic release mechanism.
Work capacity:
2-3tonsTruck model:
PST5090ZXQEngine power:
98hpEngine type:
4KH1CN5LSAxle drive:
4x2Gear box:
ISUZU MSB 5-shift ManualRemarks:

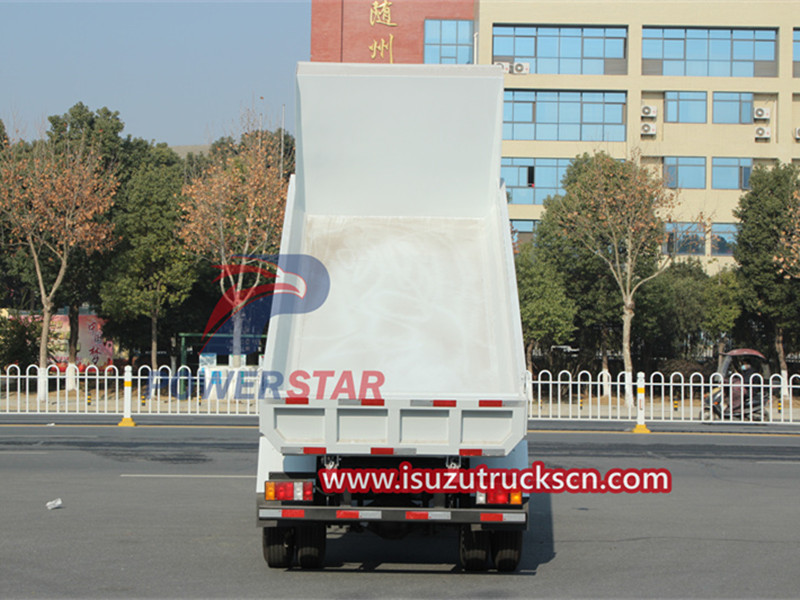

U-shape dump bodyIsuzu 3tons U-shaped dump truck is a specially designed truck with a unique ability to load and unload cargo. Its dump body is U-shaped and has a suitable opening on the upper part to facilitate loading and unloading of goods. This type of truck is usually used to transport bulk materials such as ore, coal, construction materials, etc. Since the body is U-shaped, the goods can be dumped directly through the upper opening, without the need to use other loading and unloading equipment, saving procedures and time during the loading and unloading process. This kind of truck can quickly complete the loading and unloading of goods, improving work efficiency.
Technical Parameters:
|
Description |
ISUZU Mini Cabin Dump Truck |
|
|
Item |
Powerstar dump truck |
|
|
Model |
PST5090ZXQ |
|
|
Cabin |
Isuzu single cabin |
|
|
whole vehicle main
|

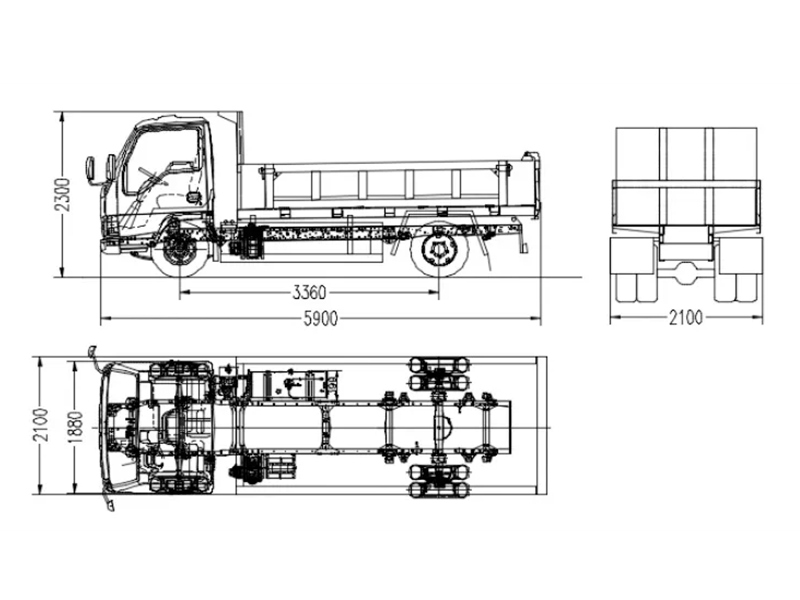

Overall dimensions (L*W*H)mm |
5800*2350*2380 mm |
|
Dimensions of dump body (L*W*H)mm |
3000*2250*800 mm |
|
|
Driving type |
Left/Right hand drive 4×2 |
|
|
Wheel base |
3360 |
|
|
whole vehicle main |
Max.speed(km/h) |
90 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
4KH1CN5LS |
|
Engine type |
Vertical, water-cooled, four-stroke, |
|
|
Emission standard |
Euro5 |
|
|
Displacement (L) |
2.99L |
|
|
Rated power (KW) |
64 |
|
|
Max torque (N.m/rpm) |
220N.M/ 1900-2100 r/min |
|
|

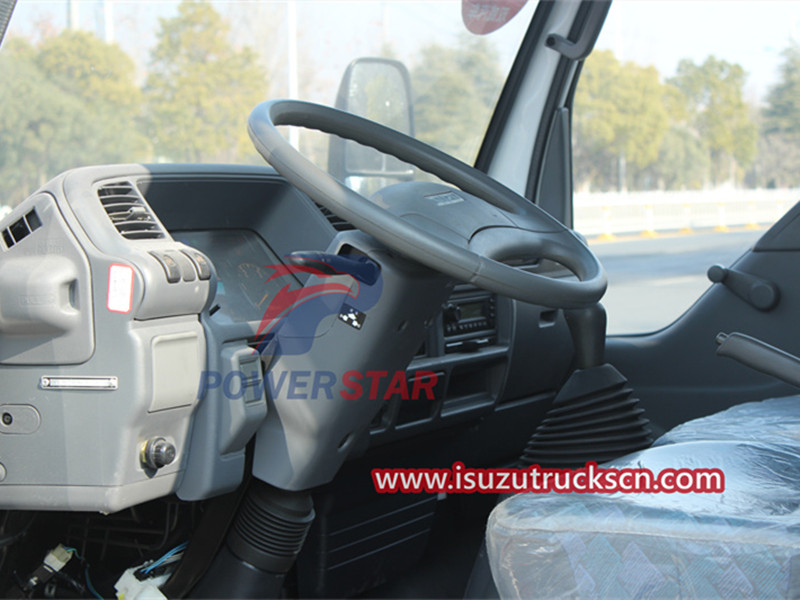

Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
700R16 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Weight data |
Curb weight (kg) |
2800 |
|
Rated payload(kg) |
4000 |
|
|
Person in cab (persons) |
3 |
|
|
Dump Performance |
Loading Capacity |
2-3 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 3mm |
|
|
Control System |
Rear/Side are 4mm |
|
|
Hydraulic Lifting |
Hydraulic |
|
|

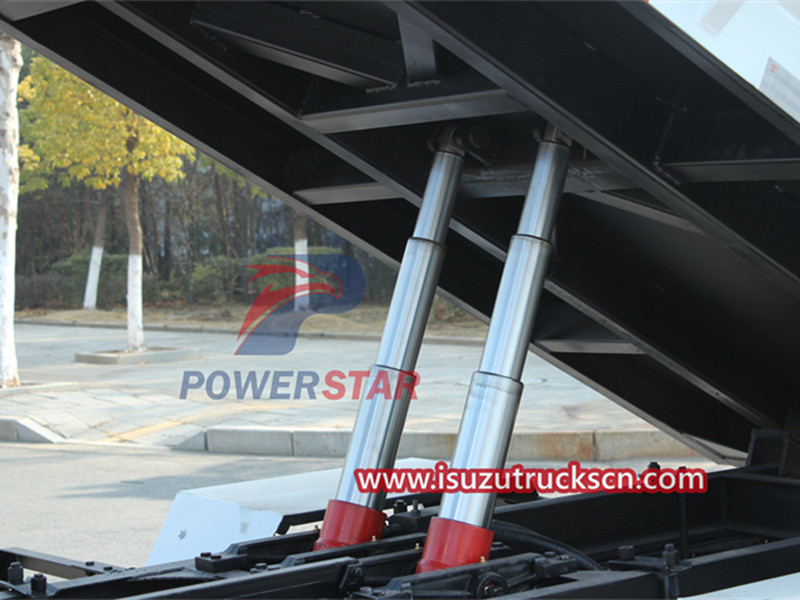

Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
20 s |
|
|
Tailgate |
15 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
The main reasons why Isuzu U-shaped dump body trucks can transport sludge are as follows:
Wide loading and unloading opening: The design feature of the Isuzu U-shaped dump body truck is that the body is U-shaped with a large upper opening. This allows the sludge to be transported directly by dumping it into the box of the truck without the need for other loading and unloading equipment. Silt is often a wet mud-like substance, and this wide loading and unloading port can quickly and easily load or dump the silt.
Powerful loading capacity: Isuzu U-shaped dump body trucks usually have a large loading capacity. The box body is reasonably designed and strong, and can carry larger weights of materials. Silt is usually heavier when wet, and U-shaped dump truck trucks can meet the loading capacity required to transport sludge.
Stable transportation characteristics: Isuzu U-shaped dump body trucks have good stability during driving. The bottom of the truck is reasonably designed to keep the center of gravity of the box stable during unloading, reducing the risk of tipping accidents. This is particularly important when transporting viscous materials such as wet mud to ensure safe transportation.
Isuzu U-shaped dump body trucks can transport sludge conveniently, efficiently and safely due to their design features and performance advantages. This provides an effective solution for engineering projects and environmental engineering where sludge needs to be handled or transported.
