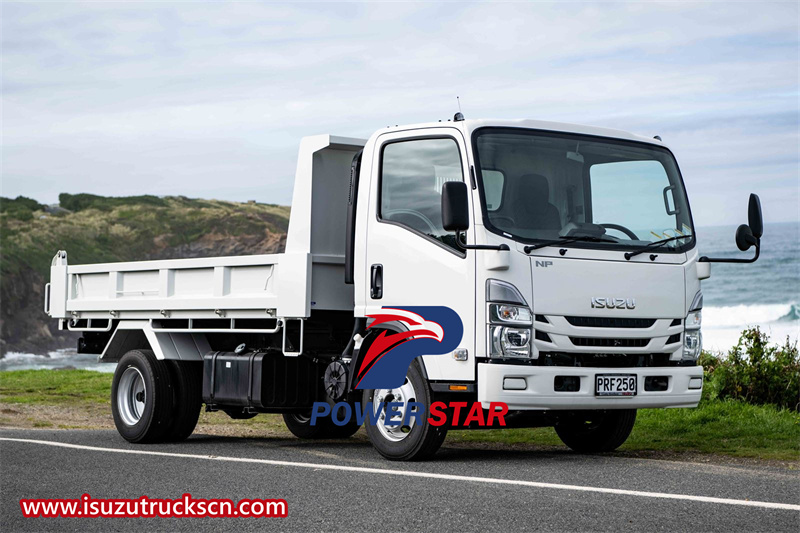

The Isuzu ELF 3 ton light duty dumper is a transportation tool with excellent performance and easy operation. It is suitable for various scenarios that require fast and efficient loading and unloading of goods. Whether it is a construction site or a mining operation, it can perform well and provide strong support for transportation work. support.
Work capacity:
3 tonTruck model:
PT5050GQWEngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4x2, RHD 4x2, RHDGear box:
ISUZU MLD 6F+1R ISUZU MLD 6F+1RRemarks:
Carrier body can be customized. Carrier body can be customized.
Isuzu ELF 3 ton light duty dumper, also known as Isuzu ELF dump truck, Isuzu 4x2 NPR tipper,Isuzu ELF dump lorry truck,Isuzu mini tipper lorry,is a truck with excellent performance and practical functions. The Isuzu ELF 3 ton light duty dumper has good chassis performance, strong power, energy saving and environmental protection, comfortable driving and wide vision. The top loading box is strong and durable, has strong load-bearing capacity, low center of gravity and good stability. It can be used for loading and unloading and transporting earthwork, sand and gravel, bulk materials, garbage, etc. Popular in the transportation industry, it is known for its durability, efficiency and excellent performance.
|
Isuzu ELF 3 ton light duty dumper |
||
|
Vehicle Model |
PT5050GQW |
|
|
GVW |
7900 |
|
|
Curb weight |
3800 |
|
|
Chassis Specification |
||
|
Chassis Brand |
Isuzu ELF |
|
|
Cabin |

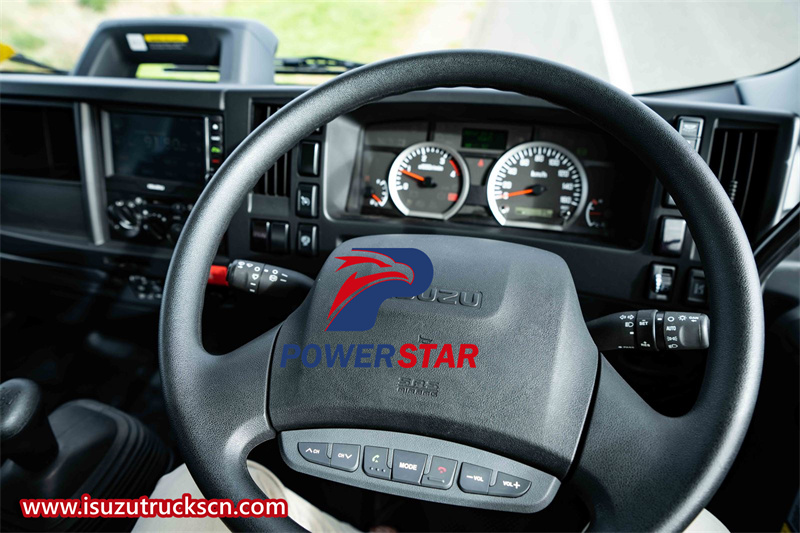

Single-row cabin, with air-conditioner, Power assisted steering,Right Hand Drive |
|
|
Vehicle Main Dimensions |
Overall Dimension (L×W×H ) |
5950×1880×2280mm |
|
Wheelbase |
3815mm |
|
|
Engine |
Model |
ISUZU 4HK1-TC51 |
|
Horse Power |
190HP |
|
|
Displacement |
5.193L |
|
|
Emission Standard |
Euro 5/6, diesel |
|
|

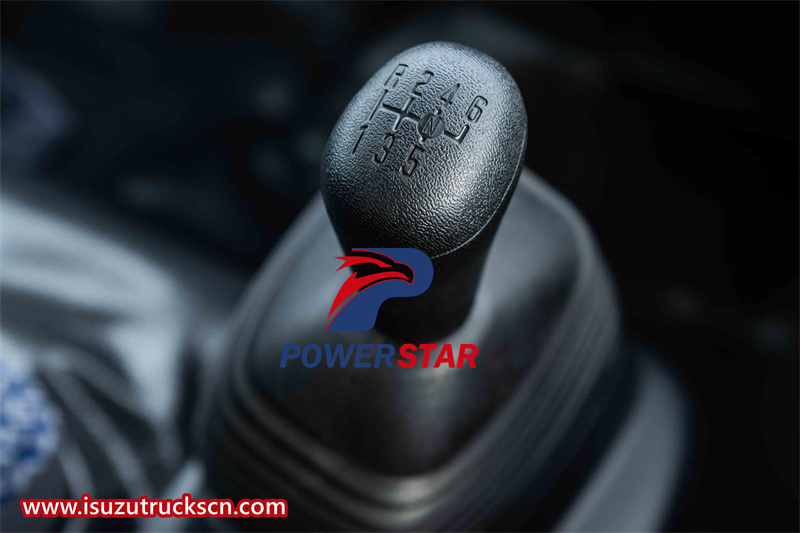

Transmission |
ISUZU MLD 6F+1R |
|
|
Drive Form |
4x2 |
|
|
Tire |
Steel Radial Tire 235/75R17.5 14PR, 6pcs |
|
|
Brake |
dual circuit type oil brake (air brake in optional) |
|
|
Maximum speed |
95km/h |
|
|
Carrier Body |
||
|
Carrier Body |
Dimension (L×W×H ) |
3600mm×1780mm×600mm |
|
Payload |
3tons |
|
|
Thickness |
Sidewall |
3mm in high tensile strength steel Q345B |
|
Floor |
4mm in high tensile strength steel Q345B |
|
|
Hydraulic Cylinder |
Tipping Type |
Middle lifting |
Working principle of Isuzu ELF 3 ton light duty dumper:
● The structure of the dump truck's engine, chassis and cab is the same as that of a general truck.
● The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, and there is a cab safety protection plate at the front end of the carriage.
● The engine drives the hydraulic pump through the transmission and power take-off device. The cabin hydraulic tilting mechanism consists of a fuel tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve and an oil pipe.
● The engine drives the hydraulic pump through the transmission and power take-off device. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and oil pipe, and pushes the piston rod to tip the car. Lateral tipping is more common, and the control system controls the movement of the piston rod to stop the car at any desired tilt position. The carriage uses its own gravity and hydraulic control to reset.

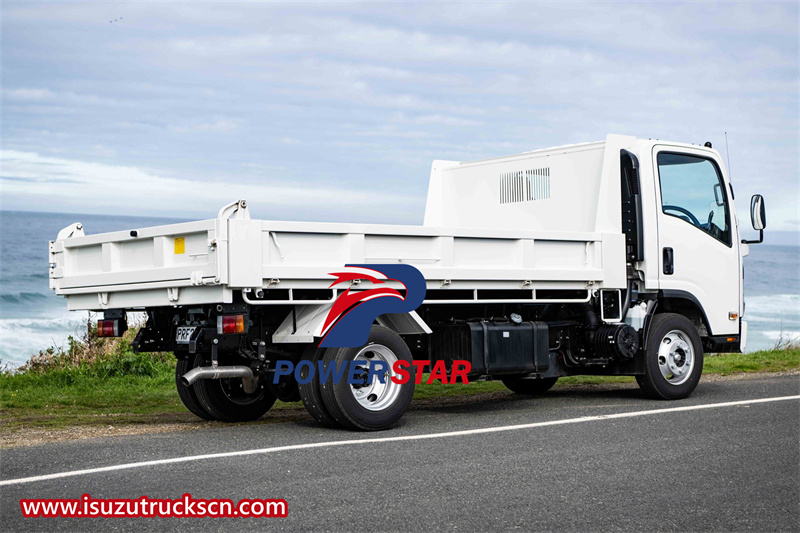

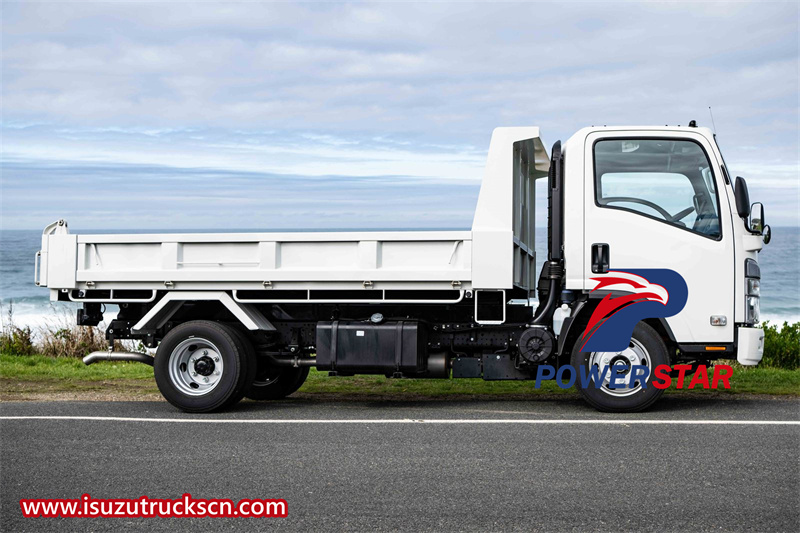

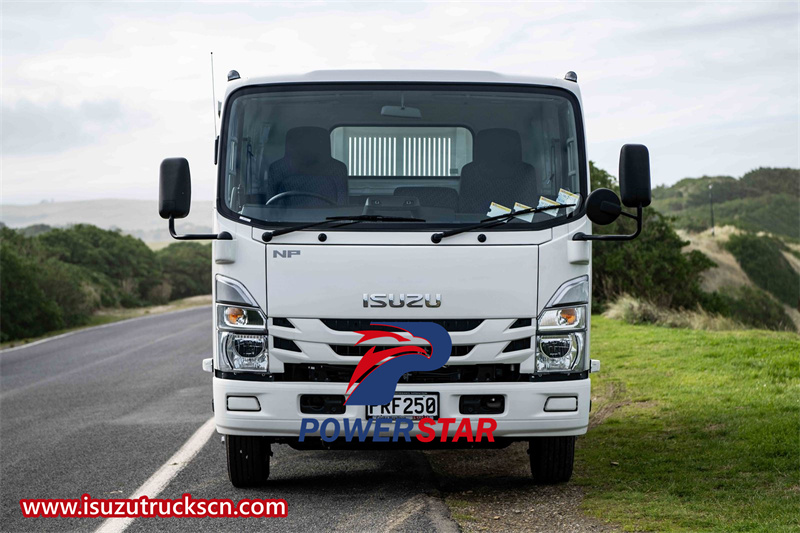

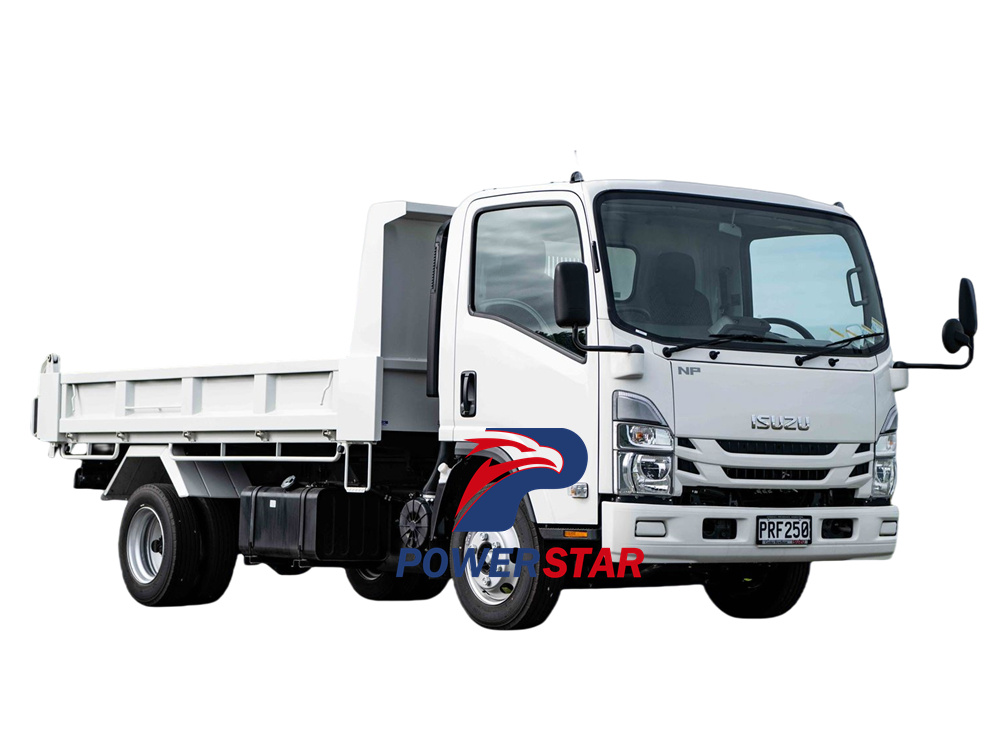

Isuzu ELF 3 ton light duty dumper
● The Isuzu 3 ton light duty dumper is a versatile and powerful vehicle designed to handle a variety of hauling and dumping tasks with ease. It is built to withstand the rigors of heavy use while providing reliable performance in a range of environments.
● Equipped with a powerful and efficient diesel engine, the Isuzu light duty dumper delivers ample power and torque to handle heavy loads with ease. The engine is designed to provide optimal performance while minimizing fuel consumption and emissions, making it an environmentally friendly choice for businesses and contractors.
● The Isuzu 3 ton light duty dumper features a durable and rugged chassis that is built to last. The chassis is designed to withstand the wear and tear of daily use, ensuring that the vehicle remains reliable and dependable for years to come. With a three-ton payload capacity, the dumper is capable of hauling a variety of materials, from gravel and sand to soil and construction debris.The cargo bed is designed to withstand frequent use, ensuring it can meet the demands of daily operations without becoming damaged.
● One of the standout features of the Isuzu light duty dumper is its advanced suspension system. The vehicle is equipped with heavy-duty springs and shock absorbers that provide a smooth and comfortable ride, even when driving over rough terrain. This ensures that operators can remain focused and comfortable while completing their hauling and dumping tasks.

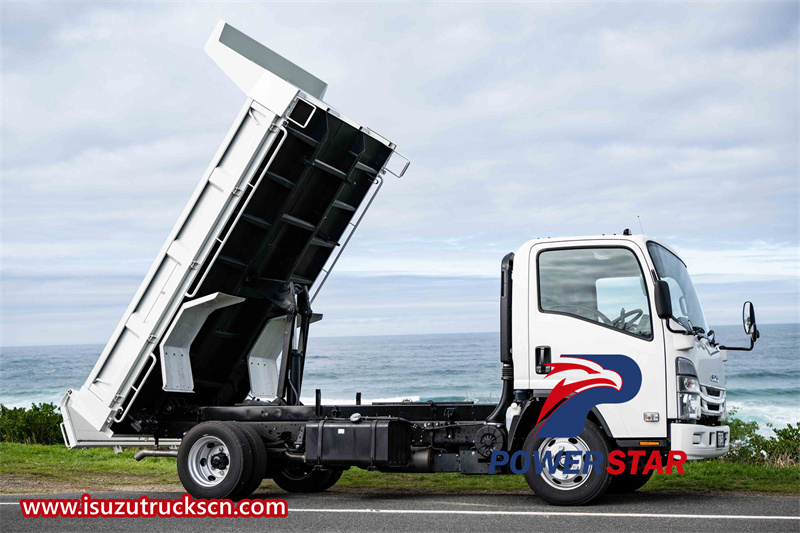

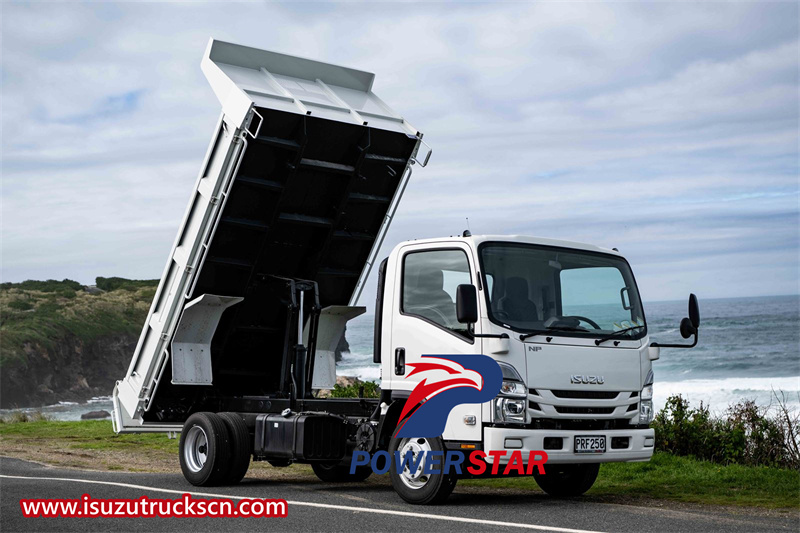

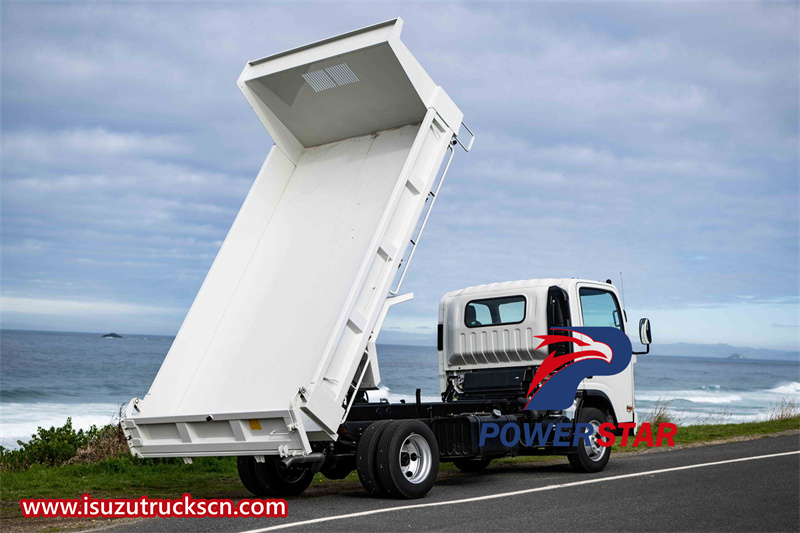

● The Isuzu 3 ton light duty dumper is also equipped with a hydraulically operated tipping mechanism that makes it easy to unload materials quickly and efficiently. The rear-facing tipping bed allows operators to deposit materials in the desired location with precision, reducing the time and effort required to complete tasks.
● In terms of safety features, the Isuzu light duty dumper is equipped with a range of advanced systems to protect both the operator and the vehicle. Anti-lock brakes, traction control, and stability control systems come standard, providing added peace of mind when driving in challenging conditions.
Overall, the Isuzu 3 ton light duty dumper is a reliable, powerful, and efficient vehicle that is well-suited for a variety of hauling and dumping tasks. With its durable construction, advanced features, and impressive performance, it is a top choice for businesses and contractors looking for a versatile and dependable workhorse.
