The Isuzu NKR dump truck uses the Isuzu 100P chassis, a single-row cab design, can be configured with left/right drive, a wheelbase of 3360mm, and can accommodate 2 people in the cab. The maximum speed is 110 kilometers per hour, the maximum climbing grade is 25%, and the minimum turning radius is 7.5 meters. The engine model used in the vehicle is 4HK1CN6LB, which is a four-cylinder, four-stroke, water-cooled, turbocharged and intercooled engine. It meets the Euro 6 emission standards, with a displacement of 2.999 liters, a power of 120 horsepower, and a maximum torque of 290N·m.
Work capacity:
3tonTruck model:
PT5070GYZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
MSB 5 shift, 5 Forward gear + 1 Reverse,manualRemarks:
3Ton dump box capacityIsuzu NKR small dumper with 3 Ton capacity has become a reliable and efficient workhorse in the transportation and logistics industry with its sturdy design and versatility. Equipped with an efficient and energy-saving diesel engine, it can easily cope with various complex road conditions and can be fully loaded with 3 tons of cargo. The cab is spacious and bright, the control is convenient, and the safety configuration is complete, making driving safer. At the same time, it pays attention to environmental protection and energy saving, meets emission standards, and intelligent fuel consumption management reduces operating costs.
Key Features:
★ ISUZU NKR chassis, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Easy operation and easy maintenance
★ Various capacity of dump box are available
Specifications of Isuzu NKR 3ton small dumper truck
|
ISUZU NKR 4x2 3ton dumper truck |
||
|
Condition |
4X2, New condition, Left Hand Drive |
|
|
Truck model |
PT5070GYZ |
|
|
|
Brand |
ISUZU |
|
GVW |
7300kg |
|
|
Curb weight |
3950kg |
|
|
Loading weight |
3ton |
|
|
Wheelbase(mm) / No.of |
3360 / 2 axles |
|
|
Dimension(mm) |
5500×2100×2400 |
|
|
Axle load(front/rear) |
2580/4720kg |
|
|
Max driving speed(km/h) |
110 |
|
|
Tire |
700R16,6+1 |
|
|
Paint |
Automotive metallic paint |
|
|
Cab |
Standard Isuzu 100P single row cab, 2 passengers allowed, with Air Conditioner, with FM |
|
|
|
Model |
Isuzu 4KH1CN6LB |
|
Fuel type |
Diesel |
|
|
Displacement (ml) |
2999 |
|
|
Max Horsepower (hp) |
120HP/88kw |
|
|
Maximum torque (N.m) |
290 |
|
|
Cylinder number |
Inline 4 cylinder |
|
|
Emission standard |
Euro VI |
|
|
Break |
Oil break system |
|
|
Transmission |
MSB 5 shift, 5 Forward gear + 1 Reverse,manual |
|
|
Upper |
||
|
Cargo body |
Size (L×W×H) |
3300×2000×550mm |
|
Loading capacity |
2~3 tons |
|
|
Material |
Q345/B High Tension Steel. |
|
|
Thickness |
Rear&bottom 4mm, side & front 3mm |
|
|
Tipping hydraulics |
Type |
Middle Tipping |
|
Brand |
Chinese brand |
|
|
Tipping Angle |
45° |
|
|
Tipping Control |
By the lever in the cab |
|
|
Color and Logo |
Optional |
|

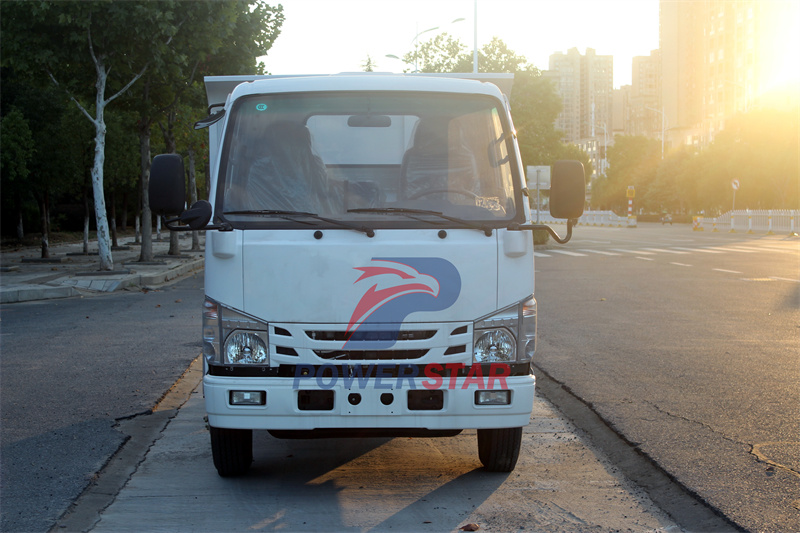

When you see the Isuzu NKR 100P dump truck for the first time, you will definitely be attracted by its compact and powerful body. The streamlined design not only makes the whole vehicle look more stylish and dynamic, but also reduces wind resistance and improves fuel economy. Every line of the body reveals Isuzu's ultimate pursuit of details and exquisite control of craftsmanship.
Open the door and sit in the cab, you will be impressed by the spaciousness and brightness of Isuzu ELF mini tipper truck. The layout of the cab is reasonable, and various control buttons are within reach, allowing the driver to easily deal with various situations during driving. The comfort of the seat is impeccable, and you will not feel tired even after driving for a long time.

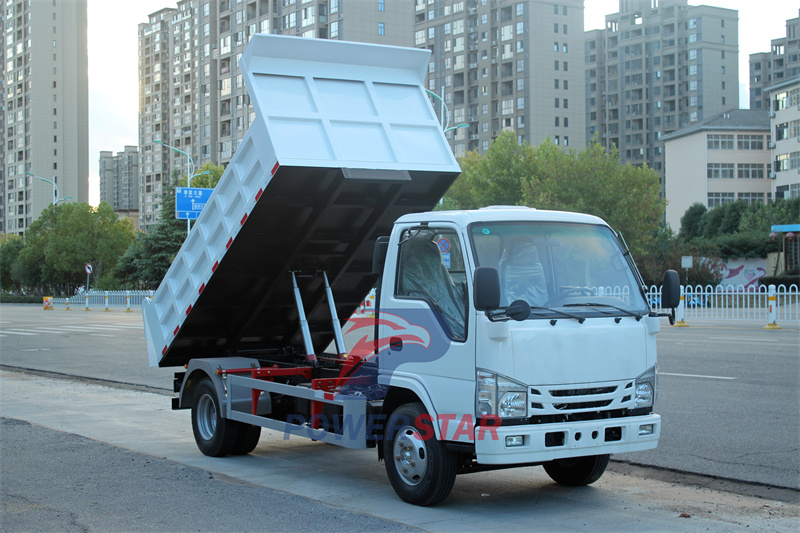

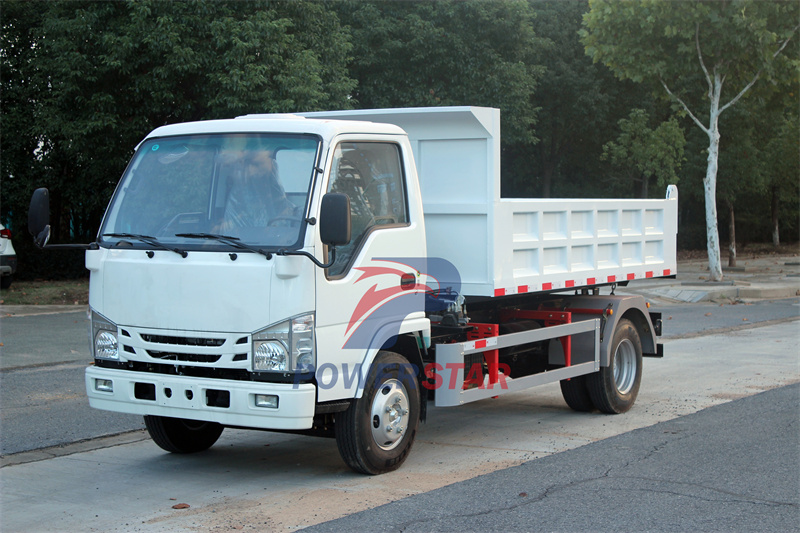

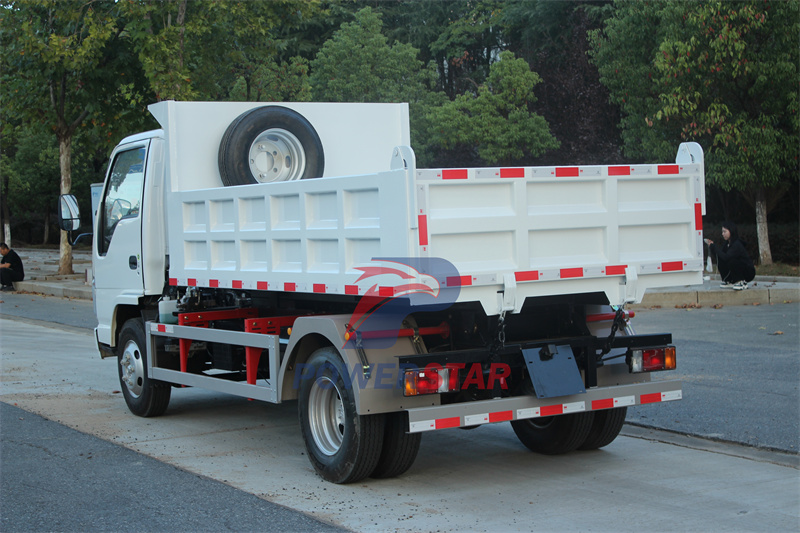

Isuzu NKR small dumper with 3 Ton capacity

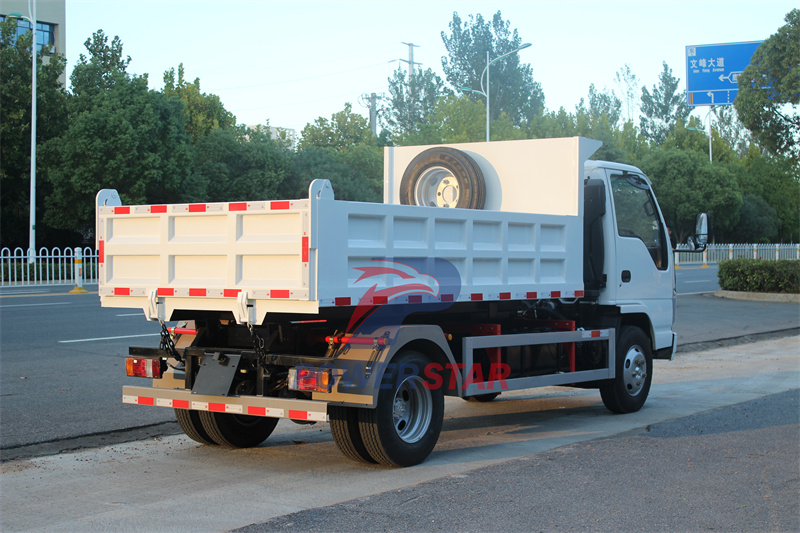

Isuzu NKR 3 ton light dump truck
When it comes to the power of this Isuzu 3ton dumper truck, it is even more praised. It is equipped with an efficient and energy-saving 120-horsepower diesel engine with a maximum power of 88 kilowatts and a maximum torque of 290N·m. Such a power configuration allows the NKR 100P to easily cope with various complex road conditions when fully loaded with 3 tons of cargo, whether it is a steep mountain road or a muddy construction site.

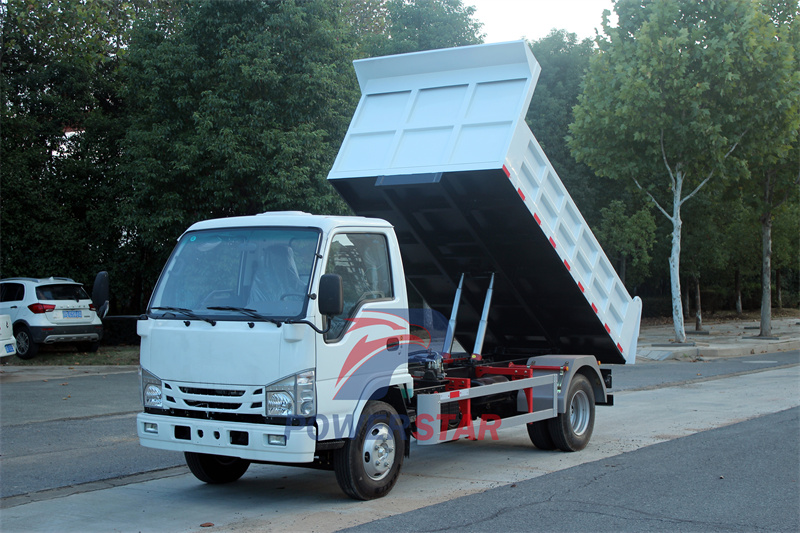

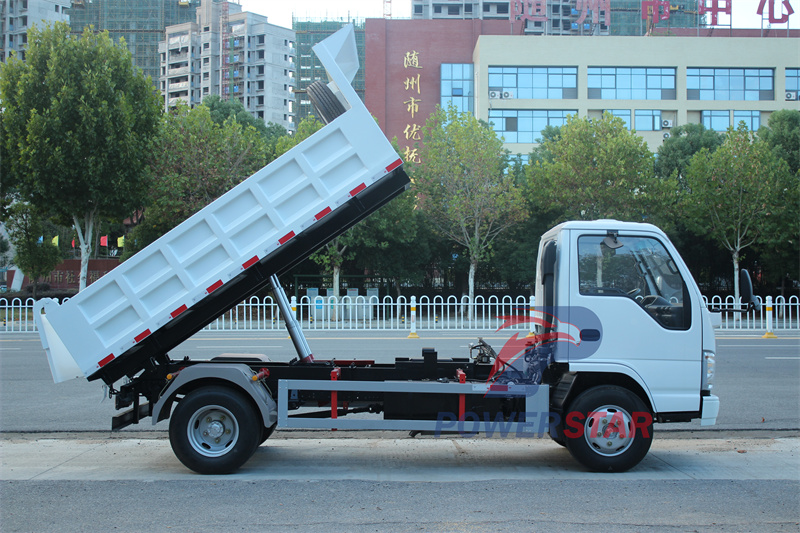

As a dump truck, the unloading capacity of the NKR 100P should not be underestimated. Its cargo compartment is made of Q345/B high-strength steel, with outstanding carrying capacity. The unloading mechanism has been carefully designed and rigorously tested to ensure that it can remain stable and efficient during the unloading process. Its Tipping hydraulics type is intermediate lifting. With just a light press, the cargo compartment can be quickly lifted and tilted, pouring out the goods, greatly improving work efficiency.

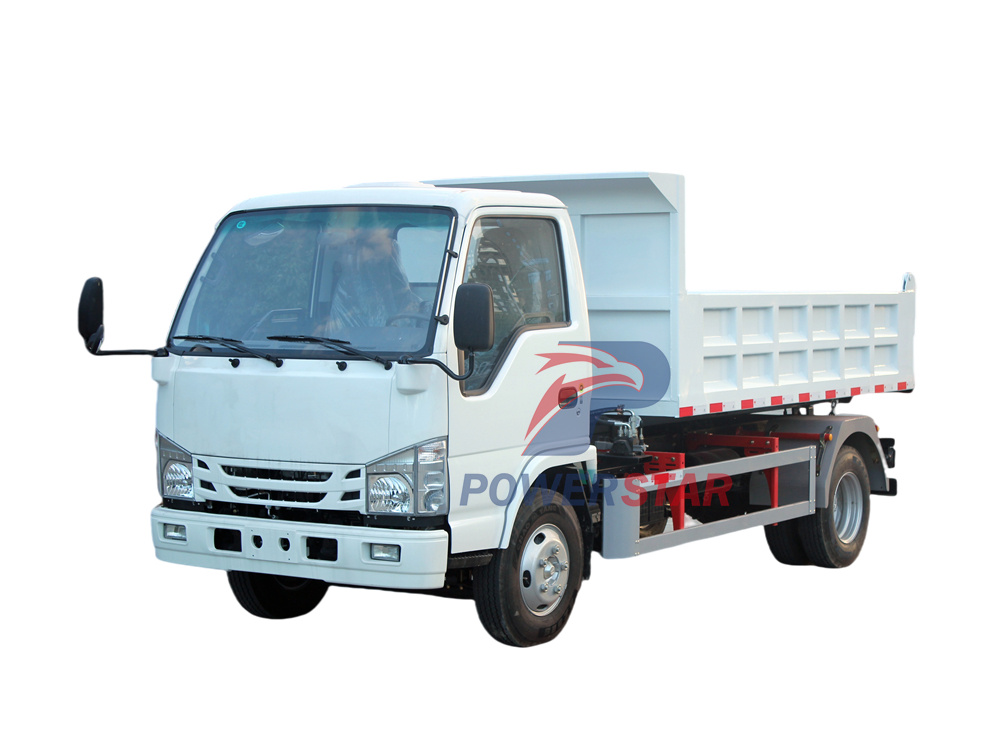

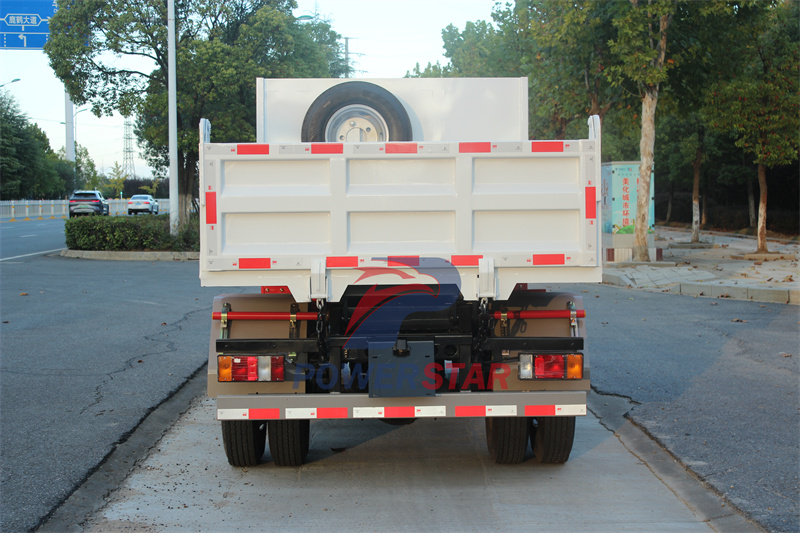

Isuzu 100P 3ton tipper truck
In addition to powerful power and excellent unloading capacity,the Isuzu ELF 100P dump tipper truck also does a good job in safety. It is equipped with advanced safety configurations such as ABS anti-lock braking system and EBD electronic brake force distribution system, so that the driver can be more at ease during driving. At the same time, the body also adopts a multiple anti-collision design, which can protect the driver's safety to the greatest extent even in the event of an accident.
It is worth mentioning that the dump truck also pays great attention to environmental protection and energy saving. It adopts advanced emission control technology, and its exhaust gas meets the Euro 6 standard, reducing pollution to the environment. At the same time, it is also equipped with an intelligent fuel consumption management system, which can automatically adjust fuel consumption according to driving habits and road conditions, so that every drop of oil can play the greatest value.
Truck details

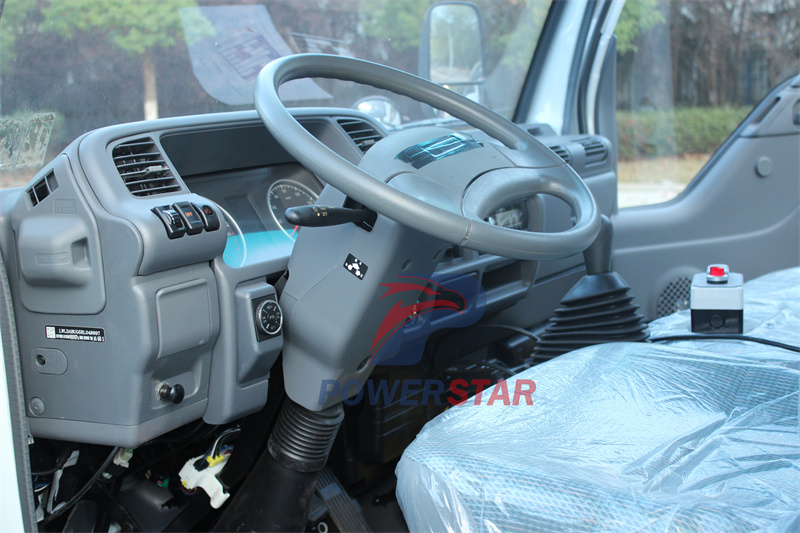

Steering wheel

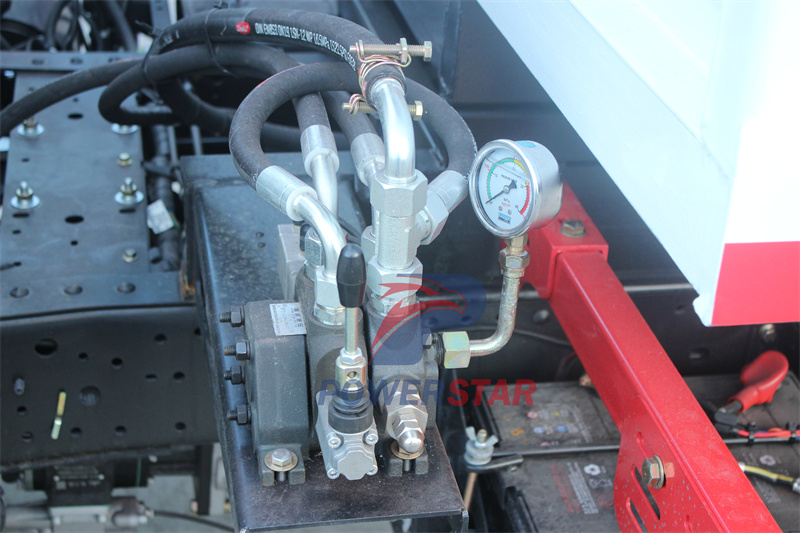

Control valve
PTO,Power switch

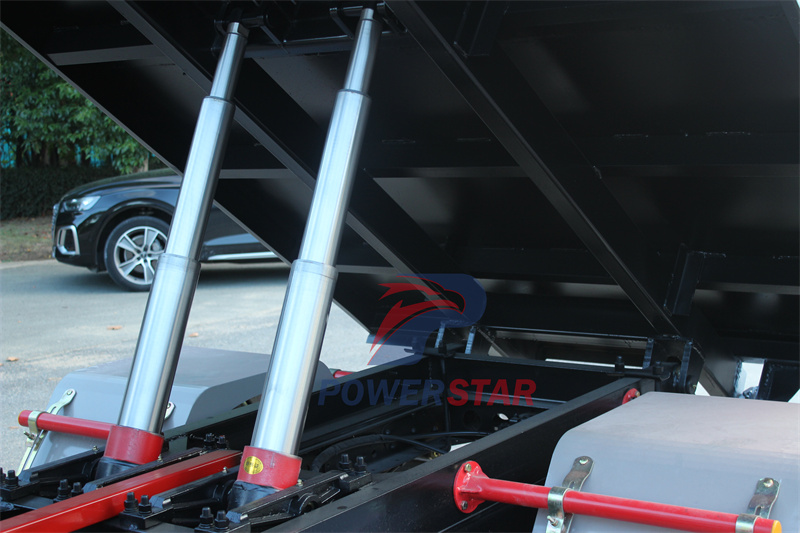

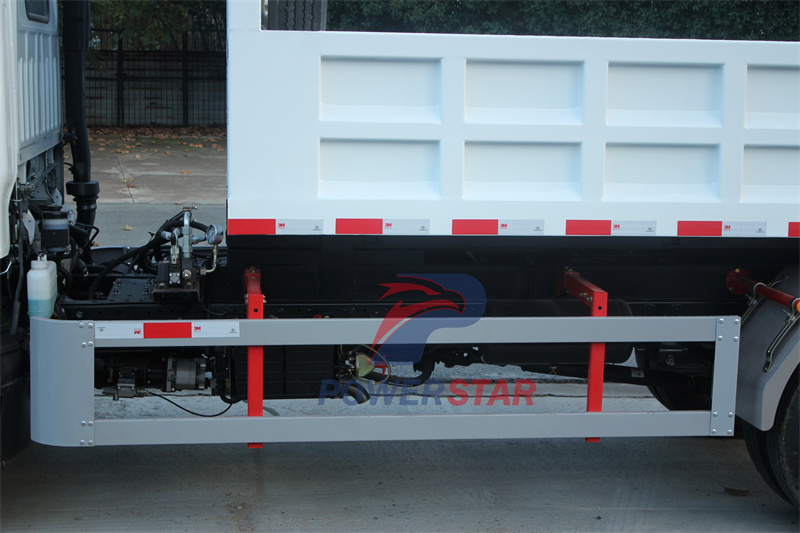

Middle lift hydraulic cylinder

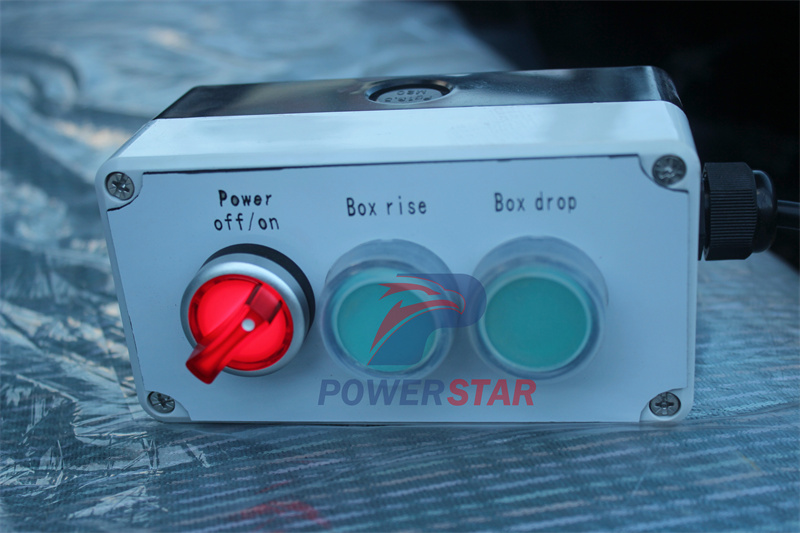

Cab operation button
