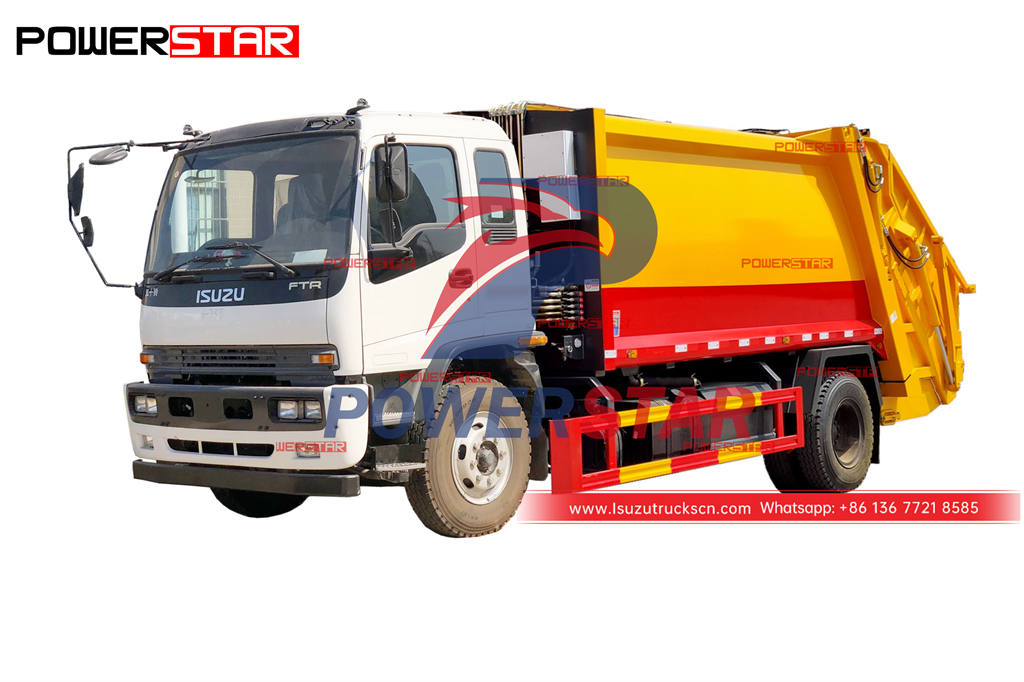

ISUZU FTR 4×2 12CBM Trash Compactor Truck For Sale
Order(MOQ):
1ISUZU FTR 6 wheels 12CBM rear load refuse truck At Promotional Price
ISUZU FTR rear loader rubbish truck (also called ISUZU garbage collection truck, ISUZU rear loading waste truck, ISUZU rubbish compressor truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
|
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU FTR refuse compactor truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5160ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8900*2300*2850 |
|
Gross weight |
kg |
16,000 |
|
|
Kerb weight |
8,200 |
||
|
Wheelbase |
mm |
4,700 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU FTR |
||
|
Tire size |
10.00R20 |
||
|
Number of Tires |
6+1 |
||
|

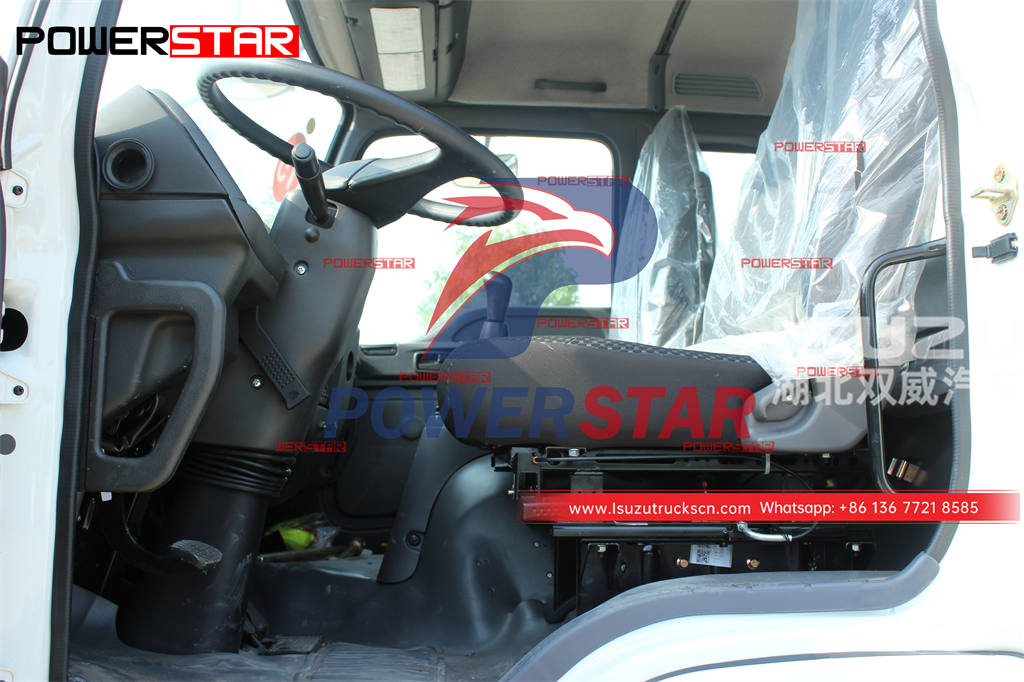

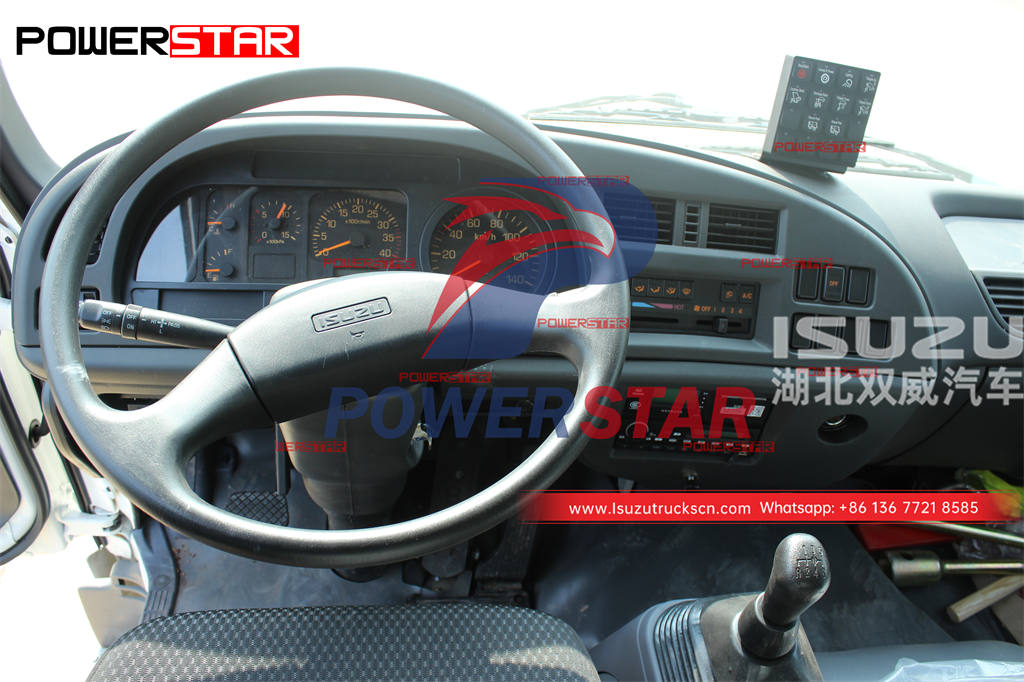

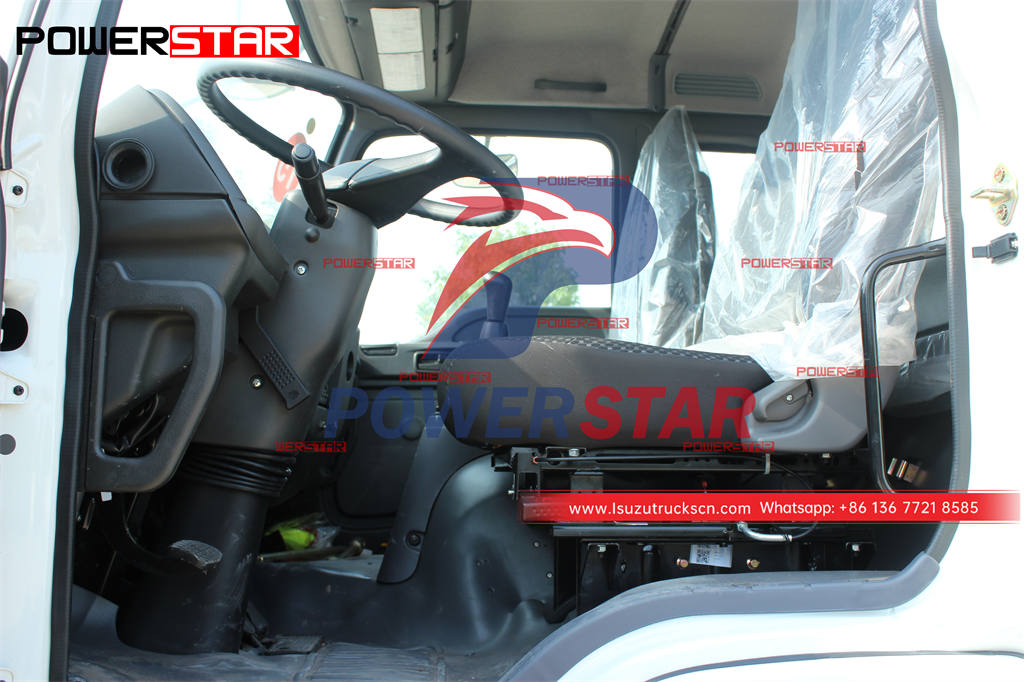

Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC50 |
|
|
Type of fuel |
Diesel |
||
|
Power |
205HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |

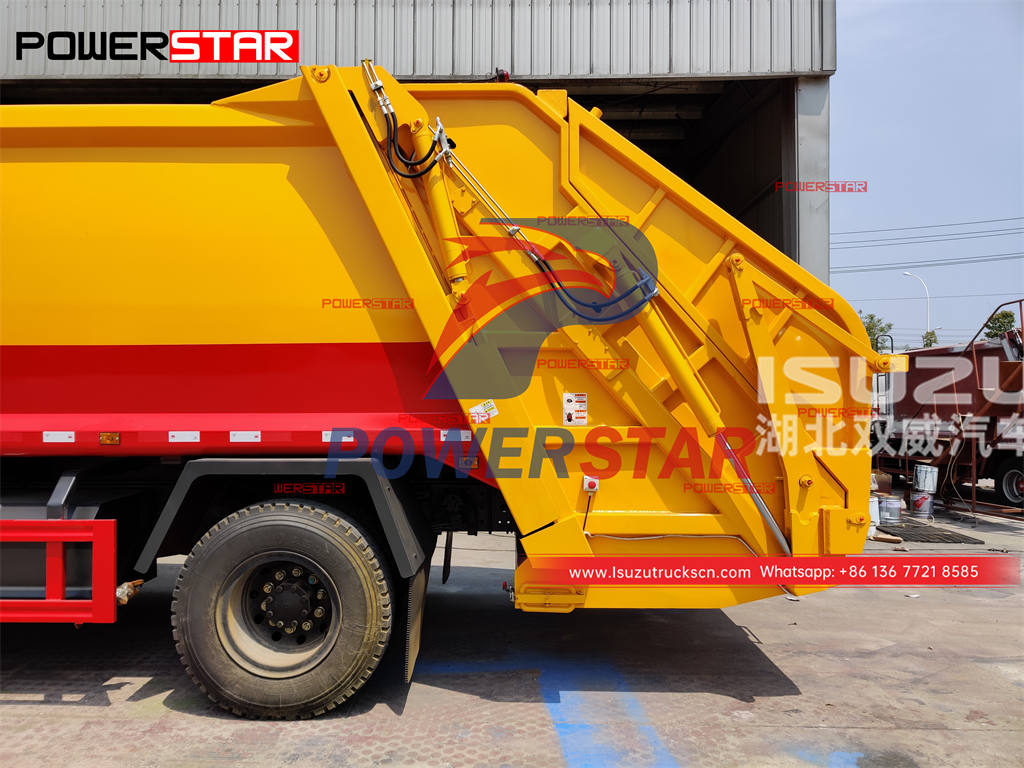

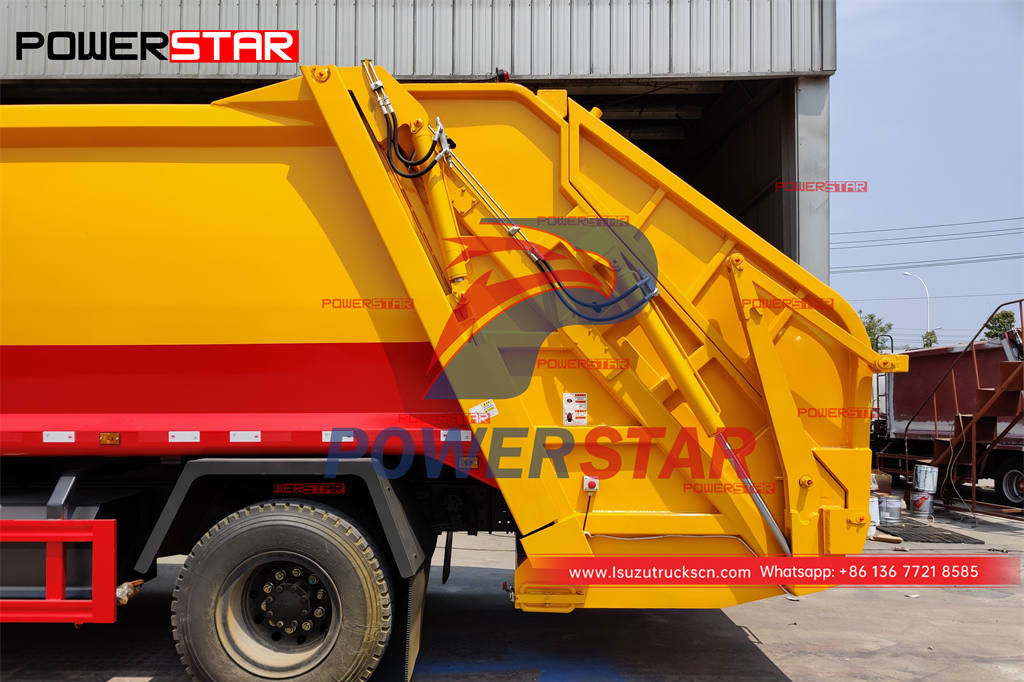

Compactor Body |
12 CBM |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|
Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt,660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |

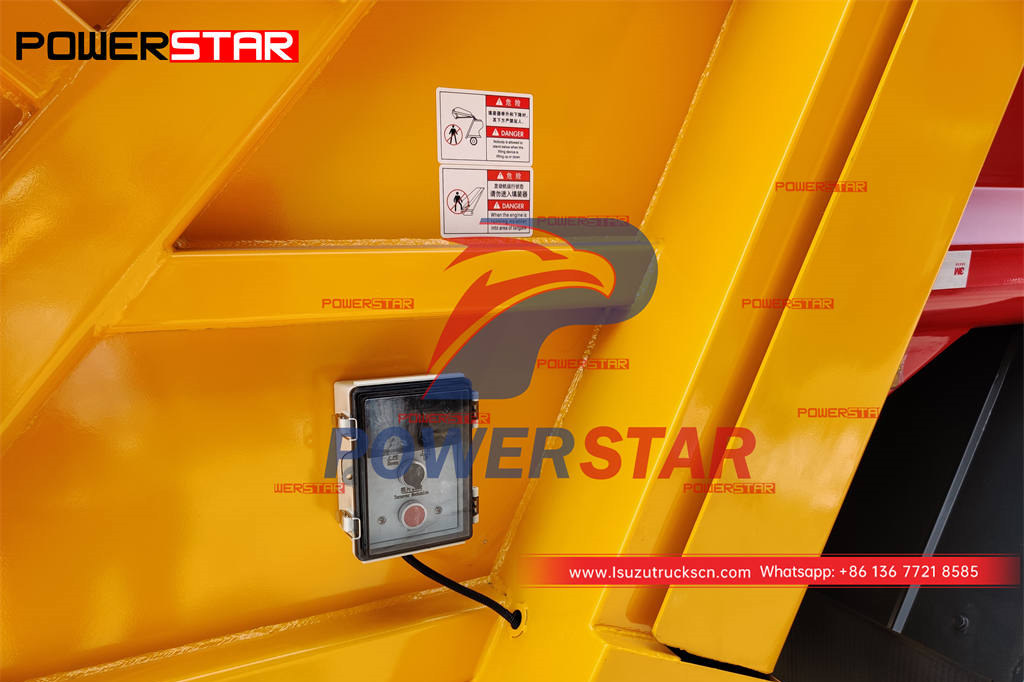

Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
Key words: ISUZU FTR back load bin lorry, ISUZU Rubbish Compactor Truck, ISUZU Compressed Refuse Truck, ISUZU Waste Compactor Truck
Powerstar trucks can also provide many special vehicles such as Garbage compactor truck, Road sweeper truck, Hooklift truck
Learn More
Brand New Isuzu FTR 10 Tons rear loader Compactor Garbage Truck in Philippines. Original isuzu FTR truck chassis, with updated japan isuzu engine 4HK1-TC model with 205HP. Famous Japanese ISUZU brand F series LHD 4X2 FTR truck chassis, front axle capacity 6.3 tons and rear axle capacity 13tons, ISUZU MLD 6-shift manual gearbox with 6 forward and 1 reverse, steel tanker 200L fuel tanker. ISUZU FTR 12m3 Rear Loader Compactor Garbage Truck for Waste Collection, with customized 12cbm compactor body, compression ratio 1:4 as standard, rear tilting device for international bins 240L, 660L and 1100L plastic and steel material optional.
Learn More
Isuzu FTR FRR FSR FVR model 16cbm garbage compactor rear loader truck to be mounted with Japanese ISUZU diesel engine 4HK1-TC model with 205HP, Isuzu MLD model 6-shift manual gearbox with 6 forward and 1 reverse, CAN-BUS electric control system, both can be optional inside cabinet or at rear hopper, foot stand and handle can help workers collecting garbage on the street in Africa. rear tilting device, which designed to loading 240L, 360L, 660L, 770L. 1100L international standard bins. Time of discharging ≤ 30s; Time of loading ≤ 25s. For all 16cbm trash compactor body, which use electrophoretic painting, thus can extend the service life for all Isuzu rear loader trucks. And the logos can 100% customized to showing what the customers need.
Learn More
Isuzu refuse collection truck adopts the original Isuzu FTR chassis, Isuzu FTR row half cab, 205HP National VI Isuzu 4HK1-TC60 engine, Isuzu MLD six-speed transmission, 4500mm wheelbase, 295/80R22.5 steel wire tires, front axle 6.3 tons, rear axle 13 tons, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock-absorbing seats, air brakes, vacuum booster pump, and USB interface radio;with 10 cubic meter volume box, rear with waste bin flip device, can flip 120L/240L/660L waste bins, control panel+manual lever+inside cab controlled.
Learn More
The Philippines 18 tons Isuzu FVR 4x4 AWD Boom Truck Crane is a versatile and robust vehicle designed for heavy-duty operations in the construction, logistics, and infrastructure sectors. This truck combines the reliable Isuzu chassis with a powerful boom crane, ensuring efficient lifting and transportation capabilities in the Philippines' diverse terrains and demanding working conditions. 2. Features: - 4x4 All-Wheel Drive: The Isuzu FVR 4x4 AWD Boom Truck Crane is equipped with an all-wheel-drive system, providing exceptional off-road capabilities. This feature allows the truck to navigate through challenging terrains, such as uneven roads, muddy surfaces, or construction sites, ensuring smooth and reliable transportation. Sturdy Boom Crane: The truck is equipped with a sturdy boom crane designed for heavy lifting capacities. The crane's hydraulic system enables precise and controlled movements, making it ideal for loading and unloading heavy cargo, construction materials, or equipment. The boom crane is durable, ensuring extended operational life and consistent performance. - Spacious Flatbed Platform: The flatbed platform of the truck provides ample space for carrying a wide range of goods and materials. The flat and unobstructed surface allows for easy loading and unloading, and it can accommodate various sizes and types of cargo. - Safety Features: The Isuzu FVR 4x4 AWD Boom Truck Crane prioritizes safety with features such as stability control, anti-lock braking system (ABS), and airbag systems. These features enhance driver and passenger safety during operations and reduce the risk of accidents. 3. Advantages: - Versatility: This truck offers versatility for a range of applications, including construction, logistics, transportation, and infrastructure projects. It provides efficient lifting and transportation solutions, making it an excellent investment for businesses operating in the Philippines. - Reliable Performance: The Isuzu FVR 4x4 AWD Boom Truck Crane delivers reliable performance even in challenging environments. Built on the sturdy Isuzu chassis, it provides stability and durability, ensuring long-lasting operational efficiency. - Fuel Efficiency: With Isuzu's advanced engine technology, this truck ensures optimal fuel efficiency, reducing operational costs and environmental impact. It satisfies stringent emission standards, contributing to a greener and more sustainable working environment. - Exceptional Load Capacity: The truck's 18 tons load capacity allows for the transportation of heavy loads and equipment, making it a perfect choice for large-scale projects and logistical operations. 4. Application: The Isuzu FVR 4x4 AWD Boom Truck Crane is suitable for various applications in the Philippines, including construction projects, infrastructure development, logistics operations, and cargo transportation. It can efficiently handle heavy lifting tasks, making it an indispensable asset for industries requiring robust and reliable transport and lifting capabilities. FVR ISUZU 4x4 Truck Chassis parameters Chassis model FVR Chassis brand ISUZU Overall dimensions 8390x2370x2760mm Wheel base 5000mm Front/rear wheel track 1880/1800mm Front/rear suspension 1430/2760mm Approach/departure angle 20/13° Maximum speed 90km/h Chassis Manufacturer ISUZU Motor Company Cab Configuration Isuzu one and a half row cab ,forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual window, manual lock Color white,other color is optional Engine Model ISUZU 6HK1 Emission Euro 5 Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine Rated power 240hp,rated power speed 2500rpm Displacement 5900ml Max.torque 560N·m Bore x stroke 102x120mm Manufacturer ISUZU Engine Co., Ltd. Tire Size 10.00-20 nylon tire Number 6+1 nos Clutch push type diaphragm spring clutch,Φ395mm Fuel tank 200L, Steel fuel tank Front axle 4.5T Rear axle 9.0T main reduction ratio 5.286 Drive form 4X4 All drive Rated voltage 24V,DC Transmissions Gearbox MLD 6S, 6 speed forward 1 reverse. Steering device Power assisted steering Steering wheel Left hand drive Truck mounted crane structure parameters &nbs...
Learn More

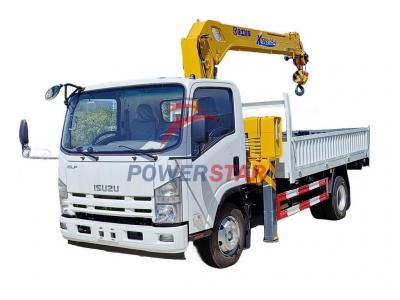

ISUZU ELF NPR 4tons boom truck is based on original Japanese ISUZU 700P 4x2 truck chassis, equipped with SQS125 model 5tons telescopic boom crane with 3 section booms, working radius 8.5m and lifting height 10.5m, also mounted with 4500mm length dropside cargo body, carbon steel material with thickness for side 3mm and floory 4mm, mainly used for light duty things loading and transporting, and working aerial can be city street, factory, desert areas and others areas of need.
