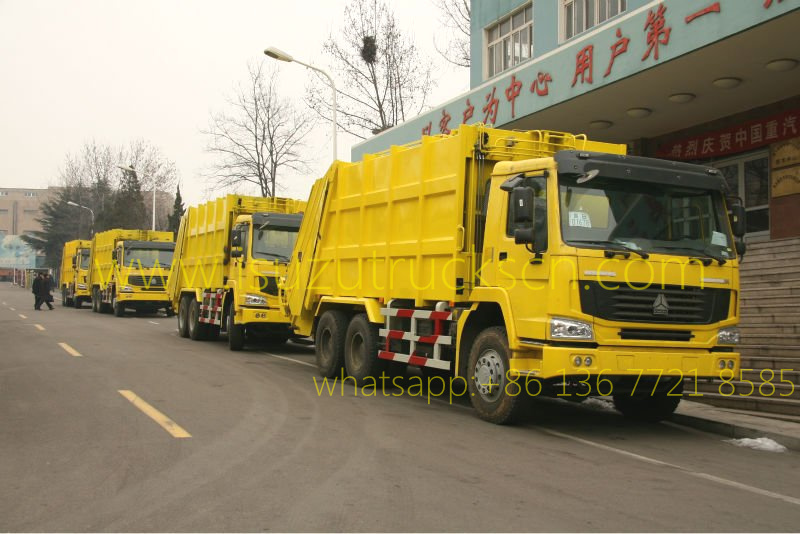

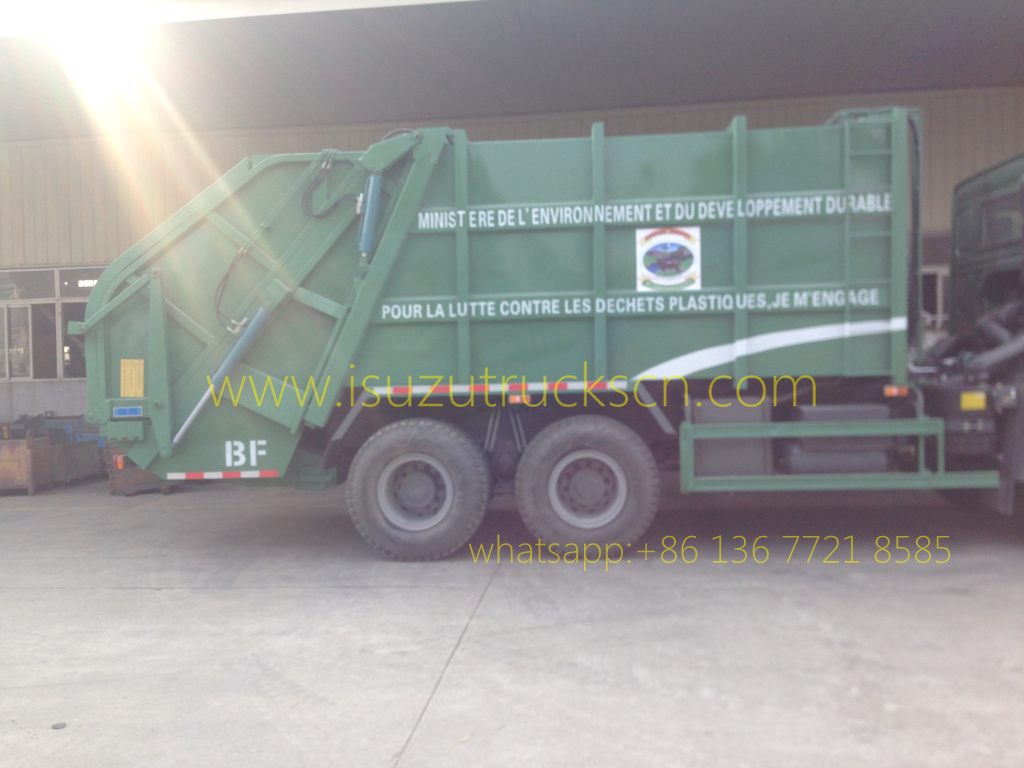

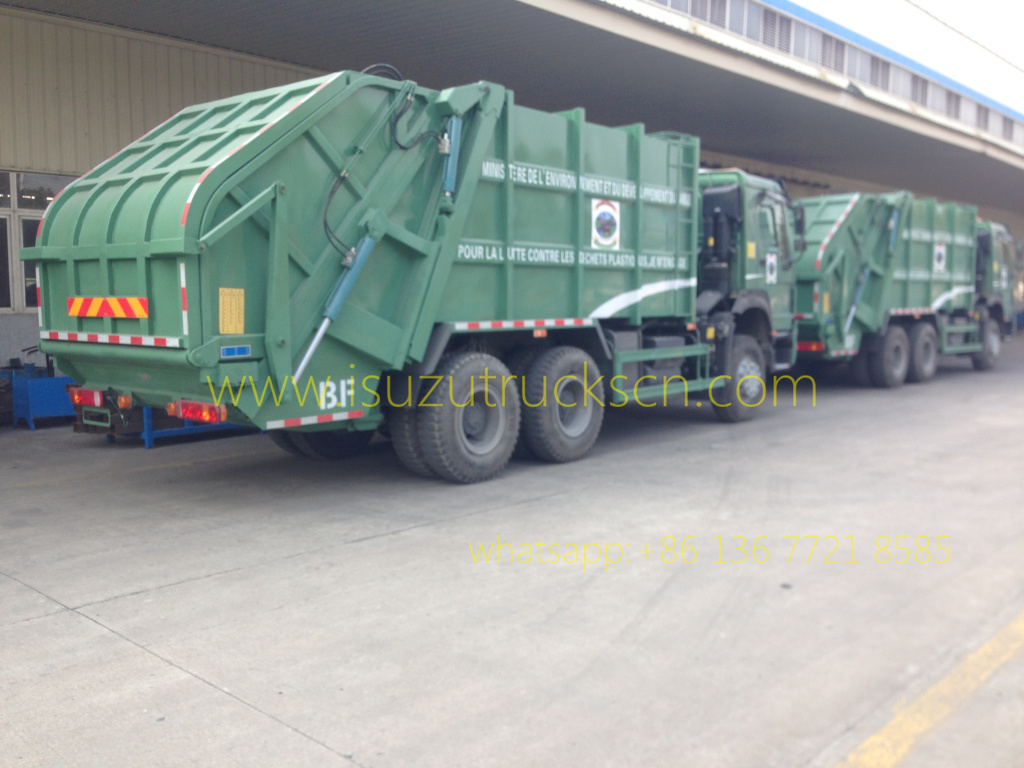

1City Trash Compactor Vehicle SINOTRUK HOWO 20 CBM
---- SINOTRUK truck chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

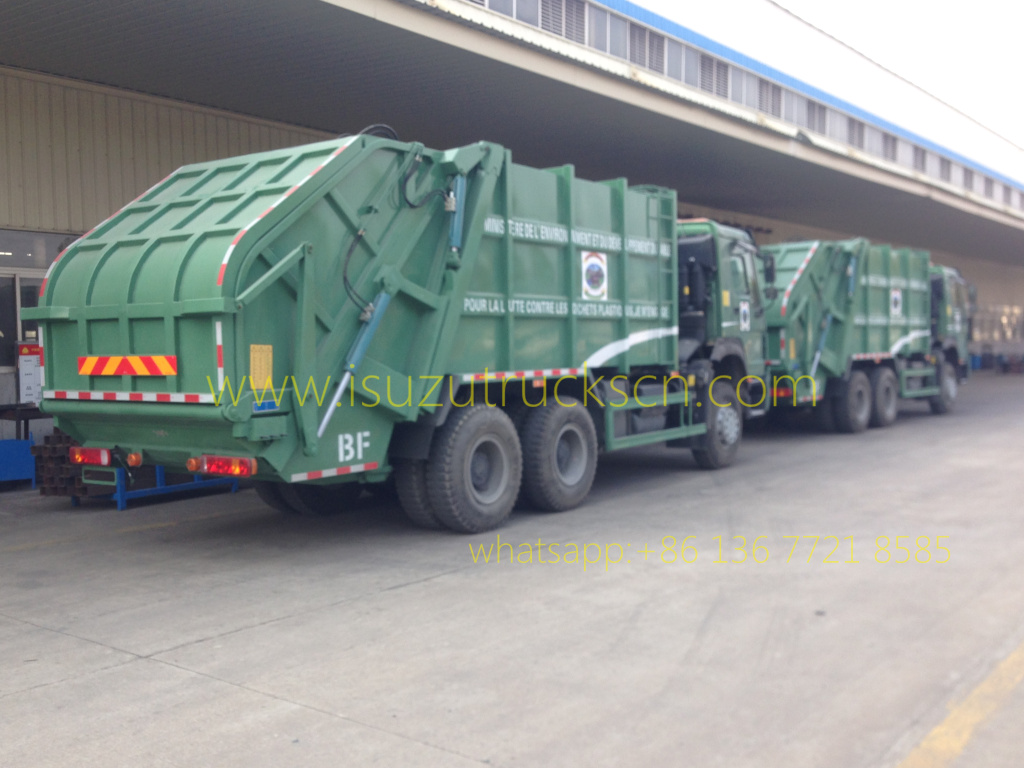

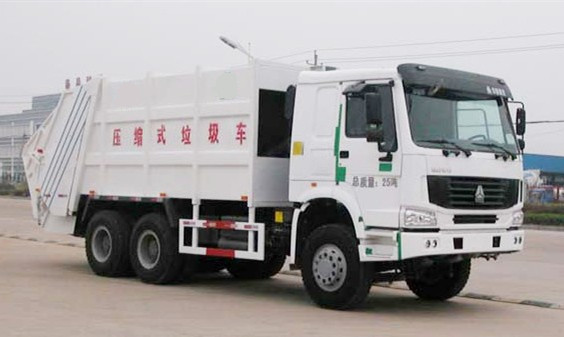

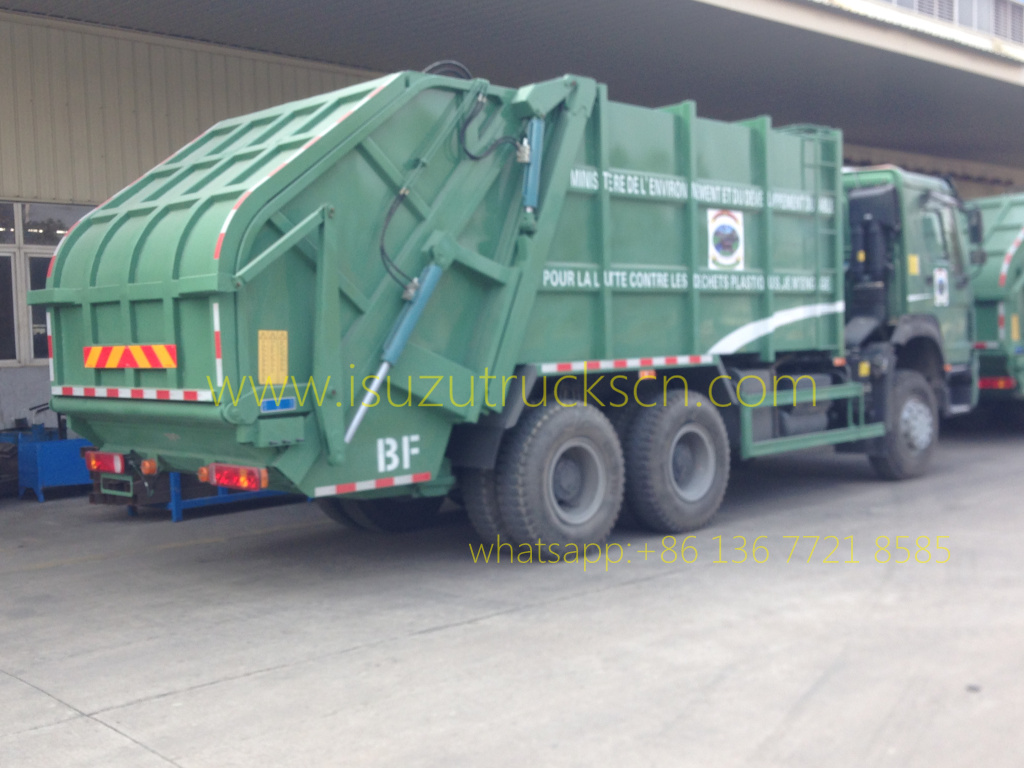

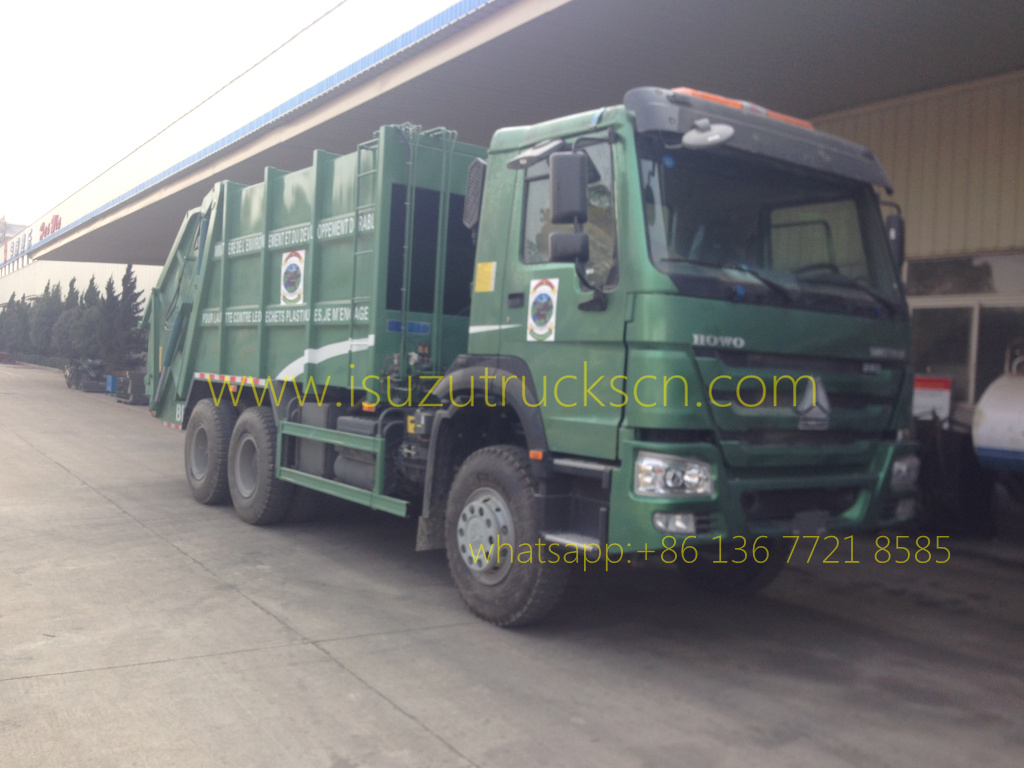

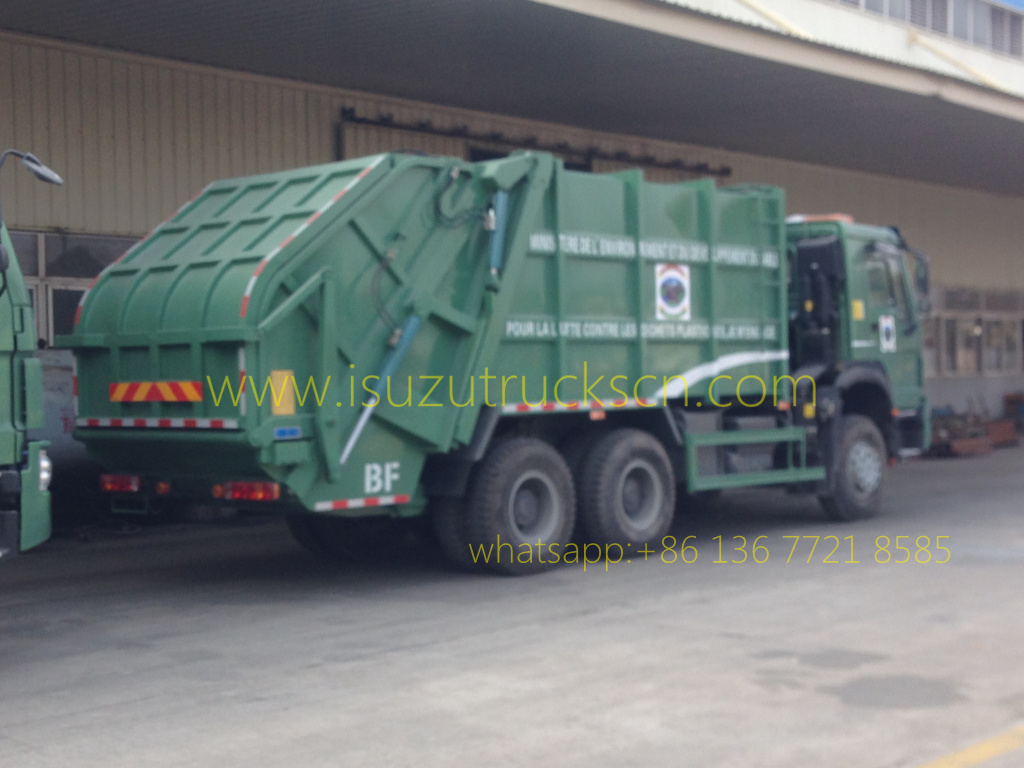

Refuse collector Garbage Compactor SINOTRUK (20 CBM) |
||
General |
Vehicle Brand |
POWERSTAR |
Chassis Brand |
SINOTRUK |
|
Overall Dimension |
10070 * 2500 * 3480 mm |
|
GVW / Kerb Weight |
25,000kg / 13,680kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
SINOTRUK |
|
Power |
300 HP (221KW) |
|
Displacement |
9726 ml |
|
Emission Standard |
Euro 2or 3 |
|
Chassis |
Drive Type |
6X4, (left hand drive or Right hand drive) |
Transmission |
9 speed levers with 1 reverse |
|
Wheelbase/No. of axle |
4350+1300 mm / 3 |
|
Tire Specification |
10.00-20 |
|
Tire Number |
10 tires and 1 spare tire |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Body Capacity |
20 CBM |
Fill Hopper Capacity |
2.3 m3 |
|
Sewager Tank volume |
200 L |
|
Body Material |
Weather resisting steel |
|
Filling work cycle time |
20~25 s |
|
Filling lift time |
6~9 s |
|
Filling lift capacity |
8 Tons |
|
Discharge time |
18~22 s |
|
Max compression force |
12 Tons |
|
Discharge model |
Horizontal Ejection |
|

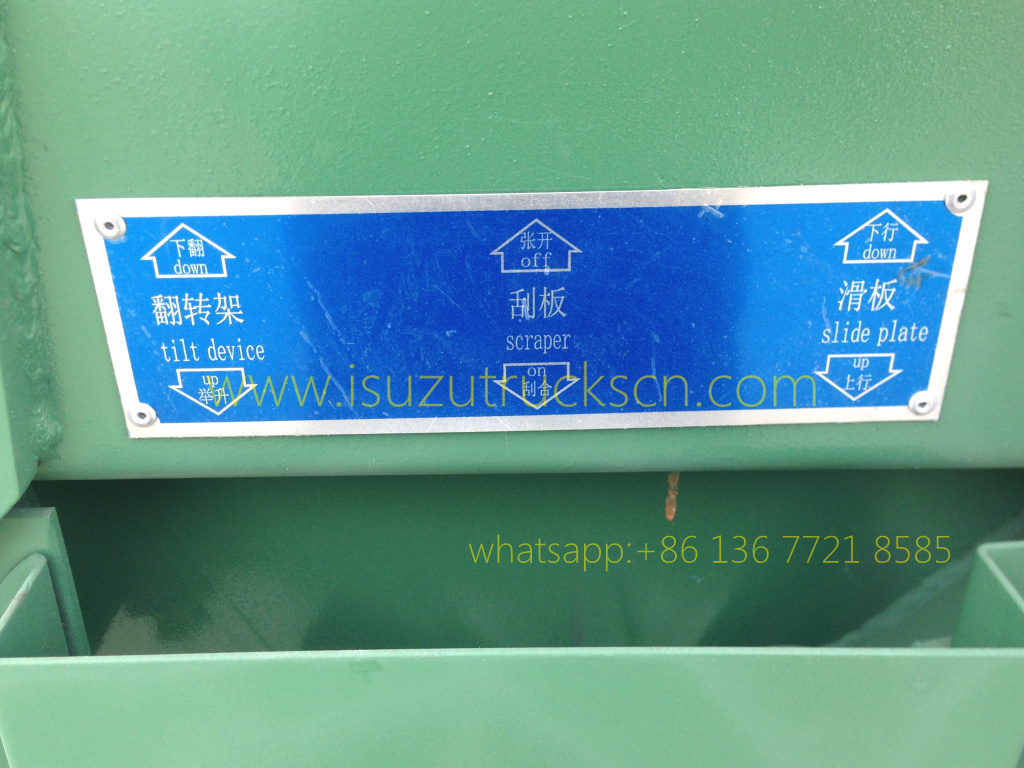

Control |
Electrically Hydraulic control Manual Hydraulic control |
|
Emergency Stop Button |
Hopper Both Sides |
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
Optional |
** Backup alarm can be equipped. |
|

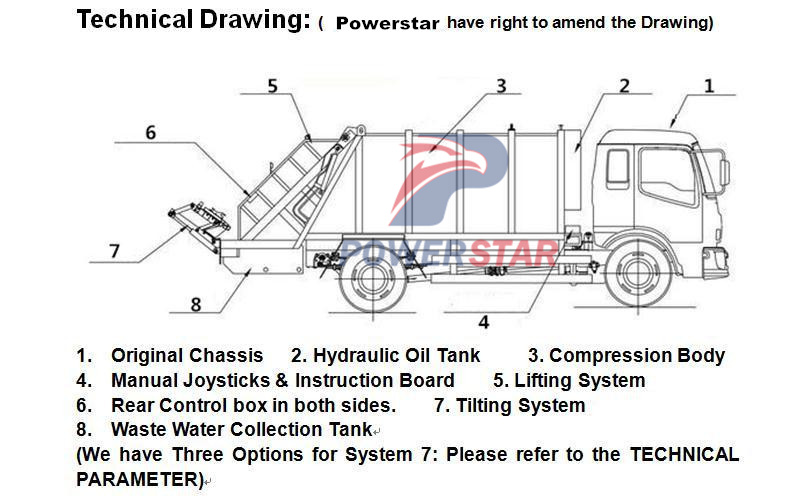

Working Principles of Garbage Compactor
|
 |
|
 |
 |
 |
 |
|
 |
 |
