Order(MOQ):
1Work capacity:
4 cubic metersTruck model:
PT5070GYSEngine power:
98HPEngine type:
Isuzu 4JB1CNAxle drive:
4x2Gear box:
Isuzu MSB5SRemarks:

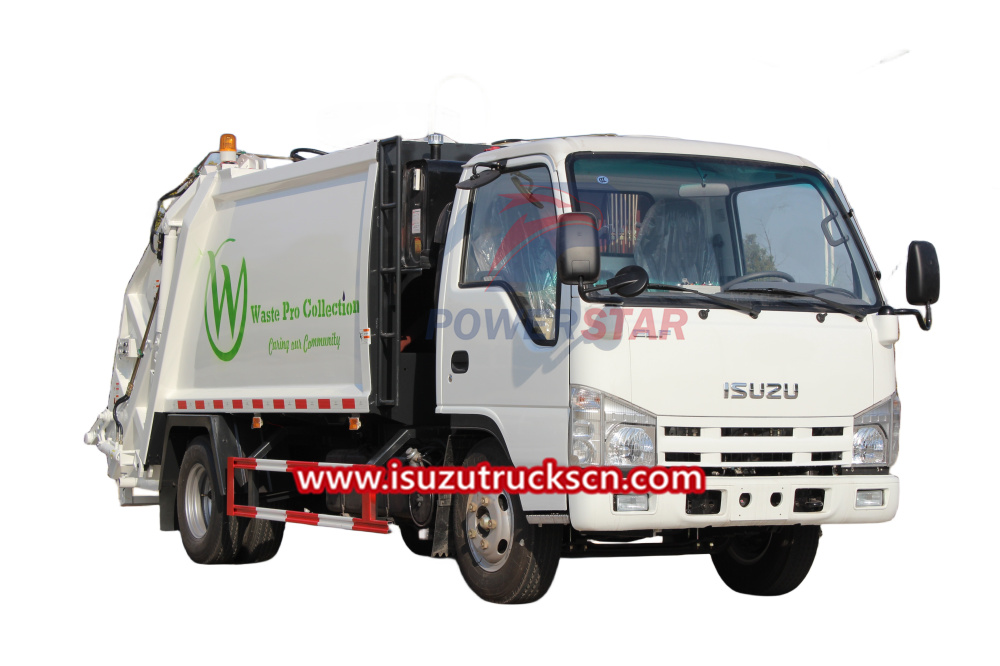

Available loading by container transportAccra, Ghana - In a proactive move towards improving waste management practices and promoting cleanliness, the Ghanaian government has recently introduced a new addition to its fleet - the Isuzu 4 CBM Compression Garbage Truck. This state-of-the-art vehicle incorporates advanced technology and features that promise efficient waste collection and disposal.
Manufactured by Isuzu, a renowned leader in the commercial vehicle industry, the Isuzu 4 CBM Compression Garbage Truck offers innovative features. Equipped with a powerful compression system, it effectively compresses and compacts waste materials, minimizing volume and maximizing load capacity. This ensures fewer collection trips, saving time and resources.
The Isuzu 4 CBM Compression Garbage Truck is well-suited for Ghana's waste management needs. It is built to withstand the demands of urban environments and features a sturdy body and durable construction. The truck is powered by a reliable engine, providing optimal performance even in challenging conditions. Additionally, its advanced hydraulic system ensures seamless operations while preventing any waste leakage or spillage during transportation.
 |
 |
|
 |
 |
---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance
|
Refuse Compactor Vehicle Isuzu (4 CBM) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
6230 * 2000 * 2490 mm |
|
|
GVW / Kerb Weight |
8,000kg / 4,890kg |
|
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
98 HP (72 KW) |
|
|
Displacement |
2777ml |
|
|
Emission Standard |
Euro IV or V |
|
|
Chassis |
Drive Type |
4X2, (left hand drive) |
|
Transmission |
ISUZU MSB 5 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
3360 mm / 2 |
|
|
Tire Specification |
7.00-16 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body Capacity |
4 CBM |
|
Fill Hopper Capacity |
0.8 m3 |
|
|
Sewager Tank volume |
200 L |
|
|
Body Material |
Weather resisting steel |
|
|
Filling work cycle time |
20~25 s |
|
|
Filling lift time |
6~9 s |
|
|
Filling lift capacity |
8 Tons |
|
|
Discharge time |
18~22 s |
|
|
Max compression force |
12 Tons |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control |
Electrically Hydraulic control Manual Hydraulic control |
|
|
Emergency Stop Button |
Hopper Both Sides |
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
|
Optional |
** Backup alarm can be equipped. |
|
Working Principles of Garbage Compactor
|
|
 |
|
 |
 |
 |
 |
 |
 |
|
 |
 |

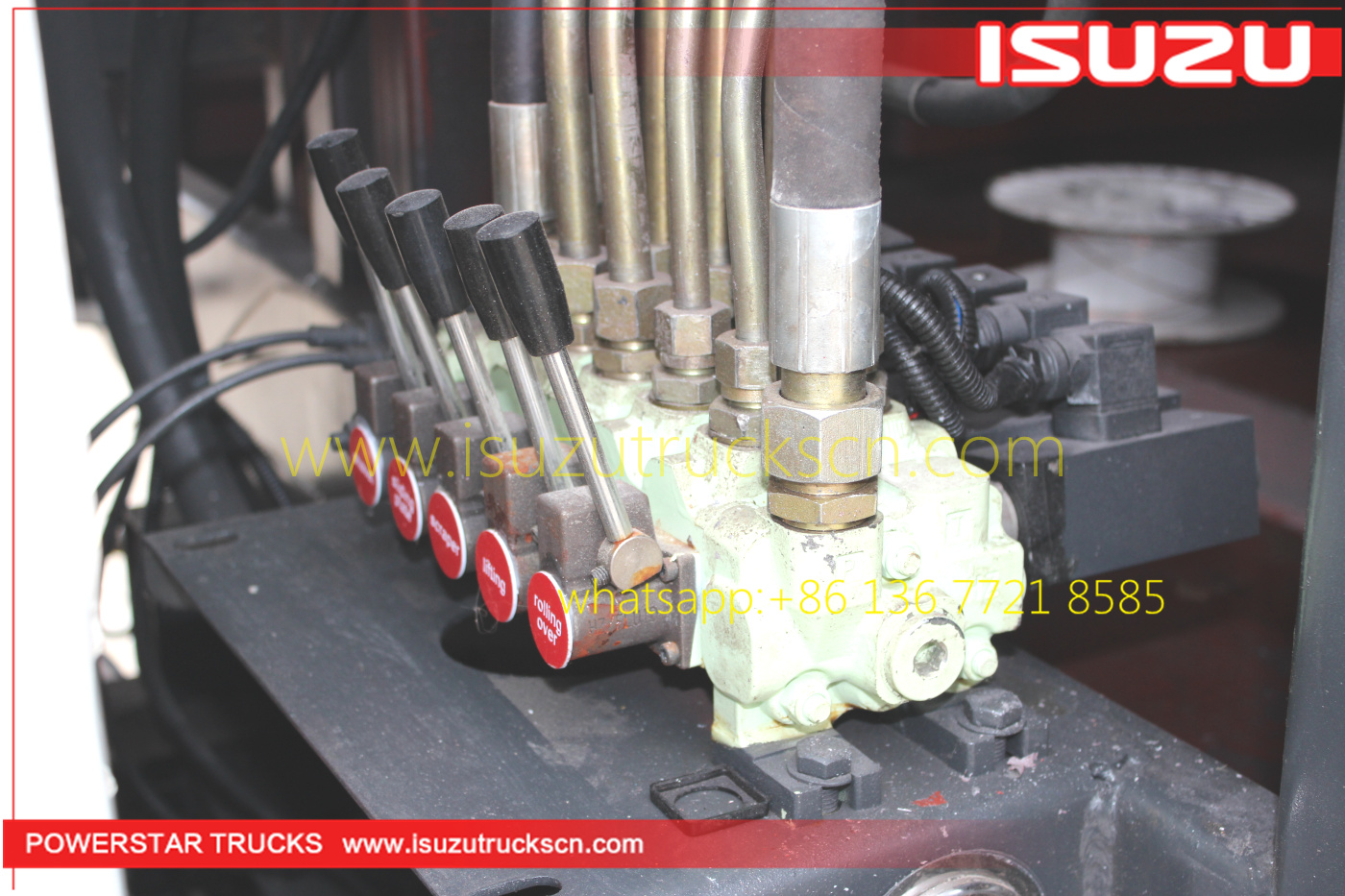

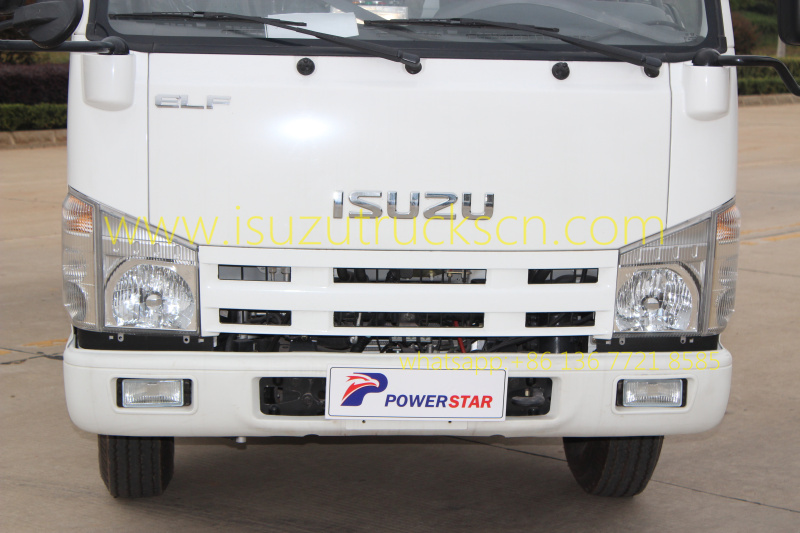

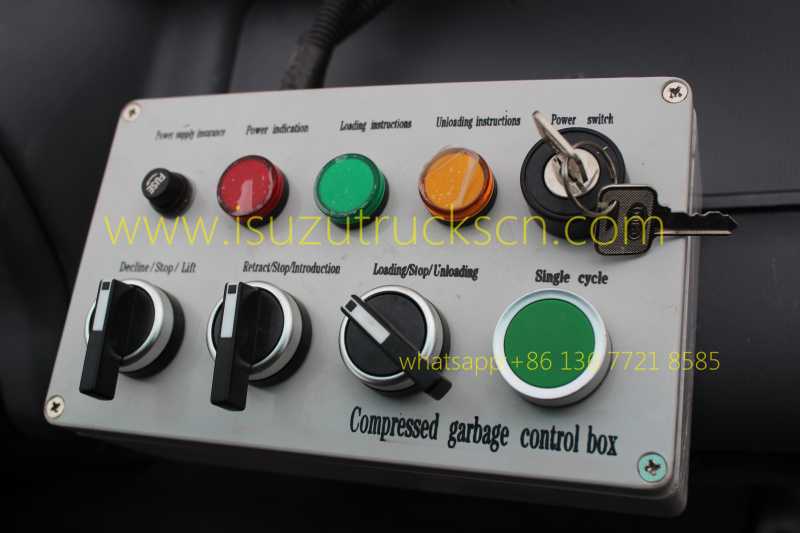

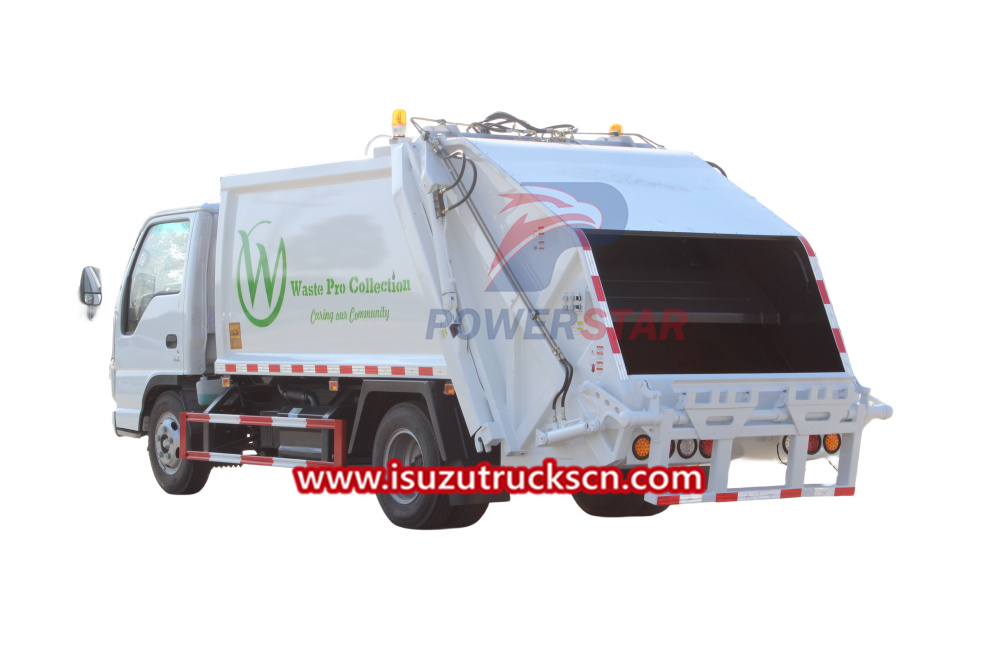

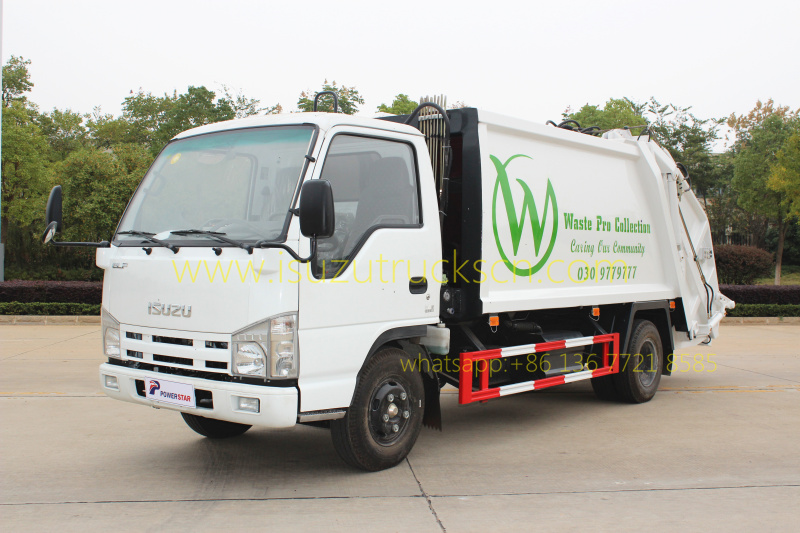

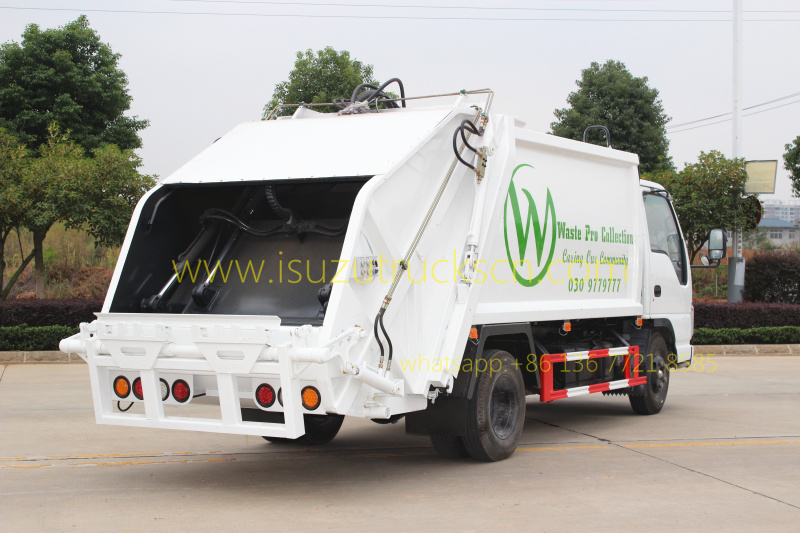

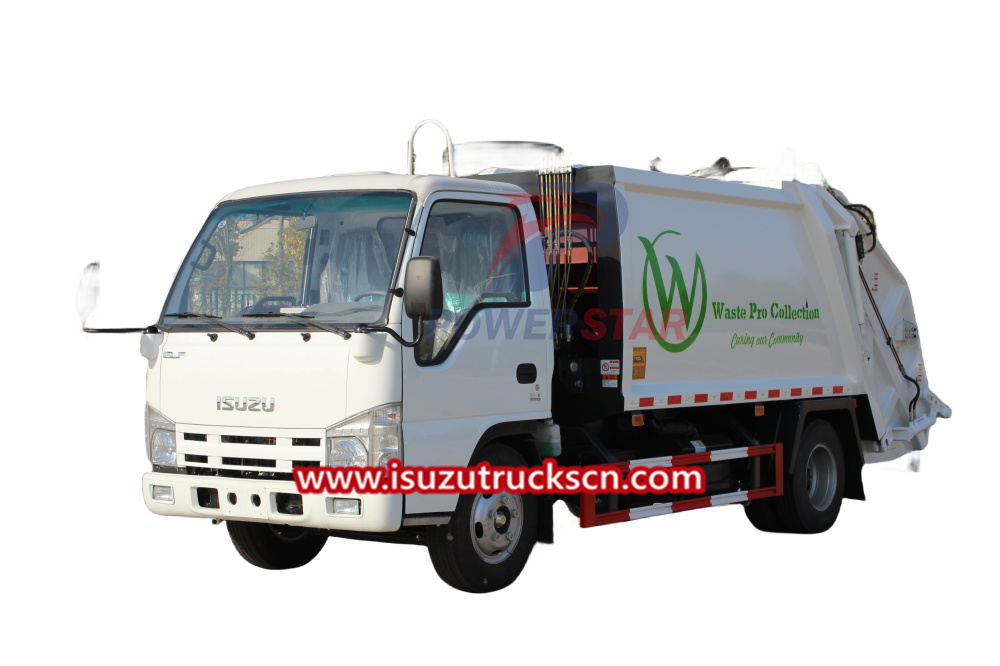

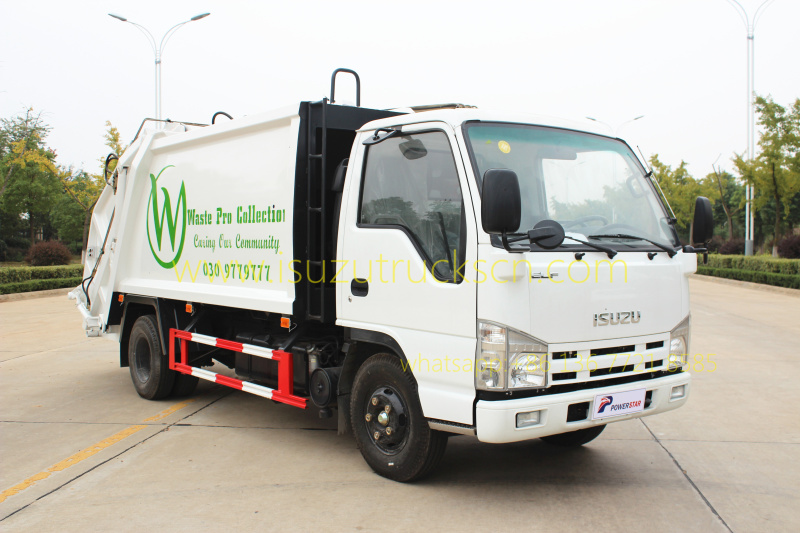

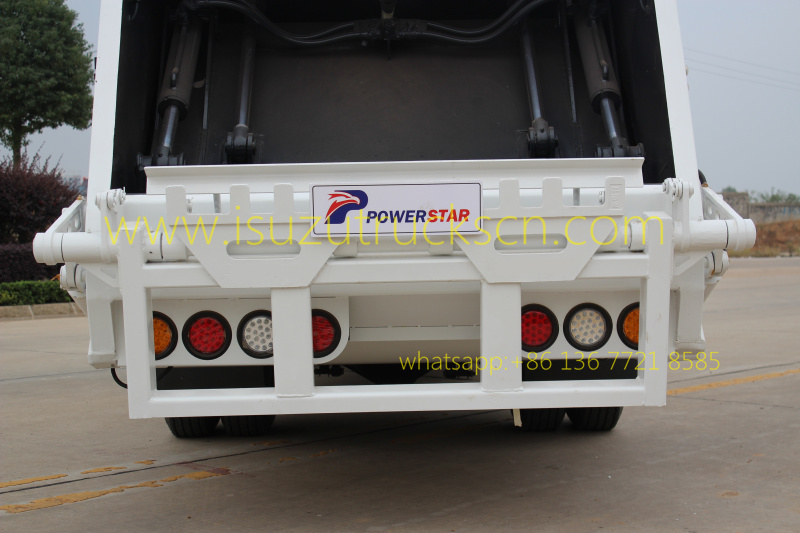

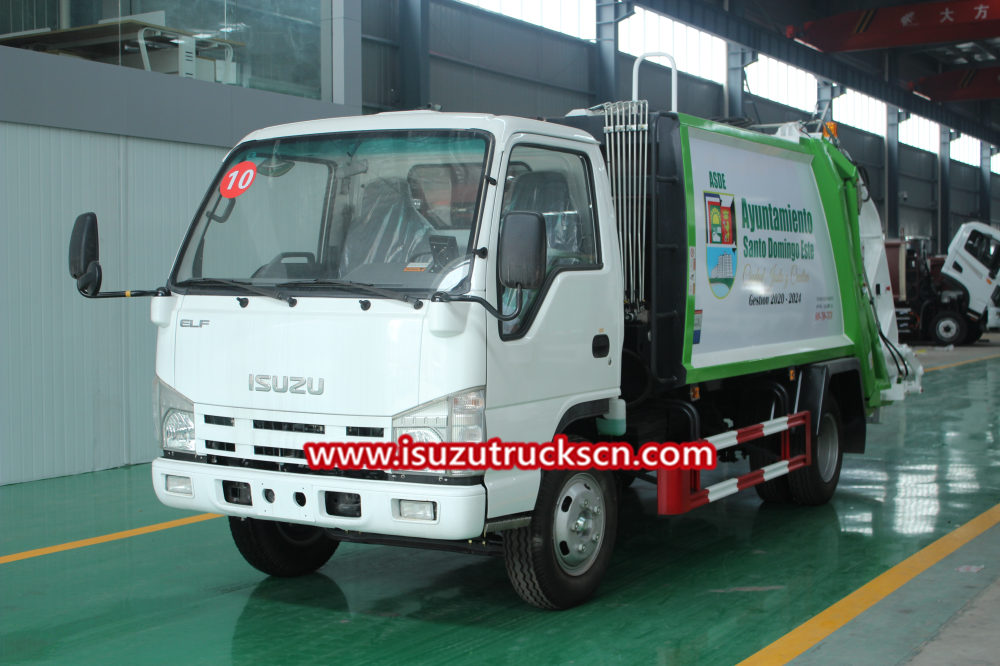

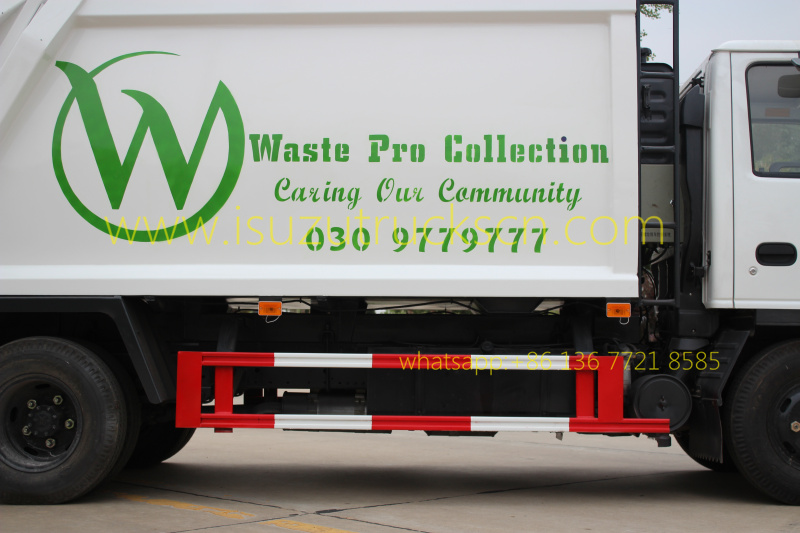

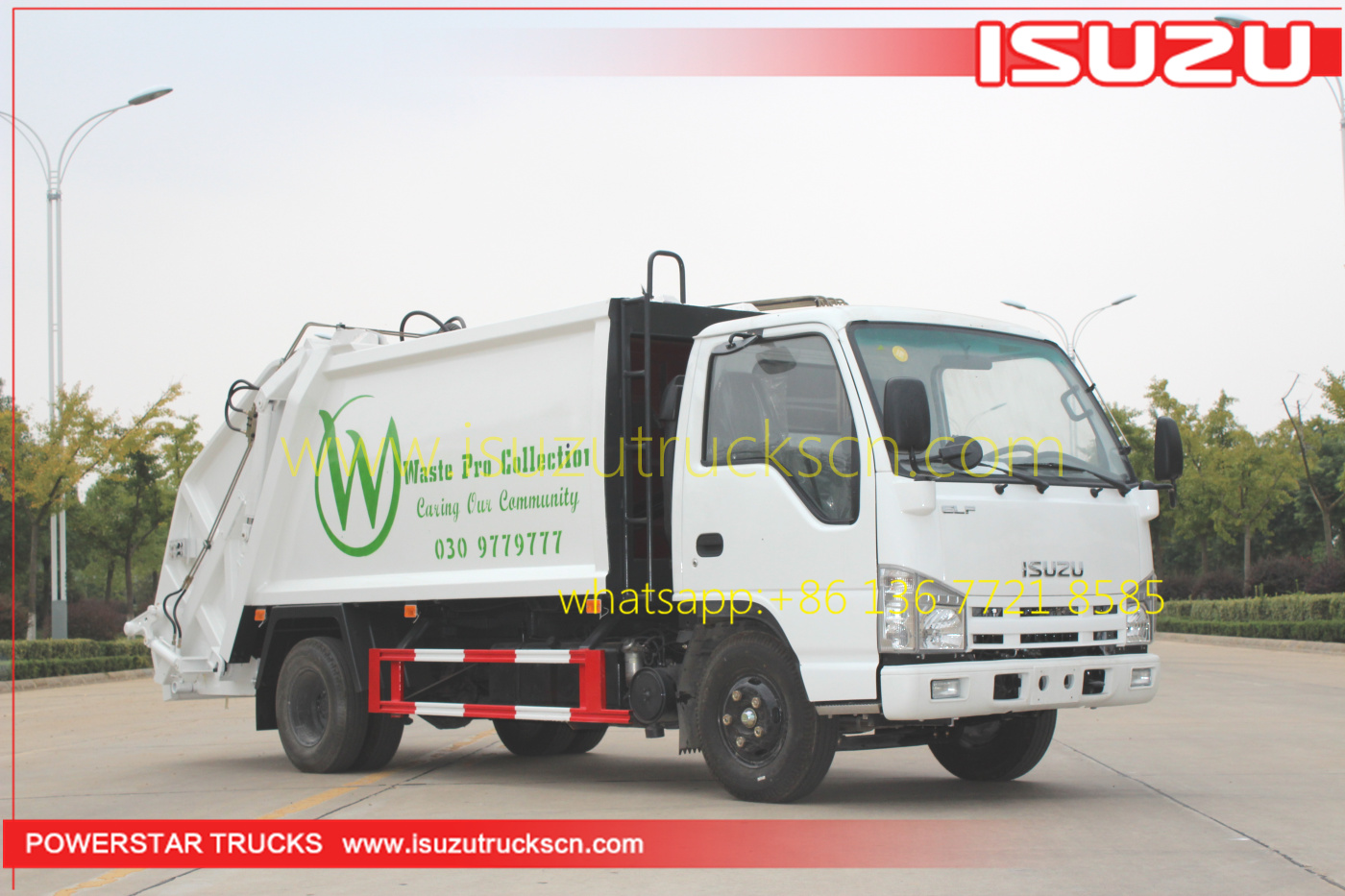

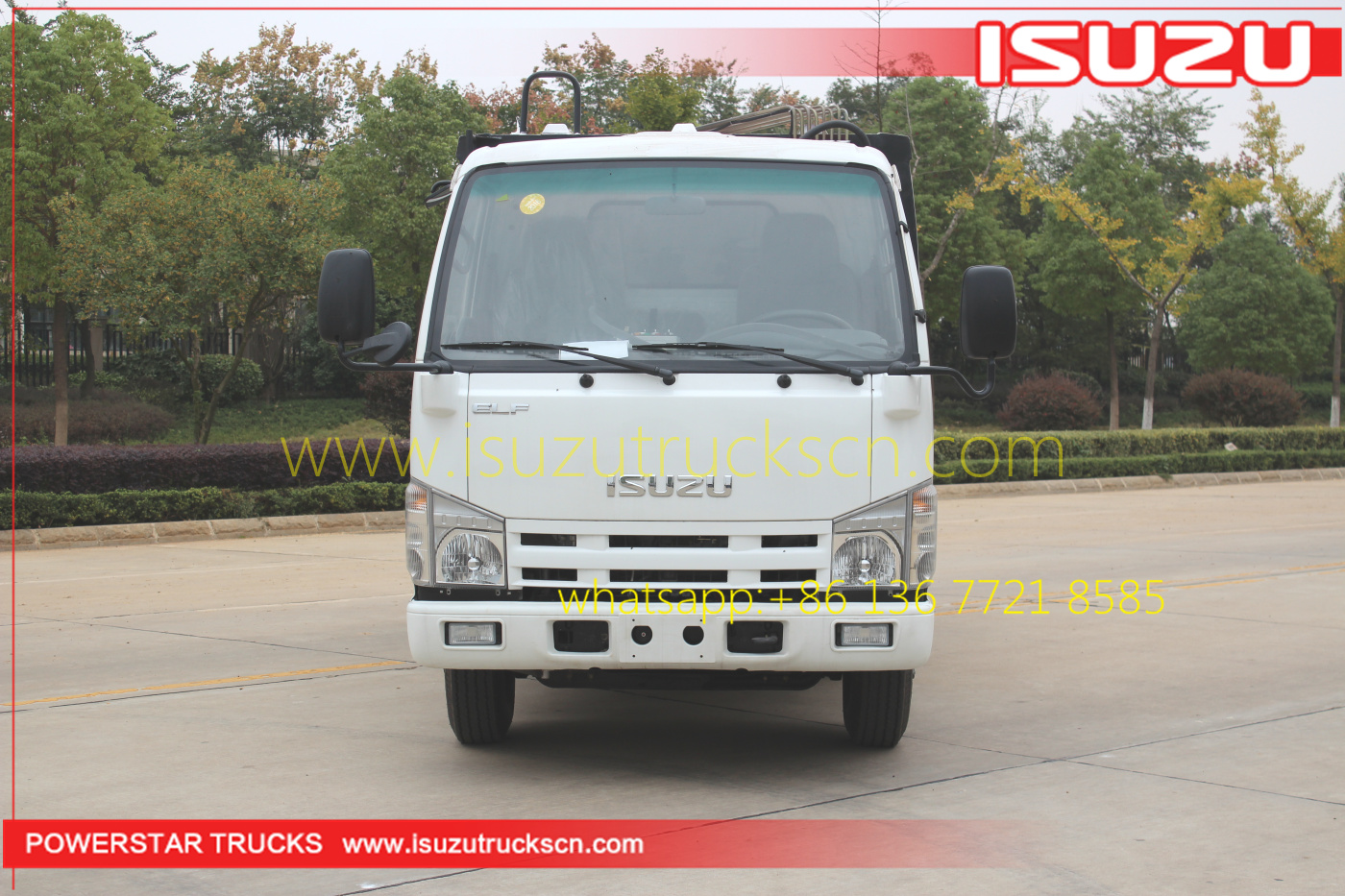

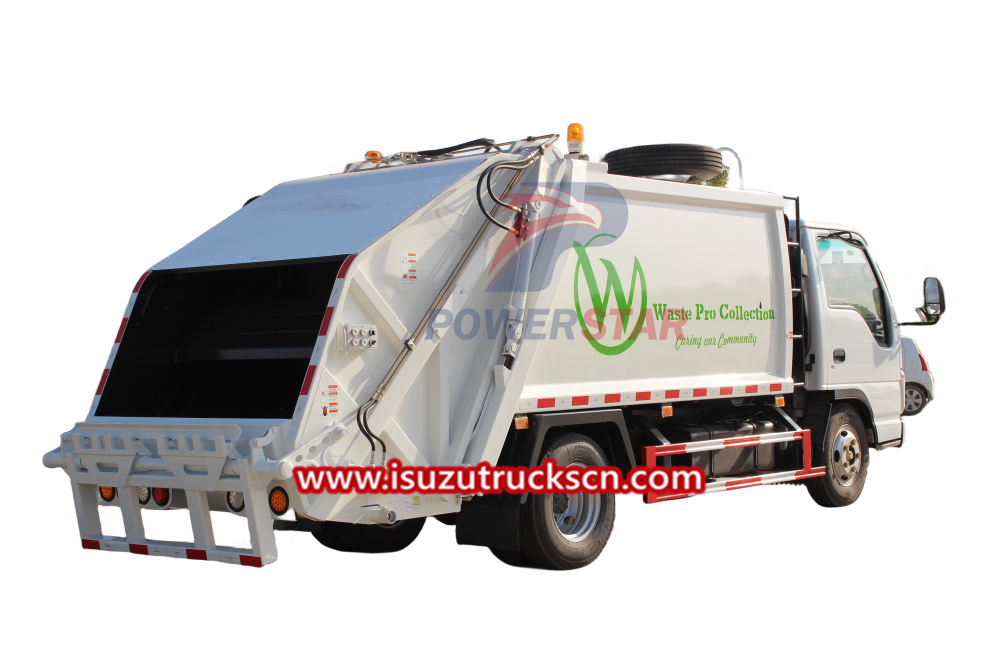

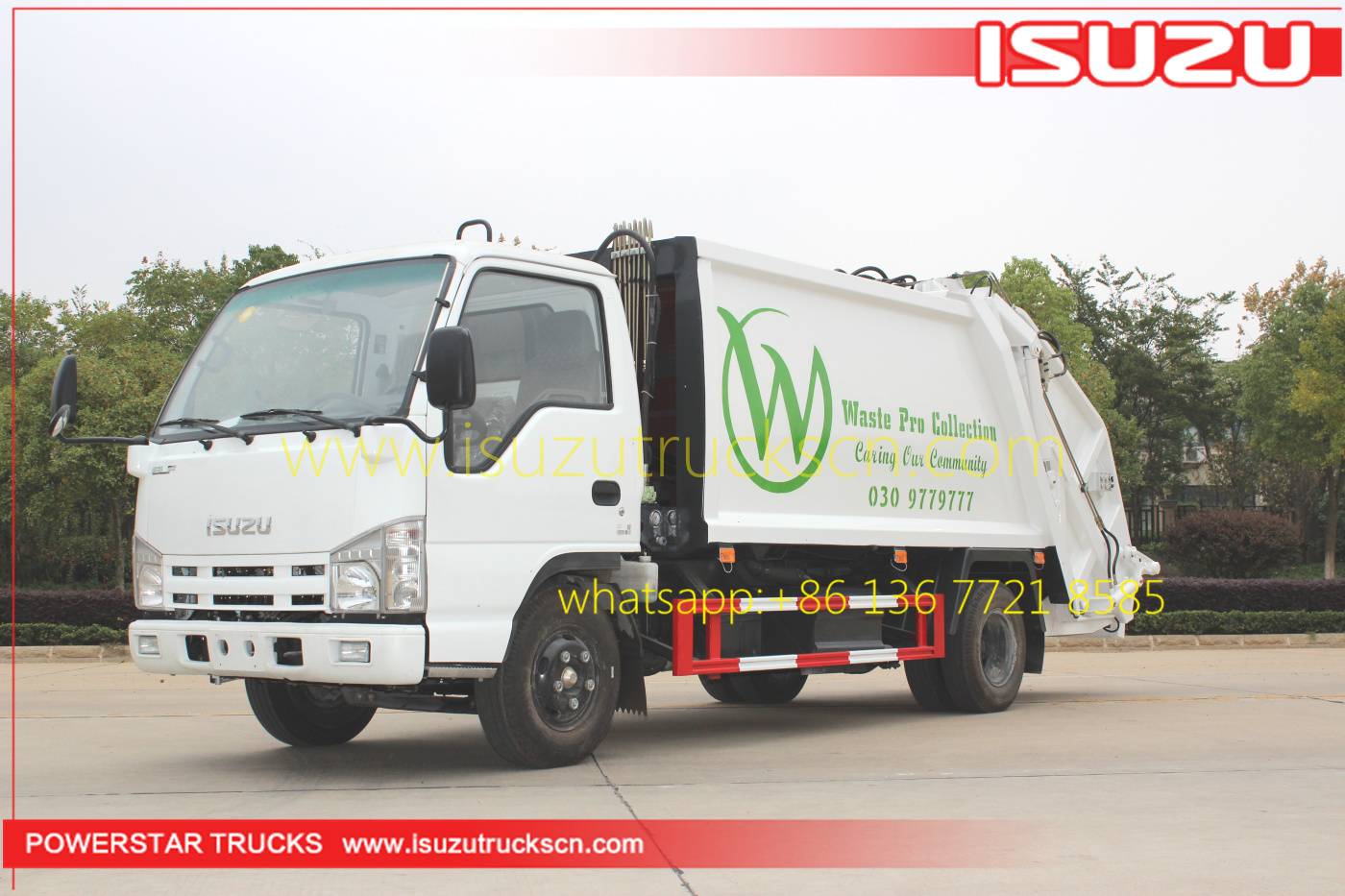

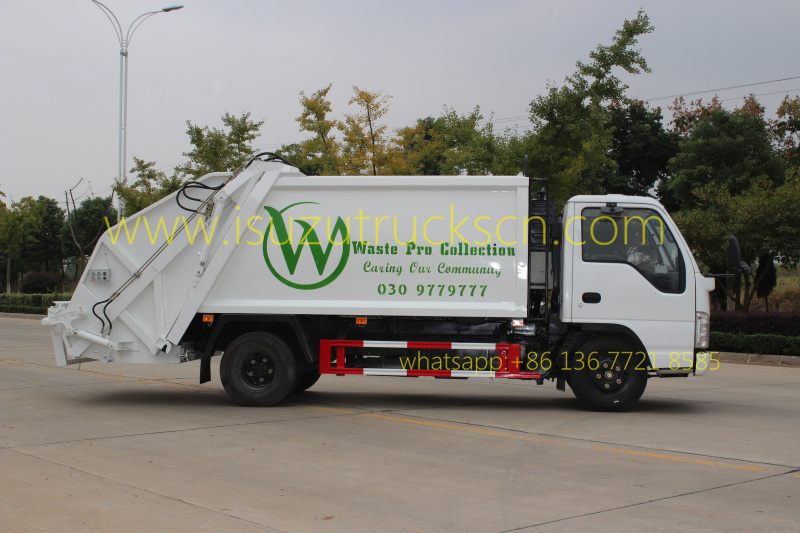

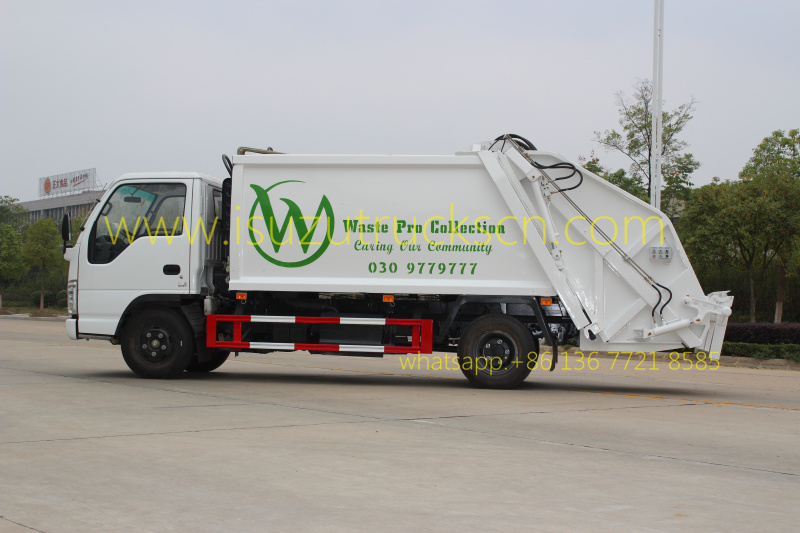

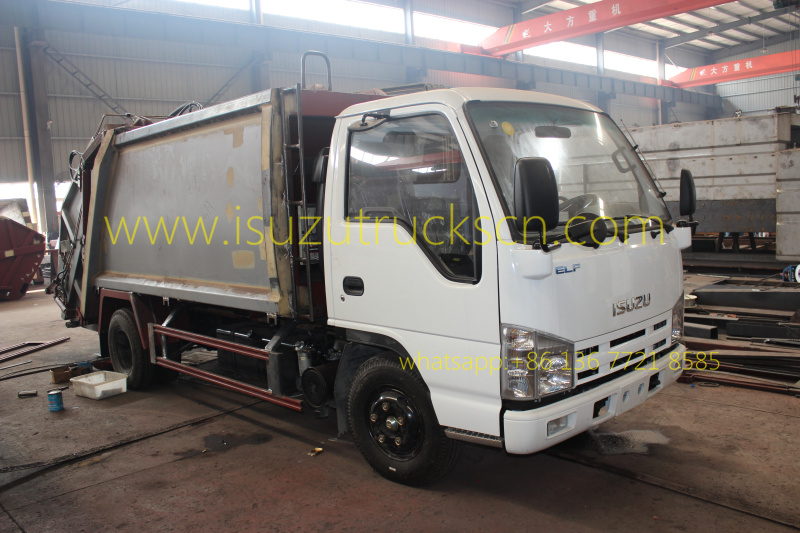

Details pictures of 4cbm Compression Garbage Truck Isuzu

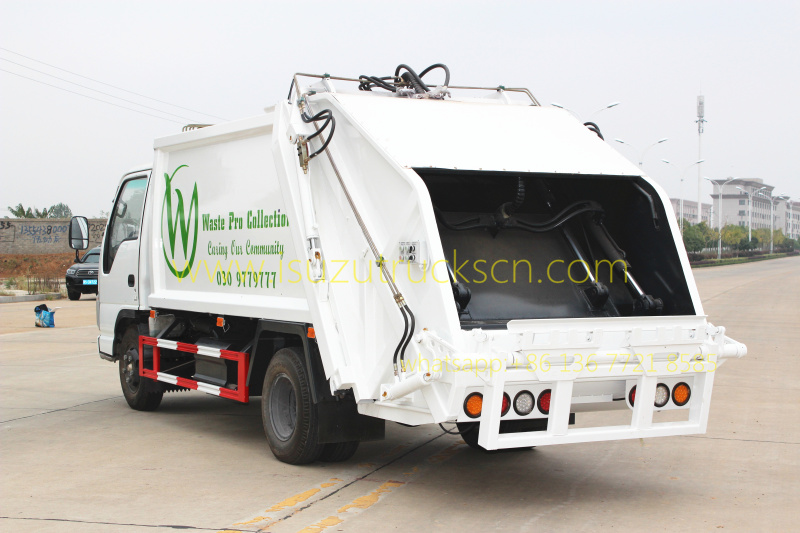

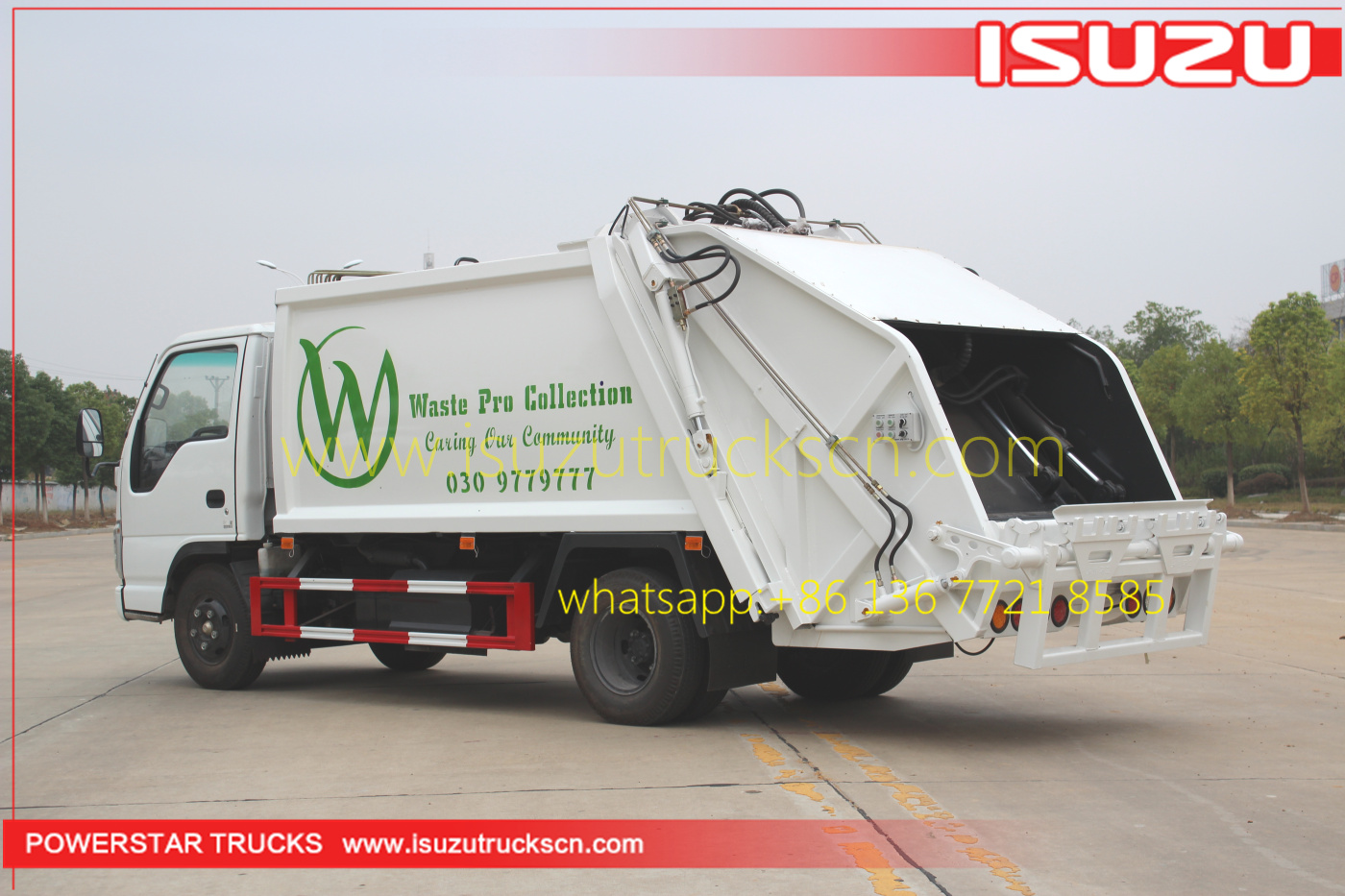

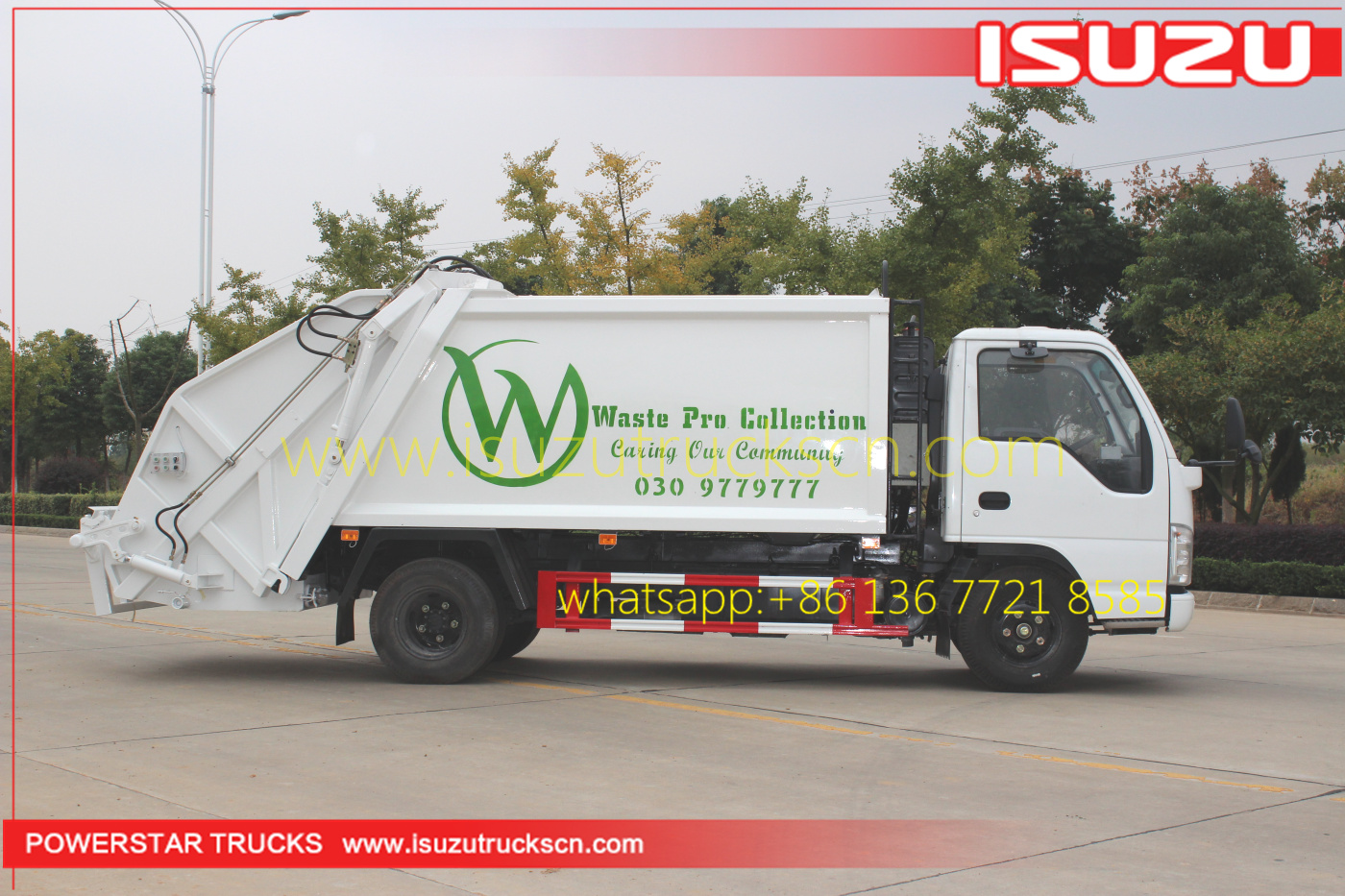

Details pictures of 4cbm Compression Garbage Truck Isuzu

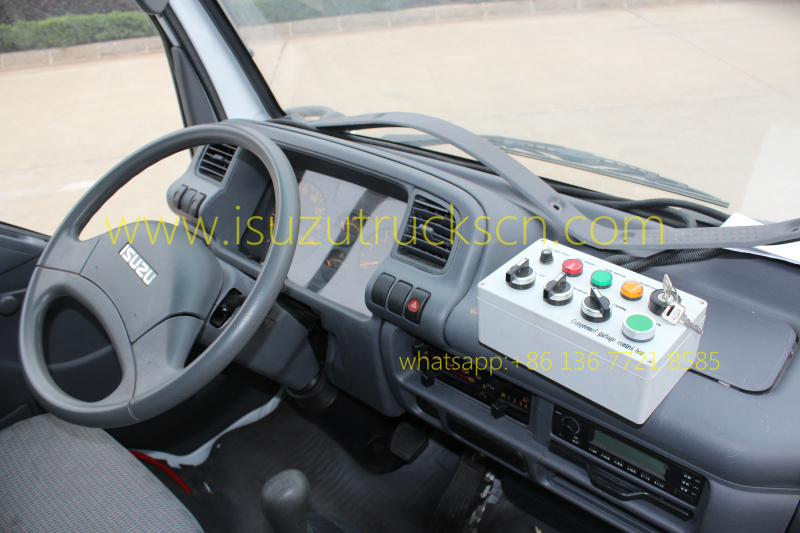

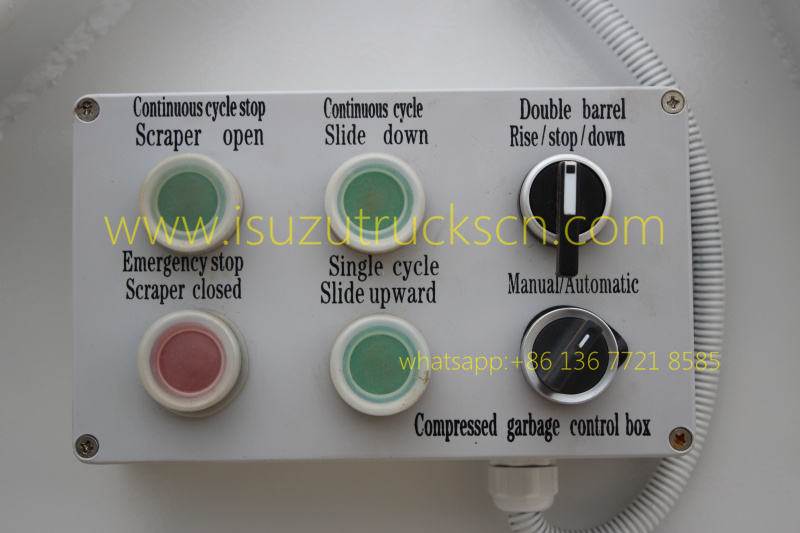

Operation manual of 4cbm Compression Garbage Truck Isuzu

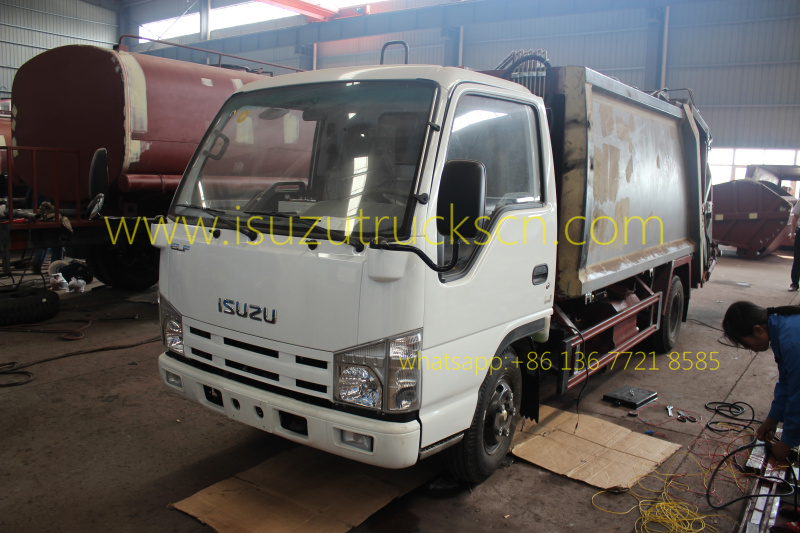

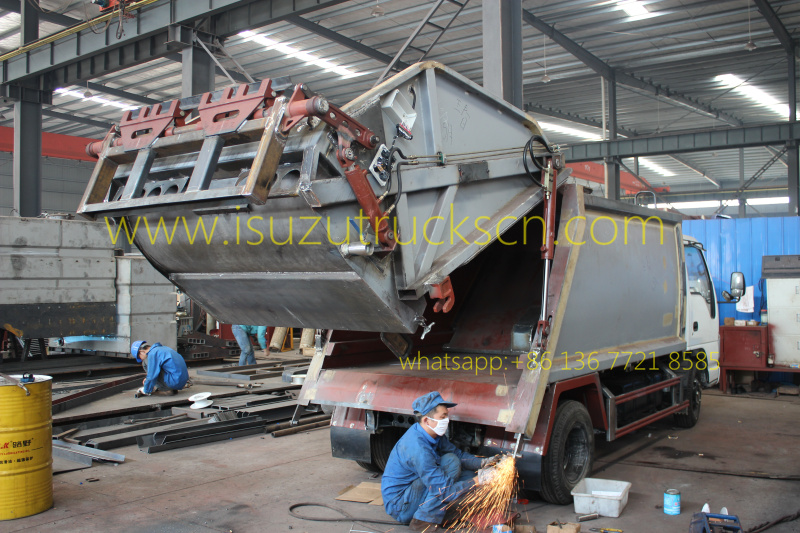

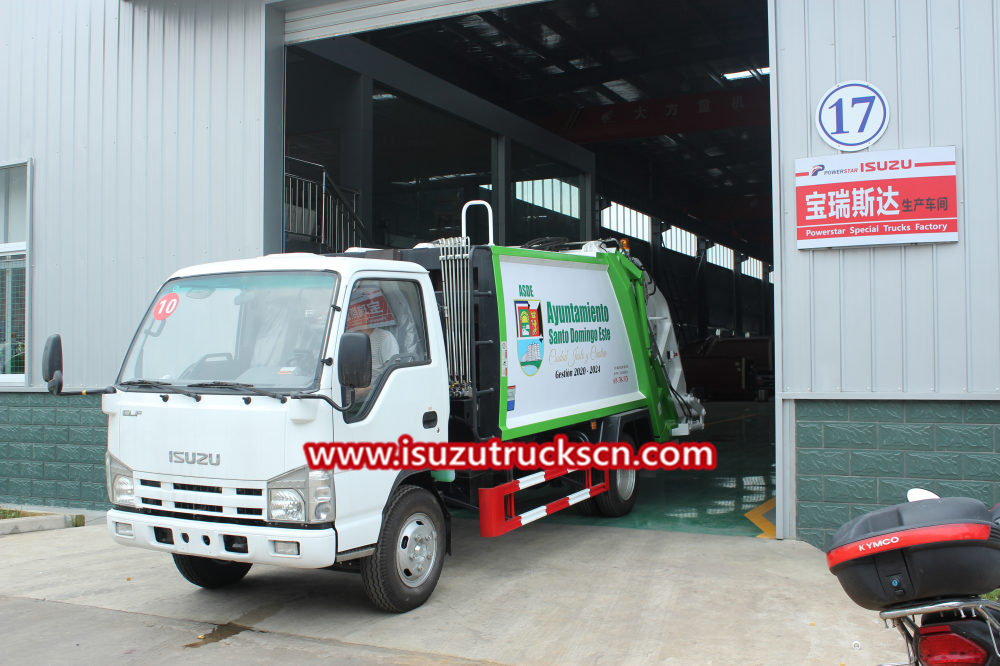

Workshop of build 4CBM Garbage Compactor Truck:
Workshop of build 4CBM Garbage Compactor Truck
Workshop of build 4CBM Garbage Compactor Truck
One of the key advantages of the Isuzu 4 CBM Compression Garbage Truck is its contribution to environmental sustainability. By reducing the frequency of collection trips, the truck helps minimize carbon emissions and traffic congestion. The efficient compression system also improves waste management operations, enabling better utilization of resources and promoting a cleaner and greener Ghana.
The Ghanaian government plans to deploy the Isuzu 4 CBM Compression Garbage Truck across various locations, including residential areas, commercial districts, and public spaces. This advanced vehicle will significantly enhance waste collection efficiency, contributing to a healthier and more vibrant environment.
As part of their commitment to providing quality services, the government emphasizes regular maintenance and inspections of their fleet. They ensure scheduled servicing and utilize genuine Isuzu spare parts to maintain the Isuzu 4 CBM Compression Garbage Truck's optimal performance and longevity.
