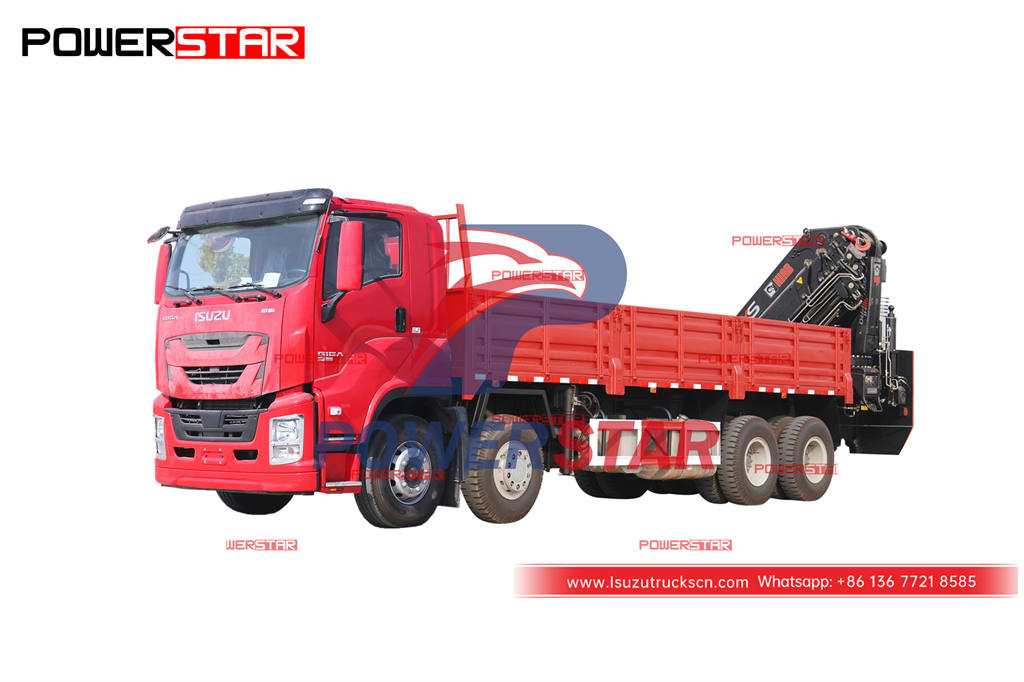

ISUZU GIGA 8×4 knuckle boom crane truck for sale
Order(MOQ):
1
ISUZU GIGA Boom Crane Truck (also called ISUZU truck mounted crane, ISUZU Knuckle Boom Crane Truck) suitable for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses. Articulating cranes, which are also known as knuckle boom cranes, are designed to be lightweight and highly maneuverable for maximum payload while working in tight spaces.
|
100% custom-made
|
|
|
2 tons to 30 tons available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU GIGA Truck Mounted Crane |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5310TSC |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
11900*2500*3200 |
|
Gross weight |
kg |
31,000 |
|
|
Kerb weight |
15,500 |
||
|
Wheelbase |
mm |
1850+4575+1370 |
|
|
Driving type |
8*4 |
||
|
Chassis model |
ISUZU GIGA |
||
|
Tire size |
315/80R22.5 |
||
|
Number of Tires |
10+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
6UZ1-TCG50 |
|
|
Type of fuel |
Diesel |
||
|
Power |
380HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|

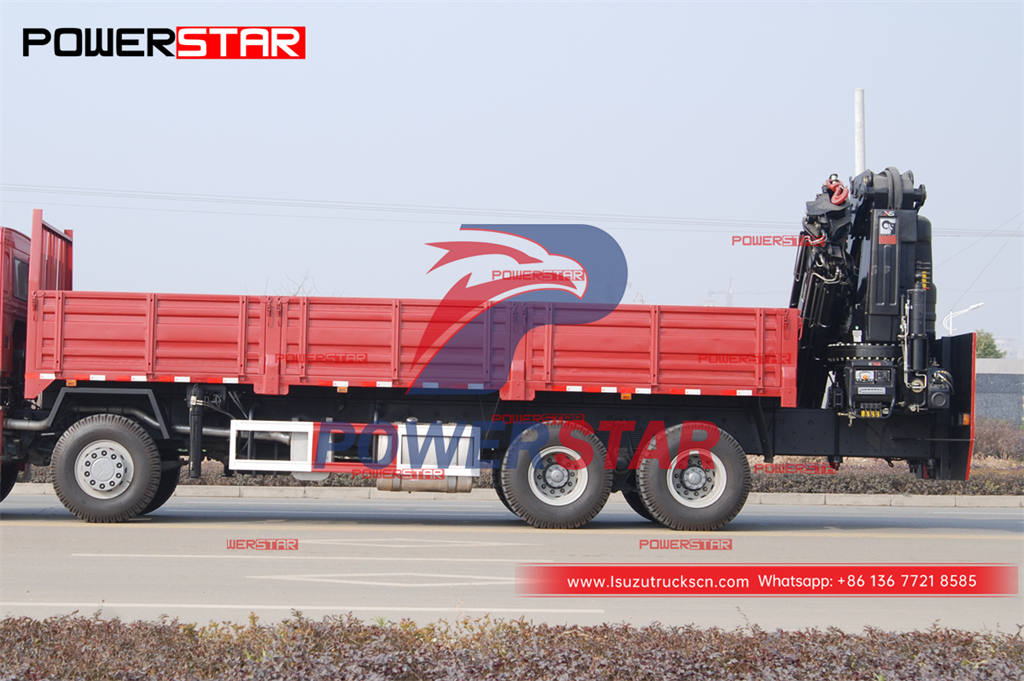

Cargo Body |
Platform |
7000x2300mm |
|
|
Loading capacity |
20~30 Tons |
||
|
Standard |
Equipped with double spring ladder |
||
|
Equipped with rear landing leg |
|||
|

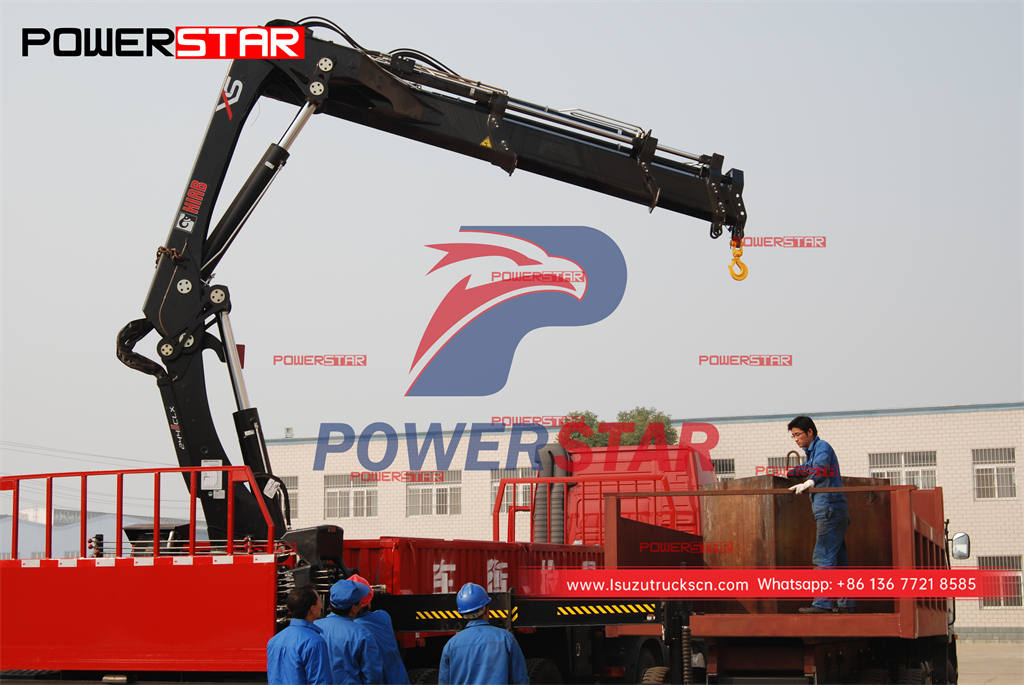

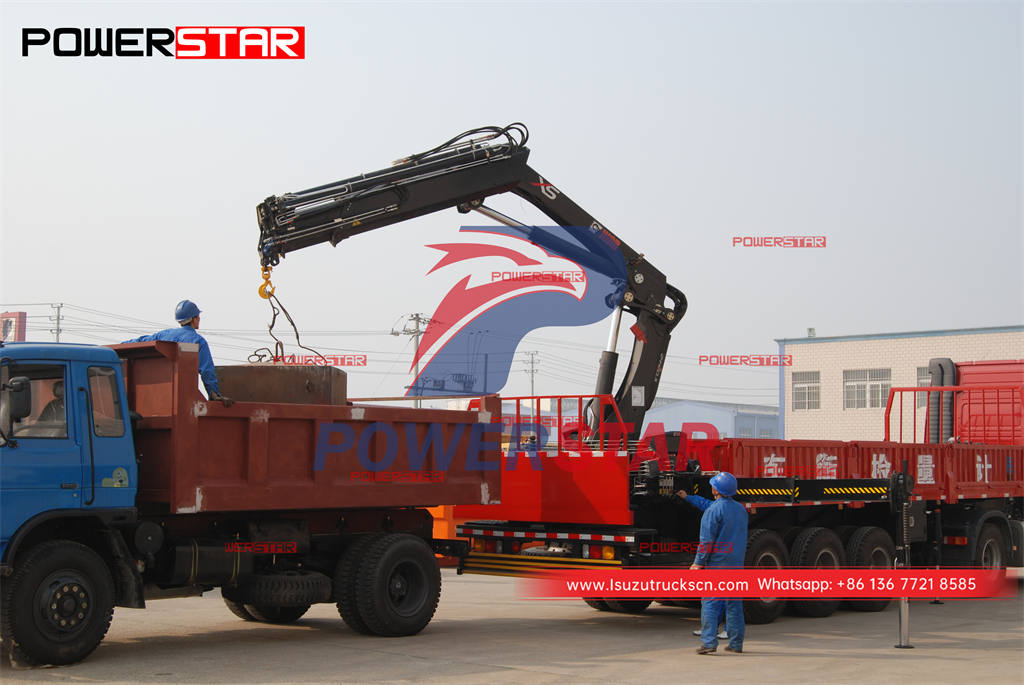

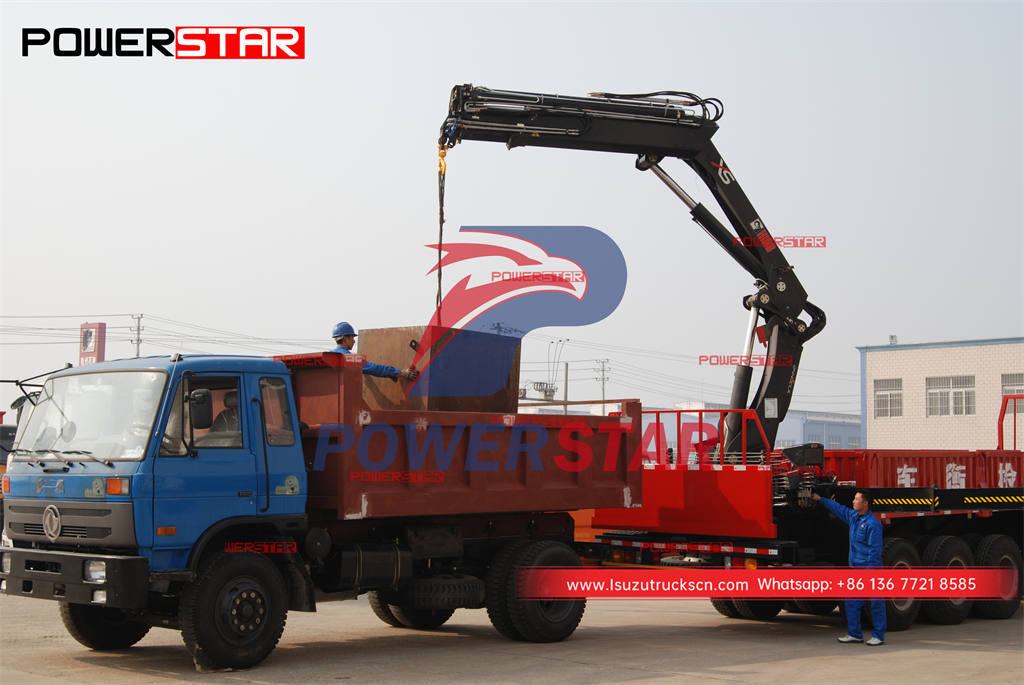

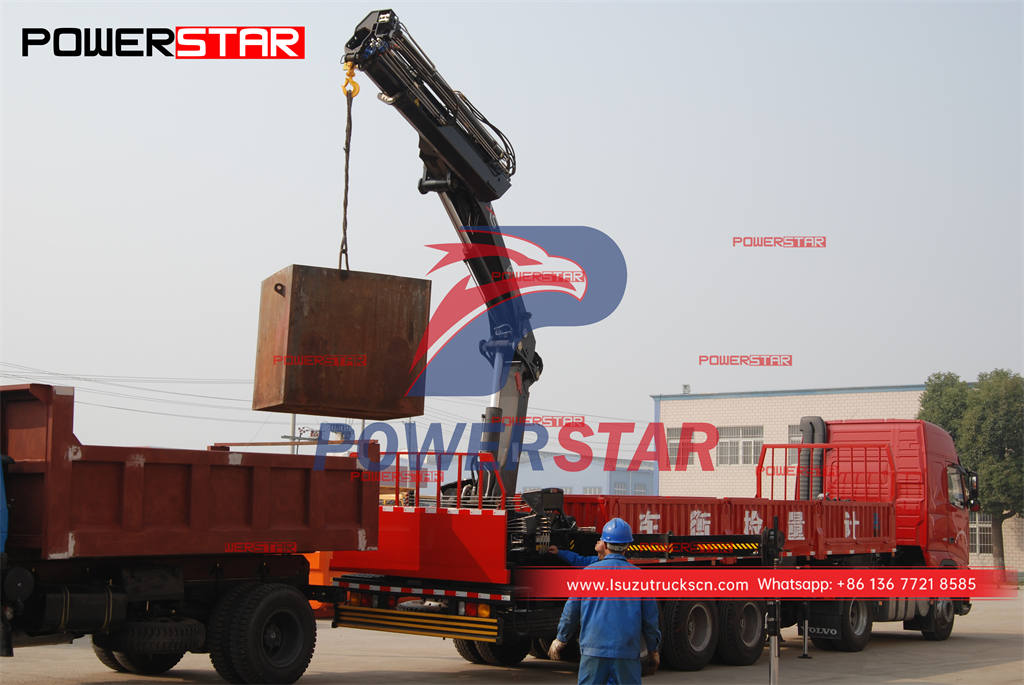

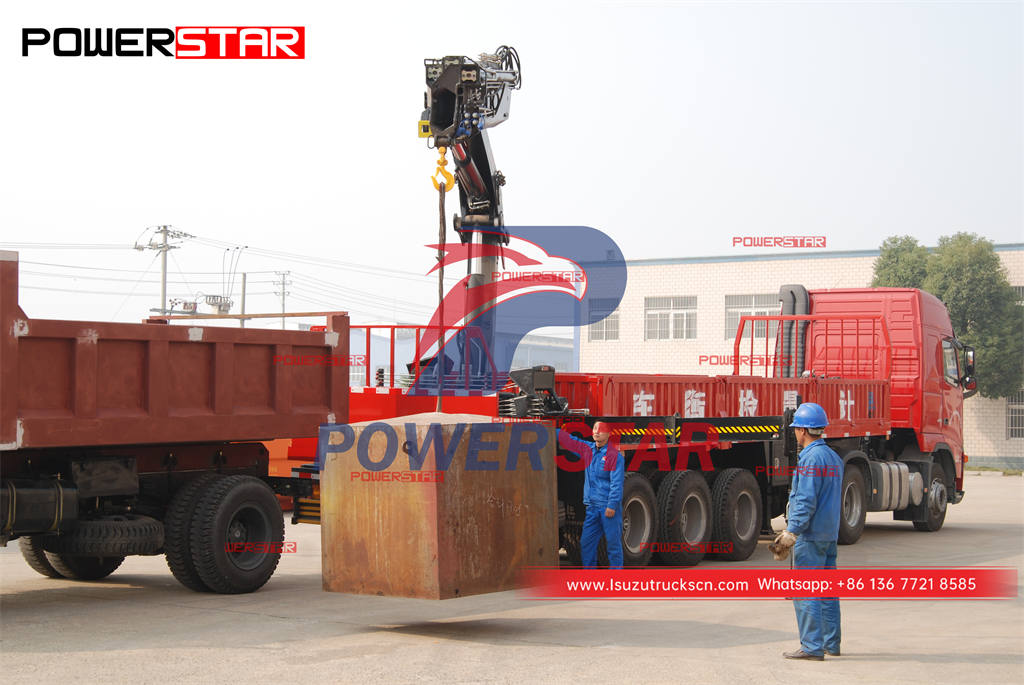

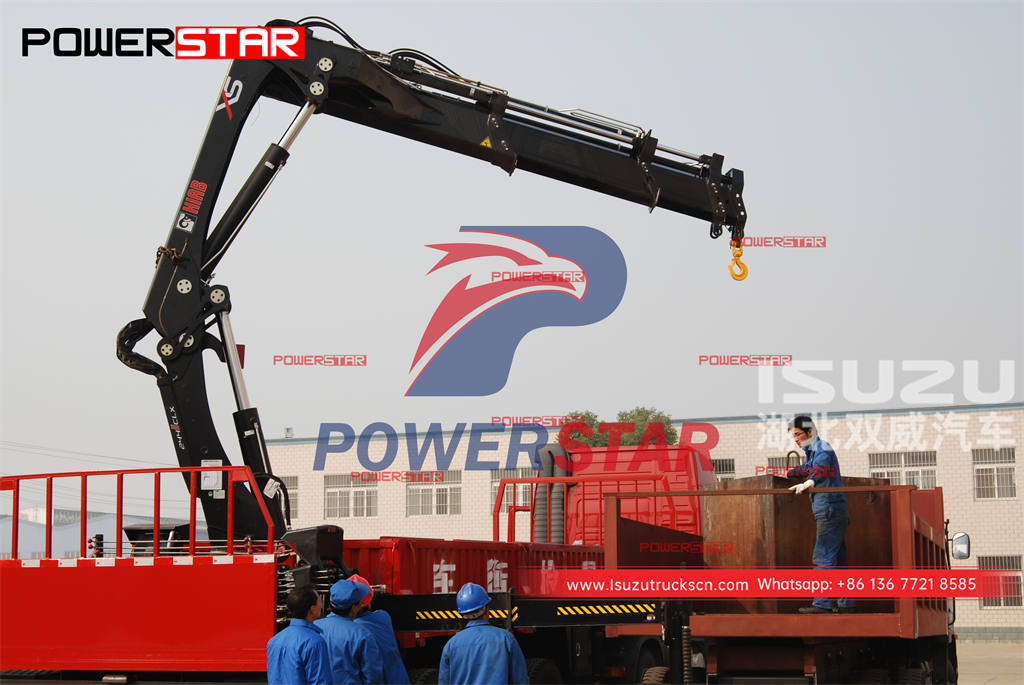

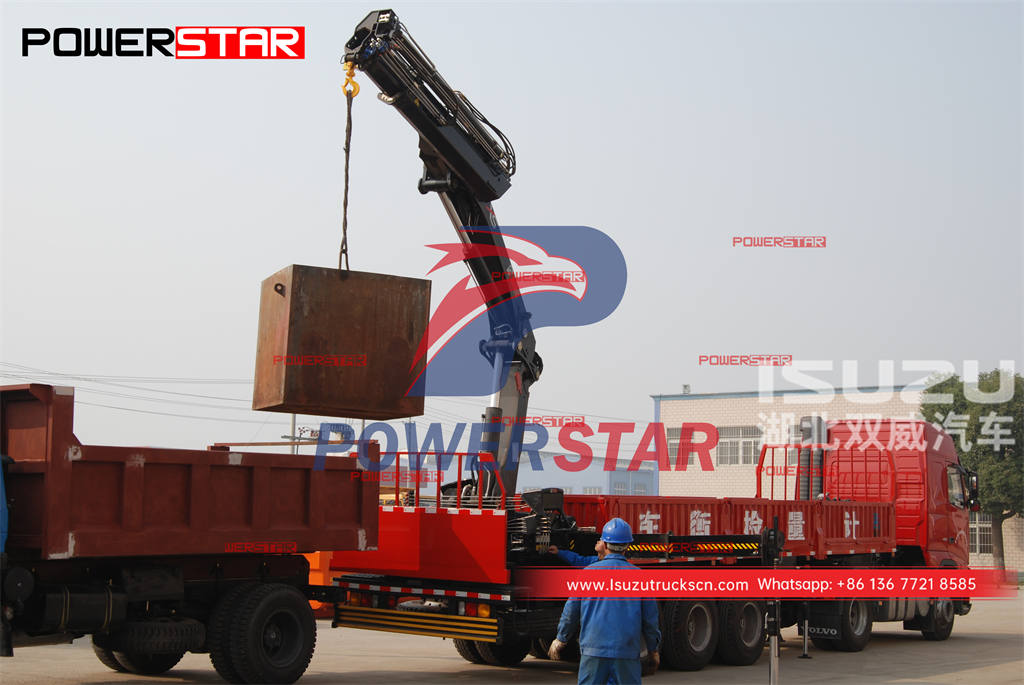

Crane |
8 tons knuckle boom crane |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Rotating Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Palfinger, HIAB, XCMG, UNIC or chinese brand 2, Rear vision camera
3, Optional
stainless steel tool box |
||
New ISUZU 10Tons 15 20tons Excavator Road Roller Transport Flatbed Platform Truck with crane
Good quality ISUZU GIGA 8×4 Heavy Duty Truck With Crane HIAB
Good quality ISUZU GIGA 8×4 Heavy Duty Truck With Crane HIAB
Good quality ISUZU GIGA 8×4 Heavy Duty Truck With Crane HIAB
Good quality ISUZU GIGA 8×4 Heavy Duty Truck With Crane HIAB
Key words: ISUZU GIGA 12 wheeler crane truck, ISUZU GIGA knuckle boom crane truck, ISUZU truck mounted crane HIAB
