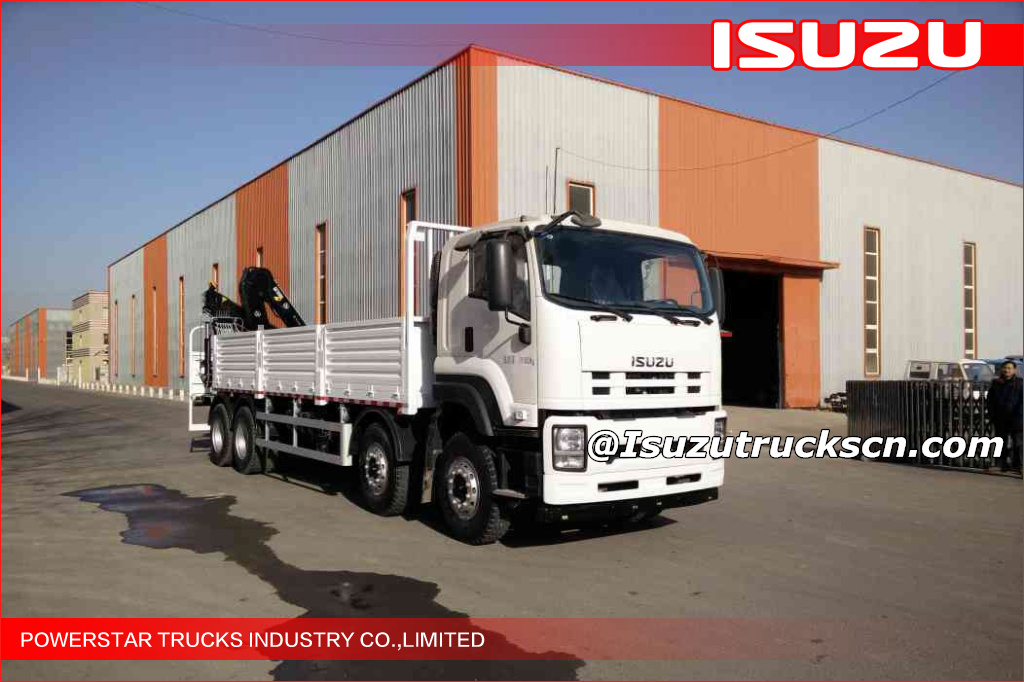

116Ton 8*4 Isuzu Folding Boom Truck Crane
Description:
Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks
Areas of Application and Use:
◆ General Materials Lifting of various size and load with standard Hook arrangement for Construction Sites / Mines / Projects / Logistics Requirements
◆ Handling Concrete Block for Building / Projects through Rotary Brick Clamp
◆ Man Lift or Cherry Picker for Maintenance on Electricity Poles / Overhead Lines etc, thru Person Carrying Basket
◆ Erection of Light Post through Auger
◆ Handling of Wood Logs (Forestry)
◆ Garbage Handling with Clamshell Bucket
◆ Palletized Load Handling thru Pallet Fork
◆ Tyre Manipulator Application
◆ Scrap Handling through Orange Peel Clamp
Features:
◆ Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ All Structural made of High Strength Steel
◆ Easy to mount and Minimum space required for Mounting
◆ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load
◆ Optional Chassis 4x2, 6x4,8x4 and engine power
◆ Optional Crane brand: XCMG, UNIC, PALFINGER, HIAB
◆ Optional Crane type: Telescopic boom crane or knuckled boom crane
◆ Radio Remote Control Available as an Optional Fitment
◆ Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
◆ Crane capacity : 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons

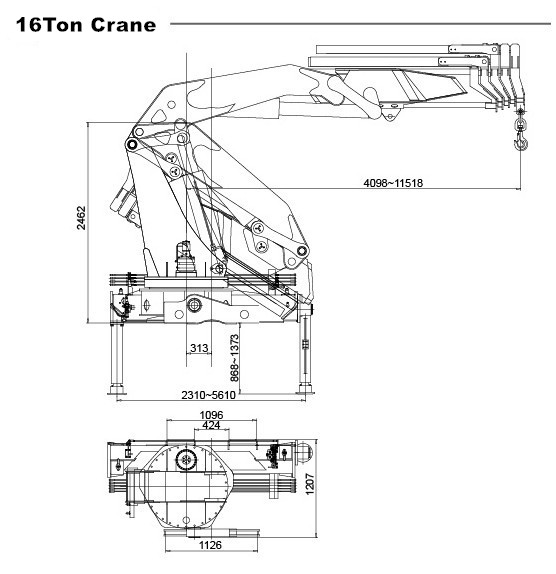

Main specifications:
|
Model |
16Ton |
Unit |
|
Max Lifting Moment |
40 |
t.m |
|
Max Lifting Capacity |
16000 |
kg |
|
Recommend Power Needed At Recommend Oil Flow |
37 |
kw |
|
Max Oil Flow of Hydraulic System |
63 |
L/min |
|
Rated Pressure Of Hydraulic System |
31.5 |
MPa |
|
Oil Tank Capacity |
250 |
L |
|
Rotation Angle |
(360°) All Rotation |
|
|
Crane Weight |
4780 |
kg |
|
Installation Space |
1500 |
mm |
|
Choice of Chassis |
ISUZU, HINO or Other Brand |
|
|

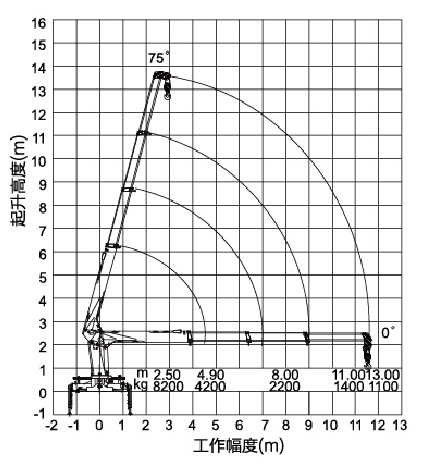

SQ16ZK4Q Lifting capability diagram |
||||||
|
Working radius(m) |
2.5 |
4.098 |
5.898 |
7.748 |
9.618 |
11.518 |
|
Lifting capacity(kg) |
16000 |
9600 |
6600 |
4850 |
3500 |
2600 |

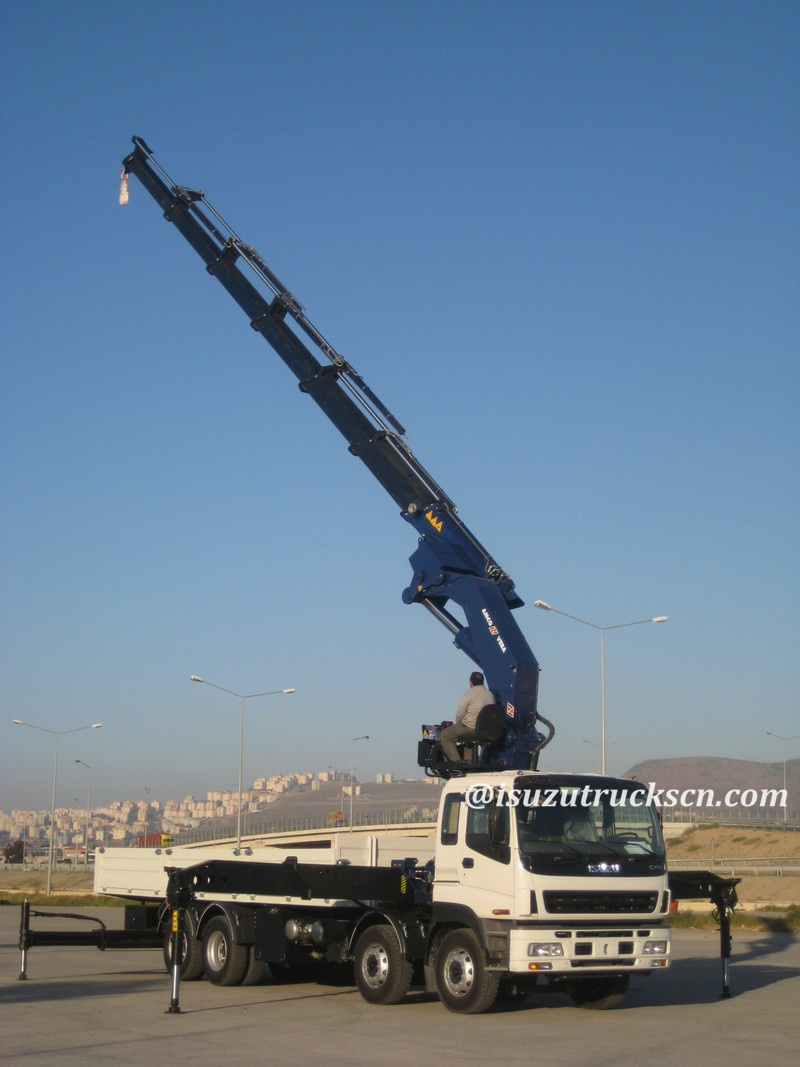

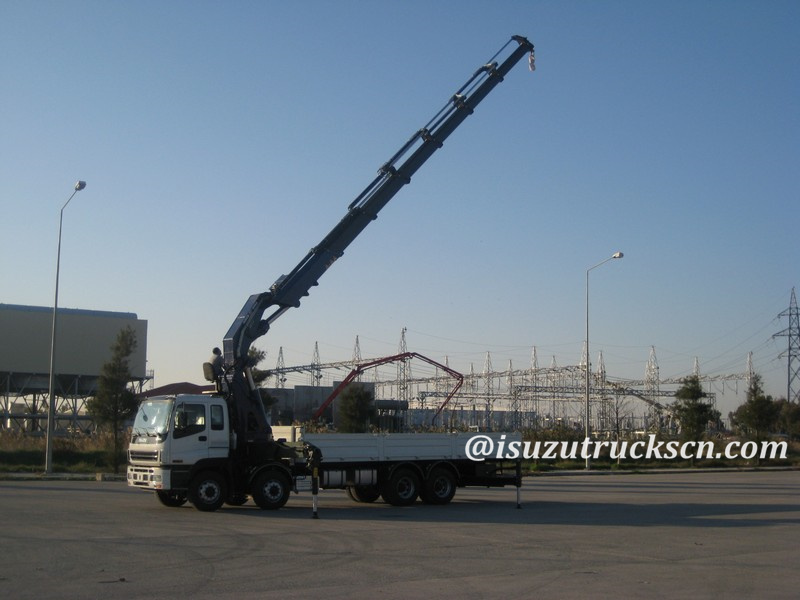

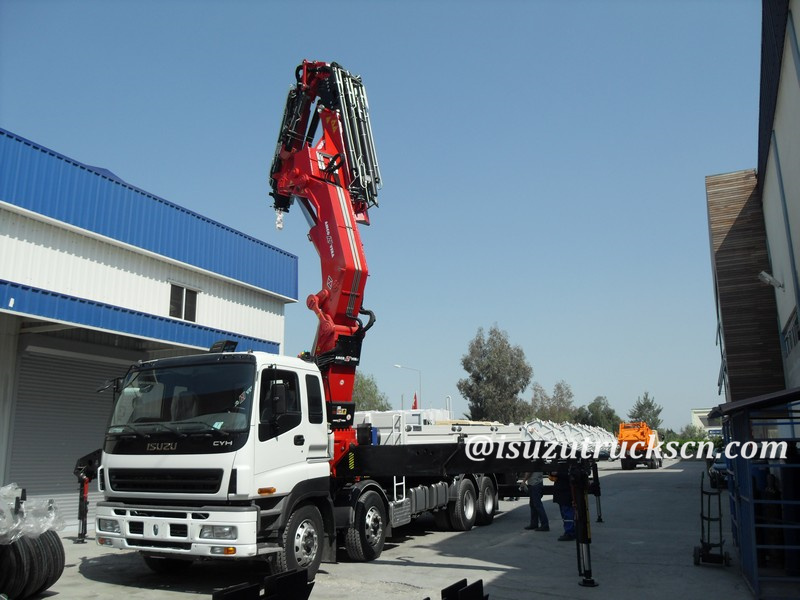

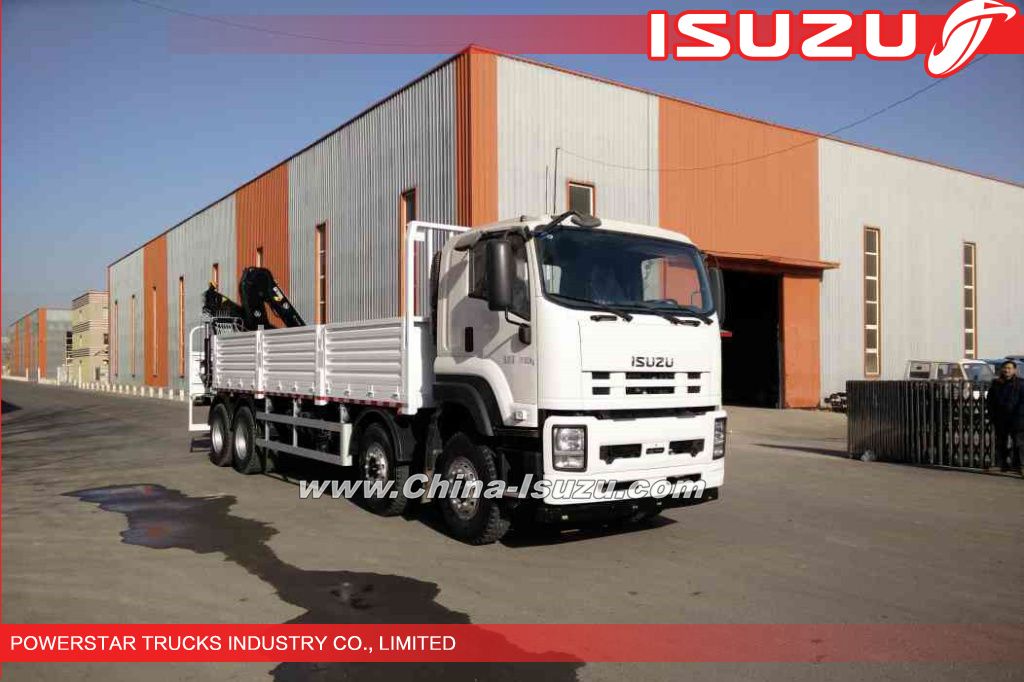

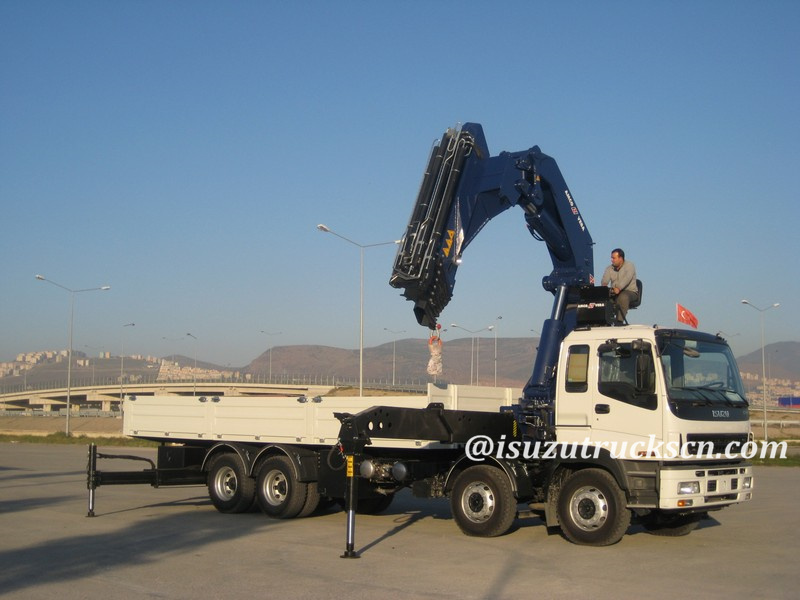

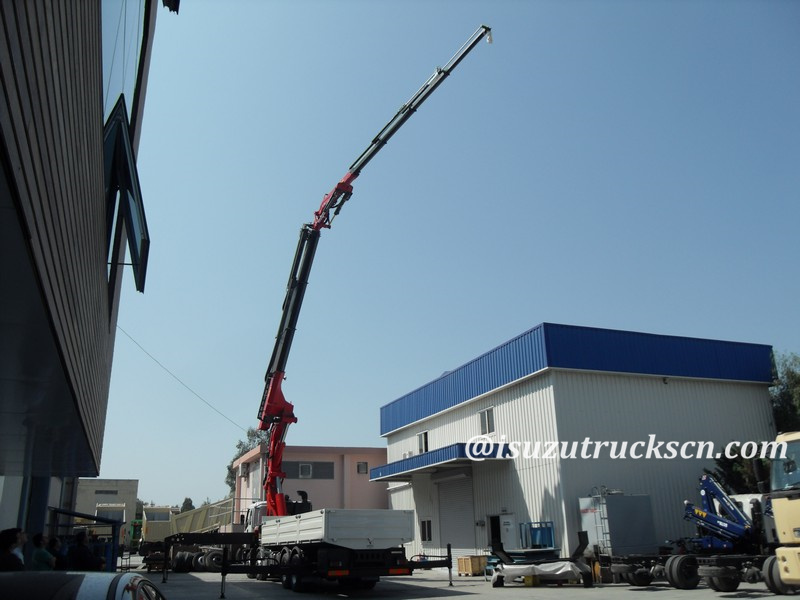

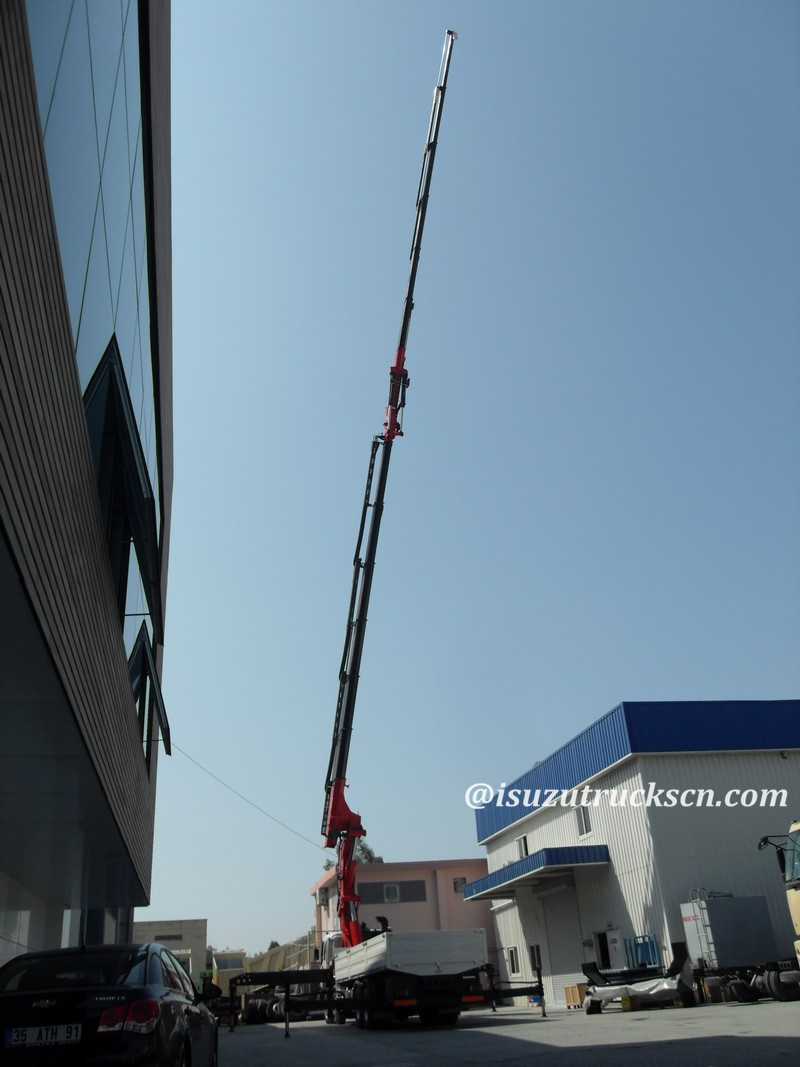

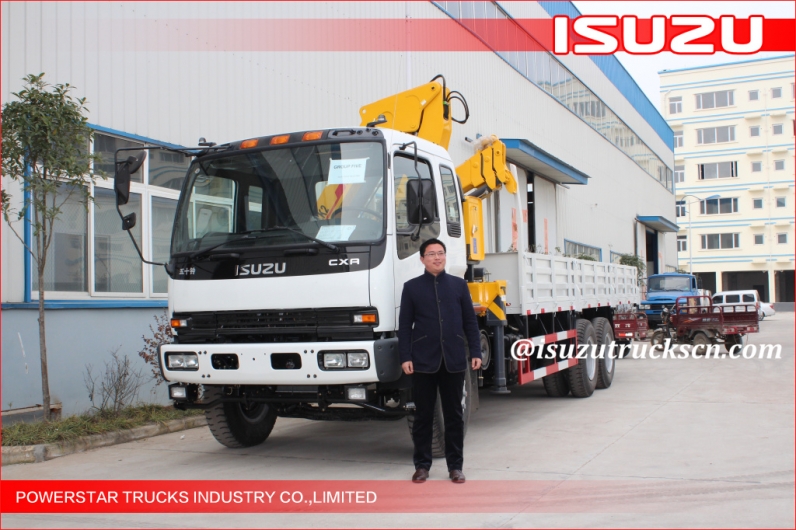

Recently Built Crane Trucks:
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
|
Stabilizer leg |
Spread |
|
Fixed |
2179mm |
|
Single extension |
2256-3556mm |
|
Double extension |
2212-4752mm |
