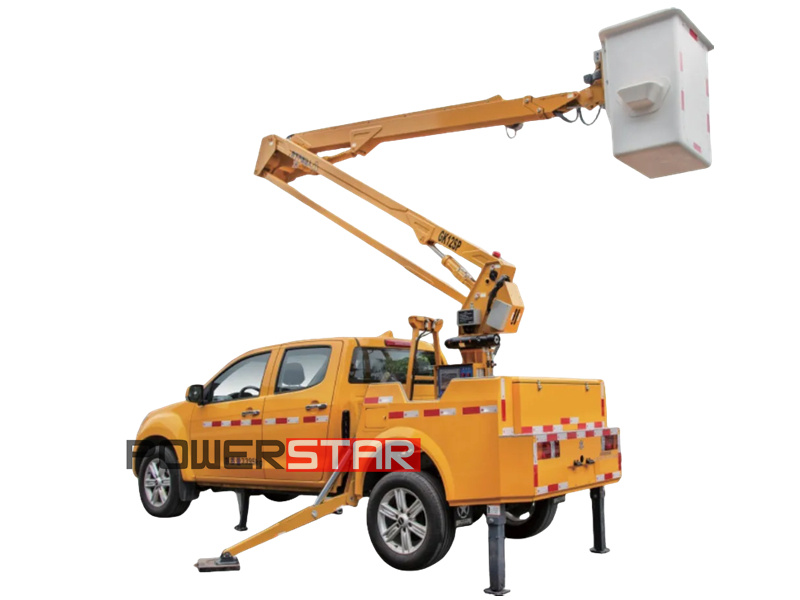

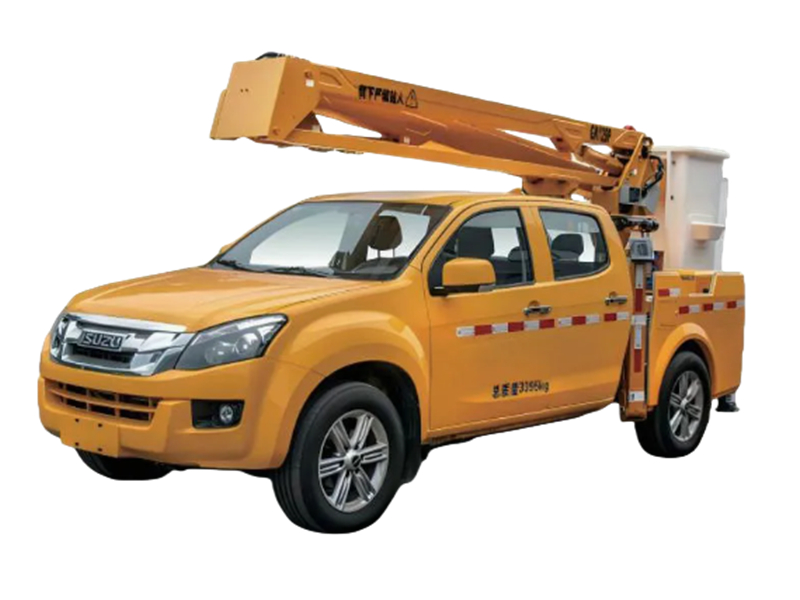

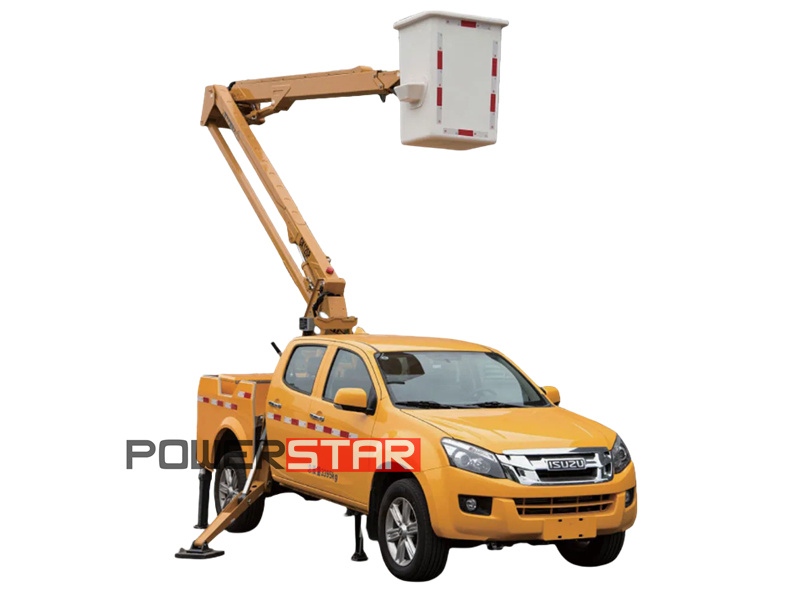

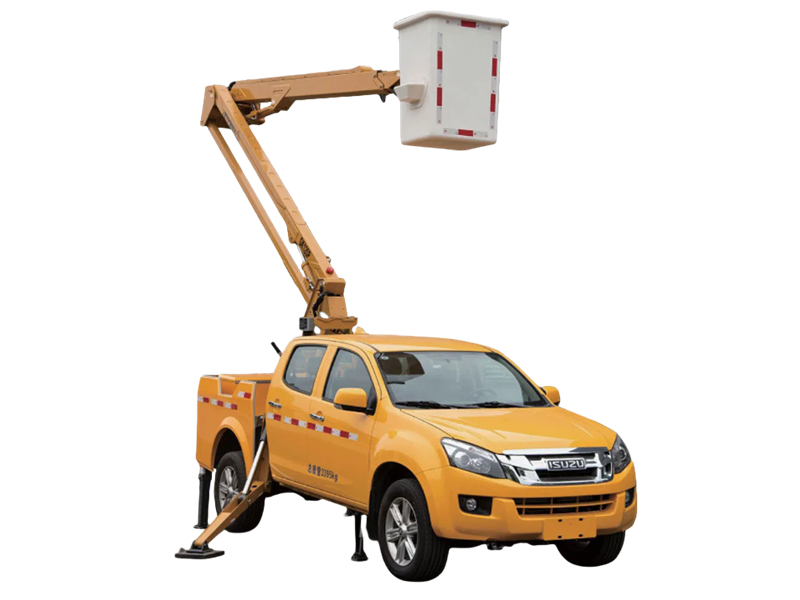

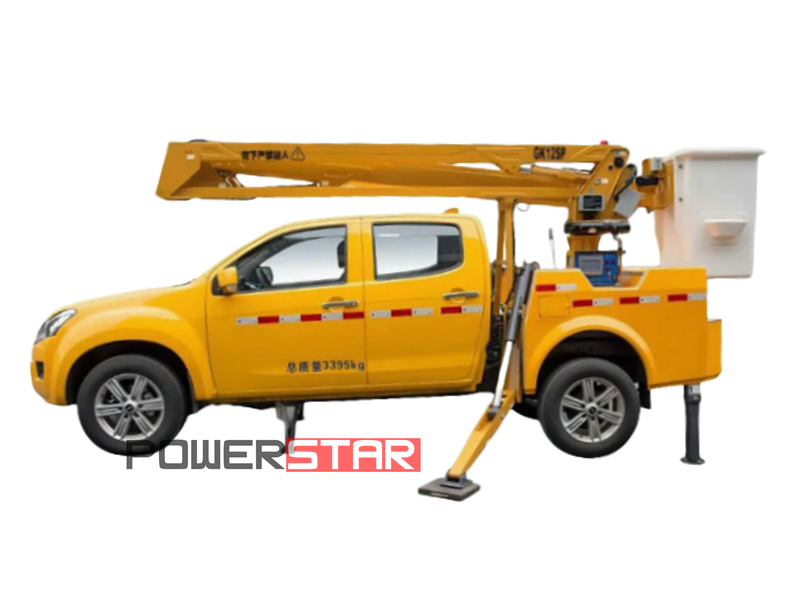

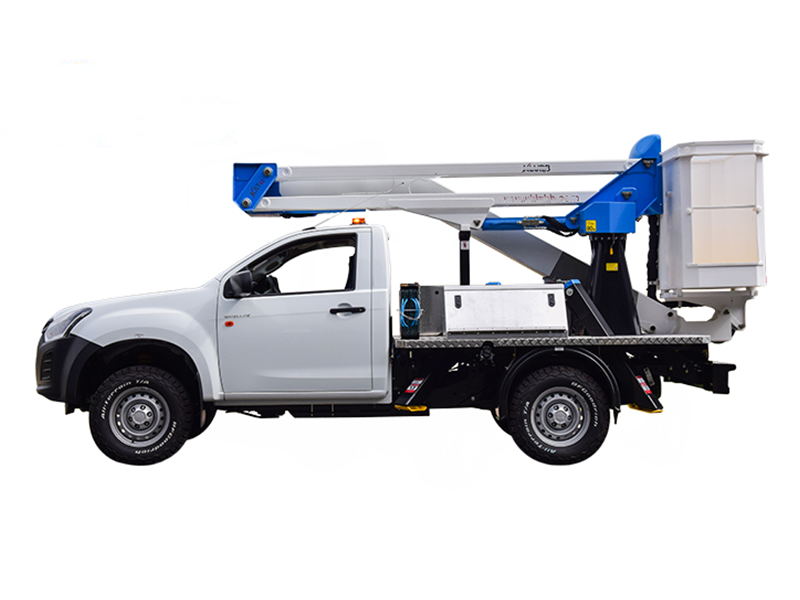

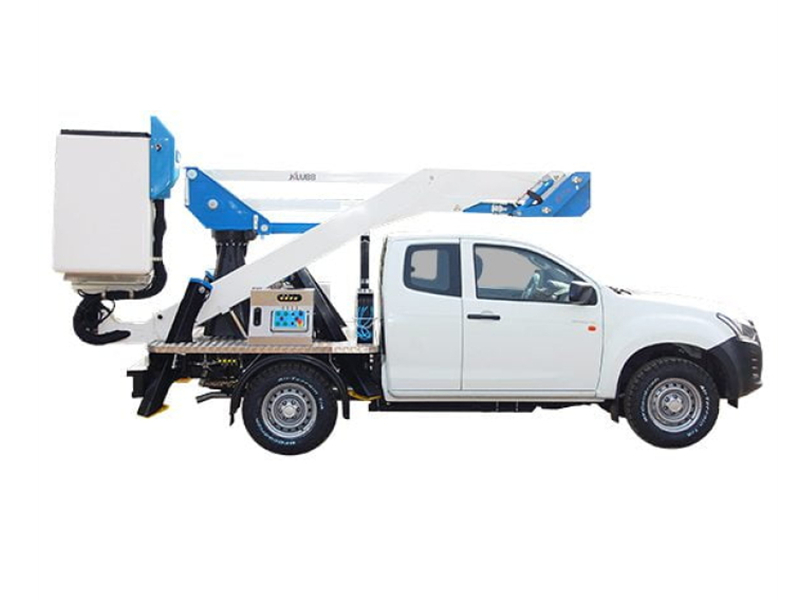

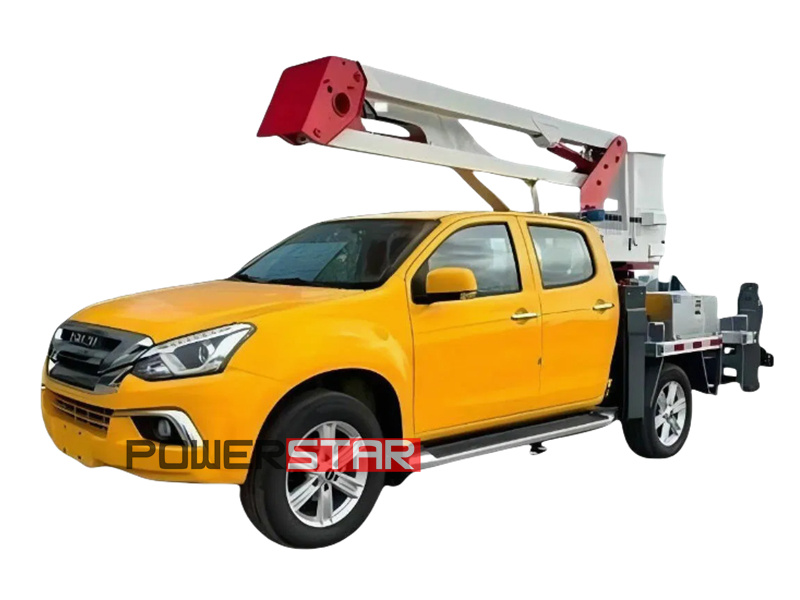

This Isuzu 4x4 pick-up with aerial platform is a highly versatile vehicle. It adopts a four-wheel drive system and is equipped with a 2999cc 4KH1CT6H1 diesel engine with a maximum output power of 143 horsepower. The uniqueness of this pickup truck is that it is equipped with an aerial work platform. The platform has a maximum working height of up to 10 meters, a maximum working radius of 5.9 meters, and a load capacity of 200kg. The platform adopts a folding boom design, can rotate 360 °, and is equipped with an intelligent electronic control system and a number of safety devices, such as an emergency pump, emergency stop of the hanging basket, and an automatic interlocking device. The vehicle chassis adopts a 5 forward 1 reverse gearbox, equipped with a power steering system, and uses 245/70R17LT tires. The whole vehicle meets the Euro VI emission standards and is suitable for various complex terrains and aerial work needs. It is an ideal tool for urban construction, power maintenance, landscaping and other fields.
Work capacity:
10m (200kg)Truck model:
PT5040PKGEngine power:
141HPEngine type:
4KH1CT6H1Axle drive:
4x2,LHDGear box:
MSB 5-speed,manualRemarks:
Mini aerial platform,360° working angle.The Isuzu 4x4 pick-up with aerial platform is a perfect combination of engineering truck manufacturing technology and practicality, reflecting the high craftsmanship of the contemporary truck manufacturing industry. Its core advantage lies in the seamless integration of the reliable Isuzu pick-up with advanced aerial work equipment to create a versatile and efficient professional truck. Exquisite manufacturing technology ensures the durability and reliability of the Isuzu aerial platform pick-up in harsh environments, while the intelligent control system greatly improves the accuracy and safety of operations. The Isuzu 4x4 pick-up with aerial platform has a wide range of application scenarios, from urban building maintenance, power line inspection to outdoor advertising installation, to tree pruning and rescue operations. Its excellent off-road performance enables it to easily cope with various complex terrains, while its compact body size ensures flexible operation in narrow streets and dense urban areas.
Specification:
|
Isuzu 4x4 Pickup with aerial platform |
||
|
Drive Model |
4x4,LHD |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
5660×1885×2750 |
|
Wheel base (mm) |
3406 |
|
|
Wheel track (front/rear) (mm) |
1570/1570 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Cab |
Double row,2+3 seats,A/C,USB... |
|
|
Weight in KGS |
Curb Weight |
2200 |
|
GVW. |
3175 |
|
|
Max. driving speed(km/h) |
140 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
|
Horse Power(HP) |
143HP/105Kw |
|
|
Displacement(ml) |
2999 |
|
|
Max torque(N·m） |
320 |
|
|
Max torque speed(rpm) |
1450 |
|
|
Emission standard |
Euro VI |
|
|
Fuel tank volume (L) |
76 |
|
|
Fuel form |
Diesel |
|
|
Gearbox |
MSB 5 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70R17LT, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
UPPER |
Working height (Max) |
10m |
|
Loading Capacity |
200 kg |
|
|
Max working radius |
5.9m |
|
|
Hook Lifting Capacity |
1000 kg |
|
|
Boom type |
folding |
|
|
Rotation angle |
360° |
|
|
Rotaion speed |
0-2 r/min |
|
|
Outrigger Type |
H(4 sets) |
|
|
Control System |
Intelligent electric control system |
|
|
Control Panel |
According to whish |
|
|
Color & LOGO |
According to whish |
|
|
Main Safety System |
1, Emergency pump 2, Engine on/off on bucket 3, Automatic interlock device 4, Emergency stop device 5, Night safety warning device 6, Vehicle level status tester |
|
|
Standard equipment |
Sub frame, import hydraulic cylinders, Relief valve, balance valve, double-way hydraulic lock, Backup alarm, reflectors, and mud flaps... |
|
Feature:
1. Efficient power system :The vehicle is equipped with a 4KH1CT6H1 engine, a 4-cylinder in-line turbocharged diesel engine with a displacement of 2999cc. It can output a maximum power of 143 horsepower and a maximum torque of 320N·m, and the maximum torque can be achieved at 1450rpm. This power configuration ensures that the vehicle can provide sufficient power under various working conditions while maintaining good fuel economy. It is worth noting that this engine meets the Euro VI emission standards, reflecting excellent environmental performance.

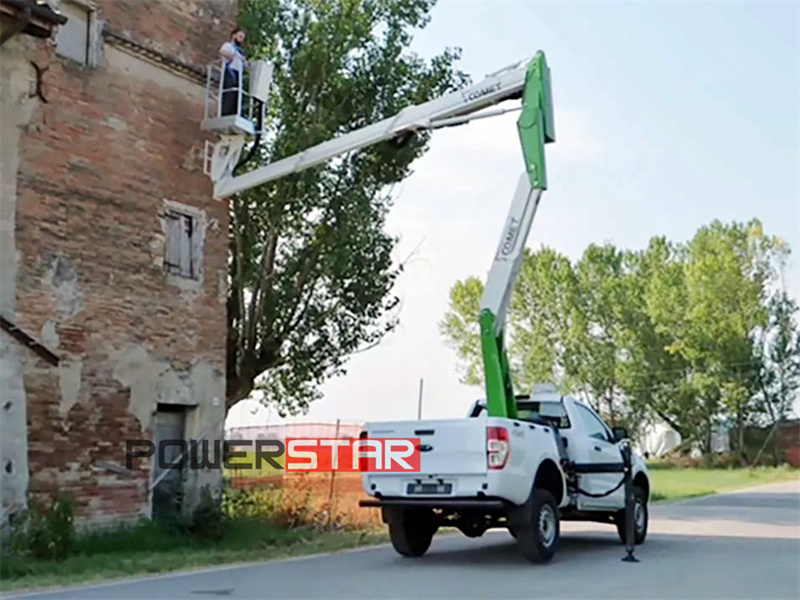

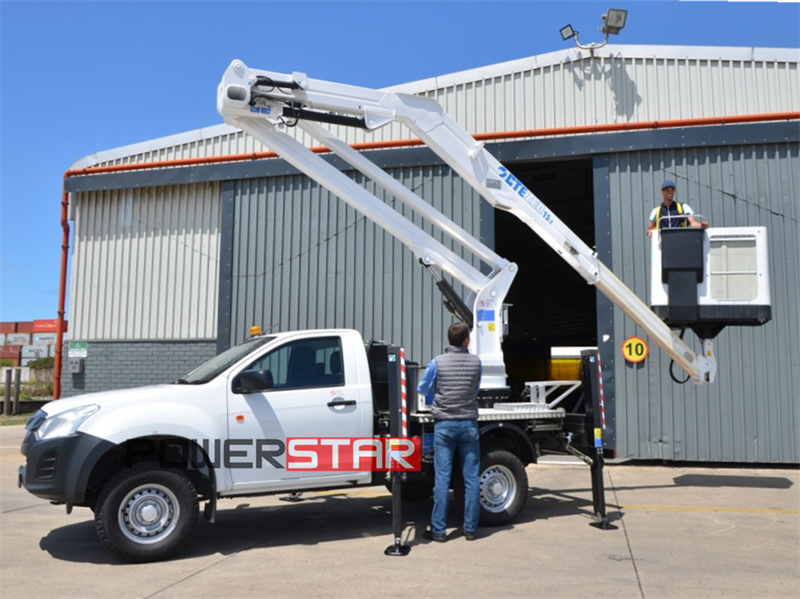

2. Versatile aerial work platform :The aerial work platform equipped with the vehicle has excellent performance parameters. The maximum working height can reach 10 meters and the working radius can reach 5.9 meters, which makes it adaptable to a variety of aerial work scenarios. The 200kg load capacity is sufficient to meet the needs of most aerial operations. At the same time, the platform also has a 360-degree rotation function, which greatly improves the flexibility of the operation. In addition, the 1000kg hook lifting capacity provides users with additional versatility.
3. Advanced safety system: The vehicle is equipped with multiple safety assurance systems, which fully reflects the emphasis on operational safety. Including emergency pump, hanging basket emergency stop device, automatic interlocking device, emergency stop device, night safety warning device and vehicle horizontal state tester. These safety measures comprehensively cover various possible emergency situations and greatly improve the safety of operations.
4. Intelligent control system: The vehicle adopts an intelligent electronic control system, which is a significant highlight among aerial work vehicles. Intelligent control not only improves the accuracy of operation, but also better coordinates the work of various systems of the vehicle and improves overall efficiency. The control panel can be customized according to customer needs, further enhancing the humanization and personalization of operation.
5. Excellent off-road performance :As a 4x4 drive pickup truck, this vehicle exhibits excellent off-road capabilities. The 28-degree approach angle and 21-degree departure angle enable it to cope with various complex terrains. The tire specifications of 245/70R17LT provide good passability and comfort. In addition, the 3406mm wheelbase and 1570mm front and rear track provide the vehicle with a stable chassis, ensuring controllability and stability under various road conditions.
Advantage:
Advantages of Isuzu aerial platform pick-up over aerial platform truck:
1. Mobility and flexibility: The pickup aerial work vehicle is based on the pickup chassis design. Compared with ordinary aerial work trucks, it is smaller and has a smaller turning radius. This compact design makes it more maneuverable in scenes such as narrow streets and complex terrain. Especially in urban environments or work areas with limited space, pickup aerial work vehicles can be more easily entered and operated.
2. Versatility: The pickup aerial work vehicle can not only perform aerial work, but also retain the cargo function of the pickup truck. This dual function greatly improves the efficiency of vehicle use. When aerial work is not required, it can be used as an ordinary pickup truck to transport personnel or goods, which improves the utilization rate of the vehicle.
3. Economy: Compared with dedicated aerial work trucks, the purchase cost and maintenance cost of pickup aerial work vehicles are usually lower. At the same time, because it is based on a common pickup platform, parts are easier to obtain, and maintenance is more convenient and economical.
4. Passing performance: Many pickup aerial work vehicles, such as this Isuzu 4x4 model, use a four-wheel drive system. This allows the vehicle to maintain good passing performance in complex terrain and bad weather conditions. In contrast, many ordinary aerial work trucks may perform poorly on unpaved roads or rugged terrain.
5. Operational convenience: Pickup aerial work vehicles usually use a light commercial vehicle chassis, and the operating feel is similar to that of an ordinary car or pickup truck. This means that the driver does not need special heavy truck driving skills and can adapt to and operate the vehicle more easily.
6. Fuel efficiency: Due to the lighter weight of the entire vehicle, the fuel efficiency of pickup aerial work vehicles is generally better than that of heavy aerial work trucks. This not only reduces operating costs, but also reduces carbon emissions and is more environmentally friendly.
7. Strong adaptability: Pickup aerial work vehicles can quickly switch between ordinary transportation and aerial work, and are highly adaptable. This flexibility makes it particularly suitable for projects that require frequent changes in work scenes.
8. Convenient parking: Compared with large aerial work trucks, pickup aerial work vehicles are more convenient to park in urban environments and can use ordinary parking spaces, reducing the parking difficulties caused by the large size of the vehicle.
The Isuzu 4x4 all-wheel drive pickup truck mobile service vehicle produced by POWERSTAR is modified based on the Isuzu all-wheel drive pickup truck. The vehicle is equipped with a 4KH1CT6H1 143HP engine, provides a 3406mm wheelbase, and has a maximum torque of 320N·m. It is matched with an Isuzu MSB 5-speed transmission, which has strong power and smooth shifting. The tool box at the rear of the vehicle can be equipped with the required service tools according to needs.
Learn More
The Isuzu 4x4 all-wheel drive maintenance vehicle is a vehicle used for emergency service maintenance of trapped vehicles. It is modified based on the Isuzu all-wheel drive pickup truck with a tool room added to the rear. It uses a powerful 4KH1CT6H1 engine with 143 horsepower, is equipped with an Isuzu MSB 5-speed transmission with smooth shifting, and a 76L diesel fuel tank. It can provide long-distance driving and provide protection for service maintenance vehicles. It is widely used in industry, agriculture, construction, transportation and other fields.
Learn More
The ISUZU mobile workshop based on Isuzu TAGA 4x4 offroad Super Duty Chassis truck equipped with a 3.0L Power Stroke diesel engine and a 5-speed manual transmission is able to provide prompt delivery of a work team, tools and equipment for emergency service and vehicle repairs, mobile maintenance of machinery and equipment or preforming construction work. POWERSTAR TRUCKS produced Mobile workshops can be based on chassis of Ford Super Duty, Kenworth, Chevrolet, Dodge, Peterbilt, Mack, Toyota and other name brand trucks, that allow you to carry out various types of accessories needed to per job, and even in hard-to-reach remote areas.
Learn More

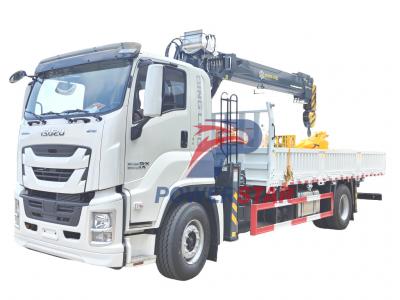

New or Used Isuzu Giga Mobile 10 Ton Stiff Boom Crane Cargo Truck equipped with a smart weighing instrument as standard, the weight of the hoisted cargo is scientifically calculated. The outriggers are equipped with warning lights.The hand-washing tank is equipped, and the design is more user-friendly.
Learn More

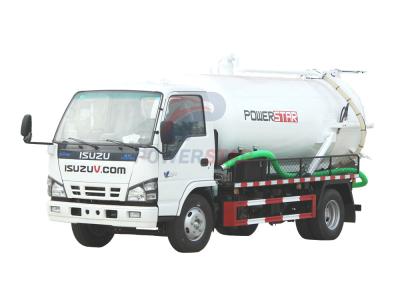

The Isuzu 600P 4KH1 130HP sewer cleaning truck is a specialized vehicle designed for the maintenance and cleaning of sewer systems. It combines powerful suction capabilities, water pressure, and advanced cleaning mechanisms to effectively remove debris, sediments, and blockages from sewer lines.
