The Isuzu 4x4 all-wheel drive maintenance vehicle is a vehicle used for emergency service maintenance of trapped vehicles. It is modified based on the Isuzu all-wheel drive pickup truck with a tool room added to the rear. It uses a powerful 4KH1CT6H1 engine with 143 horsepower, is equipped with an Isuzu MSB 5-speed transmission with smooth shifting, and a 76L diesel fuel tank. It can provide long-distance driving and provide protection for service maintenance vehicles. It is widely used in industry, agriculture, construction, transportation and other fields.
Work capacity:
900kgTruck model:
PT5030XGXEngine power:
143HPEngine type:
4KH1CT6H1Axle drive:
4X4,LHDGear box:
MSB 5-speed,manualRemarks:
Isuzu 4x4 off road maintenance service pickupPowered by a powerful 4KH1CT6H1 engine with 143 horsepower, the Isuzu 4x4 drive utility service truck is an excellent vehicle designed to meet the diverse needs of utility service providers. Combining power, durability and versatility, this truck is both reliable and efficient.
Isuzu 143HP Pickup Truck Service Vehicle is a multi-functional vehicle designed for vehicle maintenance, roadside assistance and construction sites. It combines the powerful power, durability and flexibility of Isuzu pickup trucks with various tools and equipment required for maintenance services, providing a comprehensive solution for various maintenance tasks.
Key Features:
★ ISUZU pickup truck, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Large space, comfortable driving, with tool box
★ Easy operation and easy maintenance
Specifications
|
Isuzu 4x4 Pickup service truck |
||
|
Drive Model |
4x4,LHD |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
5660×1885×2550 |
|
Wheel base (mm) |
3406 |
|
|
Wheel track (front/rear) (mm) |
1570/1570 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Cab |
Double row,2+3 seats,A/C,USB... |
|
|
Weight in KGS |
Curb Weight |
2200 |
|
GVW. |
3175 |
|
|
Max. driving speed(km/h) |
140 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
|
Horse Power(HP) |
143HP/105Kw |
|
|
Displacement(ml) |
2999 |
|
|
Max torque(N·m） |
320 |
|
|
Max torque speed(rpm) |
1450 |
|
|
Emission standard |
Euro VI |
|
|
Fuel tank volume (L) |
76 |
|
|
Fuel form |
Diesel |
|
|
Gearbox |
MSB 5 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70R17LT, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
UPPER |
Trailer hook |
2 units,front and rear both have |
|
Pillow |
Equipment,at the top of cabin |
|
|
φ125 pipeline |
Equipment,at the top of cabin |
|
|
Ladder |
Equipment,at the top of cabin |
|
|
Handle |
6 pcs,3 pcs on each side of the rear body |
|
|
Rear tool box |
Equipment,at the rear of pickup |
|
|
Storage Box |
4 drawer storage box in the tool box |
|
|
Mobile small cart |
Equipment,in the tool box |
|
|
Lighting |
Equipment,Inside the tool box top |
|
Applications
Isuzu's 4x4 drive utility service truck is a powerful expression of power, durability and practicality. This automotive engineering marvel blends rugged performance with versatility to meet the needs of industries ranging from construction and maintenance to emergency services and agriculture. With reliability at its core, the Isuzu 4x4 Drive Multi-Purpose Service Truck offers unrivalled performance and adaptability to meet the demands of challenging terrains and demanding work environments.

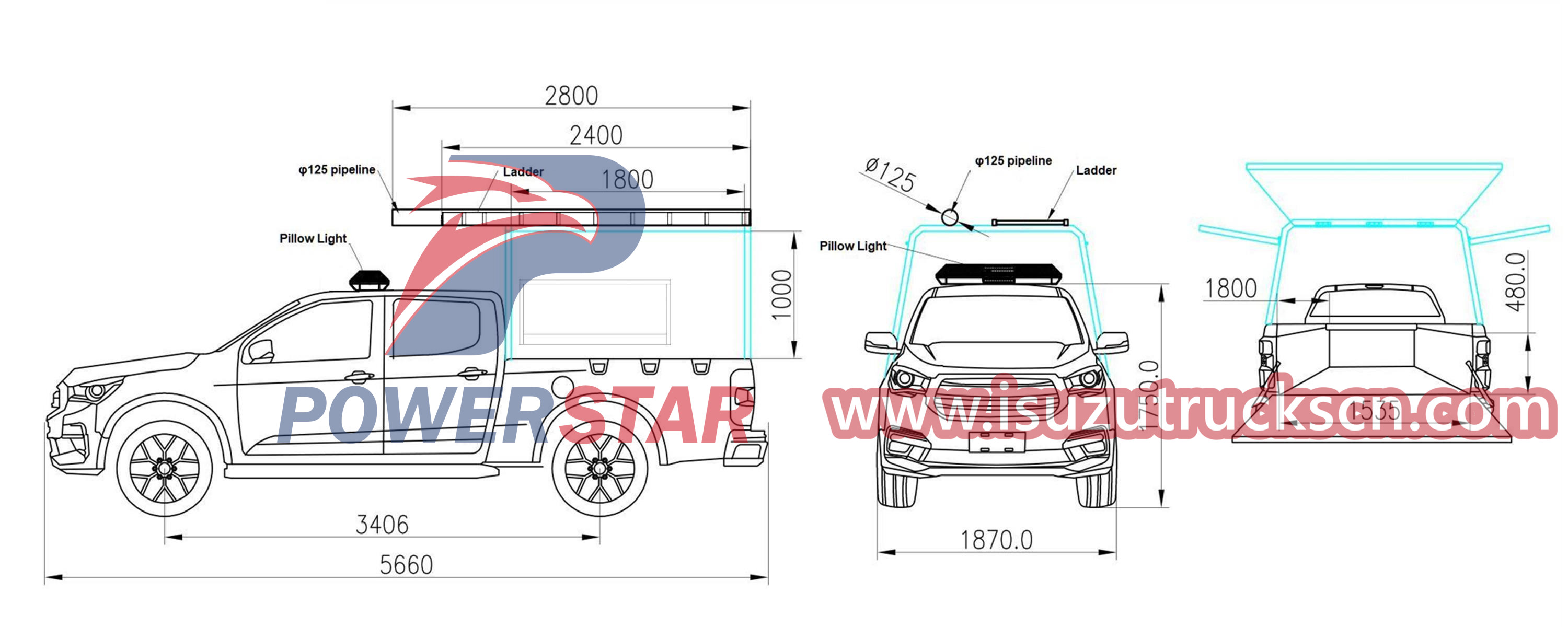

Technical drawing of Isuzu 4x4 utility service truck

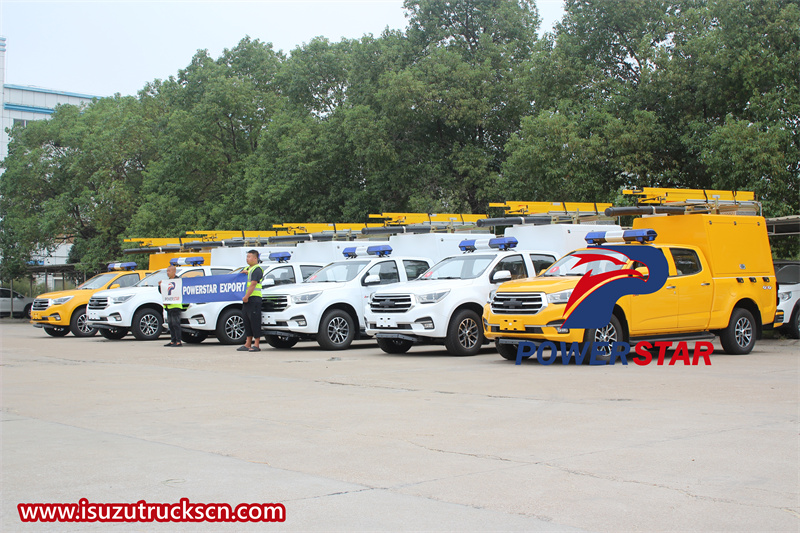

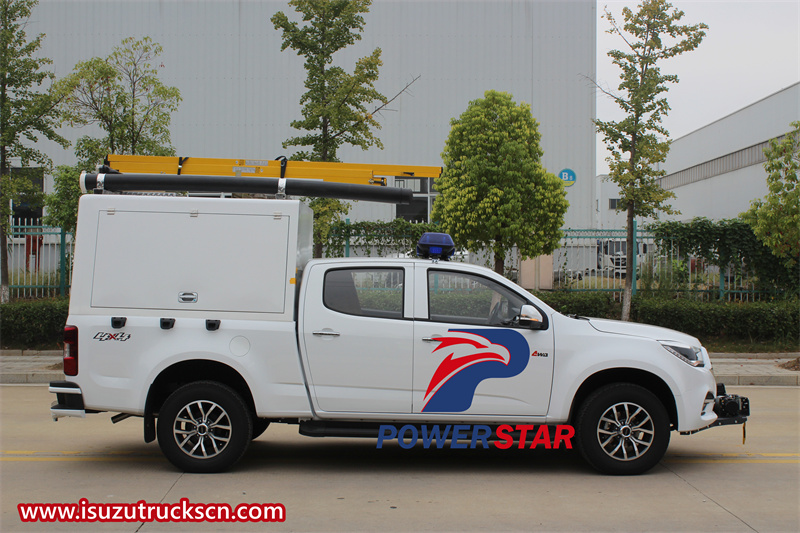

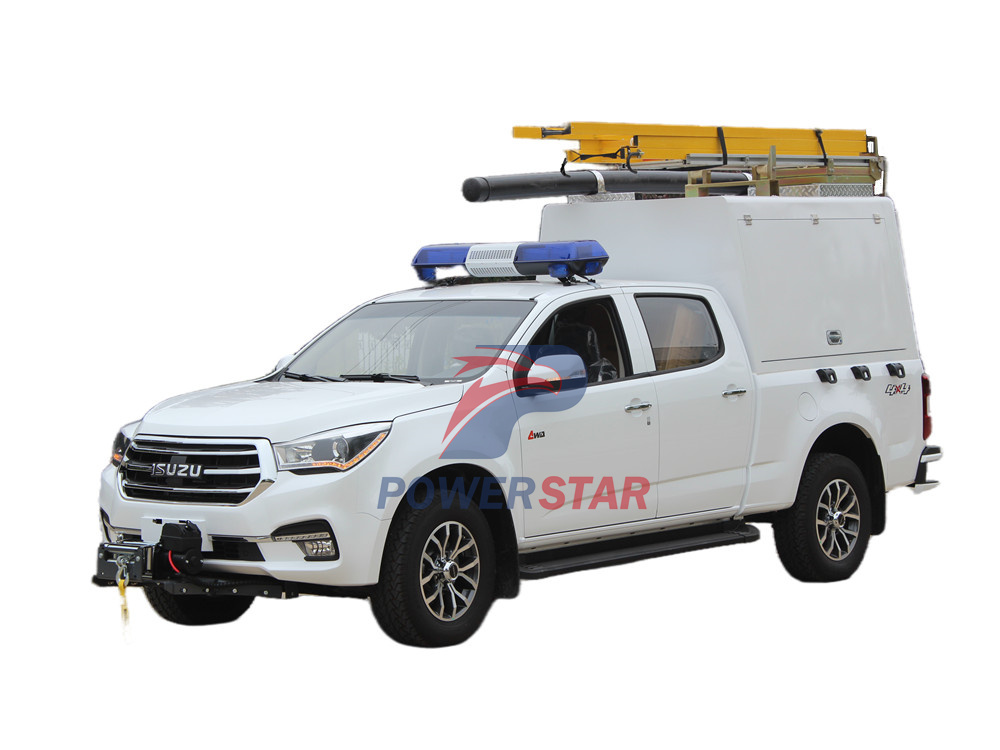

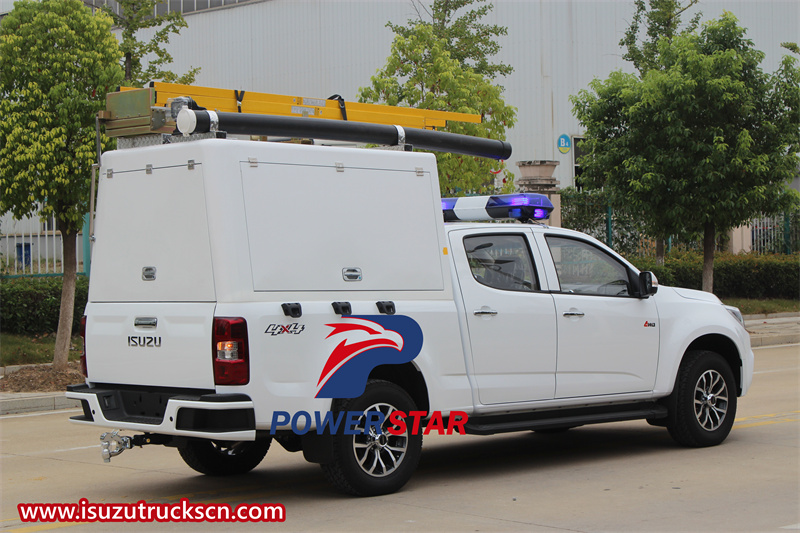

Isuzu 4x4 utility service truck

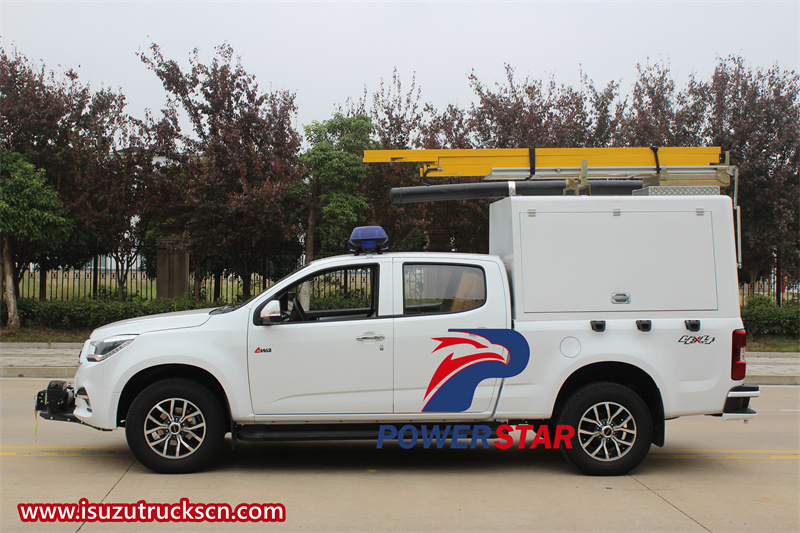

This service truck has a striking, eye-catching exterior design that reflects the power and flexibility inherent in its DNA. The prominent grille, coupled with the iconic Isuzu badge, subtly hints at the mechanical prowess behind it. The rugged bumpers, flared wheel arches and practical lines convey a sense of utility, emphasising that the truck is ready to tackle any task.
At the heart of this powerplant is the powerful 4KH1CT6H1 engine, engineered to deliver optimal performance in all conditions. The Isuzu 4x4 drive mobile service truck has a reliable powertrain that produces 320 torque and 143 horsepower, ensuring it can confidently traverse challenging terrains effortlessly. Whether traversing rocky terrain, muddy trails or steep inclines, this truck's 4x4 drive system provides the traction and control needed to conquer the most demanding environments.
Step inside the spacious cab and you'll find a carefully crafted interior designed with comfort, ergonomics and functionality as top priorities. The vehicle features 2+3 double-row seats that are designed to fit and comfortably support you during long drives, while intuitive controls put essential functions at the driver's fingertips. The dashboard is equipped with a variety of instruments and displays that provide important information about the vehicle's performance and status.

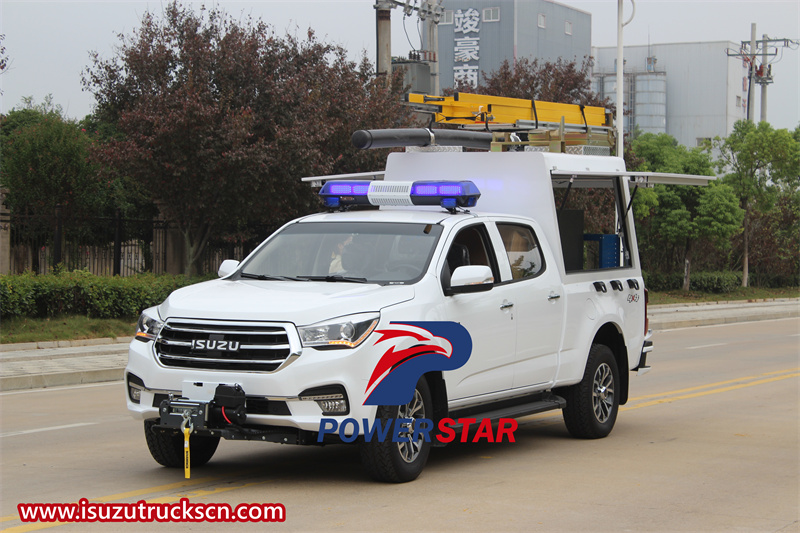

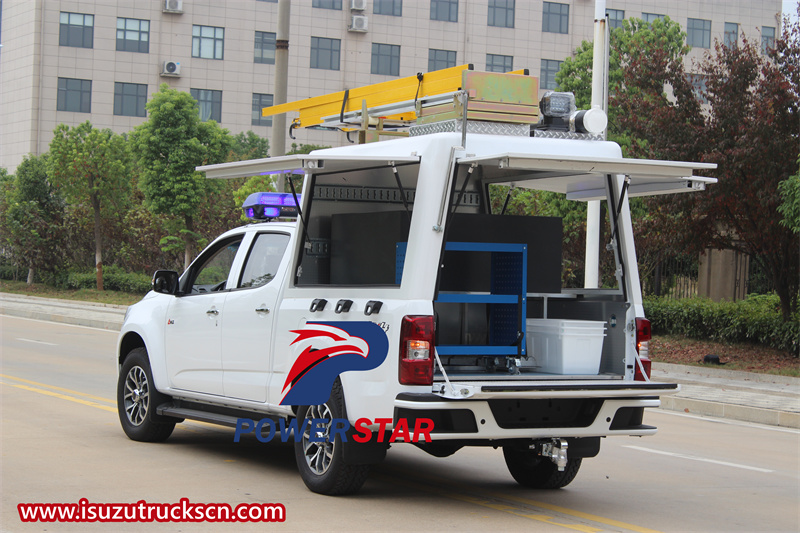

The rear of the Isuzu 4x4 Drive multi-purpose service truck features a carefully crafted tool box that is a veritable equipment storage and organization center. This rear compartment embodies the epitome of functionality, providing ample space for storing tools, spare parts and essential gear while maintaining accessibility and security.

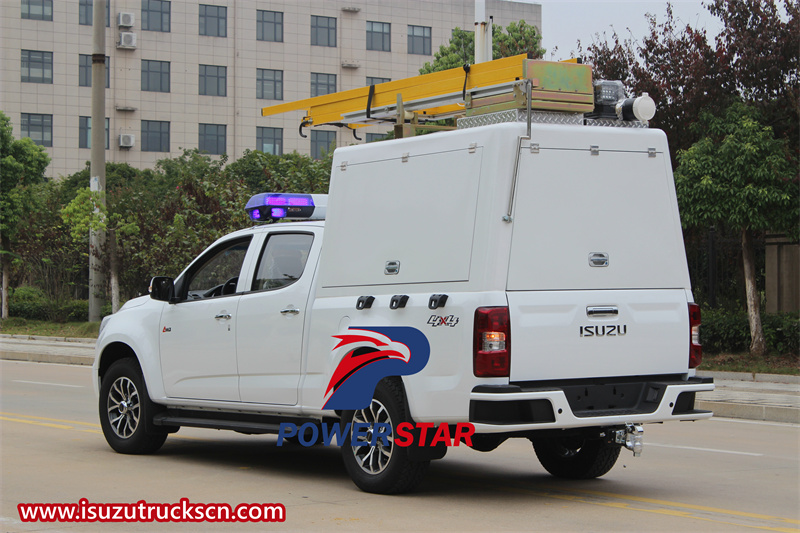

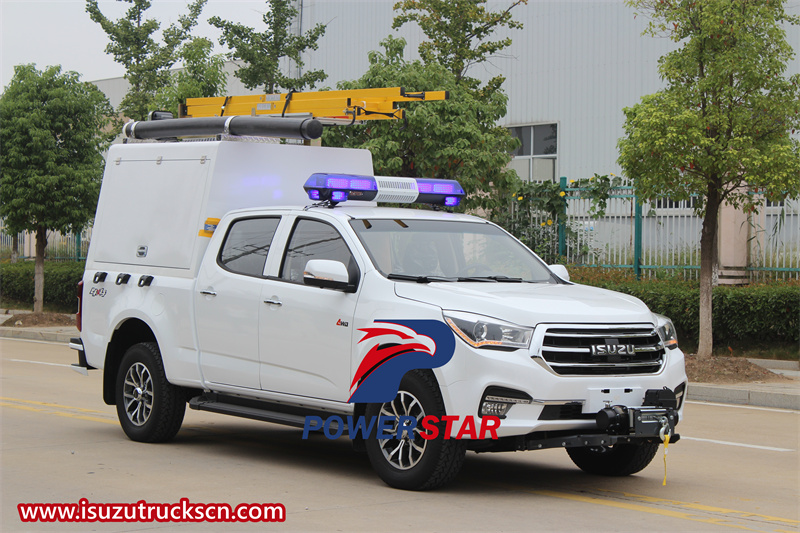

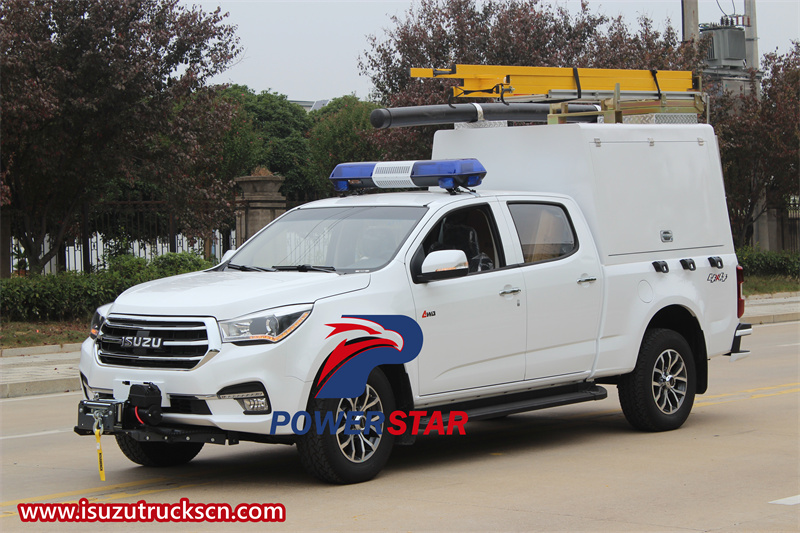

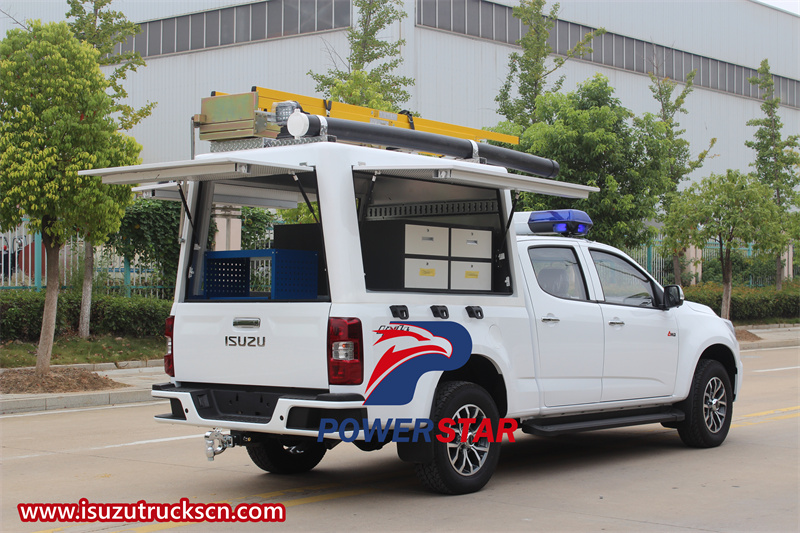

Isuzu 4WD workshop service pick up
The rear tool box of the Isuzu 143 HP pickup service truck is one of the core features of its functionality, designed to be both practical and efficient to meet the needs of a variety of maintenance scenarios. The toolbox is made of reinforced materials to withstand the rigors of daily use, and the doors on both sides and the rear can be supported and extended to facilitate access to tools, reduce pressure on the user's hands and enhance the overall user experience.
The toolbox is divided into two layers for storing tools of different categories and sizes. The upper layer is equipped with a customized multi-functional four-compartment toolbox containing a variety of common repair tools, electrical testing equipment, fasteners and consumables for quick vehicle diagnosis and repair. The lower layer is equipped with a mobile cart for maintenance tools, in addition to three large plastic boxes for use.
The integrated lighting fixtures at the bottom illuminate the interior of the toolbox, ensuring visibility even in dim light conditions. This feature is very useful during night operations or low-light environments, which can improve safety and facilitate work during periods of low visibility. In addition, the lighting system can be easily turned on and off, providing flexibility and saving energy when not in use.
Isuzu 143HP pickup truck maintenance service vehicle, as a high-performance commercial vehicle designed for maintenance, inspection and emergency services, has a wide range of uses covering multiple fields such as industry, agriculture, construction, and transportation, mainly including the following aspects:
1. Road rescue service
Equipped with comprehensive inspection tools and emergency rescue equipment, it can quickly respond to emergencies such as traffic accidents and vehicle failures, and provide on-site repairs, towing, refueling, tire replacement and other services for trapped vehicles to ensure smooth roads and driving safety.
2. Industrial facility maintenance
Suitable for daily maintenance and emergency repairs of industrial facilities such as factories, mines, and oil fields. With strong off-road capabilities and professional inspection toolboxes, it can easily reach every corner of the facility, solve equipment failures, and ensure the stable operation of the production line.

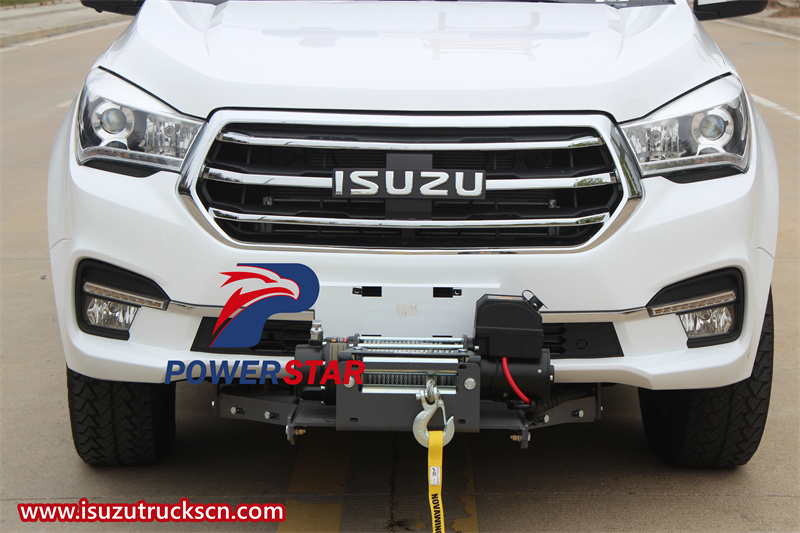

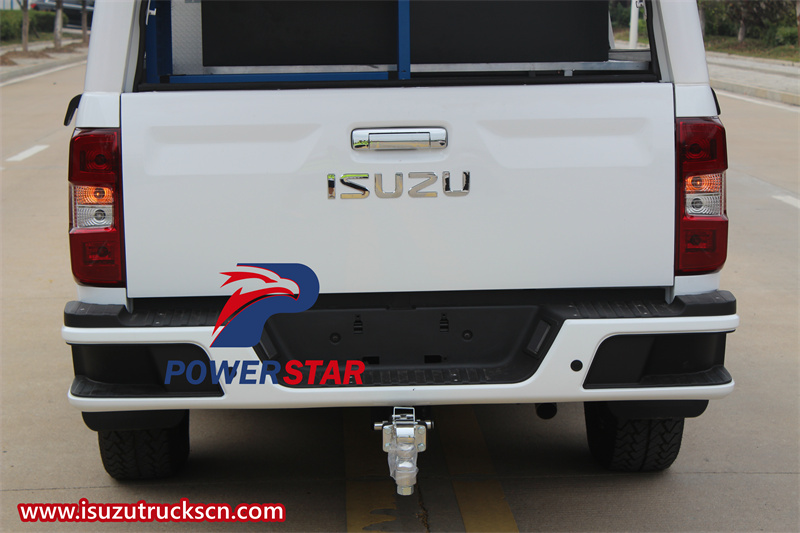

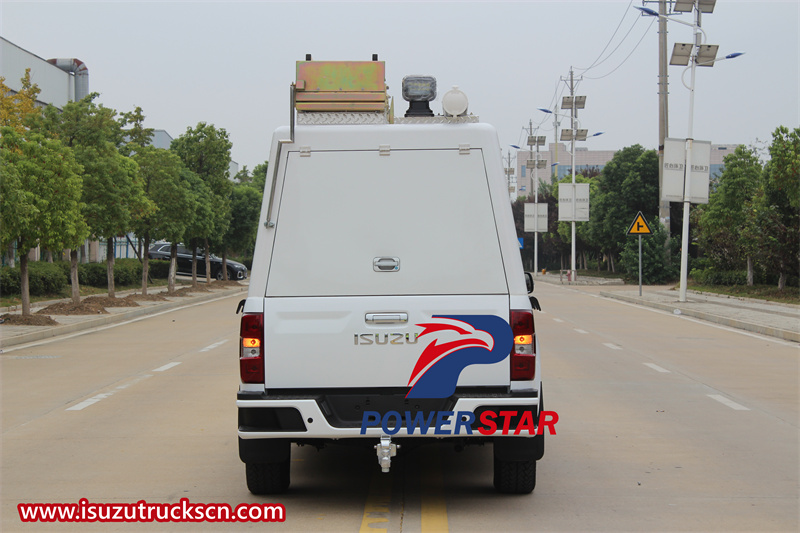

Trailer hook
3. Agricultural machinery maintenance
Provide on-site maintenance services for agricultural machinery such as tractors, harvesters, and seeders in agricultural operating environments such as farmland and farms. The vehicle's high ground clearance and four-wheel drive system enable it to cross the fields and repair mechanical failures in time to ensure that agricultural production is not affected.
4. Construction support
At construction sites, this vehicle can be used to transport small construction materials, tools and equipment, while providing on-site maintenance services for construction machinery. Its sturdy body structure and spacious storage space can meet the diverse needs of construction sites.

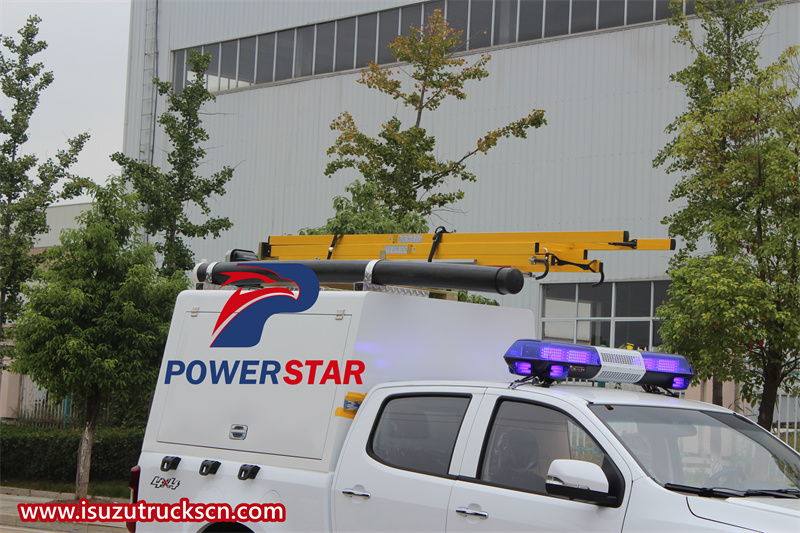

Pillow,Ladder and φ125 pipeline

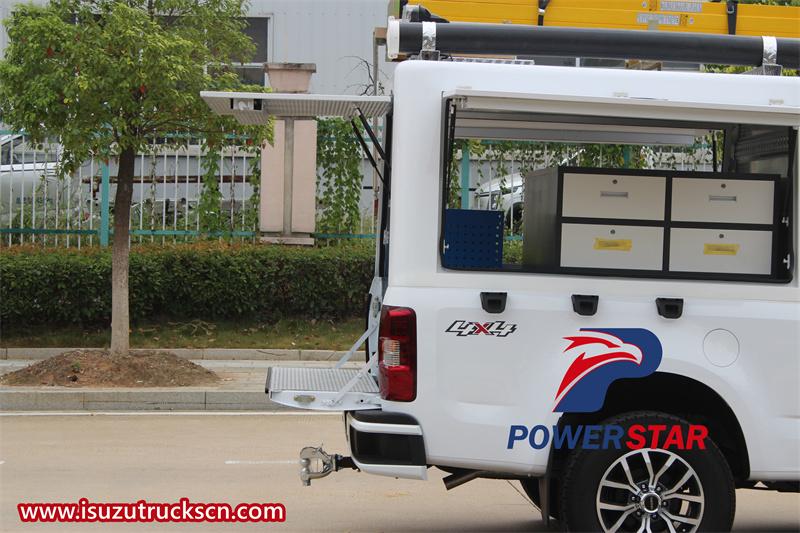

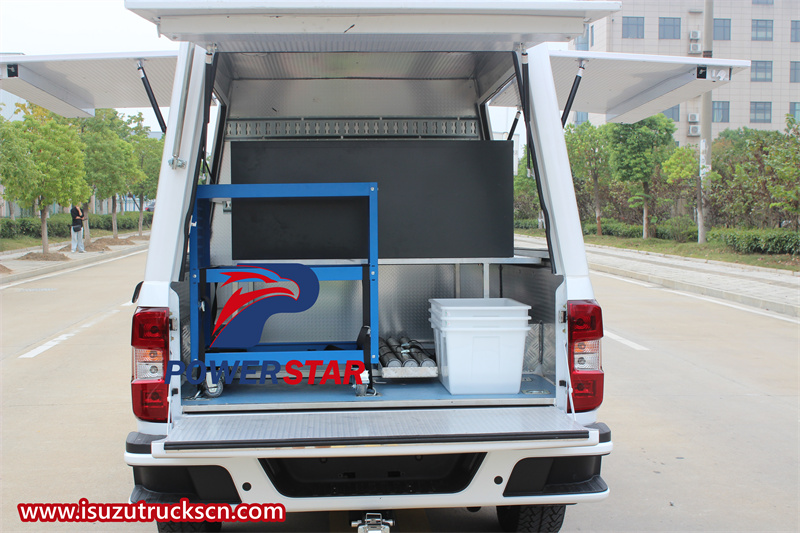

Four drawer tool box
5. Power and communication facility inspection
Equipped with professional testing instruments and maintenance tools, it is used for inspection and maintenance of infrastructure such as power lines and communication base stations. The vehicle's high mobility and stable power system support long-term operations in remote or complex terrains, ensuring the safe operation of infrastructure.
6. Urban public services
In urban environments, it can be used for inspection and maintenance of urban lighting, traffic signals, public facilities, etc. The vehicle's efficient communication and navigation systems enable it to quickly respond to urban service needs and improve public service efficiency.

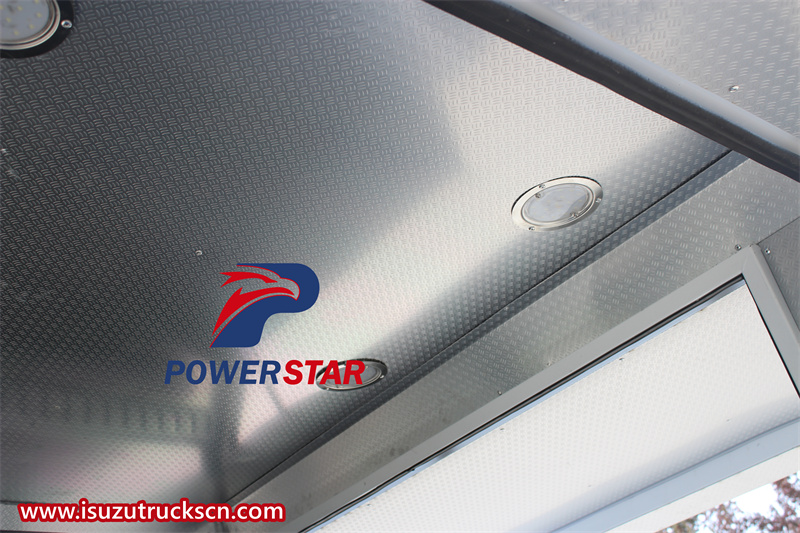

Lighting
The Isuzu 4x4 all-wheel drive pickup truck mobile service vehicle produced by POWERSTAR is modified based on the Isuzu all-wheel drive pickup truck. The vehicle is equipped with a 4KH1CT6H1 143HP engine, provides a 3406mm wheelbase, and has a maximum torque of 320N·m. It is matched with an Isuzu MSB 5-speed transmission, which has strong power and smooth shifting. The tool box at the rear of the vehicle can be equipped with the required service tools according to needs.
Learn More
The ISUZU mobile workshop based on Isuzu TAGA 4x4 offroad Super Duty Chassis truck equipped with a 3.0L Power Stroke diesel engine and a 5-speed manual transmission is able to provide prompt delivery of a work team, tools and equipment for emergency service and vehicle repairs, mobile maintenance of machinery and equipment or preforming construction work. POWERSTAR TRUCKS produced Mobile workshops can be based on chassis of Ford Super Duty, Kenworth, Chevrolet, Dodge, Peterbilt, Mack, Toyota and other name brand trucks, that allow you to carry out various types of accessories needed to per job, and even in hard-to-reach remote areas.
Learn More
This Isuzu 4x4 pick-up with aerial platform is a highly versatile vehicle. It adopts a four-wheel drive system and is equipped with a 2999cc 4KH1CT6H1 diesel engine with a maximum output power of 143 horsepower. The uniqueness of this pickup truck is that it is equipped with an aerial work platform. The platform has a maximum working height of up to 10 meters, a maximum working radius of 5.9 meters, and a load capacity of 200kg. The platform adopts a folding boom design, can rotate 360 °, and is equipped with an intelligent electronic control system and a number of safety devices, such as an emergency pump, emergency stop of the hanging basket, and an automatic interlocking device. The vehicle chassis adopts a 5 forward 1 reverse gearbox, equipped with a power steering system, and uses 245/70R17LT tires. The whole vehicle meets the Euro VI emission standards and is suitable for various complex terrains and aerial work needs. It is an ideal tool for urban construction, power maintenance, landscaping and other fields.
Learn More
Good price ISUZU ELF 700P 8CBM rear loading waste collection truck, durable ISUZU 6 wheeler 8CBM garbage compactor trucks, ISUZU refuse compactor manufacturer.
Learn More
Official factory for Isuzu KV800 4JZ1-TCG60 refuse compactor truck, 6~8cbm garbage box, 3mm side wall, 4mm bottom plate, quality carbon steel made; famous brand hydraulic system, with garbage bin slip-over mechanism for 1100L garbage bins; manual control and electro-hydro control system; with sewage water collection tank. Isuzu KV800 compactor garbage truck is a new type of sanitation vehicle specially used for collecting and transporting garbage.
Learn More

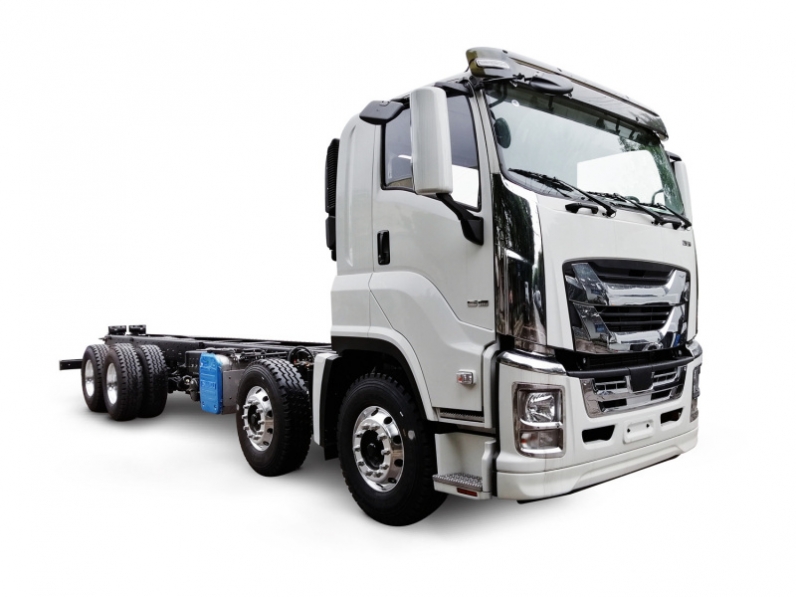

Isuzu Giga 8x4 12 wheels Cargo Tank Fire Truck chassis cab, Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Condition New Steering Left Emission Standard Euro 5/6 Brand Name ISUZU GIGA Place of Origin China SUIZHOU Segement Heavy truck Market Segement Logistics transportation Engine Brand ISUZU Fuel Type Diesel Engine Capacity > 15.6L Cylinders 6 Horsepower 350hp, 420hp, 460hp, 520hp Gear Box Brand FAST 12-shift Transmission Type Manual Forward Shift Number 10 Reverse Shift Number 2 Maximum Torque(Nm) 1500-2000Nm Size 11182*2496*3215 Cargo Tank Dimension 8600*2400*500mm Cargo Tank length ≥8m Cargo Tank Type Chassis Gross Vehicle Weight 15001-20000 kg Capacity (Load) 31 - 40T Fuel Tank Capacity 300-400L Drive Wheel 8X4 Passengers 3 Driver's Seat Normal Seat Rows Half a row Rear Camera None Cruise Control Normal ABS(Antilock Braking System) Yes ESC(Electronic Stability Control System) Yes Touch Screen None Multimedia System Yes Window Manual Air Conditioner Manual Tire Number 12 After-sales Service Provided Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service Product name Heavy Duty Cargo Truck Chassis Brand ISUZU GIGA Engine 6WG1-TCG52 Color Customer's Request
Learn More

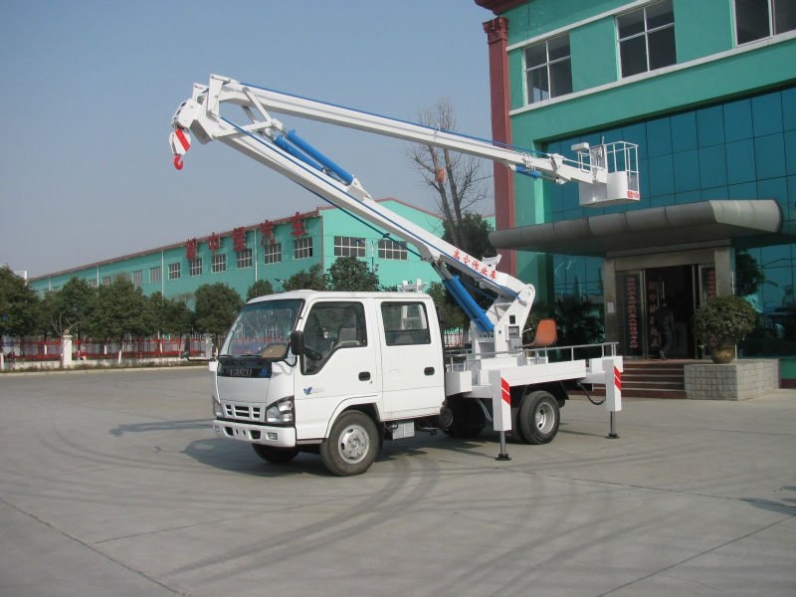

hydraulic beam lifter, bucket truck, bucket boom truck, truck mounted aerial lift, telescopic platform truck, aerial working platform, truck mounted beam lifter, articulate telescopic aerial platform
Learn More

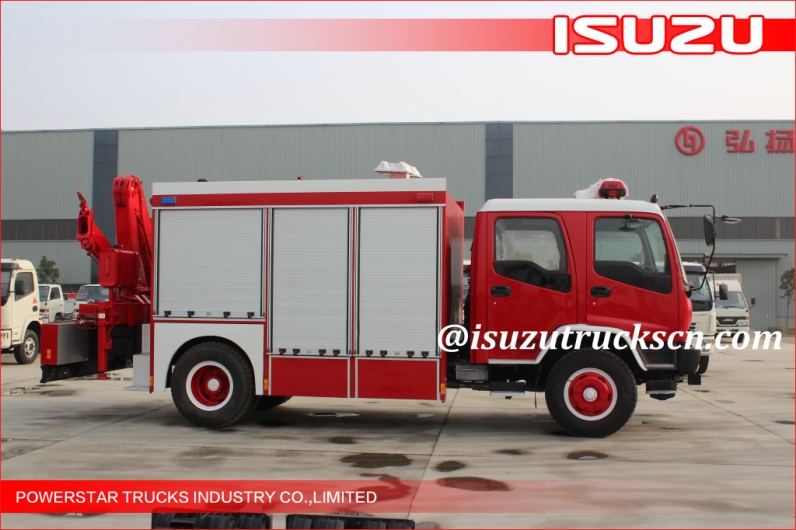

ISUZU Emergency Rescue Vehicle, ISUZU FIRE TRUCK WITH TRUCK CRANE,ISUZU Lighting FIRE FIGHITNG VEHICLES WITH LAMP, isuzu water foam supply truck, ISUZU FOAM FIRE TRUCK.
