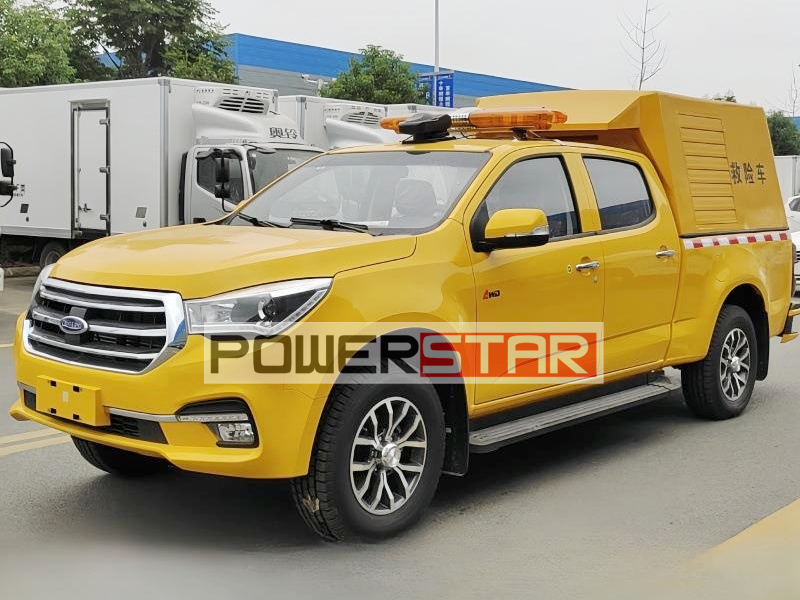

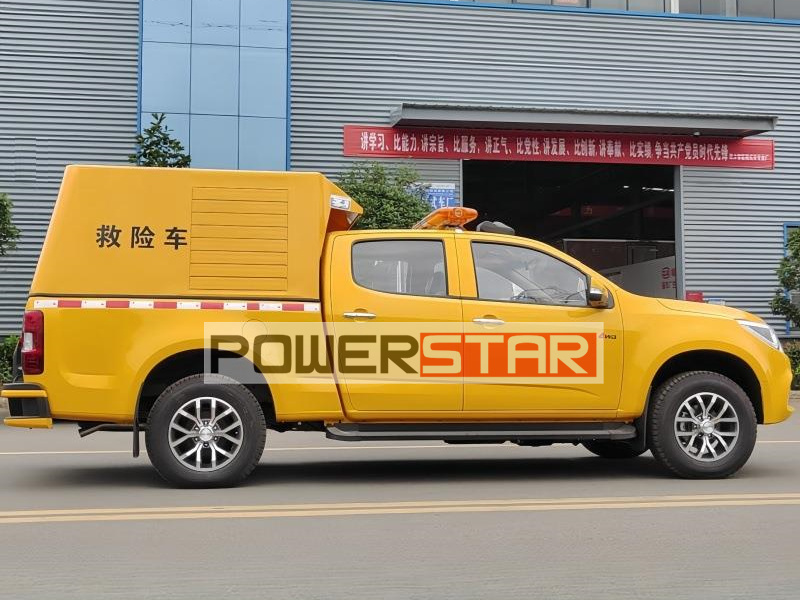

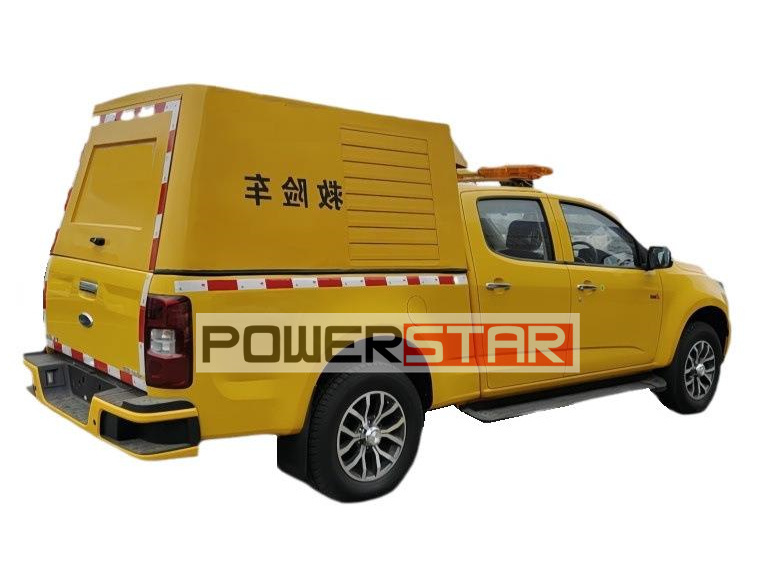

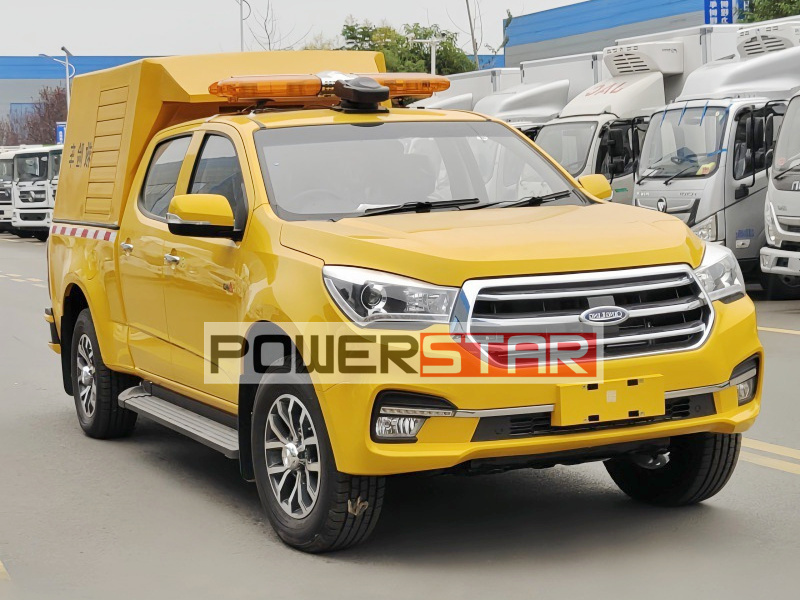

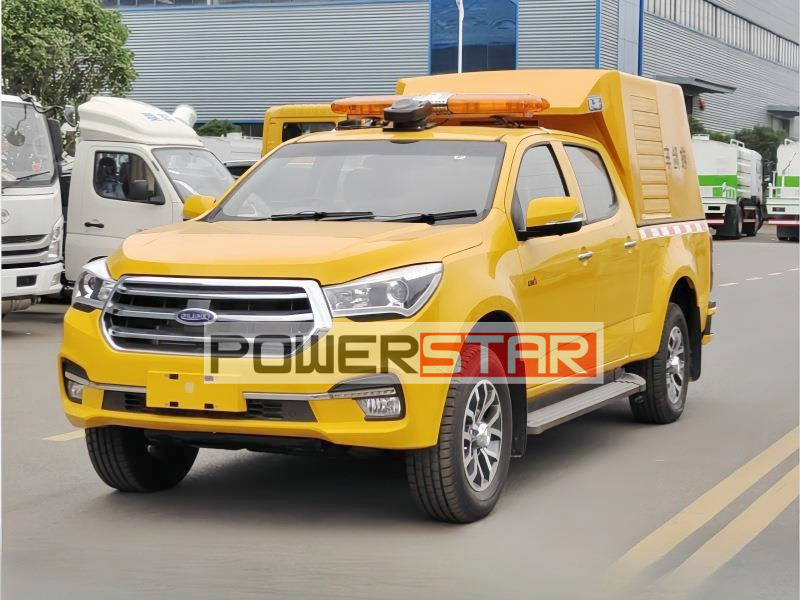

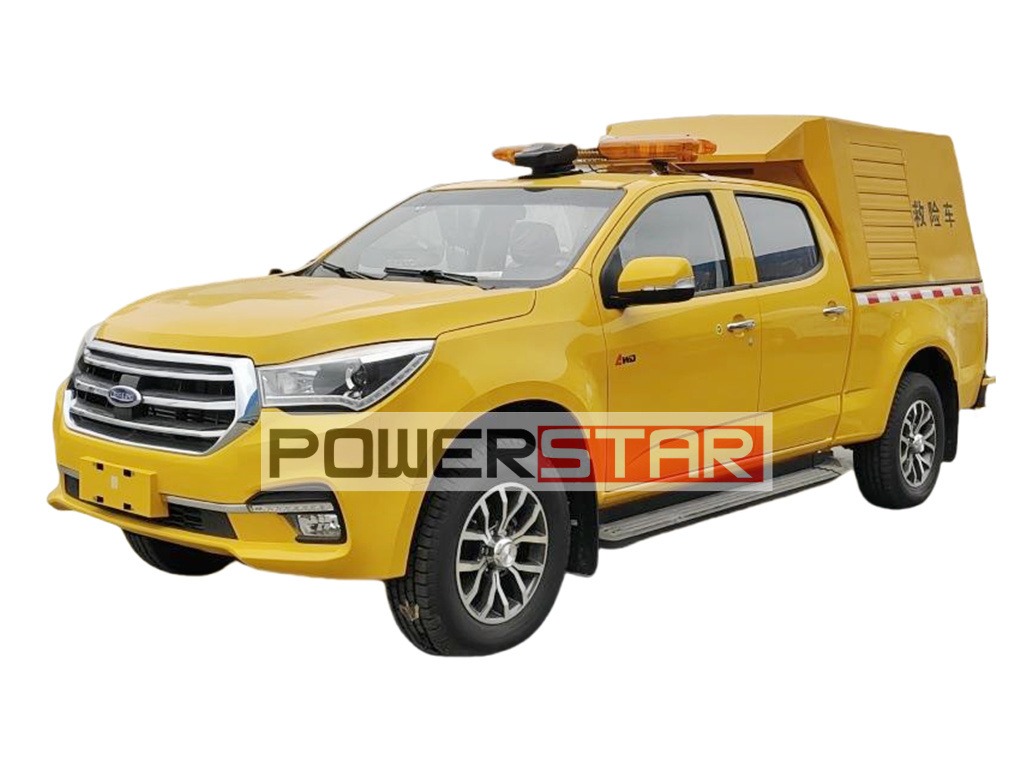

The ISUZU mobile workshop based on Isuzu TAGA 4x4 offroad Super Duty Chassis truck equipped with a 3.0L Power Stroke diesel engine and a 5-speed manual transmission is able to provide prompt delivery of a work team, tools and equipment for emergency service and vehicle repairs, mobile maintenance of machinery and equipment or preforming construction work. POWERSTAR TRUCKS produced Mobile workshops can be based on chassis of Ford Super Duty, Kenworth, Chevrolet, Dodge, Peterbilt, Mack, Toyota and other name brand trucks, that allow you to carry out various types of accessories needed to per job, and even in hard-to-reach remote areas.
Work capacity:
900kgTruck model:
PT5030GXZEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:

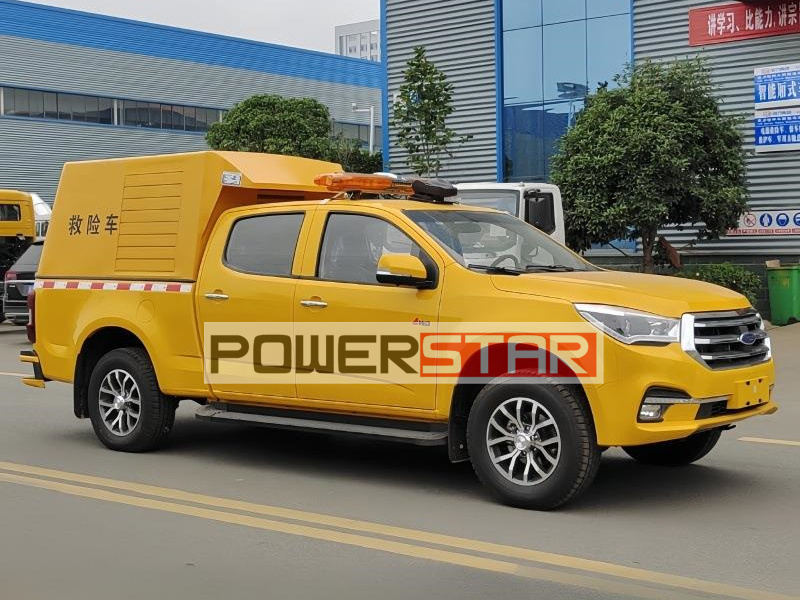

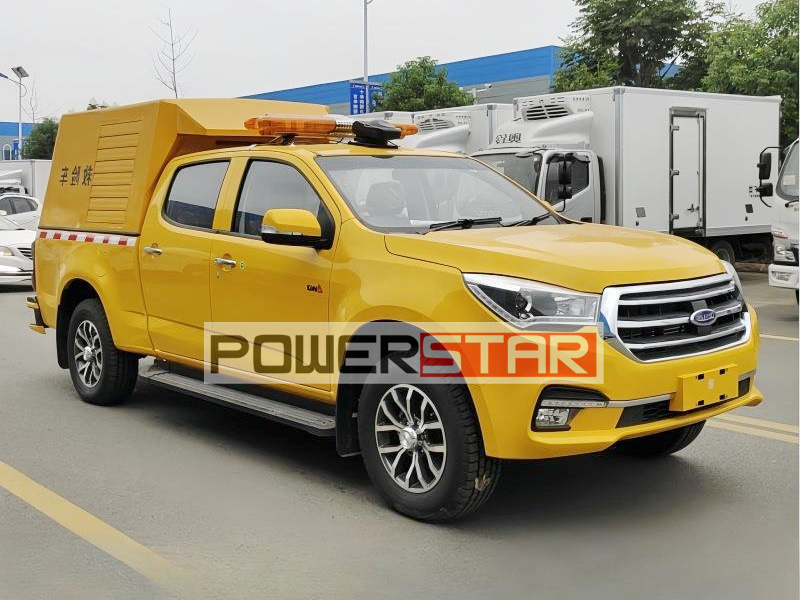

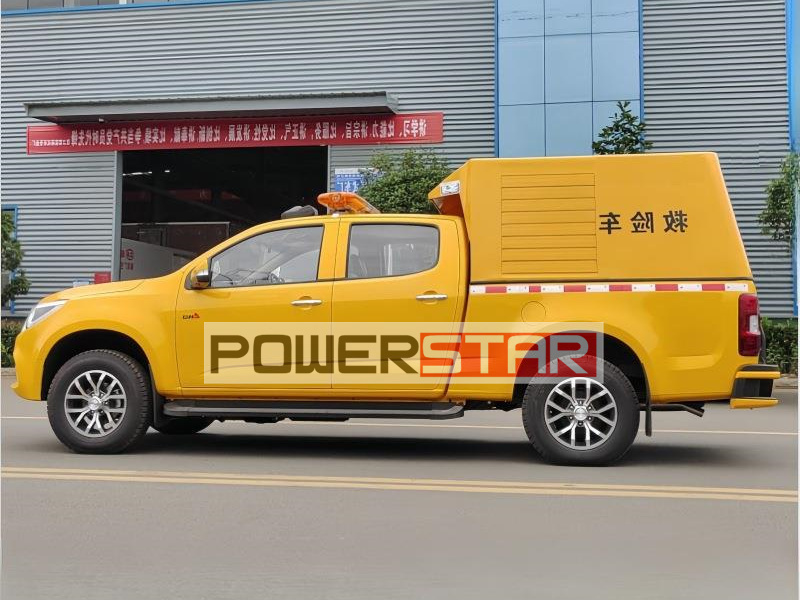

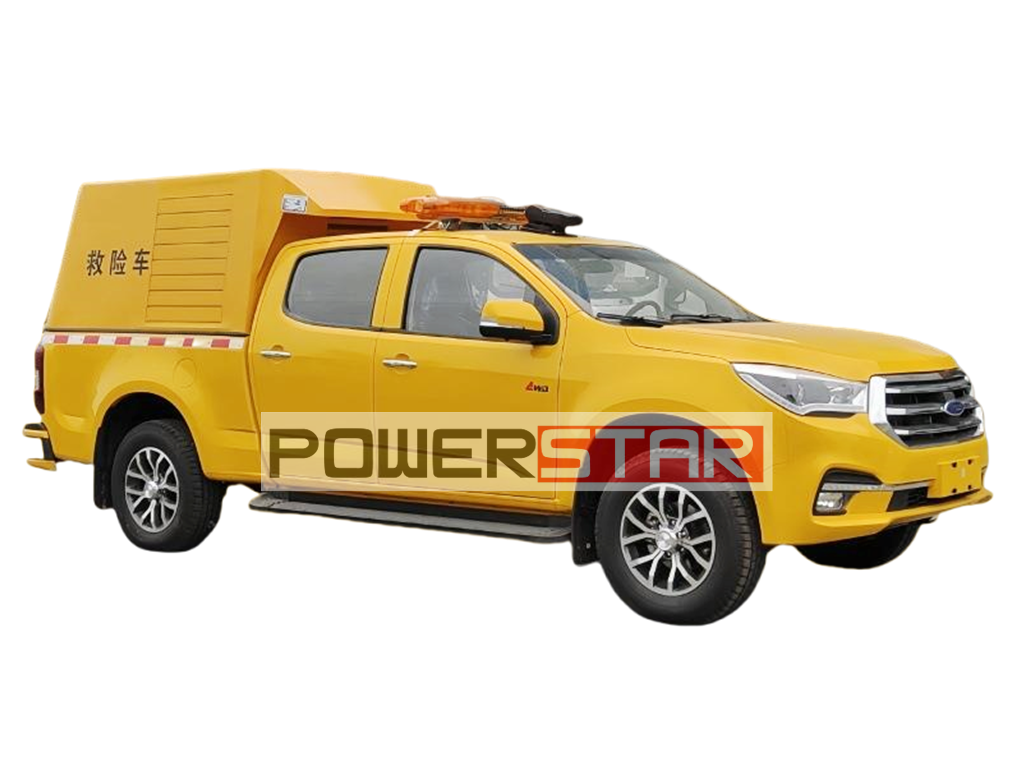

Customized cargo body sizeISUZU pickup mobile workshop truck is a special rescue vehicle modified based on ISUZU 4x4 super powerful pickup truck. The Isuzu pickup truck model itself is a kind of light truck equipped with a roofless cargo box behind the cab, and the cargo box side panels are integrated with the cab. It can also be understood as a passenger and cargo dual-purpose vehicle with a front similar to a sedan and a cargo box at the rear. The Isuzu pickup mobile workshop truck has been professionally modified on this basis to meet the needs of emergency rescue.
ISUZU pickup mobile workshop vehicles are special rescue trucks with high mobility, versatility and easy operation. It is widely used in emergency rescue, earthquake relief, fire fighting and other fields.
High mobility: Since the Isuzu 4x4 model pickup truck model itself has good off-road capabilities and passability, the ISUZU pickup cargo truck also inherits these advantages and can quickly reach the rescue site in complex terrain and harsh road conditions.
Versatility: The ISUZU pickup truck rescue vehicle can be equipped with various emergency rescue equipment according to different industries, such as drainage pumps, fire-fighting equipment, etc., to meet the rescue needs of different fields. For example, when used as a large-flow drainage rescue vehicle, the vehicle is equipped with a diesel generator set and a drainage pump to quickly carry out flood prevention and rescue operations; when used as a forest fire truck, it is equipped with professional fire extinguishing equipment and a large-capacity water tank to deal with emergencies such as forest fires.
Easy to operate: ISUZU mobile workshop trucks usually use blue license plates, are not restricted in entering the city, and can be driven with a personal license, making operation more convenient and flexible.
Original Japanese ISUZU technology TAGA 4x4 offroad pickup mobile maintenance truck mounted with customized cargo body. Isuzu 4x4 pickup rescue mobile shopshop truck chassis with model QL1030CZHW2, double cabin row with 2+3 seats, independent safety belt equipped, also the airbags for front driver seat and passenger seat. Japanese design 4KH1CT6H1 model diesel engine 105KW / 143HP, and emission 2999cc with EURO 6 standard. ISUZU brand 5 shift manual gearbox with 5 forward and 1 reverse. 4x4 offroad driving model with electric control, convenient for working. 245/70R17LT 10PR tires can be customized as offroad type, Aluminium alloy wheel rim, both front and rear equipped disc brake, ABS+EBD+ESC for safety guarantee. Remote control key, tire inspection system, front and rear electric windows and equipped with electric folding function. Air conditional for warm and cooling function.
ISUZU Pickup Mobile Workshop Truck is a powerful, flexible and versatile rescue and maintenance vehicle that can provide effective rapir support in a variety of scenarios. This workshop is a self-contained, mobile container providing a technician with an optimal location to perform the work required to maintain your equipment for superior performance and availability. It has a complete electric and compressed air line systems; connections are located in a lockable box on the container and the unit can be transported via forklift. The mobile workshop is available in a variety of configurations and is customized to each order.
| ISUZU mobile workshop truck Products Technical Specification | ||
| Brand-Series | ISUZU | |
| Product Name | 4*4 Mobile Workshop Truck | |
| Chassis Model | QL1030CZHW2 | |
| Emission Standard | Euro 6 | |
| Fuel type | Diesel | |
| Cabin | TAGA, Double row with 2+3 seats | |
| Whole vehicle main dimensions (mm) |
Overall dimensions (L×W×H) | 5850*1900*2250 |
| Wheel base | 3406 | |
| Front overhang | 945 | |
| Rear overhang | 1350 | |
| Min. ground clearance | 250 | |
| Weight data (kg) | G.V.W | 3295 |
| Curb weight (chassis) | 2400 | |
| Max payload | 1500 | |
| Whole vehicle main performance |
Max. speed (km/h) | 110 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | 4KH1CT6H1 |
| Maximum power | 105kw / 143hp | |
| Number of cylinders | 4 | |
| Displacement (L) | 2.999 | |
| Engine Manufacturer | ISUZU ENGIEN | |
| Transmission | Model | ISUZU |
| Number of gears | 5 forward gears& 1 reverse | |
| Axle |
Front / Rear Load capacity |
1350 / 1945 |
| Angle | Approaching and Departure |
33 / 26 |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Disc braking |
| Electric device | Rated voltage | 12V |
| Tyres & Quantity | 245/70R17LT 10PR & 4+1 | |
The Isuzu 4x4 all-wheel drive pickup truck mobile service vehicle produced by POWERSTAR is modified based on the Isuzu all-wheel drive pickup truck. The vehicle is equipped with a 4KH1CT6H1 143HP engine, provides a 3406mm wheelbase, and has a maximum torque of 320N·m. It is matched with an Isuzu MSB 5-speed transmission, which has strong power and smooth shifting. The tool box at the rear of the vehicle can be equipped with the required service tools according to needs.
Learn More
The Isuzu 4x4 all-wheel drive maintenance vehicle is a vehicle used for emergency service maintenance of trapped vehicles. It is modified based on the Isuzu all-wheel drive pickup truck with a tool room added to the rear. It uses a powerful 4KH1CT6H1 engine with 143 horsepower, is equipped with an Isuzu MSB 5-speed transmission with smooth shifting, and a 76L diesel fuel tank. It can provide long-distance driving and provide protection for service maintenance vehicles. It is widely used in industry, agriculture, construction, transportation and other fields.
Learn More
This Isuzu 4x4 pick-up with aerial platform is a highly versatile vehicle. It adopts a four-wheel drive system and is equipped with a 2999cc 4KH1CT6H1 diesel engine with a maximum output power of 143 horsepower. The uniqueness of this pickup truck is that it is equipped with an aerial work platform. The platform has a maximum working height of up to 10 meters, a maximum working radius of 5.9 meters, and a load capacity of 200kg. The platform adopts a folding boom design, can rotate 360 °, and is equipped with an intelligent electronic control system and a number of safety devices, such as an emergency pump, emergency stop of the hanging basket, and an automatic interlocking device. The vehicle chassis adopts a 5 forward 1 reverse gearbox, equipped with a power steering system, and uses 245/70R17LT tires. The whole vehicle meets the Euro VI emission standards and is suitable for various complex terrains and aerial work needs. It is an ideal tool for urban construction, power maintenance, landscaping and other fields.
Learn More
Isuzu GIGA dump truck is a powerful heavy-duty truck equipped with a high-performance engine that provides reliable power output. With excellent load capacity and unloading efficiency, it is suitable for heavy-duty work scenarios. GIGA dump truck has a flexible unloading mechanism and a structure that is easy to maintain, while focusing on the comfort and safety of the driver. The overall design is designed to achieve high-efficiency transportation, provide users with reliability and operational convenience, and become an ideal choice for the logistics and construction industries.
Learn More

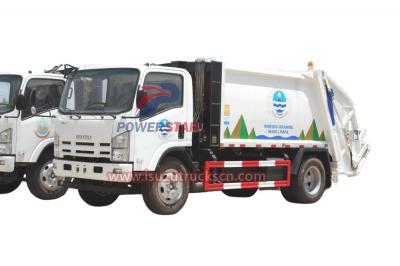

The Isuzu FTR garbage compactor truck is modified with Isuzu Category II chassis.The truck has good chassis performance, strong power, curved upper body design, advanced and beautiful appearance, reasonable structure, complete configuration, new CAN bus control system, electrical integration design, automated operation, and high work efficiency, easy to operate and maintain, optional rear bucket flip mechanism or garbage bucket flip mechanism, especially suitable for garbage collection, compression and transfer in urban and rural areas.
