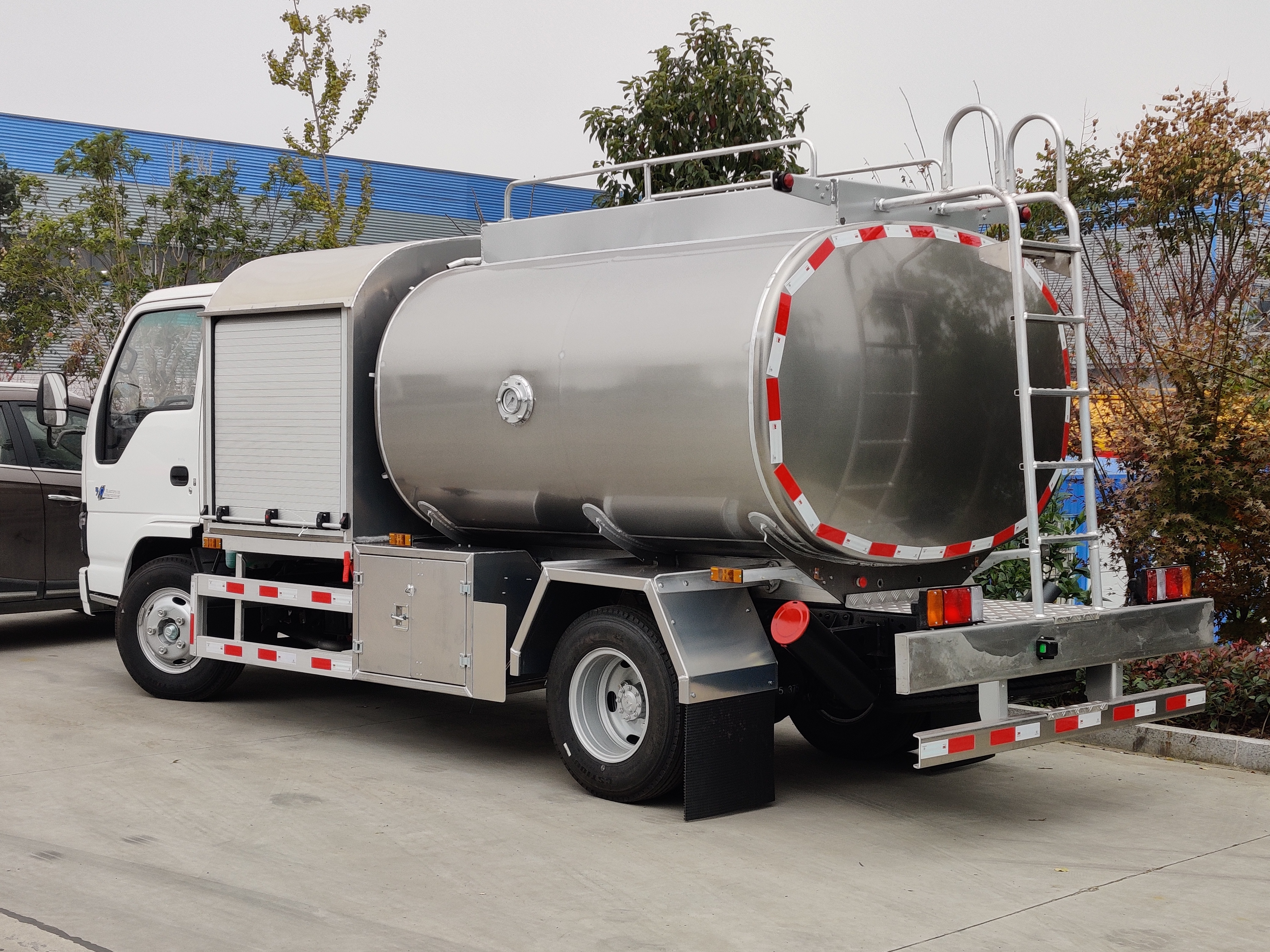

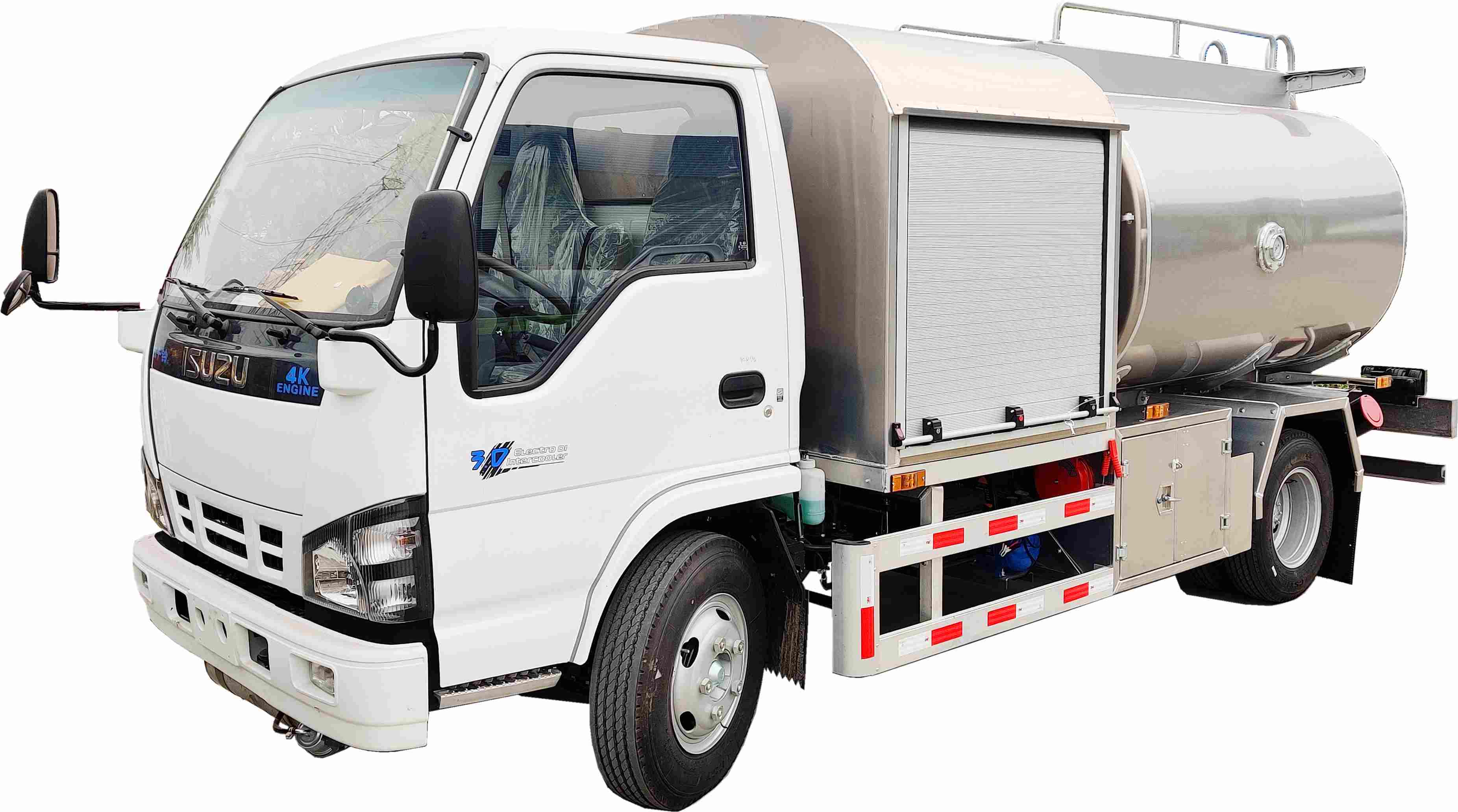

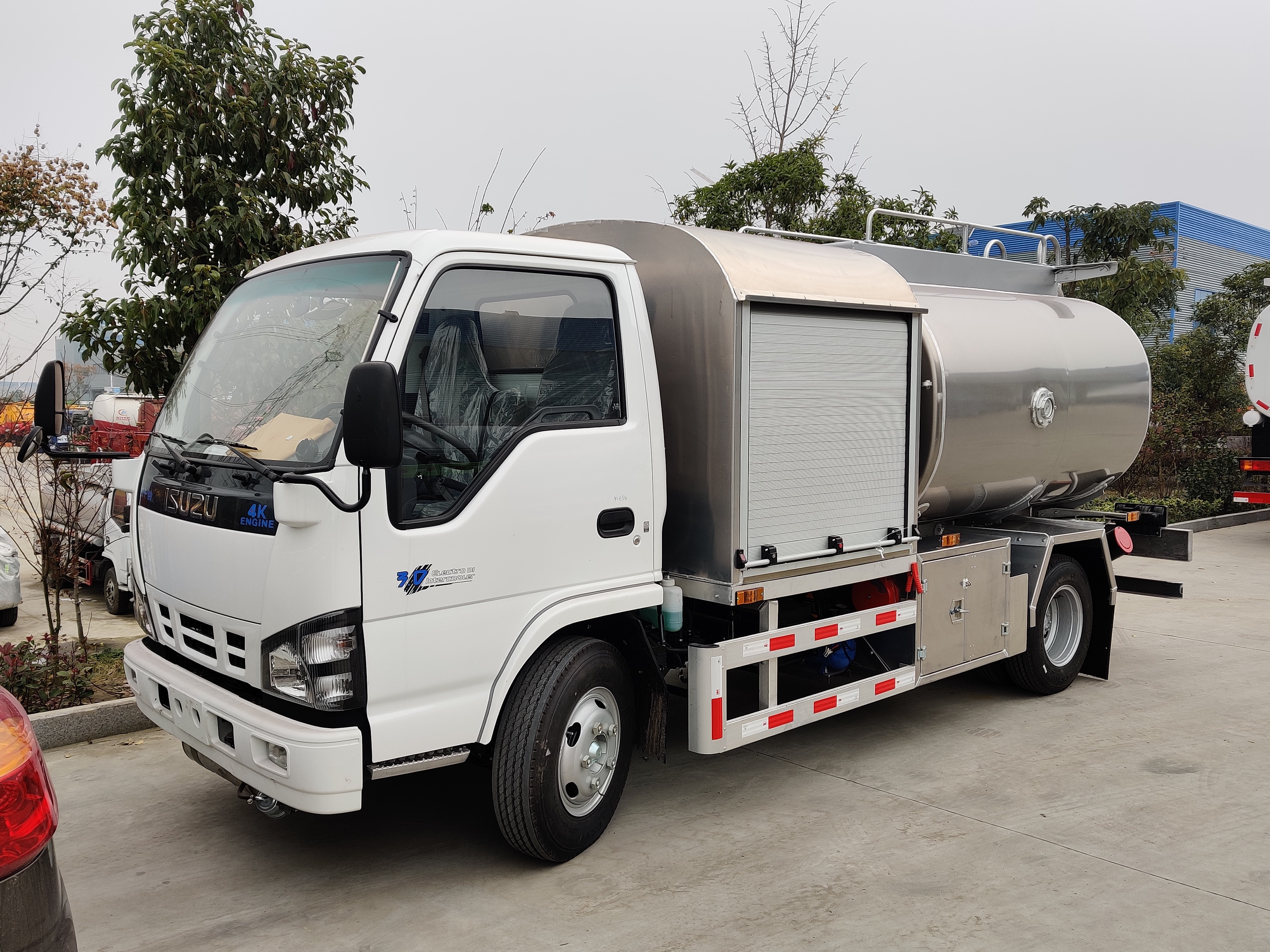

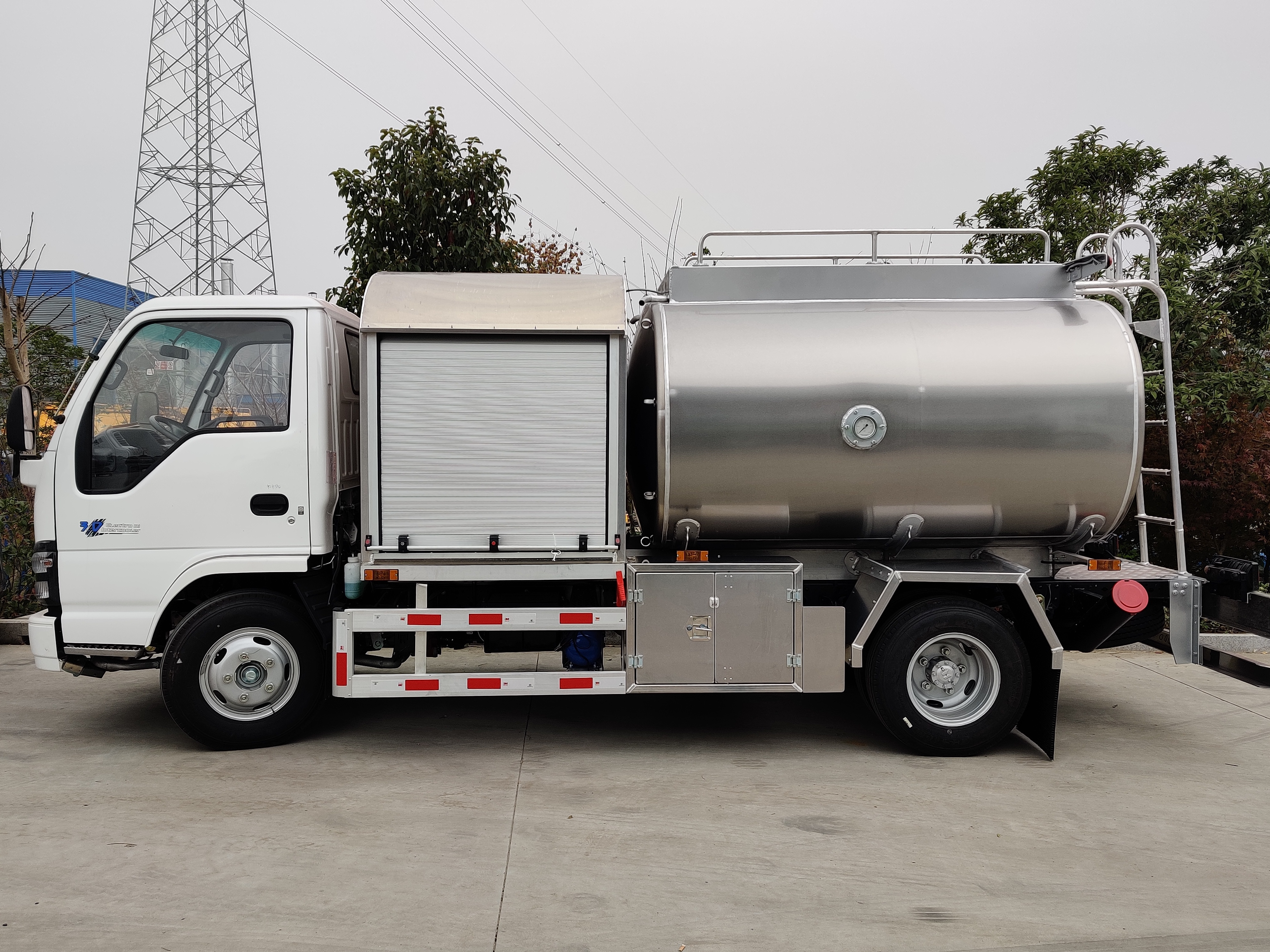

Isuzu Jet A1 and Avgas Refueling Trucks
Isuzu Jet A1 refueling truck is very suitable for airports of all sizes due to its efficient and reliable refueling capacity, especially those airports with high requirements for refueling efficiency, safety and stability. including large international airports, medium-sized airports, small and branch airports, and military airports, with its efficient, reliable and flexible fuel filling capacity.
Work capacity:
6500LTruck model:
PT5080Engine power:
120HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSB 5-shiftRemarks:
different capacity availableIsuzu Jet A1 Aircraft Refueler Trucks, or Isuzu Jet and Avgas Refueling Trucks, are ground support equipment specially designed to provide fuel to aircraft. The following is a detailed description of this refueler truck:
1. Main Purpose
Isuzu Jet A1 Aircraft Refueler Trucks are mainly used for refueling operations for Jet A1 type aviation kerosene aircraft. Jet A1 is a widely used aviation kerosene suitable for various jet aircraft.
2. Functional Features
Large-capacity fuel storage: This type of refueler truck is usually equipped with a large-capacity fuel tank that can store enough Jet A1 aviation kerosene to meet the needs of multiple refueling operations.
Efficient refueling: The refueler truck can efficiently and accurately deliver fuel to the aircraft's fuel tank through an advanced pumping system and pressure regulating device.
Fuel purification: During the refueling process, the refueler truck will also purify the fuel to ensure that the quality of the fuel provided to the aircraft meets the standards and avoid damage to the aircraft engine.

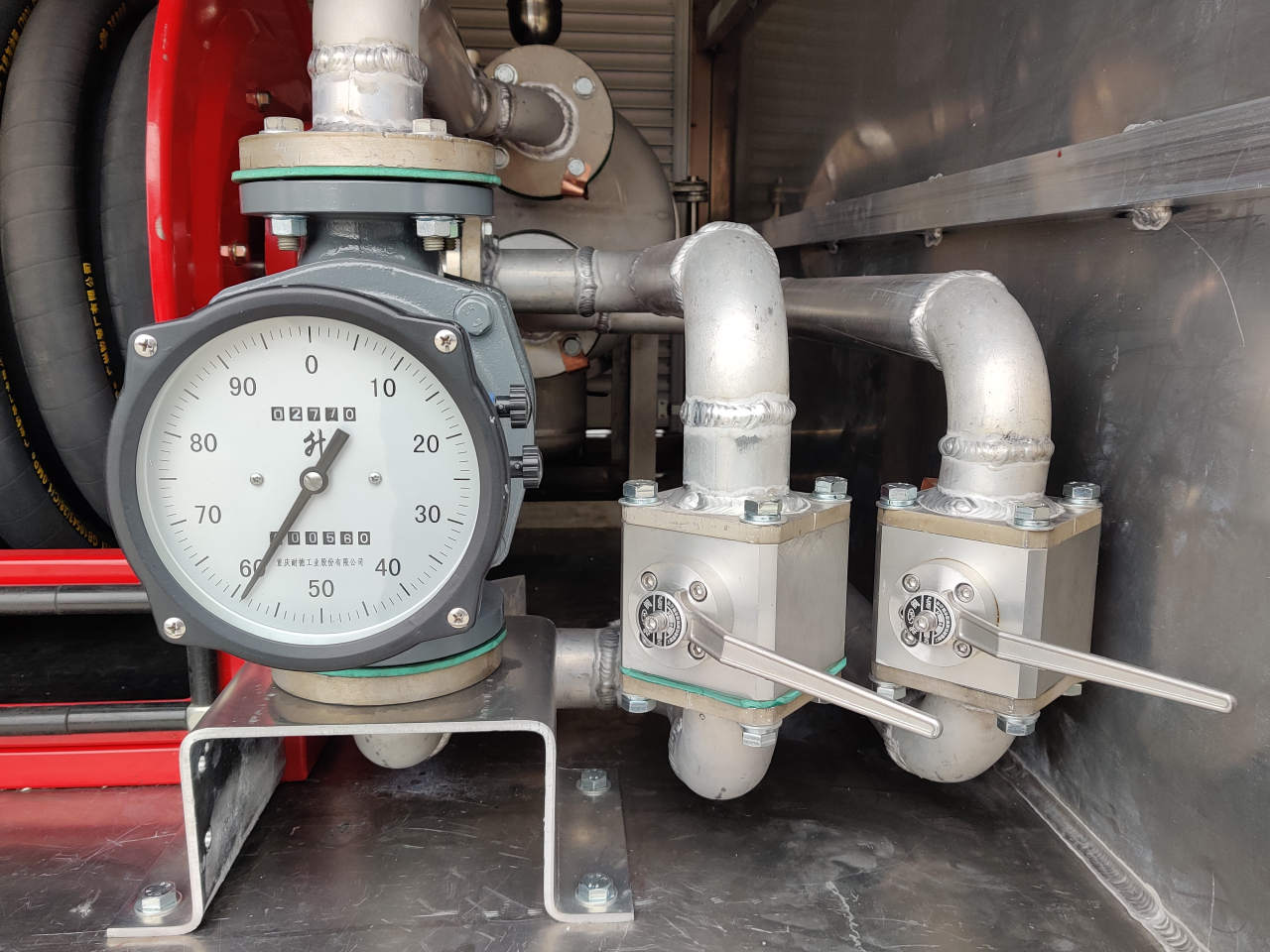

Metering function: The refueler truck is equipped with a precise metering device that can monitor the refueling volume in real time to ensure the accuracy and safety of the refueling operation.
3. Technical Specifications
The technical specifications of Isuzu Jet A1 Aircraft Refueler Trucks vary by model and manufacturer, but generally include the following aspects:
Vehicle size: The length, width and height of the refueler truck will vary according to the model and tank capacity.
Engine: The engine of Isuzu or other well-known brands is adopted to provide strong power output to ensure the stable operation of the refueler truck under various road conditions.
Fuel tank material: The fuel tank is usually made of corrosion-resistant materials such as aluminum alloy or stainless steel to ensure the quality and safety of the fuel.
Refueling speed: The refueling speed depends on the performance of the pumping system and the setting of the pressure regulating device, which can usually meet the refueling needs of different aircraft.
4. Application scenarios
Isuzu Jet A1 Aircraft Refueler Trucks are widely used in ground support services at various civil and military airports. They can provide efficient refueling operations for various jet aircraft to ensure the normal operation and flight safety of the aircraft. In addition, this type of refueler can also be seen in places such as airline maintenance bases and training centers.
| Model | Fuel tank truck PT508GJYE3A | ||||
| General specification | Gross weight | 8500kg | |||
| Curb weight | 5000kg | ||||

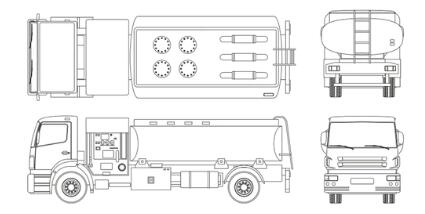

| Overall dimension | 7000*21000*2750mm | ||||
| Chassis specification |
Chassis model | ISUZU NKR/600P | |||
| Chassis brand | ISUZU | ||||
| Drive mode | 4X2 | ||||
| Fuel type | Diesel | ||||
| Steering type | LHD/RHD | ||||
| Rated passenger | 3 | ||||
| Tire number | 6+1spare tire | ||||
| Tire type | 7.50R16 | ||||
| Wheelbase | 3815mm | ||||
| Front tread/Rear tread | 1130/2070mm | ||||
| Gear box | ISUZU MLB 5 forward+1 reverse | ||||
| Emission standard | Euro 3 | ||||
| Engine specification | Engine Brand | ISUZU | |||
| Engine model | 4KH1 120hp | ||||

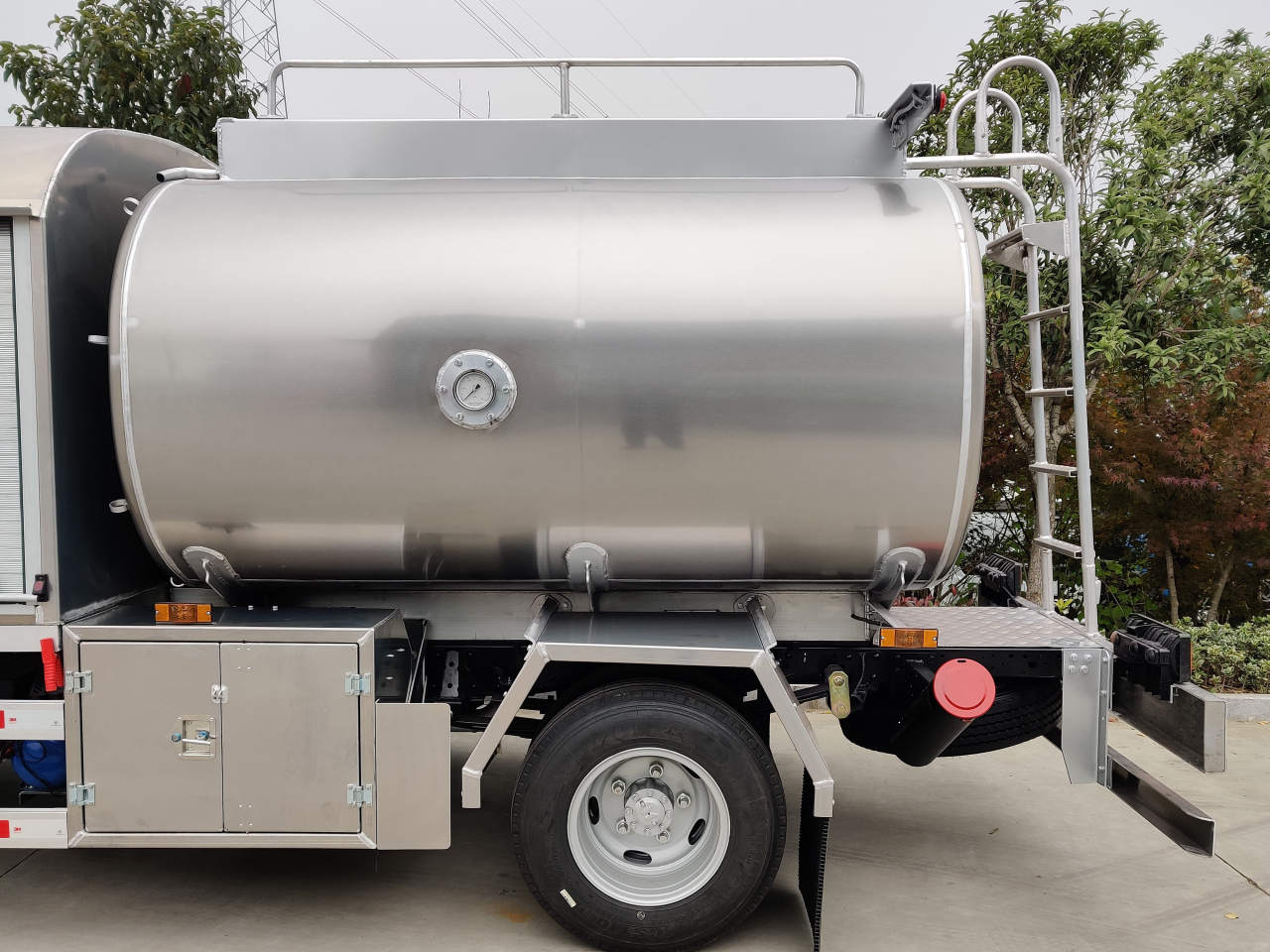

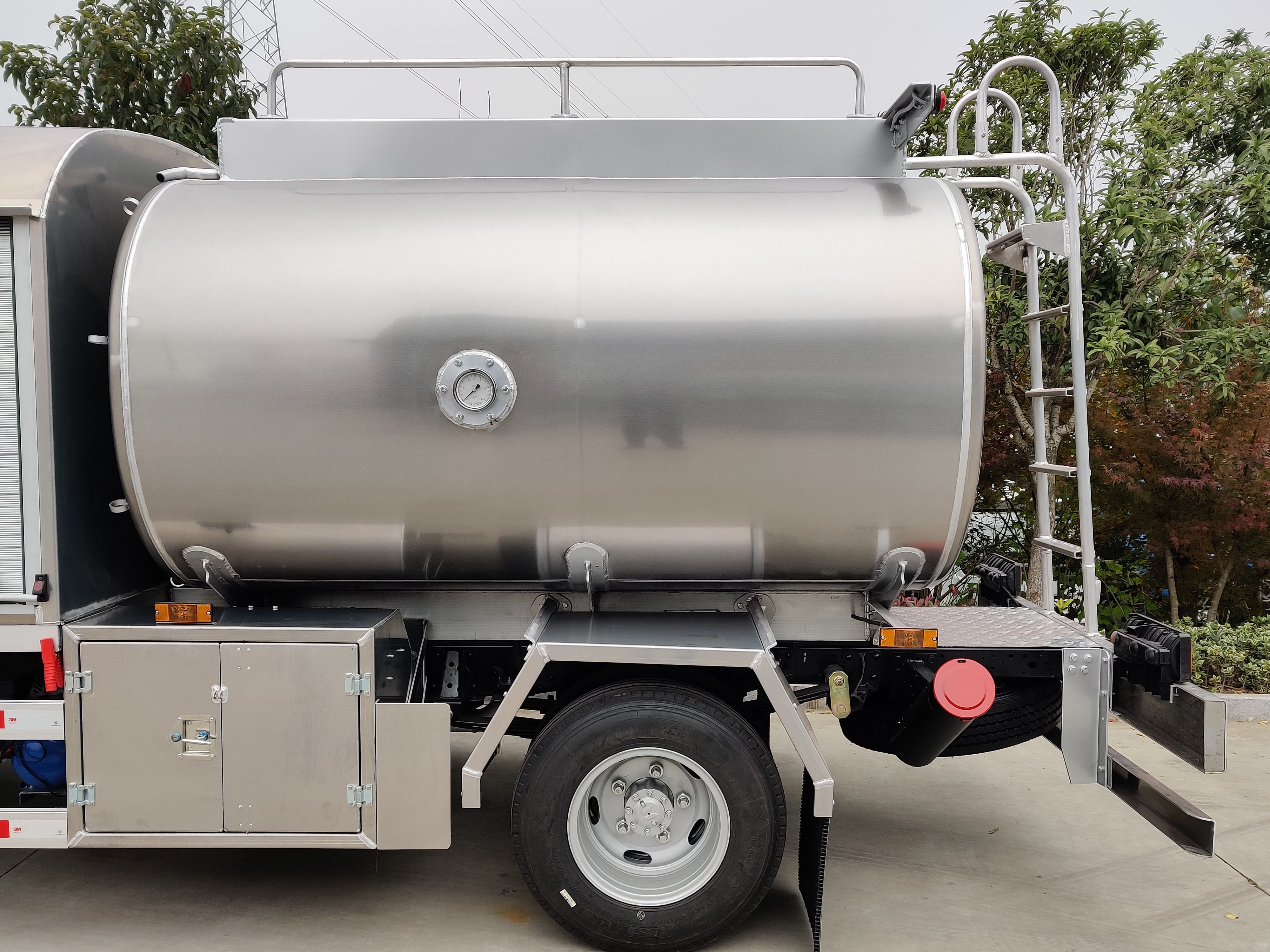

| Tank specification | Tank shape | Elliptical | |||
| Tank material | Aluminium-magnesium 5083 | ||||
| Tank thickness | 5mm | ||||
| Tank capacity | 5000L-8000L | ||||
| Compartment | 1 | ||||

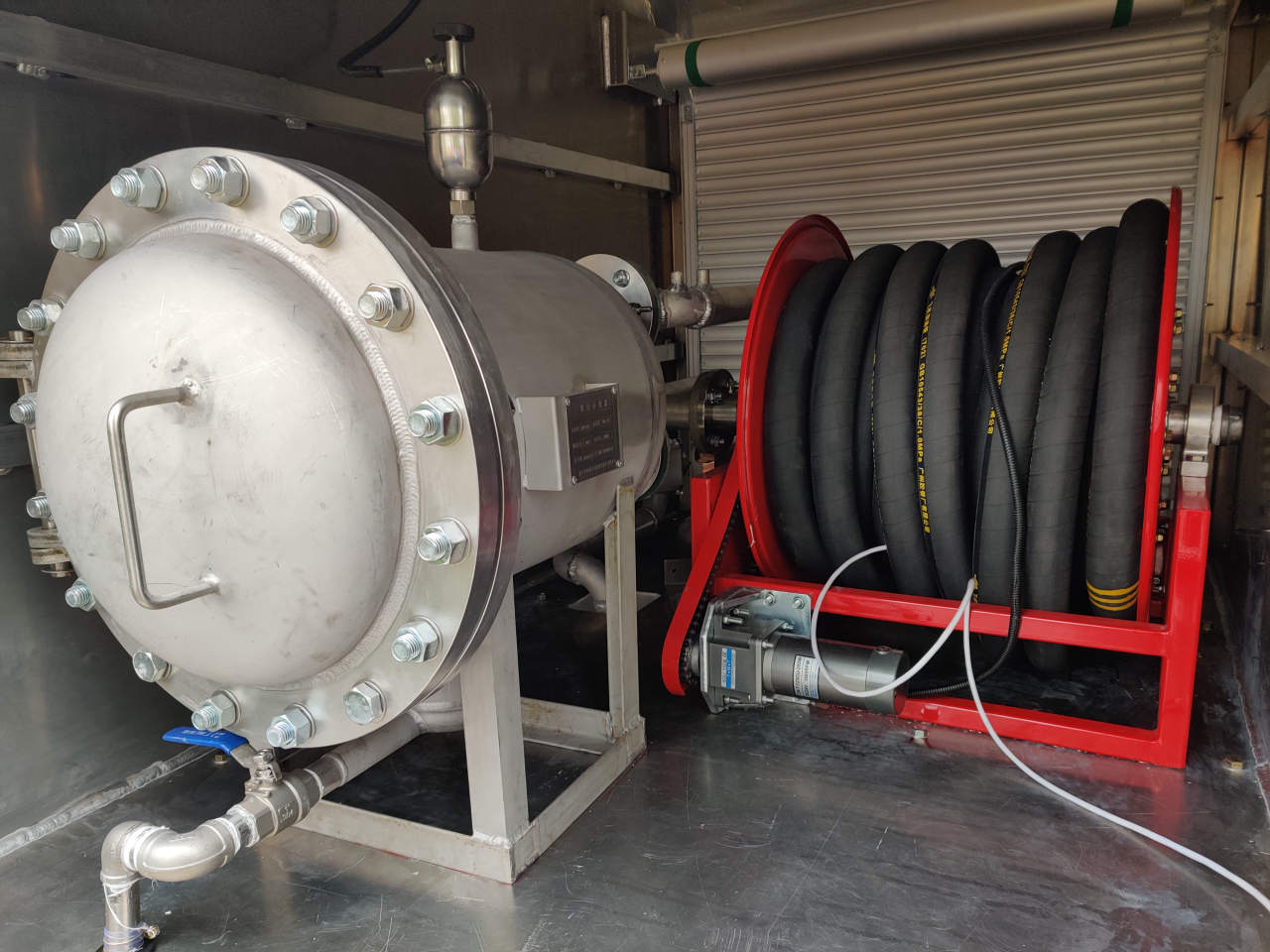

| Filter | Model | 80WGF-24/10 | |||
| Rated flow | 24m³/h | ||||
| Capacity | 145L | ||||
| Work pressure | 1.0Mpa | ||||
| Maximum work temperature | 46ºC | ||||
| Pump | Brand | SANJIANG YOJE 80/60 Aluminium alloy pump |
| Accessories | Fire extinguisher | 2 units (4kg/unit) |
| Discharge hose | 2 units | |
| Discharge hose housings | 2 units | |

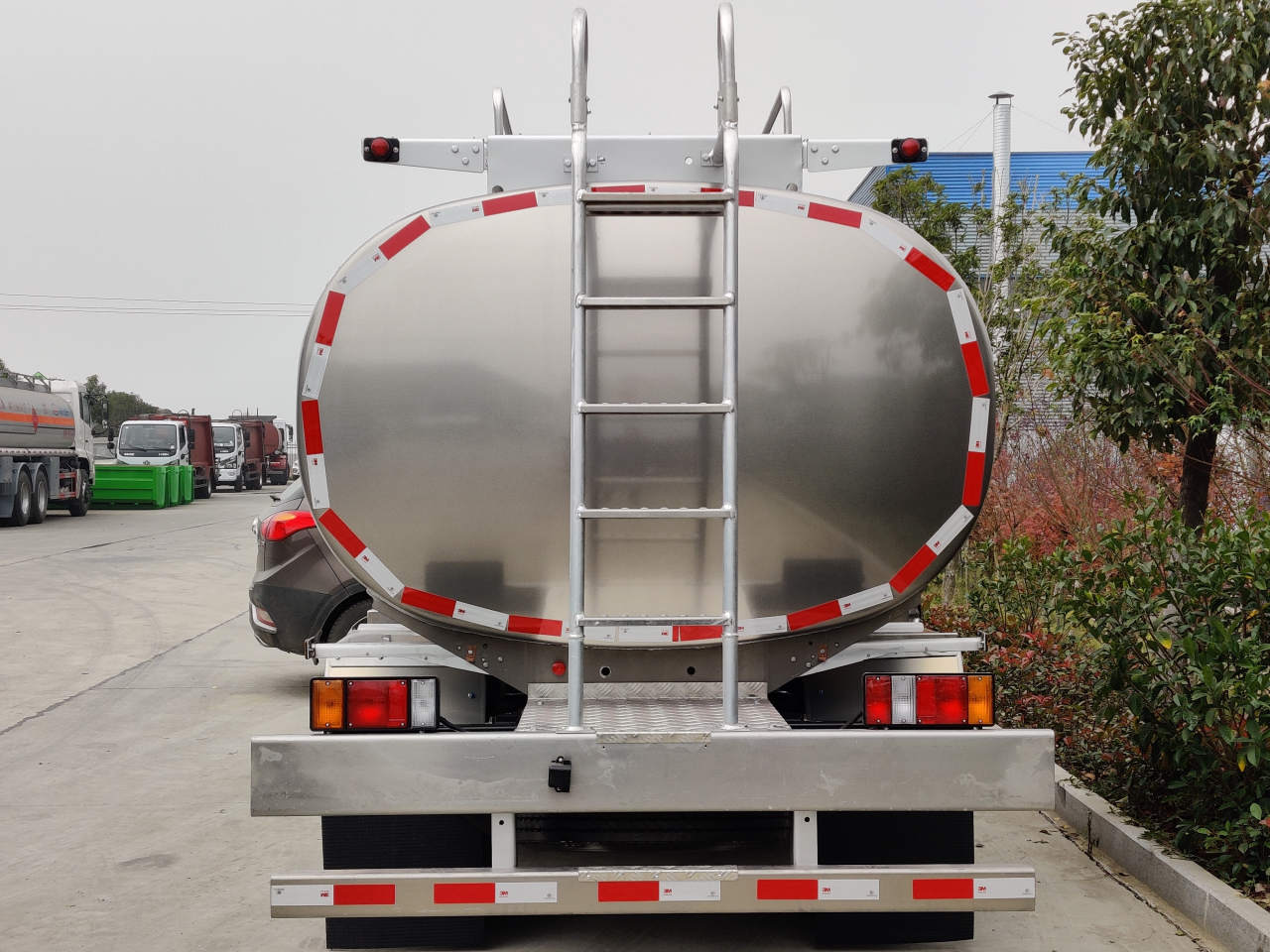

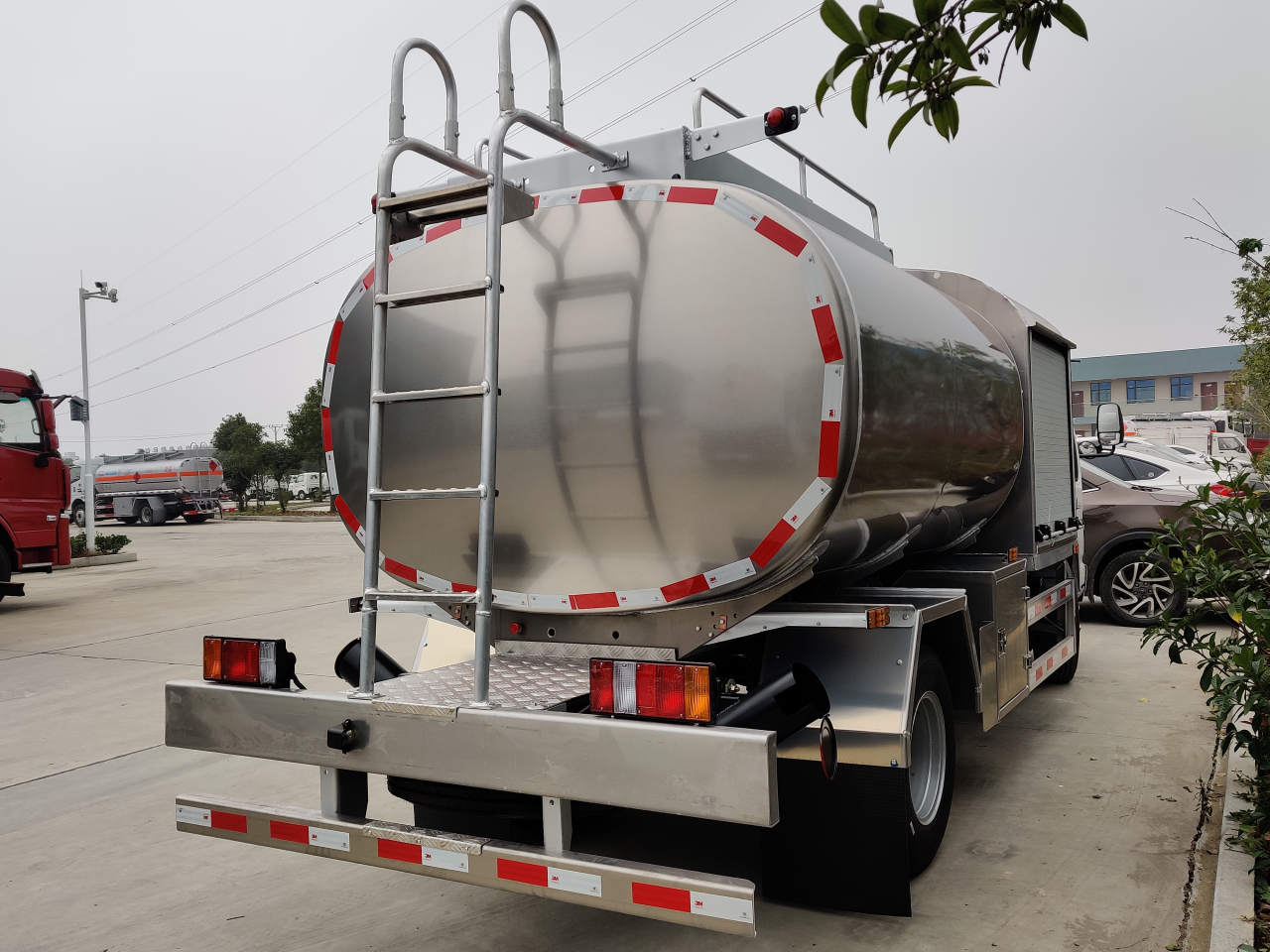

| Ladder | On the rear | |
| Railing Material | Aluminum alloy | |
| Fuel filling device | 20-meter hose reel and filling nozzle | |

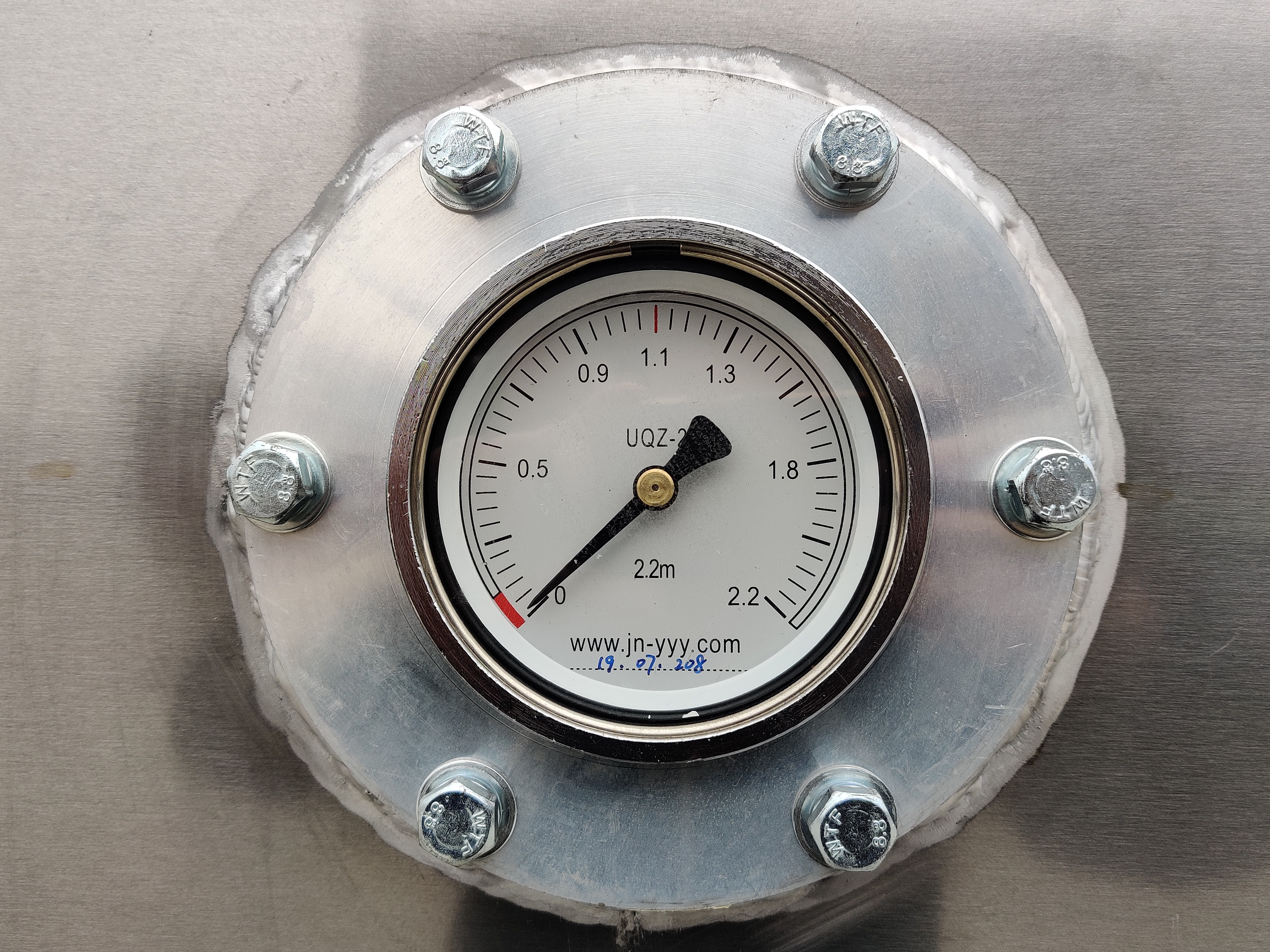

| Level instrument | Shanghai Leihang 50 |
As a ground support equipment specially designed to provide fuel for aircraft, the Isuzu Jet A1 tanker has a series of advantages, but also some potential disadvantages. The following is a detailed analysis of its advantages and disadvantages:
Advantages
Efficient refueling capacity:
The Isuzu Jet A1 tanker is equipped with an advanced pumping system and pressure regulating device, which can quickly and accurately deliver fuel to the aircraft's fuel tank to meet the needs of efficient refueling.
Large-capacity fuel storage:
The tanker is usually equipped with a large-capacity tank that can store enough Jet A1 aviation kerosene to ensure that the needs of multiple refueling operations are met, reducing the trouble of frequent refueling.
Fuel purification function:
During the refueling process, the tanker will purify the fuel to ensure that the quality of the fuel provided to the aircraft meets the standards, avoid damage to the aircraft engine, and improve the safety of flight.
Reliable and durable:
As a well-known automobile brand, Isuzu's products excel in durability. The Isuzu Jet A1 tanker adopts high-standard manufacturing technology and high-quality materials, which can withstand various pressures and impacts in long-term use, ensuring the stability and reliability of the equipment.
Wide adaptability:
This refueling truck is suitable for ground support services at various civil and military airports, can meet the refueling needs of different types of aircraft, and has high versatility and adaptability.
Disadvantages
High maintenance cost:
As a professional aviation ground support equipment, the maintenance cost of the Isuzu Jet A1 refueling truck is relatively high. This includes regular inspections, repairs, and replacement of parts, which requires a certain amount of money and time.
Technical complexity:
The refueling truck involves complex pumping systems, pressure regulating devices, and fuel purification technologies, etc., which require professional technicians to operate and maintain. This increases the requirements for personnel skills and training.
The interior and configuration may be insufficient:
Although the Isuzu Jet A1 refueling truck excels in function and performance, it may not be as luxurious and rich as some passenger cars or commercial vehicles in terms of interior and configuration. This may affect the comfort and convenience of the operator.
General sound insulation:
The sound insulation effect of some models may not be as good as some competitors, and the noise inside the car is loud when driving at high speed or working, which may affect the driving experience and health of the operator.
In summary, the Isuzu Jet A1 tanker truck performs well in terms of efficient refueling capacity, large-capacity fuel storage, fuel purification function, reliability, durability and wide adaptability, but it has certain disadvantages in terms of maintenance cost, technical complexity, interior and configuration, and sound insulation effect. When choosing and using it, it is necessary to weigh and consider it according to specific needs and conditions.
China heavy duty 5 lines 6 lines multi axles hydraulic low bed semi trailer,3 axles concave beam lowbed semi trailer with dolly for adding load-bearing (80ton capacity),100 ton 5 axle low bed semi trailer for sale
Learn More
ISUZU NKR/ ELF 600P chiller lorry, ISUZU 130HP diesel engine, MSB 5-shift manual gearbox, 4200x2100x2100mm freezer van body, equipped with THERMO KING RV-380 refrigeration unit, painting and logos as required. Japanese brand ISUZU reefer van truck freezer box truck for sale
Learn More
The Isuzu 20m articulated bucket truck represents a blend of cutting-edge technology and utility, designed to meet the demands of aerial work across a spectrum of industries. This versatile vehicle is equipped with a host of features that enhance safety, efficiency, and performance for operators working at heights.
Learn More
The Isuzu D-max all-wheel drive pickup truck, equipped with the powerful 4HK1-CT6H1 143HP engine, is a remarkable vehicle that combines robust performance, versatility, and modern technology. This pickup truck is designed to meet the demands of both on-road and off-road driving, making it an ideal choice for a wide range of users, from adventurers to construction workers.
Learn More
Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
Learn More

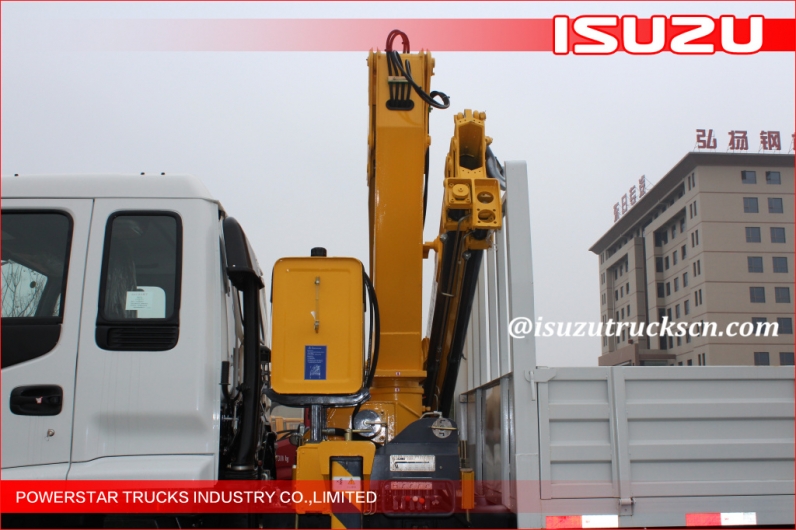

Isuzu Truck with crane truck mounted crane New Design Truck Crane for sale, Professional cargo truck mounted crane with CE certificate, Japanese-made 6.3Ton Truck Crane , Isuzu Truck Mounted Crane, Crane Truck
