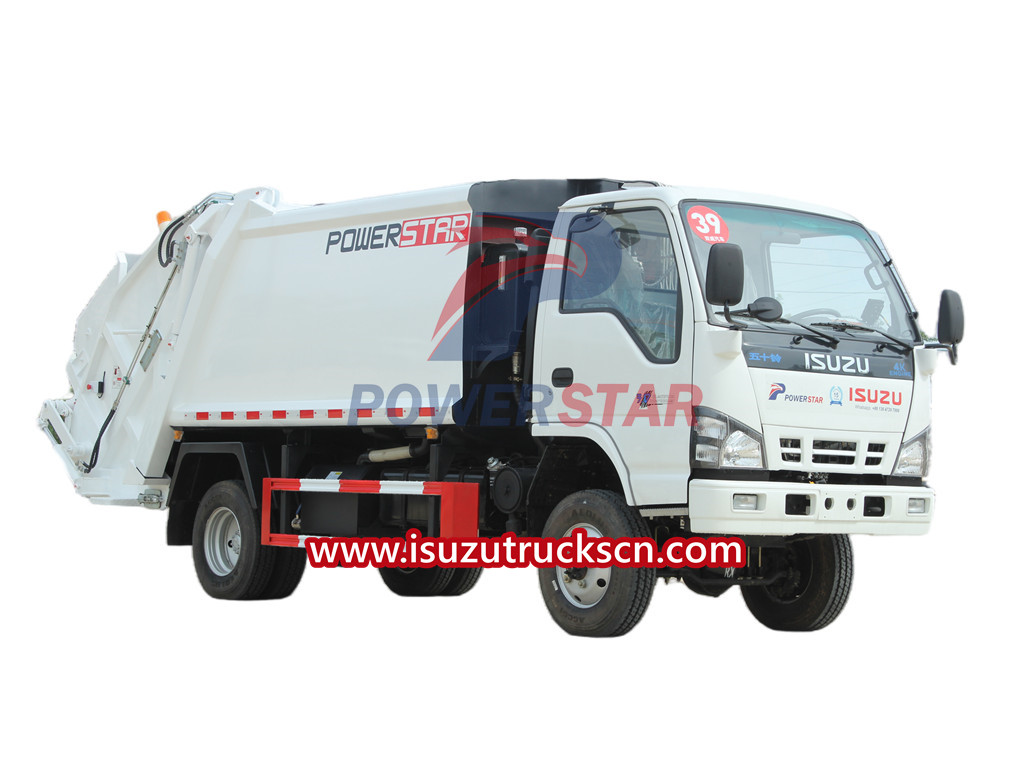

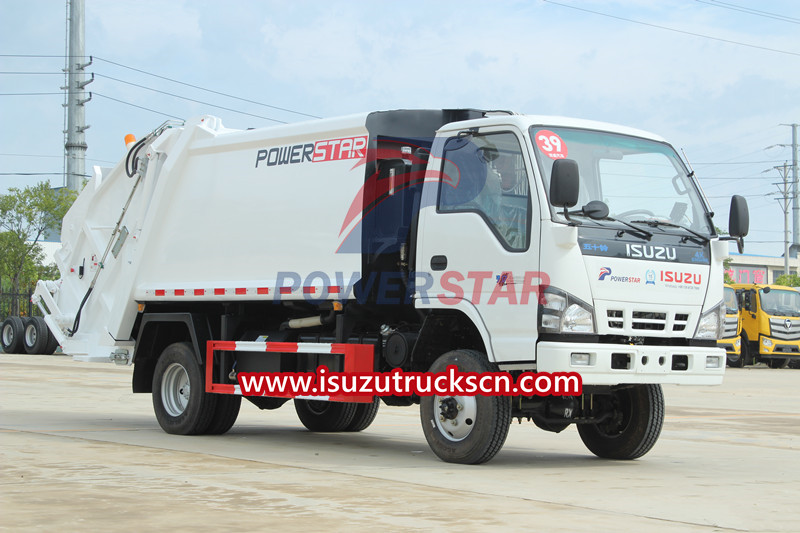

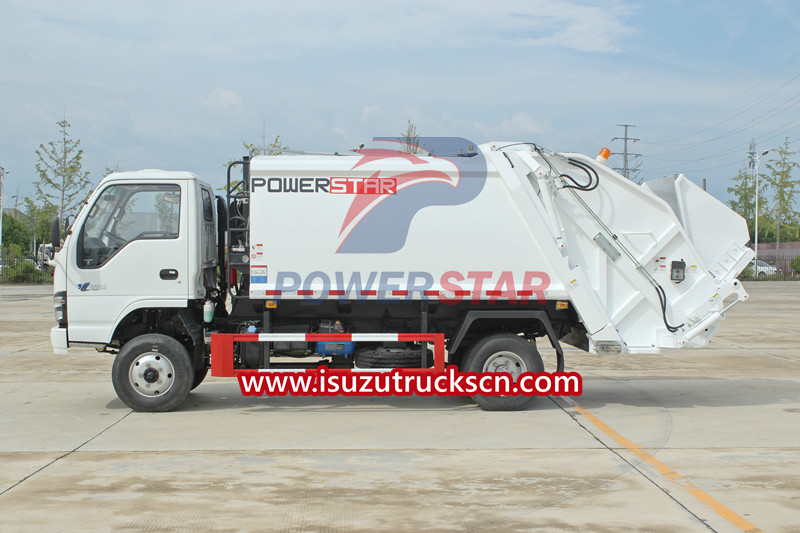

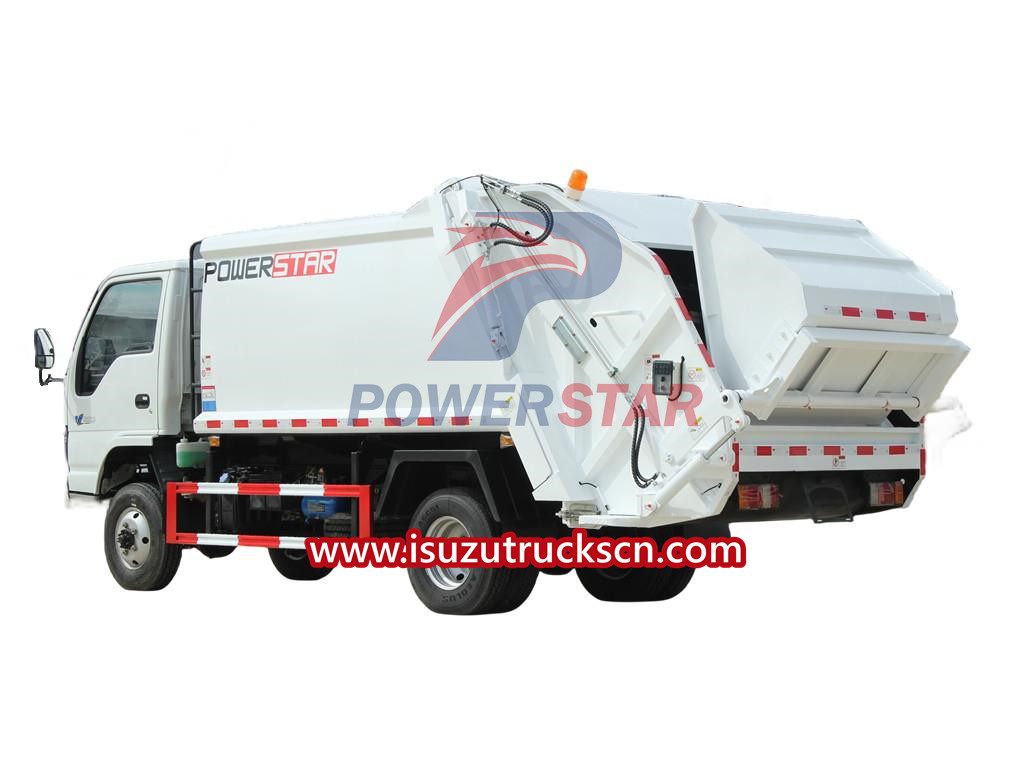

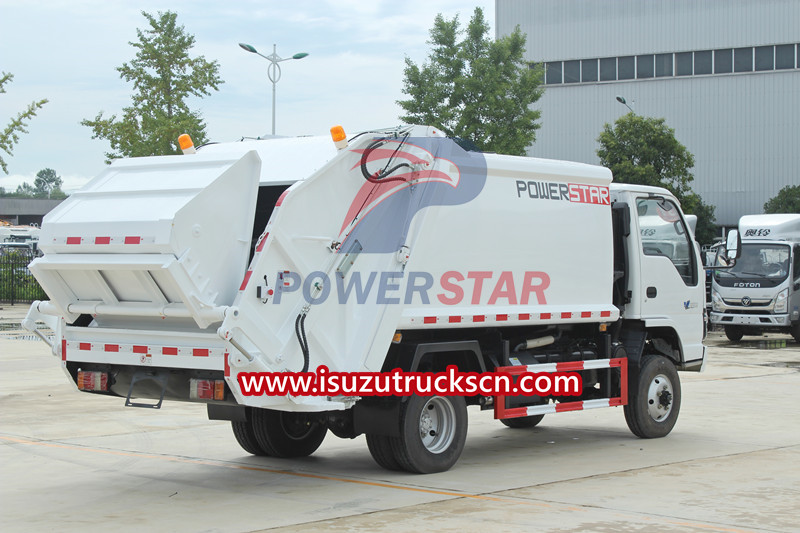

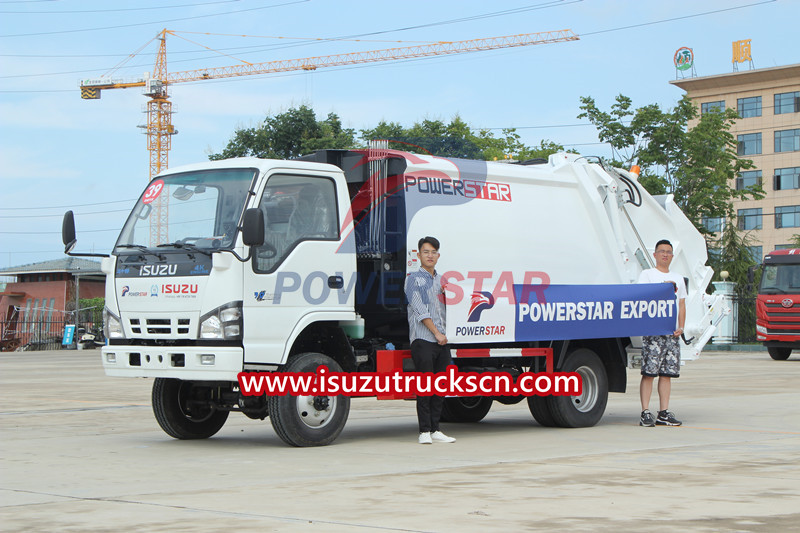

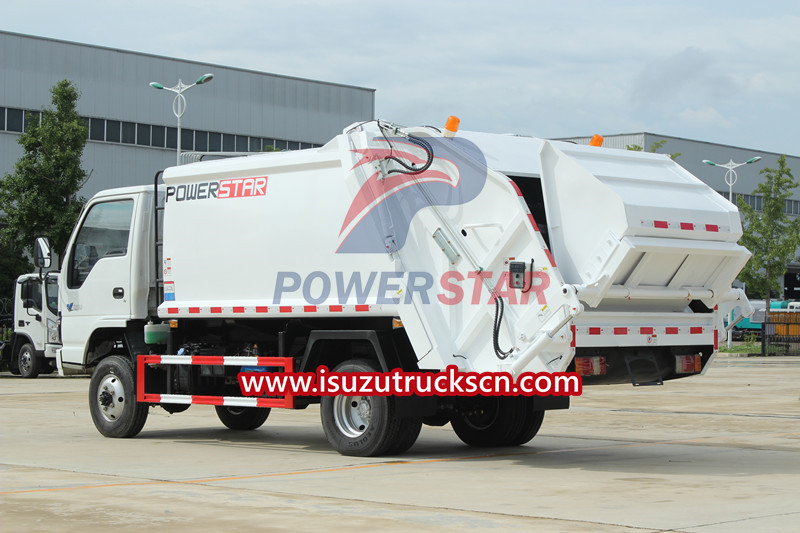

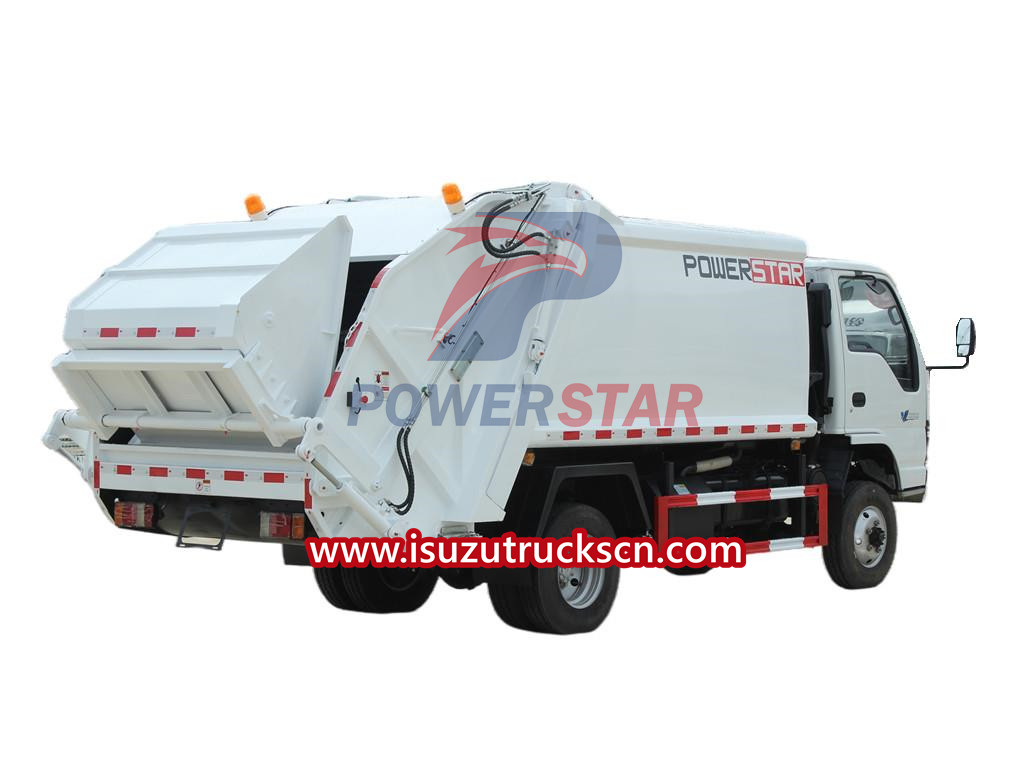

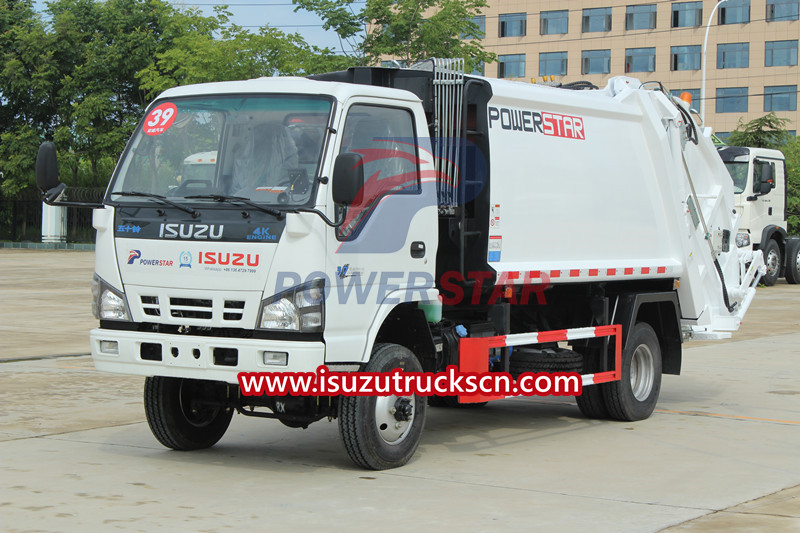

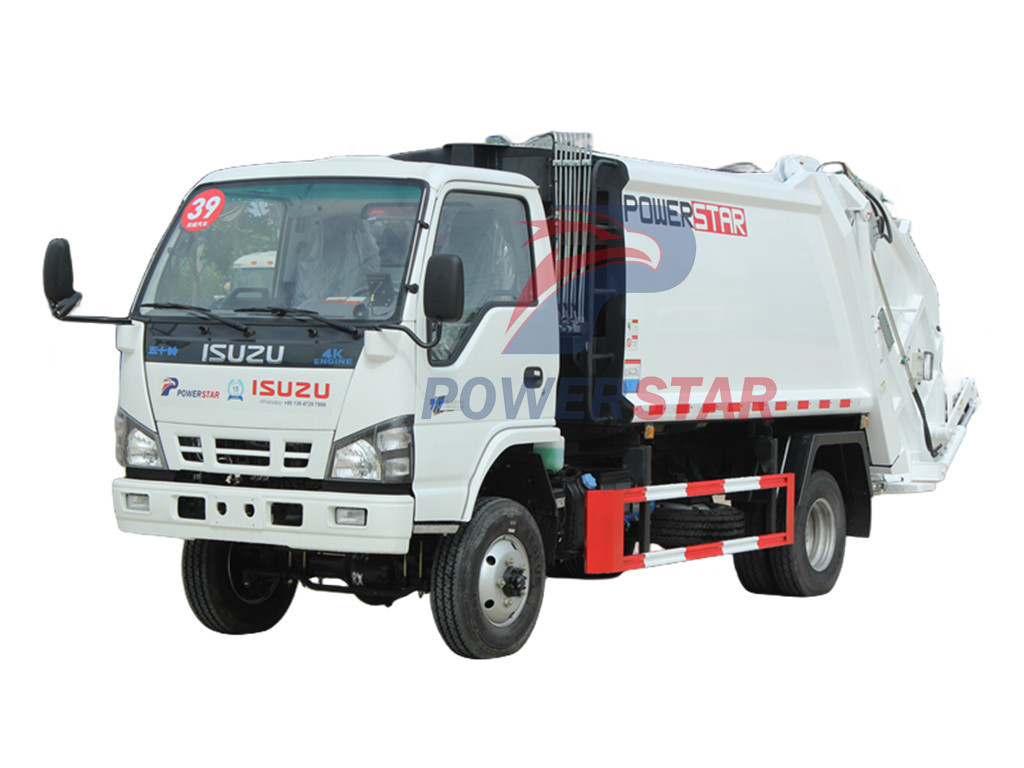

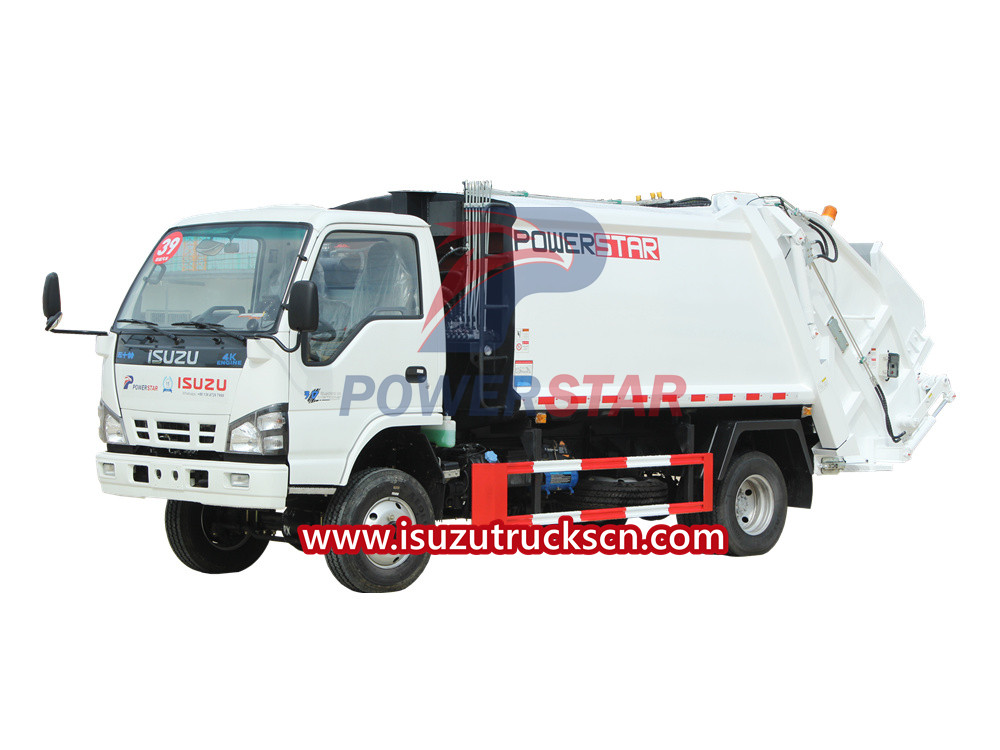

Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection
way of garbage compactor truck is simple, can eliminate the second
pollution, compression ratio high,large loading capacity,high automation
operation, good economy, double insurance system, high efficiency.There
are three kinds of mechanism options available to the customer,barrel
turnover mechanism,panel turnover mechanism and tipping mechanism.By the
user of hydraulics,the barrel is locked during the overturning
process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
Work capacity:
6 CBMTruck model:
PT5070ZYS06NEngine power:
120 hpEngine type:
4KH1CN6LBAxle drive:
4x4Gear box:
ISUZU MSB 5-shiftRemarks:
T420 high strength steel material, thickness 4mm
Isuzu Garbage compactor truck also called compactor garbage truck, Isuzu refuse compactor truck, trash compactor, compression garbage truck, rear load trash truck for sale refuse truck, garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks,etc. It mainly used for municipal sanitation to transport various types of garbage.It is convenient way for the safe and efficient collection of waste.
The advanced level of features for loading, compacting and transportation are sure to meet your needs. Making the collection process easy and efficient, so it is very popular around the world. We POWERSTAR company also offer other capacity ISUZU trucks chassis for choice. And capacity can be 2ton, 3ton, ,4ton ,5ton ,6.3ton ,8ton, 10ton, 12ton, 14ton, 16ton, 20ton, 25ton, 30ton payloads are optional. Our Isuzu rear load garbage compactor truck also bin lift and flip mechanism, swing arm flip mechanism, semi-sealed hopper flip mechanism, full-sealed hopper flip mechanism, etc.
Products Parameters and Advanced Features:
1. The Isuzu rear load trash truck body is arc-shaped, featuring simplicity and good appearance. A slide guide moving cover is installed at the back to keep the complete closure of the dustbin.
2. The body is made of high strength weathering resistant steel, featuring light weight, good reliability, erosion resistance and high compression ratio.
3. The use of alloy slide guide with high abrasion resistance guarantees its long service time.
4. The stuffing device is equipped with two-stage protections of self-lock cylinder and safety rod for reliability.
5. Two sets of control mode: manual and automatic. The controls can be done at different locations: the cab, the middle and at the back of the truck.
6. The truck has a big dustbin. Under the same compression ratio it can hold more garbage to achieve a better loading efficiency.
7. A large waste water collecting tank is equipped with a drainage waste water collection device to eliminate waste water dripping.
8. Optional lifting devices can be added to the truck when ordered by customers.
Main Technology Parameter for Rear Load Trash Truck ISUZU NKR
Model Name
Isuzu 600p garbage compactor truck
Driving Type
4×4 offroad model, left hand drive
Color
White, yellow, box can choose
Weights
Rated payload weight(kg)
6000
Curb weight(kg)
4550
Dimensions

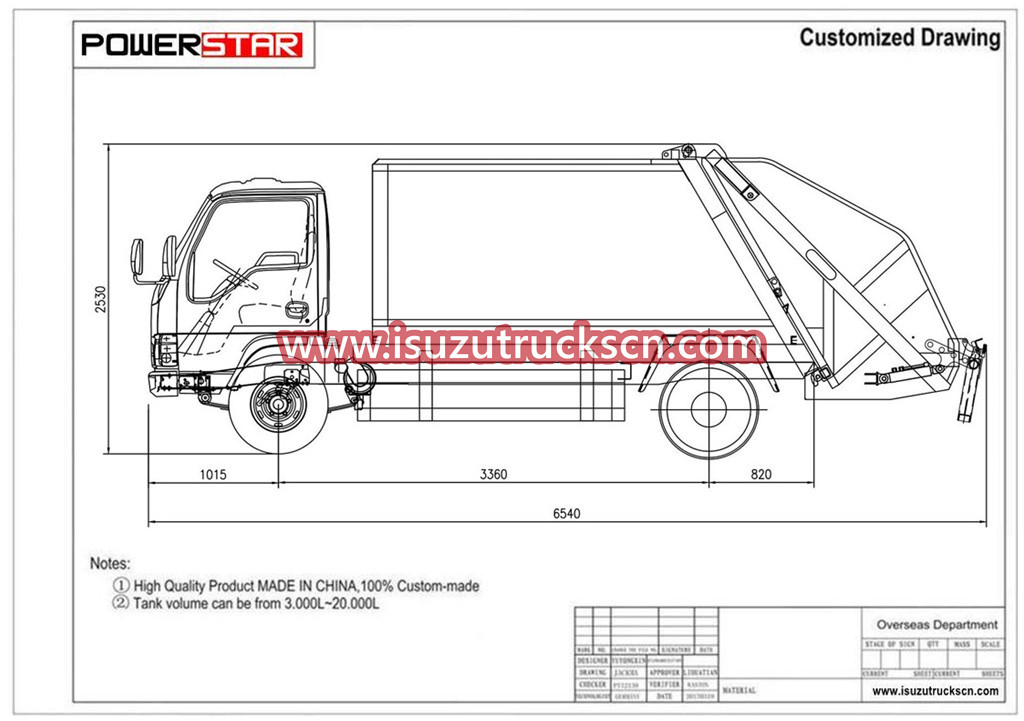

Wheelbase(mm)
3360 (also can choose 3815mm wheelbase)
Overall Dimension(mm)
6710×1880×2600
Box dimension
6 m3
Max speed(km/h)
98
Engine
Engine model
4KH1CN6LB (120HP)
Engine type
4 stroke water-cooled,inter-cooling
No. of cylinders
straight-4 cylinders
Displacement(L)
2.999L
Max. output (kw)
88 kw
Emissions standard
Euro 6
Drive Line
Transmission
MSB 5 speeds ,5 forwards,1 reverse gear,manual operation
Steering
Power steering
Brake
Oil brake with vacuum pump
Cab
Air container
Equipped
Standard configuration
Sound, parking sensors
Axle
Front axle
2.5tons
Rear axle
4.8 tons
Tire specification
Tire specification
7.00R16 standard tire,6 tires+1 spare tire
6m3 garbage compactor truck
Box valume
6 m3
Box material
Side 4mm, bottom 5mm
Sewage tanker
200L
Fill volume
1.2 cbm
Loading time
8-10S
The cycle time of the loading
50-60S/per turn
Unloading model
Dump
Unloading time
30-40S
Hydraulic system pressure
16Mpa
The Isuzu NKR 4x4 offroad 4WD garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, avoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and environmental. Isuzu garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized. 4x4 rear load trash truck composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.
Product advantages
(1) Due to the complex structure of the compressed garbage truck, the large mass, reduce the compressed garbage truck from the mass, improve the load utilization rate, will reduce the vehicle operating costs. Therefore, the use of high strength materials,in order to reduce the top from the quality; Fender, decorative parts, cover plate and other auxiliary parts can be injection molded parts with smaller density, and parts with a higher degree of integration, in order to reduce space occupation and
self-mass, while conducive to improving the performance of the hydraulic system.
(2) Special person test; Simulate a variety of complex working environment, all compression before the physical test.
(3) after-sales guarantee; Non-customer artificial damage, any fault unconditional after-sales, zero cost of customer solution.
Precautions:
1, the operation should avoid irrelevant personnel near the vehicle, especially the rear of the vehicle.
2, garbage should be evenly put into the stuffing bucket, do not concentrate on one side, so that the center of gravity of the vehicle offset, or in the stuffing mouth bucket mouth along the garbage stacked too high, affecting the compaction of garbage and
garbage evenly distributed in the garbage box.
3. Pay attention to the observation during the compaction operation. When it is found that there are large pieces of other garbage (non-household garbage) that cannot be compressed, the operation shall be stopped in time, and the operation shall continue after removal to avoid damaging the working device of the vehicle.
4. When lifting and dropping the filler during unloading operation, it is necessary to confirm the safety around and operate cautiously. Do not lift the filler on the slope, otherwise it will easily shift back and cause rollover accident.
5. The filler shall not enter the normal running before it is not dropped and locked.
