Isuzu NKR Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator. Brand new ISUZU 8cbm refuse compactor truck mounted on ISUZU NKR 4x4 truck chassis.
Work capacity:
8 CBMTruck model:
PT5080ZYS08NEngine power:
120 hpEngine type:
4KH1CN6LBAxle drive:
4x4Gear box:
ISUZU MSB 5-shiftRemarks:
Isuzu 4x4 truck chassis mounted ISO9001 certified compactor body
Isuzu NKR 4x4 offroad garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV), which is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor. The Isuzu 4x4 mobile refuse compactor is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, and can also transport ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.

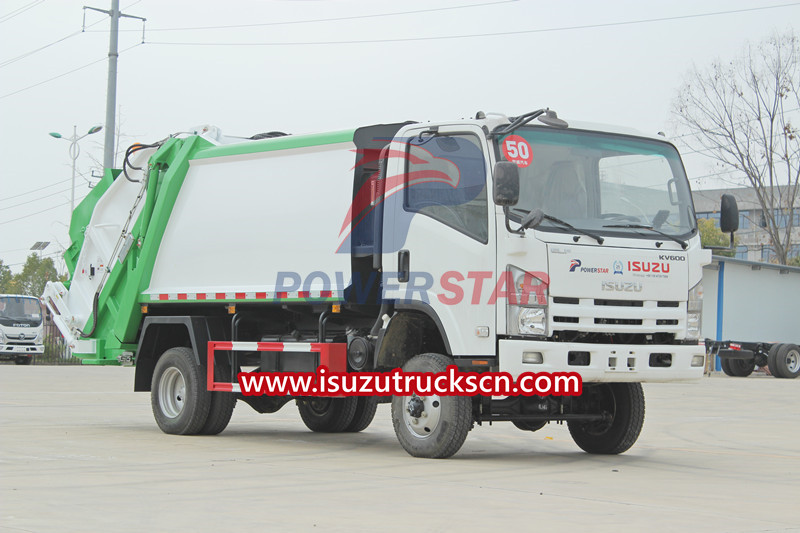

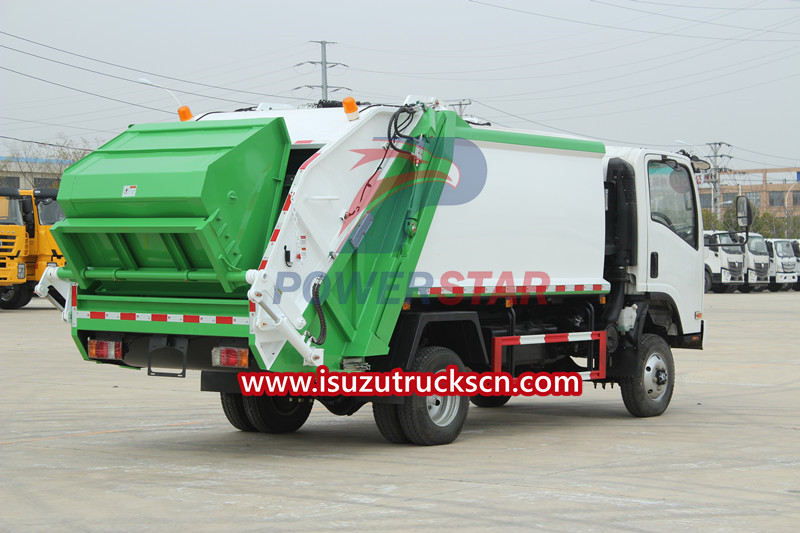

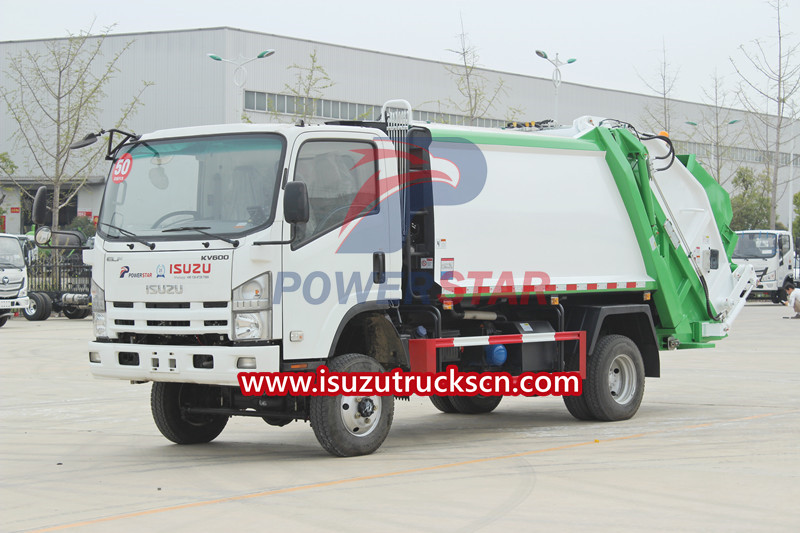

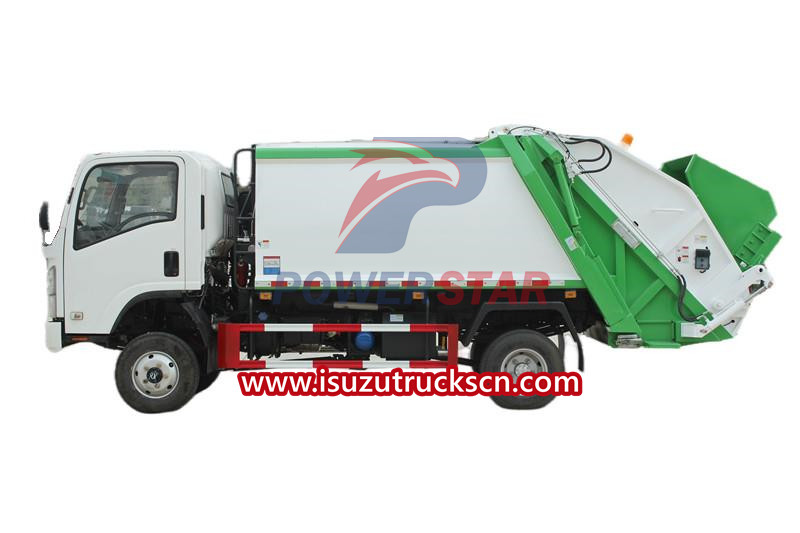

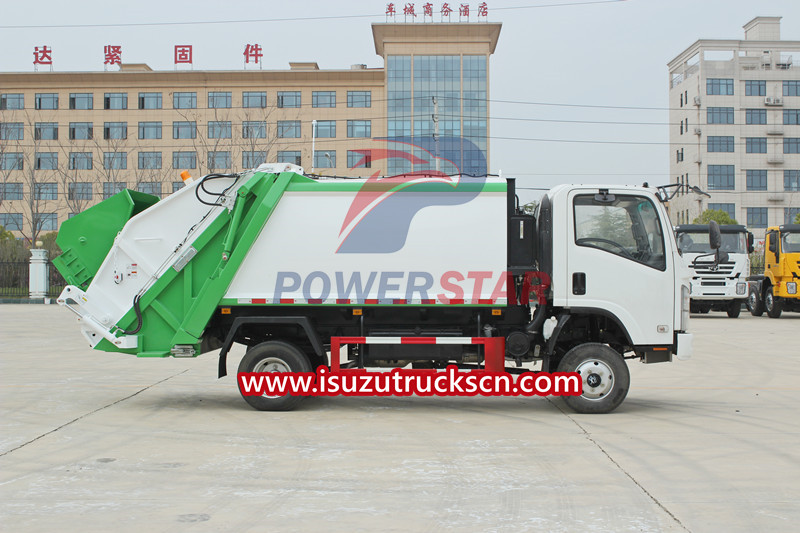

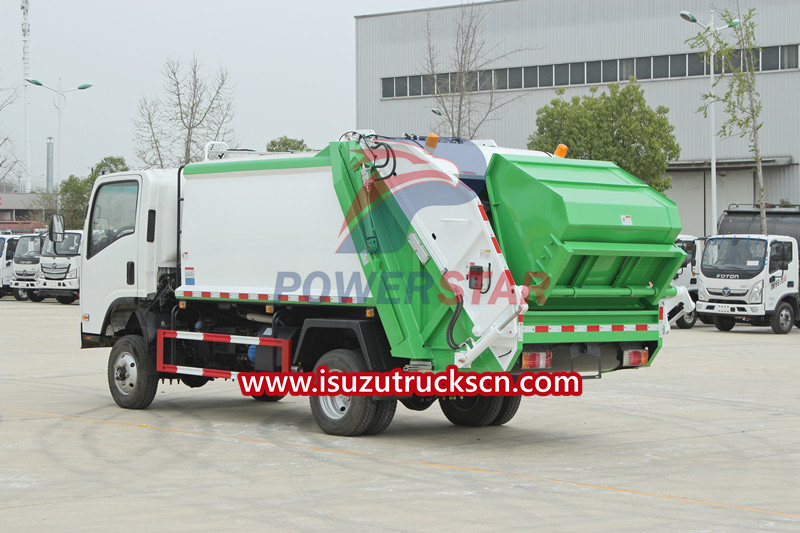

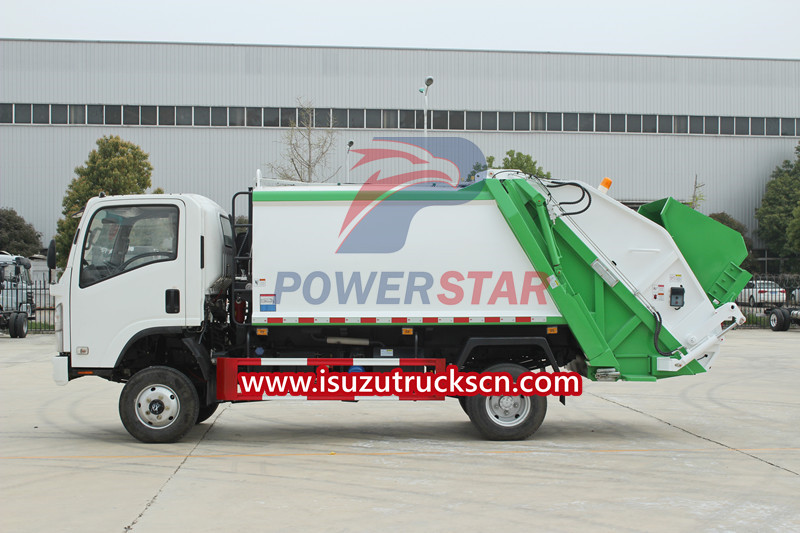

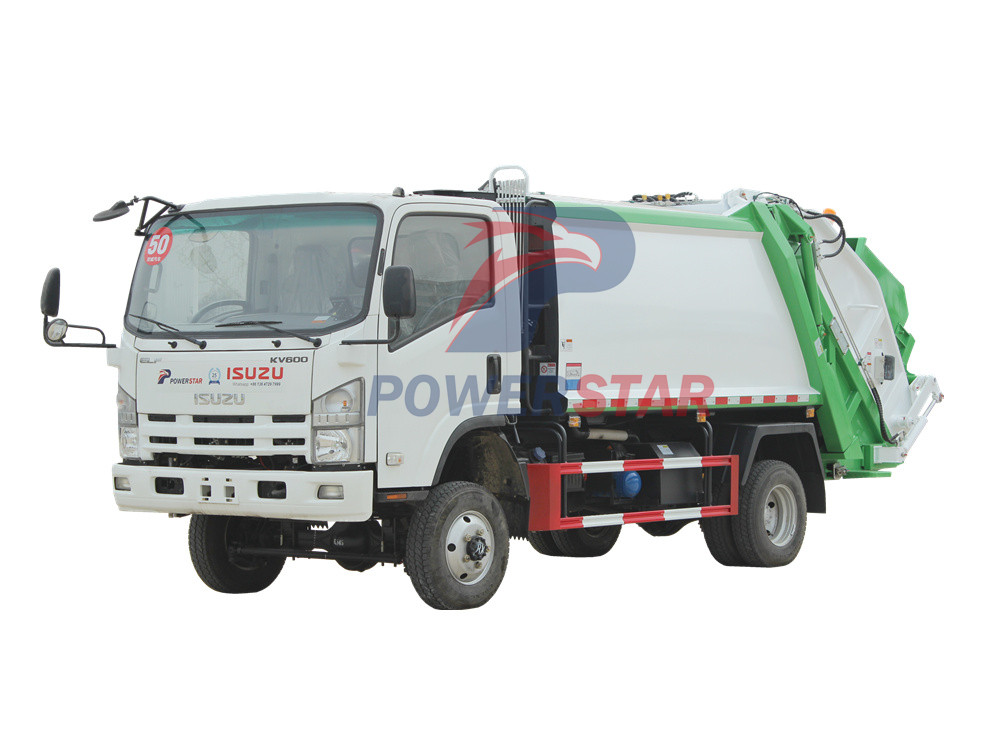

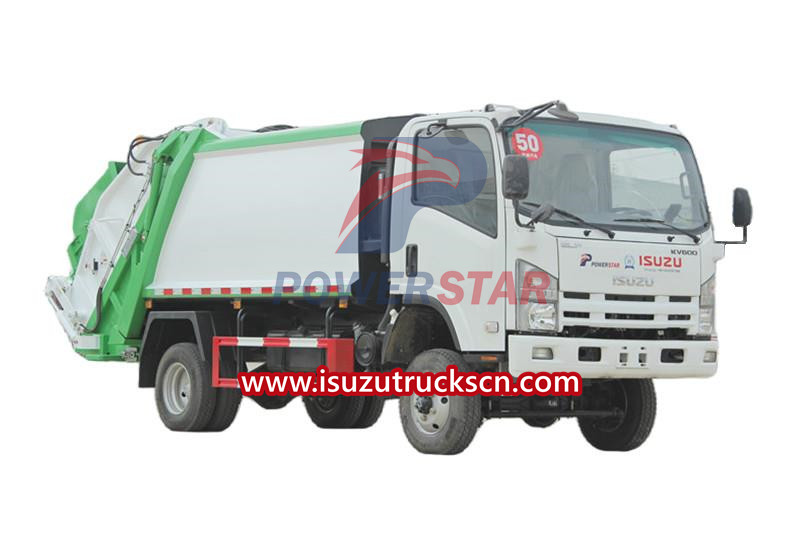

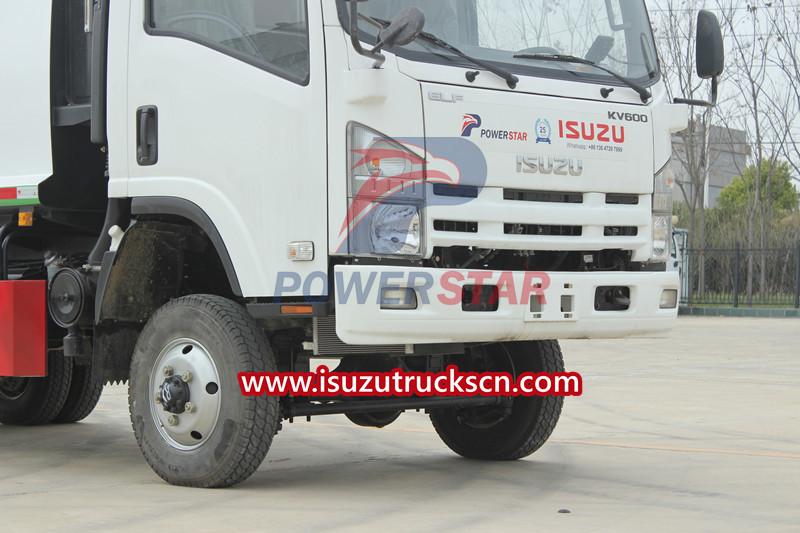

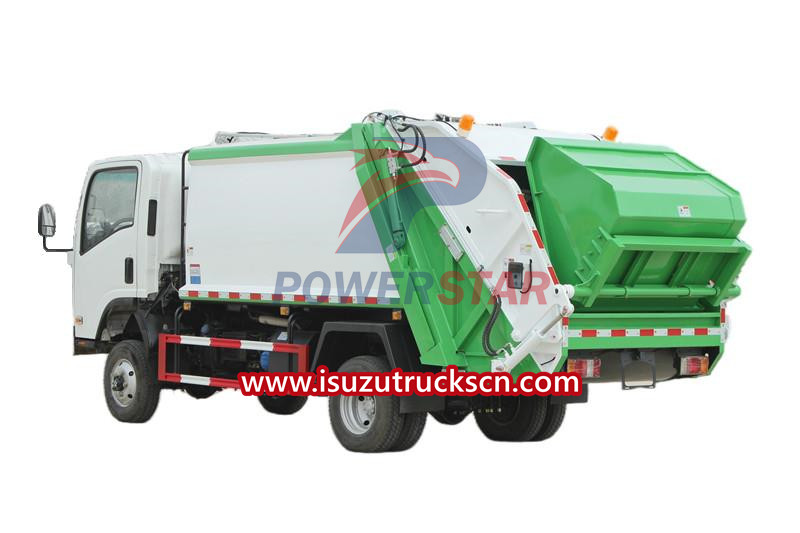

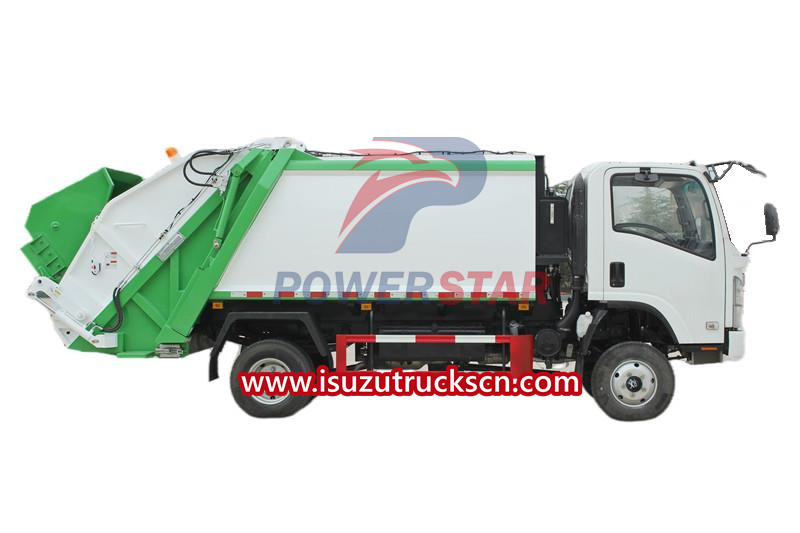

The 8000liters garbage compactor body is mounted on original Japanese technology ISUZU NKR 4x4 truck chassis, which can cover all kinds of rough road conditions, and below is Isuzu 4x4 trucks from POWERSTAR, and road testing before delivery:
Products Parameters
The ISUZU 4x4 model 6 Ton Small Light Garbage Compactor Truck is a reliable and efficient solution for waste management. Designed with precision and equipped with advanced features, this vehicle ensures streamlined garbage collection and disposal. This Isuzu NKR 4WD garbage truck is designed to be hermetic, preventing any spillage or odor issues during the collection and disposal of garbage. It also ensures that any generated sewage is efficiently managed within the sewage tank, promoting environmental sustainability. Composed of a hermetic garbage tank, hydraulic system, and operation system. The entire Isuzu 4x4 offroad rear loader garbage truck is hermetic, and can automatically compress and dump the garbage and the sewage generated in the process of the compression all goes into the sewage tank.
|
General Introduction for ISUZU 4x4 offroad rear loader garbage truck |
|
|
Make/model |
Isuzu / PT5080ZYS08N |
|
Drive type |
4×2 left hand drive |
|
Overall dimension (l x w x h) |
6,850×2,250×2,650(mm) |
|
Gross vehicle weight |
8,400kg |
|
Curb weight |
4,600kg |
|
Wheelbase |
3,365mm |
|
Chassis designed |
Isuzu NKR |
|
Cabin |
Hydraulic power steering type. 1 driver+2 passengers |
|
Drive wheel(tires ) |
4+2 and one spare (total 7 wheels) |
|
Tire size |
7.00R16 |
|
Engine Specification |
|
|
Make / model |
Isuzu / 4KH1CN6LB |
|
Type |
4 cylinders in line, 4 strokes direct injection, water cooling, intercooler turbocharged |
|
Displacement |
2.999 cc |
|
Nominal power |
120hp (88kw) @ 2,900rpm |
|
Peak torque |
290n.m@1,500rpm |
|
Emission standard |
Euro 6 |
|
Transmission |
MSB 5-shift |
|
Make / model |
Isuzu |
|
Type |
Diesel |
|
Operation |
Manual |
|
Number of speeds |
5 forward and 1 reverse |
|
Construction |
Isuzu chassis; body; tailgate (rear hopper); ejection/discharging plate; compaction plate; slide plate |
|
Capacity |
8m3 (6 tons) |
|
Body steel |
|
|
Garbage container |
High corrosion resistance q235 carbon steel 5mm thickness of body floor, 4mm thickness of side and roof. (equivalent as is-2062 grade a or ASTM a36) |
|
Hopper floor |
Nm450 (similar to Hardox) wear-resistant, high-tensile steel sheet. |
|
Tailgate sheet |
High tensile steel sheet 4 mm thickness |
|
Compaction plate |
High tensile steel sheet 5 mm thickness |
|

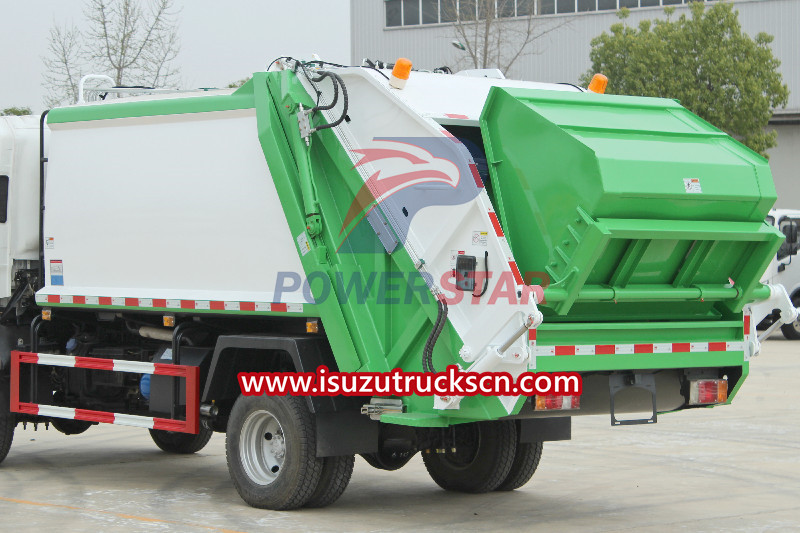

Tailgate (rear hopper) |
The components include the tailgate floor, an extension of the rear hopper floor inside the body, and the side wall. The tailgate is attached to the body through top hinges and can be lifted upwards using two double-acting hydraulic cylinders. |
|
Compaction ratio |
The volumetric compaction ratio varies between 3:1 to 6:1, depending on the characteristics and density of the garbage present in the area. It should be noted that the mentioned ratio is applicable to household garbage. |
|
Hopper capacity |
The garbage capacity of the loading hopper is around 2m3 |
|
Sealing |
With a special design leak-proof rubber sea between the tailgate and the body |
|
Locking |
Hydraulic locking by means of reverse action of two hydraulic tailgate-lifting cylinders. |
|
Safety props |
To ensure safety during maintenance, manual safety props are placed between the body and tailgate of the equipment. |
|
Safety valve |
The tailgate is equipped with a safety valve to prevent dropping and the hydraulic lines are in place to avoid sudden falls. |
|
Control |
The PLC control box / CAN-BUS control box manages the system and offers options such as start, stop, 1-cycle, continuous cycles, and rescue activities. The tailgate and ejector controls are located at the front of the body. The loading controls are positioned on the right side of the tailgate and are manually operated for safety reasons. Compaction is controlled using electric push buttons, but there is also a manual control option available. |
|
Discharge of garbage |
The unloading cycle will last a minimum of 4 minutes and 30 seconds. Ejection plate: the movement of discharging plate (panel) will be step by step in the progressive method (in stages). |
|
Hydraulic components |
Front direction control valve (front distributor) Main safety valve. All arc hydraulic and double-acting. The dimensions of the cylinders’ arc are designed to accomplish the stipulated cycle times and compaction ratio. Hydraulic cylinder pipes & bores included. All high-pressure hydraulic oil hoses have an app. Burst rating 4 times more than the specific system working pressure. |
When you need a quality Isuzu NKR garbage truck that is ready to hit the road immediately, think POWERSTAR Ready. Our latest-model used Isuzu refuse compactor trucks for sale are available right away and priced to go. Get full transparency about the shape your vehicle is in, and peace of mind in knowing your investment is doubly protected by the remaining OEM warranty as well as our industry exclusive 30/60-day confidence guarantee. Our innovative inspection and reconditioning process ensures that your truck is fully upgraded and ready to deliver the consistent long-term performance you expect. Multi-tiered certification packages let you choose how to get the most from your strategic cost savings.
Choose from the best late-model front loaders, side loaders, rear loaders, and more from leading manufacturers over world. All the garbage trucks in our extensive inventory are exempt from federal excise tax and are ISO 9001 certified and safety compliant. Contact us today to learn more about our garbage trucks for sale.
Below showing original ISUZU 4x4 truck chassis from POWERSTAR, and can be mounted with rear loader compactor with rear tilting device to be hopper, skip loader device, and normal tilting device for international standard bins 240L, 360L, 660L, 770L and 1100L bins. Both plastic material and stainless steel can be customized.
POWERSTAR TRUCKS has different kinds of Isuzu rear-loading garbage trucks for sale. with capacity range from 3cbm to 25cbm. And optional truck can be ISUZU 100P, 600P, 700P, KV100, KV600, KV800, M100, NKR, NPR, ELF, FTR, FVR, FRR, FSR, FVZ, GIGA, VC46, VC61, VC66, etc trucks. These trucks are versatile vehicles that process most types of home and business waste:
1. Trash — Food and Household Waste
2. Recycling — Aluminum Cans, Newspapers, Paper, Cardboard, Plastic, Metal, Glass
3. Yard — Grass Clippings, Pruning Debris, Leaves, Branches
In addition, the isuzu 4x4 NKR rear-loading garbage truck is especially suitable for picking up refuse bags during a homeless encampment cleanup project. They require just one operator to drive and to operate the hydraulic arm. One or two helpers ride along to connect bins to hydraulic lift or to load garbage at the rear. The compact size of the rear-loading garbage truck makes it easier (and safer) to maneuver on busy streets.
Our Isuzu rear-loading garbage truck is available for rent in the major cities of Philippines: Manila, Davao City, Quezon City, Caloocan, Cebu, Zamboanga City, Taguig, Pasig, Cagayan De Oro City, Paranaque and surrounding areas.
