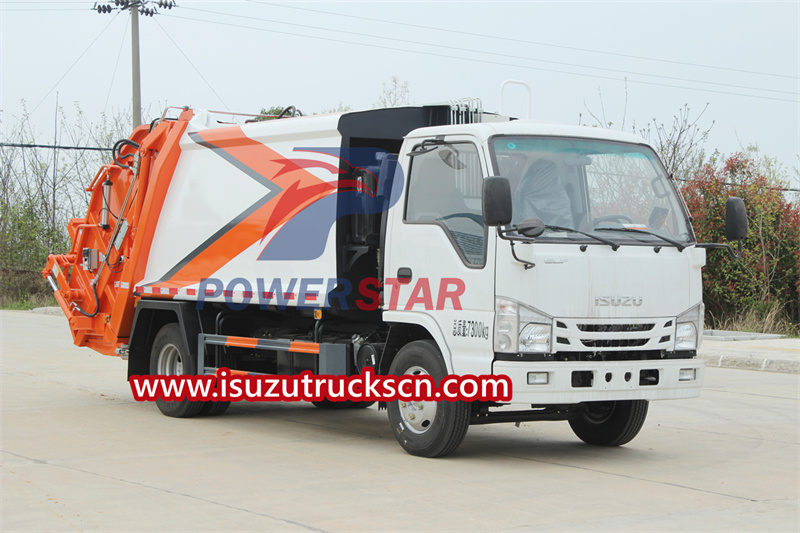

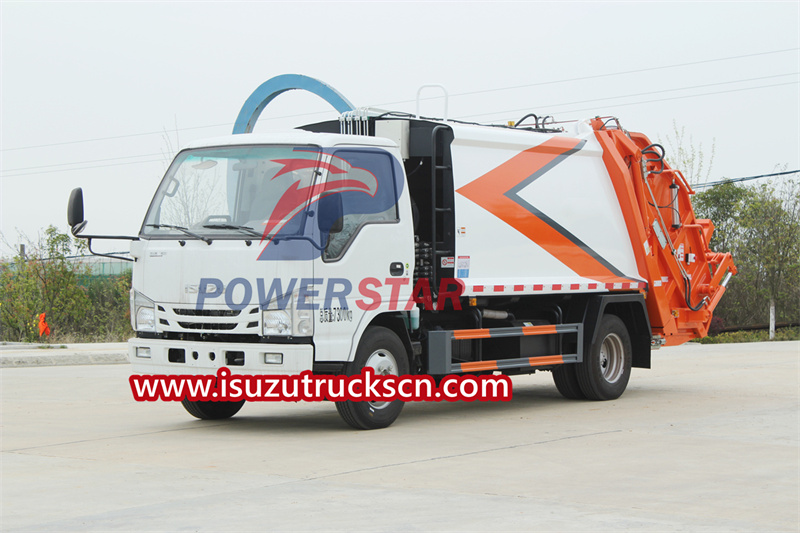

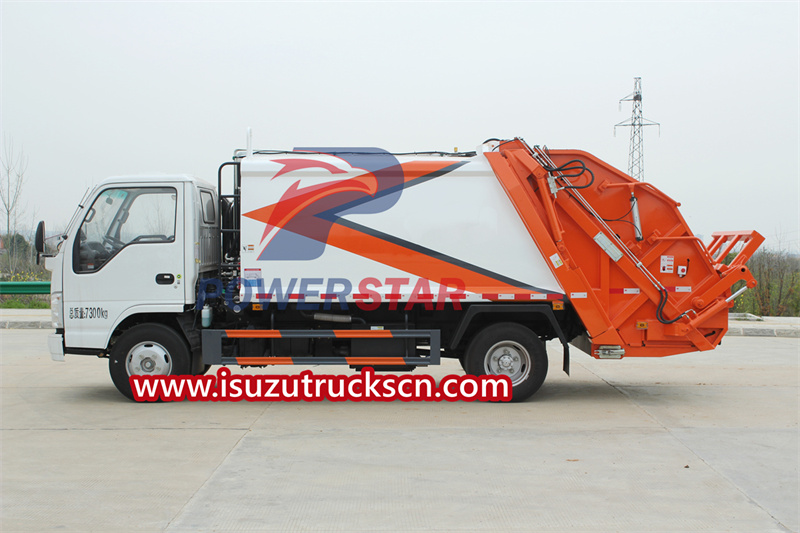

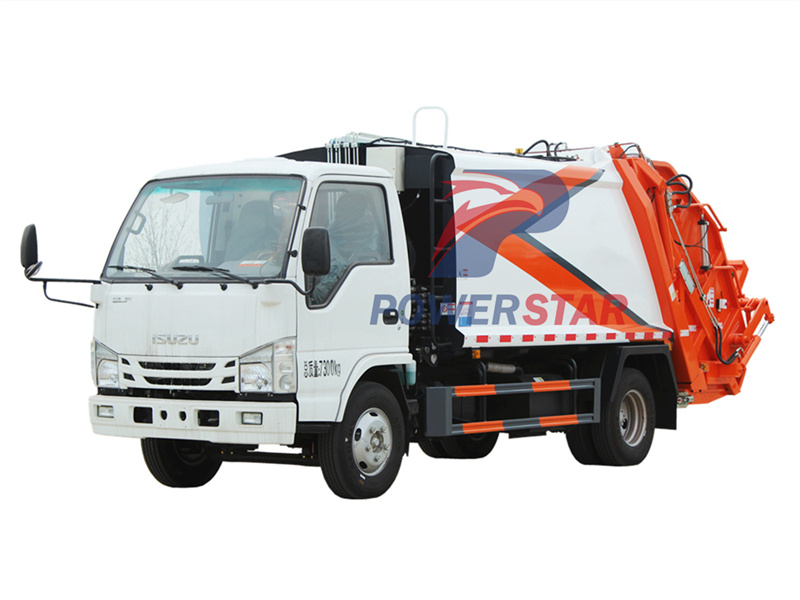

The Isuzu Non-CDL Rear Load Garbage Truck is powered by a robust and fuel-efficient diesel engine, providing ample horsepower and torque to handle heavy loads and challenging terrains. The advanced engine technology ensures optimum performance while minimizing emissions, making it an environmentally friendly option for waste management operations.
The truck's ergonomic and user-friendly cabin is designed with the driver's comfort and safety in mind. It features modern controls and instrumentation, allowing for easy operation and monitoring of crucial vehicle functions. The spacious cabin provides excellent visibility, reducing the risk of accidents and improving overall efficiency during waste collection.
Work capacity:
6 CBMTruck model:
PT5060ZYSEngine power:
130HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
ISUZU MSB 5-speedRemarks:
4x4 drive avaiable
The Isuzu non-CDL rear load garbage truck is a reliable and efficient waste management solution designed specifically for non-commercial driver's license holders. With a payload capacity suitable for smaller garbage collection routes, this truck is ideal for residential areas, office complexes, and small businesses.
Featuring a well-built and durable chassis, the Isuzu non-CDL rear load garbage truck delivers exceptional performance and longevity. The compact size allows for easy maneuverability in crowded urban areas while ensuring maximum stability during collection operations.

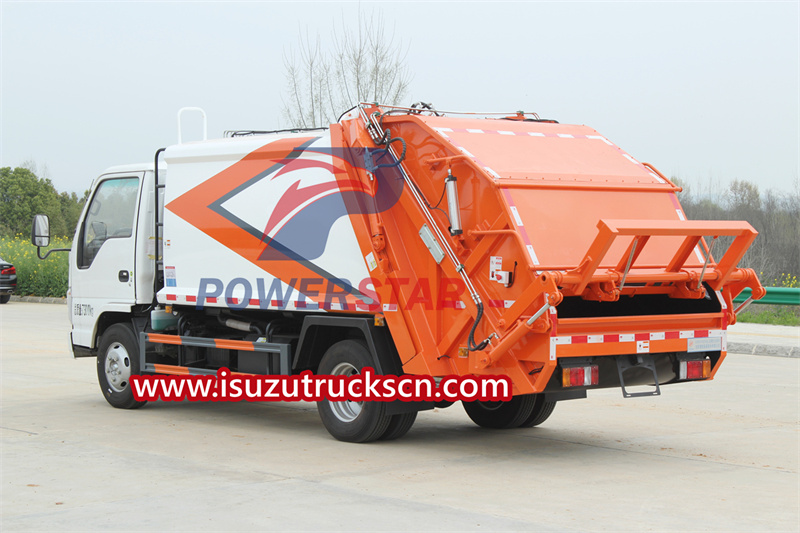

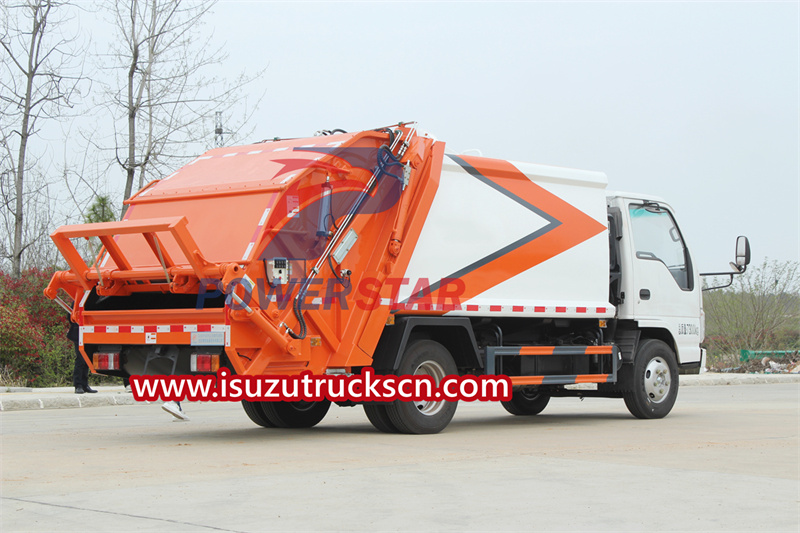

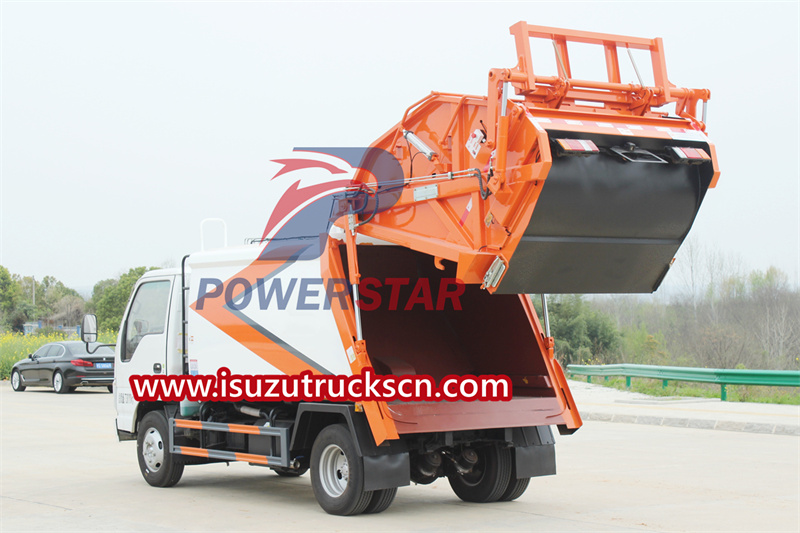

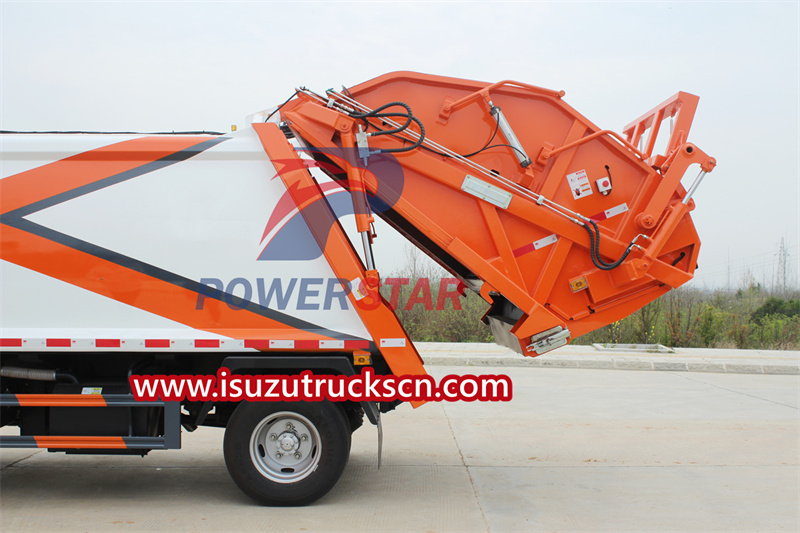

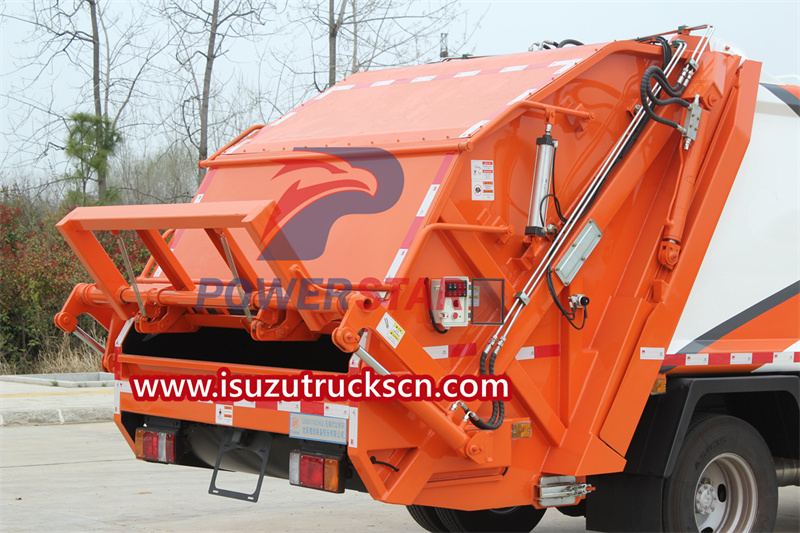

Equipped with a rear loading mechanism, this garbage truck enables efficient and hassle-free waste collection. The operator can easily empty garbage bins into the truck's rear compartment, minimizing manual labor and reducing collection time
Isuzu non-CDL rear load garbage truck specifications
| Up-parts Specification | ||
| Dustbin volume | 4-6cbm | |
| Material & thickness | Side | 4mm Q345 |
| Bottom | 5mm Q235A | |
|

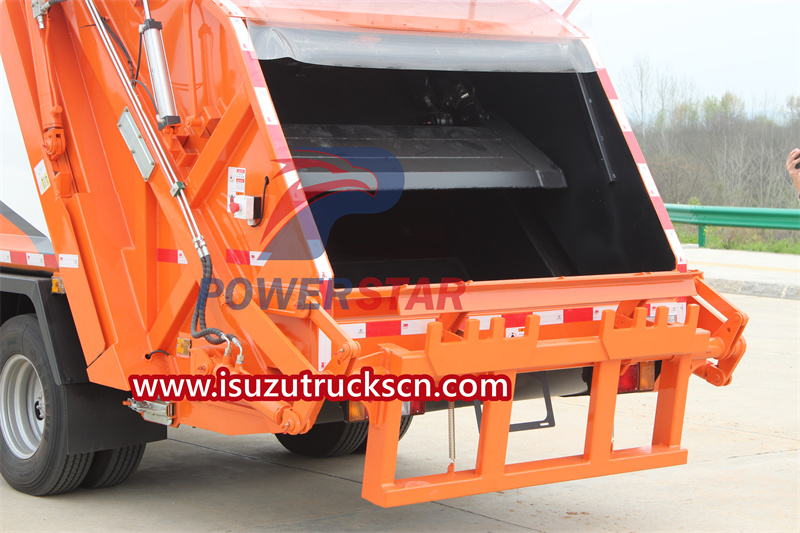

Type of Rear garbage filler (Rear Turnover device) |
1.Hanging trash bin | |
| 2.Swing arm | ||
| 3.Dustpan | ||
| Control system | Electrically Controlled Hydraulic + Manual Hydraulic | |
| Type of compactor | Fill, push and compression | |
| Garbage compact density | 0.9±0.05 T/m³ | |
| Sewage water tank | Rear | About 500L, on the bottom of rear filler |
| Front | About 230L, on the front of garbage van | |
| Max compact | ≥141 KN | |
| Max push | ≥189 KN | |

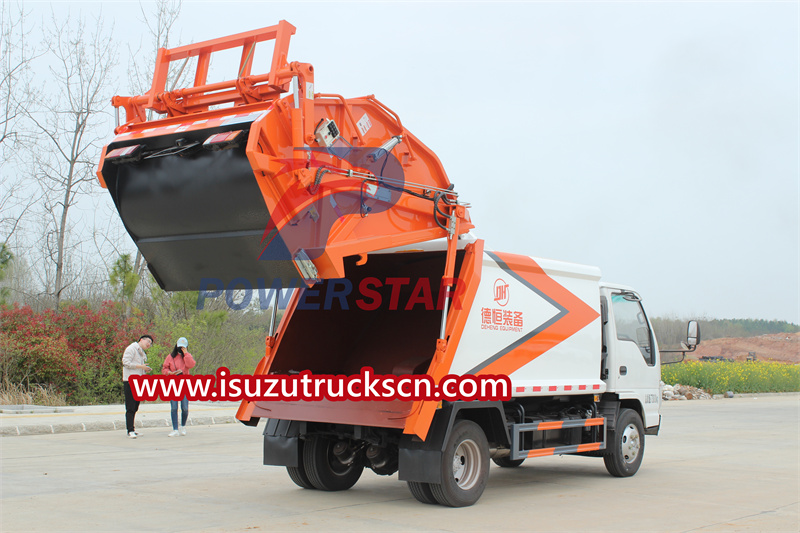

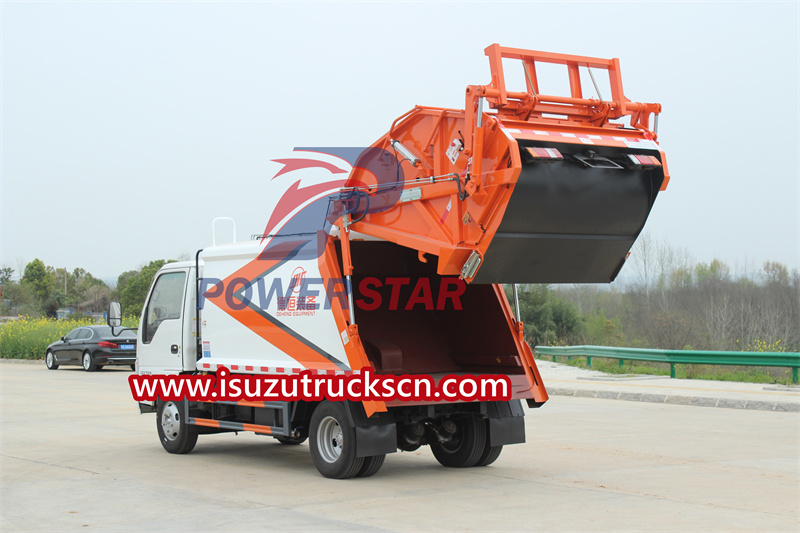

| Tailgate ascending Angle | ~95° | |
| Cycle of loading | ≤40s | |
| Cycle of discharge | ≤45s | |

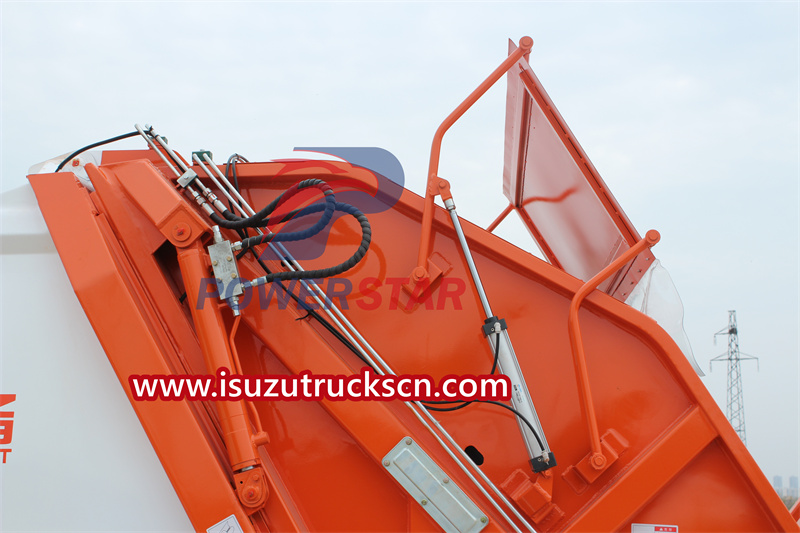

| Hydraulic pressure system working pressure | 16 Mpa | |
| PLC | Importation PLC (Programmable controller) | |
| Gear pump | Made in China | |
| Multi-way valve | Air controlled, Made in China | |
| Hydraulic oil cylinder | Made in China | |
| Hydraulic rubber hose | Made in China | |
| Chassis Description | ||
| Chassis model | QL1040A1HAY | |
| Cab | 600P,single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.00-16 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | 4KH1-TCG40 |
| Emission level | Euro 4 | |
| Displacement/output | 2999ml/88kw | |
| Horse power | 120hp | |
| Gear box | Model | ISUZU MSB |
| Number of gears | 5 forward gears& 1 reverse | |
| Brake system | Full air brake | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Carbon steel tanker, with lockable cap |
| Capacity | 140L | |
| Vehicle Description | |

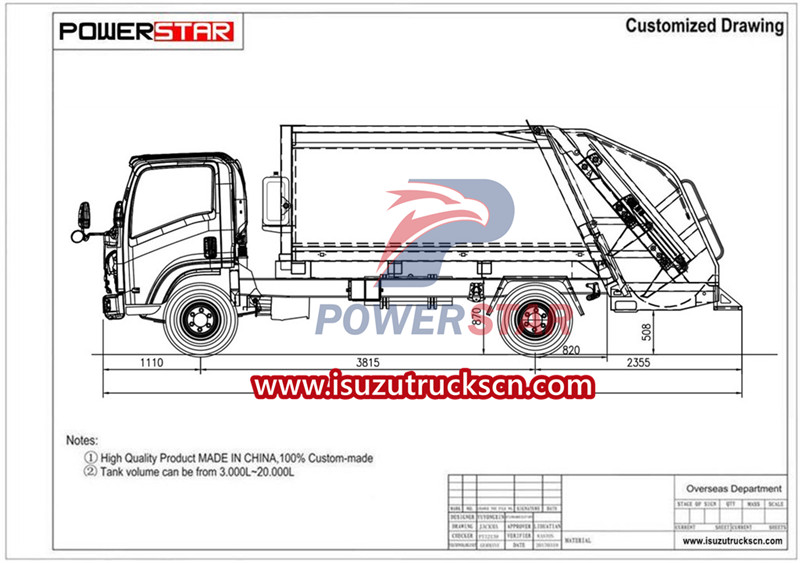

| Overall dimensions | 5950*1880*2280mm |
| GVW | 7300kg |
| Curb weight | 4700kg |
| Loading weight | / |
| Chassis brand | ISUZU |
| Traction type | 4*2; Left hand drive |
Isuzu non-CDL rear-mounted garbage trucks are widely used in Africa. Waste collection and treatment systems are still weak in many African countries, making this type of garbage truck a very important piece of equipment.
Isuzu non-CDL rear-loading garbage trucks are used for garbage collection. Many cities and rural areas in Africa do not have modern waste disposal facilities, so waste is often dumped haphazardly in streets and farmland. This garbage truck is able to collect garbage from urban and rural areas through a rear loading system, ensuring hygiene and environmental health.
Isuzu non-CDL rear-loading garbage trucks are used to clean up public places. Many African cities are densely populated, and public spaces such as parks, squares and streets tend to accumulate large amounts of garbage. This kind of garbage truck can easily enter these narrow areas, clean up garbage, and maintain the cleanliness and tidiness of public places.
Isuzu non-CDL rear-loading garbage trucks are also used for garbage disposal. In many parts of Africa, waste disposal facilities are very limited. This garbage truck can transport garbage to landfills or incineration plants for safe waste disposal. Through effective waste disposal, environmental pollution and hygiene problems can be reduced, and people's quality of life can be improved.
