Isuzu 20 m articulated bucket truck
The Isuzu 20m articulated bucket truck represents a blend of cutting-edge technology and utility, designed to meet the demands of aerial work across a spectrum of industries. This versatile vehicle is equipped with a host of features that enhance safety, efficiency, and performance for operators working at heights.
Work capacity:
20mTruck model:
PT5070GWYEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2，LHDGear box:
MSB 5 forward gears& 1 reverseRemarks:
20m working height,360° working angle
Isuzu 20m articulated bucket truck also called Isuzu 20m articulated aerial work vehicle,Isuzu 100P 20m articulated aerial platform truck,Isuzu 100P bucket lift truck,Isuzu 100P 20m telescopic platform truck,Isuzu 20m articulated aerial work platform,as a professional vehicle designed for aerial work, plays an important role in many fields such as construction, electricity, communications, municipal maintenance, etc. with its excellent performance and wide range of applications.Isuzu 20m articulated bucket truck has become a leader in the field of aerial work with its excellent performance, flexible operation and wide range of applications.
The 20-meter articulated bucket lift truck is a versatile and robust piece of machinery designed to elevate your work to new heights. With a maximum working platform height of 20 meters, this aerial work platform is perfect for tackling a wide range of tasks with ease.
|
Isuzu 20 m articulated bucket truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
5995*1990*3150mm |
|
|
GVW |
6850kg |
|
|
Curb weight |
4365kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4X2 |
|
|
Up-parts specification |
||
|
Arm |
Model |
4-section folding arm |
|
Max working height |
20m |
|
|
Elevation angle |
-12°～80° |
|
|
Working angle |
360° |
|
|
Landing leg |
Type |
H-type |
|
Longitudinal span |
2430mm |
|
|
Transverse span |
1670/2780mm |
|
|
Hanging basket |
Rated load |
≤200kg |
|
Dimension |
1080×610×1100mm |
|
|
Leveling type |
Mechanical rod |
|
|
Hydraulic system |
Hydraulic valve |
Manual |
|
Working pressure |
16Mpa |
|
|
Oil cylinder |
Equipped with lock function |
|
|
Operation type |
Both hanging basket and rotator |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu 100P |
|
|
Cab |
100P,single row, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00-16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120hp |
|
|
Gear box |
Model |
MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker,with lockable cap |
|
Capacity |
140L |
|
Isuzu 100P 20m aerial work vehicle is a professional equipment designed for aerial work. Its working height can reach 20 meters, which can meet various aerial work needs. The vehicle adopts Isuzu chassis, with solid structure, strong carrying capacity and good stability. The vehicle is equipped with advanced hydraulic system and high-performance engine, which is easy to operate, stable lifting, safe and reliable. At the same time, its beautiful appearance and flexible movement make it suitable for aerial installation, maintenance and cleaning operations in many industries such as municipal administration, electricity, communication, gardening, etc. In short, Isuzu 100P 20m aerial work vehicle is an efficient, safe and reliable aerial work solution.

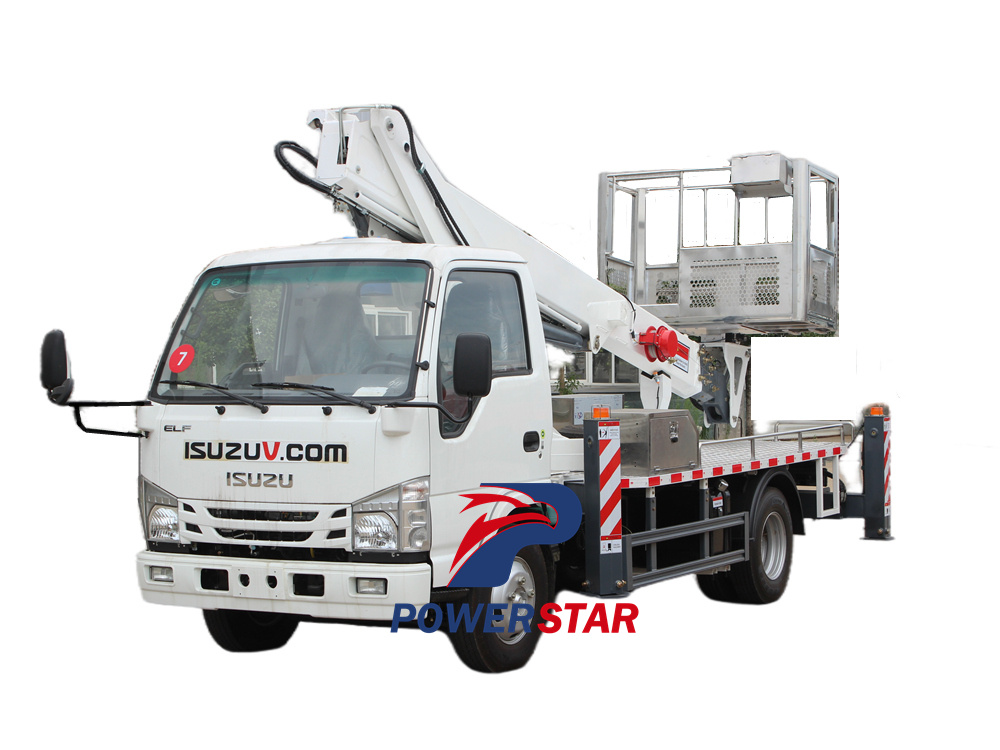

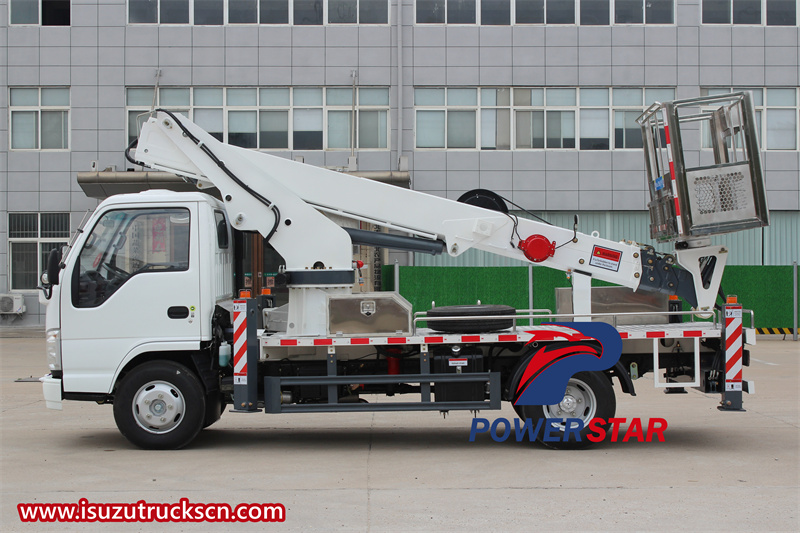

Isuzu 100P 20m articulated bucket truck
Advanced Articulated Design
One of the outstanding features of the Isuzu 20m articulated bucket truck is its articulated design, which provides unparalleled reach and flexibility. Articulated boom structure This design allows the boom to articulate and extend, enabling the work platform to move flexibly in both horizontal and vertical directions, greatly increasing the working range and flexibility. The operator is able to precisely and easily access hard-to-reach areas. Whether it is a power line maintenance task, tree pruning or construction work, the articulated design ensures maximum productivity.
Innovation in Technology
At the heart of the Isuzu 100P 20m aerial bucket lift truck is a suite of innovative technologies that elevate operational efficiency. Integrated diagnostics systems offer real-time monitoring of crucial vehicle parameters, facilitating proactive maintenance and reducing downtime. The incorporation of GPS tracking and remote monitoring capabilities enhances fleet management and enables supervisors to track vehicle performance and location. These technological advancements not only streamline operations but also optimize resource utilization, making the Isuzu bucket truck a standout in the realm of aerial work vehicles.

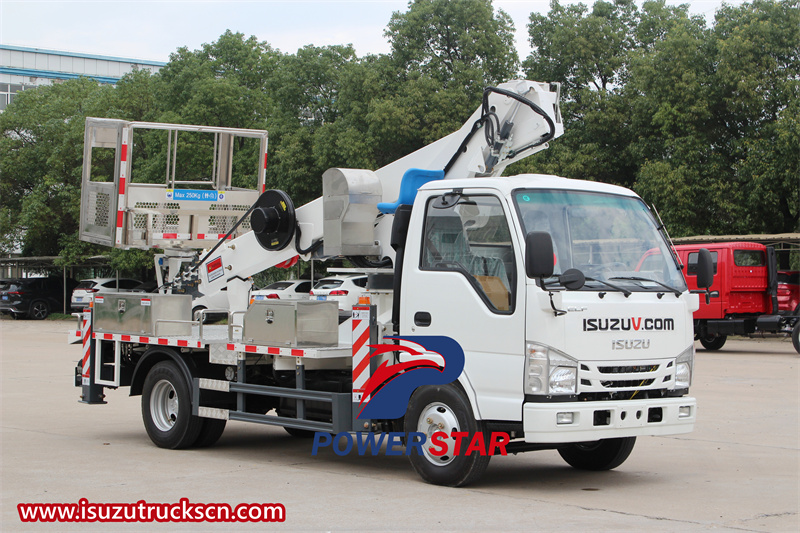

Isuzu 100P 20m aerial bucket truck
Height and Reach
With a vertical reach of 20 meters, this bucket truck enables operators to access elevated work areas with ease. The telescopic boom extends to impressive heights, granting workers the ability to perform tasks efficiently and safely. The reach of the machine, combined with its stability and control systems, make it a reliable partner for aerial work in various environments.
Power and Performance
Powered by a reliable Isuzu engine, the bucket truck delivers impressive performance and reliability in a variety of working conditions. The engine's power output is matched with hydraulic systems that ensure smooth and precise operation of the boom and platform. This combination of power and precision enables operators to tackle challenging tasks with confidence.

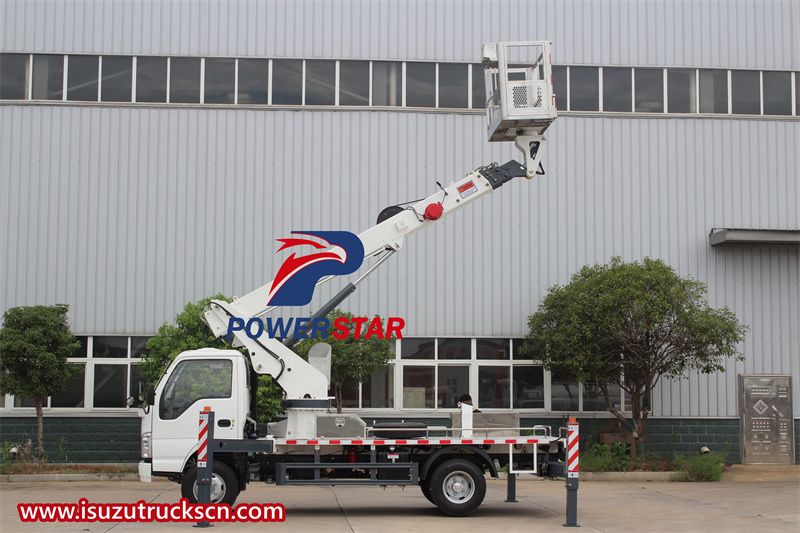

Isuzu 100P 20m aerial work vehicle
Stability system
Equipped with advanced stability systems, such as hydraulic outriggers (usually V-shaped in the front and H-shaped in the rear), it can provide stable support during operation and ensure operation safety.
Control system
Adopt advanced electrical control system or hydraulic system, support multiple operation modes such as ground remote control, console control and emergency braking, which improves the convenience and safety of operation.
Isuzu 100P 20m articulated aerial platform truck
Versatile Bucket Lift
The truck's bucket lift is a versatile platform that can accommodate one or more workers and their equipment. It provides a stable and secure workspace, making it suitable for a wide range of tasks, including painting, maintenance, repairs, and installations at elevated heights.
Enhanced Safety Features
The Isuzu 20m articulated bucket truck prioritizes safety with a comprehensive array of features. Anti-collision systems, overload protection mechanisms, and emergency lowering capabilities provide operators with peace of mind when working at heights. Advanced stabilization technology ensures the vehicle remains steady and secure, even in challenging conditions. This dedication to safety not only protects operators but also minimizes risks for bystanders, making the Isuzu bucket truck a dependable choice for high-altitude tasks.
Isuzu 100P 20m telescopic platform truck

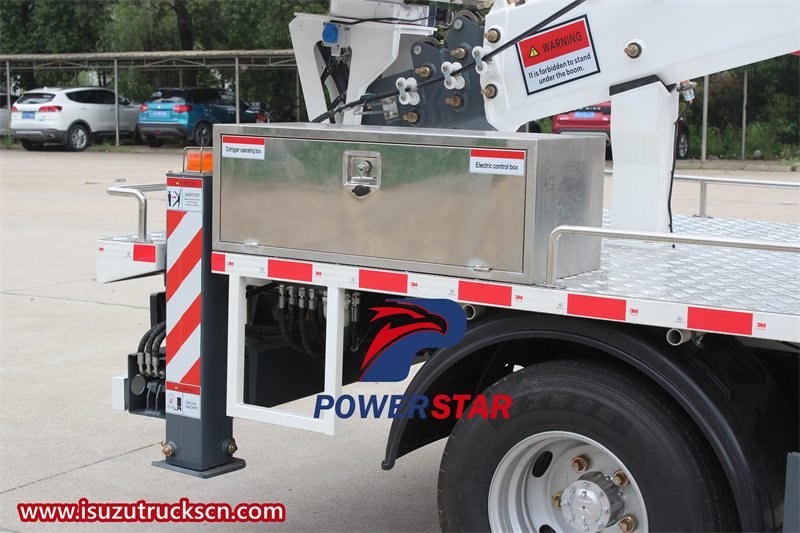

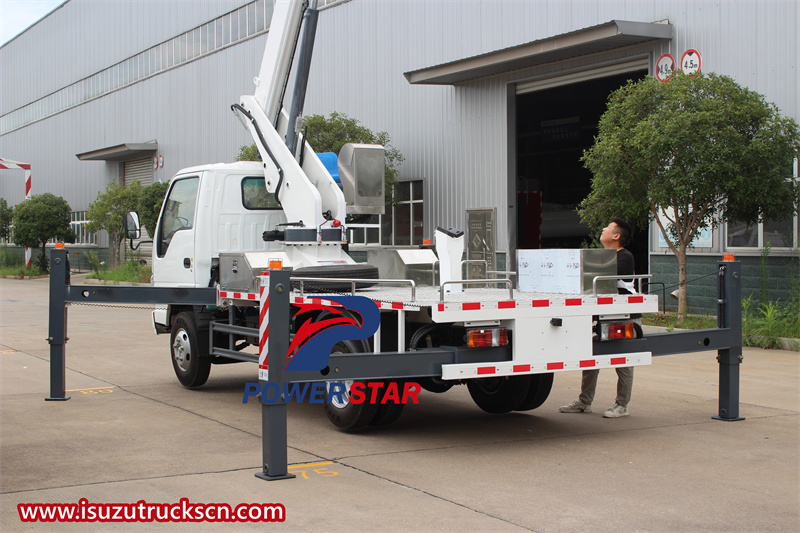

Isuzu 100P 20m articulated vehicle rear outrigger

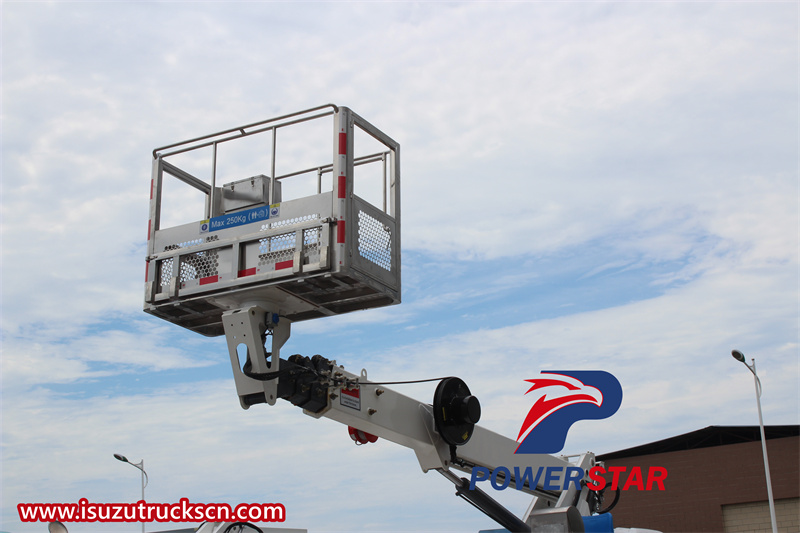

Isuzu 100P 20m telescopic platform truck bucket

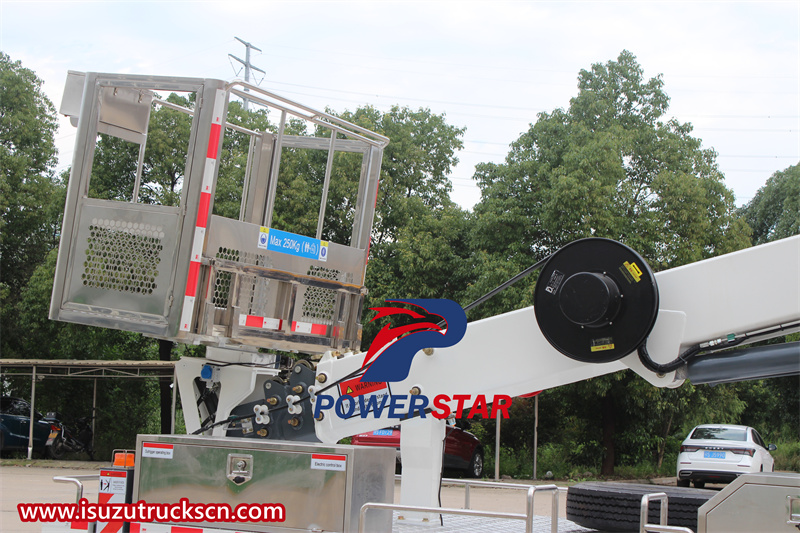

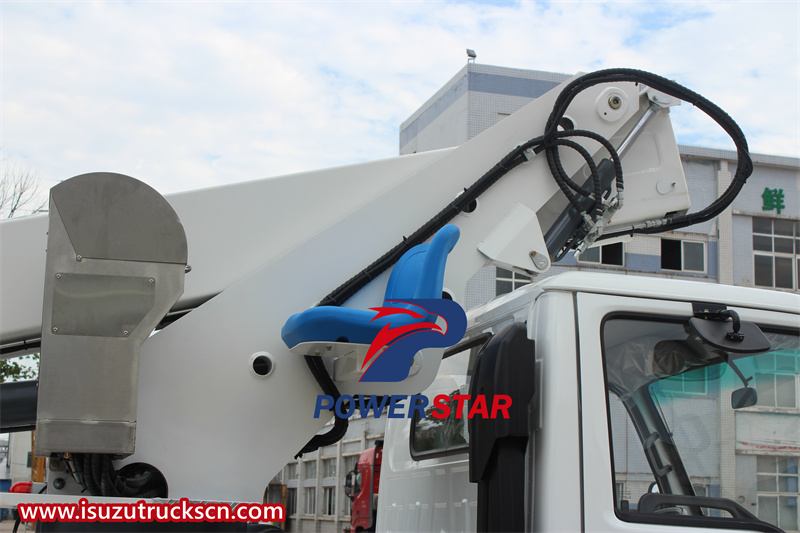

Isuzu 100P 20m aerial platform truck revolving mechanism
Isuzu 100P 20m aerial platform truck winch

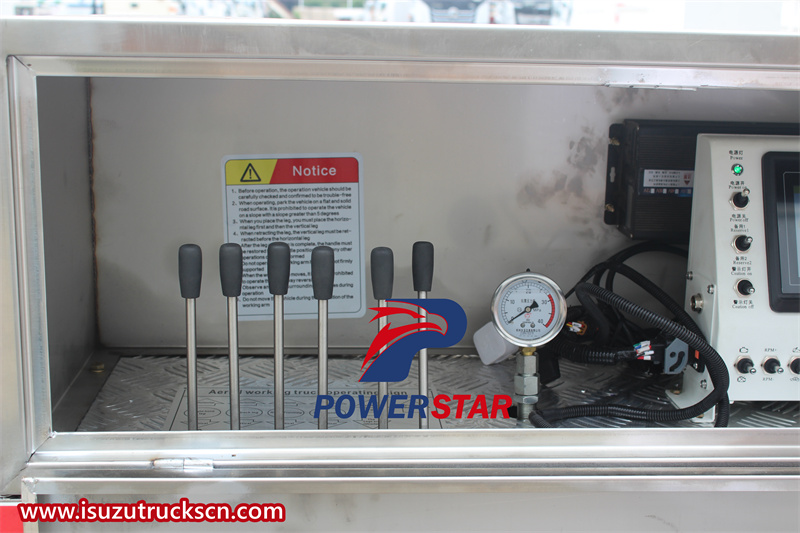

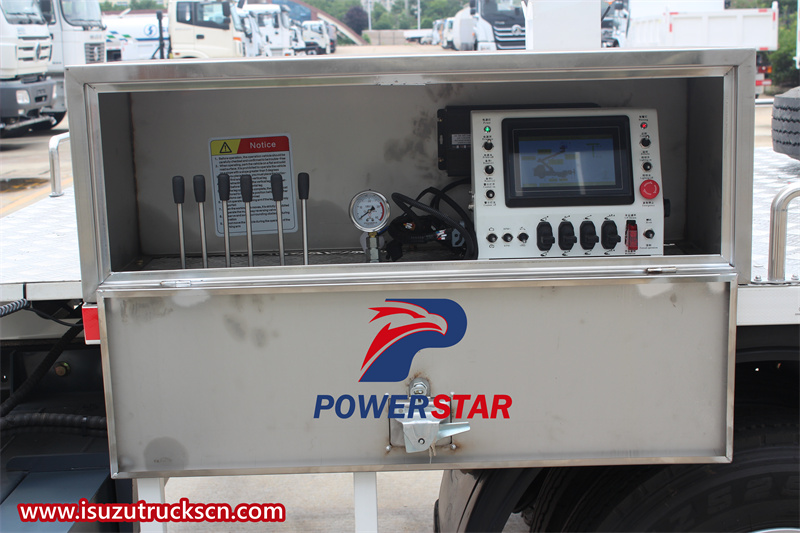

Isuzu 100P 20m aerial working vehicle operation box
Isuzu 100P 20m aerial working vehicle joystick

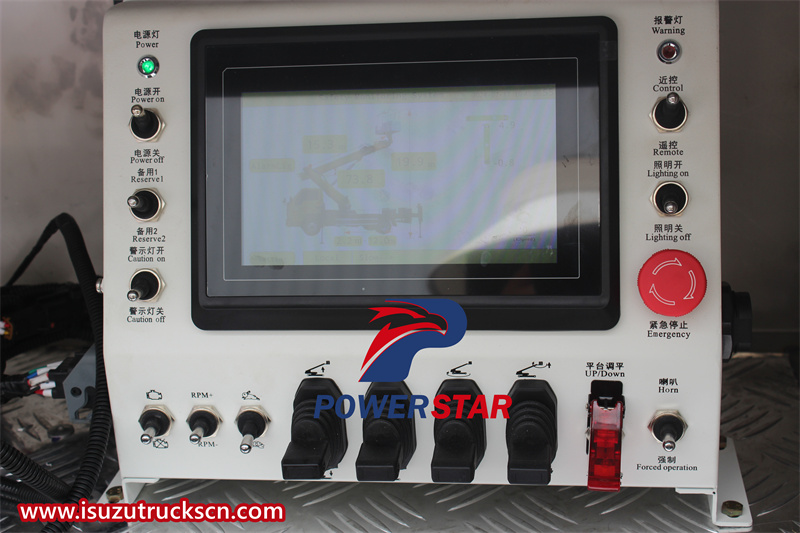

Isuzu 100P 20m aerial working vehicle operation panel
