Best price Isuzu NKR 600P garbage compression truck,best quality Isuzu 4X2 600P rear loader compactor.4x4 drive avaiable.
Work capacity:
6cbmTruck model:
PST5070ZYSQEngine power:
130HPEngine type:
4KH1CN5LSAxle drive:
4x2Gear box:
MSB 5-speed, ManualRemarks:
Isuzu NPR 600P waste disposal truck,can be customized.| Products Description |
Isuzu NKR 600P garbage compression truck also called Isuzu garbage compactor truck, Isuzu compactor garbage truck,Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu 100P garbage disposal truck,Isuzu split body rear loader truck,Isuzu waste collection vehicle. The Isuzu NKR 600P garbage compression truck is used to collect,transport and clearing up wastes, avoid secondary pollution. The truck is a new type of environmentally friendly vehicle ,which is simple, efficient and environmentally friendly.It is widely used in sanitation organizations, municipal administration, mining areas, property areas, residential areas and other places where garbage is centralized.
I.Description of Isuzu NKR 600P Garbage Compression Truck
Key Features:
---- Using Japanese technology ISUZU 600P Chassis , super power, larger displacement, with Stronger Engine performance.
---- Quality test from the production to the finish of the whole truck.
---- Professional and experienced technical team support to provide customized trucks with high quality & reasionalble price.
---- Genuine spare parts supply.
---- Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
| Technical Parameter |
II. Specification of Isuzu NKR 600P Garbage Compression Truck
|
ISUZU 4x2 NKR 600P garbage compression truck |
|
|
Mian Technology Parameter |
|
|
Vehicle Model |
PST5070ZYSQ |
|
Driving Type |
4×2,left hand drive |
|
Color |
Blue, can be your choose |
|
Weights |
|
|
Gross weight(kg) |
7300 |
|
Curb weight(kg) |
3760 |
|
Dimensions |
|
|
Wheelbase(mm) |
3815 |
|
Overall Dimension(mm) |
6820×2400×2860 |
|
Box dimension |
6 cbm |
|
Max speed(km/h) |
95 |
|
Engine |
|
|
Engine model |
4KH1CN5LS(130HP) |
|
Engine type |
4 stroke water-cooled,inter-cooling |
|
No. of cylinders |
straight-4 cylinders |
|
Displacement(L) |
2.999L |
|
Max. output (kw) |
96kw |
|
Emissions standard |
Euro 6 |
|
Fuel |
Diesel |
|
Drive Line |
|
|
Transmission |
MSB 5-speeds ,5 forwards,1 reverse gear,manual operation |
|
Steering |
Power steering |
|
Brake |
Oil brake with vacuum pump |
|
Cab |
|
|
Air container |
Have |
|
Standard configuration |
Sound,,parking sensors |
|
Axle |
|
|
Front axle |
2.5 tons |
|
Rear axle |
4.8 tons |
|
Tire specification |
|
|
Tire specification |
7.00-16 standard tire,6 tires+1 spare tire |
|
6m3 garbage compactor truck |
|
|
Box valume |
6m3 |
|
Box material |
Side 4mm,bottom 5mm |
|
Sewage tanker |
200L |
|
Fill volume |
1.2cbm |
|
Loading time |
8-10S |
|
The cycle time of the loading |
50-60S/per turn |
|
Unloading model |
Dump |
|
Unloading time |
30-40S |
|
Hydraulic system pressure |
16Mpa |
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to your requirement .
5. we can offer you the high quality & reasionalble price
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of Isuzu NKR 600P Garbage Compression Truck

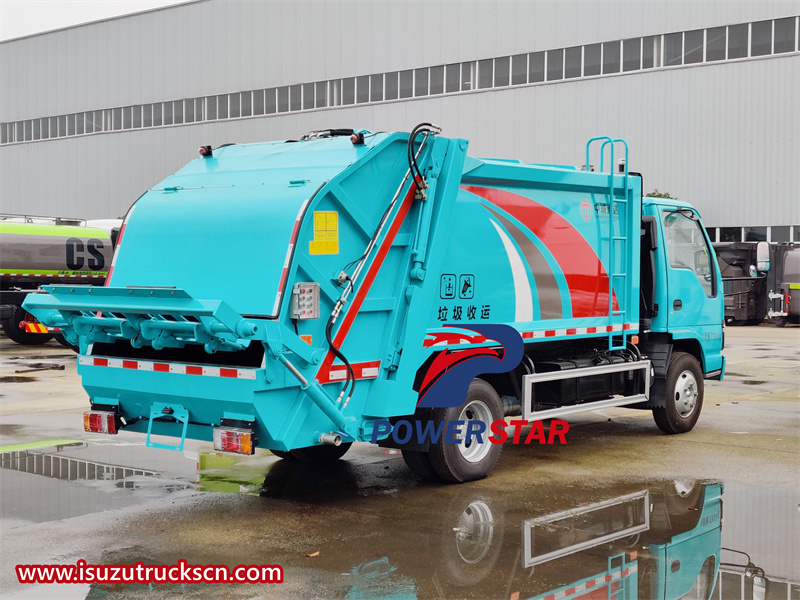

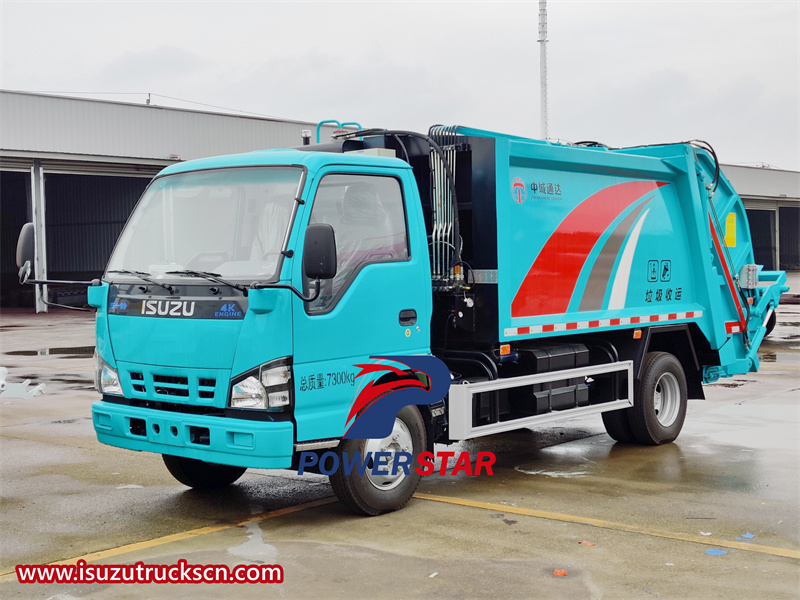

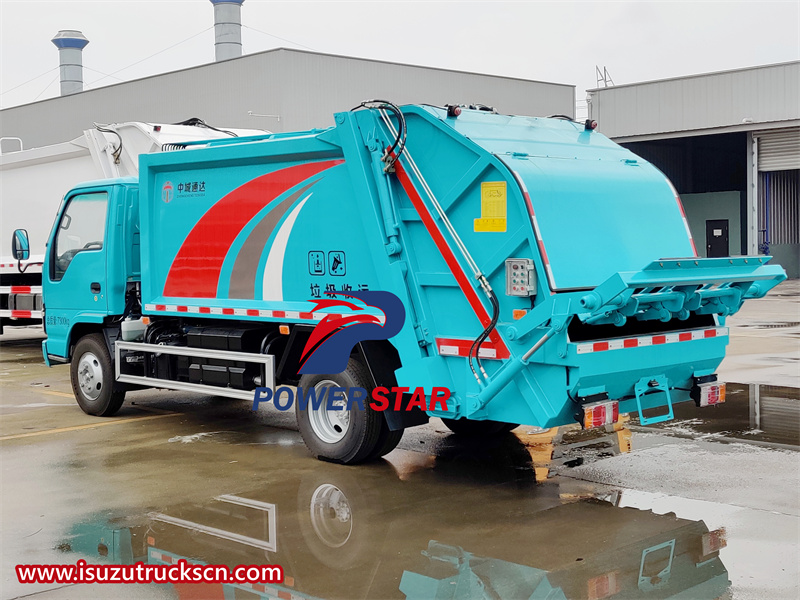

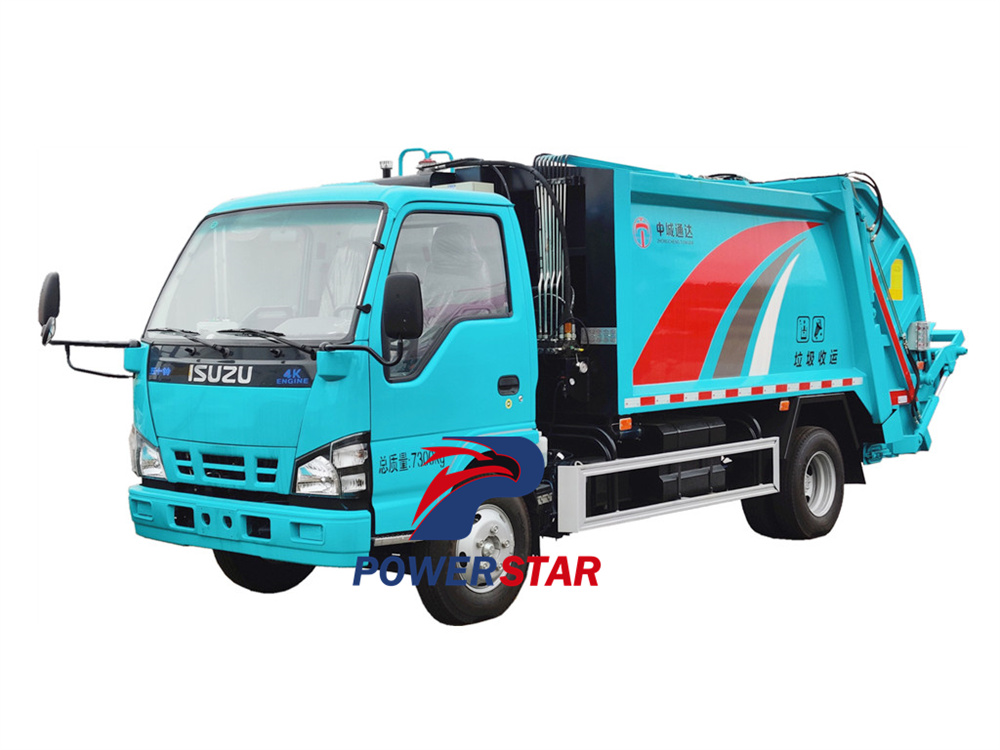

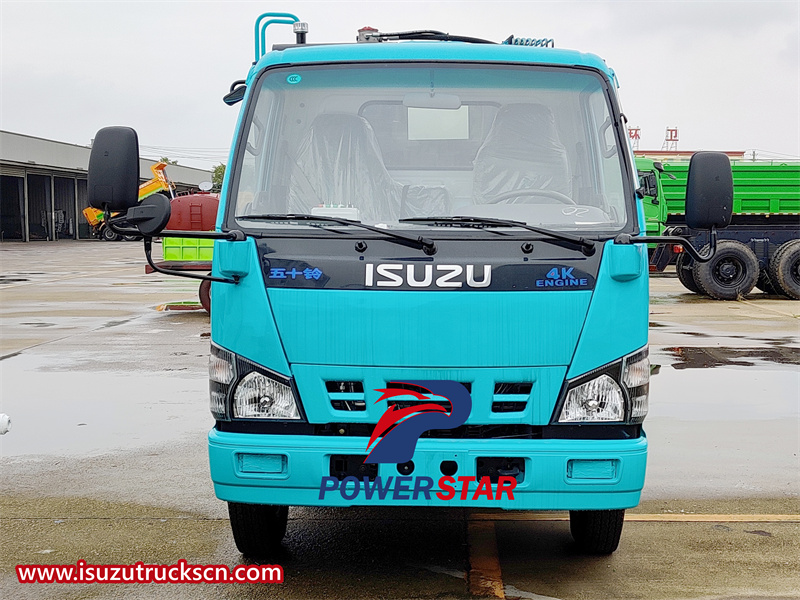

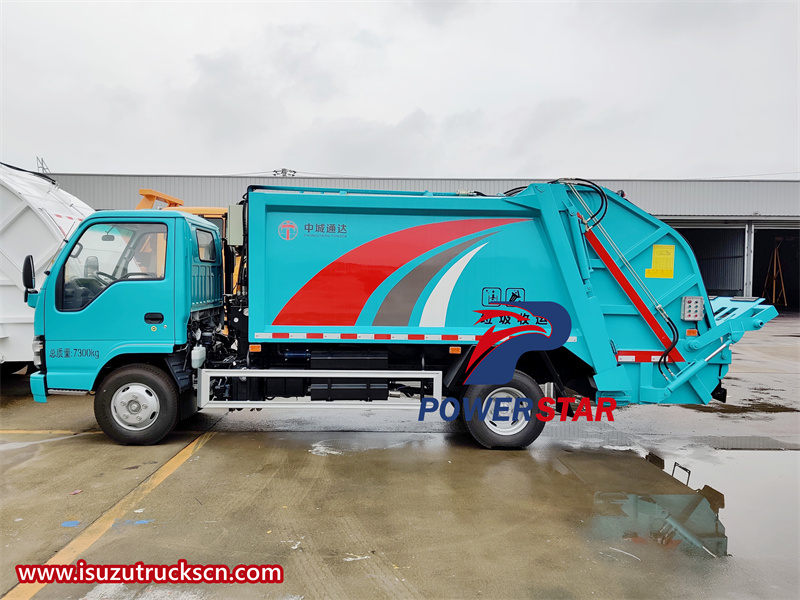

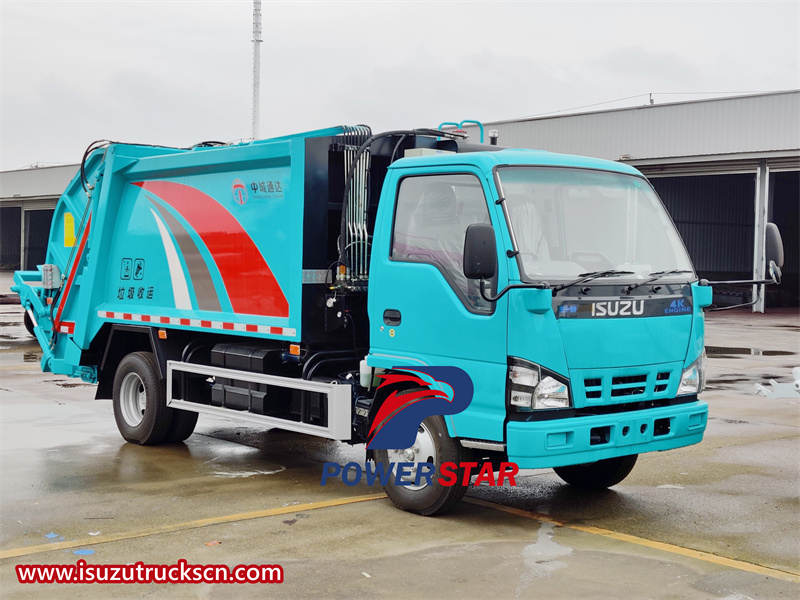

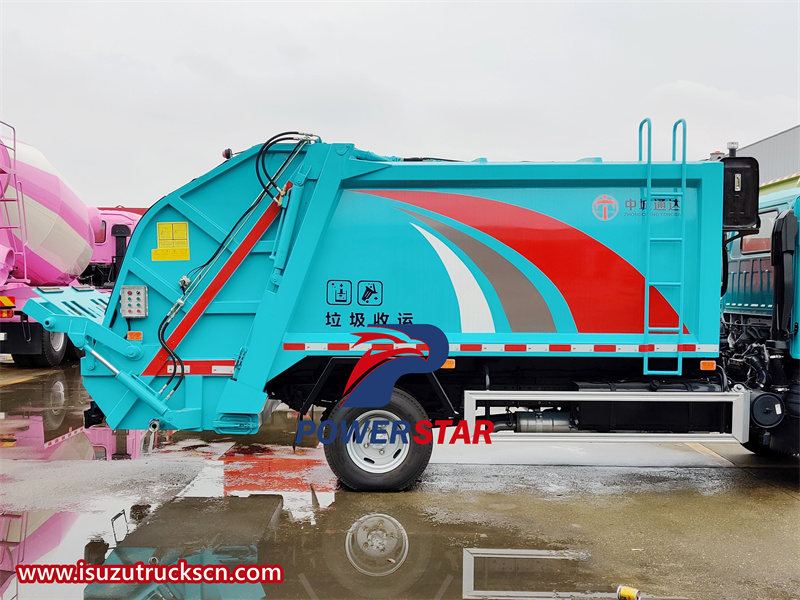

● Isuzu NKR 600P garbage compression truck photos for reference
Isuzu NKR 600P garbage compression truck is mounted on an ISUZU 600P 4X2 chassis truck, designed to gather municipal solid wastes and refuse to transport them to a waste treatment facility. It features of high-strength wear-resistant steel plates welded tank, hopper composites of sliding plates, sweep panel and other components to collect and compact garbage, a hydraulically opening tailgate, and a garbage bin tipper.
Isuzu NKR 600P garbage compression truck container capacity is 6cbm, made of high corrosion resistance Q235 carbon steel, Side 4mm,bottom 5mm. The compaction ratio is around 0.6~0.8T/m3 according to the characteristic of the garbage used in the areas. The garbage truck’ working is controlled from the double control system, safe to operate.

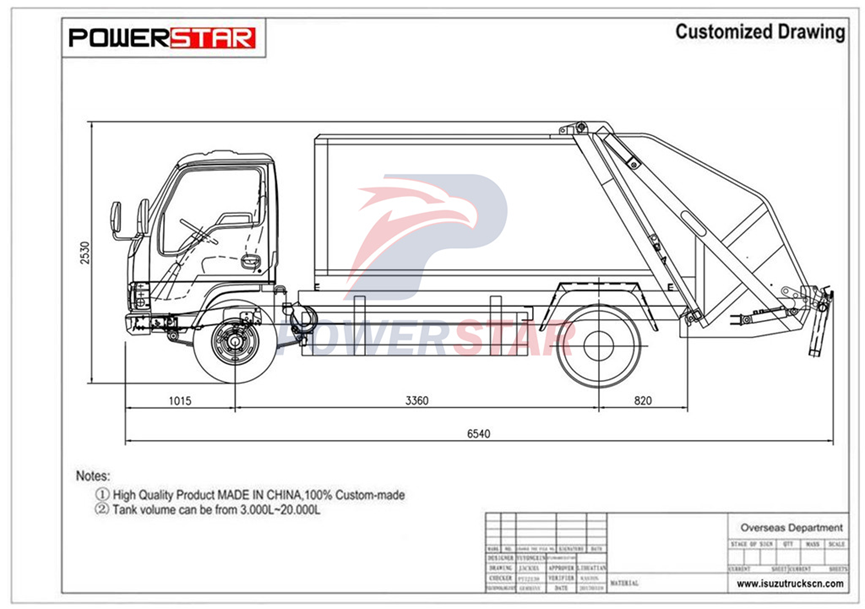

Technical drawing of Isuzu 4X2 Isuzu NKR 600P garbage compression truck

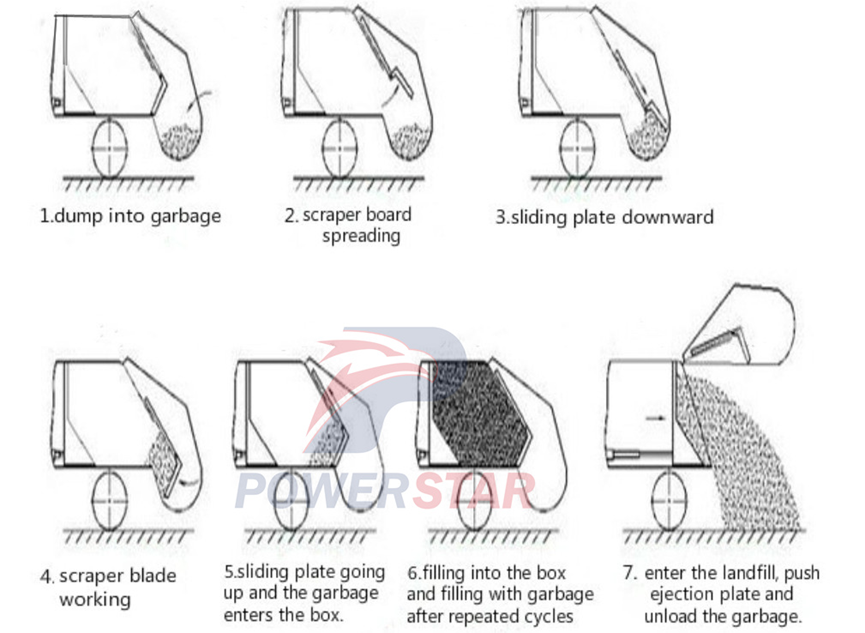

Garbage Loading and Unloading Process
The Isuzu NKR 600P garbage compression truck is a specialized vehicle designed for the compression and disposal of waste materials. Its main uses and functions can be categorized into the following four points:
★ Firstly, the primary use of the Isuzu NKR 600P garbage compression truck is in municipal waste management systems. With its efficient compression system, the truck is capable of compacting large volumes of waste material, reducing its size and increasing its density. This process facilitates cost-effective waste disposal and transportation operations for municipalities.
★ Secondly, the truck is utilized for the regular collection and disposal of various types of waste, including household and industrial waste. As urban and rural areas experience population growth and economic development, waste management becomes a critical issue. The Isuzu NKR 600P helps in the timely collection and appropriate disposal of diverse waste materials.
★ Thirdly, the Isuzu NKR 600P garbage compression truck is deployed for the cleaning and maintenance of public spaces such as streets, parks, and communities. By efficiently managing waste in these areas, the truck contributes to environmental beautification, enhances the aesthetic appeal of cities, and mitigates the risk of environmental pollution and disease transmission.
★ Lastly, the truck offers a large cargo capacity and storage space, enabling the handling of substantial amounts of waste in a single operation. This feature enhances work efficiency and productivity, making the Isuzu NKR 600P an ideal choice for waste management tasks in urban and rural settings.
In summary, the Isuzu NKR 600P garbage compression truck serves various functions such as waste compression, collection, disposal, and urban cleaning. Its versatility and efficiency make it an indispensable asset for waste management operations, contributing to cleaner and healthier environments in both urban and rural areas.
Isuzu 4x2 NLR 600P waste compactor truck
Isuzu 600P 6cbm rear loader compactor
| Our Advantage |

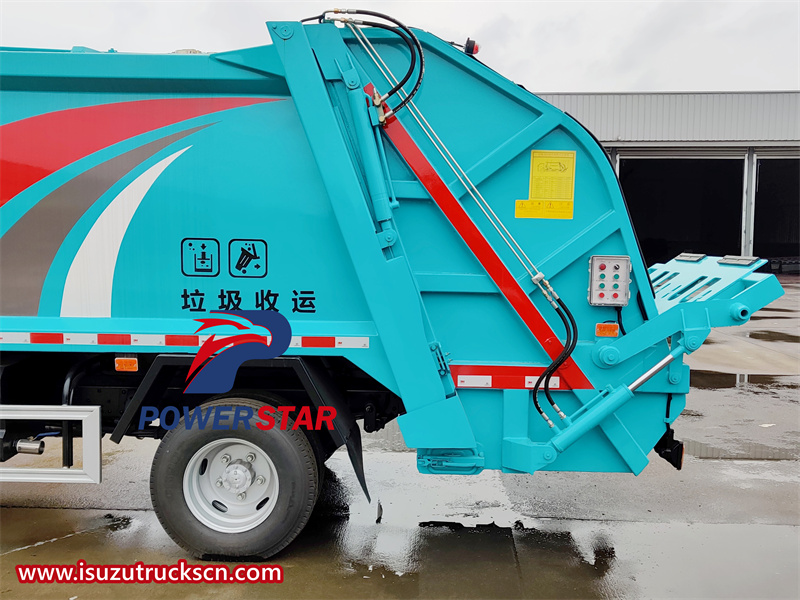

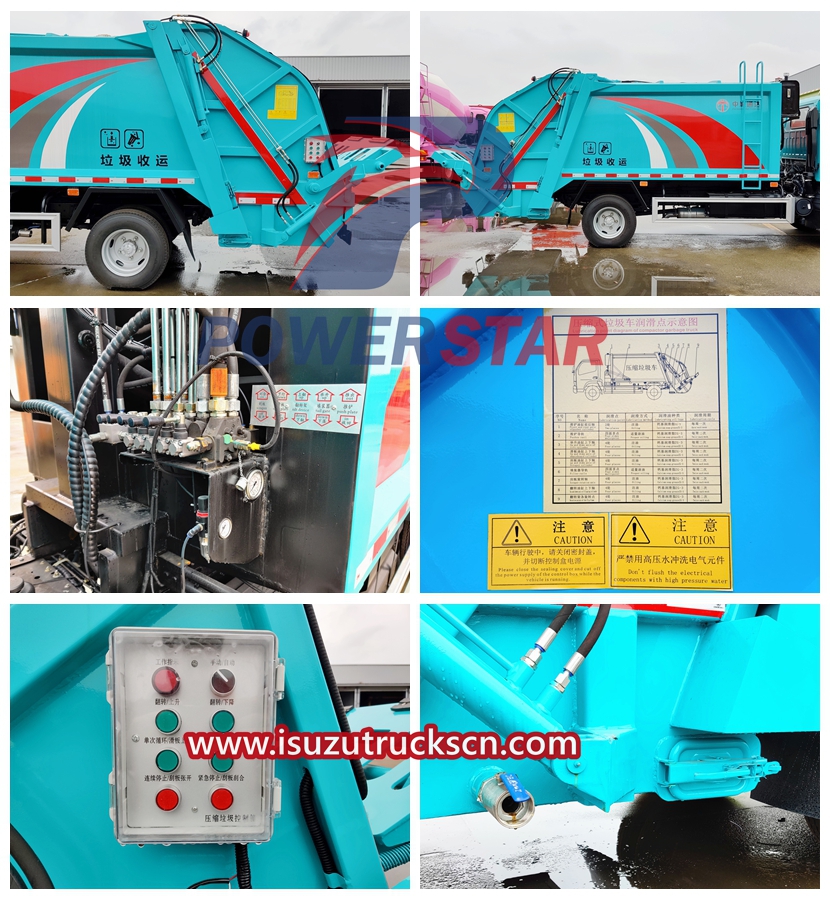

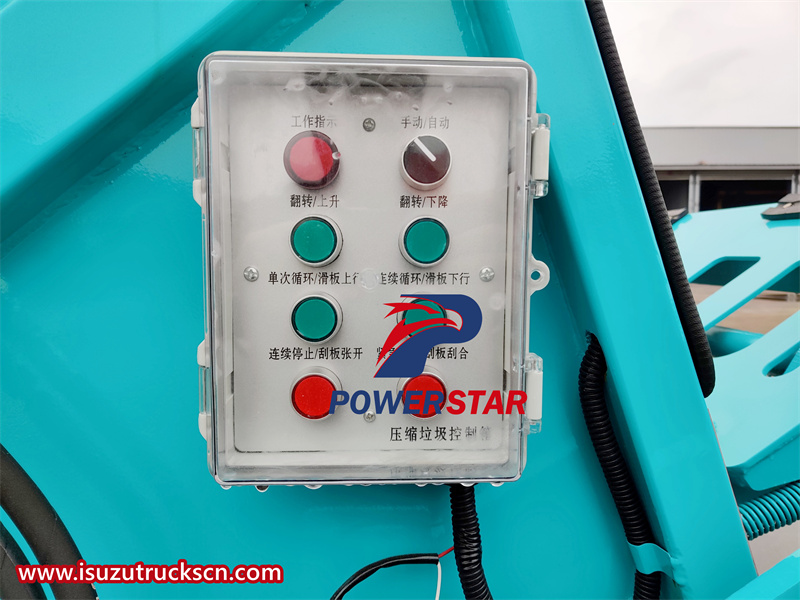

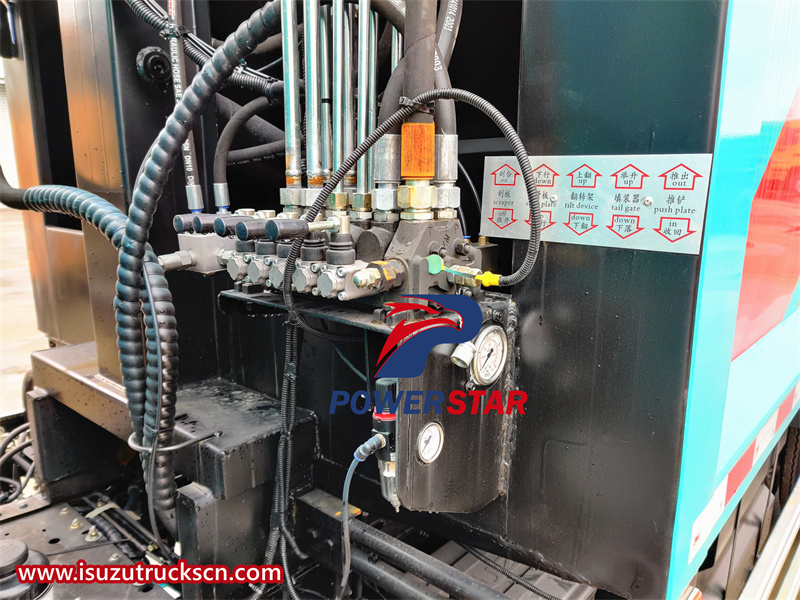

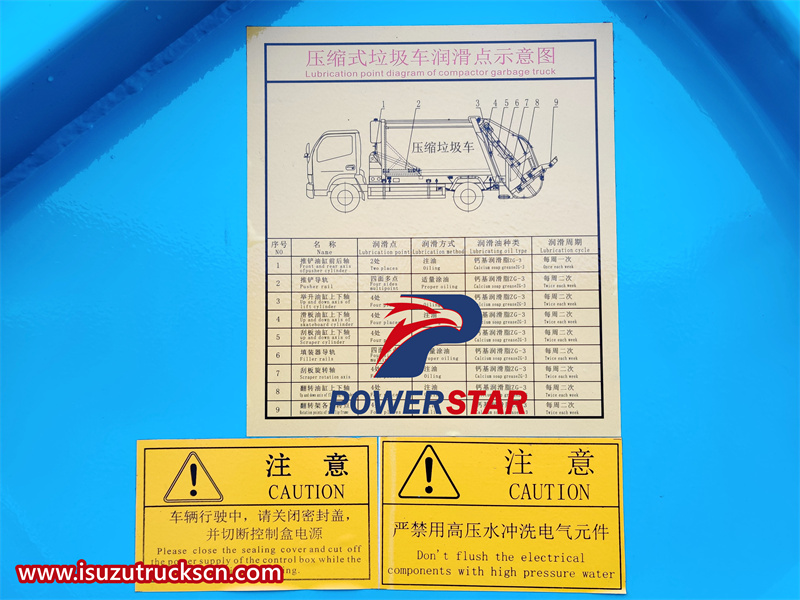

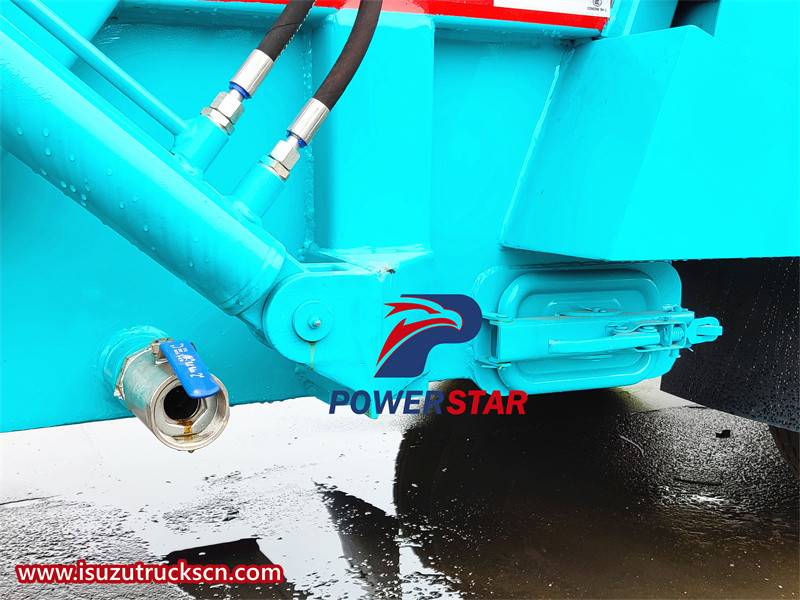

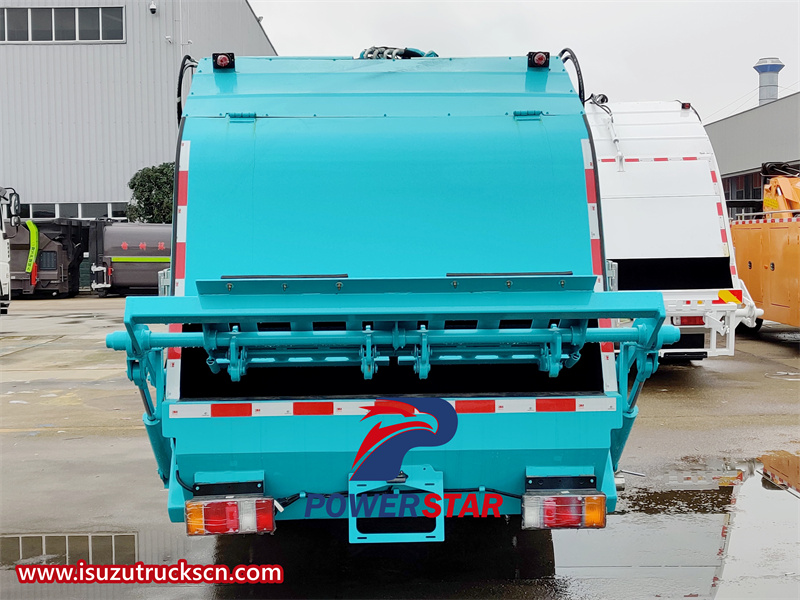

● Isuzu NKR 600P garbage compression truck details

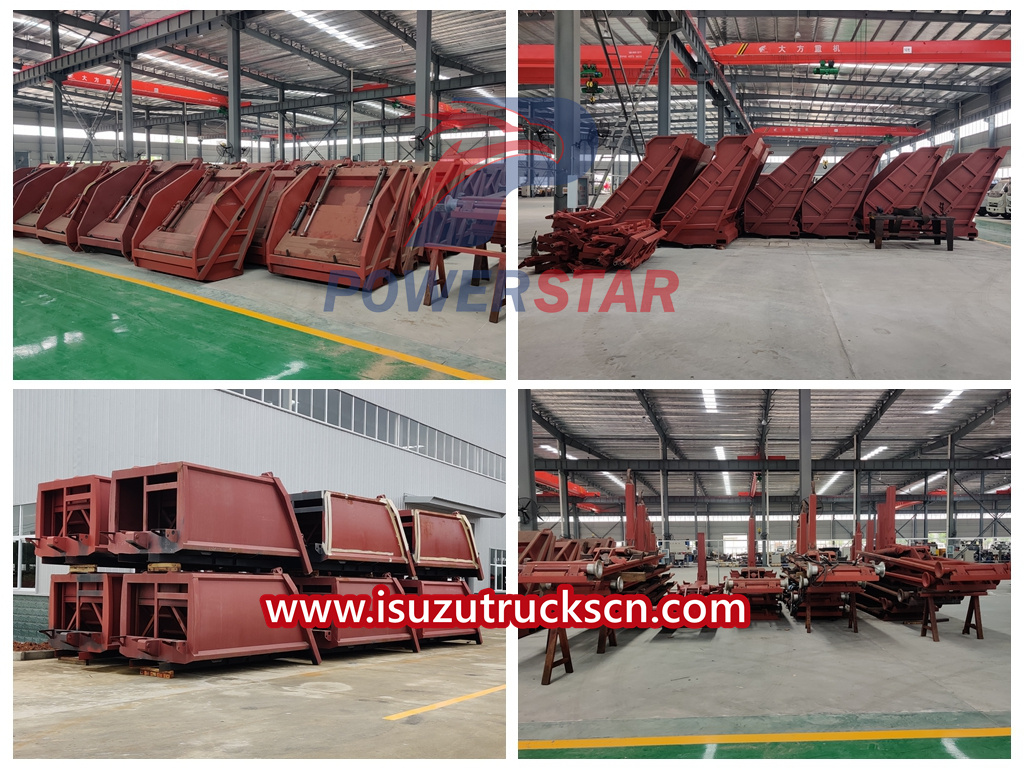

● Isuzu NKR 600P garbage compression truck body parts in our factory

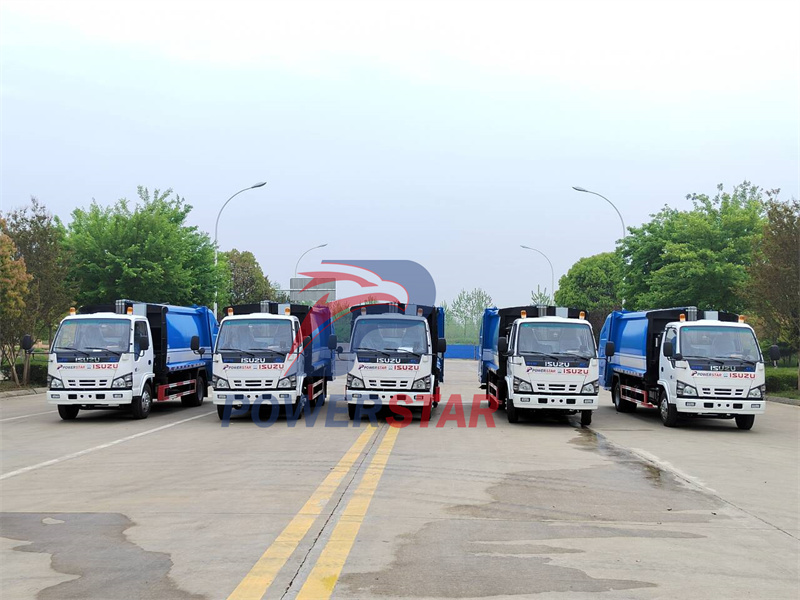

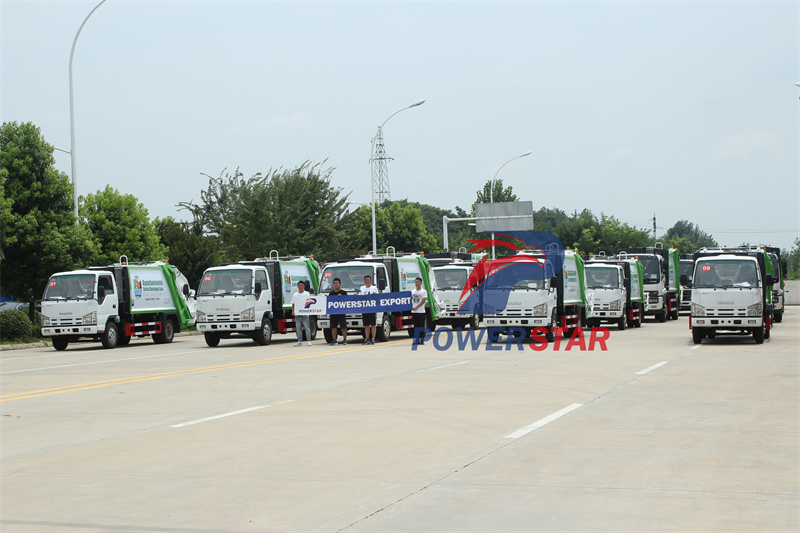

● Isuzu NKR 600P garbage compression truck departure in batches
Brand new ISUZU 6 cubic meters 4x4 garbage compactor truck mounted on ISUZU 4x4 truck chassis, ISUZU LHD 6cbm compactor garbage truck 2 axles wast management truck.Collection way of garbage compactor truck is simple, can eliminate the second pollution, compression ratio high,large loading capacity,high automation operation, good economy, double insurance system, high efficiency.There are three kinds of mechanism options available to the customer,barrel turnover mechanism,panel turnover mechanism and tipping mechanism.By the user of hydraulics,the barrel is locked during the overturning process.which is very safe and reliable. Isuzu 120HP 4x4 truck mounted 6cbm garbage compactor.
