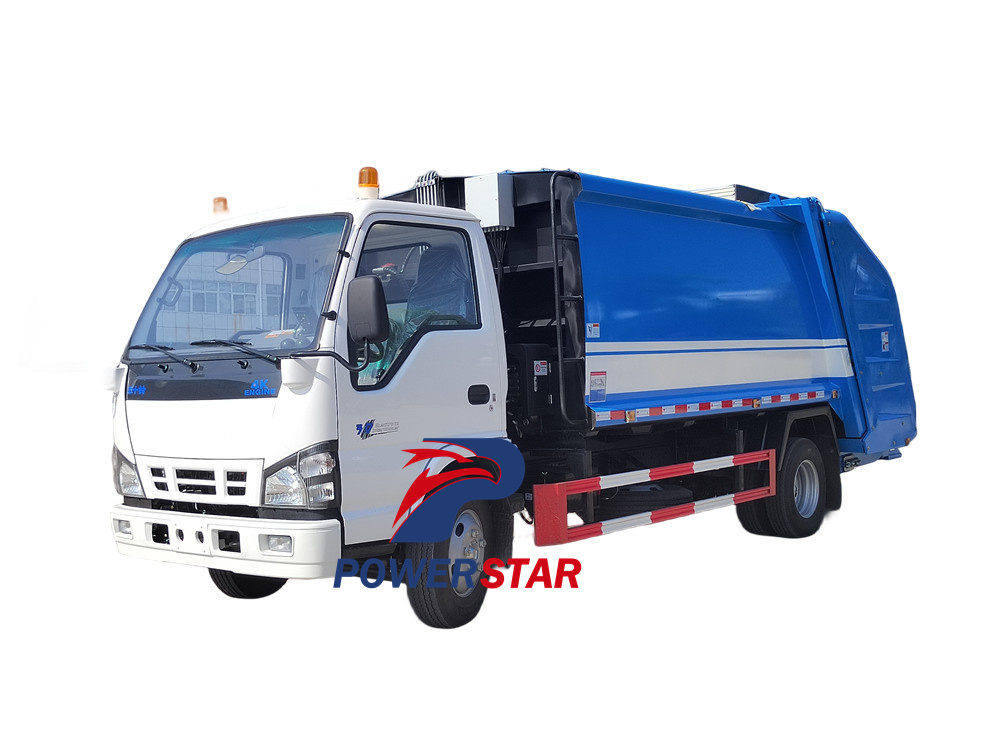

Hot sale Isuzu NKR trash collector truck,custom-made Isuzu 120HP 8CBM refuse compactor truck.Factory outlet Isuzu rear loader compactor at best price.
Work capacity:
8cbmTruck model:
PT5080ZYSQEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2, left hand driveGear box:
MSB 5-speeds ,manualRemarks:
ISUZU NKR 600P trash collection truck for sale，cabin colour customized.| Products Description |
ISUZU NKR trash collector truck also called Isuzu garbage compactor truck, Isuzu compactor garbage truck, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu split body rear loader truck,Isuzu waste collection vehicle. The ISUZU NKR trash collector truck is well-suited for gathering and transporting solid waste within densely populated zones like schools, office districts, streets, parks, residential areas, etc., to specific waste treatment facilities. Its pivotal role in waste management cannot be overstated.
I.Description of Isuzu NKR Trash Collector Truck
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU NKR 600P engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 25 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
| Technical Parameter |
II. Specification of Isuzu NKR Trash Collector Truck
|
ISUZU NKR 4x2 8cbm garbage disposal truck |
|
|
Mian Technology Parameter |
|
|
Vehicle Model |
PT5080ZYSQ |
|
Driving Type |
4×2,left hand drive |
|
Color |
White,blue, can be your choose |
|
Weights |
|
|
Gross weight(kg) |
7300 |
|
Curb weight(kg) |
5420 |
|
Dimensions |
|
|
Wheelbase(mm) |
3815(also can choose 3360mm wheelbase) |
|
Overall Dimension(mm) |
7160×2280×2590 |
|
Box dimension |
8 m3 |
|
Max speed(km/h) |
100 |
|
Engine |
|
|
Engine model |
4KH1CN6LB(120HP) |
|
Engine type |
4 stroke water-cooled,inter-cooling |
|
No. of cylinders |
straight-4 cylinders |
|
Displacement(L) |
2.999L |
|
Max. output (kw) |
88kw |
|
Emissions standard |
Euro 6 |
|
Drive Line |
|
|
Transmission |
MSB 5-speeds ,5 forwards,1 reverse gear,manual operation |
|
Steering |
Power steering |
|
Brake |
Oil brake with vacuum pump |
|
Cab |
|
|
Air container |
Have |
|
Standard configuration |
Sound,,parking sensors |
|
Axle |
|
|
Front axle |
2.5 tons |
|
Rear axle |
4.8 tons |
|
Tire specification |
|
|
Tire specification |
7.00-16 standard tire,6 tires+1 spare tire |
|
8m3 garbage compactor truck |
|
|
Box valume |
8m3 |
|
Box material |
Side 4mm,bottom 5mm |
|
Sewage tanker |
200L |
|
Fill volume |
1.2cbm |
|
Loading time |
8-10S |
|
The cycle time of the loading |
50-60S/per turn |
|
Unloading model |
Dump |
|
Unloading time |
30-40S |
|
Hydraulic system pressure |
16Mpa |
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to the your requirement .
5. we can offer you the high quality & reasionalble price
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of Isuzu NKR Isuzu NKR Trash Collector Truck

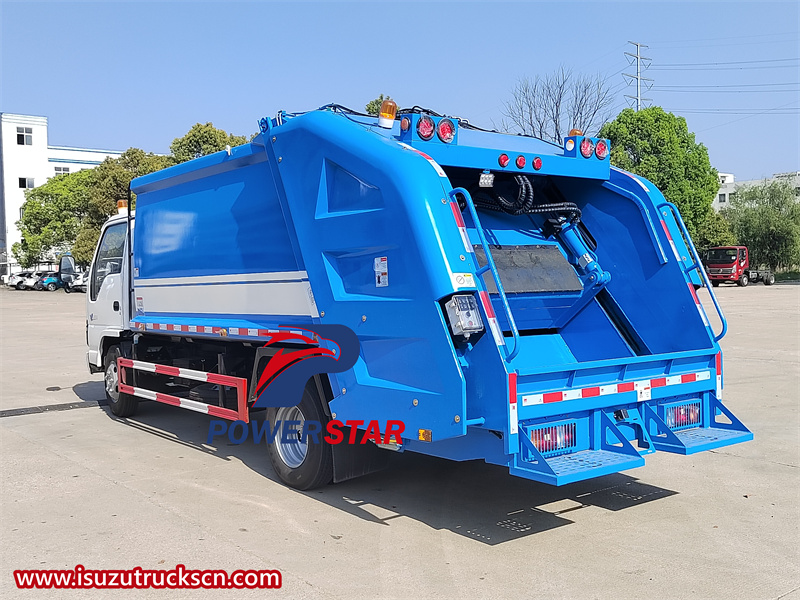

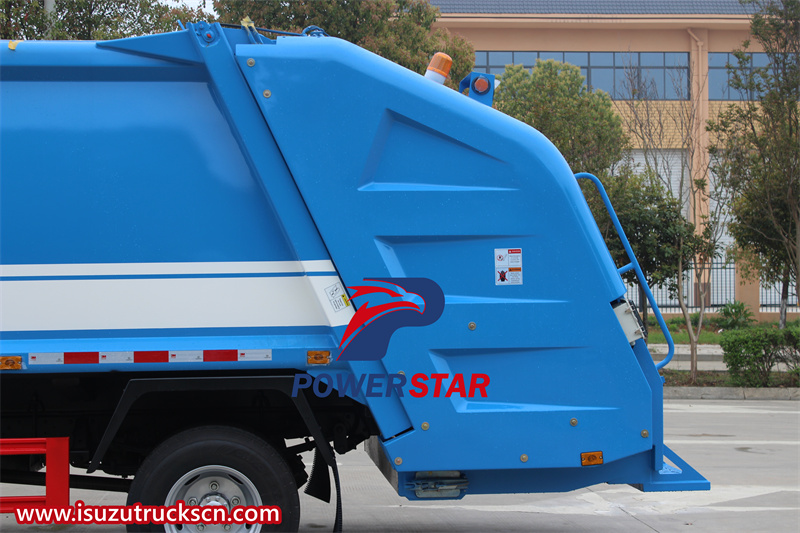

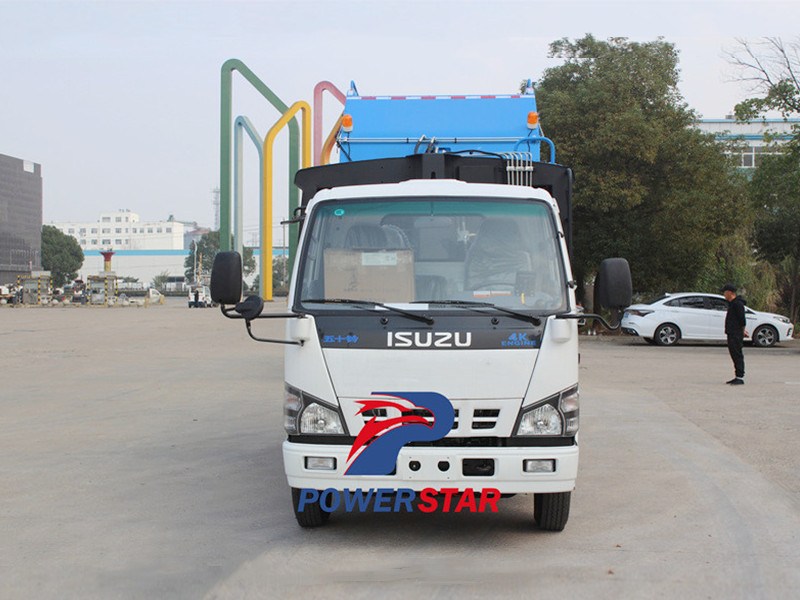

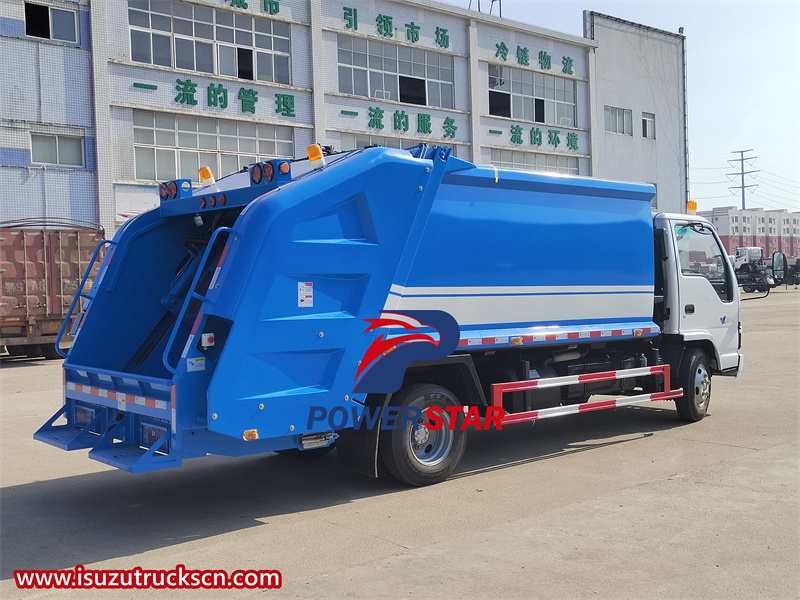

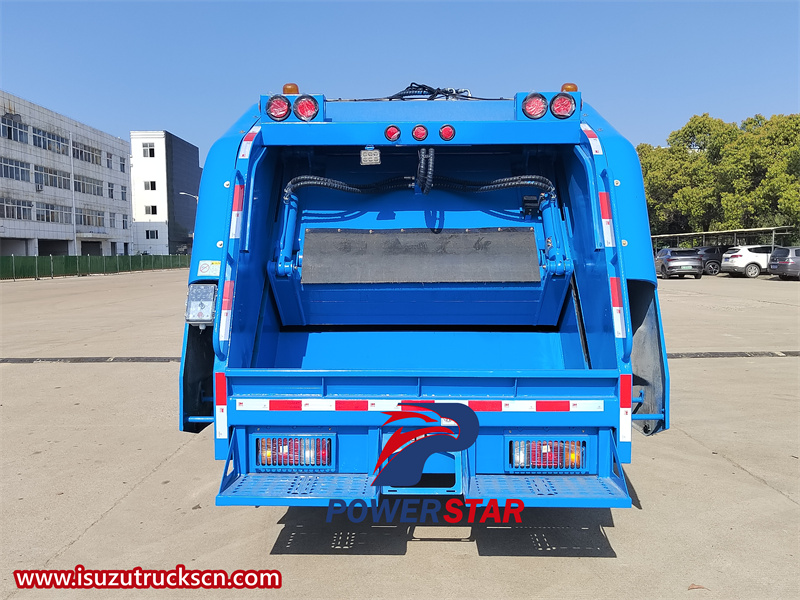

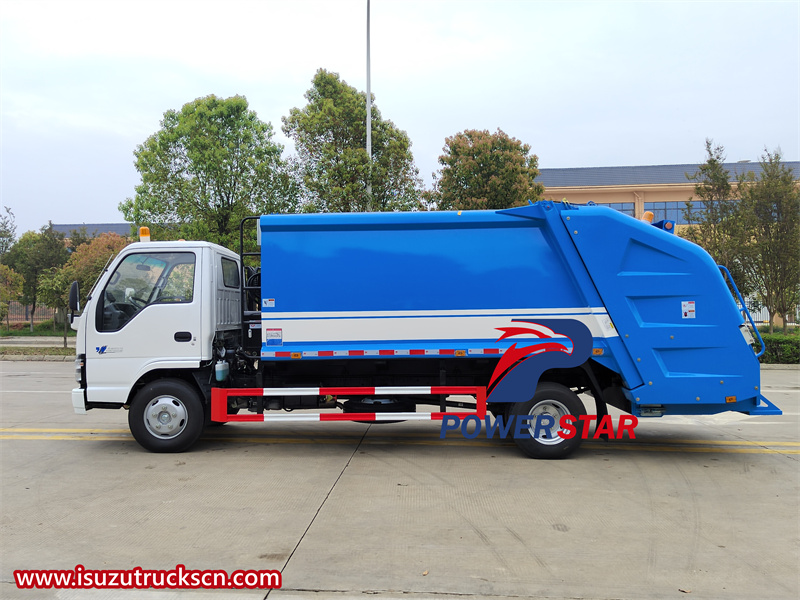

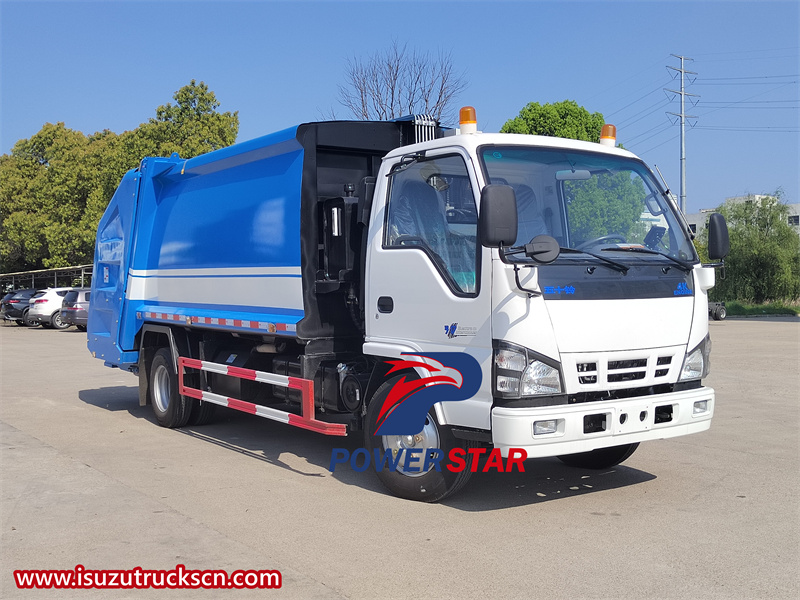

● Isuzu NKR trash collector truck photos for reference
The Multi-control Isuzu NKR trash collector truck is mounted on Isuzu NKR 600P chassis and adopts imported hydraulic components and special controller electrical control modules, which have the advantages of high reliability, low noise, and large compression ratio. Fully considering the characteristics of urban waste, geographical environment, user habits, etc., a series of optional devices have been developed to meet the needs of different operation methods. In the process of operation and transportation, the fully airtight, uniquely designed seal can effectively prevent the spillage and leakage of sewage, and prevent the occurrence of secondary pollution.
Technical drawing of ISUZU NKR 4x2 trash collector truck

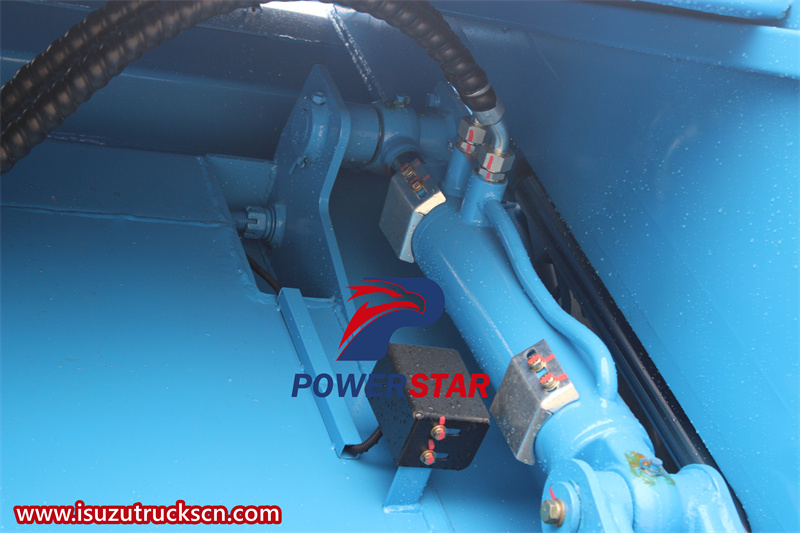

♦ The oil cylinder is the key component of the hydraulic power of the whole vehicle. The length of the oil cylinder controls the speed of the action, and the thickness directly affects its loading capacity.
♦ The design structure is very important, the compression resistance of the box, the coordination of the tailgate, the compression resistance of the stressed part and the practicability of the turning action.

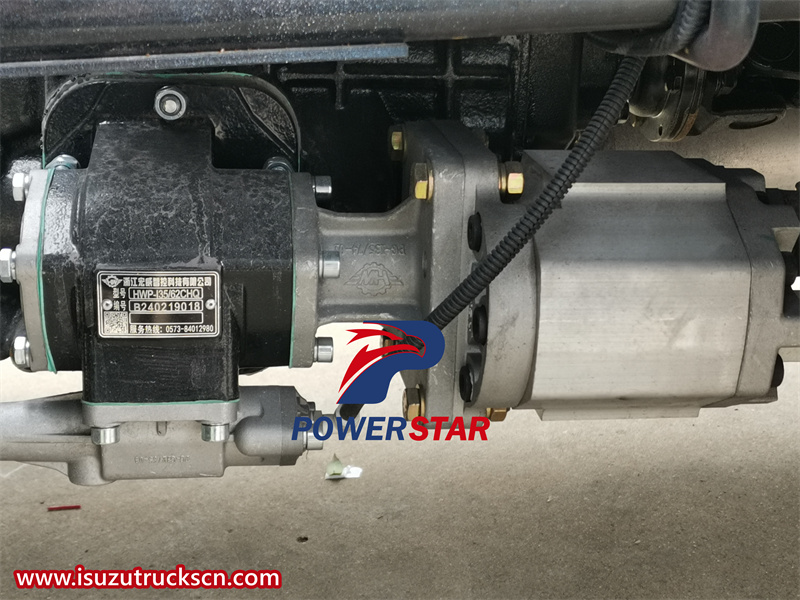

♦ The oil pump provides pressure for the hydraulic system. Our company is equipped with a double pump for 8 squares and above. The stability is improved by 50%, and the pressure is 35% higher than that of competing products.
♦ The oil pipe is the central nervous system in the hydraulic system of the compressed garbage truck. It constantly needs to send blood to various places and withstand high-intensity pressure (our company customizes a 4-layer steel wire pipe, and the competing products are generally double-layer).

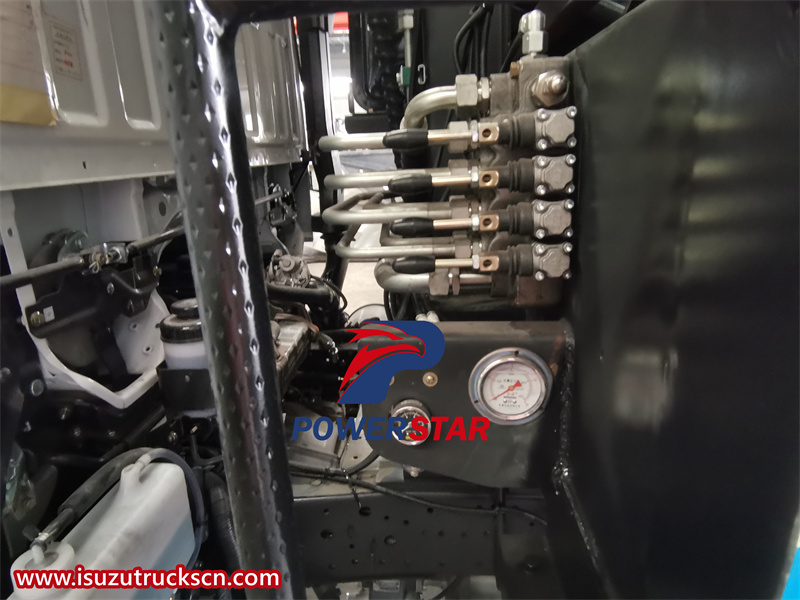

♦ The main task of the multi-way valve is to divide the flow. The sealing and pressure-bearing properties must be good. Our company customizes the 3+2 split multi-way valve to continuously reduce the probability of blockage. The pressure resistance is far greater than the maximum pressure generated by the oil pump.
Isuzu NKR 4x2 trash collector truck export to Nigeria
Isuzu NKR 8cbm 120HP rear loader compactor for sale
| Our Advantage |

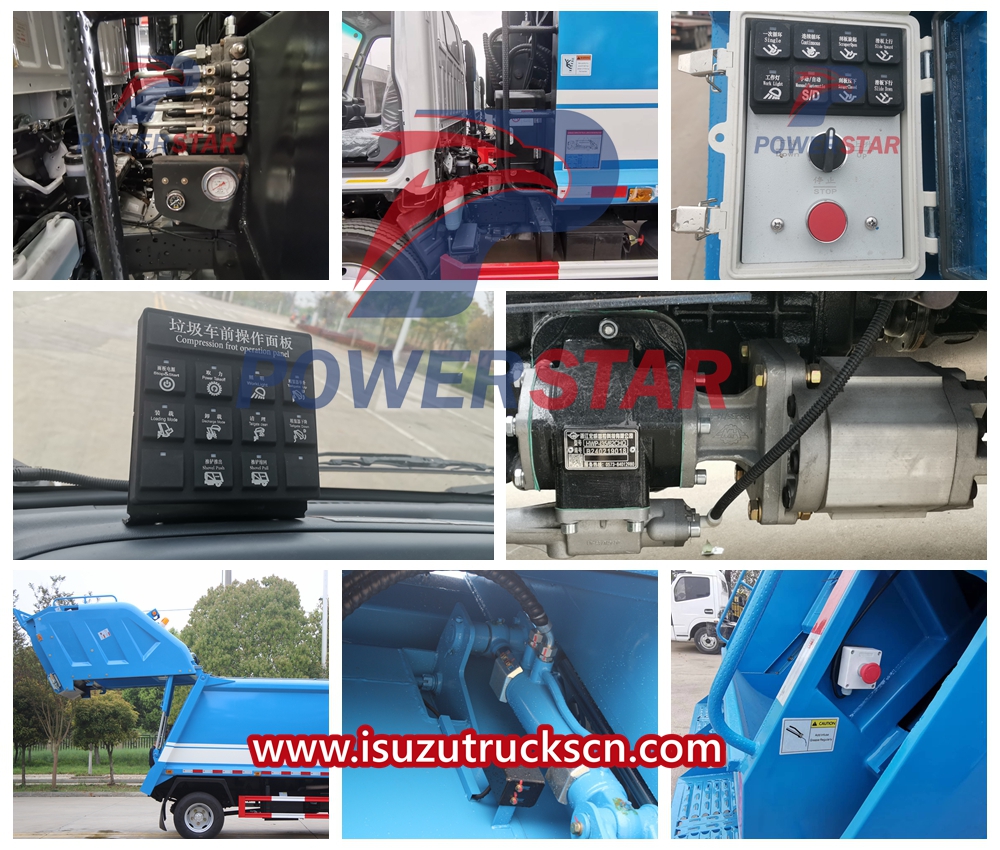

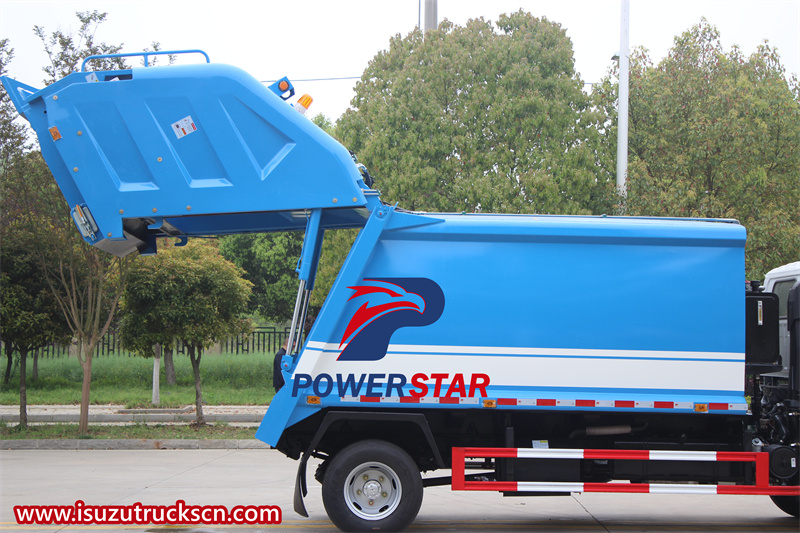

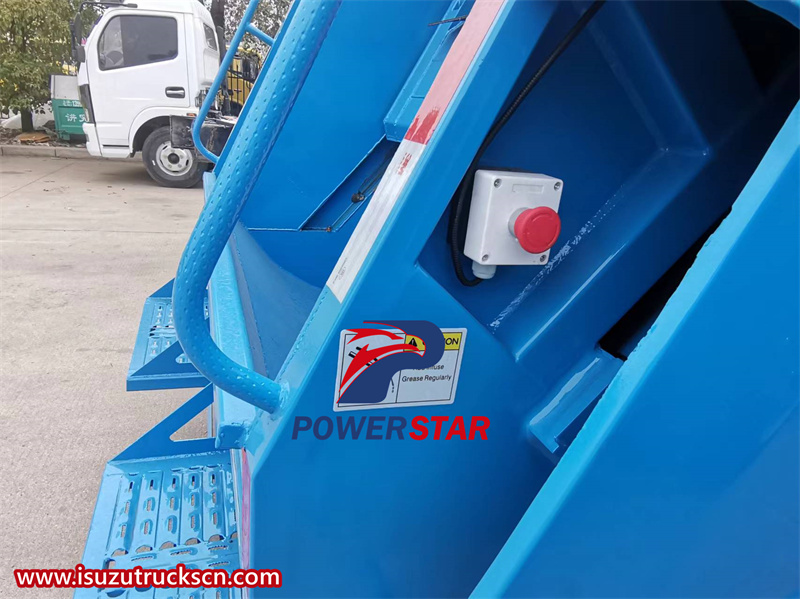

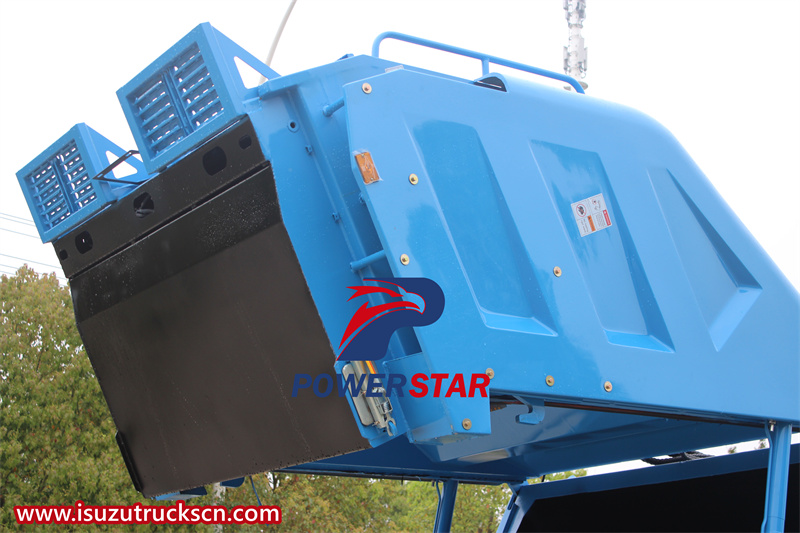

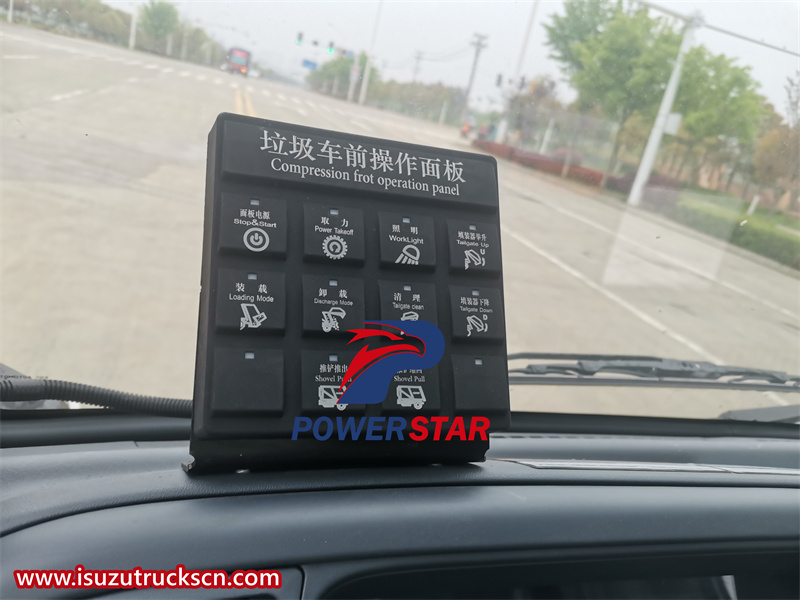

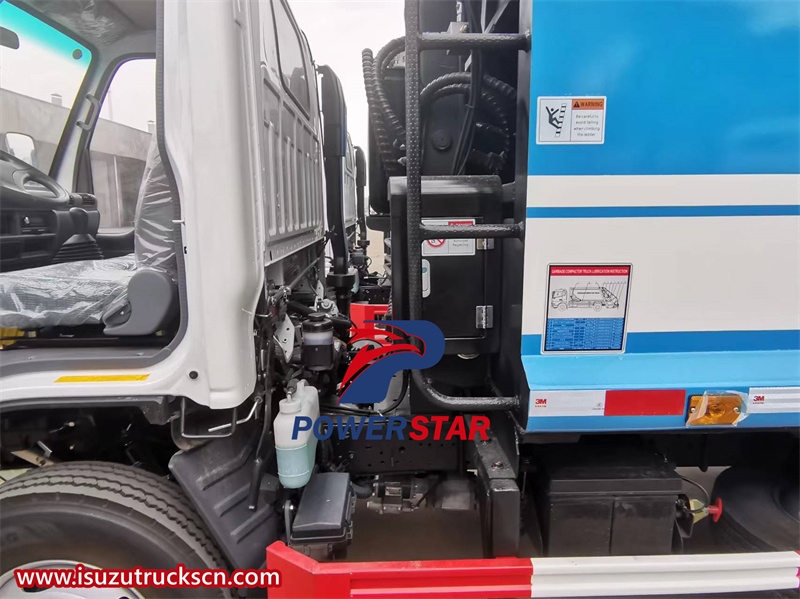

● Isuzu NKR trash collector truck details

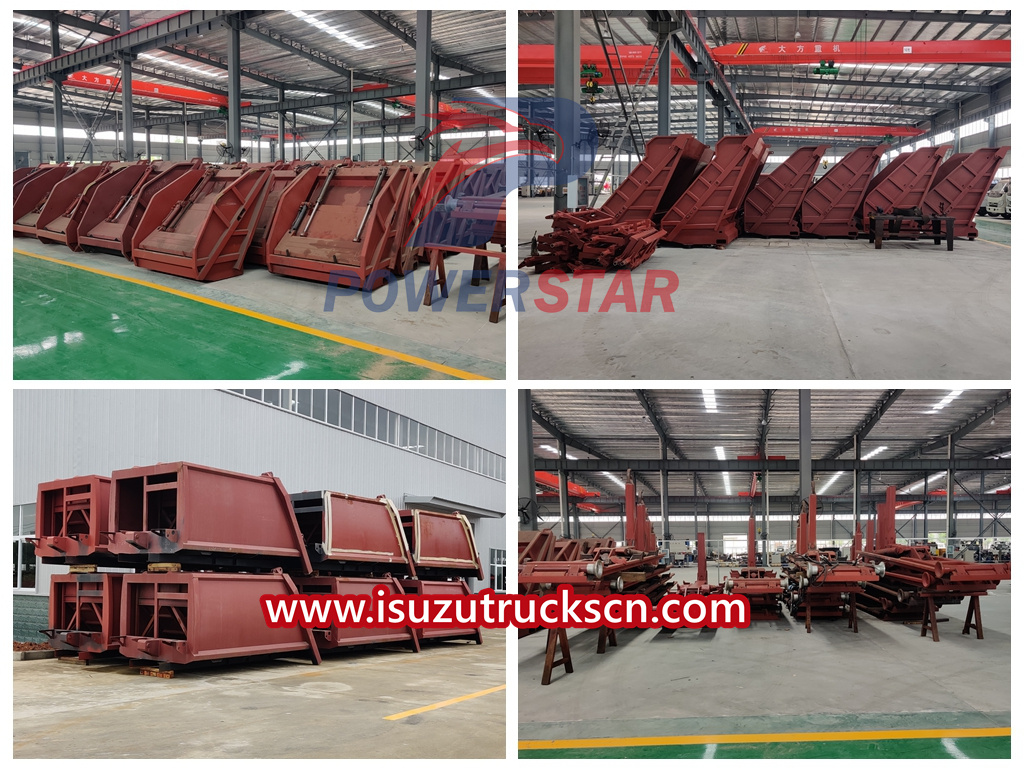

● Isuzu NKR trash collector truck body parts in our factory

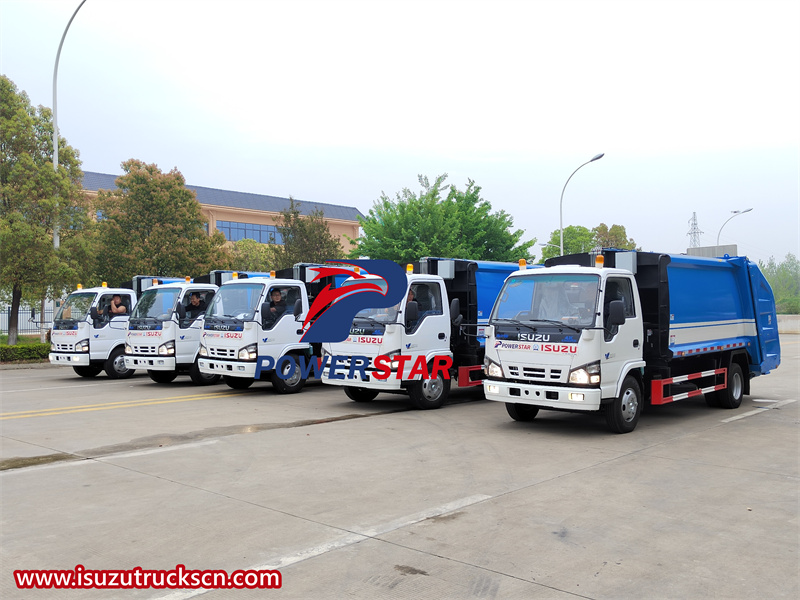

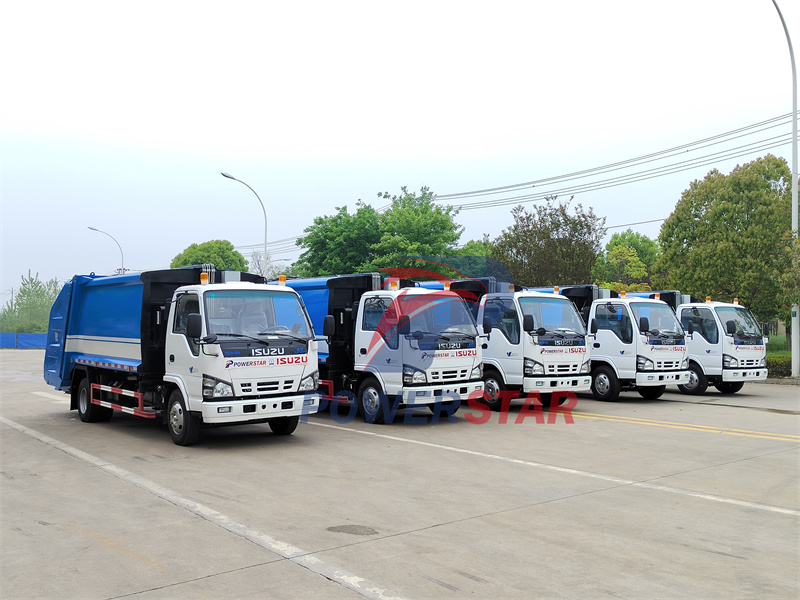

● Isuzu NKR trash collector truck departure in batches
