Isuzu NKR rear end loader truck is an efficient and practical garbage disposal vehicle that is widely used for garbage collection and disposal in urban streets, residential areas, schools, hospitals and other places. It combines the ruggedness and durability of the Isuzu NKR chassis with the efficiency of compressed waste technology to provide an efficient solution for municipal waste disposal.
Work capacity:
6cbmTruck model:
PT5080GYSQEngine power:
98HPEngine type:
4JB1CNAxle drive:
4x2Gear box:
MSB 5-speed, ManualRemarks:
Best price Isuzu NKR rear loader compactor,4x4 drive available| Products Description |
Isuzu NKR rear end loader truck also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu compactor garbage truck, Isuzu recycling rear loader,Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor,Isuzu split body rear loader truck, Isuzu refuse collection truck,Isuzu waste collection vehicle. The Isuzu NKR rear end loader truck is a special purpose vehicle used to collect and transport all kinds of garbage in municipal sanitation department.
I.Description of Isuzu NKR Rear End Loader Truck
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU NKR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
| Technical Parameter |
II. Specification of Isuzu NKR Rear End Loader Truck
|
ISUZU NKR 4x2 rear loader truck |
||
|
Main specification |
Vehicle model |
PT5080GYSQ |
|
Chassis brand |
ISUZU |
|
|
Chassis model |
NKR |
|
|
Overall dimension(L*W*H) |
6950x2050x2600mm |
|
|
Compressed tank |
6m3 |
|
|
Gross weight |
73,00 kg |
|
|
Curb weight |
2,000 kg |
|
|
Chassis |
Drive modle |
4X2 left hand drive |
|
Front axle |
2.5ton loading capacity |
|
|
Rear axle |
4.8ton loading capacity |
|
|
Wheel Base |
3360mm |
|
|
Front/rear suspension |
1015/1615mm |
|
|
Front / rear wheeltrack |
1504/1425mm |
|
|
Approach/departure angle |
24/12(°) |
|
|
Tyre size & number |
7.00-16. with one spare tyre |
|
|
Max speed |
95km/h |
|
|
Engine |
Model |
4JB1CN |
|
Engine Type |
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail |
|
|
Horse power |
98hp |
|
|
Displacement |
2771ml |
|
|
Emission |
Euro 4 |
|
|
Garbage tank |
Volume of compartment |
6m3 |
|
Thickness |
Side :4mm ; Bottom:5mm |
|
|
Material |
Carbon steel,inner epoxy anticorrosive |
|
|
Function |
Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket |
|
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, NKR,ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to the your requirement .
5. we can offer you the high quality & reasionalble price
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of Isuzu NKR Rear End Loader Truck

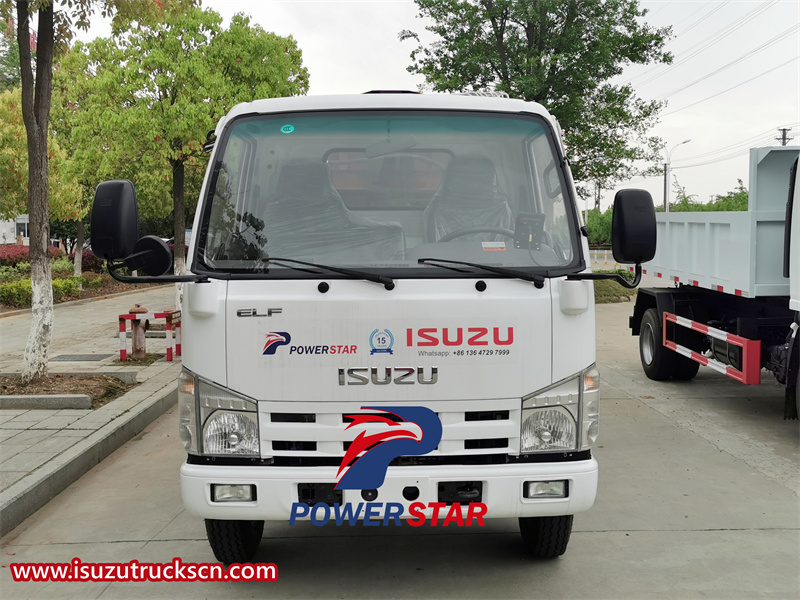

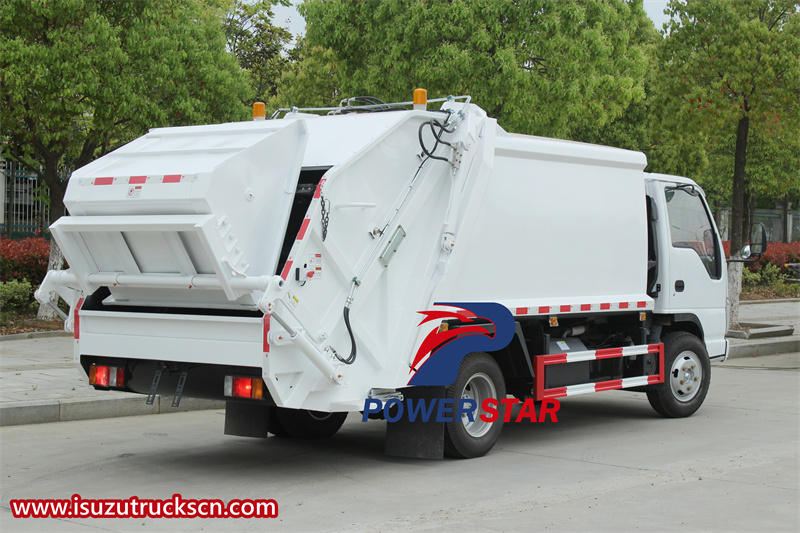

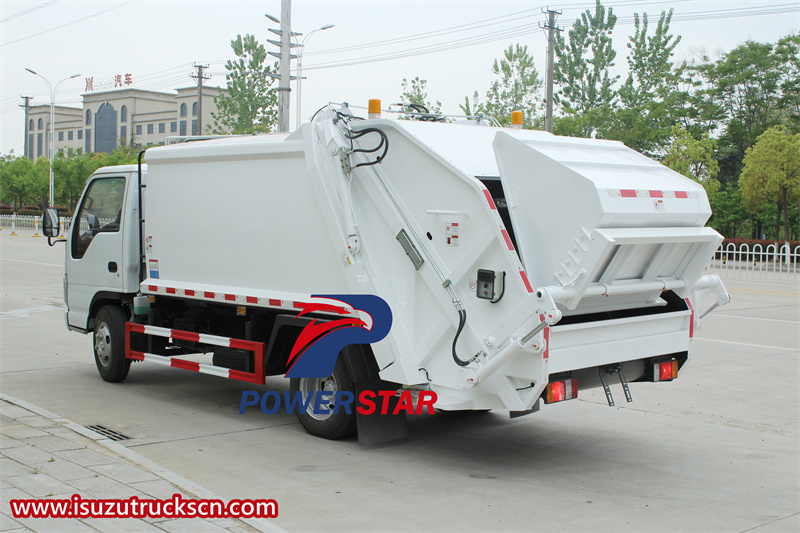

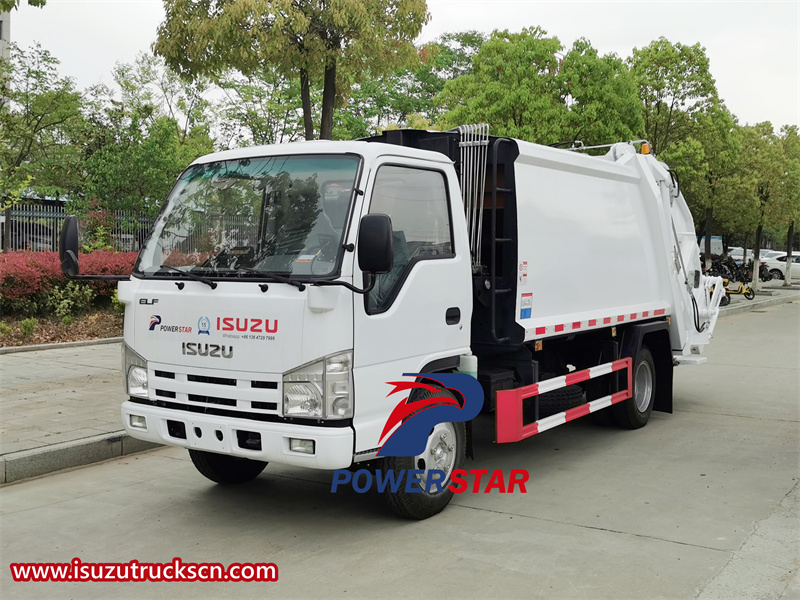

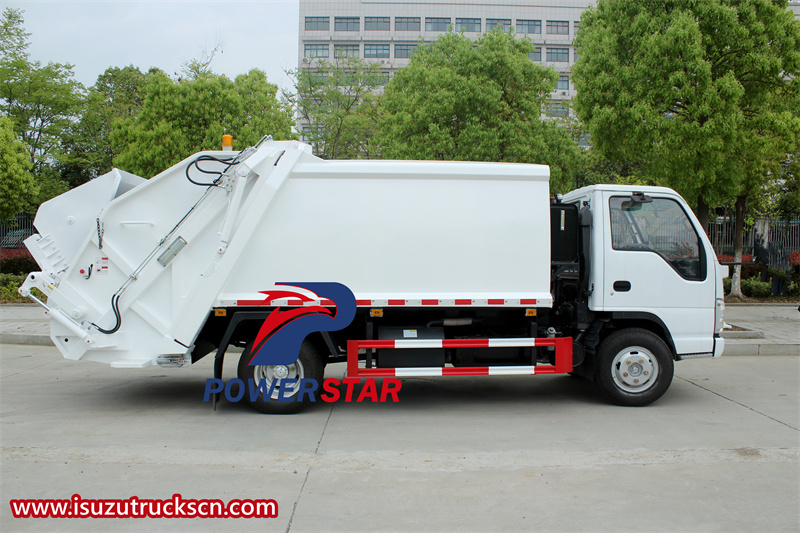

● Isuzu NKR rear end loader truck photos for reference
ISUZU NKR rear end loader truck, the truck chassis use ISUZU 98HP diesel engine, MSB 5-shift transmission gear. The design of our ISUZU waste compactor fully draws on the advantages of the original Isuzu brand chassis, and fully considers the convenience and reliability of the product, as well as the characteristics of Isuzu chassis technology.

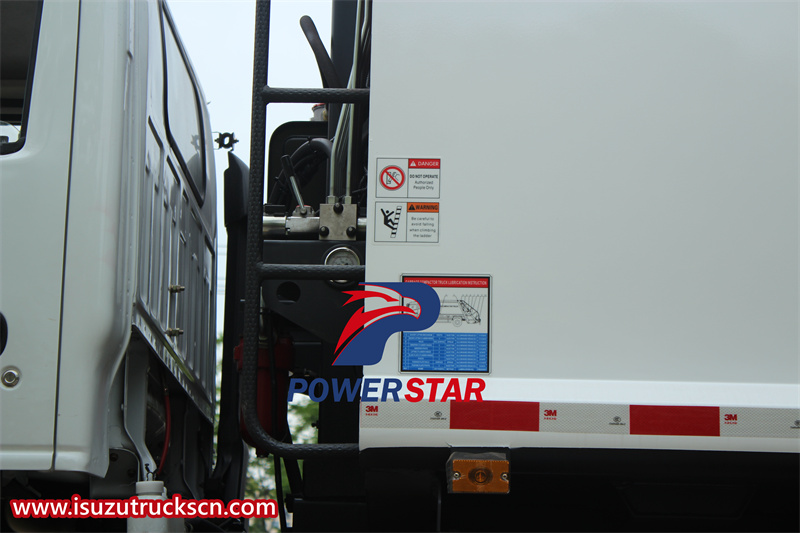

POWERSTAR produced ISUZU rear loader garbage truck is equipped with CAN-BUS control system, multi-function garbage compression system, side climbing ladder, Electric control boxes in cabin and rear of hopper, rear tilting device to collecting garbage from international standard 240 L bins, two units waste water collection tank, which can efficiently prevent second pollution during transportation. The garbage compactor body is made of international standard carbon steel, both internal and external is coated with anti-rust painting, which is effective to avoid rusting. The compactor body capacity is 6 CBM and safe enough to collecting and transporting garbage on living areas.
Technical drawing of Isuzu NKR rear loader truck
The Isuzu NKR 100P rear end loader truck is a piece of sanitation equipment with significant features and advantages. Here are some key features and functions about this garbage truck:
Power and emissions: Isuzu NKR 100P compressed garbage truck is equipped with a National VI diesel engine with a power of 98HP and 72KW. This engine meets the National VI emission standards and has a displacement of 2771ml.
Transmission and chassis: The car uses an Isuzu MSB five-speed transmission. The chassis structure is solid, and the load-bearing capacity of the front axle and the rear axle reaches 2.5 tons and 4.8 tons respectively.

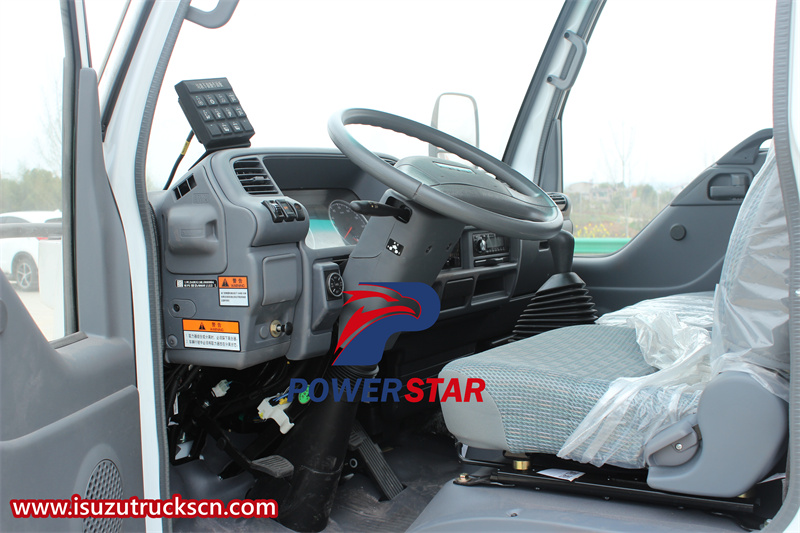

Driving and control: Isuzu NKR 100P rear loader truck is equipped with air conditioning, steering assist and a multi-function LCD instrument panel, which improves driving comfort and convenience. In addition, it is equipped with an ABS anti-lock braking system to improve driving safety.
Garbage disposal function: The vehicle uses special devices such as a carriage, a filler and a push shovel to realize garbage pouring, crushing or flattening, powerful filling, squeezing the garbage into the carriage, compacting and pushing. All loading, compression and unloading operations can be selected from fully automatic and semi-automatic operation modes, and can be completed by one driver, greatly reducing the labor intensity of sanitation workers.
Box structure: The garbage bin body is a new type of curved box body, which is welded with high-strength and wear-resistant manganese steel plates. It has the advantages of beautiful appearance, fastening and durability, and not easy to deform. The connection surface between the box and the loader is equipped with a high-tenacity rubber sealing strip and a locking device to ensure that the sealing function of the compression box is fully realized and to avoid garbage leakage.
Humanized design: Isuzu NKR 100P rear loader truck is also equipped with night lights, providing better visibility for night operations. At the same time, the design of double sewage tanks and drainage pipes effectively solves the sewage problem generated in garbage disposal.

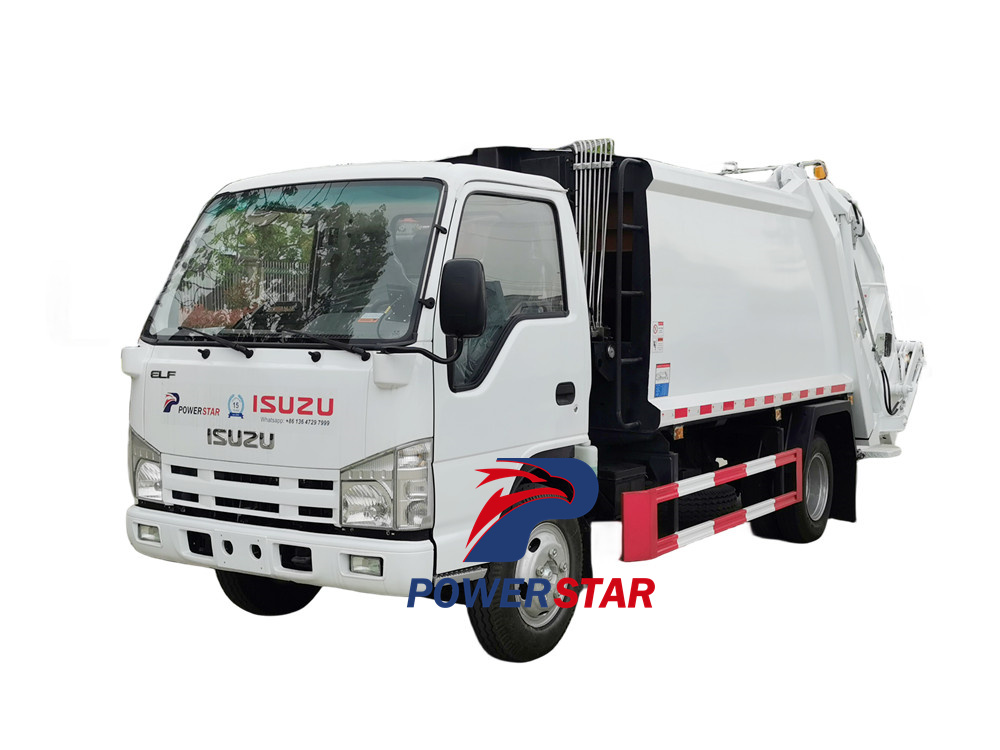

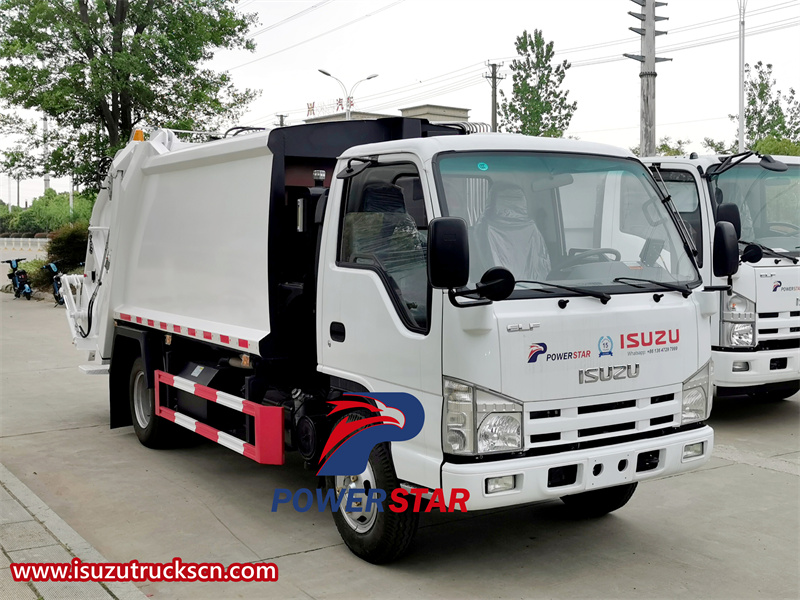

Isuzu NKR rear loader compactor truck for sale
Isuzu 4x2 garbage compactor truck export to Philippines
| Our Advantage |

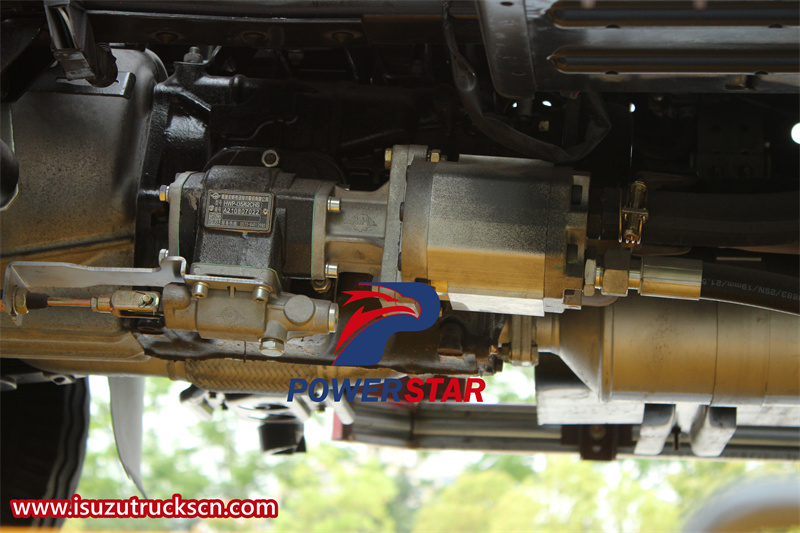

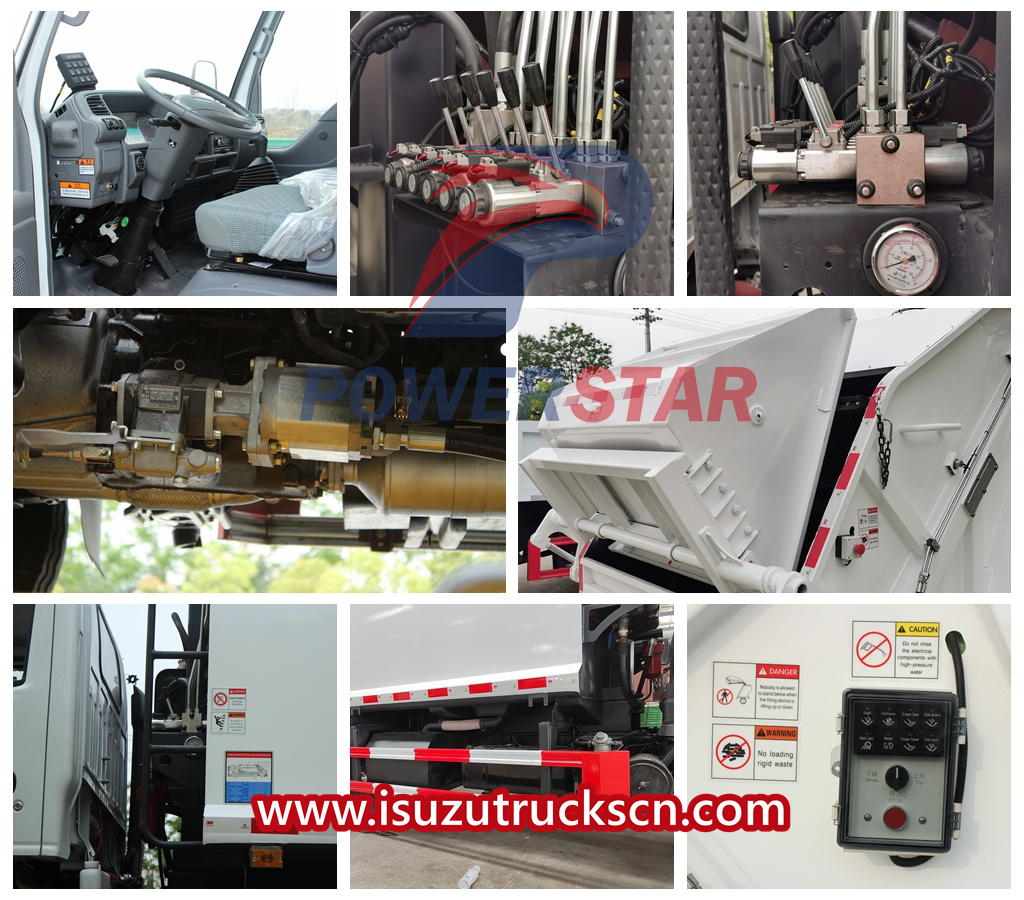

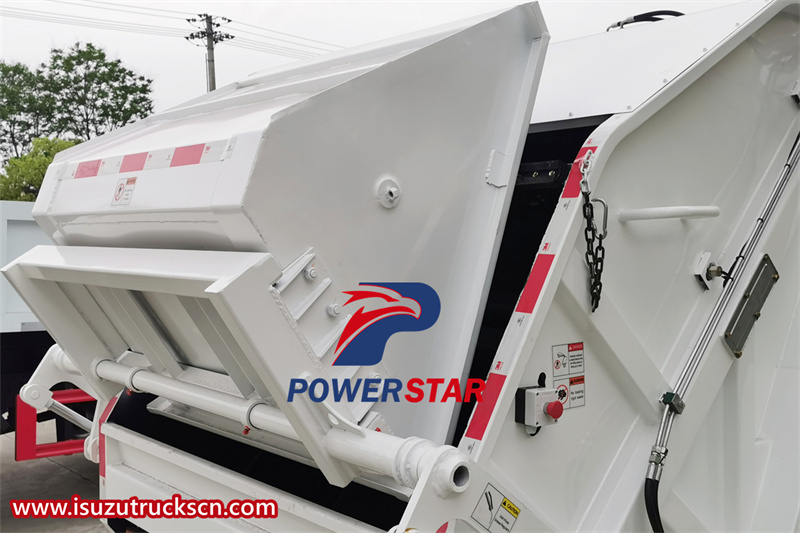

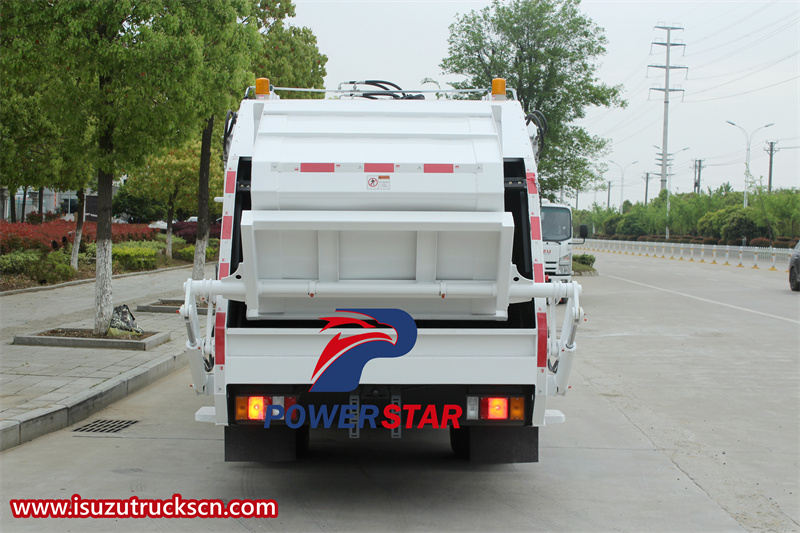

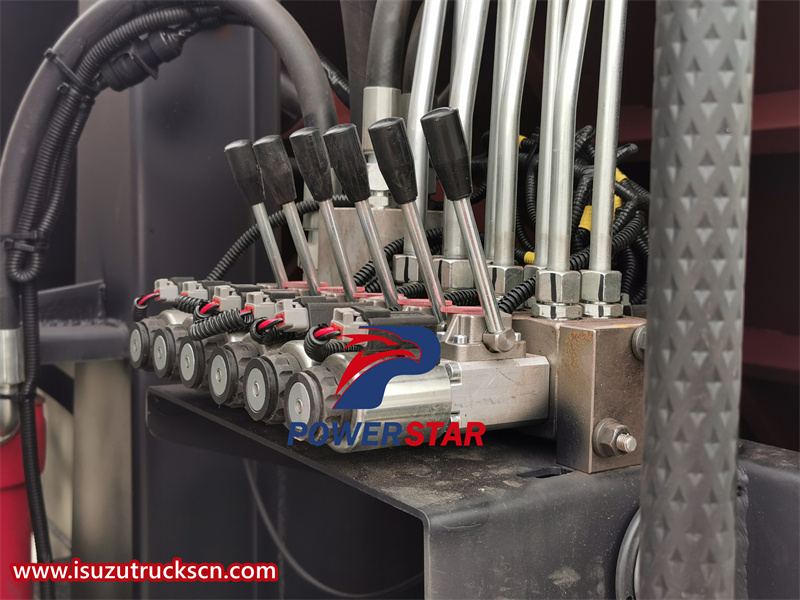

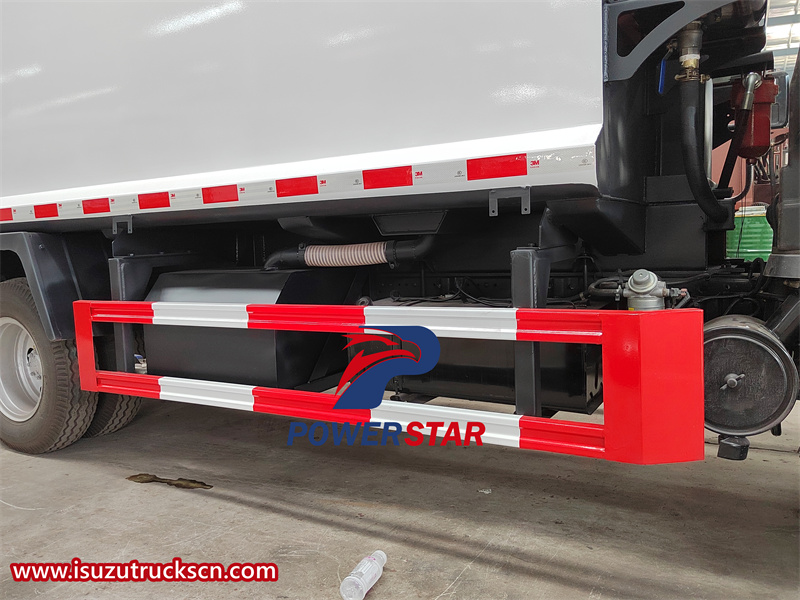

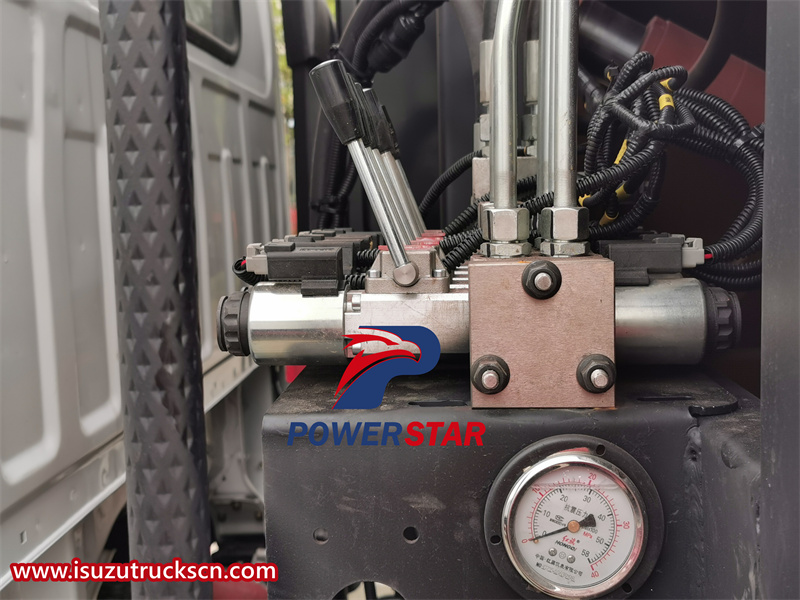

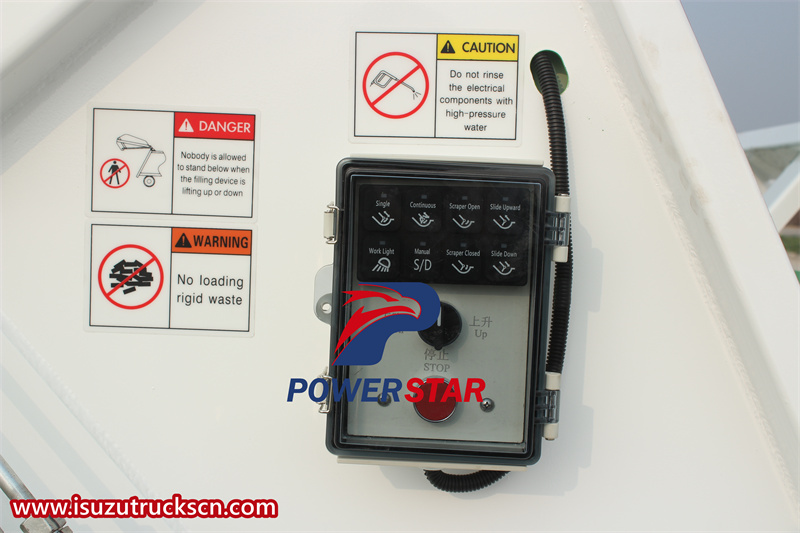

● Isuzu NKR rear end loader truck details

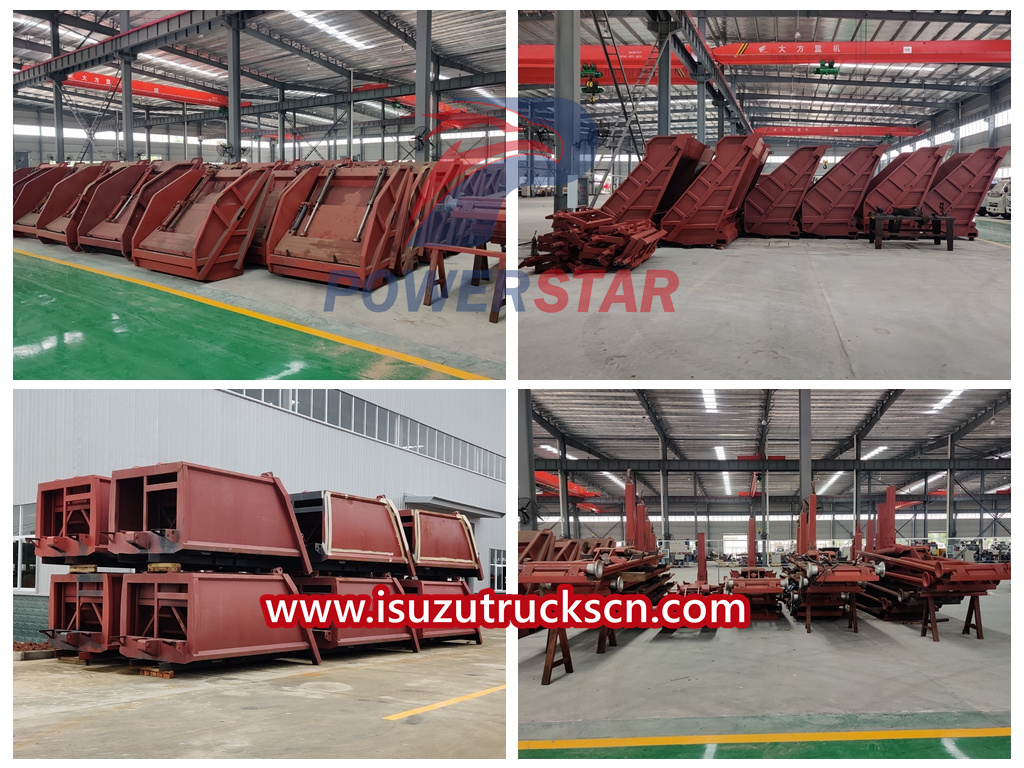

● Isuzu NKR rear end loader truck body parts in our factory

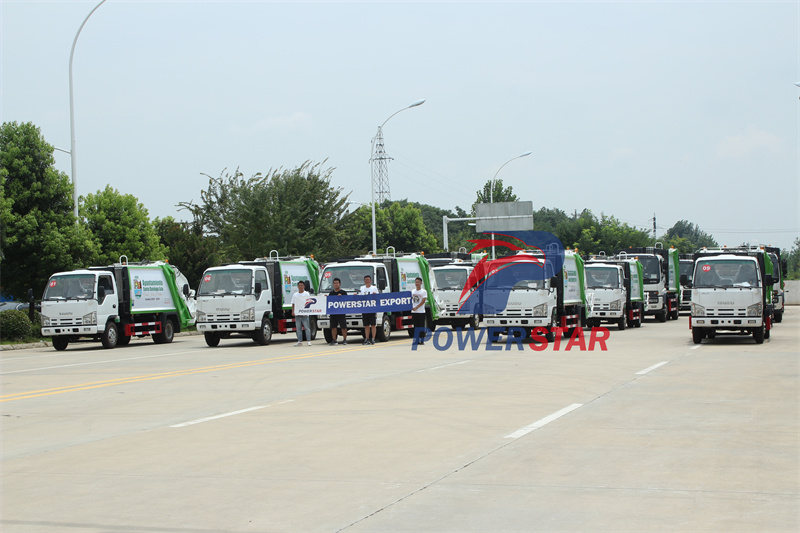

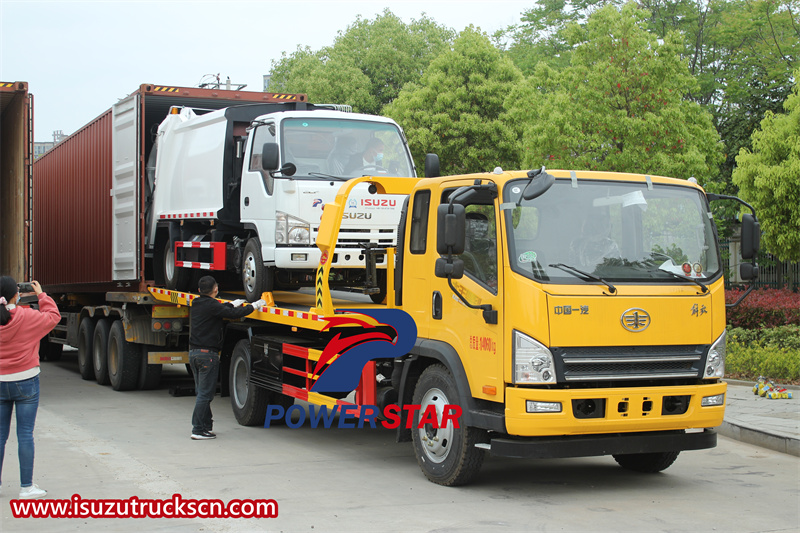

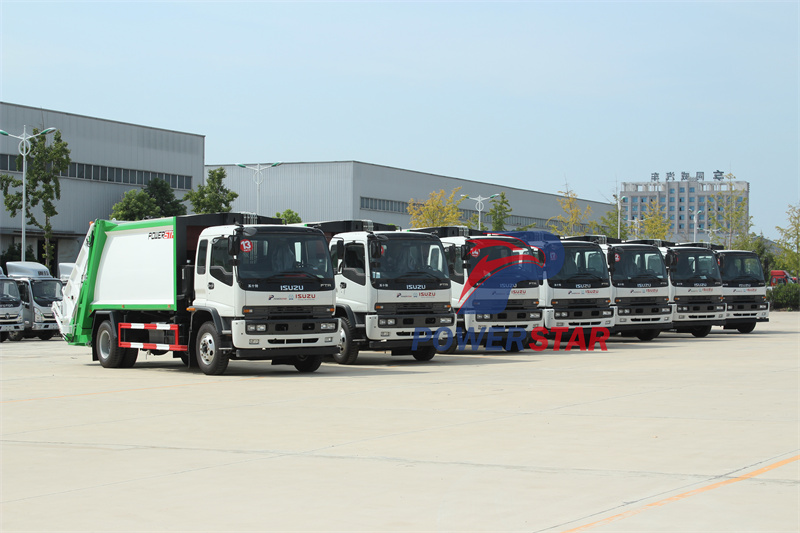

● Isuzu NKR rear end loader truck departure in batches
