Work capacity:
5000LTruck model:
PT5070GXWEngine power:
130 HPEngine type:
ISUZU 4KH1Axle drive:
4x2Gear box:
ISUZU MSBRemarks:
SK series vacuum pumpIsuzu sewer cleaning truck 600P models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.
The Isuzu sewer cleaning truck is equipped with a large vacuum tank and a high-pressure water jet system. The vacuum tank has a capacity to store a significant amount of liquid waste, including sewage, sludge, and other debris. The high-pressure water jet system employs a powerful pump to generate a forceful water stream, which is used to dislodge and flush out waste and debris from the sewer lines.
The truck's operation begins by positioning the vehicle near the access point of the sewer line. The operator extends a suction hose or nozzle into the sewer line, which creates a vacuum within the tank as it extracts the waste material. The suction power of the Isuzu sewer cleaning truck enables it to remove even heavy and compacted debris from the sewer lines.
In addition to the suction action, the Isuzu sewer cleaning truck also utilizes the high-pressure water jet system. The water jet system employs a specialized nozzle that releases a powerful spray of pressurized water. This water stream is directed towards the walls of the sewer line, effectively dislodging and removing accumulations of dirt, sediment, and other obstructions. The debris is then extracted through the suction hose and stored in the vacuum tank.
Truck Specification
truck model
PT5070GXW
Cab
Isuzu Flat-top single row cab, with power steering. Electronic flameout, A/C
Driving Type
4x2 Left hand driving
Max Speed (km/h)
90
Overall dimension(mm)
6720×2300×2870
GVW( kg)
7300
Mass in working order ( kg)
5575
Wheelbase(mm)
3815
F/R track base (mm)
2022/1830
F/R overhang (mm)
1500/2380
Approach/Departure Angel
16/14
Tire
7.00R16 (6+1)
Clutch
Single-plate dry diaphragm spring clutch
Steering
Hydraulic steering with power assistance
Gear box
5-speed
Bridge
Front axle
3T
Rear axle
4T
Enging
Model
4KH1
Fuel Type
Diesel fuel
Type
Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml)
2999
Max output power/rotate speed (hp /rpm )
130/2200
Max torque/rotate speed(N.m/rpm)
1350/1100~1600
Braking system
Service Brake
Compressed air brake
Park Brake
Spring energy
Auxiliary brake
engine exhaust brake
Eletric system
12v
Upper-Body specification
Volume of tank
5000L ~ 6000L
Color
Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker
5mm Carbon stell (Q235)
Special function
Suction height
≥9(m)
Suction time
250(S)
Maximum Inclination Angle
≥45°
maximum vacuum
≥11 MPa
Lifting time
≤45 S

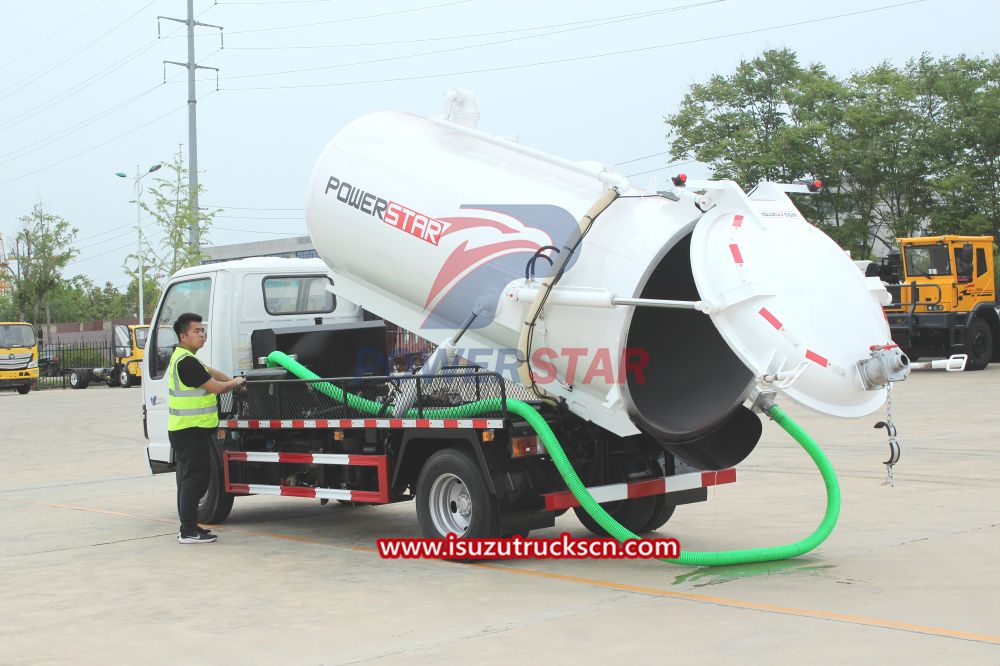

the Cover opening Angle
≥75°
The cover opening time
≤25 S
Suction pipe
3m length and 100 mm in diameter

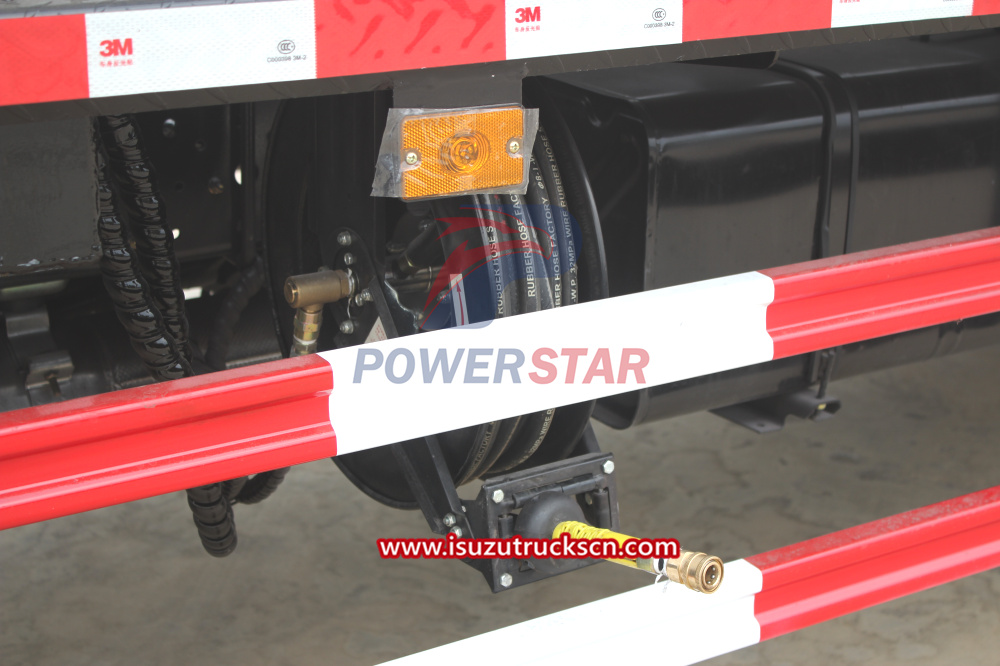

Hose Racks
Fitted on both sides of tank, to accommodate a minimum of seven hoses each
Fittings
Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank
vacuum pump
pump type
SK-30
motor power (kW)
11
weight (Kg)
460
pump speed (r.p.m)
1440
suction pressure (MPa)
5.4
diameter (mm)
80
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
The Isuzu sewer cleaning truck is equipped with various controls and monitoring systems that enable the operator to adjust the suction power, water pressure, and other parameters based on the cleaning requirements. Moreover, the truck may also be equipped with a rotating brush, cutting tools, or other attachments to more effectively handle stubborn blockages or larger objects in the sewer line.
Furthermore, maintenance and cleaning of the Isuzu sewer cleaning truck are essential to ensure its optimal performance. Regular inspection and servicing of the vacuum tank, hoses, nozzles, water pump, and other components are required to prevent clogging, leaks, or other malfunctions.
