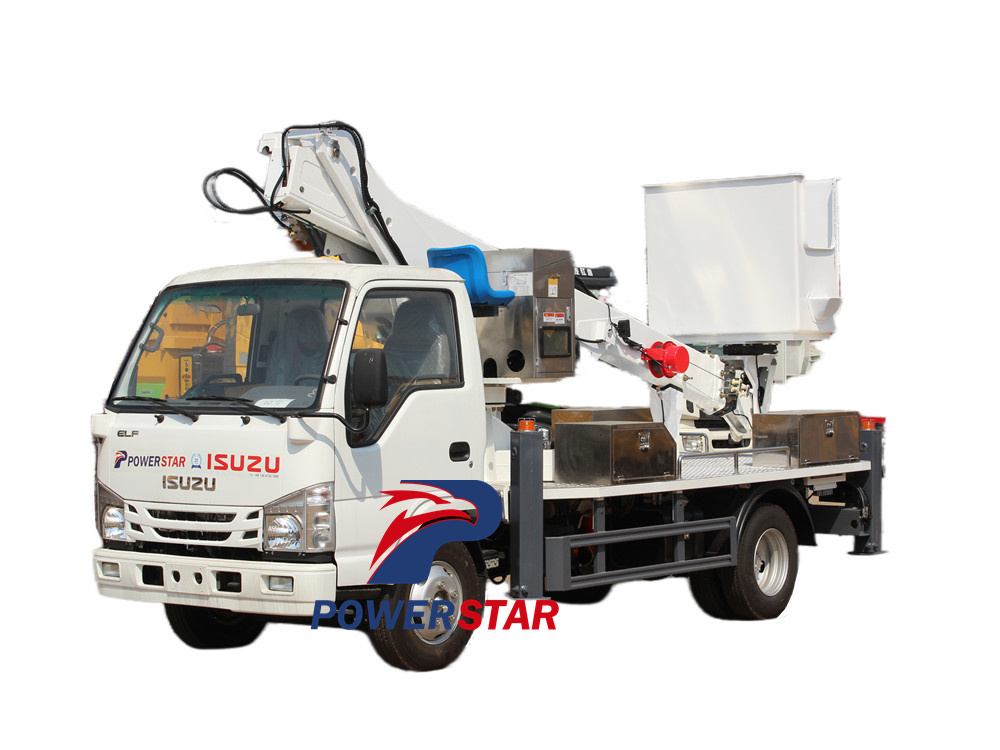

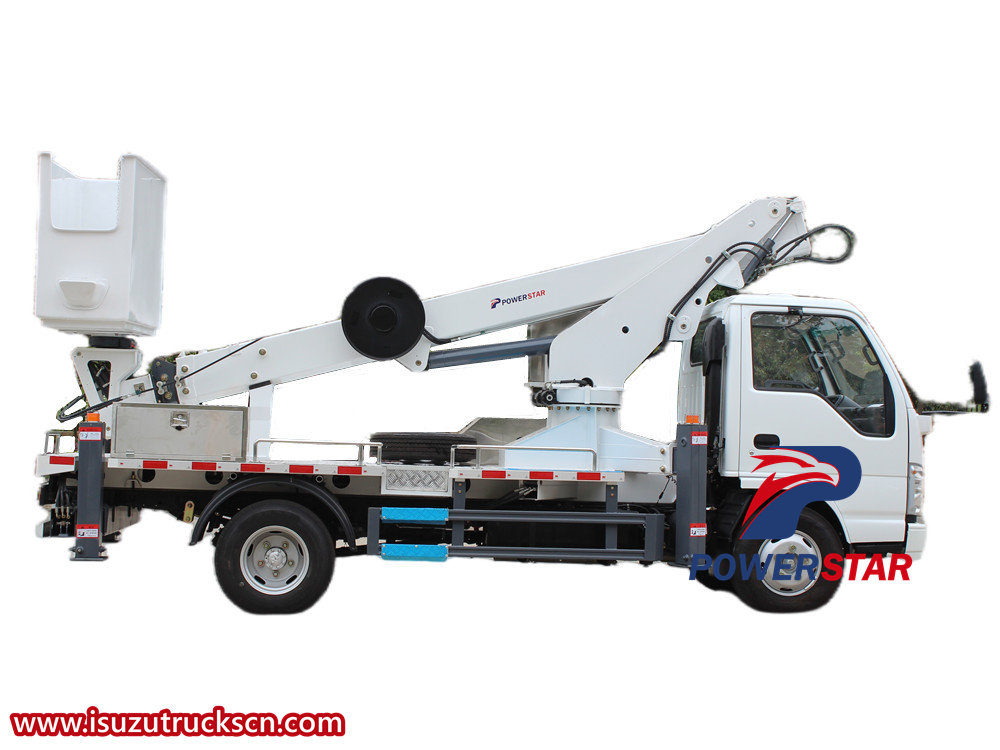

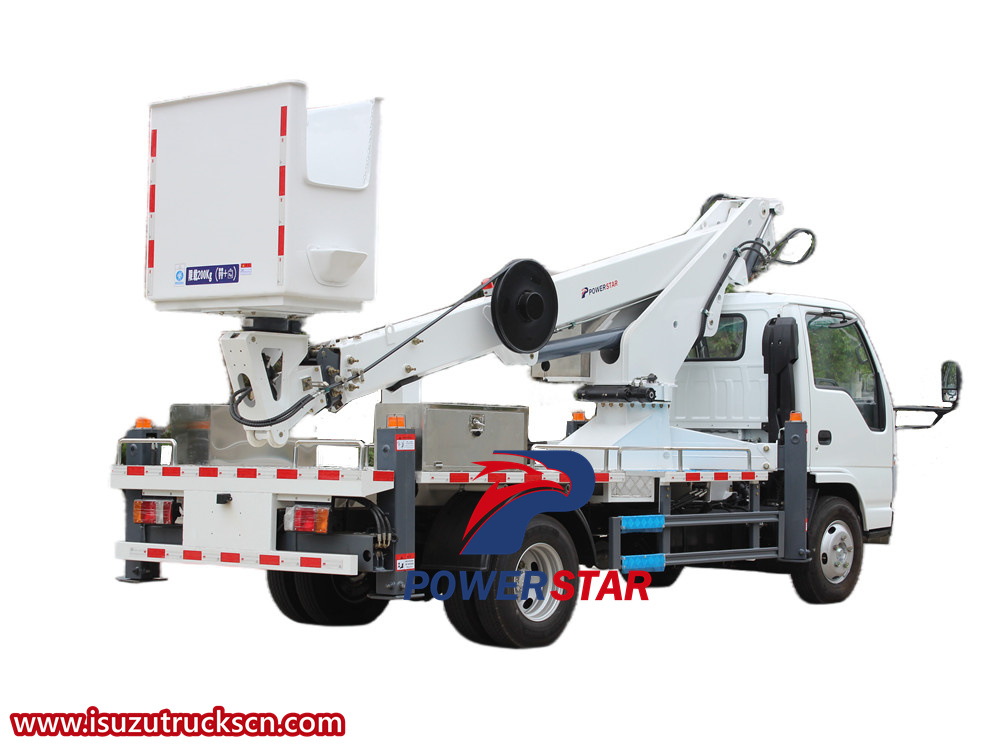

Isuzu 18 meter insulated aerial platform truck
The Isuzu 18 meter insulated aerial platform truck is a prime example of innovation and functionality in the field of utility vehicles. Combining cutting-edge technology with a rugged design, this truck demonstrates its versatility and practicality in a variety of fields such as construction, maintenance and emergency rescue, providing users with a comprehensive and reliable aerial work solution.
Work capacity:
18mTruck model:
PT5070GXTEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2, left hand driveGear box:
ISUZU MSB transmission, 5-forward gears & 1 reverseRemarks:
18m large working height,360° working angel
Isuzu 18 meter insulated aerial platform truck also called Isuzu 100P 18-meter aerial work vehicle,Isuzu 18m aerial bucket truck,Isuzu 100P 18m telescopic arm platform truck,Isuzu 100P aerial operation truck,Isuzu 100P 18m aerial lift truck, is a professional aerial work equipment with excellent working ability and stability. The vehicle adopts a boom made of high-strength steel plate to ensure safety and carrying capacity during operation. Its boom design is flexible, the working height can reach 18 meters, and with the 360° all-round rotation function, it effectively expands the working range. The Isuzu 18 meter insulated aerial platform truck is also equipped with stable and reliable H-type outriggers, which can be independently controlled to adapt to various complex working conditions. At the same time, the vehicle is easy to operate, adopts an integrated electronic control valve block mode, and has a beautiful layout and convenient maintenance. Isuzu 100P 18-meter aerial work vehicle is widely used in many fields such as construction, municipal administration, and gardening, and is an ideal choice for aerial work.
Isuzu 100P 18m aerial work vehicle is a vehicle designed for aerial work, combining a stable chassis with flexible operating performance. Equipped with an efficient power system to ensure good performance and fuel efficiency. The aerial work platform has high-quality insulation materials to ensure the safety of operators. The intelligent control system makes the operation simple and intuitive. Excellent safety performance, high reliability and multi-field applicability make it the first choice in the industry.
Feature
● Automatic bucket balance system, bucket will be stayed in balance level in all working time.
● The stretching angle up to 80°, which will be easier to handle in all time.
● Full computer control system with danger warning system.
● Rectangular shape arms to increase the arm strength.
● H shape leg can adapted to different road condition increasing the stability.
|
Isuzu 18 meter insulated aerial platform truck |
|||
|
General |
Vehicle Brand |
POWERSTAR |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
5995 x 2150 x 3150 mm |
||
|
GVW / Kerb Weight |
6,950 kg / 4765 kg |
||
|
Cab |
Cab Capacity |
2 persons allowed |
|
|
Air Conditioner |
With air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Brand |
ISUZU |
||
|
Model |
4KH1CN6LB |
||
|
Power |
120HP (88 KW) |
||
|
Displacement |
2999 ml |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X2, left hand drive |
|
|
Transmission |
ISUZU MSB transmission, 5-forward gears & 1 reverse |
||
|
Wheelbase/No. of axle |
3360mm / 2 |
||
|
Tyre Specification |
7.00R16 |
||
|
Tyre Number |
6 tires and 1 spare tire |
||
|
Max Speed |
95 km/h |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Cage Rated Capacity |
200 kg |
|
|
Working Height |
18 m |
||
|
Beam |
The beam is articulated & telescopic extension type, hydraulic actuated and controlled |
||
|
Slewing |
Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. |
||
|
Control |
Control both on the ground and remote control in cage |
||
|
Safety Device |
Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
||
|
Leveling System |
Hydraulic stabilizer to level the vehicle on uneven ground |
||
|
Arm |
Model |
3-section folding arm |
|
|
Max working height |
20m |
||
|
Elevation angle |
-12°～80° |
||
|
Working angle |
360° |
||
|
Landing leg |
Type |
H-type |
|
|
Longitudinal span |
2430mm |
||
|
Transverse span |
1670/2780mm |
||
|
Hanging basket |
Rated load |
≤200kg |
|
|
Dimension |
1080×610×1100mm |
||
|
Leveling type |
Mechanical rod |
||
|
Hydraulic system |
Hydraulic valve |
Manual |
|
|
Working pressure |
16Mpa |
||
|
Oil cylinder |
Equipped with lock function |
||
|
|
Operation type |
Both hanging basket and rotator |
|
|
Optional |
Insulated cage; Wireless remote control system |
||
The Isuzu 18-meter insulated aerial platform truck is a versatile and high-performance vehicle designed for a wide range of applications requiring work at significant heights. This specialized truck combines the reliability and durability of the Isuzu brand with advanced aerial work platform technology, making it an ideal choice for industries such as construction, maintenance, utilities, and emergency services.

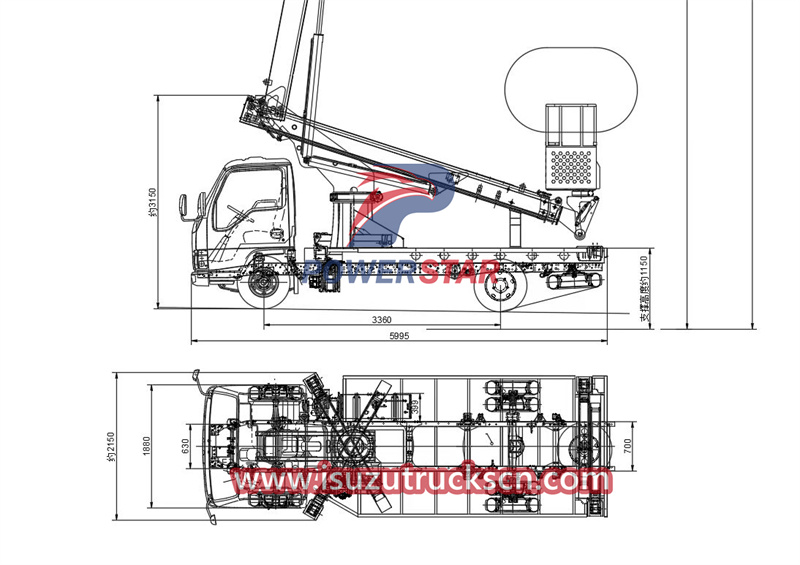

Technical drawing of Isuzu 18m insulated aerial platform truck
Key Features and Specifications
★ Lifting Capacity:
With a lifting height of 18m and a clear working height of up to 16.3m (including man height), this truck is suitable for tasks that require access to the upper floors of buildings, bridges, power lines and other elevated structures. The maximum operating radius of 7.5m ensures the platform can reach great distances while maintaining stability and safety.
★ Bucket and Platform Design:
The bucket or platform is designed to carry loads up to 200 kg and is suitable for one to two workers and their tools and equipment. The insulated platform redefines safety standards for operators working near electrical systems. Manufactured using high-quality materials and equipped with advanced insulation technology, the platform provides a safe environment for users to perform tasks at height without compromising safety. This feature makes the Isuzu 18m Insulated Aerial Work Truck an ideal choice for electrical infrastructure maintenance and related industries. The platform measures 1080x570x1000mm, providing workers with ample room to move around and perform their tasks comfortably. The automatic bucket balancing system ensures that the platform remains level throughout the operation, thereby improving safety and reducing fatigue.
★ Arm and Leg Configuration:
This truck features a telescopic arm that extends up to 18m, providing maximum reach. The rectangular shape of the arm enhances its strength and durability, ensuring reliable performance even with heavy loads. H-shaped outrigger configuration, the platform's 360-degree rotation capability allows for seamless maneuverability, making it easier to position the truck in tight spaces.
★ Control System & Instrumentation:
The Isuzu 18m Insulated Aerial Platform Truck is equipped with a full computer control system, which includes a Hazard Warning System. This advanced system monitors various parameters and alerts the operator to any potential hazards, ensuring safe and efficient operation. LCD screens are featured in both the bucket and the truck cab to display real-time working status, allowing the operator to track key information such as height, radius and load capacity.
★ Engine & Transmission:
The truck is powered by a Cummins diesel engine, which offers reliable performance and high fuel efficiency. The 4KH1CN6LB engine is a 4-stroke, 4-cylinder in-line engine that is turbocharged and intercooled, with a power of up to 120HP. This powerful engine, combined with a 4x2 traction system and a 5-speed manual transmission, ensures smooth and responsive acceleration even in demanding conditions. The truck has a top speed of 95 km/h, allowing for quick transportation between job sites.
★ Thermal Insulation and Safety Features:
Thermal insulated boom lifts are designed to provide extra protection against adverse weather conditions and extreme temperatures. Thermal insulation helps maintain a comfortable working environment for operators, increasing their productivity and safety. Other safety features include emergency descent power, safety interlocks and limit switches, all of which help reduce the risk of accidents and injuries.
Advantage
1. It uses ISUZU single row cabin chassis, the cab has advanced design with fully automatic welding manipulator ABB.
2. It is telescopic type, which supports to work in narrow places compared with folding types. The working altitude can reach to 18 meters . And the bucket loading capacity is about 200KG with non-slip body.
3. Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4. Manual controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5. Slewing mechanism adopts adjustable type, which is easy to adjust.

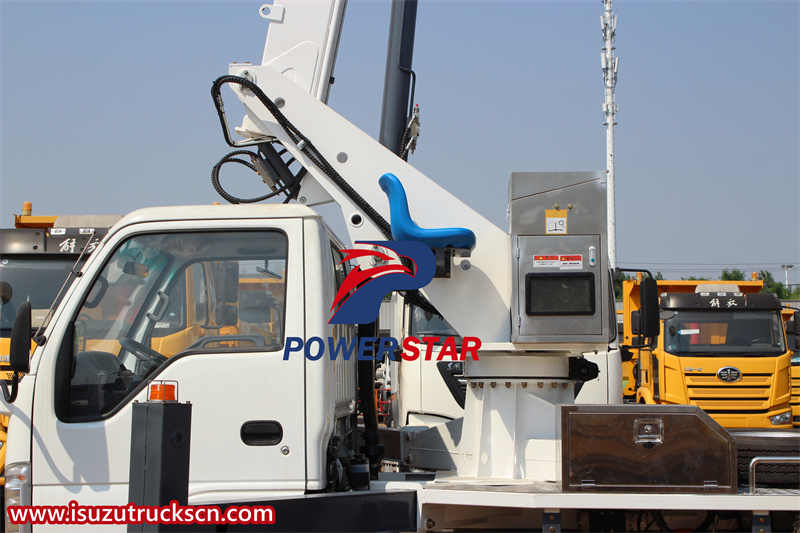

Revolving mechanism

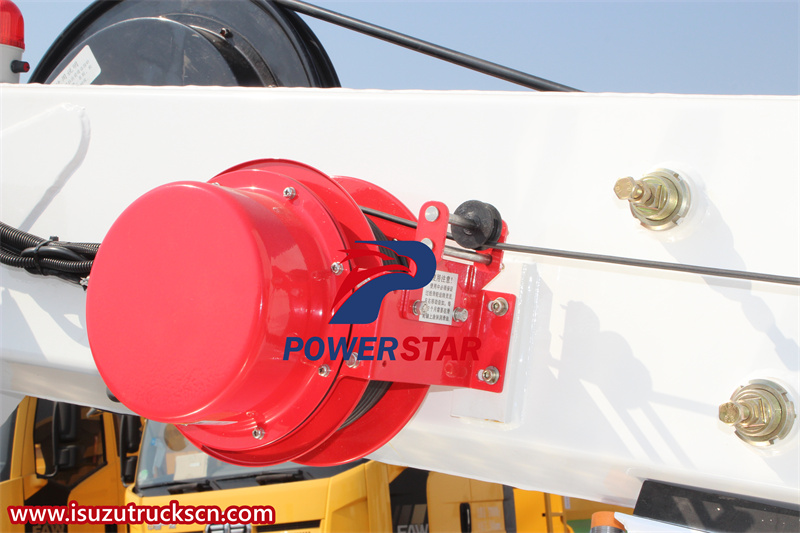

Reel

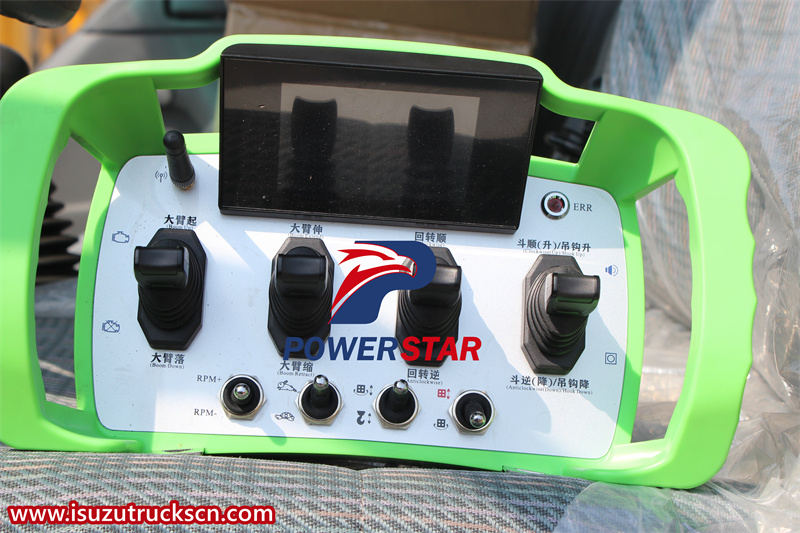

Remote control box

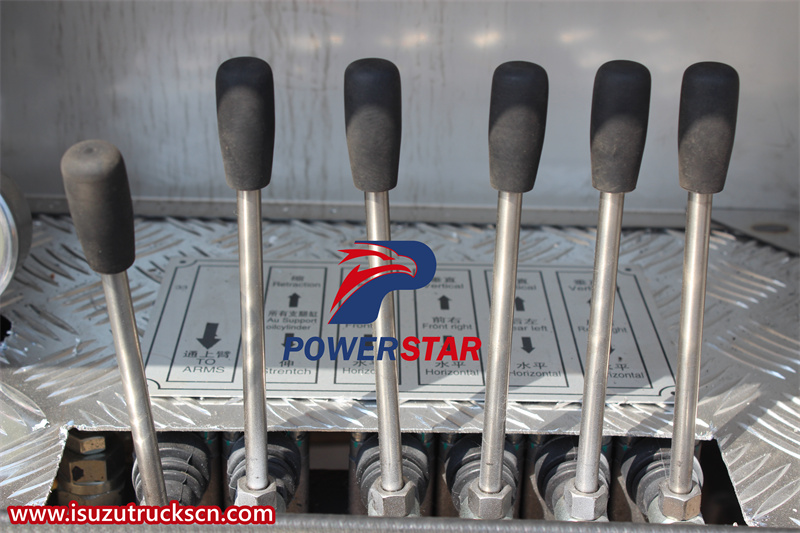

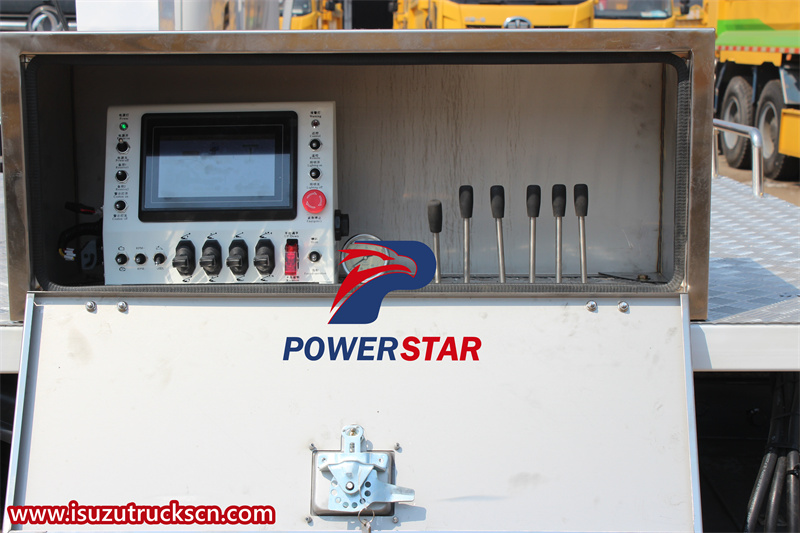

Manual operation box
Joystick

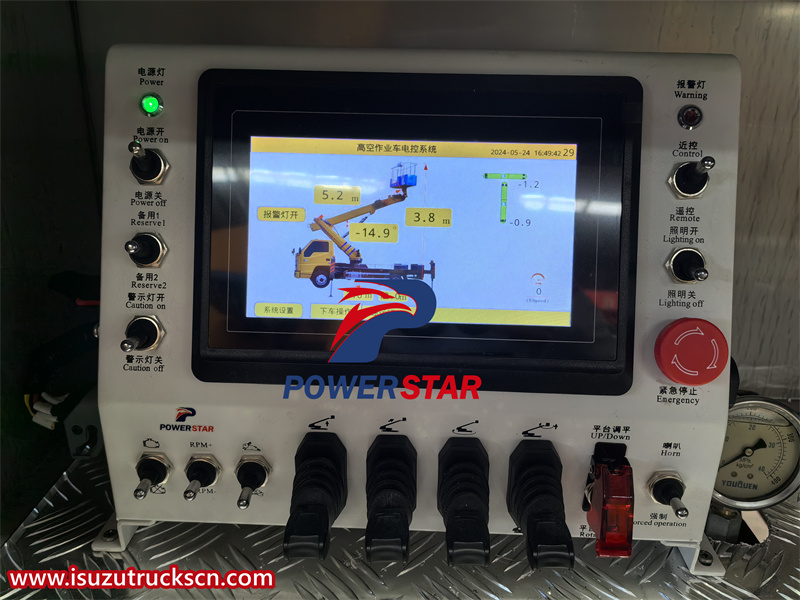

Control panel
