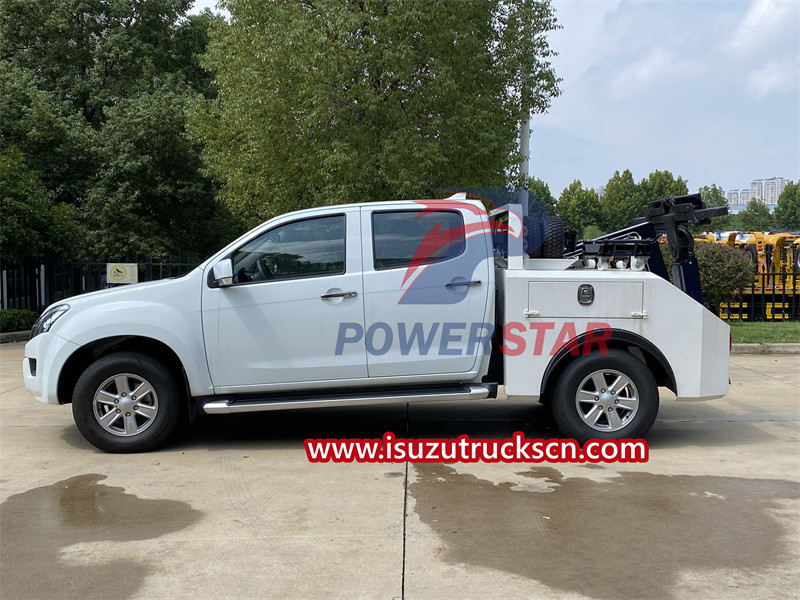

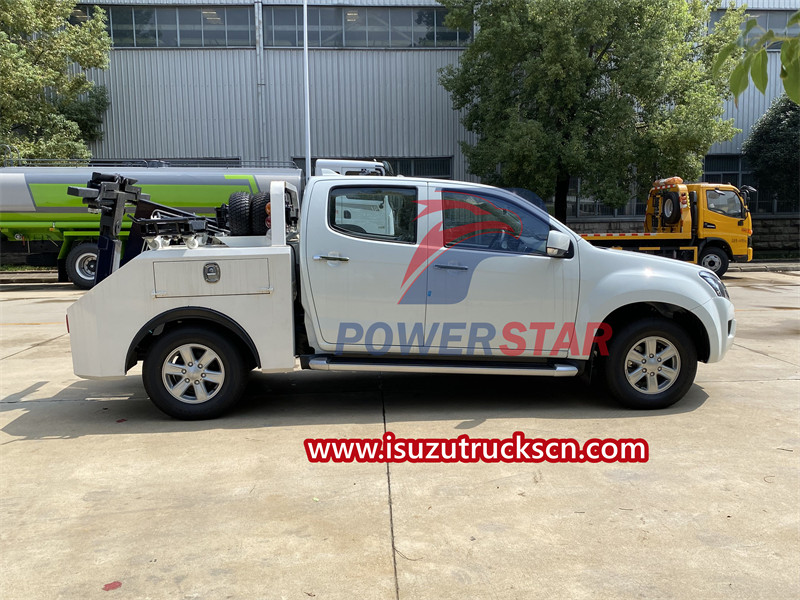

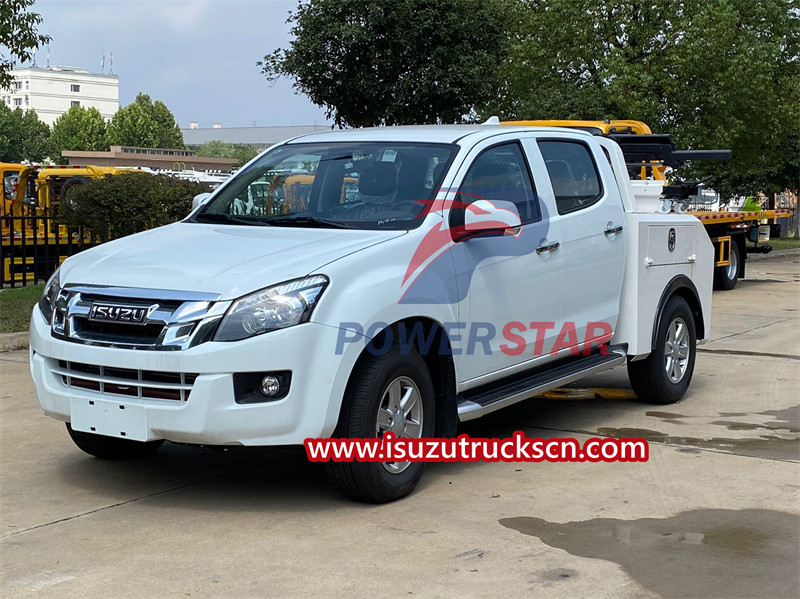

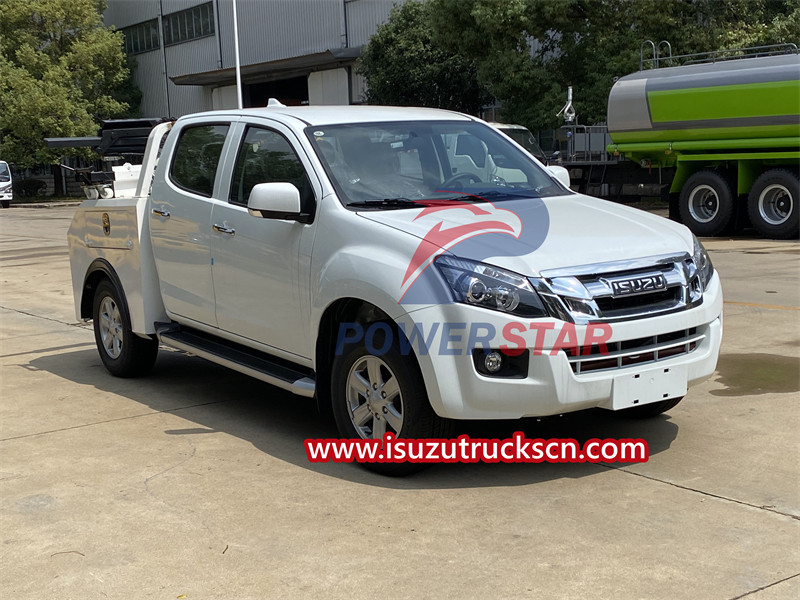

ISUZU pickup towing truck is a specially designed tow truck that is used for emergency rescue and wrecking tasks in underground parking lots or narrow spaces. ISUZU pickup tow trucks have the advantages of strong spatial adaptability, flexible control, comprehensive rescue functions, quick response capabilities, and cost-effectiveness. These characteristics make it an ideal choice for emergency rescue and clearing tasks in underground parking lots. It can quickly respond to various emergencies and ensure the safety of underground vehicles and pedestrians as well as the smooth flow of traffic.
Work capacity:
2 tonsTruck model:
PT5030GQZPKEngine power:
143 HPEngine type:
4KH1CT6H1Axle drive:
4×4Gear box:
5-speed, manualRemarks:
ISUZU 4×4 pickup chassis, compact in size
ISUZU pickup truck tow trucks are mainly used for clearing accidents and faulty vehicles in low and narrow places such as underground parking lots, and provide fast and effective rescue of accident vehicles. They are also very suitable for rapid rescue and emergency repair of small vehicles on narrow streets and highways in cities.

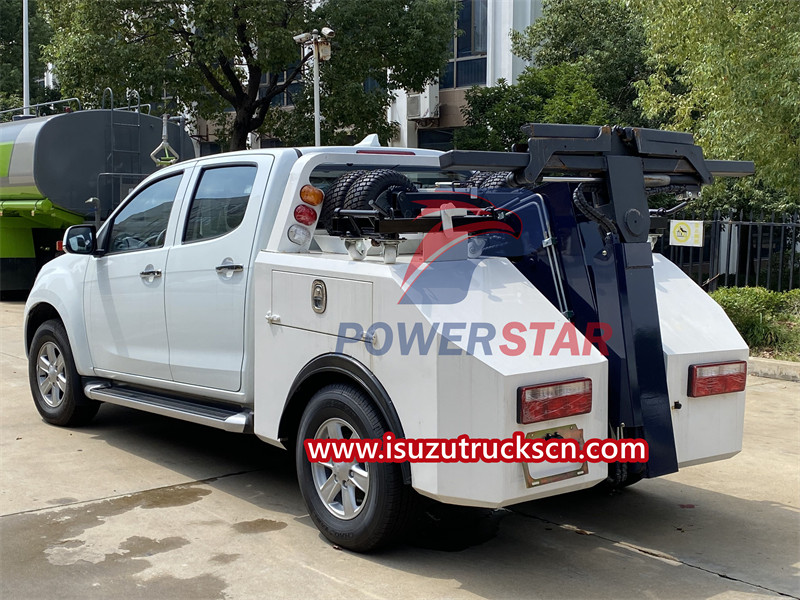

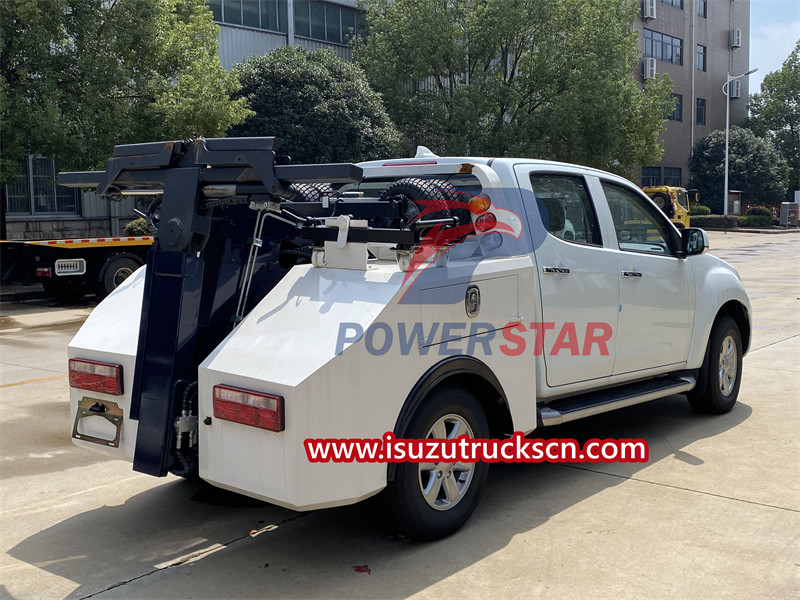

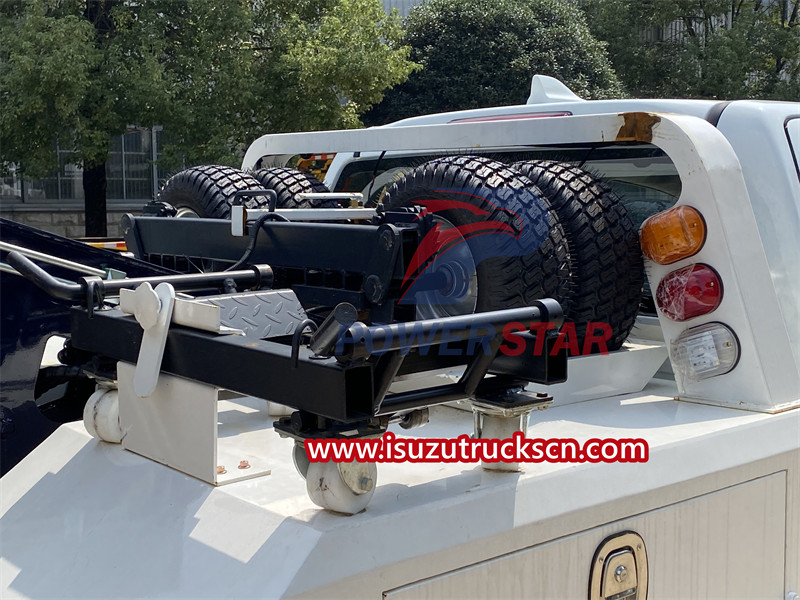

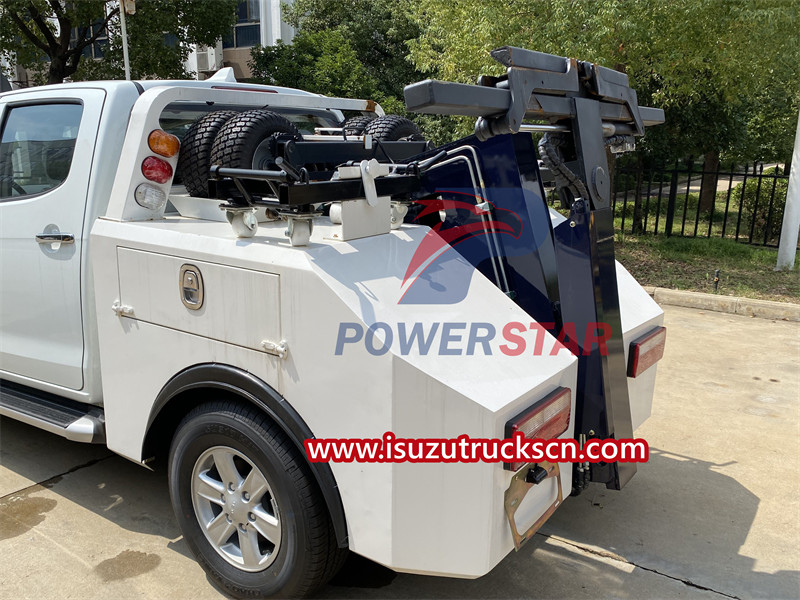

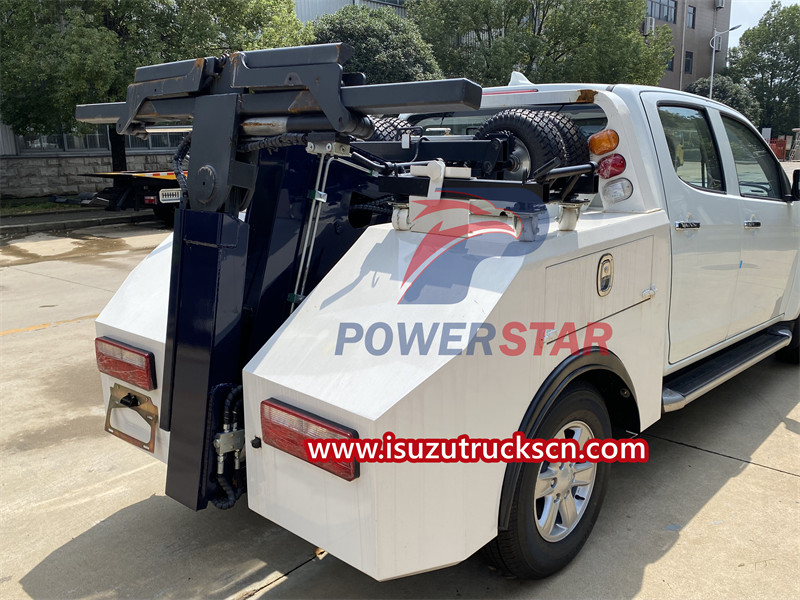

The structure of the cargo box of the ISUZU pickup tow truck remains unchanged, and a 3-ton hydraulic support arm, a set of hydraulic lifting auxiliary wheels, a four-link power unit, and a hydraulic multi-way valve are installed at the bottom of the cargo box. The two longitudinal beams and the rear axle steel plate are reinforced. There are two operation modes: wired and wireless remote control, automatic tire holding and manual tire holding structures are optional, and the lifting weight is about 2-3 tons. It comes standard with 2 auxiliary trolleys, 2 straps, and a tool box.
Product Specifications
|
Description |
ISUZU 4x4 Pickup wrecker truck |
|
|
Drive Model |
4x4, left hand drive |
|
|
Vehicle Main Dimensions |
Dimensions (mm) |
5350×1885×1825 |
|
Wheel base (mm) |
3096 |
|
|
Overhang (front/rear) (mm) |
955/1235 |
|
|
Axle load (kg) |
2000/3500 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Weight in KGS |
Curb Weight |
2270 |
|
GVW |
3200 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Fuel |
Diesel |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power (HP) |
143HP |
|
|
Displacement (ml) |
2999 |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
5 forwards & 1 reverse, manual |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70 R17, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
Upper body |
||
|
Platform Organ |
Min angle(°) |
7.6 |
|
Max loading capacity(kg) |
4000 |
|
|
Winch rating pulling capacity(kg) |
4000 |
|
|
Length of steel(m) |
21 |
|
|
Hoisting Organ |
Max under-hoisting capacity(kg) |
2000 |
|
Fully extended max under-hoisting capacity(kg) |
1413 |
|
Advantage of ISUZU 4×4 pickup towing truck:
1. Strong space adaptability: The ISUZU pickup tow truck is relatively small and compact in size, and can adapt to small underground parking lots and narrow passages. It can flexibly maneuver through tight spaces for rescue and clearance work, making it ideal for dealing with vehicle breakdowns and traffic jams in basements.
2. Flexible control: This ISUZU tow truck is equipped with a precise control system, allowing the driver to operate in limited spaces more easily. It has a small turning radius and excellent steering performance, allowing drivers to easily handle various emergency rescue and clearing tasks.
3. Versatility: In addition to towing functions, ISUZU pickup tow trucks can also be used to transport repair equipment and tools, and can even be used to perform emergency rescue missions to provide support for vehicles in need of help.
4. High mobility: Due to the relatively small size of ISUZU pickup tow trucks, they can drive on crowded city streets and country roads, reaching places that other large tow trucks cannot reach.
5. Easy to operate and maintain: ISUZU pickup tow trucks usually have a simple structure, easy operation, and relatively low maintenance costs. This makes it ideal for small wrecking jobs.
During the towing process of the Isuzu pickup truck tow truck, the following safety matters need to be paid attention to:
1. Make sure all equipment and tools are in good condition: Before towing, all equipment and tools should be inspected to make sure they are in good working order and not damaged or malfunctioning. Any damaged equipment or tools can cause problems during the towing process or even cause an accident.
2. Correct connection: Before connecting two vehicles, the safety and stability of the towed vehicle must be ensured. When connecting, use appropriate safety equipment, such as bumper connectors, and make sure all connections are tight and secure.
3. Control speed: When towing, you should maintain an appropriate speed to avoid going too fast and causing the towed vehicle to lose control or cause an accident. At the same time, pay attention to the surrounding traffic conditions, stay alert, and obey traffic rules.
4. Avoid sharp turns or sudden braking: During towing, try to avoid sharp turns or sudden braking, as this may cause the towed vehicle to lose control or collide with the Isuzu pickup tow truck.
5. Pay attention to the status of the towed vehicle: During the towing process, you should always pay attention to the status of the towed vehicle. If there are any problems with the towed vehicle, such as oil leakage, fire, etc., you should stop the vehicle immediately and deal with it.
6. Pay Attention to Road Conditions: When choosing a towing route, consider the conditions of the road. Try to avoid towing in bad weather and road conditions to avoid accidents.
7. Use appropriate warning equipment: When towing, appropriate warning equipment, such as warning lights, reflective vests, etc., should be used to alert other road users to stay safe.
Isuzu Road Wrecker, road wrecker truck, hydraulic road wrecker ,Isuzu Heavy Rotator Tow Truck Wrecker,Police Isuzu Mini Tow Truck Wrecker
Learn More
Road recovery towing trucks are commonly used to transport vehicles from one place to another, and to transport damaged vehicles.
Learn More
The ISUZU GIGA 8×4 rotary tow truck is a powerful, versatile and reliable large wrecker vehicle. It has high load-bearing capacity, multiple adaptability, safety, reliability and efficient operating performance. Whether it is in road rescue or emergency towing tasks, the ISUZU GIGA 8×4 tow truck is capable of the task and exhibits excellent performance to ensure the smooth flow of road traffic and the safety of vehicles.
Learn More
The Isuzu rotary tow truck is a specially designed road rescue vehicle, mainly used for rapid clearing and rescue of road traffic obstacles. It combines the functions of pulling, lifting and rotating, and can handle various types of vehicle failures and accidents in a short time and restore the road traffic capacity.
Learn More
Isuzu Giga 6WG1 engine recovery wrecker tow truck, also named Isuzu giga chassis heavy towing truck, is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models. In addition, the Isuzu Giga heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
Learn More

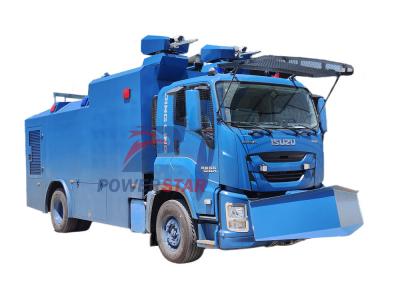

Isuzu GIGA Anti-riot water cannon vehicle is developed with the current international popular product trend of anti-riot vehicles..It has perfect long-distance riot control function and complete self-protection system which make it as the first choice for dispersing rioters without causing permanent bodily harm.
