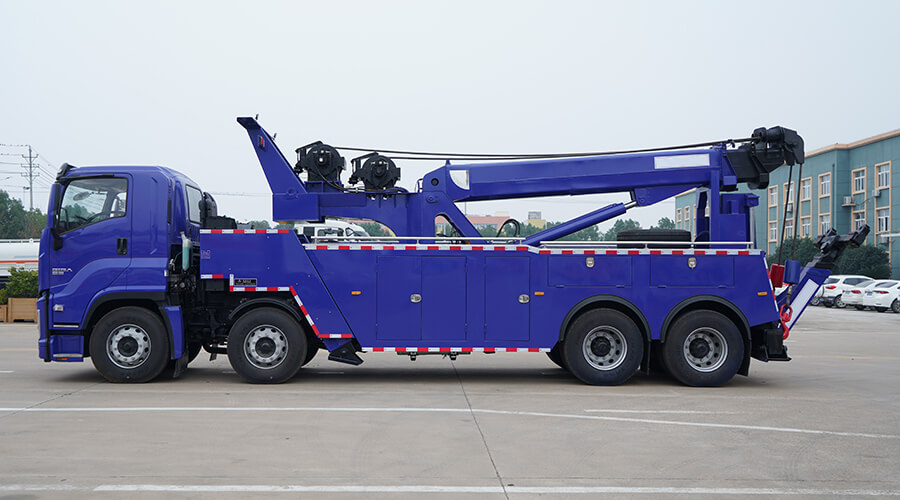

Isuzu Giga 6WG1 engine recovery wrecker tow truck, also named Isuzu giga chassis heavy towing truck, is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models. In addition, the Isuzu Giga heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
Work capacity:
30ton~40tonTruck model:
PT5450GQZEngine power:
420HPEngine type:
ISUZU 6WG1Axle drive:
8x4Gear box:
FAST 12-shiftJapan Isuzu Giga heavy wrecker tow truck is a type of Isuzu tow truck, also called Isuzu Giga underlift tow truck or Giga Isuzu road recovery towing truck. It is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models.
Isuzu giga 40ton Towing Recovery Truck have multiple functions, including lifting, lifting, towing, towing, etc. It can lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle to facilitate loading and unloading. At the same time, it can also use the extension and amplitude of the boom to drag or lift the accident vehicle from and near the roadbed to the road surface. In addition, the heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
ISUZU GIGA Breakdown Vehicle Trucks Recovery Transporter GIGA ISUZU 30Ton/40Ton 8x4 Heavy Underlift Towing Truck
Product Description:
1. Purpose of Recovery Truck: ISUZU GIGA wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
Specification of Sinotruck Heavy Duty Tow Truck
| CHASSIS | |||||
| Cabin | GIGA standard cabin,left hand drive,with air conditioner,allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000*2 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 31000 | |||
| Overall Dimensions(mm) | Length | 11430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 1800+4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 8X4 | ||||
| Tyre | 12R22.5 | ||||
| Max. Speed(km/h) | 105 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | ISUZU 6WG1 | |||
| Horsepower(HP) | 420 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | FAST 12-Shift, 10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 43000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | ≮900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||

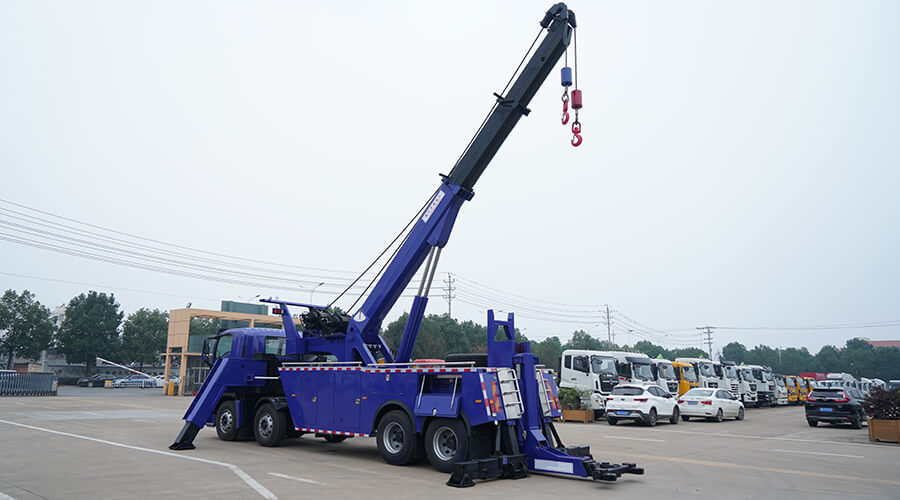

The lifting function is the most important function of the Isuzu rotary tow truck. It uses the telescopic, lifting, folding and other movements of the supporting arm to lift the damaged vehicle from the front or rear, and then tow the entire vehicle away from the scene. The brackets of Isuzu tow trucks have various structural forms. They can generally lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle and are easy to assemble and disassemble.
The Isuzu rotator tow truck is also equipped with a support mechanism. The support mechanism includes front legs and rear legs. Complex rescues often require lateral lifting and towing operations with a boom. The support mechanism greatly improves the overturning resistance of the tow truck when it is lifted sideways.
Product Specifications
| Wrecker structure parameters | |||
| Boom | Max Lifting Weight | 30000 kg | |
| Boom extended length | 4500 mm | ||
| Max. Lifting Height | 12300 mm | ||
| Inclination Angle | 5°- 60° | ||
| Rotating Angle | 360° | ||
| Number of Stages | 3 Stages | ||
| Outriggers | Rated Lifting Weight | 12500 kg | |
| Rated Lifting Fully Extended Weight | 4500 kg | ||
| Longitudinal Span between Front Outrigger and Rear Outrigger | 7350 mm | ||
| Transverse Span of Front Outriggers | 5490 mm | ||
| Transverse Span of Rear Outriggers | 4387 mm | ||
| Rated Towing Weight | 50000 kg | ||
| Length of Cable Wire | 25 m | ||
| Equipment | High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories | ||

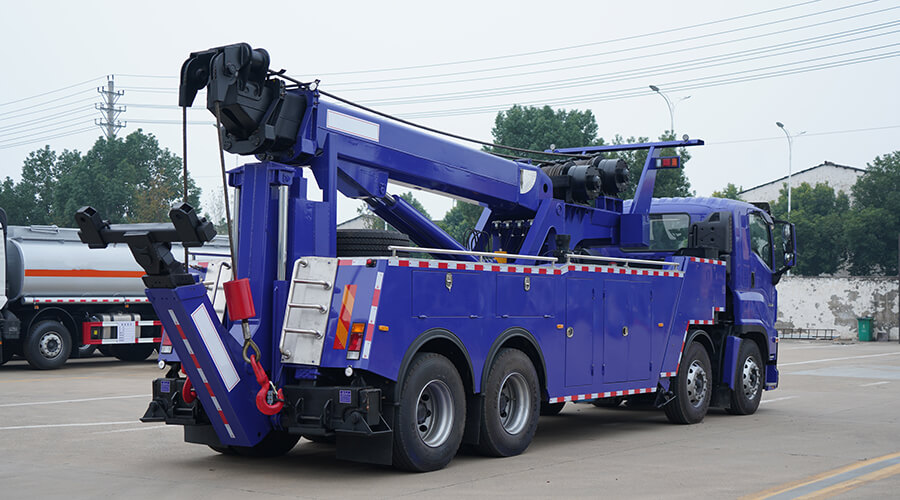

IV.Wrecker Towing Truck Details ISUZU GIGA new 40ton crane lifting recovery truck 30ton integrated wrecker truck for sale
Isuzu giga 40ton Towing Recovery Truck is a kind of rescue equipment with comprehensive functions and powerful performance. It is mainly used for handling road breakdown vehicles, urban illegal vehicles, and carrying out rescue and rescue tasks. Here are some of the main rescue jobs that heavy duty tow trucks can perform:
Road traffic accident scene rescue: After a traffic accident, Isuzu giga 40ton Towing Recovery Truck can quickly arrive at the scene to evacuate and tow damaged vehicles. Using functions such as lifting and hoisting, the vehicle can be towed or hoisted from the roadbed or places near the roadbed to the road surface to provide space for subsequent rescue and survey work, ensuring smooth roads and ensuring the safety of the site.
Vehicle breakdown handling: When a vehicle breaks down on a highway or expressway, a heavy-duty tow truck can quickly tow it to a safe area to avoid affecting traffic flow and ensure road safety.
Handling of illegally parked vehicles in the city: Isuzu giga 40ton Towing Recovery Truck can also tow and move illegally parked vehicles to maintain traffic order on urban roads.
Rescue and rescue: In special circumstances, such as natural disasters or other emergencies, heavy-duty tow trucks can also use their powerful functions and performance to participate in rescue and rescue work, helping rescuers arrive at the scene in time to carry out rescue operations.
In addition, heavy-duty tow trucks can also be used in urban management fields, such as urban road cleaning and urban drainage system maintenance, as well as highway maintenance fields, such as road guardrail repair, etc.
Isuzu Road Wrecker, road wrecker truck, hydraulic road wrecker ,Isuzu Heavy Rotator Tow Truck Wrecker,Police Isuzu Mini Tow Truck Wrecker
Learn More
Road recovery towing trucks are commonly used to transport vehicles from one place to another, and to transport damaged vehicles.
Learn More
ISUZU pickup towing truck is a specially designed tow truck that is used for emergency rescue and wrecking tasks in underground parking lots or narrow spaces. ISUZU pickup tow trucks have the advantages of strong spatial adaptability, flexible control, comprehensive rescue functions, quick response capabilities, and cost-effectiveness. These characteristics make it an ideal choice for emergency rescue and clearing tasks in underground parking lots. It can quickly respond to various emergencies and ensure the safety of underground vehicles and pedestrians as well as the smooth flow of traffic.
Learn More

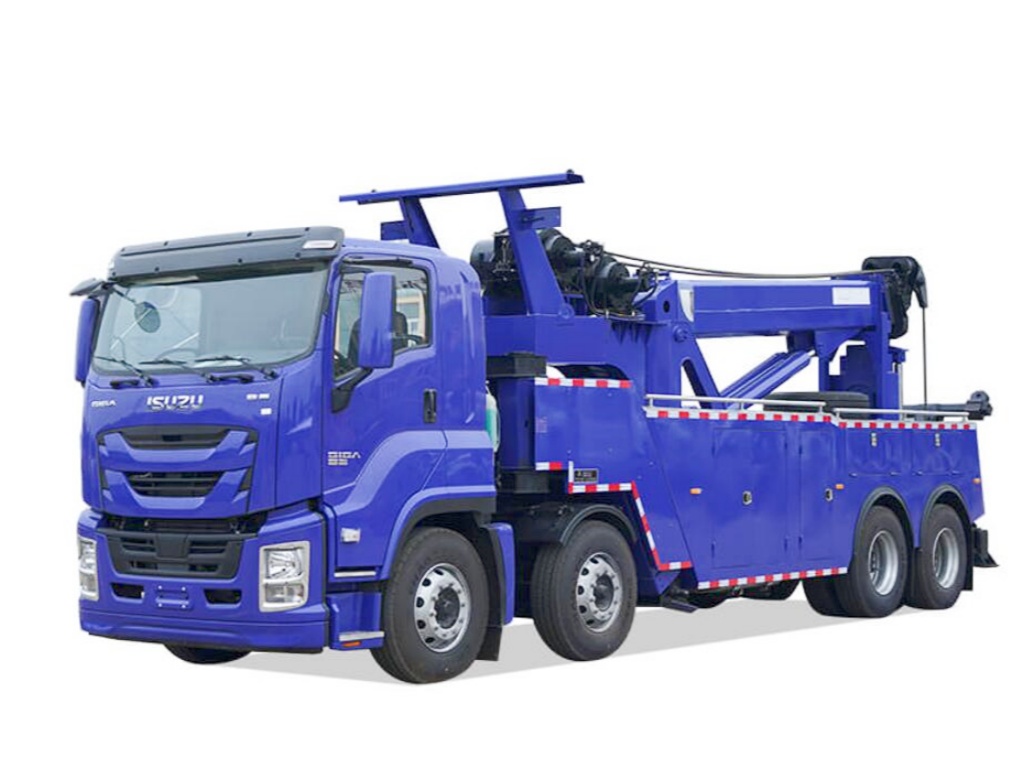

The ISUZU GIGA 8×4 rotary tow truck is a powerful, versatile and reliable large wrecker vehicle. It has high load-bearing capacity, multiple adaptability, safety, reliability and efficient operating performance. Whether it is in road rescue or emergency towing tasks, the ISUZU GIGA 8×4 tow truck is capable of the task and exhibits excellent performance to ensure the smooth flow of road traffic and the safety of vehicles.
Learn More

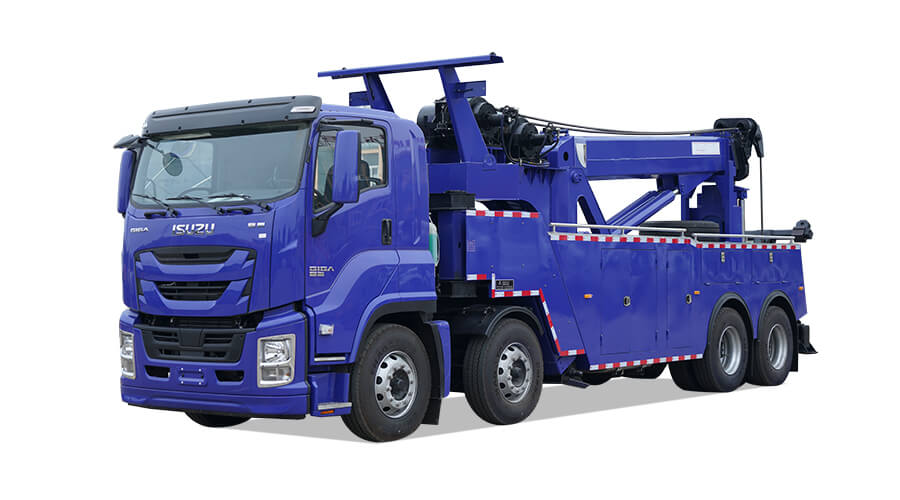

The Isuzu rotary tow truck is a specially designed road rescue vehicle, mainly used for rapid clearing and rescue of road traffic obstacles. It combines the functions of pulling, lifting and rotating, and can handle various types of vehicle failures and accidents in a short time and restore the road traffic capacity.
Learn More
Isuzu Chassis 14m Truck Mounted Aerial Working Platform Isuzu Brand 14M Telescopic Boom Aerial Working Platform Technical Parameters (PT5061JGK10S GKS-14QX) Working Condition 1, Altitude: 0-1000m 2, Temperature: -25° C--+45° C, environmental relative humidity ≤ 90% 3, Allowed working condition: Solid, stable land, the vehicle should be horizontal 4, Wind force: ≤ 6 degree (wind speed ≤ 12.5m/s ) Working Range PT5061JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on. The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations. Bulletin No. KFM5061JGK10S Type GKS-14QX External dimensions ( mm ) 7050×2020×3250 Structure type Three-section telescopic boom Working Cage Internal size ( mm ) 1200×600×1100 Rated loading ( kg ) 200 ( or 2 persons ) Max. Working height ( mm ) 14000 Max. Height from ground ( mm ) 12300 Max. Working radius ( mm ) 9300 Working radius when doing the highest height ( mm ) 1320 Working Boom Lifting angle of main boom ( º ) -24_78° Out rate speed ( mm/sec ) 8500/50 Ret rate speed ( mm/sec ) 8500/50 Boom rack rotation angle ( º ) 360 Boom rack rotation speed ( r/min ) 1.0 Outrigger Vertical span ( mm ) 3050 Horizontal span ( mm ) 3600 Traveling of vertical outrigger ( mm ) 450 Adjustment Single adjustable
Learn More

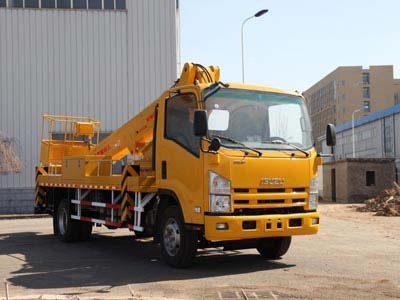

20m ELF high altitude operation truck with hydraulic booms,New isuzu high altitude working truck hot sale high lifting platform truck, ELF Handler 20m articulated series aerial work platform truck/high altitude operation truck
