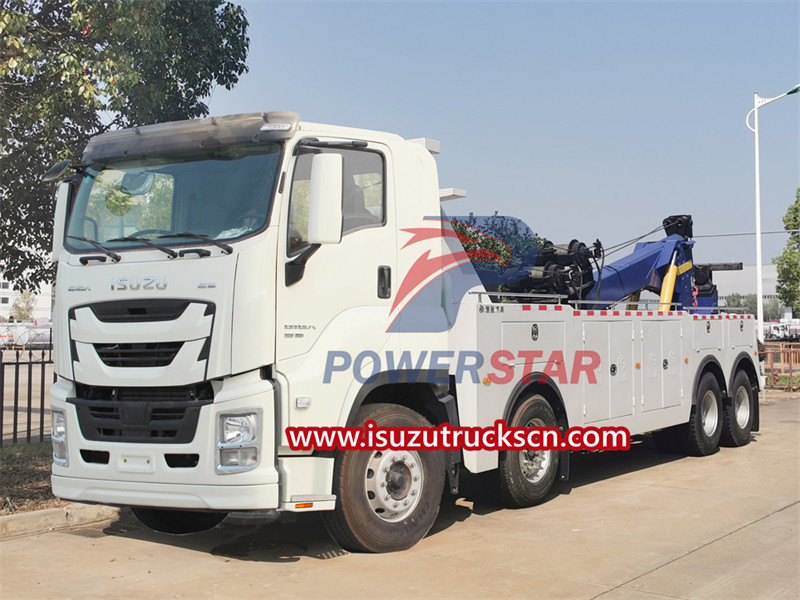

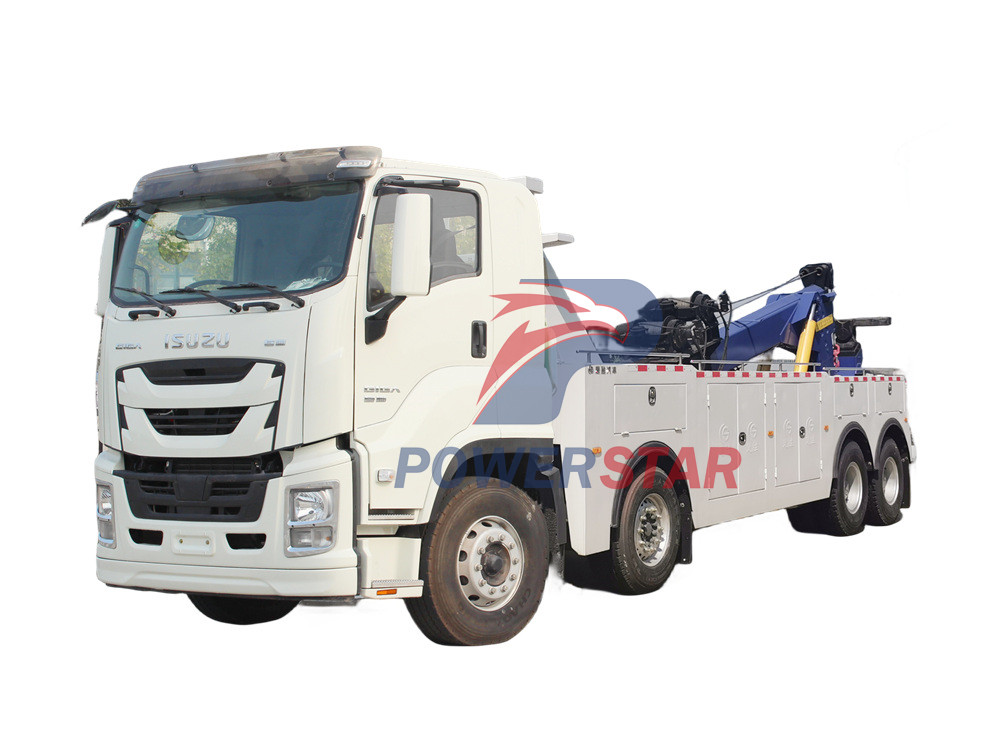

The Isuzu rotary tow truck is a specially designed road rescue vehicle, mainly used for rapid clearing and rescue of road traffic obstacles. It combines the functions of pulling, lifting and rotating, and can handle various types of vehicle failures and accidents in a short time and restore the road traffic capacity.
Work capacity:
43 tonTruck model:
PT5420GQZEngine power:
420 HPEngine type:
6WG1-TCG60Axle drive:
8×4Gear box:
FAST 12-speed, manualRemarks:
ISUZU 42 ton GVW chassis, equipped with 360° rotating boomThe Isuzu Rotary Wrecker is a specially designed road rescue vehicle that can be used to quickly clean up and rescue broken down or accident vehicles on the road. It removes obstacles by rotating and lifting, and is equipped with a powerful traction device, a height-adjustable lifting device and a flexible rotating base. Such vehicles are usually made of high-strength materials and equipped with LED work lights to operate at night or in low-light conditions. They have efficient working methods and strong load capacity, and are widely used in road rescue services.

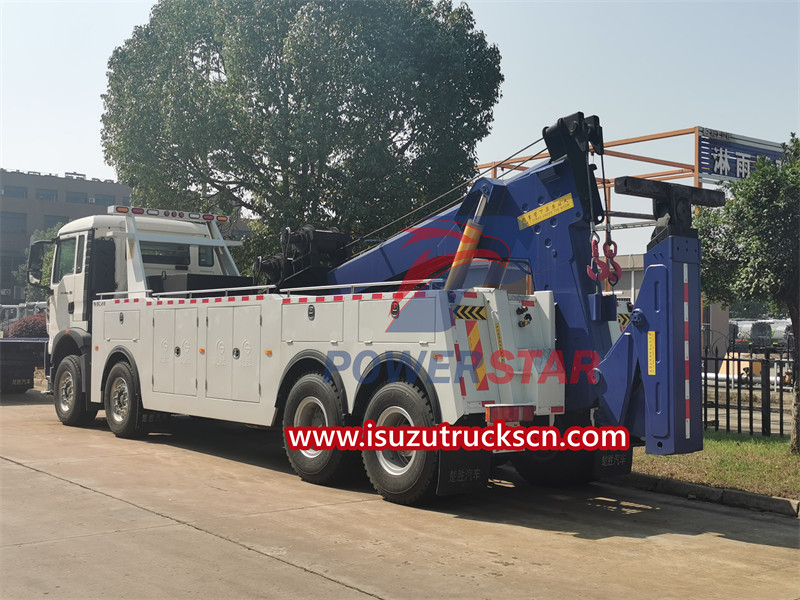

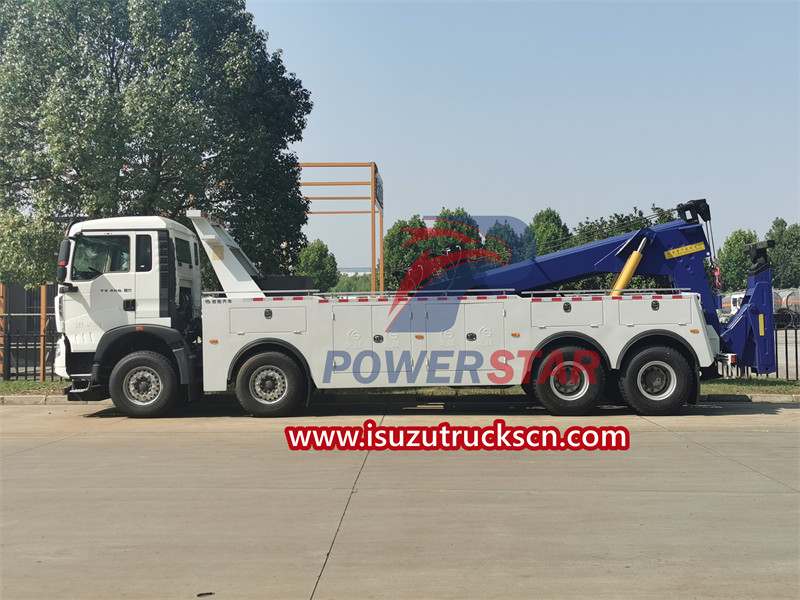

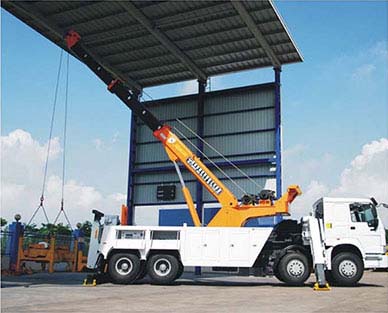

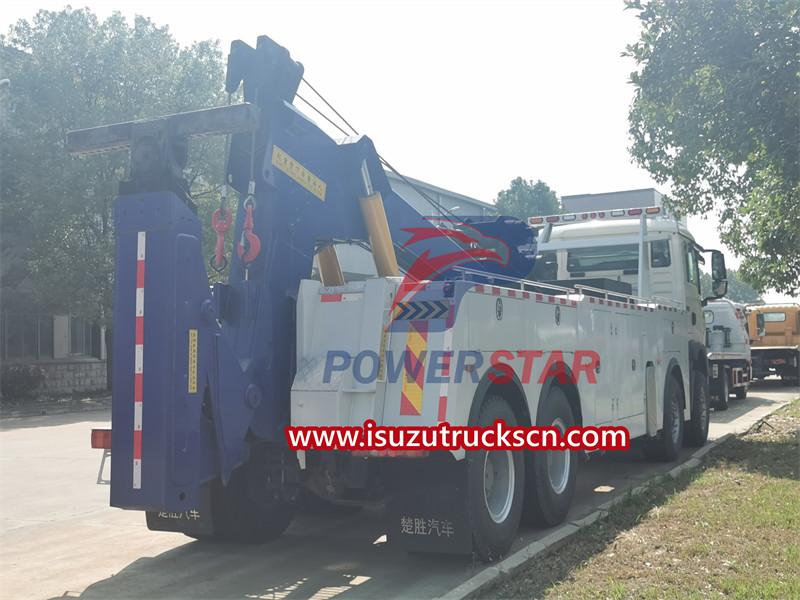

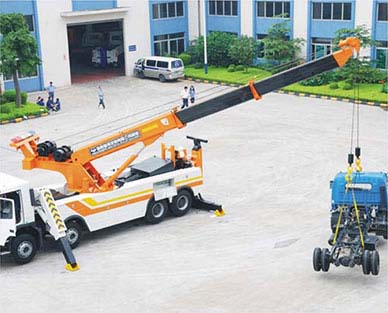

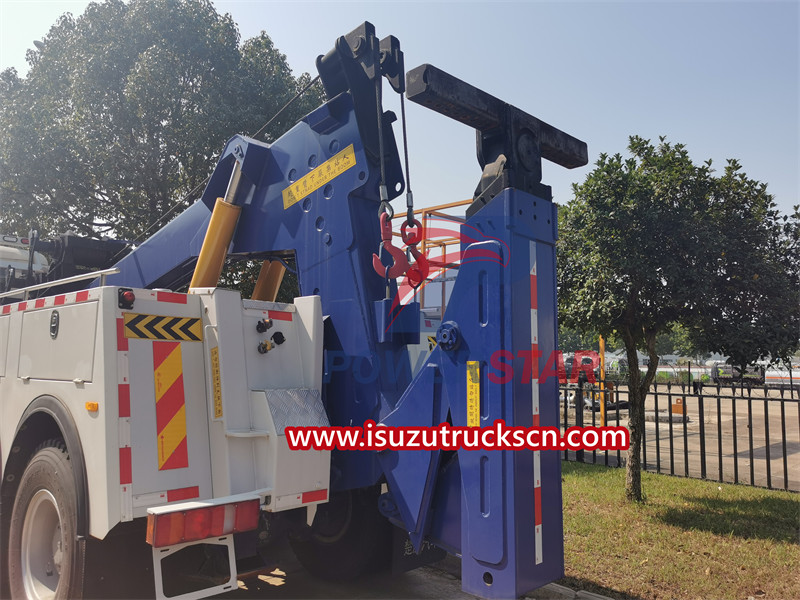

The Isuzu rotator wrecker truck is equipped with a 360° rotating variable-amplitude boom to lift the damaged vehicle from one end (or one side) or the entire vehicle and straighten it for easy lifting. The Isuzu rotator can also use the swing, telescoping, and luffing of the boom to tow or hoist the accident vehicle from the roadbed and the area near the roadbed to the road surface and straighten it.

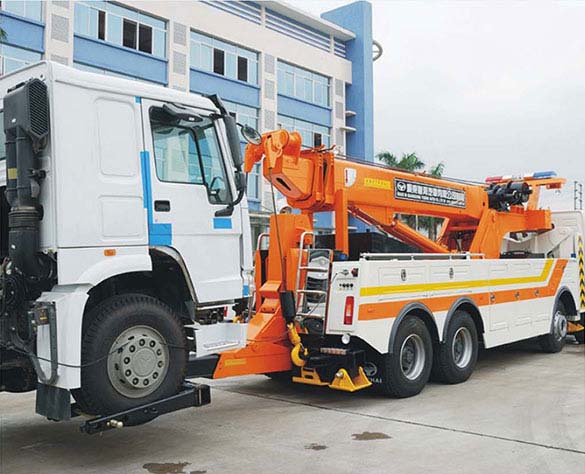

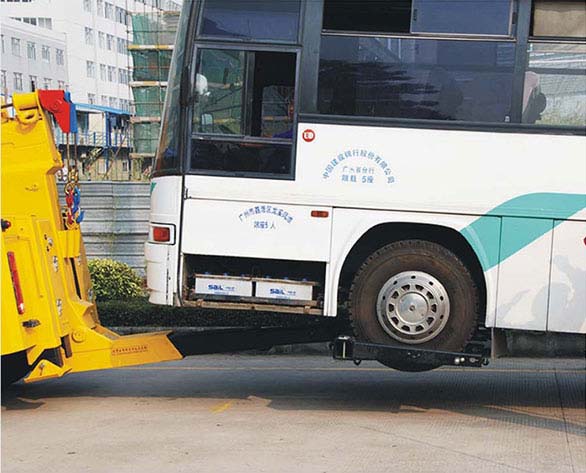

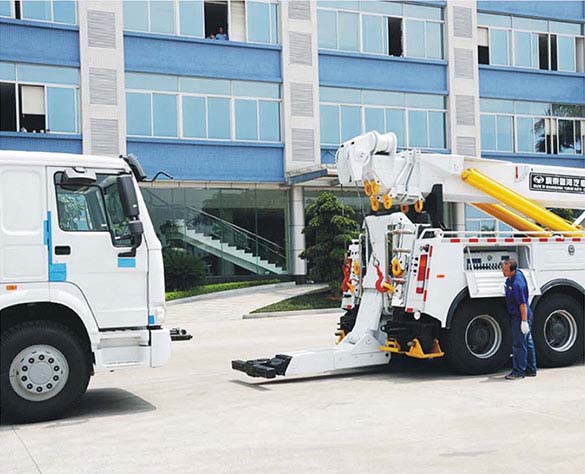

The lifting function is the most important function of the Isuzu rotary tow truck. It uses the telescopic, lifting, folding and other movements of the supporting arm to lift the damaged vehicle from the front or rear, and then tow the entire vehicle away from the scene. The brackets of Isuzu tow trucks have various structural forms. They can generally lift the axles, wheels, leaf springs, frames, etc. of the accident vehicle and are easy to assemble and disassemble.

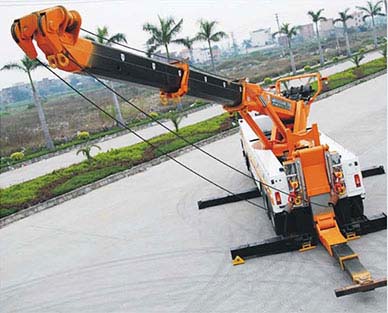

The Isuzu rotator tow truck is also equipped with a support mechanism. The support mechanism includes front legs and rear legs. Complex rescues often require lateral lifting and towing operations with a boom. The support mechanism greatly improves the overturning resistance of the tow truck when it is lifted sideways.
Product Specifications
|
Vehicle Parameters |
Vehicle Model |
PT5420GQZ |
|
Overall Dimension (L x W x H) |
11800x2550x3280mm |
|
|
Curb Weight |
23500 Kg |
|
|
GVW |
42000 Kg |
|
|
Wheelbase |
1850+4575+1300 mm |
|
|
Drive Type |
8×4 |
|
|
Engine |
Engine Model |
6WG1-TCG60 |
|
Cylinder No. |
6 |
|
|
Engine Power |
309KW |
|
|
Delivery Capacity |
15681 (ml) |
|
|
Horsepower |
420 PS |
|
|
Torque |
2250N.M |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Transmission |
FAST |
|
Forward Gear |
12 Speed Gear |
|
|
Reverse Gear |
2 Speed Gear |
|
|
Seats |
Front Seat |
2 |
|
Front Wheel Tread |
1960 mm |
|
|
Rear Wheel Tread |
1855/1855mm |
|
|
Front/rear overhang |
1335/2125 |
|
|
Approach/departure angle (°) |
16/18 |
|
|
Max. speed(km/h) |
90 |
|
|
Chassis |
Axles |
Four axles |
|
Front/Rear Axle Load |
9000×2/13000×2 |
|
|
Tires: |
13(Including Spare Tire) |
|
|
Tire Model: |
315/80R22.5 |
|
|
Max Towing(kg) |
43000kg |
|
|
Under lifting |
Lifting Capability (kg) |
25000 kg |
|
Max capacity of lifting @all extend (kg) |
8300 |
|
|
Lifting Rate at a standstill (kg) |
12000 |
|
|
Length of working arm (mm) |
1330~2580 |
|
|
Arm reach (mm) |
1250 |
|
|
Min angle (up )(°) |
6 |
|
|
Min angle (down ) (°) |
-5 |
|
|
Move angle (°) |
-5~85 |
|
|
Ground clearance of upper surface of cross arm when fully retracted (mm) |
≤900 |
|
|

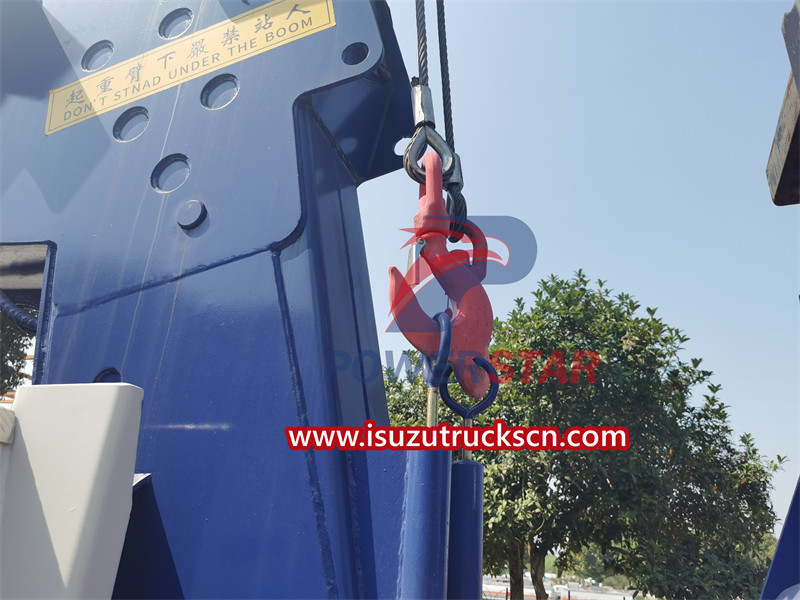

Boom system |
Lifting Capability (kg) |
16000 |
|
Max capacity of lifting @all extend (kg) |
7000 |
|
|
Lifting height (mm) |
5210 |
|
|
Cylinder stroke |
3300 |
|
|
Move angle (°) |
3.5~26 |
|
|
Rotator (°) |
360° |
|
|

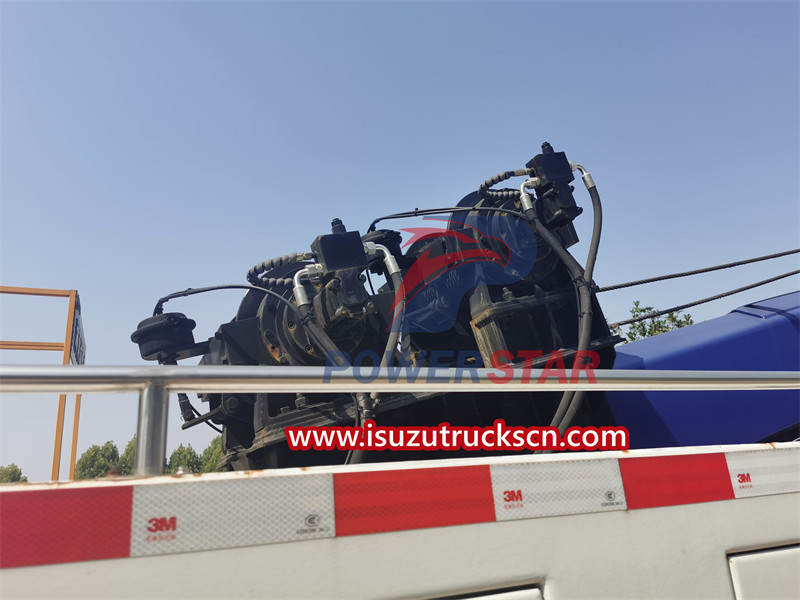

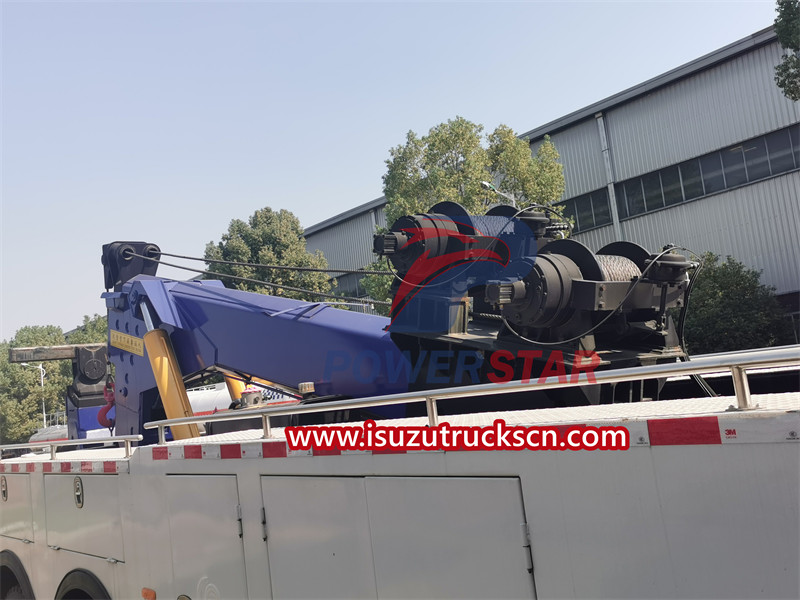

Winch |
QTY |
2 |
|
Rate of pull(Kn) |
80x2 |
|
|
Rope diameter(mm) |
φ18 |
|
|
Rope length(m) |
30x2 |
|
|
Mini Speed of rope(M/min) |
5 |
|
|
Outrigger |
QTY |
2 |
|
Support force (Kn) |
80x2 |
|
Hydraulic system of ISUZU rotator wrecker truck:
The Isuzu rotary tow truck is fully hydraulically driven and integrates multiple functions such as lifting, carrying, towing, and pulling.
♦ Hydraulic oil pipe
The hydraulic oil pipe is made of high-pressure galvanized steel pipe, which has strong pressure resistance, good heat dissipation performance, beautiful appearance and durability, and its service life can be synchronized with the upper body;
The hydraulic pipe joints adopt imported ferrule-type rigid connectors (Germany), which greatly reduce the phenomenon of oil leakage and oil leakage at the interface, and the service life can also be synchronized with the upper body.

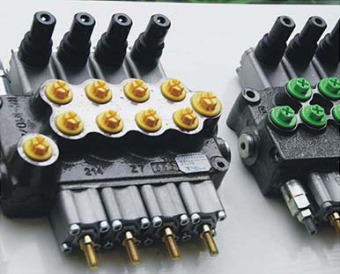

♦ Directional valve
Imported multi-way reversing valves (Italy) are used and the installation method is optimized to ensure that the multi-way reversing valves can operate safely under various extreme conditions of use;

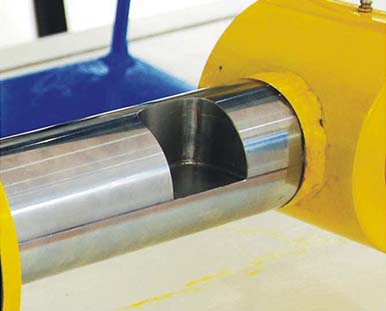

♦ Hydraulic cylinder
The inner wall of the cylinder is bored and rolled. The inner wall of the cylinder is hard, wear-resistant and smooth, and fully protects the seals;
The piston rod (solid) undergoes heat treatment process, has high hardness and thick chrome plating, and can easily handle high-intensity operations;

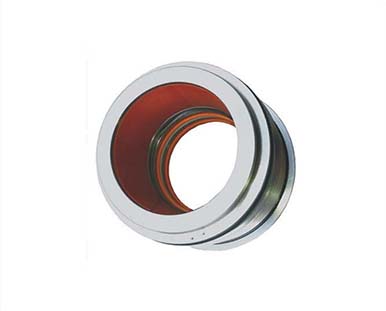

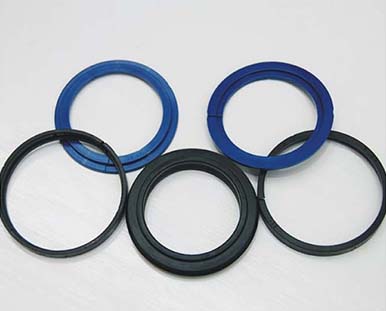

Comprehensively use imported sealing components, and adjust each sealing combination according to different cylinder structures in order to achieve the most perfect state of the cylinder;

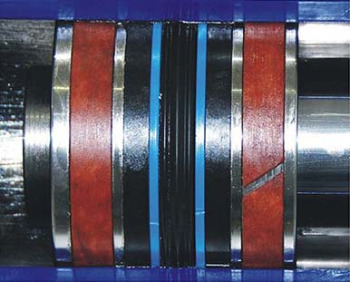

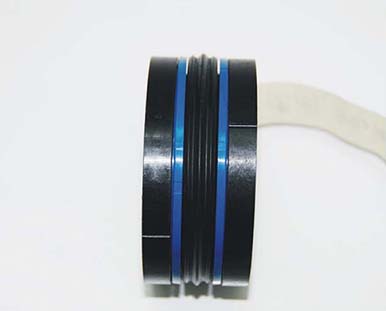

The piston support ring is made of imported materials that are resistant to high temperatures and wear. The design requires the use of double support rings or a large-area single support ring structure.
Isuzu Road Wrecker, road wrecker truck, hydraulic road wrecker ,Isuzu Heavy Rotator Tow Truck Wrecker,Police Isuzu Mini Tow Truck Wrecker
Learn More
Road recovery towing trucks are commonly used to transport vehicles from one place to another, and to transport damaged vehicles.
Learn More
ISUZU pickup towing truck is a specially designed tow truck that is used for emergency rescue and wrecking tasks in underground parking lots or narrow spaces. ISUZU pickup tow trucks have the advantages of strong spatial adaptability, flexible control, comprehensive rescue functions, quick response capabilities, and cost-effectiveness. These characteristics make it an ideal choice for emergency rescue and clearing tasks in underground parking lots. It can quickly respond to various emergencies and ensure the safety of underground vehicles and pedestrians as well as the smooth flow of traffic.
Learn More
The ISUZU GIGA 8×4 rotary tow truck is a powerful, versatile and reliable large wrecker vehicle. It has high load-bearing capacity, multiple adaptability, safety, reliability and efficient operating performance. Whether it is in road rescue or emergency towing tasks, the ISUZU GIGA 8×4 tow truck is capable of the task and exhibits excellent performance to ensure the smooth flow of road traffic and the safety of vehicles.
Learn More
Isuzu Giga 6WG1 engine recovery wrecker tow truck, also named Isuzu giga chassis heavy towing truck, is mainly used for rescue, cleaning, transportation, hoisting, towing and other rescue work of heavy-sized vehicles in highway and other road accidents or breakdowns. It serves the purpose of ensuring smooth roads and towing failed vehicles away from the scene. In our country, there are 30-ton, 40-ton, 50-ton, and 55-ton medium and heavy-duty tow truck models. In addition, the Isuzu Giga heavy-duty tow truck is also equipped with large warning lights and alarms to provide clear signs during the tow truck operation, and has the auxiliary lighting function for night rescue.
Learn More

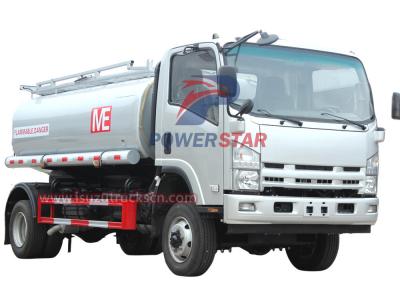

Isuzu elf 700p off road military fuel truck with a flow meter is a special oil tanker truck designed to transport and dispense fuel, such as diesel, gasoline, or kerosene, and is equipped with a flow meter to measure the volume of fuel being transferred. Flow meters are essential for accurate billing, maximizing profits, and ensuring precise measurements during the transfer process.Flow meters used in Isuzu all drive fuel trucks can be mechanical or digital, with turbine or oval gear types being common options. These meters are suitable for various fuels, including diesel, biodiesel, kerosene, gasoline, oil, DEF, heating oil, grease, and certain chemicals
Learn More
China Heavy Cargo 40ft Lowbed Semi Trailer With Best Quality,Heavy duty 3 axle low bed trailer lowbed semi trailer for sale,Algeria Import Lowbed Semi Trailers, 3 Axles Low Bed Trailer For Sale
Learn More

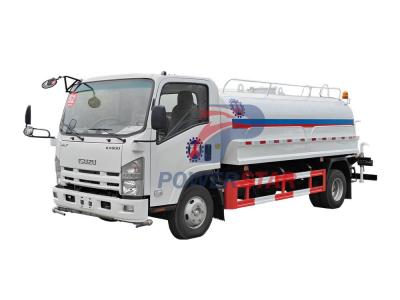

ISUZU water spraying truck consists of ISUZU KV600 chassis, tank, high-power water pump, power take-off, ball valve, filter, water pipeline, sprinkler device and other components. Water pumps, power take-offs, ball valves, and filters are all high-quality products with excellent performance, reliable operation, high efficiency, large flow, and easy maintenance.
