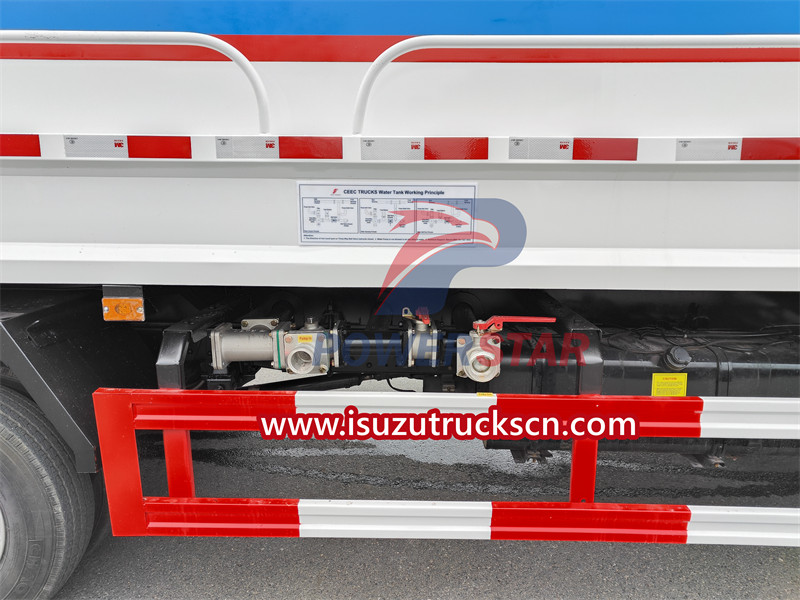

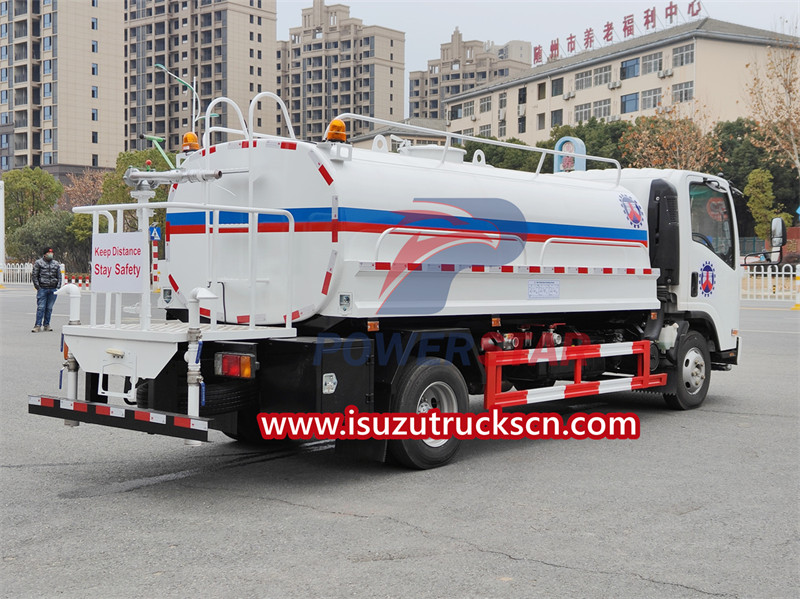

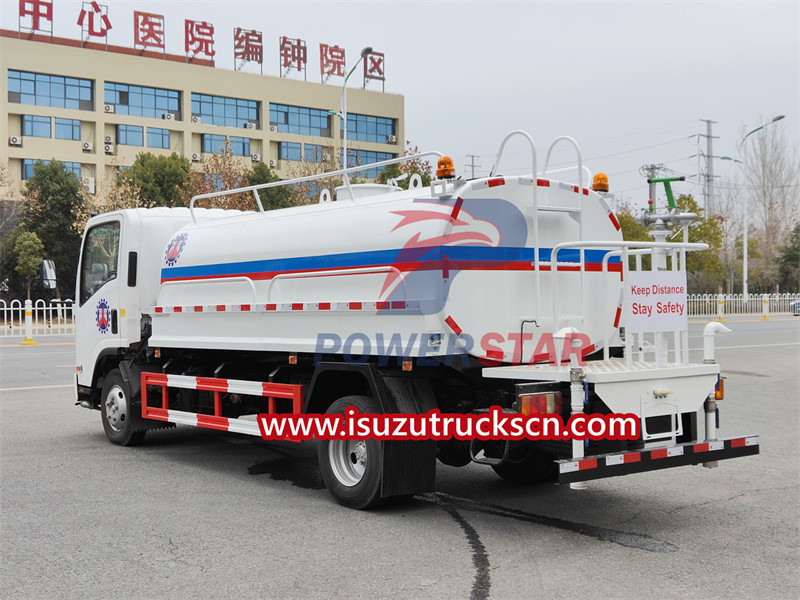

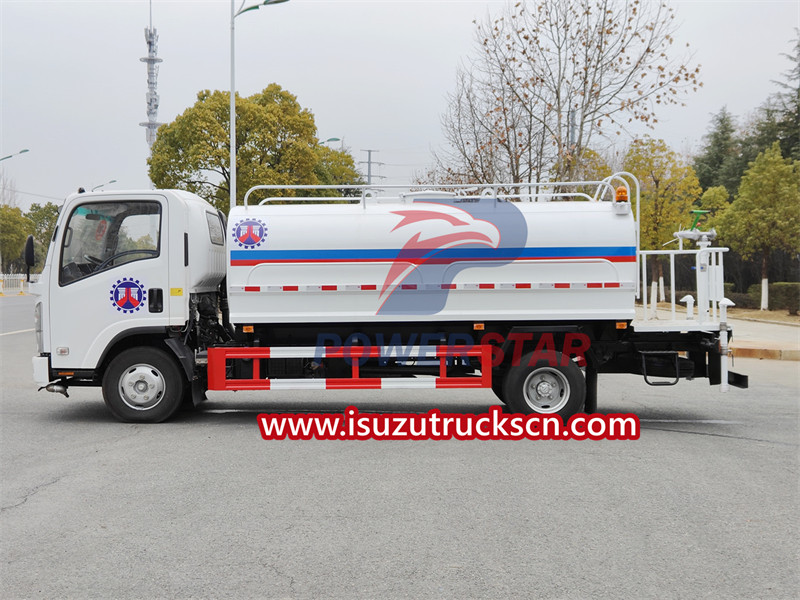

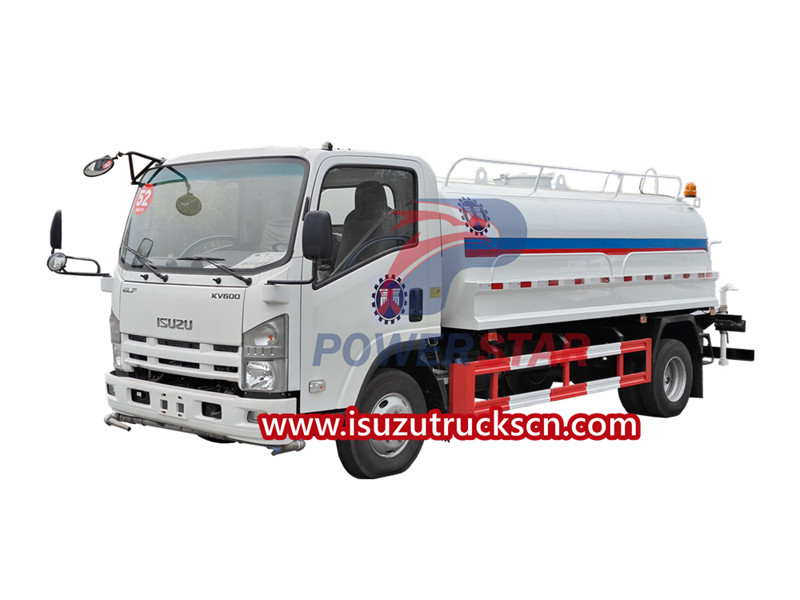

ISUZU water spraying truck consists of ISUZU KV600 chassis, tank, high-power water pump, power take-off, ball valve, filter, water pipeline, sprinkler device and other components. Water pumps, power take-offs, ball valves, and filters are all high-quality products with excellent performance, reliable operation, high efficiency, large flow, and easy maintenance.
Work capacity:
4000 litersTruck model:
PT5040GSSEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
High quality carbon steel water tank, customized paiting and logo

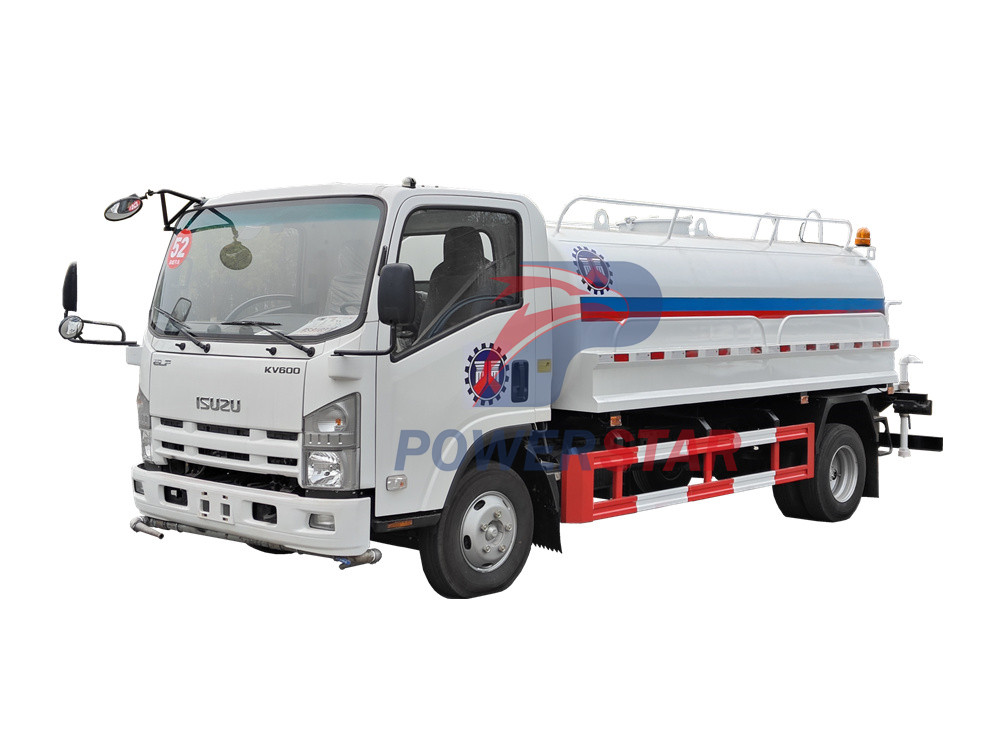

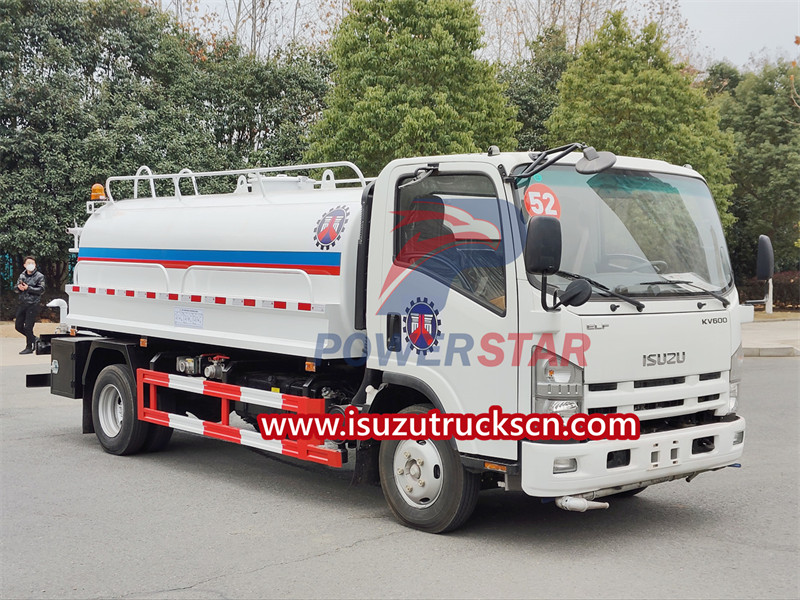

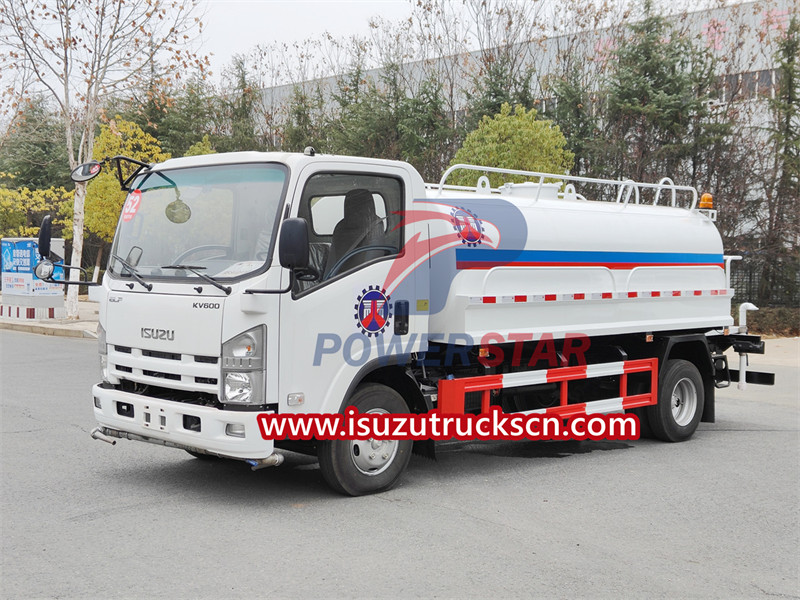

ISUZU water tank truck, also known as ISUZU water spraying truck, ISUZU sprinkler truck, ISUZU water transport truck, is a special vehicle widely used in various fields. It has various functions and can be used for road cleaning, greening irrigation, pesticide spraying, etc., which brings great convenience to our living and working environment. This ISUZU sprinkler truck from POWERSTAR is modified based on the Isuzu KV600 chassis. It has a simple and elegant appearance, reasonable design, and meets various usage needs. It not only has a sprinkling function, but also is equipped with many other functions, such as forward spraying, rear spraying, side spraying, etc., providing convenience for cleaning and watering in various environments.
The ISUZU 1000 gallon water truck is equipped with a large-capacity water tank. The water is pressed out through a water pump and then sprayed out through nozzles. These nozzles can adjust the shape and size of the water flow to achieve different cleaning and watering effects. The main purpose of this ISUZU water bowser truck is to clean roads and water plants. When cleaning roads, the truck can wash away dust and debris on the road, improve air quality and reduce the occurrence of traffic accidents. When watering plants, the vehicle can provide them with the necessary moisture to help them thrive.
Product Specifications
|
ISUZU KV600 WATER TANK TRUCK SPECIFICATIONS |
|||
|
Manufacture |
POWERSTAR |
Made in 2023 |
|
|
Water tank |
Tank volume: 4000L Tank material: Carbon steel Flow: 40 m3/h |
||
|
Weight in kg |
Kerb weight (Kg) |
3500 |
|
|
Gross vehicle weight (Kg) |
7300 |
||
|
Dimension |
Dimensions |
Length(mm) |
6200 |
|
Width(mm) |
2200 |
||
|
Height(mm) |
2450 |
||
|
Wheel base (mm) |
3815 |
||
|
Performance |
Maximum driving speed (km/h) |
90 |
|
|
Fuel consumption (1/100 km) |
25 |
||
|
Cab |
Model |
ISUZU KV600 |
|
|

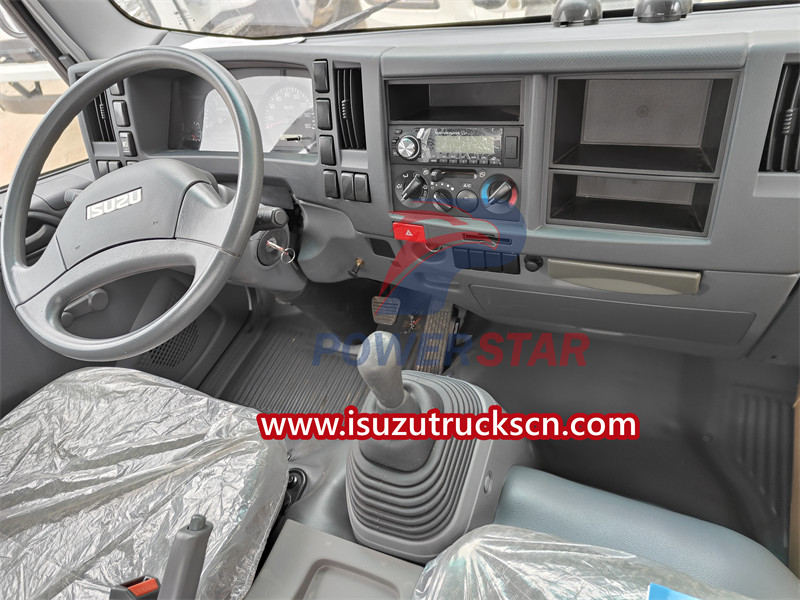

ISUZU ELF cab, with A/C and 3 seats, Forward control, all steel welded construction. Manual tilt, Mechanical suspension |
|||
|
Engine |
Model |
ISUZU 4KH1CN6LB |
|
|
Type |
4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
||
|
Horsepower |
120 HP ( 88 KW) |
||
|
Maximum output Kw/rpm |
88/2900 |
||
|
Maximum torque N.m/rpm |
290/1500 |
||
|
Displacement |
2999 ml |
||
|
Transmission |
ISUZU MSB 5-speed manual transmission |
||
|
5 forward and 1 reverse |
|||
|
Clutch |
Dry single plate with cushioning spring |
||
|
Steering |
Recirculating ball with power power assistance.(Left hand driving). |
||
|
Front Axle |
Reversed Elliot “I” beam, 4 tons |
||
|
Rear Axles |
Banjo, Full Floating, 7 tons |
||
|
Brake System |
Service brake: Front disc, Rear drum, Vacuum Servo Hydraulic front / rear split system |
||
|
Wheels & Tyres |
7.00R16 |
||
|
Oil Tank |
Square type 100L fuel tank |
||
Components of ISUZU water truck:
1. Power system: including engine, transmission system and wheels, etc., which provide power and driving ability for the sprinkler truck.

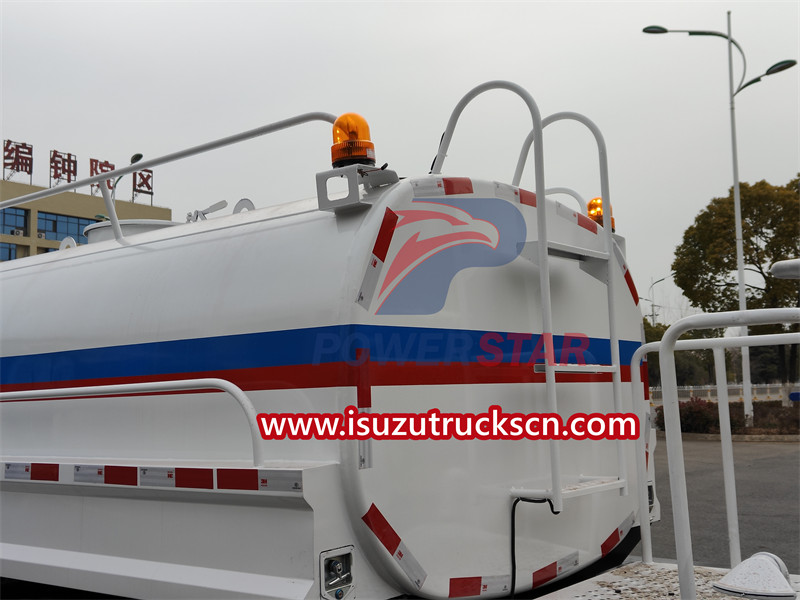

2. Water tank: used to store water or other appropriate liquids, and is one of the main components of a sprinkler truck.

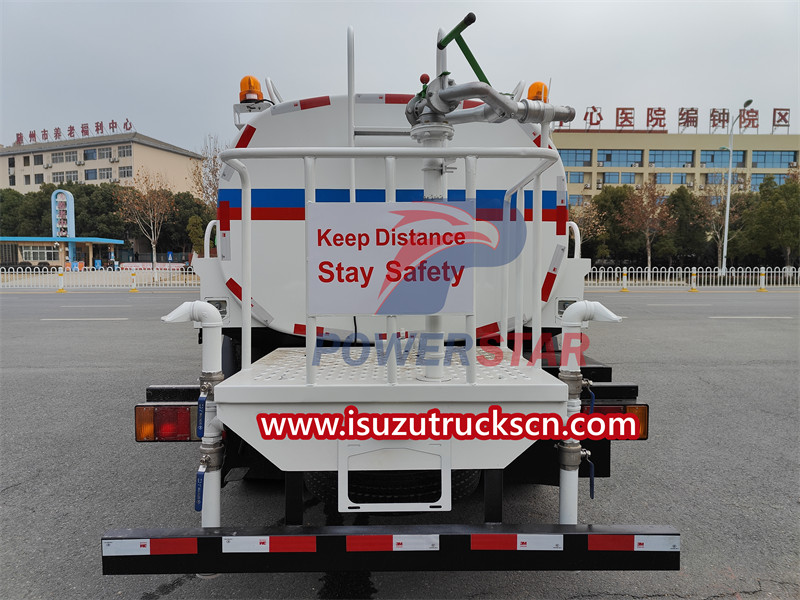

3. Nozzles: used to spray water or other liquids. The shape and size of the water flow can be adjusted to achieve different cleaning and watering effects.
4. Water pump: used to pump water from the tank, pressurize it and spray it through the nozzles.

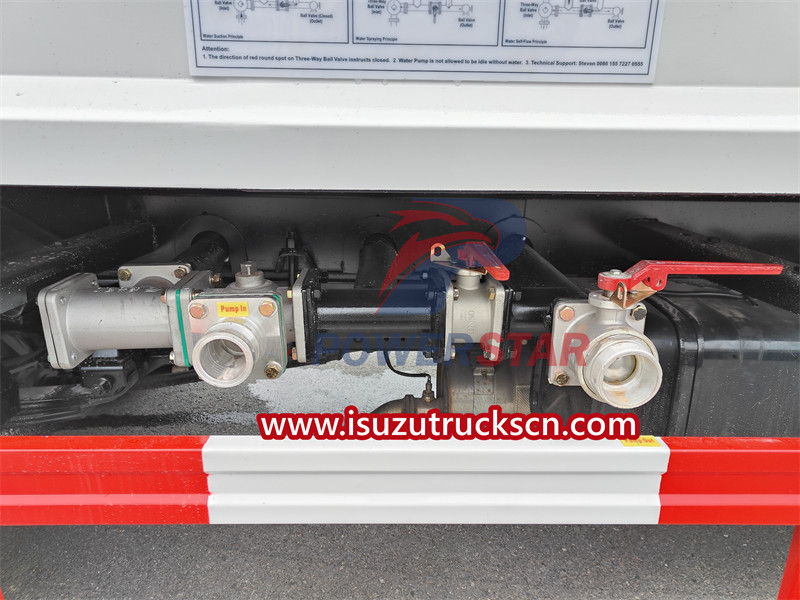

5. Piping system: including suction pipes, outlet pipes and drainage pipes, etc., used to connect water tank and water pump to transport water and liquids.
6. Control system: used to control the work of water pump, nozzles and other components to achieve automated control and adjustment.
How to improve the working efficiency of ISUZU water tanker?
The working efficiency of ISUZU water bowser trucks can be improved from the following aspects:
1. Increase the power of the sprinkler pump: Choosing a more powerful sprinkler pump can increase the speed and range of sprinkler water, thereby improving the sprinkler efficiency.
2. Increase the capacity of the water tank: Using a larger capacity water tank can store more water, reduce the time and frequency of frequent water refills, and thereby improve the watering efficiency.
3. Optimize the nozzle design: Using high-efficiency nozzles, the water can be sprayed more evenly, reducing the waste of water resources and improving the watering efficiency.
4. Scientifically arrange watering routes: Arranging watering routes scientifically and rationally based on actual conditions such as road conditions and weather conditions can more effectively cover areas that need watering and improve watering efficiency.
5. Strengthen daily maintenance: Regularly maintain the sprinkler truck to ensure the normal operation of each component, which can improve the sprinkler efficiency and service life.
