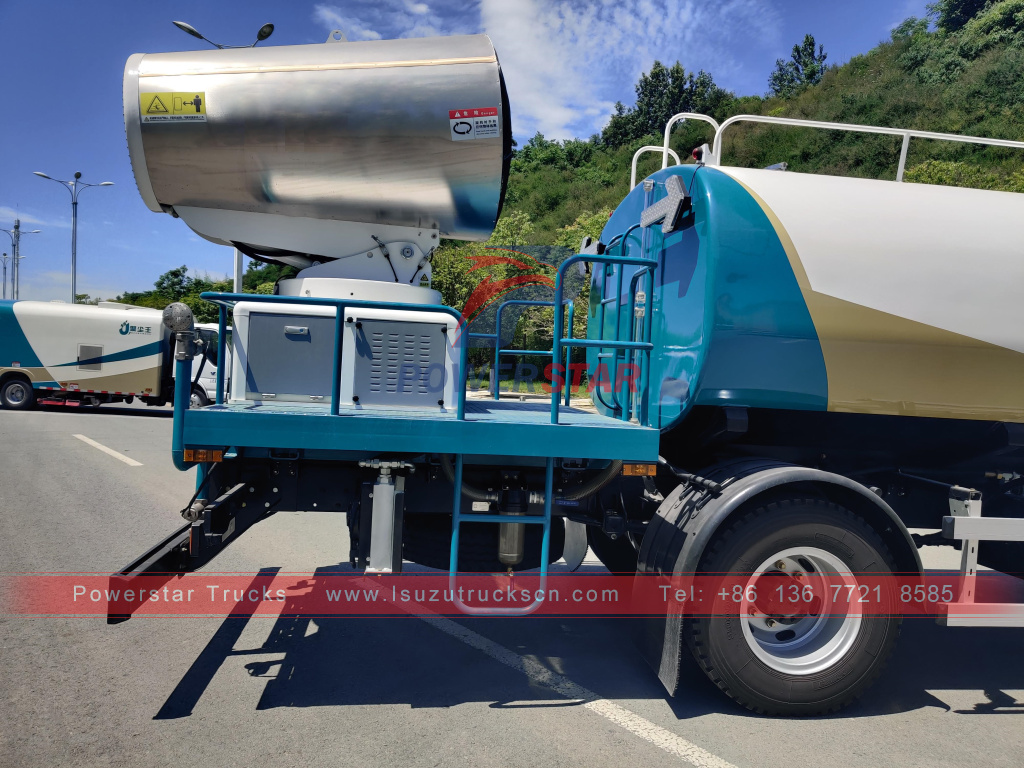

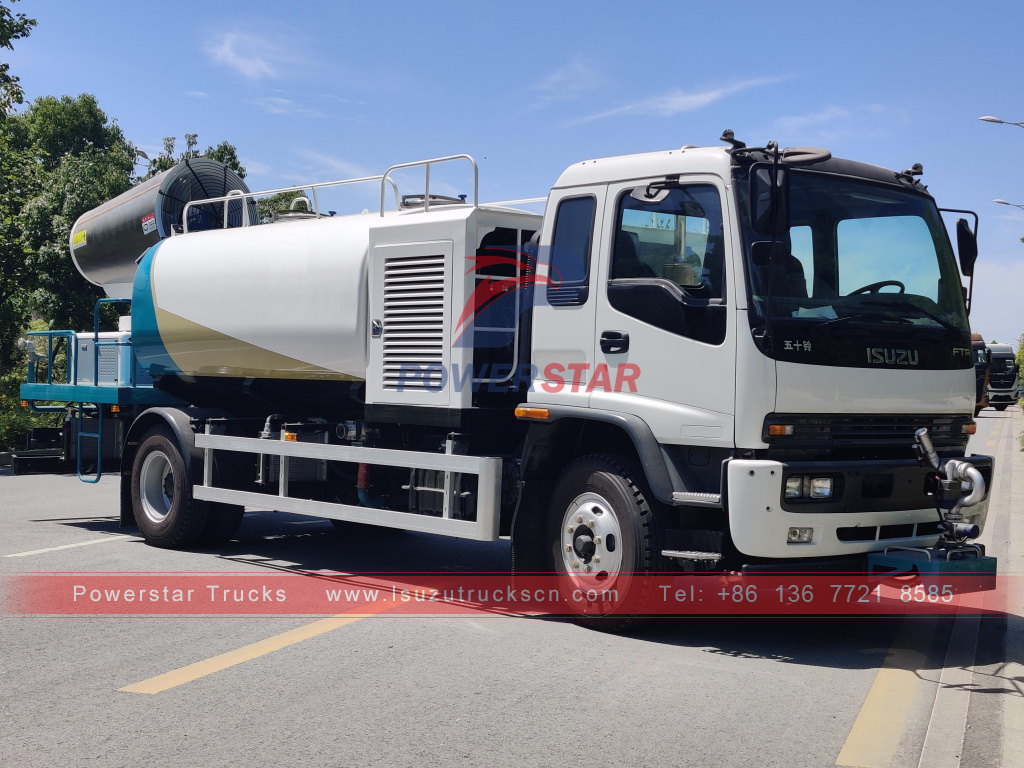

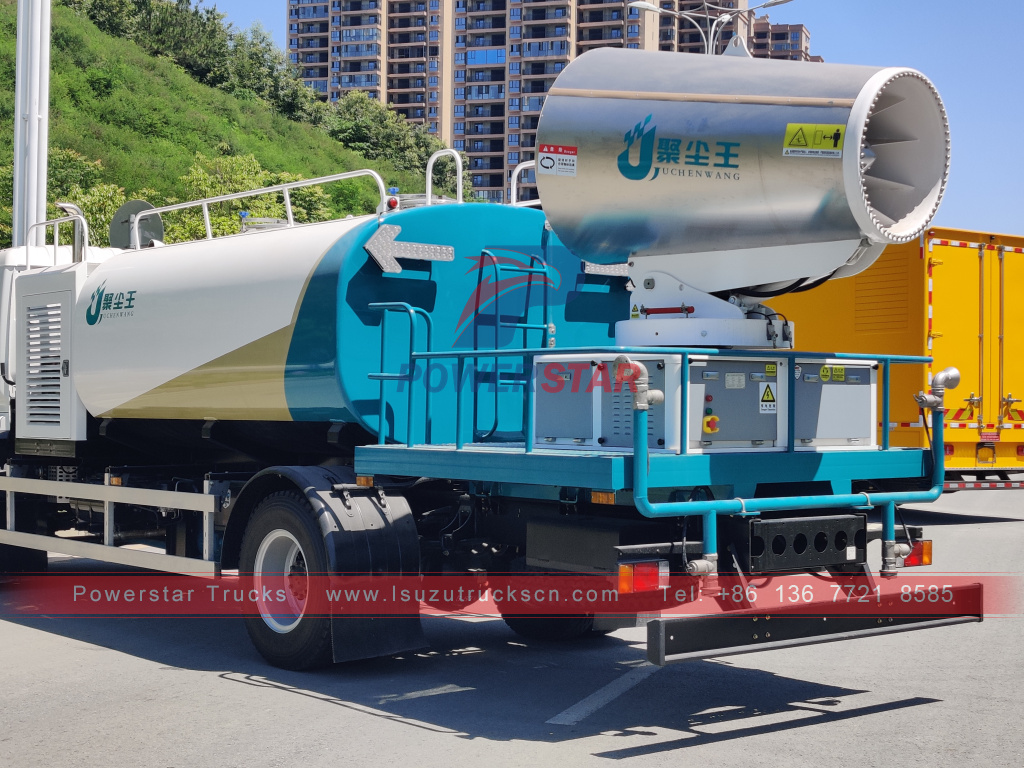

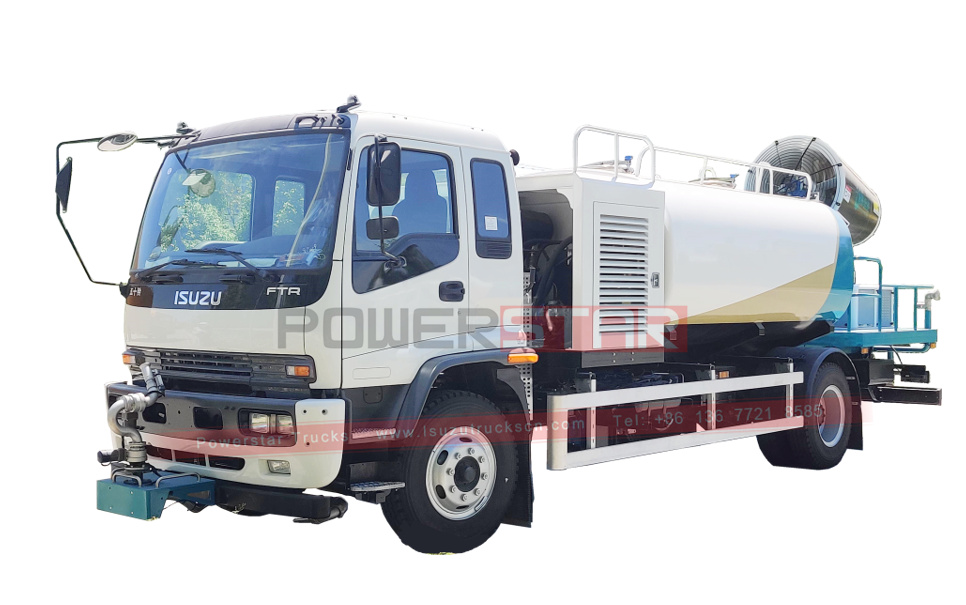

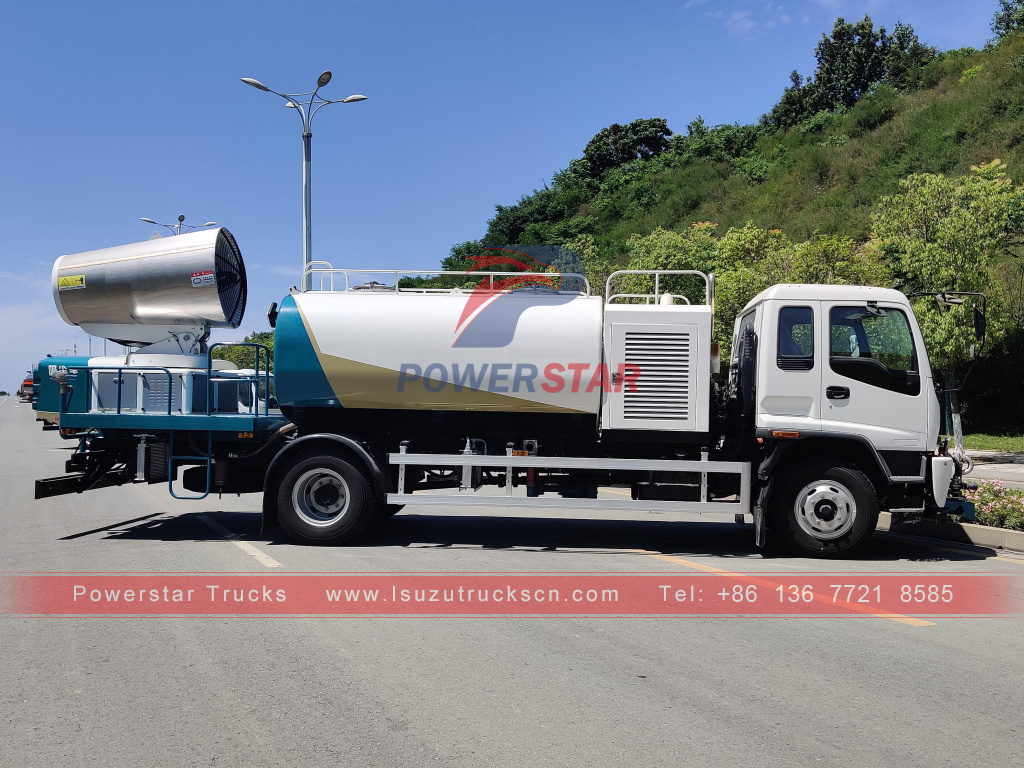

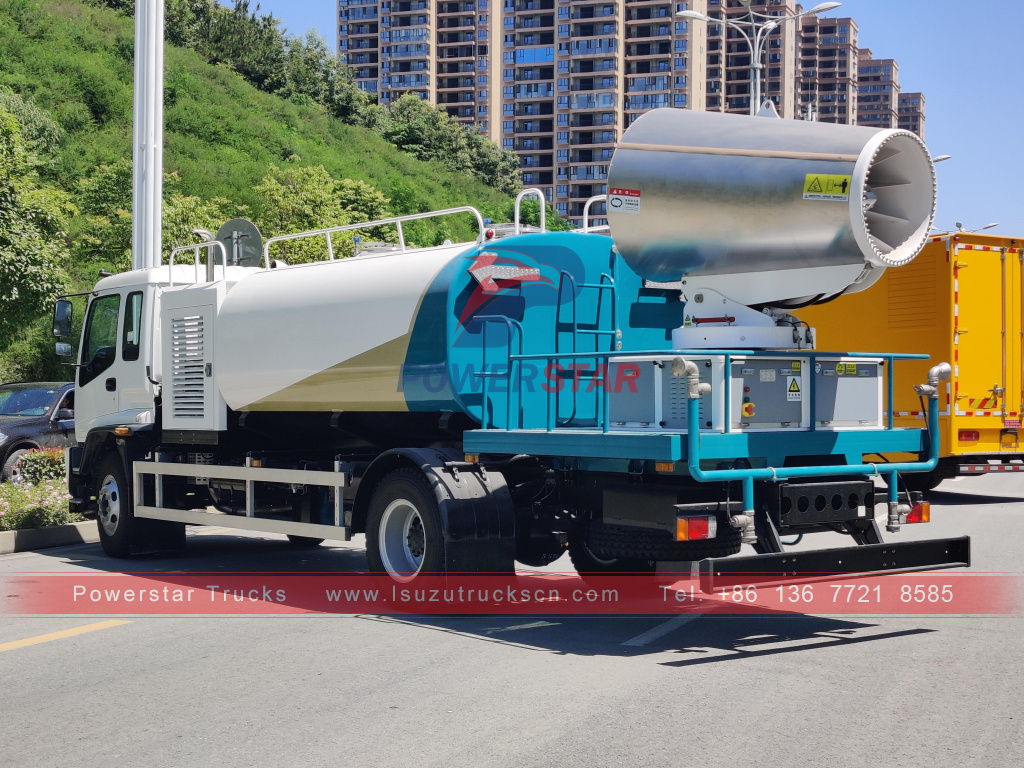

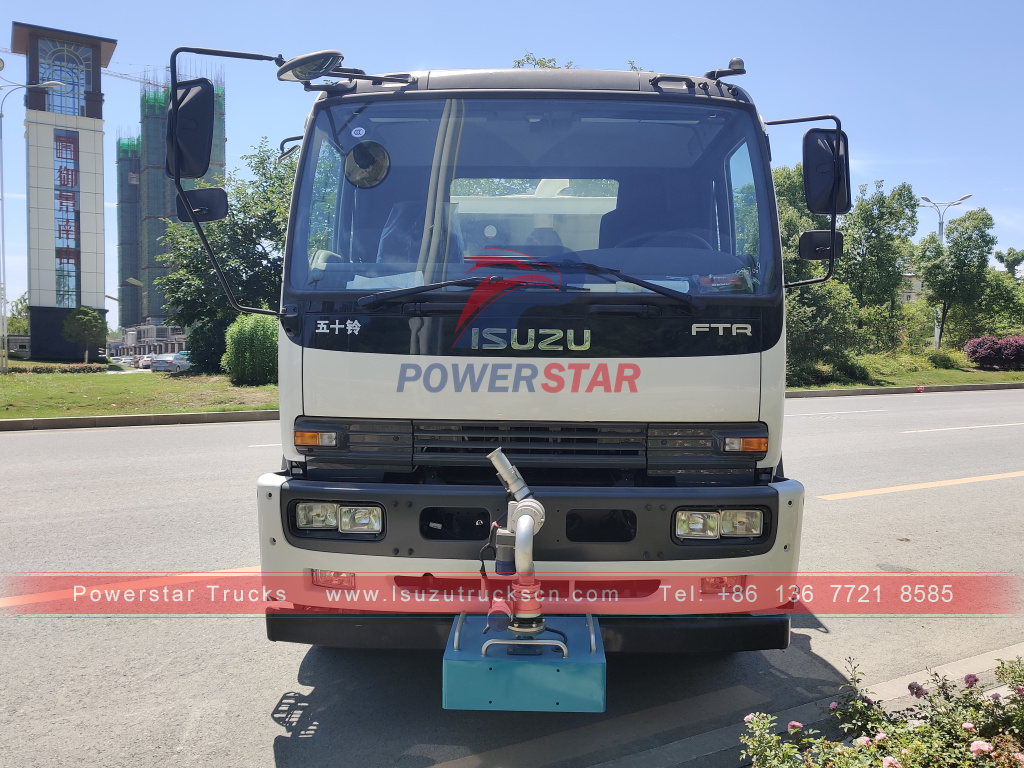

ISUZU FTR dust suppression truck Disinfection vehicle
Order(MOQ):

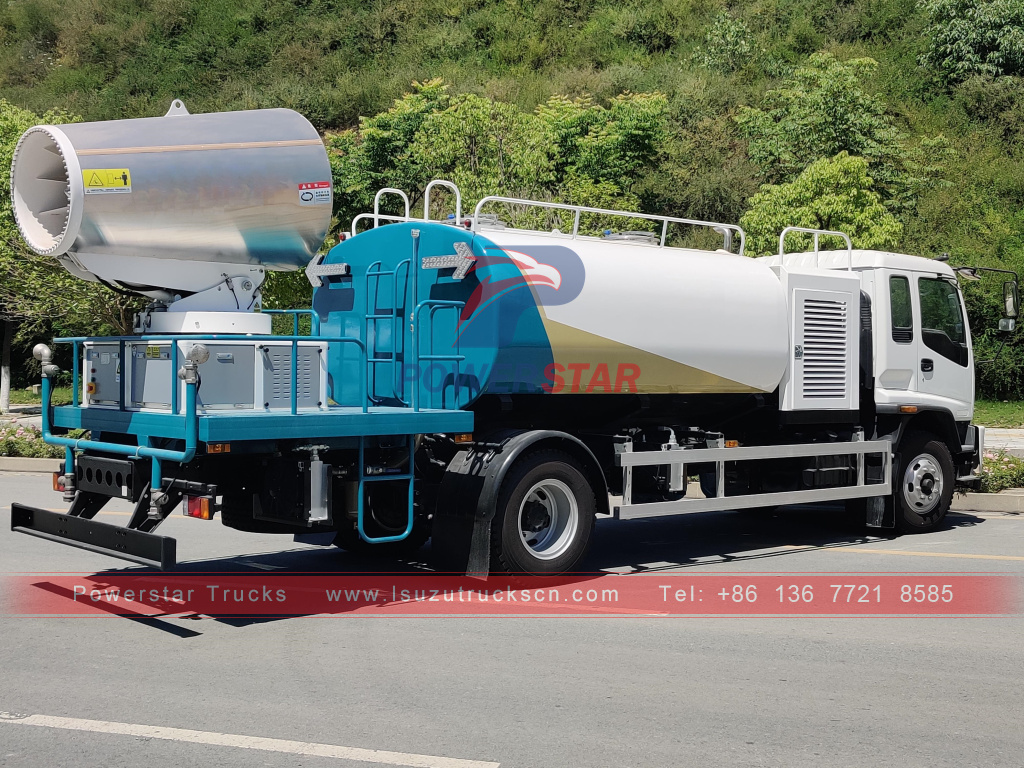

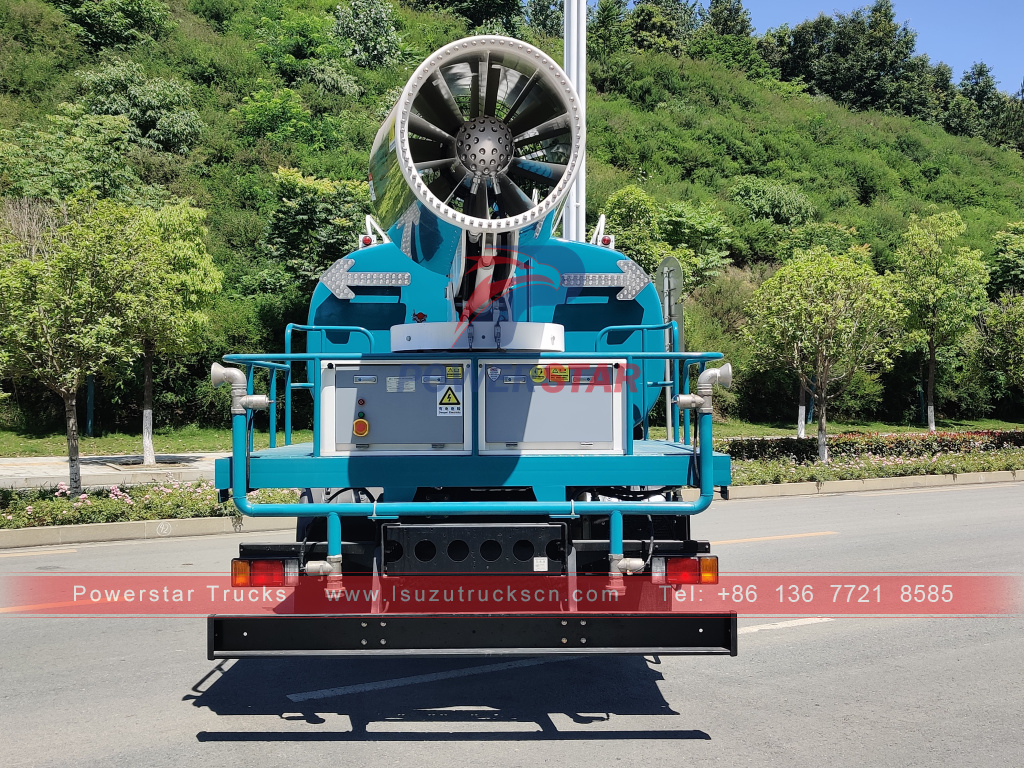

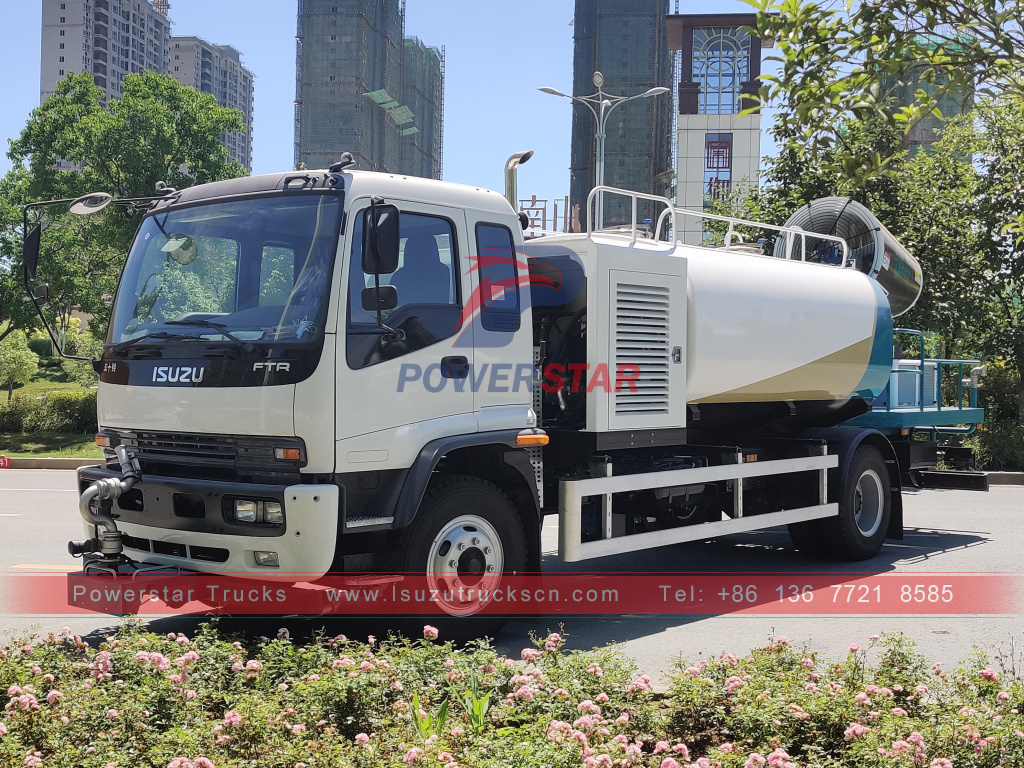

1Original Factory ISUZU FTR Water Mist Spray Dust Suppression Truck Disinfectant Vehicle
Isuzu Dust suppression truck (also called Isuzu disinfectant spray truck, Isuzu water mist spray trucks ) is is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.
ISUZU water truck is

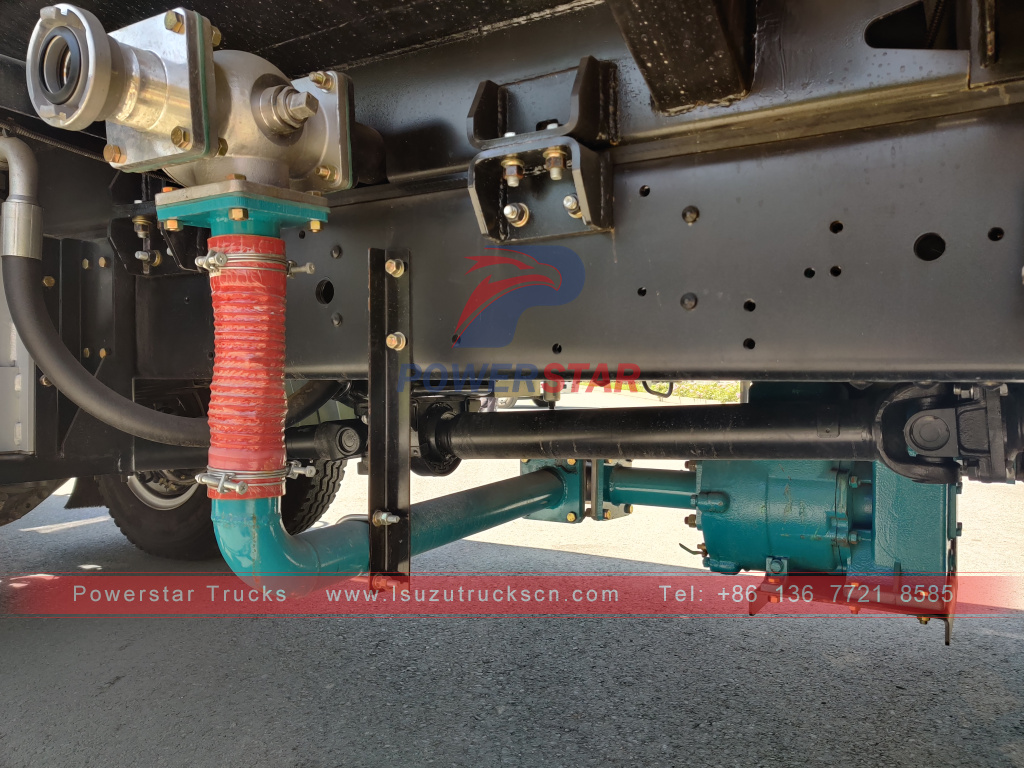

mainly composed of chassis, tanks, pumps, valves, and the water pipe,
sprinkler and other parts. Water truck is made of high quality carbon
steel sheet.
 |
100% custom-made
|
|
3,000L to 30,000L available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PST5180TDY5DF Multi-functional dust suppression truck |
|||||
|
Item |
Unit |
parameter |
remark |
||
|
Performance specification |
Working Speed |
Low pressure washing |
km/h |
8-20 |
|
|
Fog spray system |
km/h |
8-20 |
Fixed point operation can be realized |
||
|
Longest range of water fog spray |
m |
>100 |
|||
|
Water flow rate of fog spray |
L/min |
100~200 |
|||
|
Longest working time of fog spray |
min |
120 |
|||
|
Water flow rate of low pressure washing |
L/min |
600~800 |
|||
|
Low pressure washing width |
m |
≥24 |
|||
|
Water spray width |
m |
14 |
|||
|
Water cannon range |
m |
≥38 |
|||
|
Announced volume of water tank |
M³ |
9.66 |
|||
|
Maximum volume of water tank |
L |
12000 |
|||
|
Drive performance |
Highest speed at full load |
km/h |
98 |
||
|
Brake distance(Full load at the speed of 30km/h) |
m |
≤10 |
|||
|
Minimum turning diameter |
m |
<18 |
|||
|
Weight |
Kerb weight |
kg |
8600 |
||
|
Pay load |
kg |
9205 |
|||
|
GVW |
kg |
18000 |
|||
|
Structure Size |
Overall dimension(L×W×H) |
mm |
9650x2500x3600 |
Standard Configuration |
|
|
10200x2500x3600 |
Optional auto flushing device |
||||
|
Tread |
Front wheel |
mm |
1880 |
||
|
Rear wheel |
mm |
1860 |
|||
|
Approach angle |
(°) |
8 |
|||
|
Departure angle |
(°) |
9 |
|||
|
Min. ground clearance |
mm |
210 |
|||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
