Isuzu GIGA Anti-riot water cannon vehicle is developed with the current international popular product trend of anti-riot vehicles..It has perfect long-distance riot control function and complete self-protection system which make it as the first choice for dispersing rioters without causing permanent bodily harm.
Work capacity:
10000LTruck model:
PT5220GXZEngine power:
460HPEngine type:
6WG1-TCG61Axle drive:
4x2.LHDGear box:
FAST 12-speed,manualRemarks:
Isuzu VC66 GIGA 4x2 chassisIsuzu Giga armored water cannon truck also called Isuzu GIGA 4X2 10m3 anti riots water cannon truck,Isuzu GIGA Anti-riot water cannon vehicle,Isuzu police riot vehicle with water cannon,Isuzu VC66 4X2 armed riot vehicle,Isuzu GIGA 4x2 explosion-proof vehicle,Isuzu VC66 4X2 riot truck.
In the realm of modern riot control and crowd management, the Isuzu GIGA armored water cannon truck stands as a formidable symbol of power, efficiency, and protection. Engineered for precise control and robust performance, this meticulously crafted vehicle represents a seamless blend of cutting-edge technology and tactical utility, offering law enforcement agencies and security forces a potent tool in handling unrest and maintaining public order.
Features
★ The water tank volume of the vehicle is 10 tons.
★ The double cannon is installed on the roof, which can achieve all-round, large-flow, long-distance anti-riot driving, with a range of 65 meters.
★ The cab can carry 3 combat members.
★ The cab window glass is protected by a stainless steel mesh, and the front windshield protection net can be opened within the range of 0 ° ~ 70 °.
★ The vehicle has the function of road barrier removal: the front hydraulic barrier removal shovel can be removed, and the bulldozer and front windshield guard can be controlled in the cab.
★ The spray media of the water cannon system are clear water, pepper water, foam, dye.
★ Adopt high-power CB10/100 water pump: the flow rate can reach 100 liters per second, and the engine is used to power the water pump. The engine power is 338 kilowatts. When the water cannon shoots water, the throttle can be increased or decreased at any time to achieve the ideal range.
★ Wireless remote control: The unmanned state in the car can realize the function of unmanned driving, and can also realize basic functions such as water injection, camera monitoring and voice transmission. Effectively guarantee the personal safety of combat team members.
Specifications
|
Isuzu Giga armored water cannon truck |
|||
|
Truck Brand |
POWERSTAR |
||
|
Max. Dimensions(L×W×H) |
8800×2500×3880mm |
||
|
Wheelbase |
4600mm |
||
|
GVW/Curb weight |
22000/11855Kg |
||
|
Max driving speed |
85km/h |
||
|
Chassis |
Model |
Isuzu GIGA VC66 |
|
|
Drive mode |
4x2,LHD |
||
|
Cab |
One and half row,3 persons allowed,with A/C,USB... |
||
|
Front/rear axle |
7500/14500Kg |
||
|
Tire specifications |
6+1 tires,315/80R22.5 |
||
|
Engine |
Brand |
6WG1-TCG61 |
|
|
Type |
6-cylinder inline,water-cooled, four-stroke, supercharged and intercooled |
||
|
Power |
460HP/338Kw |
||
|
Displacement |
15681ml |
||
|
Max torque |
2250N.m |
||
|
Max torque speed |
900-1300rpm |
||
|
Gear box |
FAST 12-speed,manual |
||
|
Supper structure |
Cannon |
2 pieces |
|
|
Max. reach/ deterrent reach(m) |
70/40 |
||
|
Water Capacity(L) |
10000 |
||
|
Dye tank(L) |
100 |
||
|
Pepper water tank(L) |
100 |
||
|
Foam tank(L) |
100 |
||
|
Pump model |
CB10/100 |
||
|
system pressure |
1.3MPa |
||
|
Anti-riot water cannon |
Horizontal rotating angle (°) |
single:-135~135 |
|
|
double:-135~5 |
|||
|
Pitching angle (°) |
-10~45 |
||
|
Max. range (m) |
65 |
||
|
Equipment and device |
Wireless remote Headlights; |
||
Applications
The Isuzu GIGA 4X2 10m³ Anti-Riot Water Cannon Truck is a purpose-built vehicle designed for a range of applications, including riot control, crowd management and urban security missions. This powerful and versatile truck combines the ruggedness of the Isuzu GIGA platform with dedicated water cannon technology, making it ideal for law enforcement and security agencies.

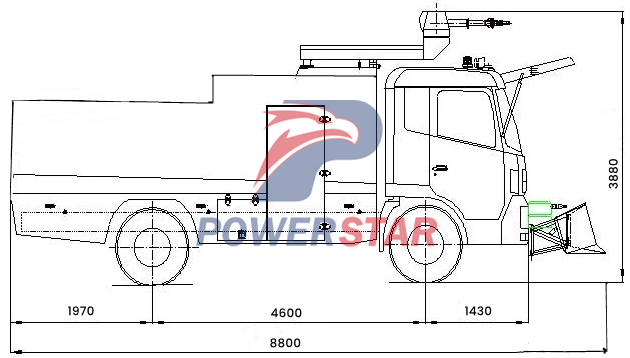

Technical drawing of Isuzu Giga armored water cannon truck

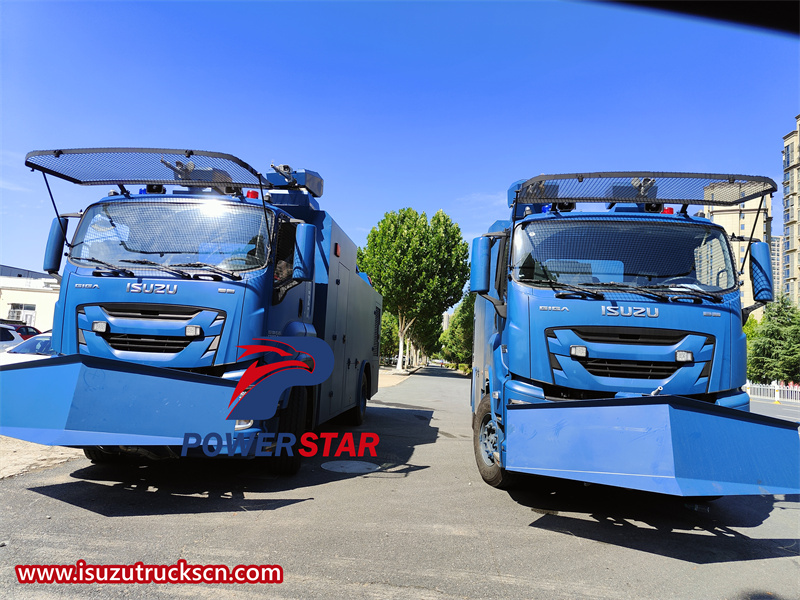

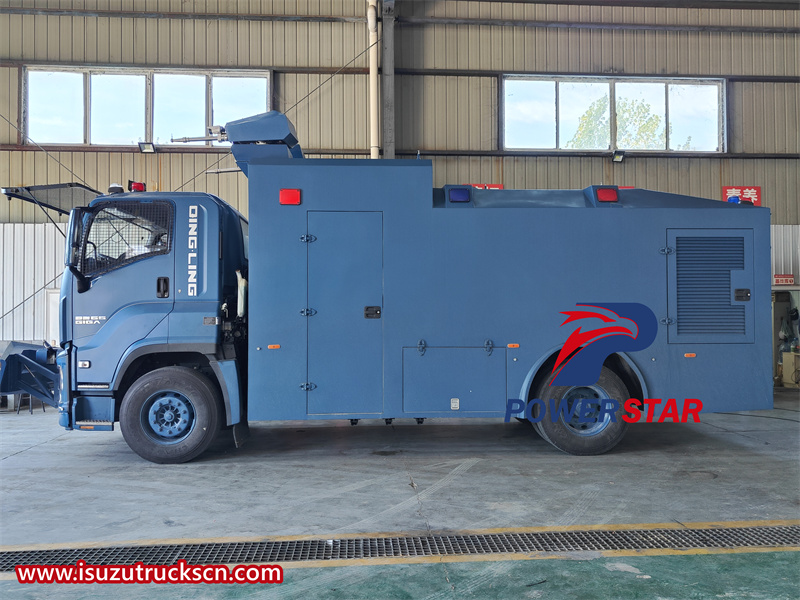

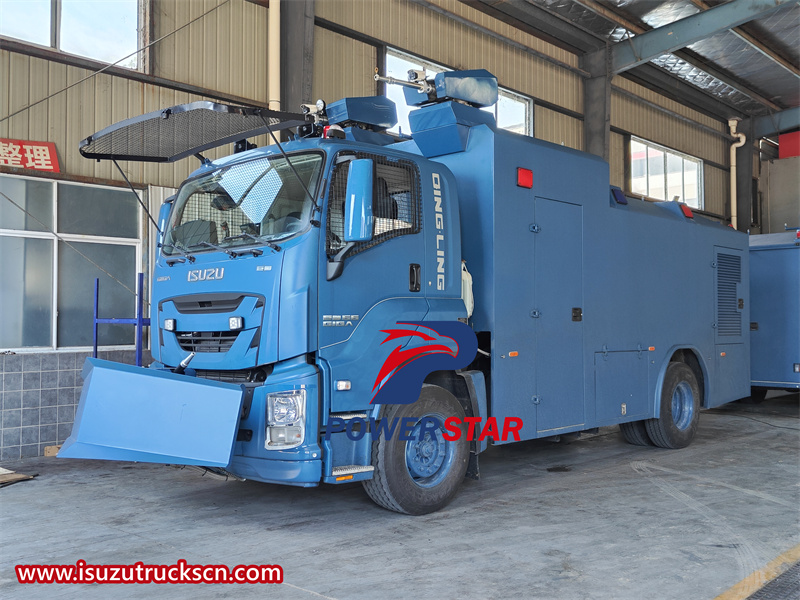

Isuzu Giga armored water cannon truck
At first glance, the Isuzu GIGA 4X2 10m³ Riot Water Cannon Truck stands out with its imposing appearance and purposeful design. Built on a rugged chassis, this vehicle is reinforced for high-intensity operations, durability and reliability. Strategically mounted at the rear of the truck, the 10m³ water cannon tank is the focal point - a symbol of both defense and deterrence.
The sleek exterior, adorned with rugged trim and reinforced body panels, embodies a harmonious blend of functionality and beauty. LED lighting fixtures integrated into the design improve visibility and ensure operational efficiency for both daytime and nighttime operations. The ergonomically designed cab provides a spacious and comfortable environment for the operator, equipped with state-of-the-art control systems and communication interfaces.

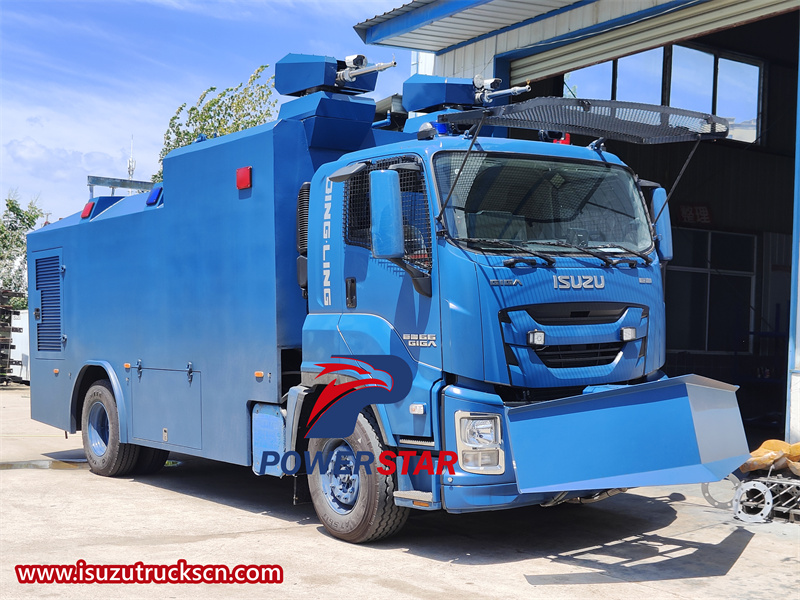

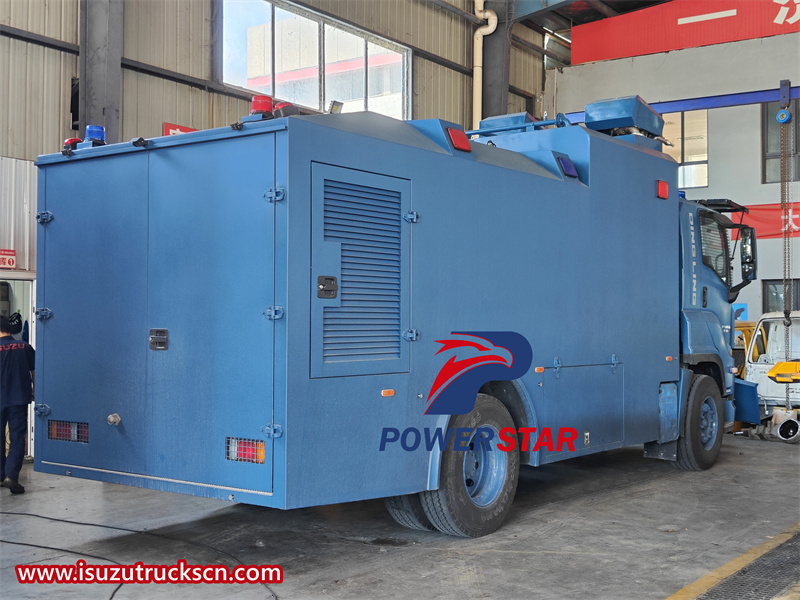

Isuzu GIGA 4X2 10m3 anti riots water cannon truck

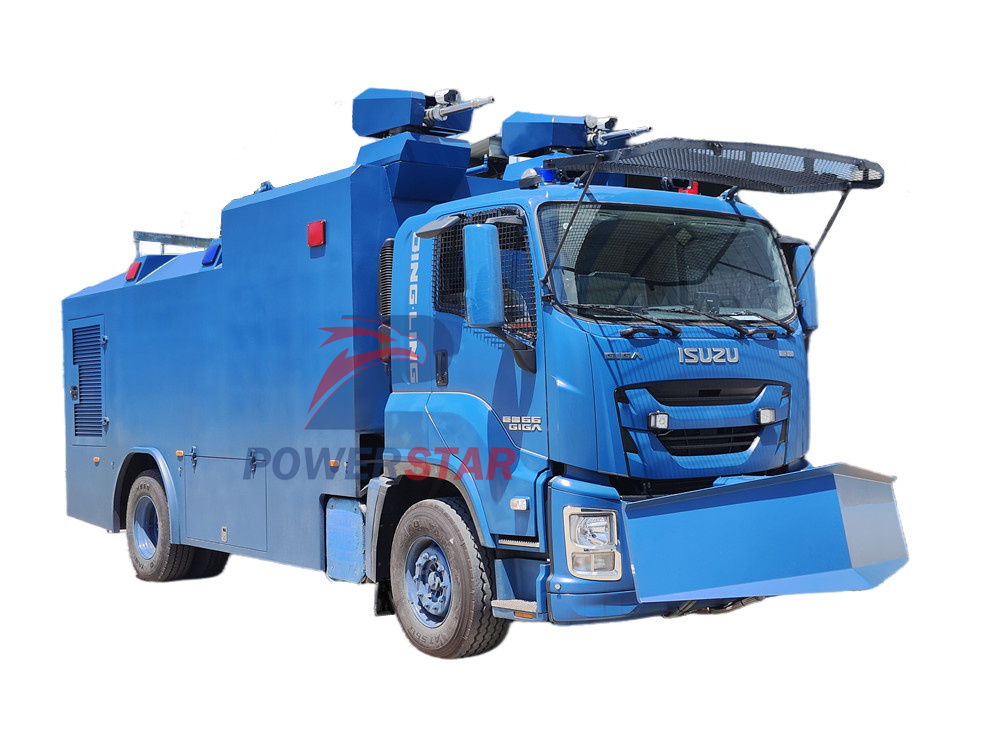

Isuzu GIGA Anti-riot water cannon vehicle
The vehicle is modified from the Isuzu VC66 4x2 special chassis and is powered by a high-performance 6WG1 460HP diesel engine, which provides excellent torque and horsepower, enabling rapid response and deployment in critical situations. The 4X2 drivetrain configuration ensures optimal maneuverability and traction, allowing the operator to traverse various terrains with precise control.
The vehicle cab window glass is protected by a stainless steel mesh, and the front windshield is also equipped with a protective net that can be opened within the range of 0°~70°. A front bulldozer is installed at the front of the vehicle to play an obstacle removal role.

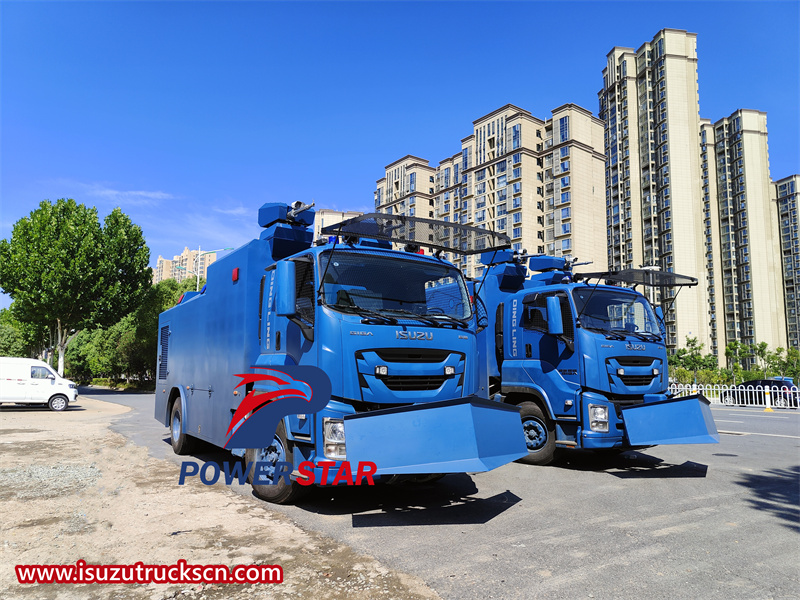

Isuzu police riot vehicle with water cannon

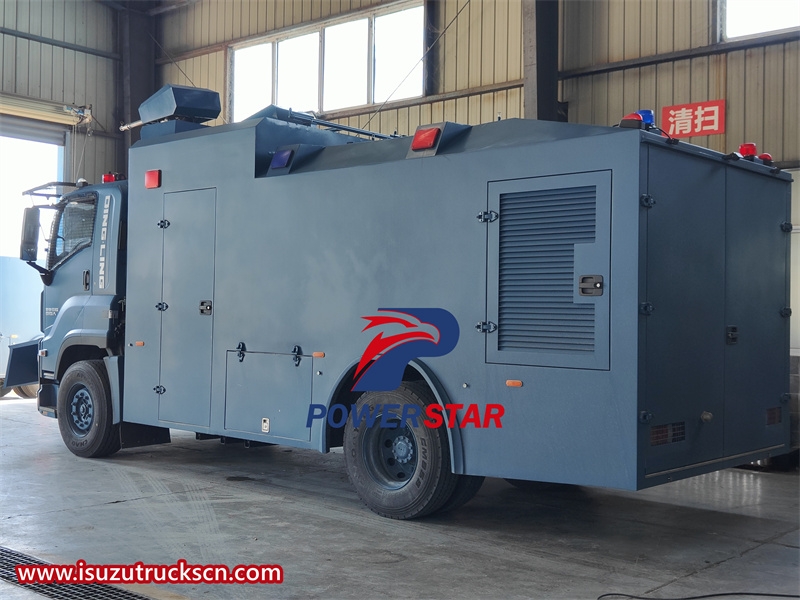

Isuzu VC66 4X2 armed riot vehicle
Two high-pressure water cannon are installed on the top of the tank, which can achieve all-round, large-flow, and long-distance riot control with a range of 65 meters. The water cannon system is capable of spraying high-pressure water streams to a great distance, making it an effective tool for riot control and crowd management. The water cannon is driven by a dedicated pump, which is driven by the truck engine. The system also includes a series of nozzles and controls that allow the operator to adjust the flow and pressure of the water flow according to the situation.
The water tank has a capacity of 10 cubic meters and is equipped with dye cans, pepper water cans, and foam cans. The water tank can be added with tear gas, pepper spray, colorants, etc. to improve the dispersion and deterrence capabilities. These together constitute a multi-line defense barrier and provide strong support for violence containment.

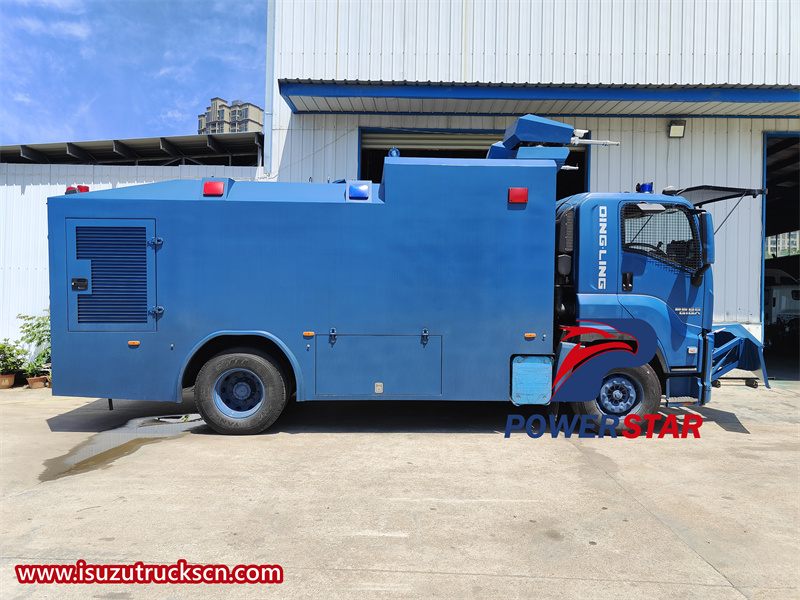

Isuzu GIGA 4x2 explosion-proof vehicle

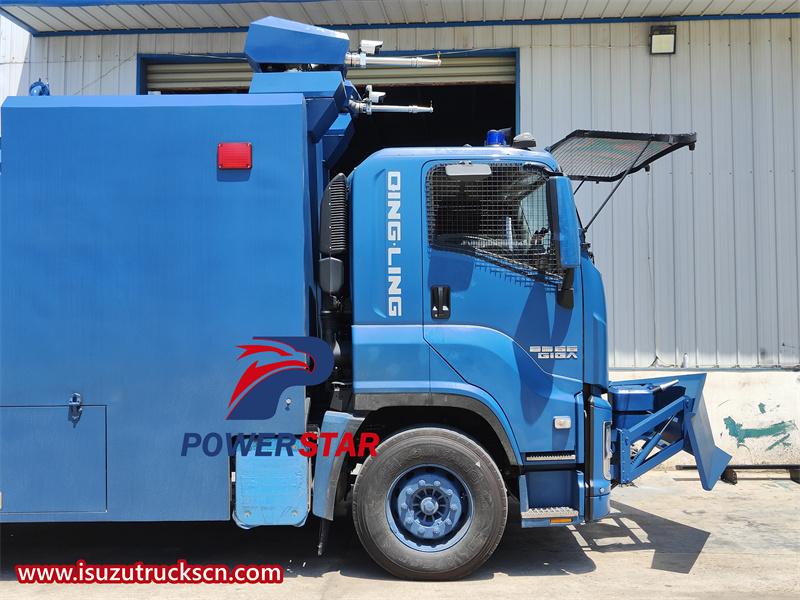

Cab window protective cover
Isuzu GIGA 4X2 10m³ Anti-Riots Water Cannon Truck is a special vehicle designed for responding to riots and controlling violent scenes. It has the following important functions:
1. **Maintaining public order and public order**
- Control and disperse crowds by spraying water to ensure public order and social stability.
- Used to maintain law and order and prevent violence and criminal activities.
2. **Emergency response and anti-riot disposal**
- As an emergency response tool, it is used in violent conflicts and riots to quickly calm the chaos.

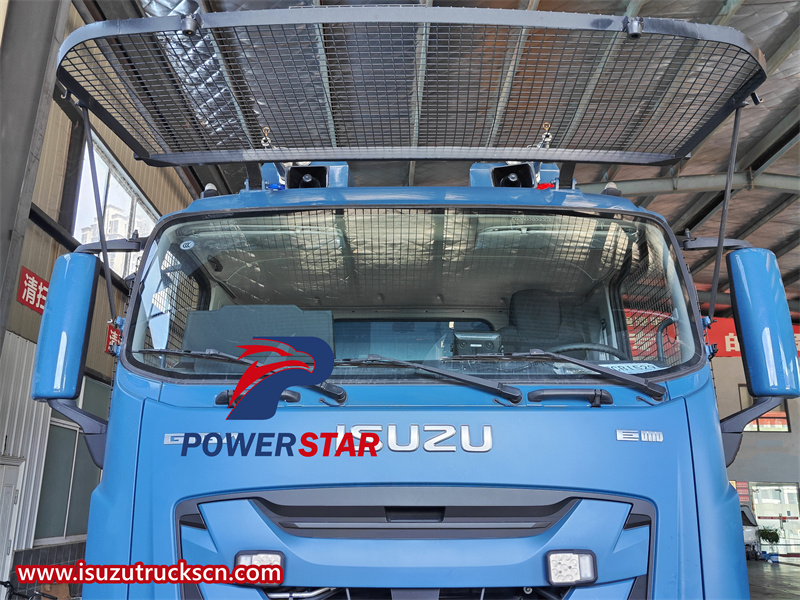

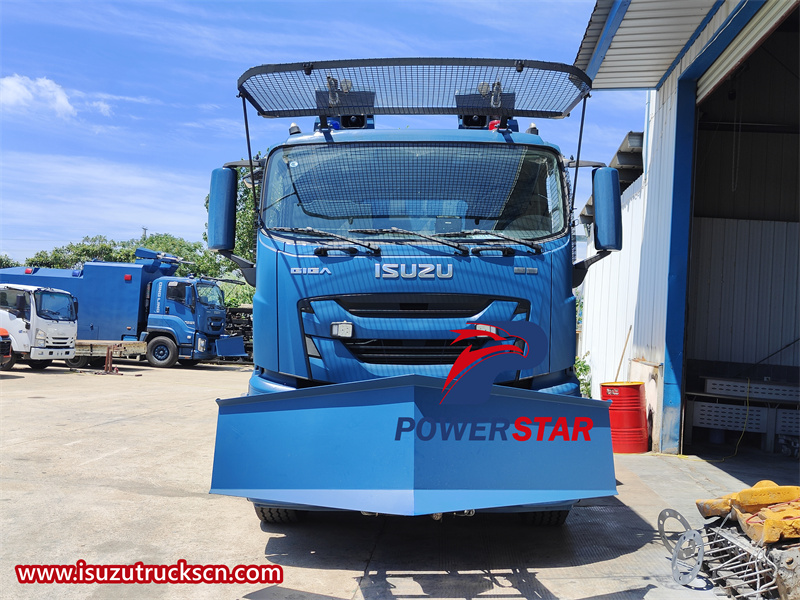

Front windshield protective cover

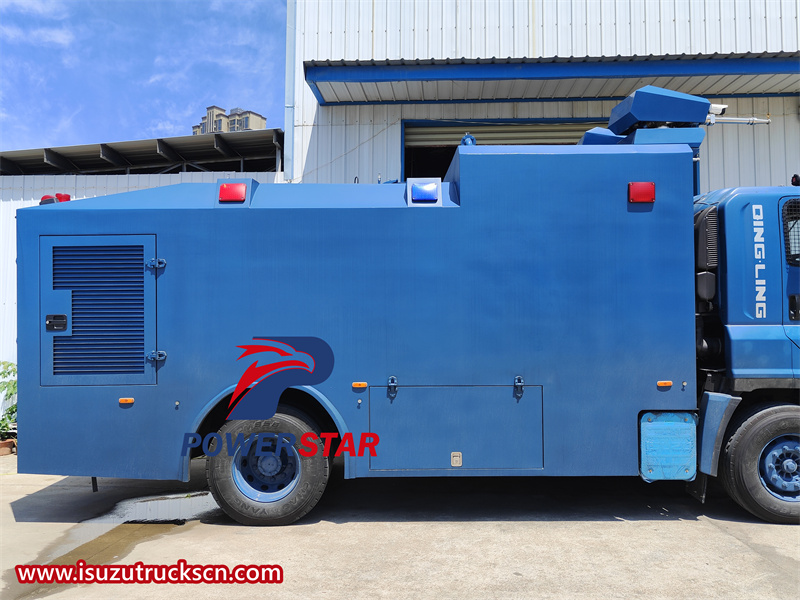

Water tank

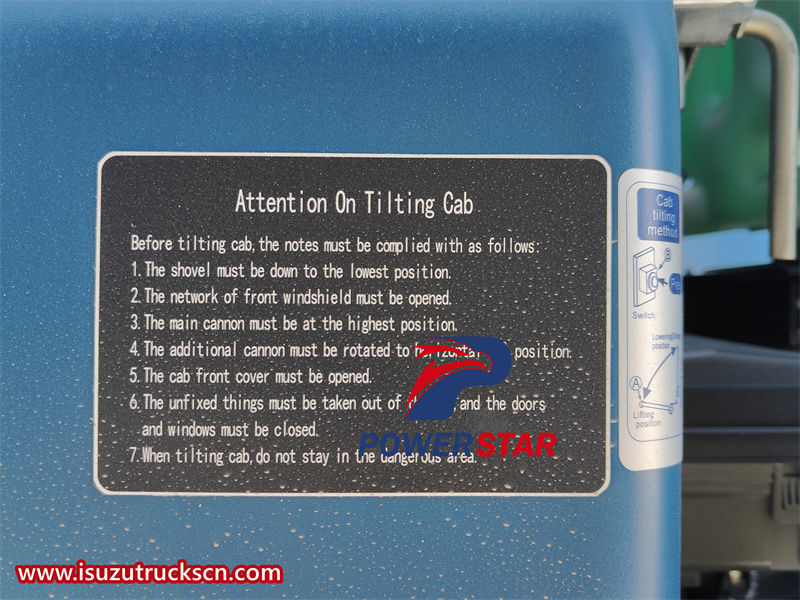

Attention
3. **Demonstration control and site clearance**
- Used to control and manage large-scale gatherings, demonstrations and other occasions where people gather.
- Play a key role in helping to maintain order and safety when it is necessary to clear and disperse the crowd.
4. **Border defense and security**
- Used to maintain border security and defense work, and fight potential threats and violations when needed.
- Provide means other than lethality to protect countries and regions from external threats.
5. **Civil Protection and Site Clearance**
- Used to protect innocent people from violence and provide security in emergency situations.
- Remove obstacles and debris from natural disasters and disaster sites to assist in rescue and reconstruction efforts.
6. Prevent and contain violent incidents
- Play a role in preventing and containing violent incidents, using water jets to counteract potential conflicts and sabotage.

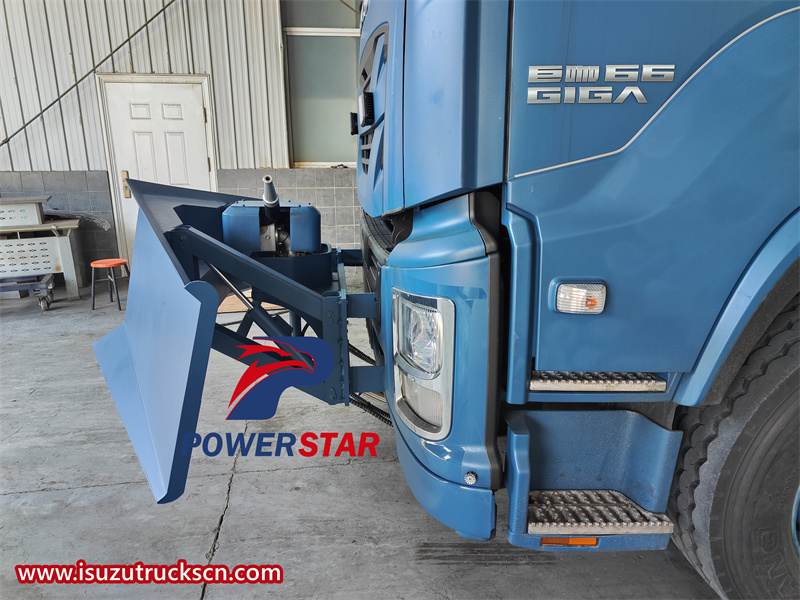

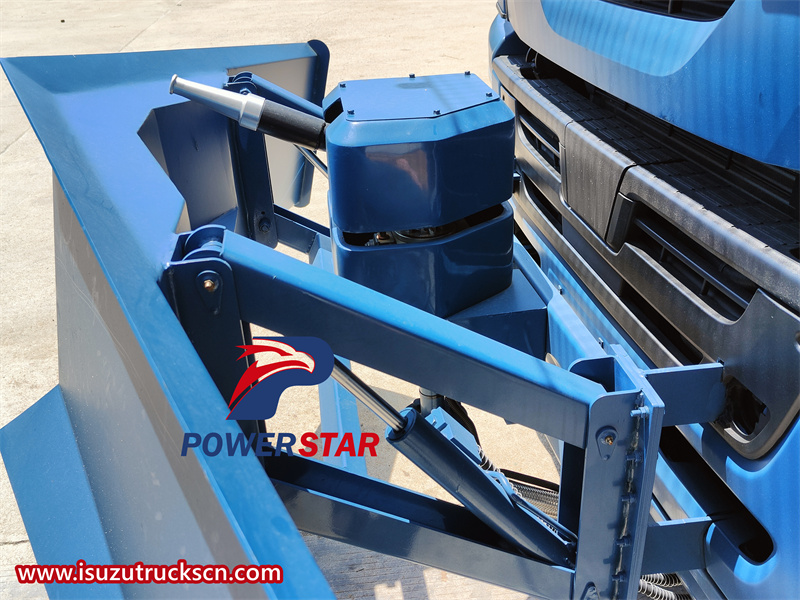

Bulldozer
