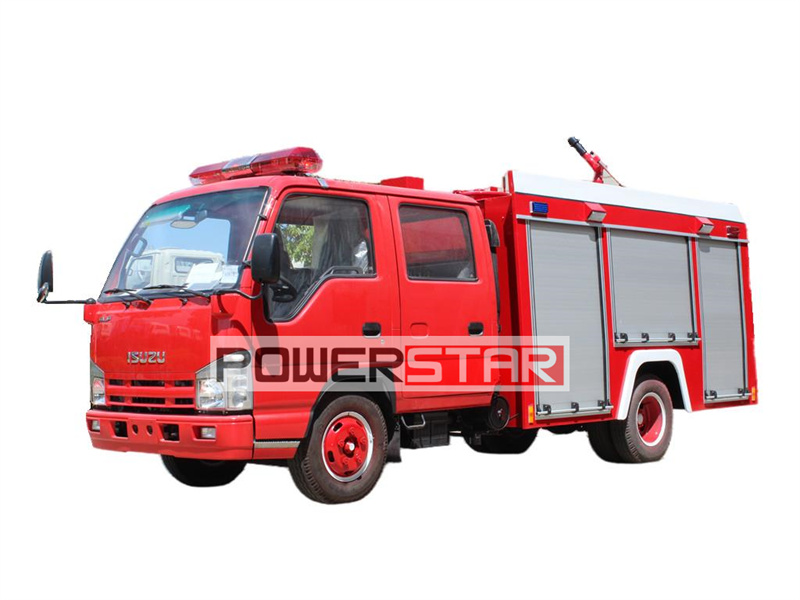

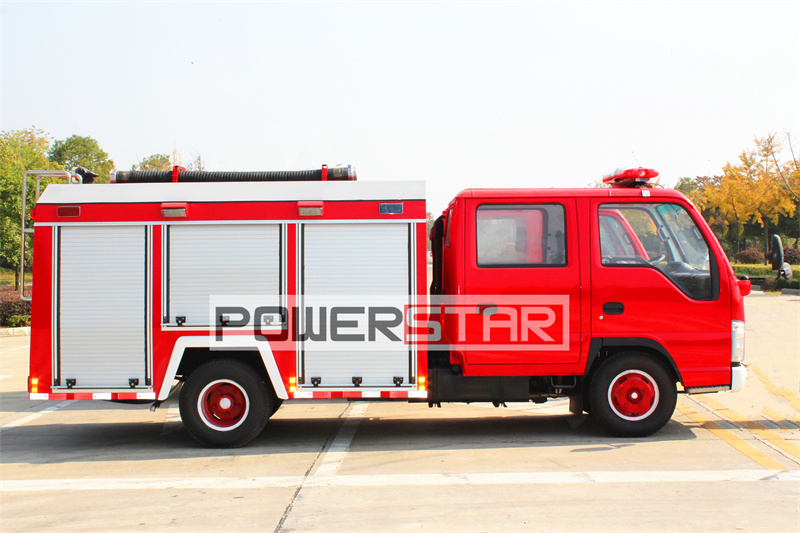

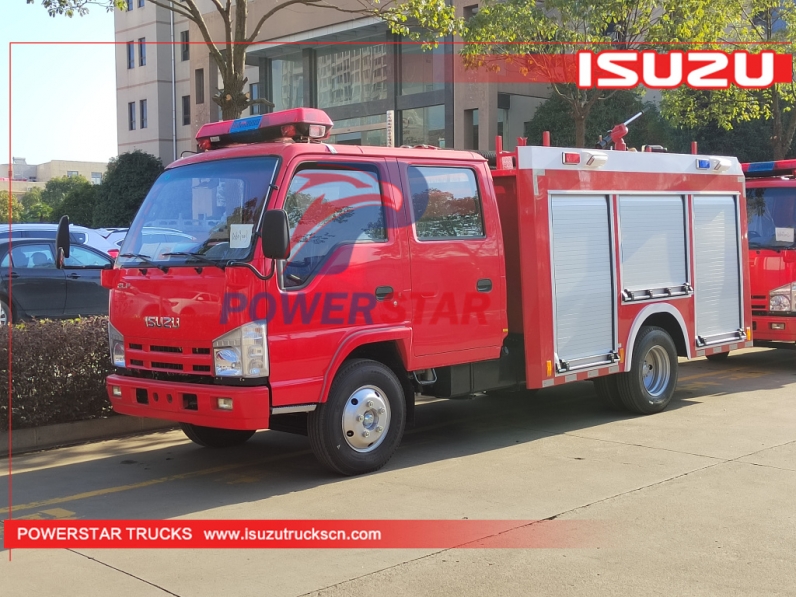

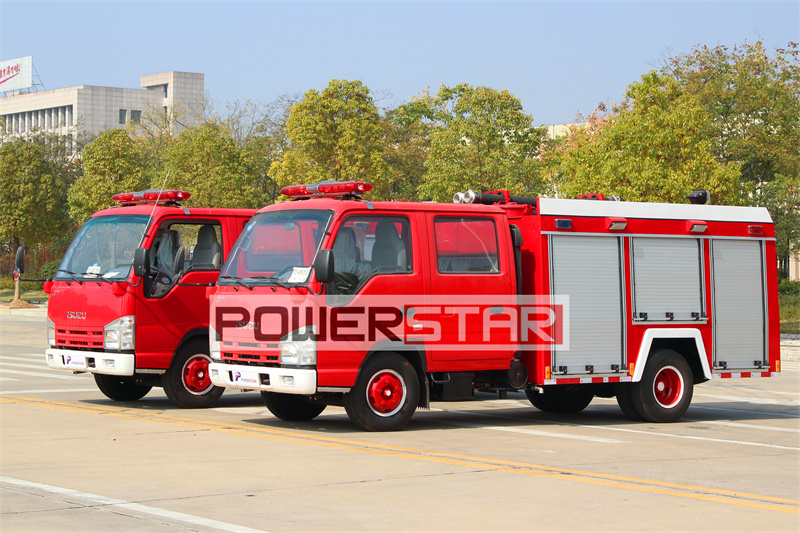

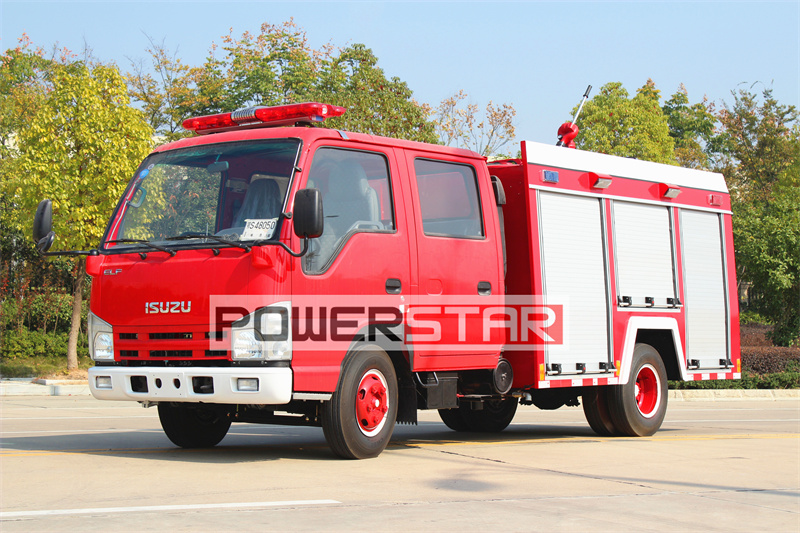

This is a mini water&nitrogen gas fire truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. It adopts a 4X2 drive mode and is equipped with an MSB 5 speed gearbox. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions. In terms of the fire fighting system, the vehicle is equipped with a 1500-liter carbon steel water tank and 4 80-liter nitrogen cylinders with a design pressure of 1.25MPa. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations.
Work capacity:
1500LTruck model:
PT5040NXFEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2，LHDGear box:
ISUZU MSB 5-speed, with reverseRemarks:
1500L water tank+4 pcs nitrogen gas bottleThis is a mini water&nitrogen gas fire truck built on the basis of ISUZU NKR Chassis. It is equipped with a powerful ISUZU 4KH1CN6LB engine with a displacement of 2.99L and an output power of 120 horsepower. It adopts a 4X2 drive mode and is equipped with an MSB 5 speed gearbox. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.
In terms of the fire fighting system, the vehicle is equipped with a 1500-liter carbon steel water tank and 4 80-liter nitrogen cylinders with a design pressure of 1.25MPa. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 36L/s. The fire cannon has a spray speed of 32L/s and a range of 45-55 meters, which can effectively deal with various fire situations. The Isuzu NKR fire truck is also equipped with a full set of standard firefighting and rescue equipment, such as shovels, crowbars, axes and cutting equipment, etc., and ladders and floodlights are optional.
Specification:
|
ISUZU NKR water & nitrogen gas fire truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
6300*2280*2750mm |
||
|
GWW/ Kerb Weight |
7,500kg/4,220kg |
||
|
Painting |
Red color |
||
|

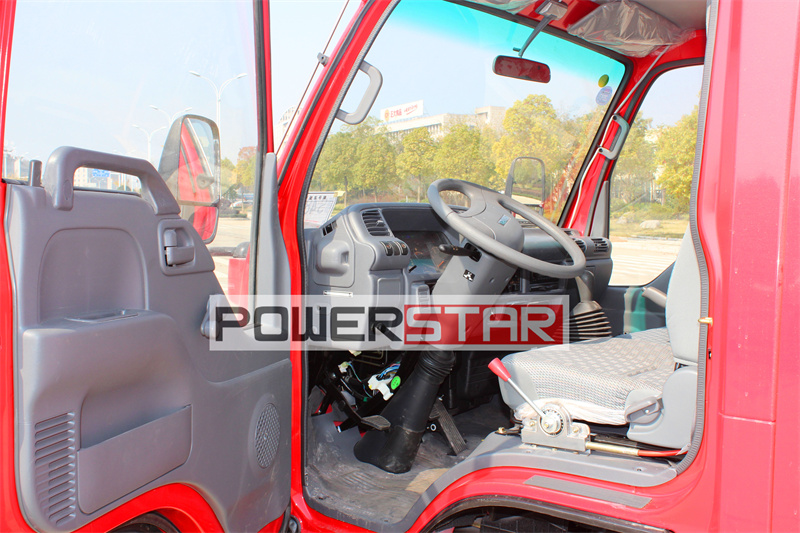

Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,4KH1CN6LB |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
120 HP |
||
|
Displacement |
2.99L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X2,left hand drive |
|
|
Transmission |
MSB 6-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
3360 mm/2 |
||
|
Tyre Specification |
700 R16 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95 km/h |
||
|
Fuel tank capacity |
70L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Water Tank Capacity |
1,500 Litres |
|
|
Tank Material |
carbon steel |
||
|

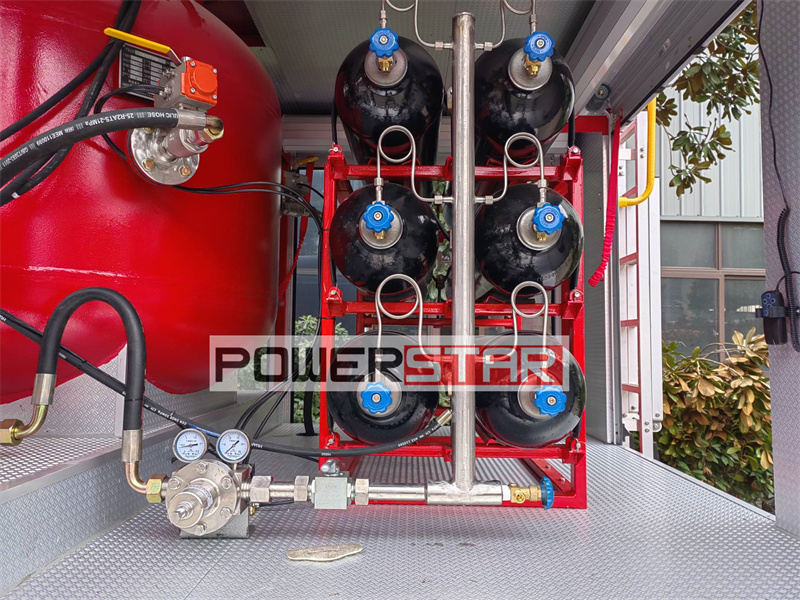

Nitrogen Gas Bottle |
Air gas flow rate |
≥ 17m3/min |
|
|
Air gas quality |
oil content ≤3ppm, particle content ≤ 3μm |
||
|
Quality |
4 pcs |
||
|
Air gas pressure |
≥ 1.25mpa |
||
|
Compressed air temperature |
ambient temperature +15ºC |
||
|
Nitrogen gas flow rate |
600 m³/hr |
||
|
Nitrogen purity |
(oxygen content 10%) |
||
|
Nitrogen outlet pressure |
1.0MPa |
||
|
Nitrogen gas dew point |
≤ -40ºC |
||
|
Nitrogen gas temperature |
50ºC |
||
|
Ambient temperature |
-30ºC~ +45ºC |
||
|
Explosion proof grade |
no danger |
||
|
Working system |
continuous working |
||
|
Generation time of Nitrogen gas after startup |
≤ 5min |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|

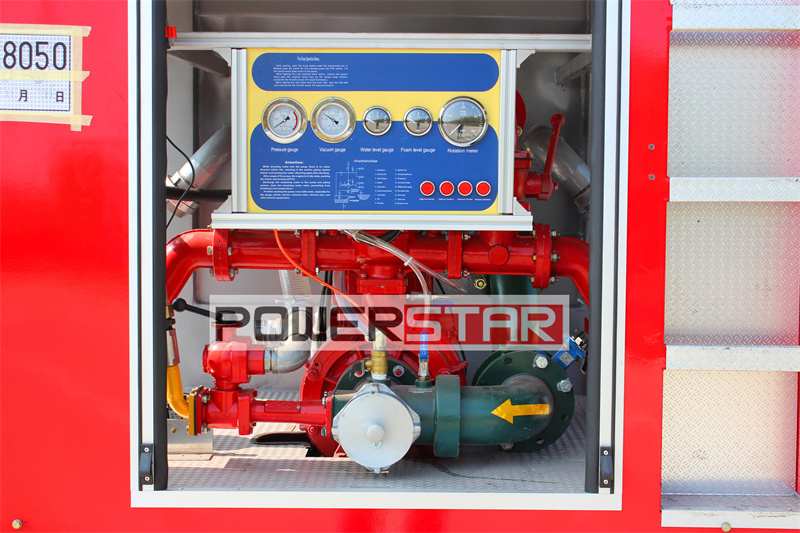

Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
36L / s |
||
|
Suction Height |
7m |
||
|
Fire Cannon |
Flow speed |
32L /s |
|
|
Range |
45-55 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a |
|||
|
Optional |
Ladders,floodlight |
||
Procedure:
The working principle of the ISUZU NKR fire truck with nitrogen gas mainly includes the following steps:
1. Start the control system: First, start the control system to put the nitrogen fire truck into standby mode. The control system usually includes electronic components such as LCD screens and programmable logic controllers to realize operations such as fire extinguishing start, nozzle scanning and pipeline protection.

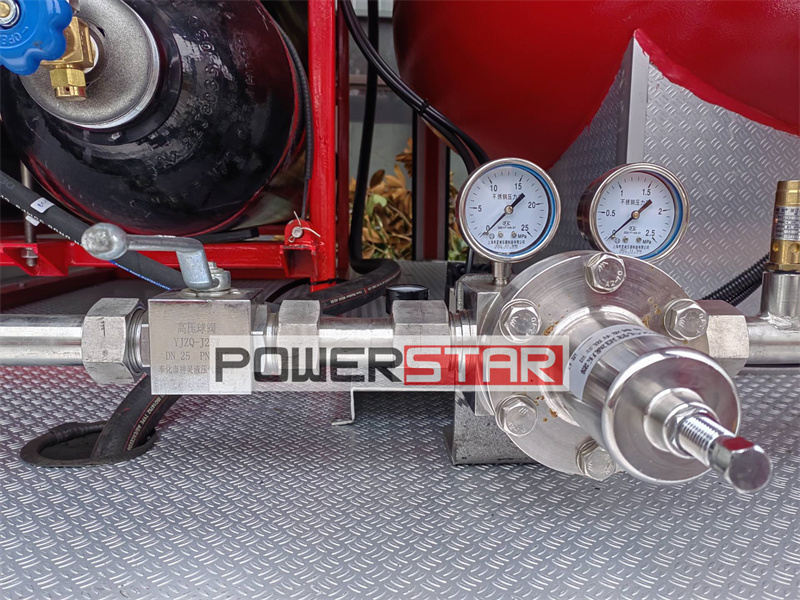

2. High-pressure nitrogen supply: High-pressure nitrogen is stored in nitrogen storage tanks, and the pressure is reduced and the flow is adjusted by the pressure regulation system and the flow regulation system to meet the specific fire extinguishing needs. The pressure regulation system consists of a pressure gauge and a pressure reducing valve to ensure that the nitrogen is released at an appropriate pressure.
3. Nitrogen injection fire extinguishing: When a fire occurs, the control system automatically starts the nozzle system to spray high-pressure nitrogen into the fire area. The rapid injection of nitrogen can reduce the temperature and oxygen concentration at the fire scene, thereby achieving the purpose of fire extinguishing. Since nitrogen is non-flammable, not easy to conduct electricity, and will not damage equipment and objects, it is very suitable for use as a fire extinguishing agent.
4. Completion of the fire extinguishing task: After completing the fire fighting task, the control system automatically shuts down the nozzle system, and the nitrogen fire truck enters standby mode.
Technical features:
1. Nitrogen storage system: The Isuzu mini fire nitrogen gas truck is equipped with a large-capacity high-pressure nitrogen storage tank. Nitrogen is usually stored in liquid form to increase storage density.
2. Nitrogen release mechanism: The NKR fire truck is equipped with a sophisticated control valve system, which can adjust the amount and speed of nitrogen release according to the fire situation.
3. Fire extinguishing principle: Nitrogen is an inert gas that is non-flammable and non-combustible. By quickly releasing a large amount of nitrogen, the oxygen content in the air is diluted. When the oxygen concentration in the environment drops below about 15%, most substances cannot continue to burn.
4. Cooling effect: The Isuzu fire truck with nitrogen gas bottle, liquid nitrogen quickly vaporizes during the release process and absorbs a lot of heat. This process can significantly reduce the temperature of the fire scene and assist in fire extinguishing.
5. Penetration: Nitrogen has good penetration and can penetrate into small spaces. It is suitable for confined spaces or inaccessible fire sources. It is particularly suitable for dealing with flammable liquids and gas fires, suitable for electrical fires, and will not cause secondary damage. It is effective in confined spaces such as basements and tunnels.
6. Control system: The Isuzu NKR fire water truck is equipped with an advanced electronic control system that can accurately control the amount, speed and direction of nitrogen release. It is usually equipped with a thermal imaging camera to help locate the fire source.
