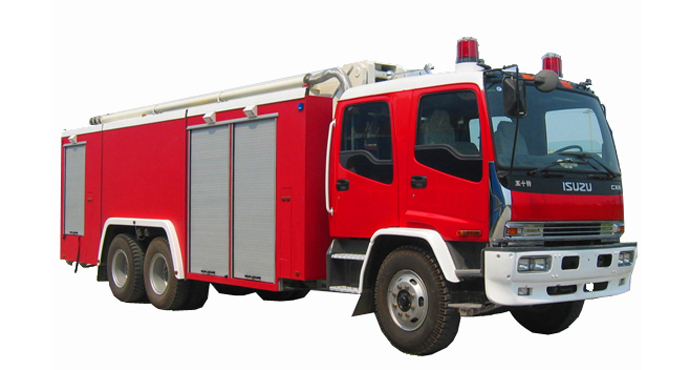

15m height Isuzu Water Tower Fire Truck for Aerial Working
ItemNO:
Order(MOQ):
1Color:
yellow15m height Isuzu Water Tower Fire Truck for Aerial Working
Tags: Best quality 15m height Isuzu Water Tower Fire Truck for Aerial Working manufacturer, Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Main specifications:
|
FVZ Heavy-duty chassis for Fire-fighting application |
||
|
Model |
PT5250GXF |
|
|
Driving Type |
6x4 (Left hand drive) |
|
|
Wheelbase |
4000+1300 mm |
|
|
Overall Dimension |
11800×2500×3310 mm |
|
|
Spray gun working amplitude |
15m，throw range：water≥70m，foam≥60m |
|
|
water tank capacity |
8000L（single row，water 5000L，foam 3000L）），7000L（double row，water 4000L，foam 3000L），Fire monitor flow：Akron 3578 type，24-63L/S（Automatic flow rate adjustable） |
|
|
Fire pump |
CB18/50-TB rear-mounted，50L/S，1.0Mpa |
|
|
Cab |
Double cab with Four doors, 6 seats with safe belts. |
|
|
Engine |
Model: |
6HK1-TCSG40 |
|
Type: |
Diesel, turbo charged inter-cooled, 6 cylinder |
|
|
Max. Power: |
205 KW (280HP) |
|
|
Gearbox |
9-shift, mechanical type, 9 forward and 1 reverse with |
|
|
Tire |
11.00-20 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
90 km/h |
|
Accessories List:
(With below equipment, you can put into fire-fighting immediately)
