ISUZU fire truck water capacity 10000l, fire truck specifications
Order(MOQ):
1ISUZU fire truck water capacity 12000l, fire truck specifications

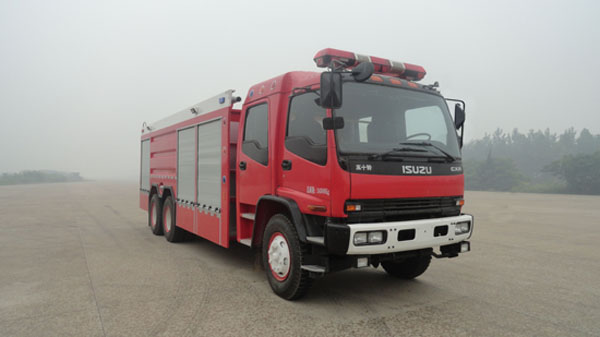

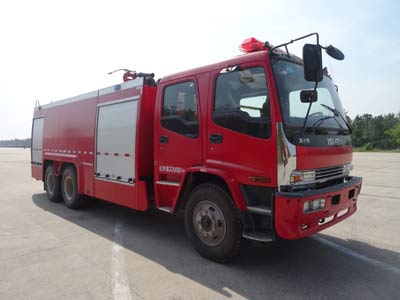

ISUZU 6*4 water tank fire truck for sale, fire truck water capacity 10000l
foam and water to rescue fire emergency.It is equipped with fire pump,water tank,fire monitor and foam miscible liquids and some other fire equipment .This type foam-water universical fire truck is suitable for usual fire rescuing, airport fire,and oil terminal.
The follonging is a brief introduction of this truck ,just for reference. Welcome to contact us for more information.We will spare no efforts to provide excellent services for you!
technical specification
| Entire Vehicle | Main Parameter | Gross Weight(kg) | 25000 | ||
| Total Weight(kg) | 18870 | ||||
Overall Dimension (L * W * H) (mm) |
9500,9955*2496*3250,3600 | ||||
| Chassis | Chassis Type | ISUZU FVZ/CXA |
|||
| Wheelbase(mm) | 4650+1300 | ||||
| Engine Parameters | Engine Mode | 6HK1-TCSG40 | |||
| Power(kw) | 206 | ||||
| Fuel Type | Diesel | ||||
| Functional Parameters | Max Speed(km/h) | 95 | F/R Tread(mm) | 1938/1800 | |
| Leaf Spring | 9/12 | F/R Overhang(mm) | 1560/2265 | ||
| Axle Load(kg) | 7000/18000 | Approach/Departure angle(°) |
15/9 | ||
| Tire Size | 11.00-20,12.00-20 | ||||
| Number of Tires | 10 | Number of Axles | 3 | ||
| Specialized Device | Tank Parameters | Tank Capacity(kg) | Water :7000 |
||
Foam : 3363 |
|||||
| Pump | CB10/60 | ||||
| Fire Monitor | PS50/PL48 |
||||
Covering range(m) |
Water≥65m,Foam ≥55m |
||||
