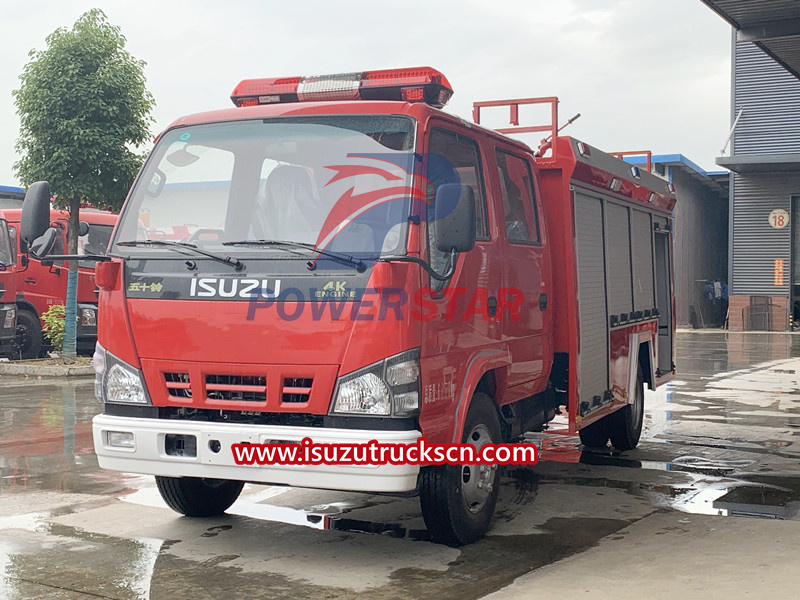

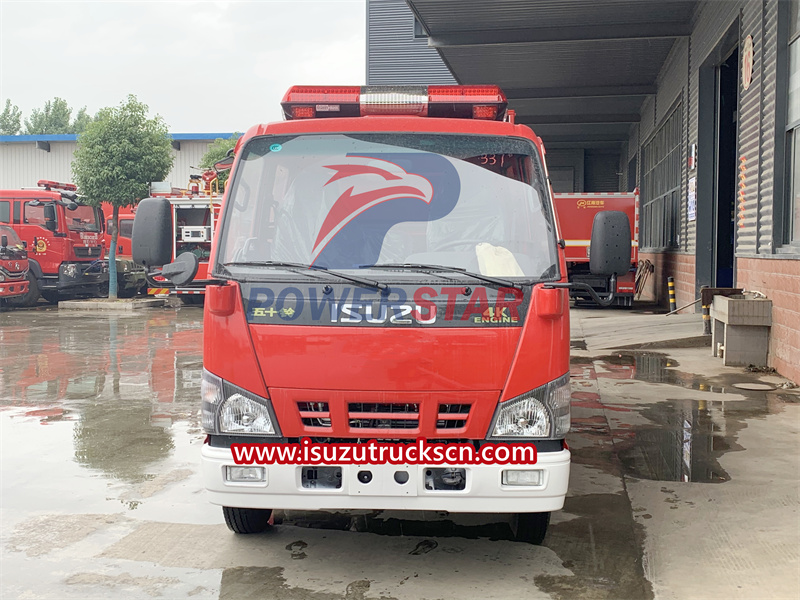

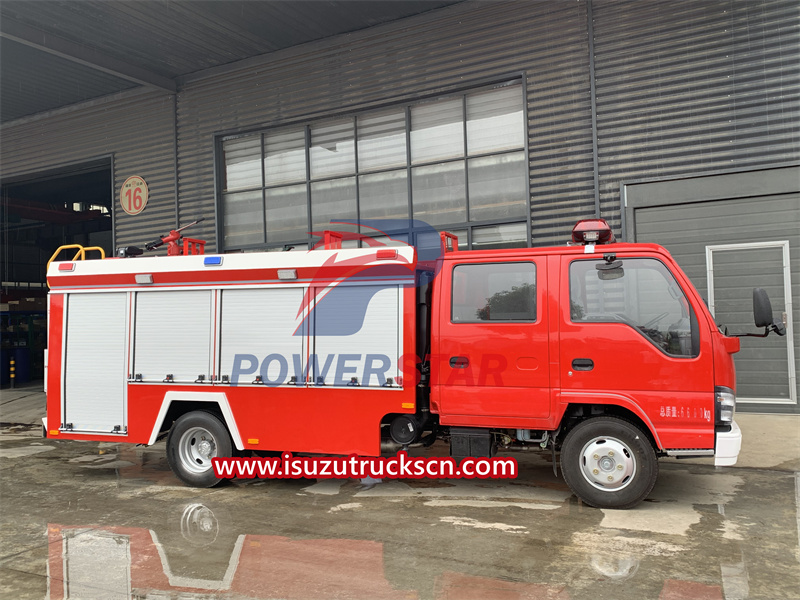

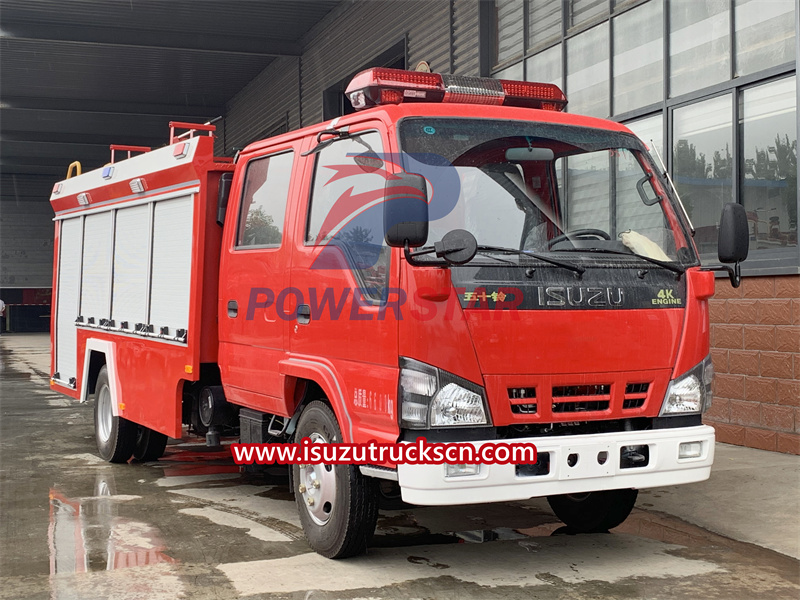

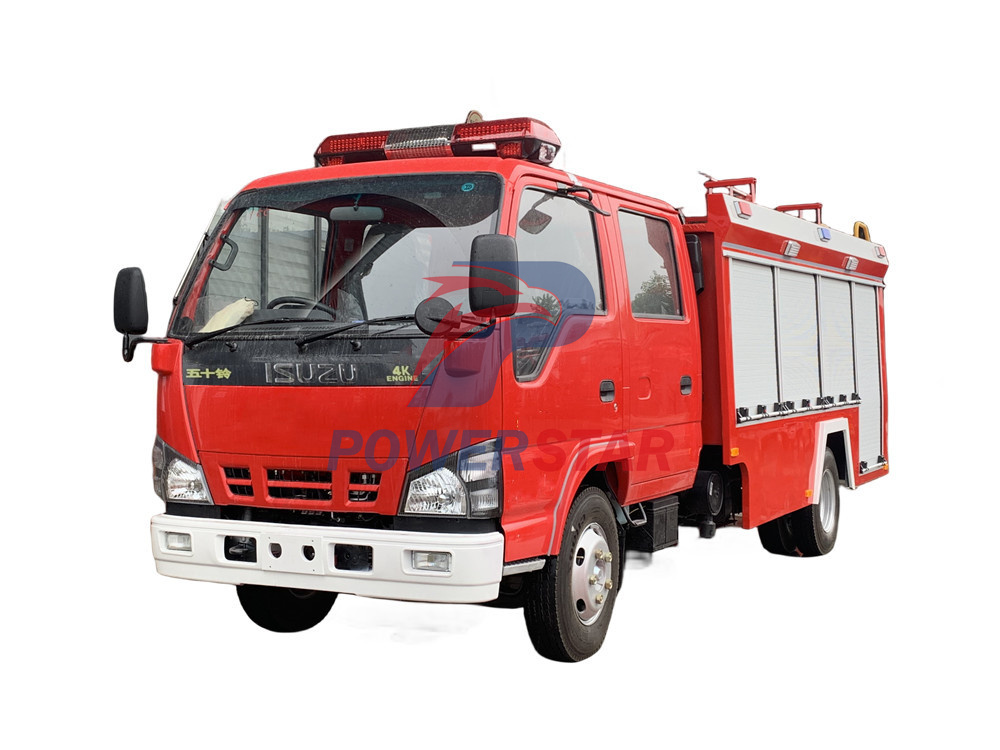

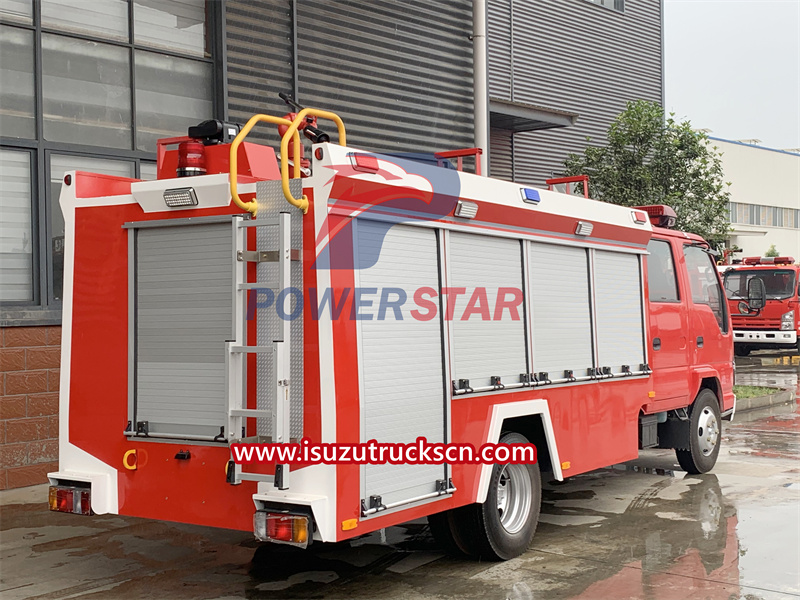

lsuzu600P mini water tank fire truck is a high-performance fire rescue truck. The vehicle is primarily used for firefighting and rescue missions. It is equipped with a water tank with a capacity of 2 cubic meters, equipped with CB10/30 normal pressure pump and PS30W fire monitor. The fire truck has a sturdy and durable body structure, is compact, small and flexible, and is easy to operate and maintain, allowing it to quickly respond to fire scenes. Fire trucks are equipped with advanced fire-fighting equipment, including water guns, hoses, etc., which can quickly put out fires and ensure the safety of firefighters.
Work capacity:
2tonsTruck model:
PT5170GXFPM52Engine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
MSB 5-speed, manualRemarks:

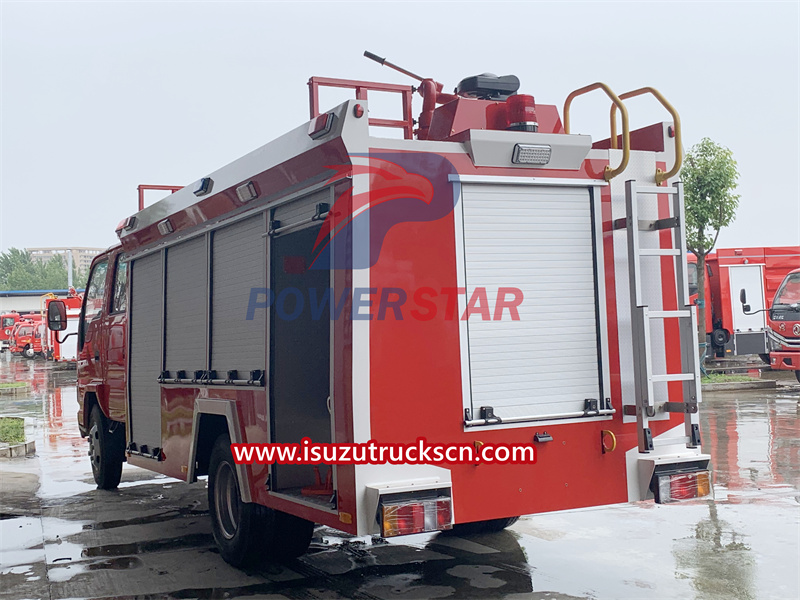

600P 2tons water fire truck,powerful engineIsuzu mini pumper fire truck is also known as Isuzu mini fire tender and Isuzu mini fire engine. It is modified from the original Isuzu 600P Category II chassis and is equipped with a powerful and low-consumption diesel engine. The dedicated parts are composed of liquid tanks, pump rooms, equipment boxes, power output and transmission systems, piping systems, electrical systems, etc. The Isuzu mini pumper fire truck adopts a double-row integral structure and has a wide field of vision. The fire truck can extinguish fires while traveling. It has a long range and strong fire-fighting effectiveness.
The vehicle has a compact structure, small size and flexibility, carries 2 cubic meters of liquid water, and is equipped with a CB10/30 normal pressure pump and a PS30 fire monitor. It has good power and maneuverability, is suitable for putting out general solid or liquid oil fires, and is easy to enter and exit narrow urban roads and village and town-level highways. The vehicle has a scientific and reasonable structural design, a neat and elegant appearance, good environmental protection performance, humanized design, and reasonable equipment layout. , the whole vehicle is equipped with a variety of fire-fighting and rescue equipment, which is easy to operate and maintain, and can quickly respond to fire scenes. It is an ideal equipment for fire-fighting firefighting in public security fire forces, community firefighting, markets and new towns.
The 2-tons Isuzu 600P water tank fire truck is a powerful small water tank fire truck. The vehicle is equipped with an Isuzu 120-horsepower engine, an Isuzu 4KH1CN6LB engine, National VI emissions, an Isuzu MSB five-speed transmission, with air conditioning, steering assist, and a front axle. 2 tons, rear axle 4.8 tons, with ABS, standard 700R16 steel tires, dual-circuit oil brake. Double cab, the number of passengers is 2+3, the cab cannot be flipped. It is the most powerful model among all small fire trucks. It has a compact appearance, good passing performance, high pressure and a long range. It is a high-end model among small fire trucks.
Parameter Configuration:
|
Vehicle description |
||
|
Overall dimension |
6805*1960*2950(mm) |
|
|
GVW |
6600kg |
|
|
Curb weight |
4175kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4*2,left/right hand drive |
|
|
Chassis description |
||
|
Chassis model |
4KH1CN6LB |
|
|
Cab |

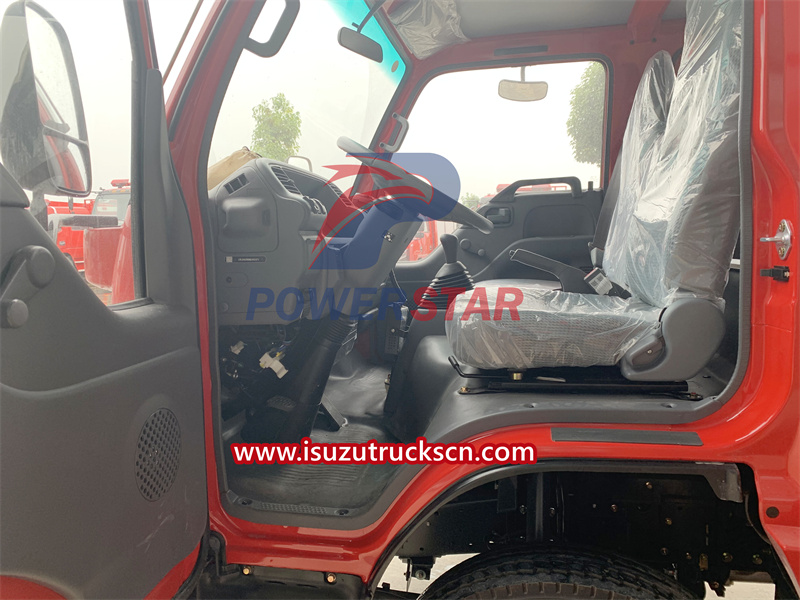

Structure: flat-head, original double-row seat four-door passenger compartment. |
|
|
Wheelbase |
3815mm |
|
|
Tire specification |
7.00R16 |
|
|
Tire quantity |
6+1 |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120hp |
|
|
Gear box |
Model |
ISUZU |
|
Number of gears |
4 forward gears& 1 reverse |
|
|
Brake system |
Type |
Oil |
|
Service brake |
Dual-circuit compressed air brake |
|
|
Park brake |
Power spring brake acting on rear wheel |
|
|
Auxiliary brake |
WEVB |
|
|
Axle |
Front |
2.3T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
7- Leaf spring with shock absorber |
|
Rear |
9+6-Leaf spring |
|
|
Fuel tanker |
Type |
Steel fuel tanker |
|
Capacity |
120L |
|
|
Up-parts description |
||
|
Tanker capacity |
Water tanker |
2000kg |
|
Foam tanker |
/ |
|
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
|
|
Model |

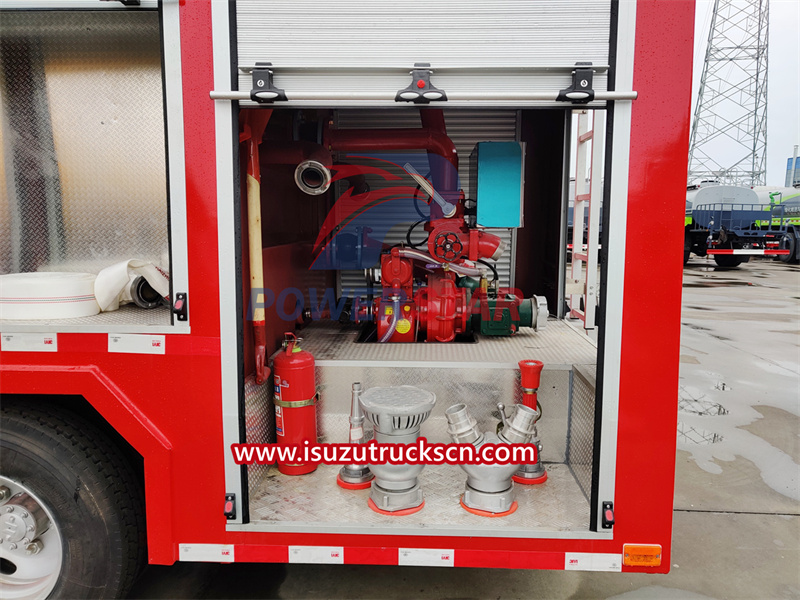

CB10/30, normal pressure pump |
|
Flow |
30L/s |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
≥7m |
|
|

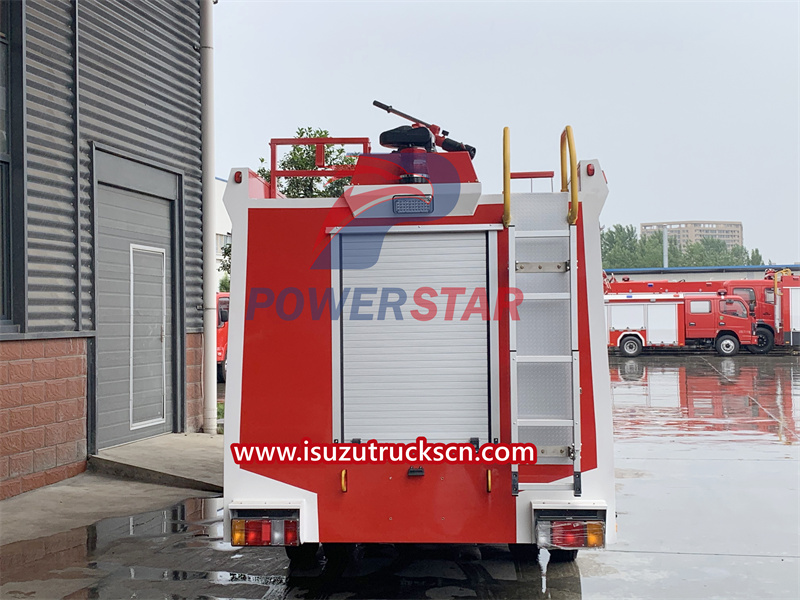

Fire monitor |
Model |
PS30W |
|
Flow |
30L/S |
|
|
Pressure |
1.0MPa |
|
|
Range |
≥55m |
|
|
Rotation angle |
Horizontal 360° |
|
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
|
After the firefighting mission is completed, you should pay attention to the following points:
1. After using the fire truck water pump, open all the residual water drain switches on the pump to drain the remaining water in the pump. After the remaining water is drained, close all switches to facilitate anti-freezing and next use.
2. After the water pump has been used in seawater, sewage, corrosive water flow and foam mixture, it should be run with clean water for more than 1 minute to clean out the residual liquid in the pump.
3. Regularly check the lubrication condition in the bearing. If it is lower than the oil level, make up for it.
4. After using the fire pump of the fire truck in winter, run the piston pump several times to drain the remaining water in the piston pump to prevent freezing.
5. The water pump is strictly prohibited from idling without water for a long time (more than 1 minute)
If you have special requirements for Isuzu fire trucks, please contact us. We can order design and modification for you, and can add preheating and insulation devices, sprinkler functions, lighting equipment, steering assist, air conditioning and other accessories.
