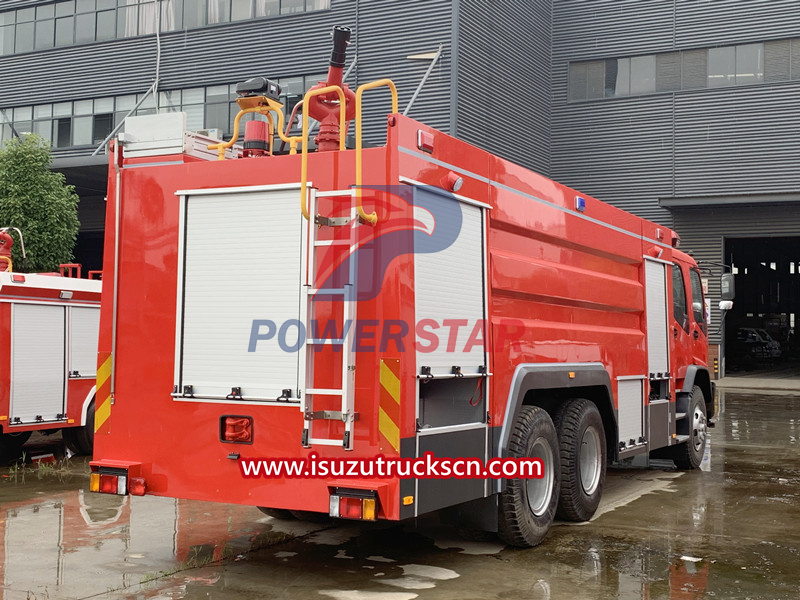

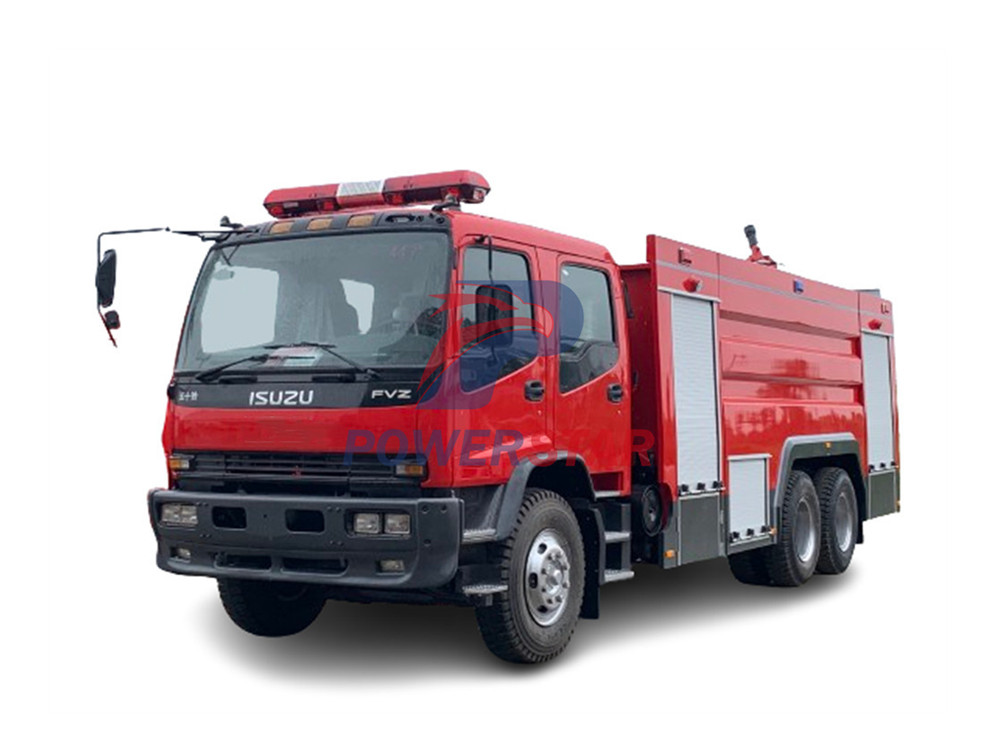

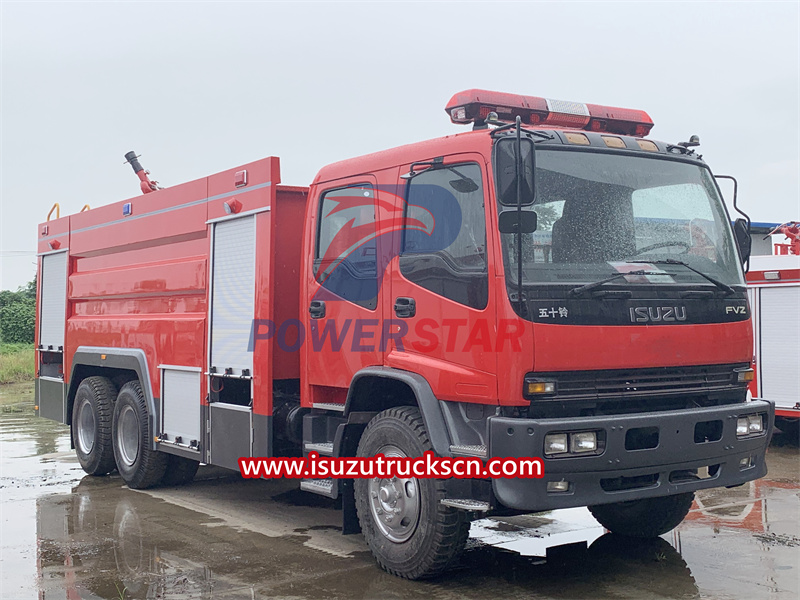

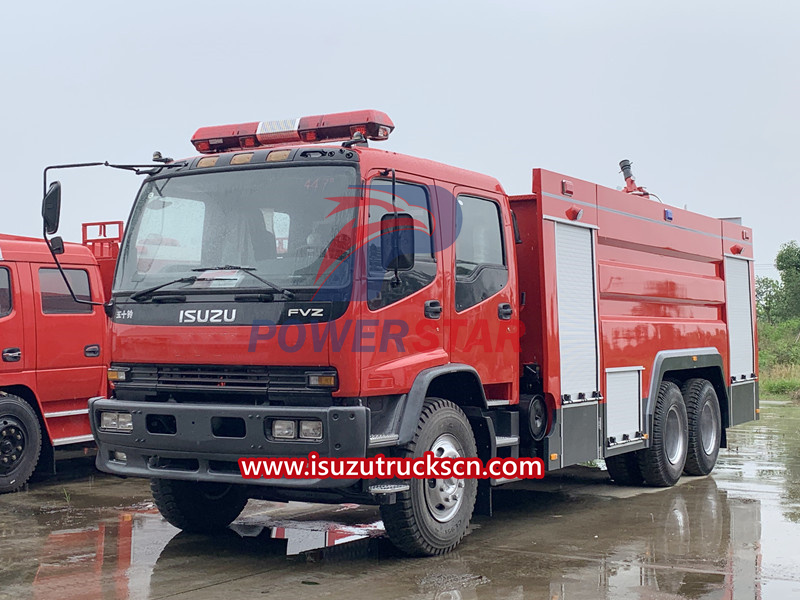

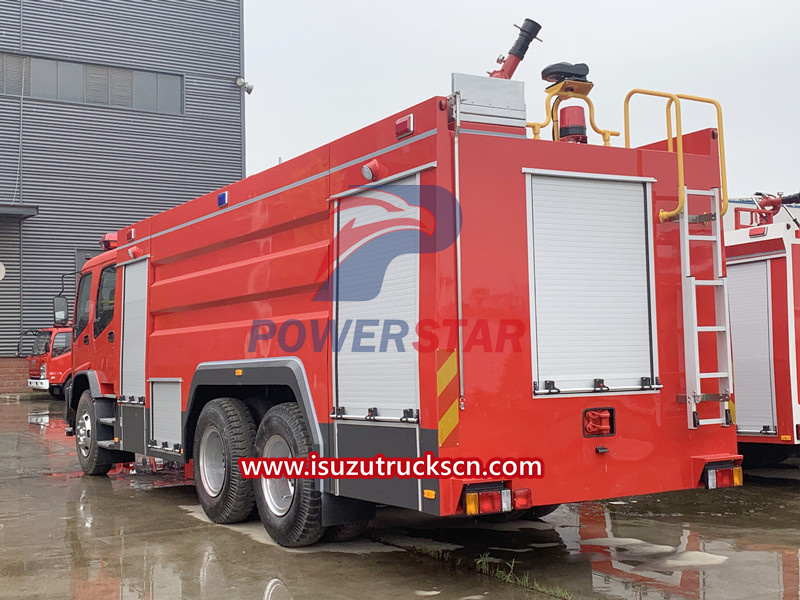

The Isuzu rear double-axle FVZ 10 m³ water tank fire truck adopts a 6x4 drive chassis and an advanced power system, which can drive stably in complex and changing road conditions and harsh environments. The vehicle is equipped with a large-capacity water tank that can hold 10 cubic meters of water to ensure adequate water supply during fire extinguishing. At the same time, the vehicle is also equipped with a variety of fire-fighting equipment, such as fire pumps, fire cannons, fire extinguishers, etc., to meet the fire-fighting needs of different scenarios.
Work capacity:
10000LTruck model:
PT5120GXFPM52Engine power:
300HPEngine type:
6HK1-TCHAxle drive:
6X4, left hand driveGear box:
Fast 9-speedRemarks:
6x4 drive, 10m3 water capacity, CB10/60 normal pressure pumpIsuzu fire truck is also known as Isuzu firefighting truck and Isuzu rescue fire truck. The Isuzu FVZ fire command vehicle is an efficient, multi-functional firefighting vehicle specially designed for fire extinguishing and rescue and responding to various emergency situations. This Isuzu FVZ fire command vehicle combines the excellent quality and advanced technology of Isuzu Motors with professional fire-fighting equipment to ensure that fires and other disasters can be responded to fires and other disasters quickly and effectively at critical moments.
Isuzu FVR should be a well-known model. FVR mostly refers to a medium truck that uses 4X2 drive, while FVZ is actually a medium truck that uses 6X4 drive. As the main 6X4 product of Isuzu, the FVZ is used in the logistics field and in special fields such as firefighting, rescue and the military.
The Isuzu rear double-axle FVZ 10 m³ water tank fire truck adopts a 6x4 drive chassis and an advanced power system, which can drive stably in complex and changing road conditions and harsh environments. The vehicle is equipped with a large-capacity water tank that can hold 10 cubic meters of water to ensure adequate water supply during fire extinguishing. At the same time, the vehicle is also equipped with a variety of fire-fighting equipment, such as fire pumps, fire cannons, fire extinguishers, etc., to meet the fire-fighting needs of different scenarios.
The Isuzu FVZ fire command vehicle is equipped with an Isuzu 6HK1 engine with turbocharging, a displacement of 7.8 liters, a maximum power of 300 horsepower, and a maximum torque of 980N.m. At present, the 6HK1 series engines have been upgraded to the National VI emission standards, and have been installed on the latest GIGA models.
Matched with the 6HK1 engine is Fast's 9-speed manual transmission, model 9JS119TA, with a maximum input torque of 1190N.m. The transmission has a synchronizer structure, and the highest gear is an overdrive gear of 0.73. The main purpose of using domestic transmissions is to satisfy the control habits of domestic users, and Fast will not affect the quality of Isuzu. After all, repairs and maintenance are convenient, and roadside repair shops can repair the transmissions. Needless to say about the axles, Isuzu's own products have a front axle load capacity of 7 tons, a total load capacity of the rear double axle of 10+10 tons, and a standard three-axle vehicle of 27 tons. The rear axle has a speed ratio of 5.571, and combined with the 0.73 overdrive transmission, the speed ratio is 4, so the overall configuration is reasonable.
What’s interesting is that the axle configuration is different from our common 6X4 models. The axle of Isuzu's 6X4 FVZ still uses an axle product with 8 locking bolts, matched with 20-inch steel rims and 11.00-20 steel wire tires.
Vehicle parameters
|
Product Name |
Isuzu 6x4 FVZ water fire fighting truck |
|
Driving Type |
6x4,left hand drive |
|
Vehicle Model |
PT5120GXFPM52 |
|
WEIGHT |
|
|
Kerb Weight |
11550kg |
|
Dimension |
|
|
Wheelbase |
4650+1300mm |
|
Overall Size |
10100x2550x3100mm |
|
ENGINE |
|
|
Engine Model |
6HK1-TCH(300HP) |
|
No of Cylinder |
4 |
|
Displacement |
7790ml |
|
Max Output |
191 |
|
Emission Standard |
EURO 5 |
|
DRIVE TYPE |
|
|
Transmission |
Fast 9-speed |
|
Steering |
With power steering |
|
Brake |
air break |
|
Front axle/rear axle |
7T/10+10T |
|

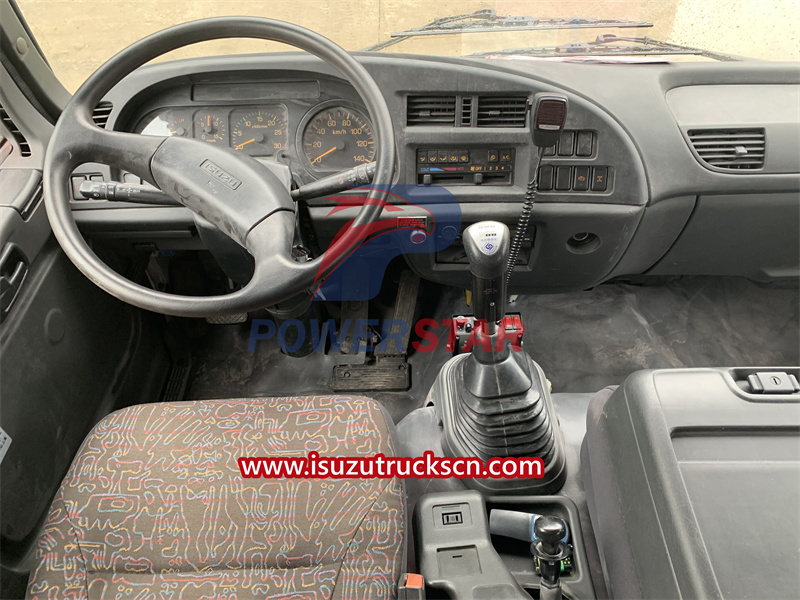

CAB |
|
|
Cabin |
ISUZU FVZ |
|
Configuration |
with A/C |
|
Seat quantity |
double row |
|
TIRE |
|
|
Tire specification |
11.00R20,10+1 |
|
CONFIGURATION |
|
|
Tank Capacity |
water tank:10000liters |
|
Tank Material |
Q235 carbon steel,optional |
|
Pipe Material |
Q235 carbon steel,optional |
|

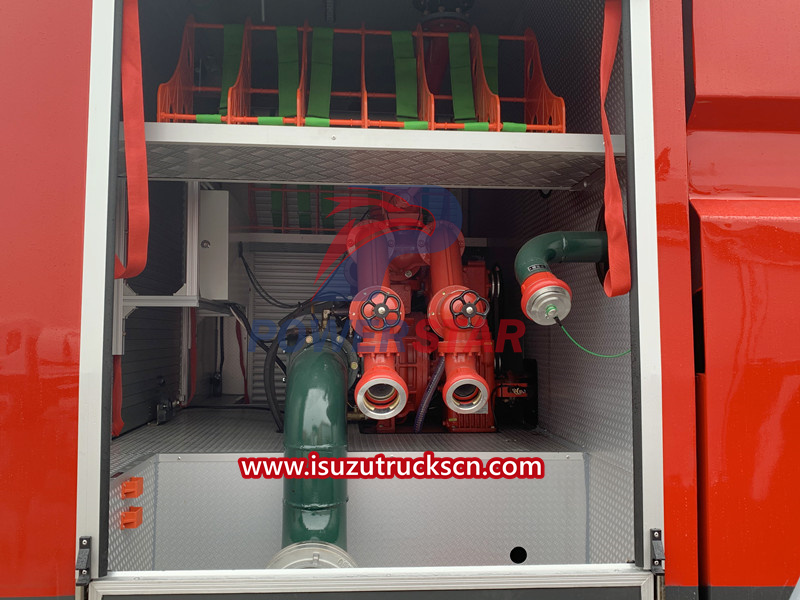

Fire Pump |
CB10/60 Flow: 60L/S/1.0MP 42L/S/1.3MP |
|
we have low pressure, low-middle pressure ,high-middle pressure fire pump to choose according to the customer 's requirements |
|
|

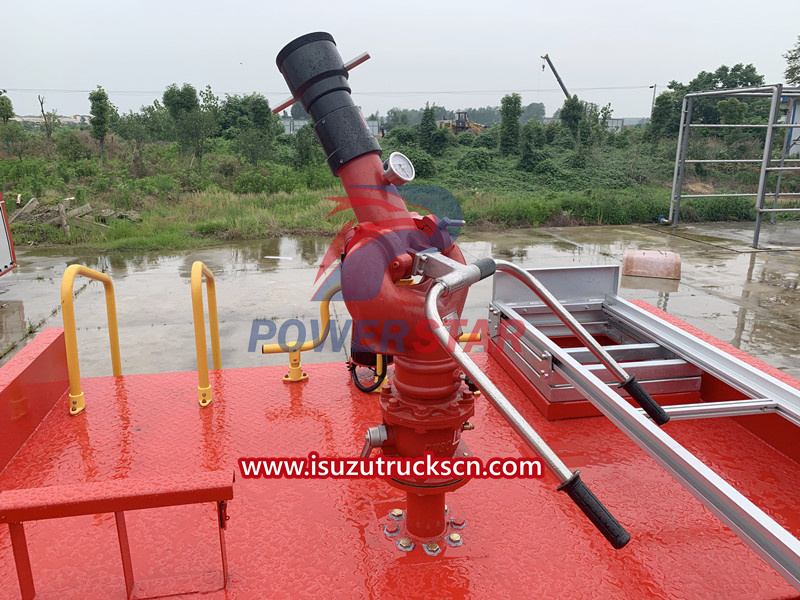

Fire monitor |
Model: PL48 Range: ≥70M |

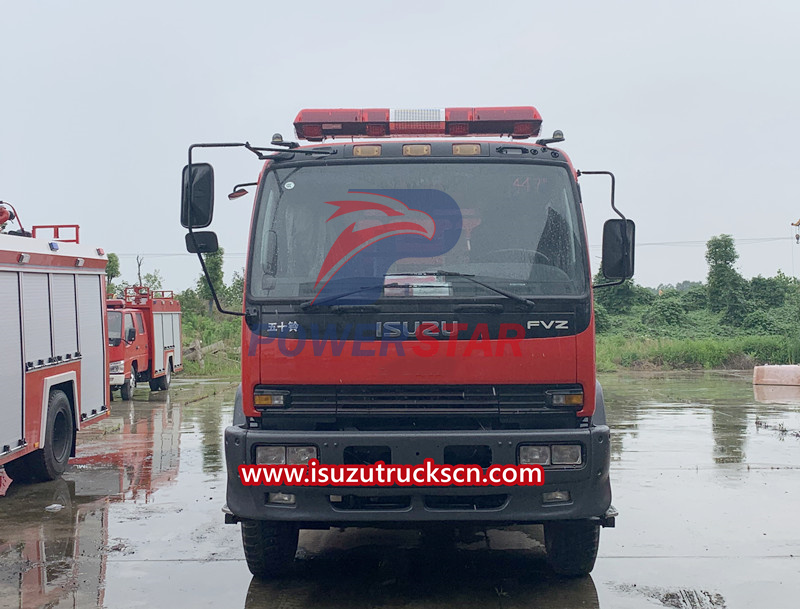

The Isuzu FVZ fire truck has a streamlined design, novel appearance, maneuverability, economy and practicality. The internal equipment rack separation materials are all made of high-strength aluminum alloy profiles, which is beautiful and elegant. Various equipment are placed reasonably and fixed with special clamps. The curtain door is a high-strength aluminum alloy curtain door, which has reliable opening and closing, low noise and good sealing.
The Isuzu rear double-axle FVZ 10 square water tank fire truck is equipped with a high-efficiency, low-consumption diesel engine with excellent power performance, acceleration performance and fuel economy. In an emergency, the vehicle can respond quickly and arrive at the fire scene quickly.
The vehicle adopts a rear double-axle design, and the 6x4 drive form enhances the vehicle's load-bearing capacity and stability. In complex road conditions and harsh environments, the vehicle can still maintain stable driving, ensuring that firefighters reach their destination safely.
The vehicle is equipped with a large-capacity water tank of 10 cubic meters to ensure adequate water supply during fire extinguishing. At the same time, the inside of the water tank is made of anti-rust and anti-corrosion materials to extend its service life.
The Isuzu rear double-axle FVZ 10 square water tank fire truck is equipped with a variety of firefighting equipment such as fire pumps, fire cannons, and fire extinguishers to meet the fire-fighting needs of different scenarios. Fire pumps can quickly pump water from tanks and spray it to the source of fire, while fire cannons can be used to extinguish fires from long distances. In addition, the vehicle is equipped with a fire extinguisher, which can be used to deal with small fires or the initial stages of a fire.
