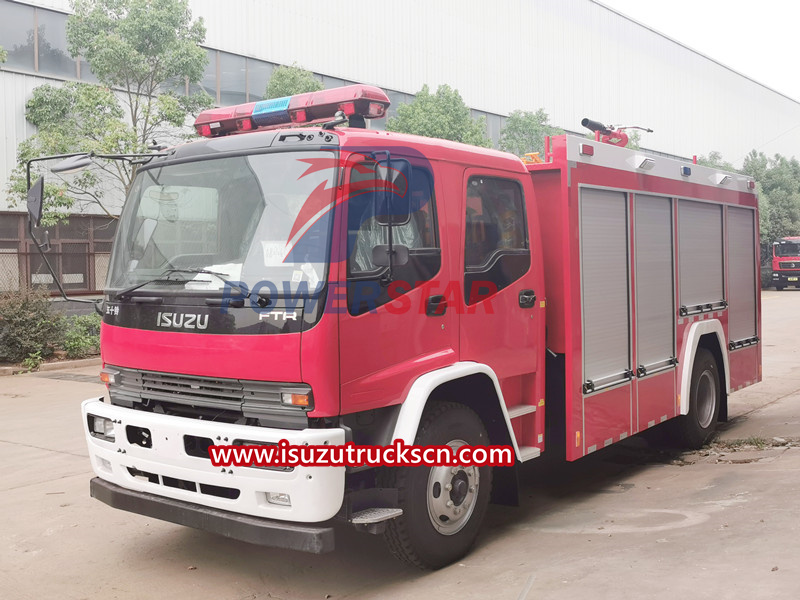

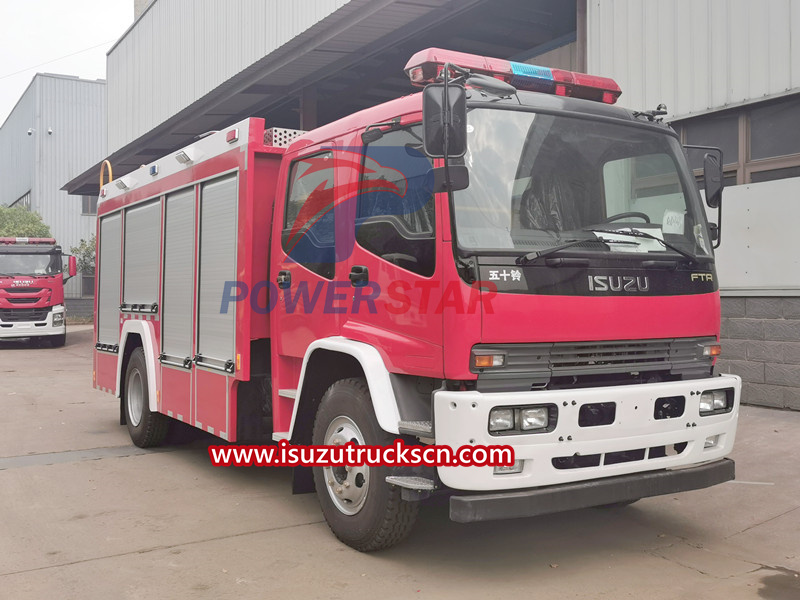

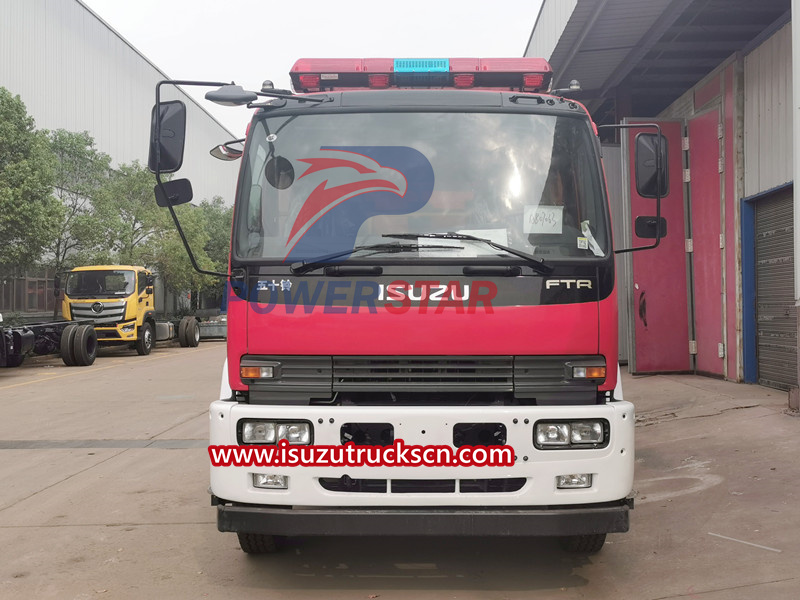

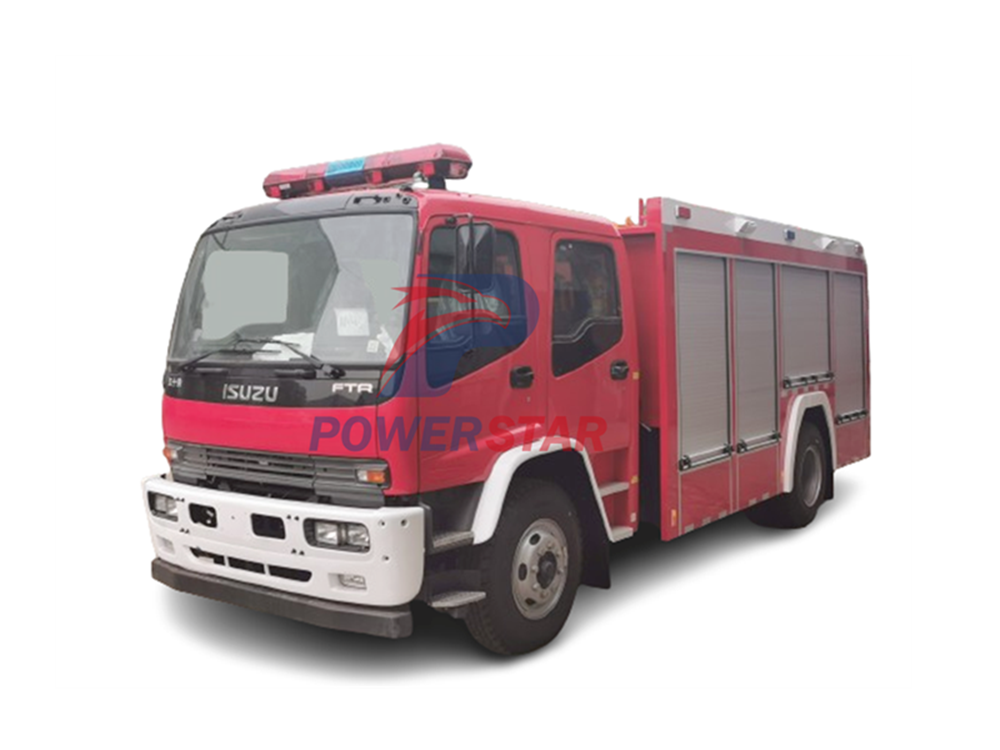

The Isuzu FTR 5 tons water tank fire truck is modified from the Qingling QL1160VMFRY chassis with 4x2 drive. It has 205HP power, 5-ton water carrying capacity, CB10/40 fire pump, and PL32 fire monitor. It is the preferredt vehicle for urban public security firefighting forces and new urban firefighting.
Work capacity:
5tonsTruck model:
PT5160GXFPM51Engine power:
205HPEngine type:
4HK1-TC50Axle drive:
4x2Gear box:
MLD 6-speedRemarks:
ISUZU FTR 5tons water tank fire truck for saleIsuzu FTR fire fighting water tender is modified by our factory on the basis of Isuzu's original second-class chassis QL1160VMFRY. The whole vehicle has a compact structure; the dedicated parts include a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical System and other components, The Isuzu FTR fire fighting water tender is widely used in urban public security fire brigades, petrochemical industries, factories and mines, forests, ports, docks and other departments. It can quickly approach the fire scene to start fire-fighting battles and put out various fires. It is an ideal fire-fighting equipment.

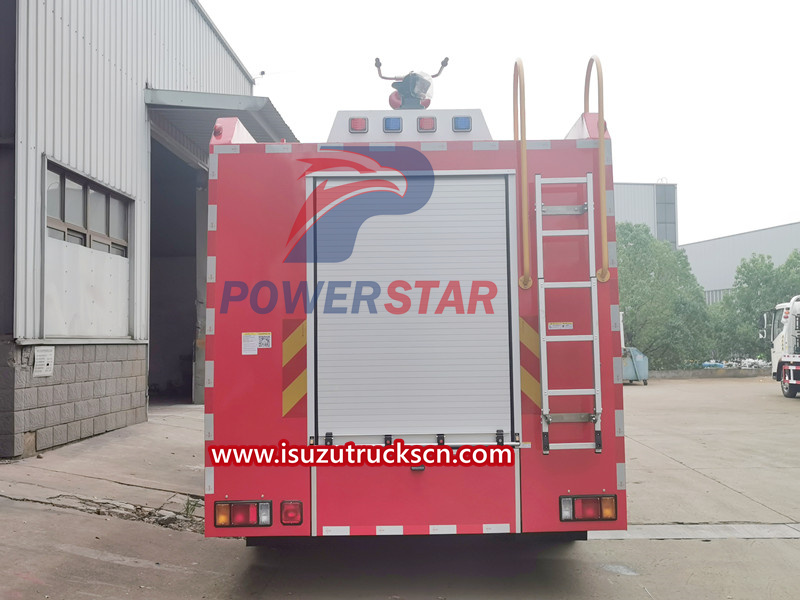

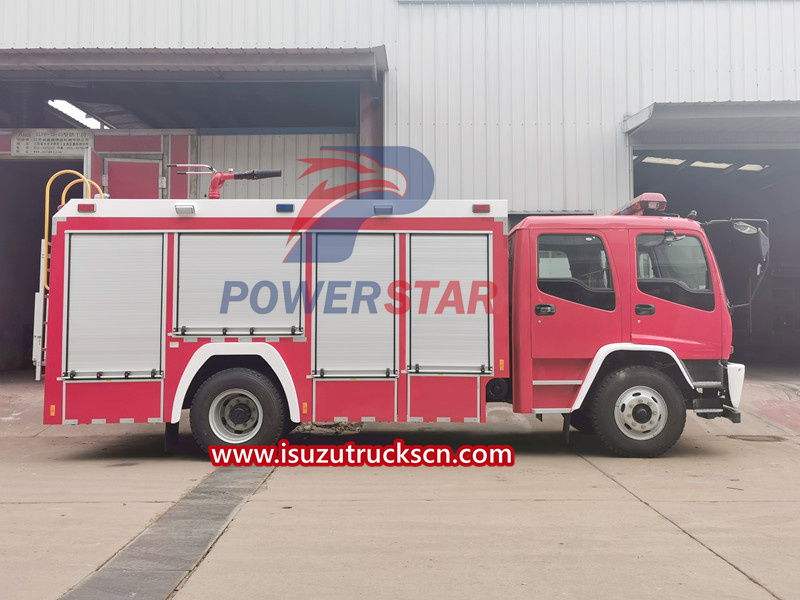

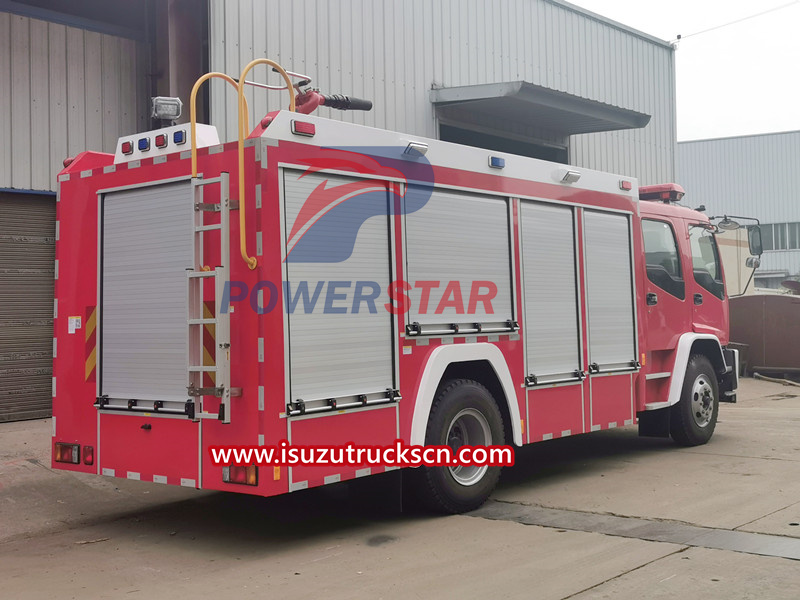

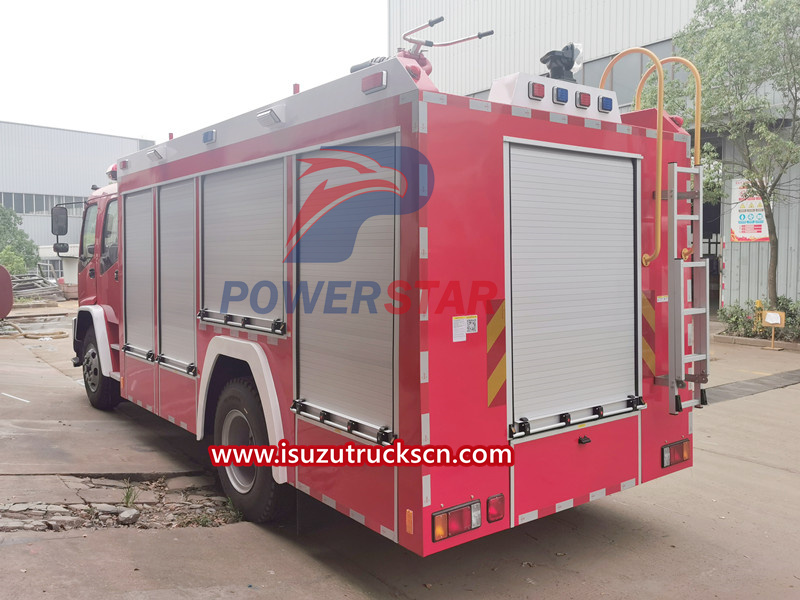

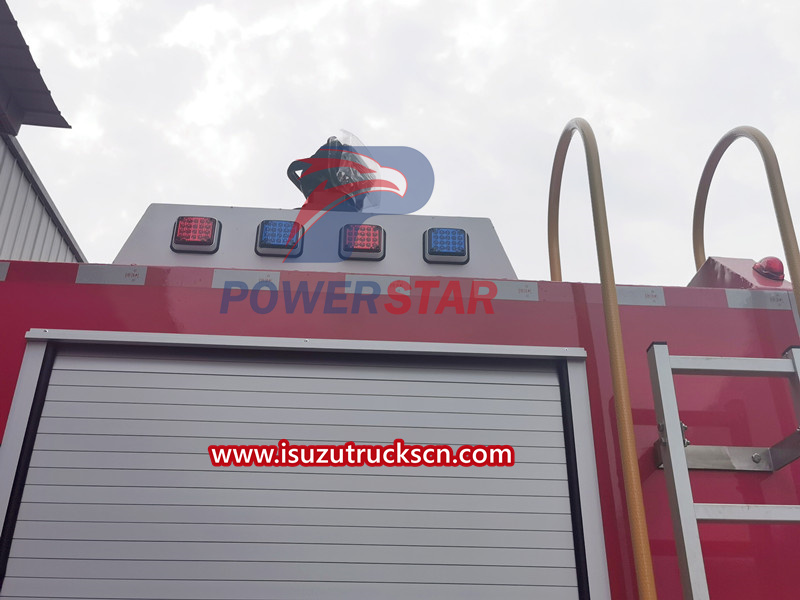

The Isuzu FTR fire fighting water tender produced by our company have a streamlined design, novel appearance, maneuverability and flexibility, economical and practical, and the internal equipment rack separation materials are all made of high-strength aluminum alloy profiles, which is beautiful and elegant. Various equipment are placed reasonably and fixed with special clamps. The curtain door is a high-strength aluminum alloy curtain door, which has reliable opening and closing, low noise and good sealing. The vehicle is equipped with high-end configurations such as air conditioning, steering assist, and ABS. The tank body is made of high-quality carbon steel as standard (stainless steel can also be selected according to user needs). It is durable, has high pressure and has a long range. It is a medium-sized urban main battle water tank fire truck.
The working principle of the Isuzu FTR 5-ton water tank fire truck is mainly based on the function and cooperation of its fire protection systems and equipment.
1. Power output: First, the fire truck outputs the power of the car chassis engine through the power take-off device. This power take-off device can transmit the power of the engine to various parts of the fire protection system to provide the necessary power for fire protection operations.

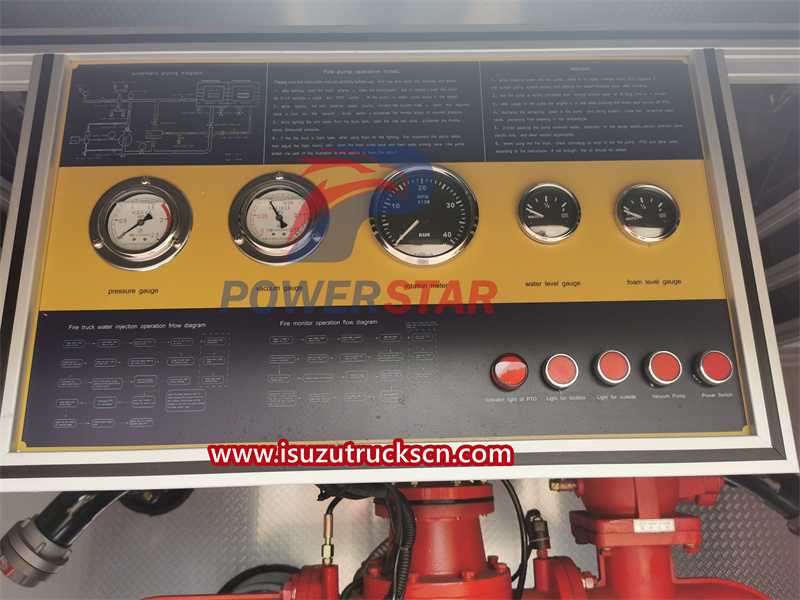

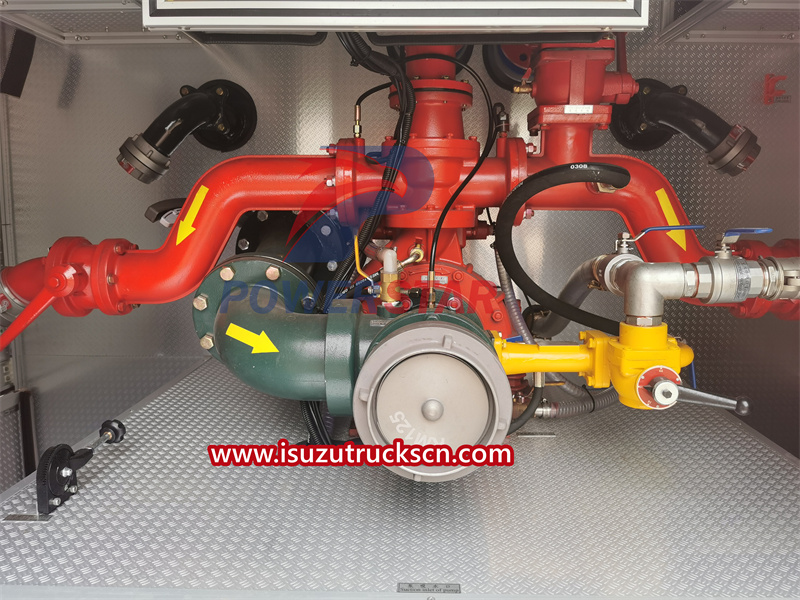

2. Drive the fire pump: The power output by the power take-off will drive a set of transmission devices, which in turn drives the fire pump to work. The fire pump is one of the core equipment of the fire truck. It is responsible for pumping water from the liquid tank and pressurizing it.
3. Mixed fire extinguishing agent: The pressurized water will pass through the fire pump and foam proportioning mixing device, and will be mixed with water according to a predetermined ratio. This mixed fire extinguishing agent can more effectively extinguish different types of fires, especially when faced with oil or other flammable liquid fires. The foam can cover the fire source and isolate oxygen, thereby quickly extinguishing the fire.
4. Spray fire extinguishing agent: The mixed fire extinguishing agent is sprayed out through devices such as fire cannons and foam fire extinguishing guns, and acts directly on the fire source. The fire cannon can adjust the angle and distance of the spray as needed to achieve precise strikes on the fire source. Foam fire extinguisher guns are suitable for spraying fire extinguishing agents at close range, especially in detail processing at fire scenes.
The principle of the Isuzu FTR fire fighting water tender is to use the power of the vehicle itself to drive the water pump to spray its own water source through controllable water outlets such as water spray guns in the direction of the fire source to achieve the purpose of extinguishing the fire. At the same time, some water tank fire trucks are also equipped with foam fire extinguishing devices, which can extinguish fire sources by spraying foam to achieve better fire extinguishing effects.
specifications：
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Product Name |
FTR Fire Tender ISUZU |
||
|
Vehile Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5160GXFPM51 |
||
|
Classis parameters |
Overall Dimension |
mm |
8080*2500*3470 |
|
Gross weight |
kg |
16000 |
|
|
Curb weight |
9755 |
||
|
Wheel base |
mm |
4500 |
|
|
Drive Type |
4 x 2, left hand drive |
||
|
Number of axles |
2 |
||
|
Tire specification |
10.00-20 |
||
|
Number of tires |
6+1 |
||
|
Passengers in cab |
2+4 |
||
|
Engine |
Engine model |
4HK1-TC50 |
|
|
Type of fuel |
Diesel |
||
|
Power/Displacement |
ml |
205HP/151KW |
|
|
Max speed |
Km/h |
90 |
|
|
Emisssion standard（TAS） |
EURO5/ |
||
|
Fire performance |
Tank capacity |
Water tank capacity：5000L |
|
|
Fire pump |
Model: CB10/40 |
||
|
Pressure(Mpa):1.0 |
|||
|
Rate(L/S): 40 |
|||
|
Fire monitor |
Model: PL32 |
||
|
Range：≥55m |
|||
|
Water jet distance :≥55m |
|||
|
Electronic alam |
LY CJB-100-C24 |
||
|
Alam lamp |
LY TBD-XF-168LED |
||
When using the Isuzu FTR 5-ton water tank fire truck, there are the following precautions:
1. The driver should be familiar with the performance and operation methods of the vehicle, abide by the operating procedures, and ensure safe driving.
2. During driving, you should always pay attention to the operating status of the vehicle. If any abnormality is found, stop the vehicle for inspection in time.
3. Fire trucks should be maintained regularly, including checking the braking system, tire wear, chassis components, etc., to ensure that the vehicle is in good condition.
4. When using a fire truck, pay attention to the surrounding environment to avoid collision or damage to fire equipment.
5. When using fire water tanks, pay attention to the loading capacity and pressure of the water tank to avoid overloading or overpressure.
6. The fire pump is the core component of the fire truck and should be maintained and maintained to avoid malfunctions.
7. When using fire-fighting equipment, pay attention to safety and follow the instructions and operating specifications.
8. When using a fire truck to extinguish a fire, you should pay attention to the nature of the fire source and the size of the fire, and choose appropriate fire extinguishing methods and equipment.
9. When using fire trucks for rescue operations, attention should be paid to protecting the safety of trapped persons and avoiding secondary injuries.
10. After using the fire truck, the scene should be cleaned up in time to ensure that the fire fighting equipment is in good condition for next time use.
