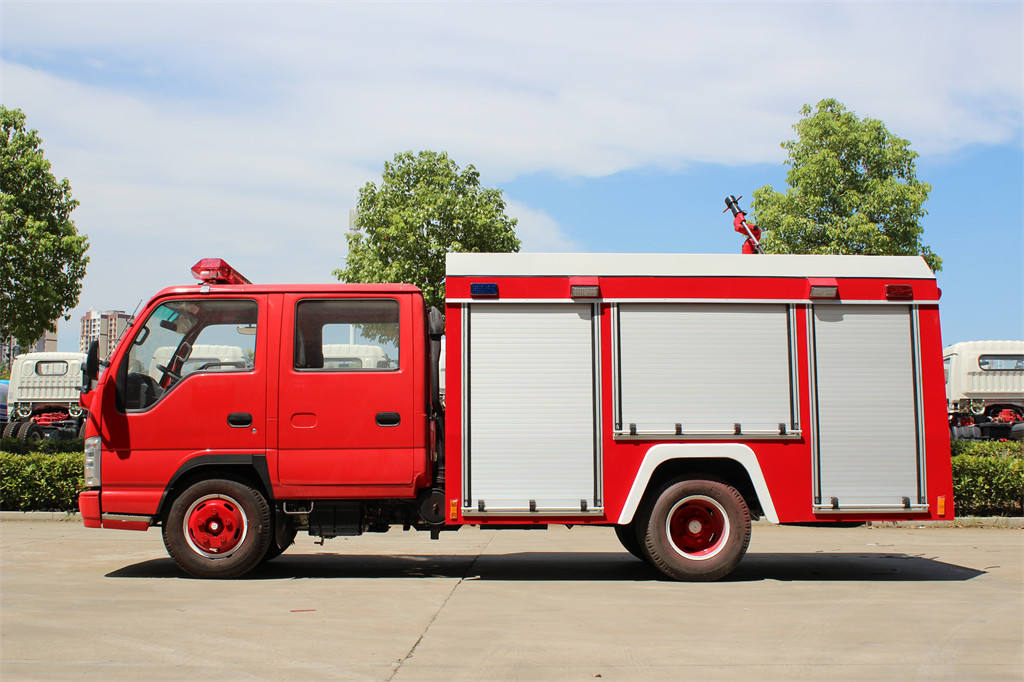

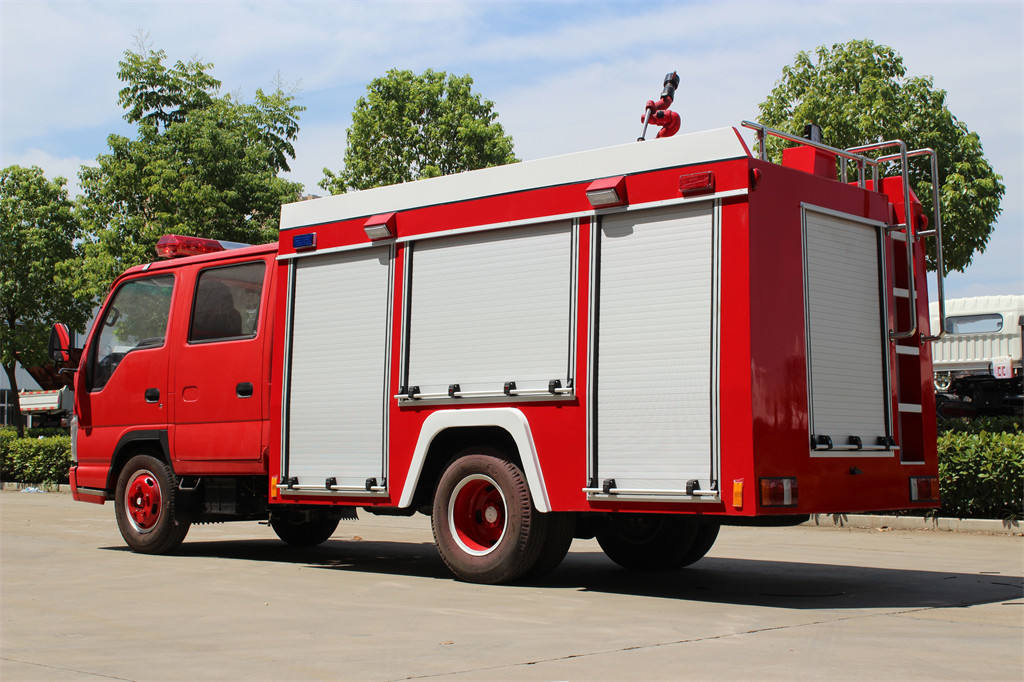

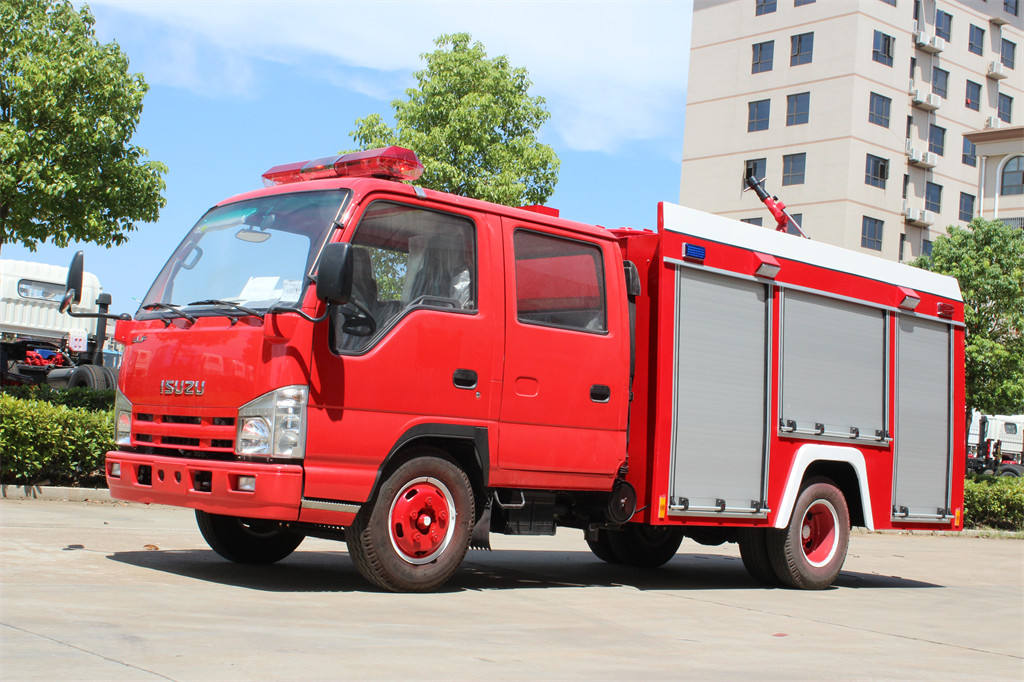

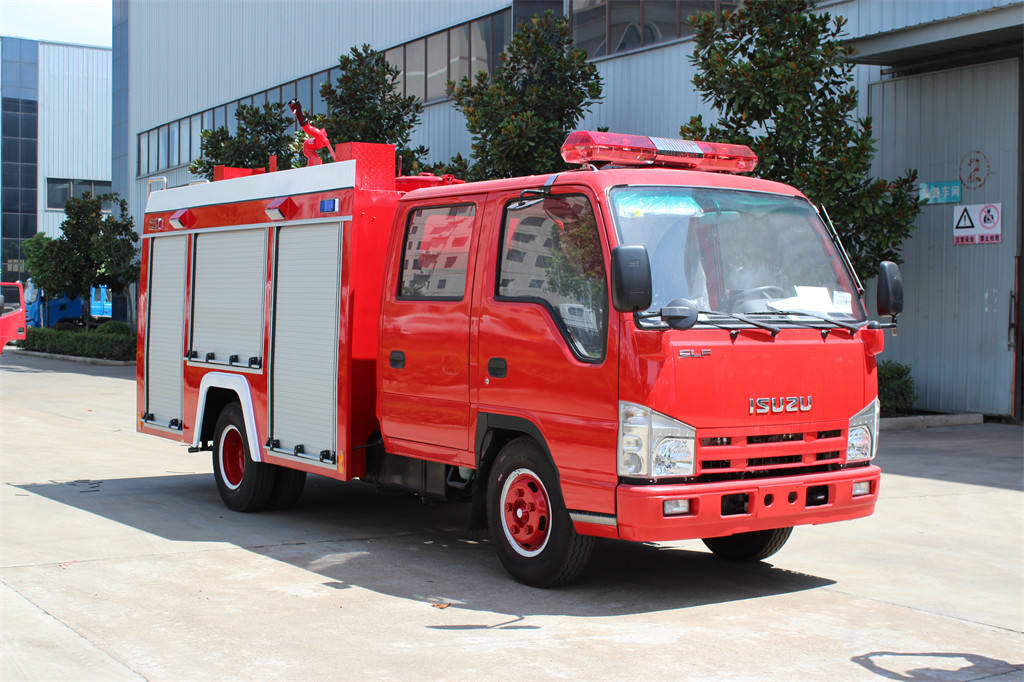

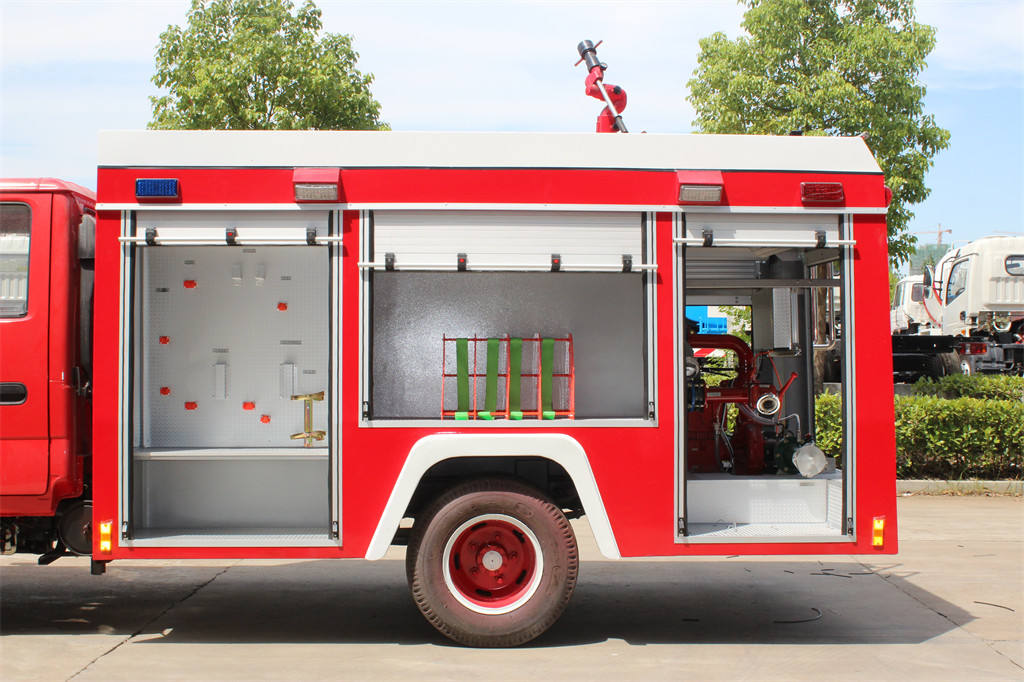

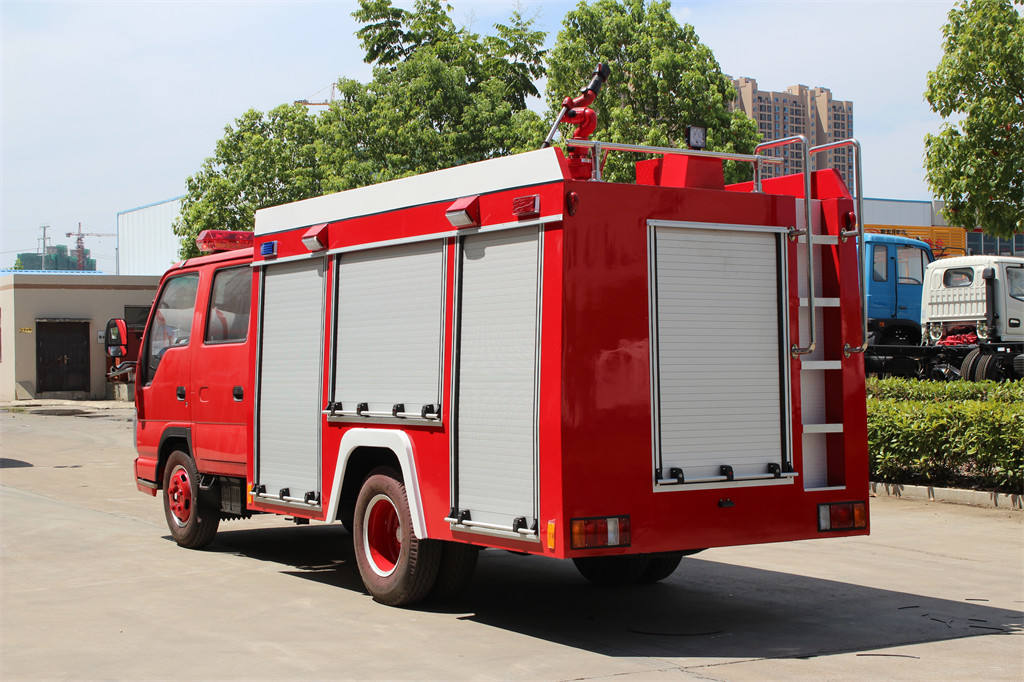

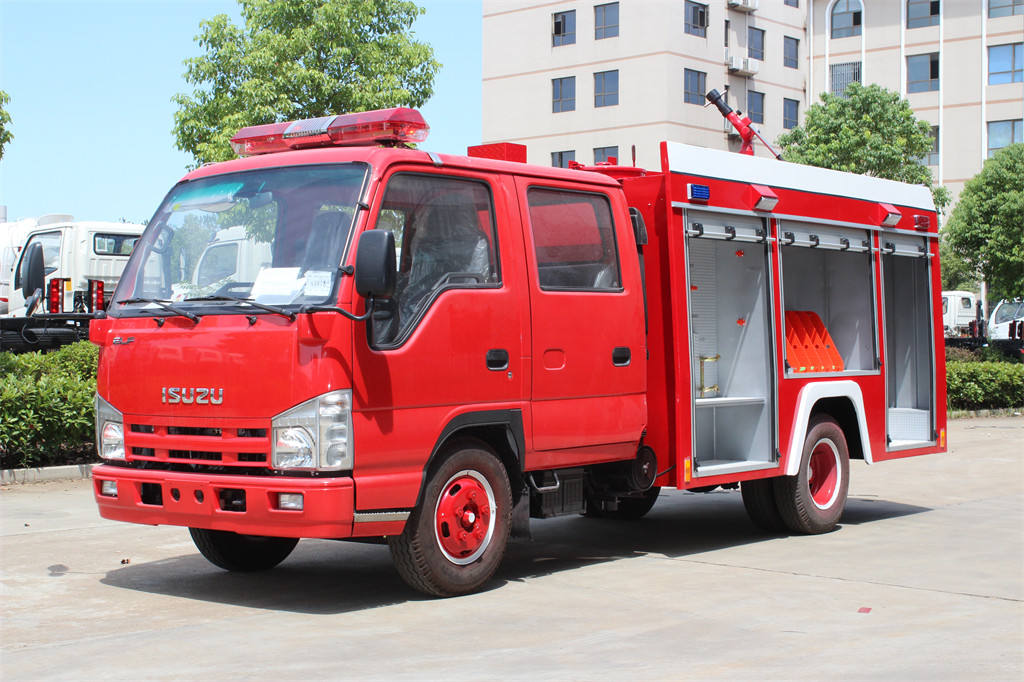

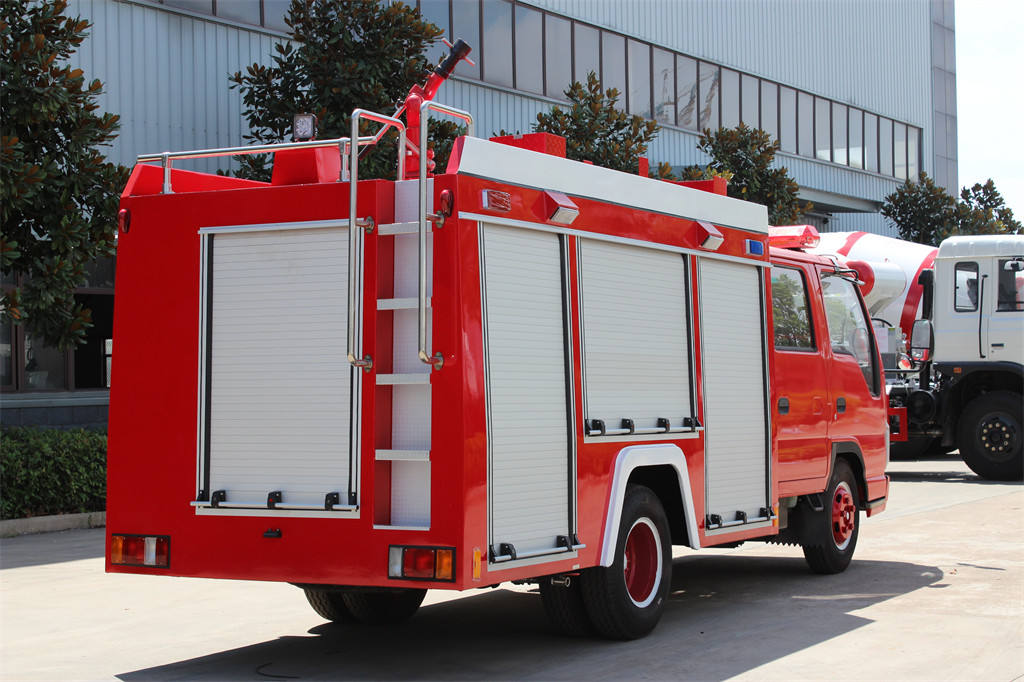

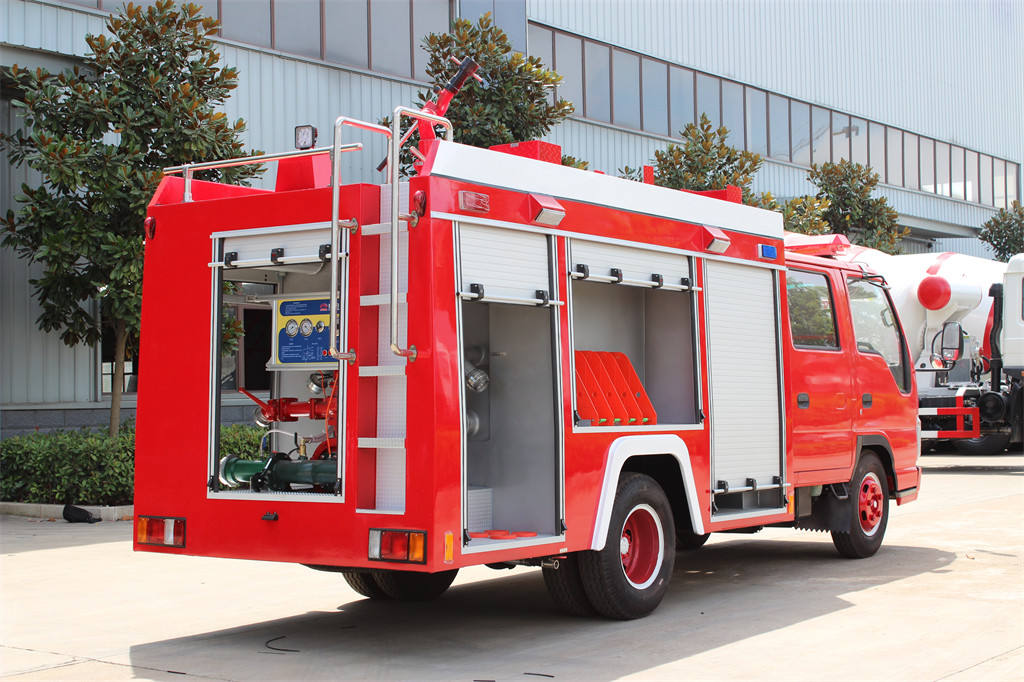

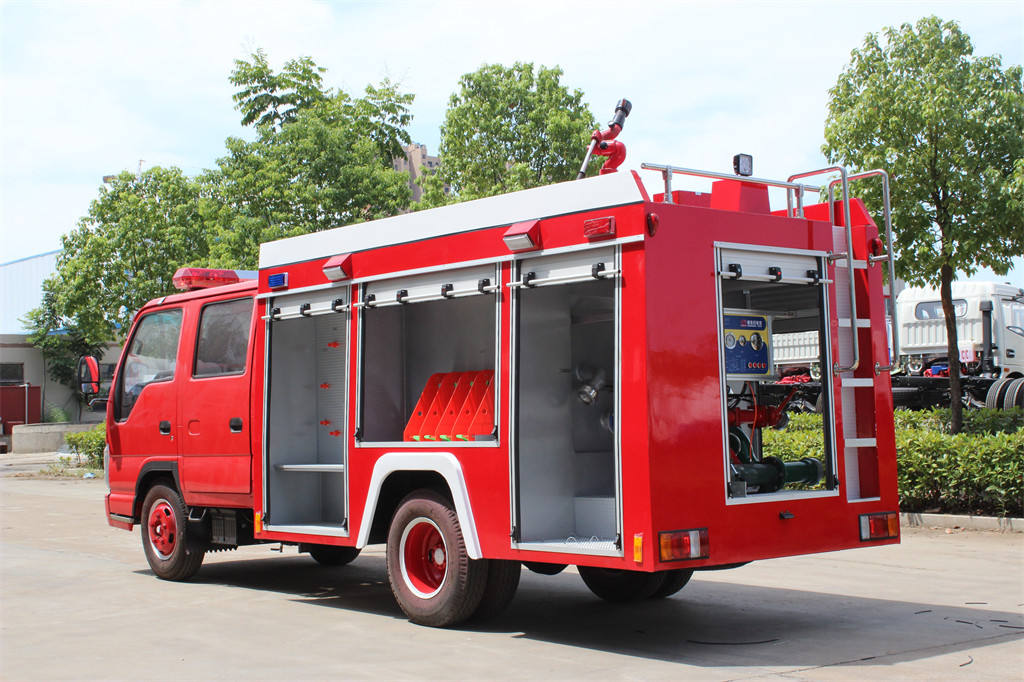

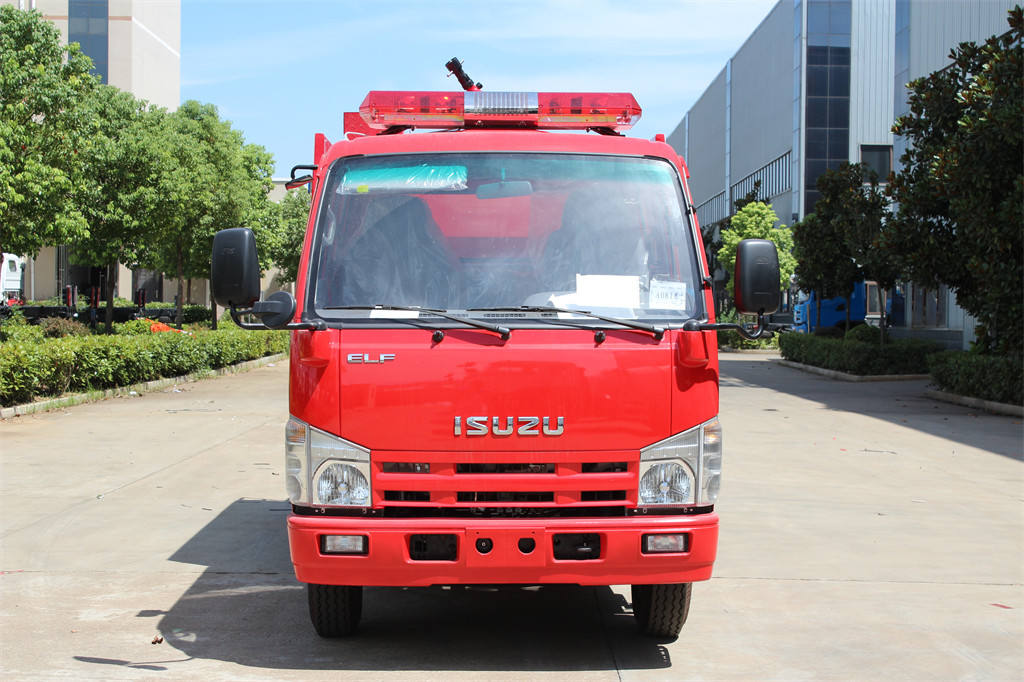

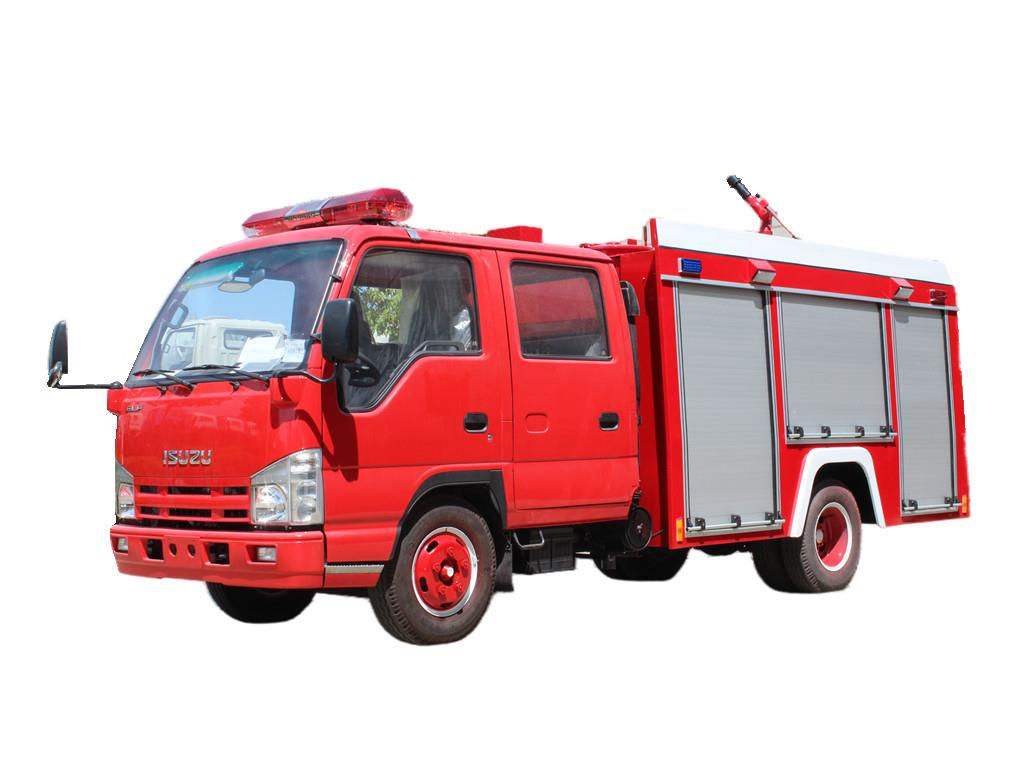

The ISUZU NKR water fire truck is a small fire engine which can carry 5 people. Based on the performance of the Isuzu NKR chassis, it is equipped with a normal pressure fire pump with good performance, and is equipped with a medium-pressure hose and a medium-pressure water gun. It can quickly approach the fire scene to start a fire-fighting battle and improve the fire-fighting efficiency, reduce secondary losses. The Isuzu fire truck is suitable for professional fire brigades and corporate fire brigades to extinguish house construction and general solid material fires.
Work capacity:
3000 LitersTruck model:
PT5070GXFSG3Engine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speedRemarks:
ISUZU water fire truck with customized design
Compact body design: The Isuzu 100P water tender adopts a compact body design, which means that it can easily shuttle through narrow streets and places, which allows it to arrive at the fire scene quickly and start firefighting work as early as possible. Additionally, the compact design means it makes it easier to find a parking space in the city, which is important for both daily maintenance and attendance.

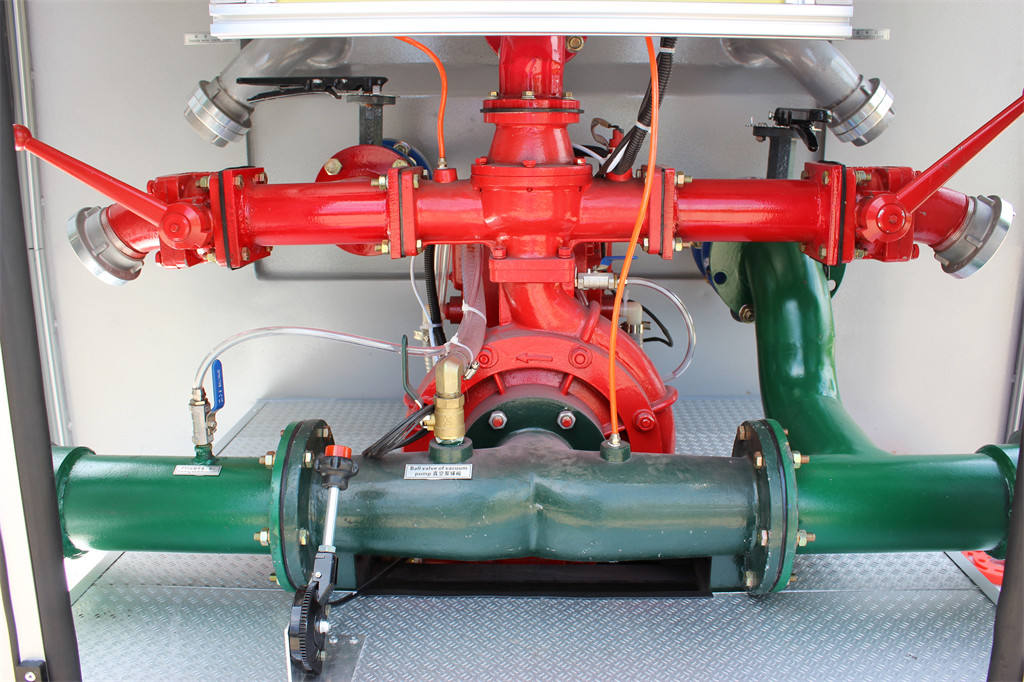

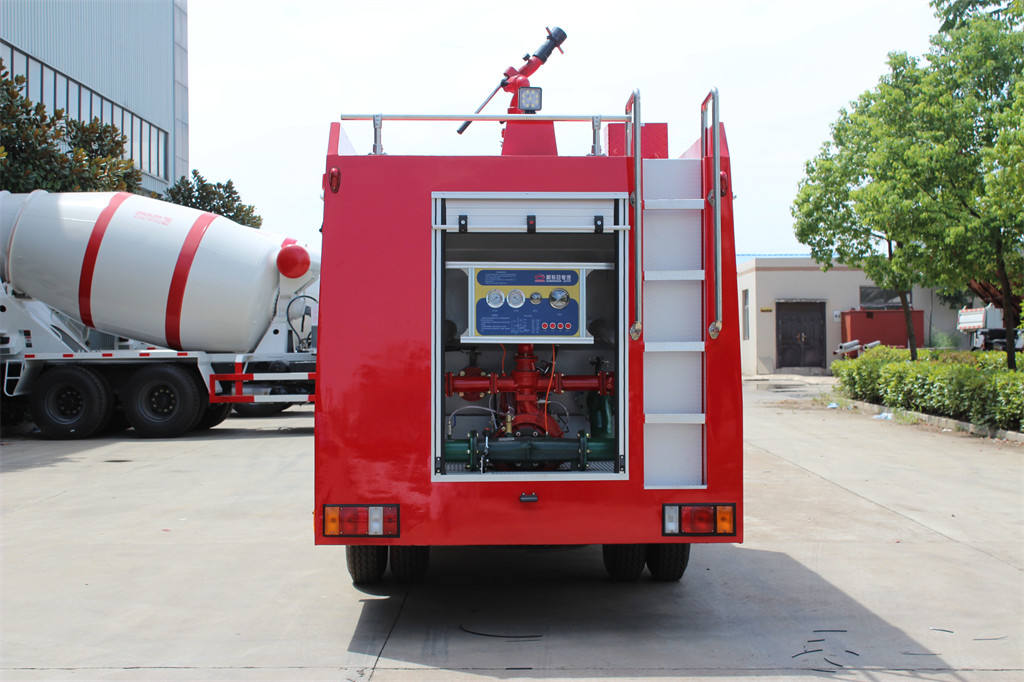

Efficient fire pump: The Isuzu 100P water tender is equipped with a high-quality fire pump, which has a large flow rate and pressure and can quickly pump out the water in the tank and spray it to the source of the fire. This design allows firefighters to control the fire in a short time and reduce the losses caused by the fire. At the same time, the pump room is designed at the rear of the vehicle, making operation more convenient. The instrument panel and control system in the pump room allow the driver to monitor working conditions and operate the water pump at the rear of the car, improving operational flexibility.

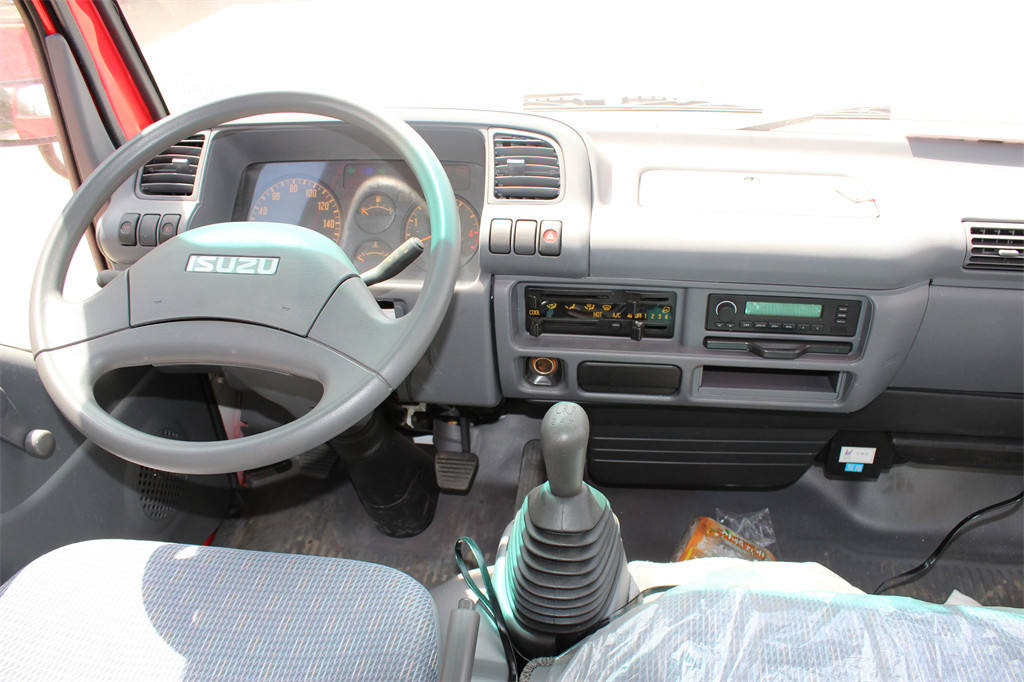

Humanized operation and control system: This Isuzu fire truck adopts a humanized operation and control system design, so the driver can easily operate fire pumps, water guns and other equipment. This design enables the driver to perform various operations quickly and accurately during the intense fire-fighting process, improving fire-fighting efficiency. In addition, the control system also has automated functions, such as automatic start and stop, water level monitoring, etc. These functions further improve the convenience and safety of fire extinguishing operations.
Product Specifications
|
TECHNICAL SPECIFICATIONS |
||
|
Main specifications |
Chassis brand |
ISUZU |
|
Chassis model |
QL1070A6 |
|
|
Overall dimension(L*W*H) |
5998×2000×2860mm |
|
|
Water tank volume |
3,000 liters |
|
|

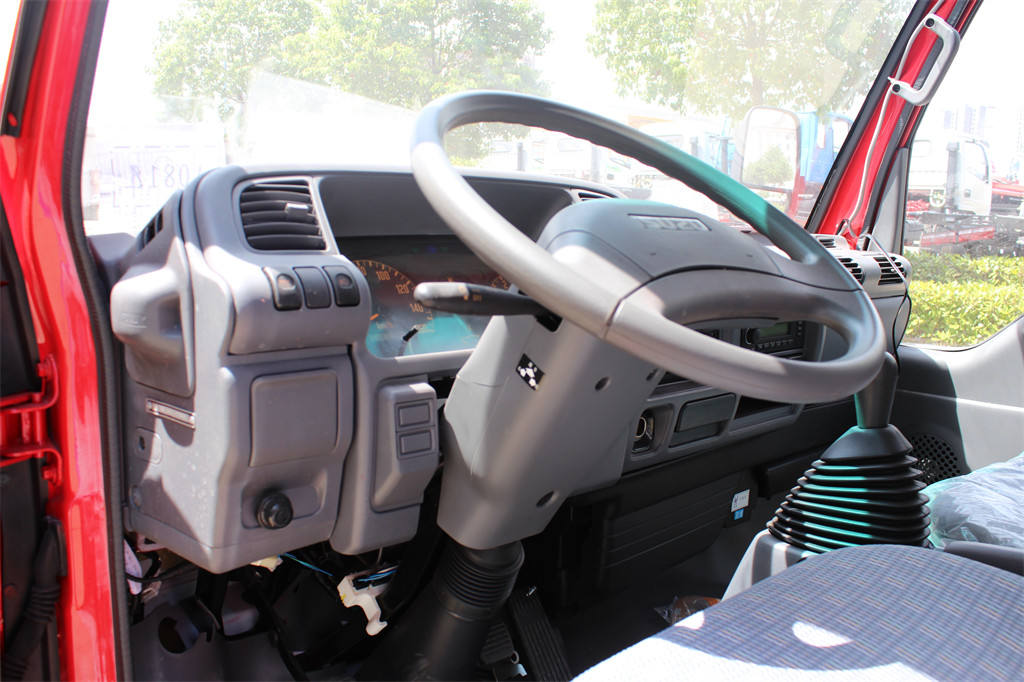

Cabin |
double cabin, with Air conditioner, electronic windows, USB |
|
|
Chassis |
Drive model |
4x2 left hand drive |
|
Axle (front/rear) loading |
2.5t/4.8t |
|
|
Front/rear suspension |
1015/1623mm |
|
|
Wheel Base |
3360mm |
|
|
Approach/departure angle |
24/13(°) |
|
|

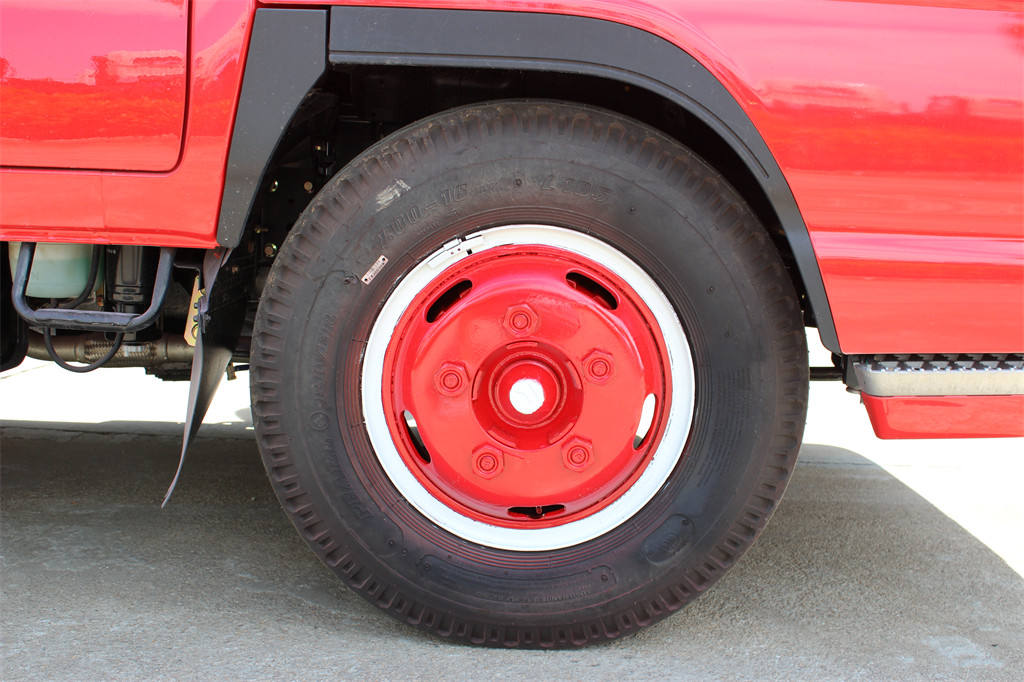

Tyre size & number |
7.00R16 with one spare tyre |
|
|
Transmission |
ISUZU MSB brand, manual, 5 gears with reverse |
|
|
Max speed |
98km/h |
|
|
Brake |
Oil brake, With ABS |
|
|
Color |
Red and white including tanker , standard . |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN5HS |
|
|
Engine Type |
Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
|
|
Horse power |
130 HP |
|
|
Displacement |
2999ml |
|
|
Emission |
Euro 5 |
|
|
Upper Body |
||
|
Water tank volume |
3000 Liters |
|
|
Tank material |
Carbon steel |
|
|
Water tank thickness |
4 mm |
|
|
Fire pump model |
CB10/30, Normal pressure pump |
|
|
Fire pump pressure |
≥1.0 Mpa |
|
|
Fire pump max suction height |
7 m |
|
|
Fire pump flow |
30 (L/S) |
|
|
Fire pump rated speed |
3000 (r/min) |
|
|
Fire pump time of drawing water |
≤35 (s) |
|
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|
Fire pump Outlet |
2 units, diameter: 65mm |
|
|

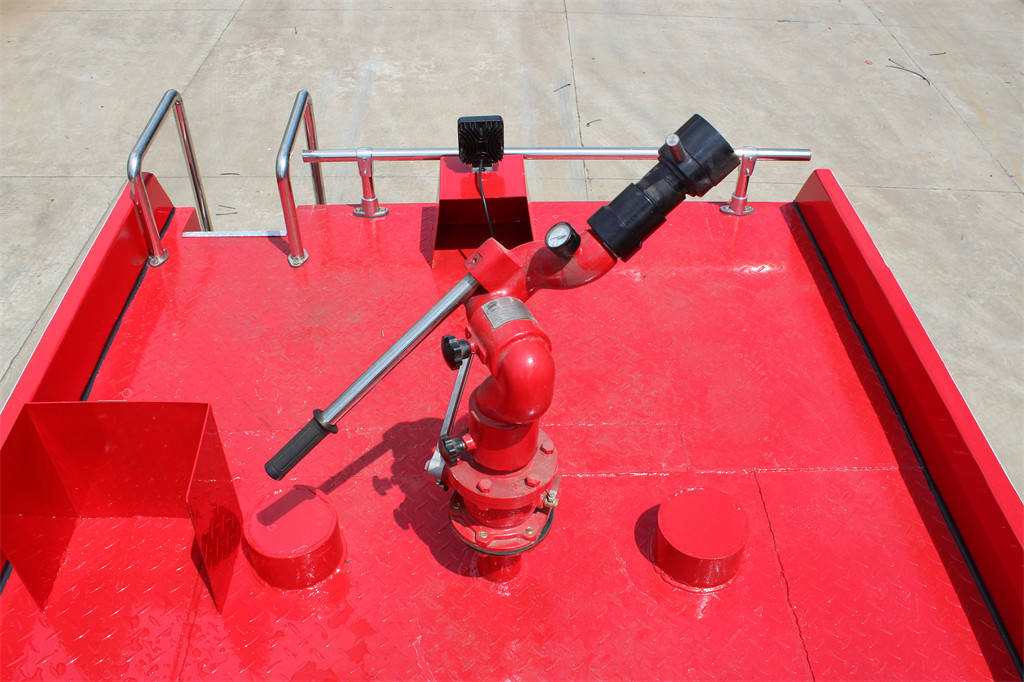

Water-foam shooter Model |
PS30, mounted on the top of tank |
|
|
Water-foam shooter nozzle range |
Water (m)≥45 m |
|
|
Max Fire Fighting Distance |
≥60m |
|
|
Fire monitor flow |
1440 (L/S) |
|
|
Fire monitor rated working pressure |
0.8 Mpa |
|
|
Fire monitor rotation angle |
360 (°) |
|
|
Standard configurations |
Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose |
|
Product Advantages
1. The efficient control and pumping system allows operators to quickly complete preparations for fire extinguishing operations.
2. High degree of intelligence: It realizes centralized computer control of the entire vehicle, has a fully functional multimedia display system, can display the working dynamics of the entire machine at any time and perform safety control, has an automatic storage and recording function, and can display fault codes and fault conditions.
3. The vehicle is equipped with automatic charging and inflation, megaphone, police light alarm and other devices, which can ensure the vehicle's combat readiness and rapid response.
4. Ergonomic firefighter's seat.

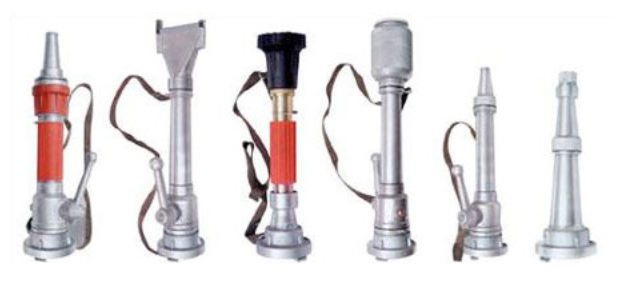

Classification and usage of special water guns for Isuzu fire trucks:
1. Classification of water guns for Isuzu fire trucks
1. According to the working pressure range of the water gun, it is divided into: a) low-pressure water gun (0.2MPa-1.6MPa): b) medium-pressure water gun (>1.6MPa-2.5MPa) c) high-pressure water gun (>2.5MPa-4.0MPa)
2. According to the form of fire extinguishing water sprayed by the water gun, it can be divided into: a) DC water gun b) Spray water gun c) DC spray water gun d) Multi-purpose water gun. The commonly used water guns are direct flow and spray water guns.
DC water gun
The water flow injected by the DC water gun is columnar, with long range, large flow rate and strong impact. It is used to extinguish general solid material fires and provide auxiliary cooling during fire extinguishing. Generally, they can be divided into ordinary DC water guns and switch DC water guns. The switch DC water gun is composed of a ball valve switch and other components, and can control the water flow through the switch.
Spray water gun
A water gun that sprays mist-like water flow has a strong ability to extinguish indoor fires in buildings. It can also extinguish live equipment fires, combustible dust fires, and some oil fires.
Multipurpose water gun
It can spray straight jets, mist jets, and some can also spray water curtains, and several water flows can be interchanged and used in combination, with good maneuverability and good adaptability to fire scenes.
Multifunctional water gun
The water gun has the advantages of small reaction force, easy operation, the flow rate and jet state can be adjusted according to the needs of fire extinguishing, and it is easy to straighten out the distortion and knotting of the water belt.
2. How to use the water gun of Isuzu fire truck
1. Open the fire hydrant door and take out the water hose and water gun.
2. Check whether the hose and joints are in good condition. If they are damaged, do not use them.
3. Lay the hose in the direction of the fire scene, taking care to avoid twisting.
4. Connect the water hose to the fire hydrant, insert the connecting buckle into the chute accurately, and tighten it clockwise.
5. After the connection is completed, at least two operators should hold the water gun tightly and aim it at the fire source (it is strictly prohibited to target people to avoid high-pressure injuries). The other operator slowly opens the fire hydrant valve to the maximum and sprays at the root of the fire source. Fight the fire until it is completely out.
